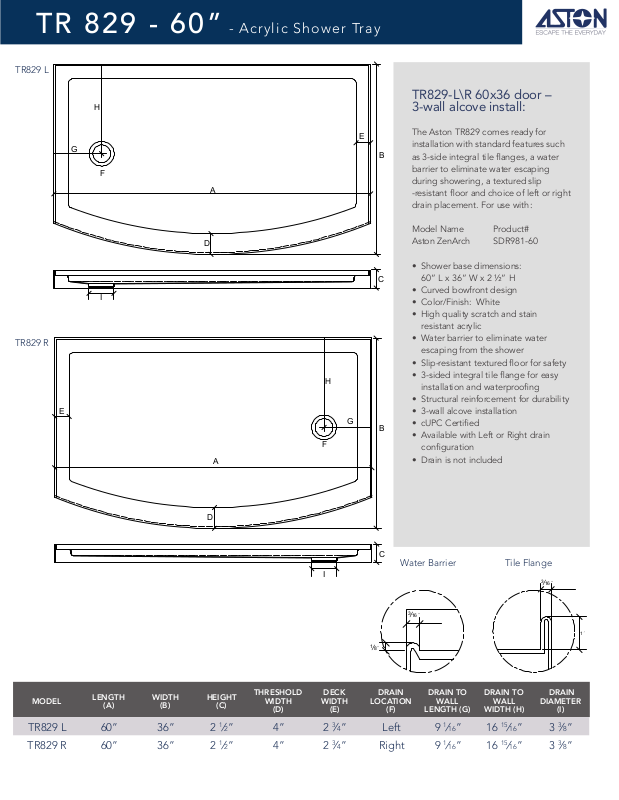

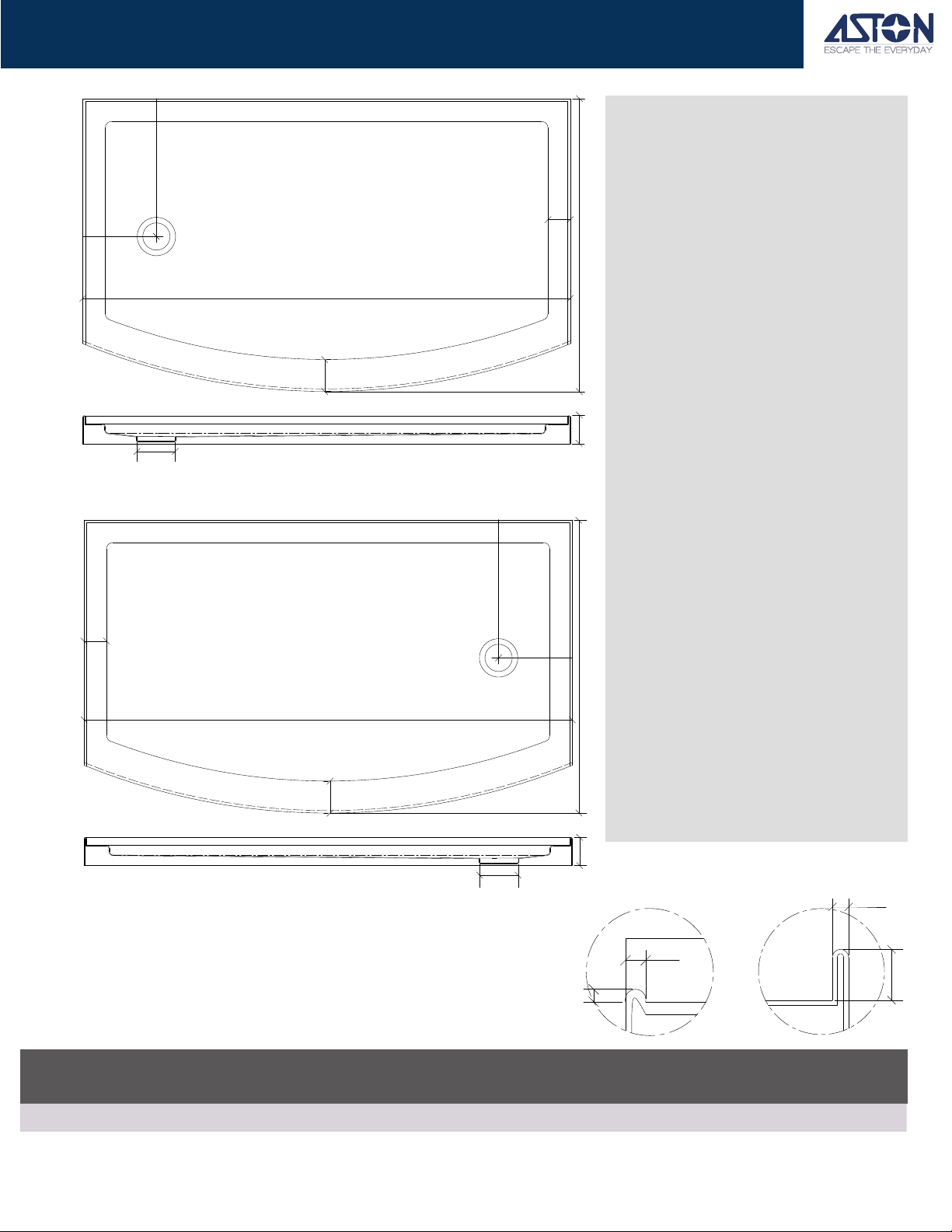

TR 829 - 60” - Acrylic Shower Tray
TR829 L
H
G
F
A
D
I
TR829 R
H
E
F
A
TR829-L\R 60x36 door –
3-wall alcove install:
E
B
C
G
B
The Aston TR829 comes ready for
installation with standard features such
as 3-side integral tile anges, a water
barrier to eliminate water escaping
during showering, a textured slip
-resistant oor and choice of left or right
drain placement. For use with：
Model Name Product#
Aston ZenArch SDR981-60
• Shower base dimensions:
60” L x 36” W x 2 ½” H
• Curved bowfront design
• Color/Finish: White
• High quality scratch and stain
resistant acrylic
• Water barrier to eliminate water
escaping from the shower
• Slip-resistant textured oor for safety
• 3-sided integral tile ange for easy
installation and waterproong
• Structural reinforcement for durability
• 3-wall alcove installation
• cUPC Certied
• Available with Left or Right drain
conguration
• Drain is not included
D
C
Water Barrier Tile Flange
I
〃
3
/
16
〃
1
/
8
MODEL
LENGTH
(A)
WIDTH
(B)
HEIGHT
(C)
THRESHOLD
WIDTH
(D)
DECK
WIDTH
(E)
DRAIN
LOCATION
(F)
DRAIN TO
WALL
LENGTH (G)
DRAIN TO
WALL
WIDTH (H)
TR829 L 60” 36” 2 1⁄2” 4” 2 3⁄4” Left 9 1⁄16” 16 15⁄16” 3 3⁄8”
TR829 R 60” 36” 2
1
⁄2”
4” 2
3
⁄4”
Right 9
1
⁄16”
16
15
⁄16”
〃
3
/
16
DRAIN
DIAMETER
(I)
3
3
⁄8”
〃
1
