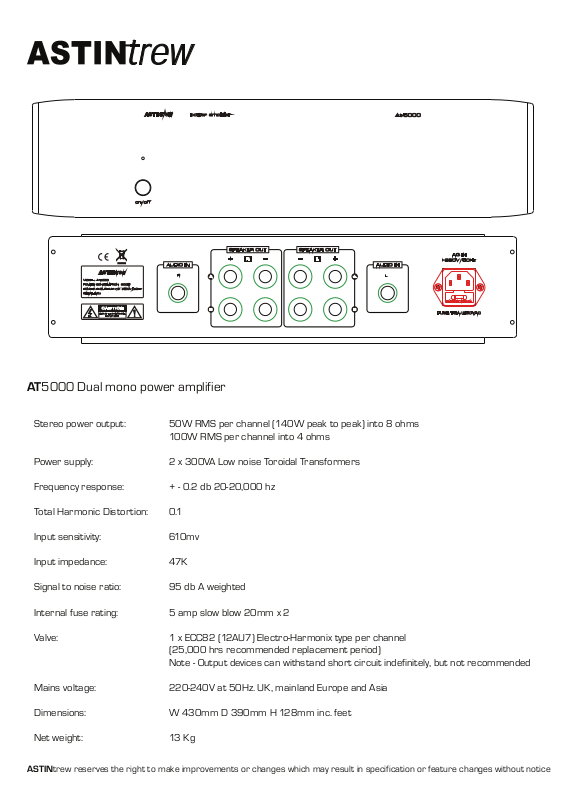

ASTINtrew AT-5000 Brochure

AT5000 Dual mono power amplifier

Stereo power output:

Power supply:

Frequency response:

Total Harmonic Distortion:

Input sensitivity:

Input impedance:

Signal to noise ratio:

Internal fuse rating:

Valve:

Mains voltage:

50W RMS per channel (140W peak to peak) into 8 ohms
100W RMS per channel into 4 ohms

2 x 300VA Low noise Toroidal Transformers

+ - 0.2 db 20-20,000 hz

0.1

610mv

47K

95 db A weighted

5 amp slow blow 20mm x 2

1 x ECC82 (12AU7) Electro-Harmonix type per channel
(25,000 hrs recommended replacement period)
Note - Output devices can withstand short circuit indefinitely, but not recommended

220-240V at 50Hz. UK, mainland Europe and Asia

Dimensions:

Net weight:

ASTINtrew reserves the right to make improvements or changes which may result in specification or feature changes without notice

W 430mm D 390mm H 128mm inc. feet

13 Kg
