1 2 3 4
•
5 6
•

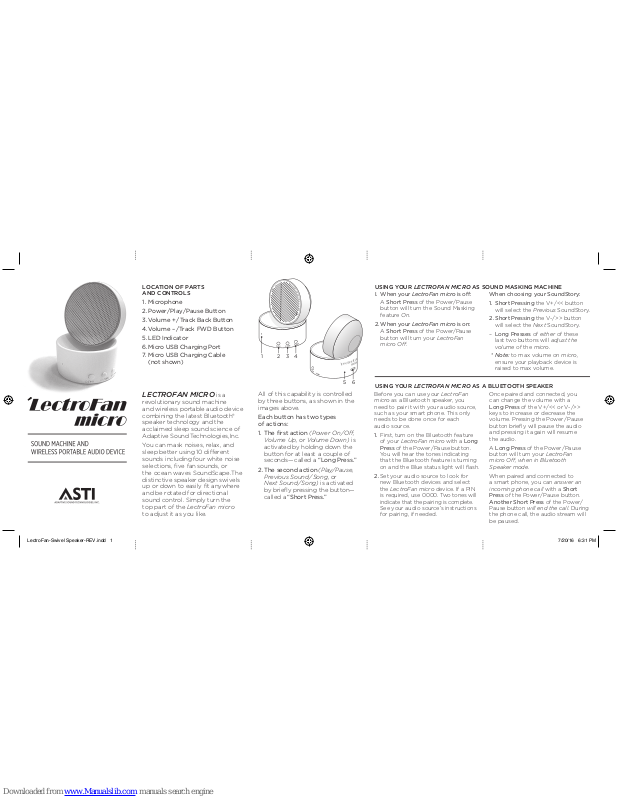

LECTROFAN MICRO is a
revolutionary sound machine
and wireless portable audio device
combining the latest Bluetooth®
speaker technology and the
acclaimed sleep sound science of
Adaptive Sound Technologies, Inc.
You can mask noises, relax, and
sleep better using 10 di erent
sounds including four white noise
selections, fi ve fan sounds, or
the ocean waves SoundScape. The
distinctive speaker design swivels
up or down to easily fi t anywhere
and be rotated for directional
sound control. Simply turn the
top part of the Le ctroFan micro
to adjust it as you like.
All of this capability is controlled
by three buttons, as shown in the
images above.
Each button has two types
of actions:
1. The fi rst action (Power On/O ,
Volum e Up, or Volume Down) is
activated by holding down the
button for at least a couple of
seconds— called a “Long Press.”
2. The second action (Play/Pause,
Previous Sound/ Song, or
Next Sound/Song) is activated
by bri efl y pressing t he bu tton—
called a “Short Press.”
Before you can use your Lectro Fan
micro as a Bluetooth speaker, you
need to pair it with your audio source,
such as your smart phone. This only
needs to be done once for each
audio source.
1. First, turn on the Bluetooth feature
of your Lect roFan micro with a Long
Press of the Power/Pause button.
You will hear the tones indicating
that the Bluetooth feature is turning
on and the Blue status light will fl ash.
2. Set your audio source to look for
new Bluetooth devices and select
the Lect roFan micr o device. If a PIN
is required, use 0000. Two tones will
indicate that the pairing is complete.
See your audio source’s instructions
for pairing, if needed.
I. When your Lectro Fan mic ro is o :
A Short Press of the Power/Pause
button will turn the Sound Masking
feature On.
2. When your Lectro Fan m icro i s on :
A Short Press of the Power/Pause
button will turn your LectroFan
micro O .
USING YOUR LECTROFAN MICRO AS SOUND MASKING MACHINE
USING YOUR LECTROFAN MICRO AS A BLUETOOTH SPEAKER
When choosing your SoundStory:
1. Short Pressing the V+/<< button
will select the Previous SoundStory.
2. Short Pressing the V-/>> button
will select the Next SoundStory.
– Long Presses of either of these
last two buttons will adjust the
volume of the micro.
* Note: to max volume on micro,
ensure your playback device is
raised to max volume.
Once paired and connected, you
can change the volume with a
Long Press of the V+/<< or V-/>>
keys to increase or decrease the
volume. Pressing the Power/Pause
button briefl y will pause the audio
and pressing it again will resume
the audio.
A Long Press of the Power/Pause
button will turn your LectroFan
micro O , when in Bluetooth
Speaker mode.
When paired and connected to
a smart phone, you can answer an
incoming phone call with a Short
Press of the Power/Pause button.
Another Short Press of the Power/
Pause button will end the call. During
the phone call, the audio stream will
be paused.
LOCATION OF PARTS
AND CONTROLS
1. Microphone
2. Power/Play/ Pause Button
3. Volume +/ Track Back Button
4. Volume –/ Track FWD Button
5. LED Indicator
6. Micro USB Charging Port
7. Micro USB Charging Cable
(not shown)
LectroFan-Swivel Speaker-REV.indd 1 7/20/16 6:31 PM
Page 2
CHARGING LECTROFAN MICRO
The Lec troFa n mic ro includes a
Lithium Ion rechargeable battery
for hours of cord-free enjoyment,
when a power source is not
conveniently available. When near
a power source, you can use your
Lect roFan micr o indefinitely while
plugged into a power adapter, etc.
To charge the battery, plug the
micro USB plug of the included
power cable to the micro-USB
jack on Lect roFan micr o and the
USB-A end of the cable into a
power source, such as a standard
USB power adapter, a computer’s
USB jack, etc. While charging, the
Lect roFan micr o’s LED light will
glow red and will turn o after
the battery is charged.
RESETTING LECTROFAN MICRO
During normal use, LectroFan
micro should not need to be reset.
If you wish to perform a hard
reset, press the Power Button
and hold it for 15 seconds. A tone
will confirm that the system has
been reset and a fan sound will
begin to play.
BATTERY PERFORMANCE
Note: The Fan a nd Whi te Noi se
sound can operate when
battery power is lower, but the
Bluetooth mode may require
higher battery charge. Please
ensure a strong battery charge
to use Bluetooth ca pability.
SPECIFICATI ON S
Power: USB-A power source able to
supply 5 V at 1 Amp. (Not included)
Audio Output: 3 Watts or less
Bluetooth Compatibility:
Bluetooth 2.0 or greater
Bluetooth Range: 33 feet (10 meters)
Lithium-Ion Battery Capacity:
680 mAh
Battery Run Time:
- Up to 6 hours for bluetooth audio
- Up to 16 hours for white noise/
fan sounds
Battery Charge Time: 4 hours
LITHIUM-ION BATTERY
Lect roFan micro contains a non-removable
lithium-ion battery. Local, state or federal
laws may prohibit disposal of lithium-ion
batteries in ordinary trash. Consult your
local waste authority for information
regarding available recycling and/or
disposal options.
SOFTWARE LICENSING
The soft ware contained in the LectroFan
micro is licensed to you, not sold to you.
This is only to protect our intellectual
property and has no eect on your ability
to use the LectroFa n mi cro wherever you
please. See http://asticorp.com/sw-license
for more informatio n.
ONE YEAR LIMITED WARRANTY
Adaptive Sound Technologies, Inc., hereinafter
referred to as ASTI, warrants this product
against defects in materials and/or workmanship under normal use for a period of ONE (1)
YEAR from the date of purchase by the original
purchaser (“Warranty Period”). If a defect arises
and a valid claim is received within the Warranty
Period, at its option, ASTI will either 1) repair the
defect at no charge, using new or refurbished
replacement parts, or 2) replace the product
with a current product that is close in functionality to the original product. A replacement
product or part, including a user-installable
part installed in accordance with instructions
provided by ASTI, is covered by the remaining
warranty o f the origina l purchase.
When a product or part is exchanged, the
replacement item becomes your property and
the replaced item becomes ASTI’s property.
Obtaining Service: To obtain warranty service
please call, or email, your reseller. Please be
prepared to describe the product that needs
service and the nature of the problem. All
repairs and replacements must be authorized
in advance by your reseller. A purchase receipt
must accompany all returns. Service options,
parts availability and response times will vary.
Limits and Exclusions: This Limited Warranty
applies only to the Lectr oFan micro, and the
included power cable.
This warranty does not apply to : a) damage
caused by failure to follow instructions relating
to the product’s use or to the installation of
components; b) damage caused by accident,
abuse, misuse, fire, floods, earthquake or other
external causes; c) damage caused by service
performed by anyone who is not a representative of ASTI; d) accessories used in conjunction
with a covered product; e) a product or part
that has been modified to alter functionality
or capability; f) any and all pre-existing conditions that occur prior to the eective date of
this Limited Warranty relating to any product
sold “as is” including, without limitation, floor
demonstration models and refurbished items.
ASTI SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM
THE USE OF THIS PRODUCT, OR ARISING OUT
OF ANY BREACH OF THIS WARRANTY. TO THE
EXTENT PERMITTED BY APPLICABLE LAW, ASTI
DISCLAIMS ANY AND ALL STATUTORY OR IMPLIED
WARRANTIES, INCLUDING, WITHOUT LIMITATION,
WARRANTIES OF MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE AND WARRANTIES
AGAINST HIDDEN OR LATENT DEFECTS. IF ASTI
CANNOT LAWFULLY DISCLAIM STATUTORY OR
IMPLIED WARRANTIES, THEN TO THE EXTENT
PERMITTED BY LAW, ALL SUCH WARRANTIES
SHALL BE LIMITED IN DURATION TO THE DURATION OF THIS EXPRESS WARRANTY.
Some geographic areas disallow the exclusion
or limitation of incidental or consequential
damages or the length of an implied warranty.
As a consequence, some of the above exclusions or limitations may not apply to buyers
residing in those areas. This warranty grants
specific legal rights to buyers, but other rights
may also be granted, which vary from country
to country, state to state, etc.
FCC Declaration
This equipment has been tested and found
to comply with the limits for a Class B Digital
Device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy,
and if not installed and used in accordance with
the instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is
encouraged to try to correct the interference
by one o r more of t he followin g measures:
đƫ !+.%!*0ƫ+.ƫ.!(+0!ƫ0$!ƫ.!!%2%*# ƫ*0!**ċ
đƫƫ*.!/!ƫ0$!ƫ/!,.0%+*ƫ!03!!*ƫ0$!ƫ
equipment and receiver.
đƫƫ+**!0ƫ0$!ƫ!-1%,)!*0ƫ0+ƫ*ƫ+10(!0ƫ+*ƫƫ
circuit dierent from the one to which the
receiver is connected .
đƫƫ+*/1(0ƫ0$!ƫ !(!.ƫ+.ƫ*ƫ!4,!.%! *! ƫ. % +ĥ
TV technician for help.
Declaration of Conformity Trade Name:
LectroFan micro
System Model Na me: ASM1017
Responsible Party: Adaptive Sound
Tec h n o l o g i e s , In c .
Address: 1475 South Bascom Avenue
Campbell, CA 95008 USA
Tel e p h on e N u mb e r : 1-408-377-3411
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired operation. Changes or modifications not expressly
approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
© 2016 Adaptive Sound Technologies, Inc.
All Rights Reserved. LectroFan, Adaptive Sound
Technologies, and the ASTI logo are trademarks
or registered trademarks of Adaptive Sound
Technologies, Inc. All other marks, including
Bluetooth®, are registered trademarks of their
respecti ve owners.
