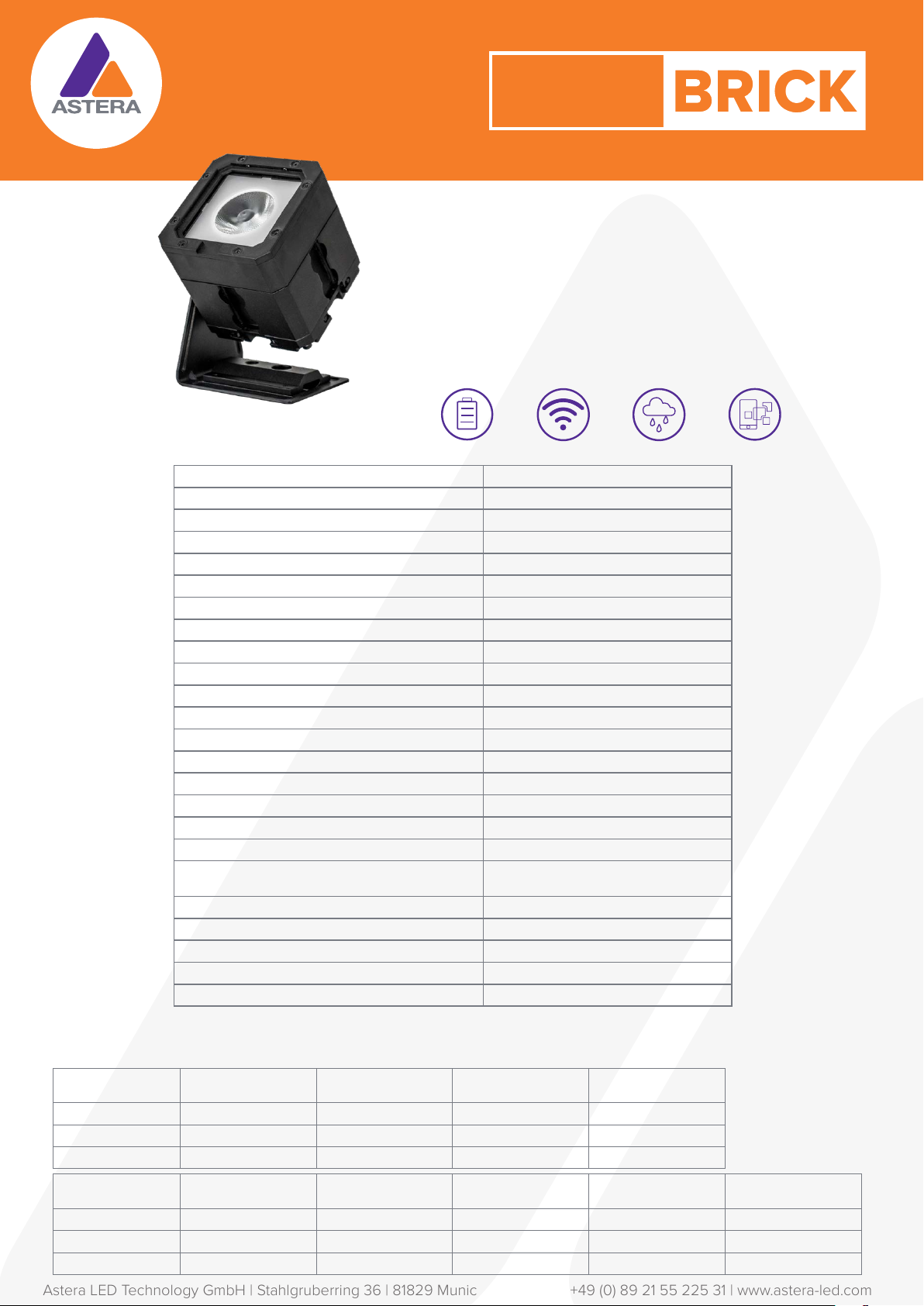

Astera PixelBrick Datasheet

Datasheet

PIXEL

Date: 09/22/20 Version: 1.0

This multi-purpose spotlight is not much larger than an
AX3 but features all our latest technological achieve­ments such as Titan LED Engine, CRMX & wired DMX
via PowerBox and direct App control without ART7. Each
of its 4 sides includes an airline track and a nifty rail
to slide-in mounting accessories which allows a quick
connection of several PixelBricks to form clusters and
geometrical shapes.

SPECIFICATIONS

Order Code PB15

LED Engine Titan LED Engine

Colors RGBMintAmber

Total LED Power 15W

Power Draw 12W

Light Output – 2700k, 3200k, 5500k* 388lm, 450lm, 375lm

CRI(Ra)/TLCI 3200-6500k* ≥96

Beam Angle 13°

Strobe 0 - 25Hz

Pixel 1

Battery Lifetime 70 % after 300 cycles

Battery Runtime up to 20 hours

Charging Time (nominal) 5 hrs

Input Voltage 24VDC

Input Current 0.8A

Wired DMX Yes (via PWB-2-86)

CRMX Receiver Built in

Wireless Frequencies CRMX 2.4GHz, UHF, Bluetooth

Range (m/yds)

Housing Material Aluminium

IP Rating IP65

Ambient Temperature (°C/°F) 0° - 40° / 32° - 104°

Weight (kg/lbs) 1.12 / 2.47

Dimensions (mm/inches) 91 x 91 x 94 / 3.6 x 3.6 x 3.7

AppIP65Wireless DMXMax 20h

300/330

(Bluetooth 3/3,3)

*Typical values

RF CHARACTERISTICS

Wireless Modules

Modulation

ERP (Transmitter)

Channel Count

Wireless Modules

Modulation

ERP (Transmitter)

Channel Count

Astera LED Technology GmbH | Stahlgruberring 36 | 81829 Munich - Germany | [phone] | www.astera-led.com

EU: UHF

(863-870MHz)

FHSS FHSS FHSS FHSS

<25mW <25mW <25mW <25mW

47 53 53 41

KOR: UHF

(917.9-921.5MHz)

FHSS FHSS FHSS FHSS FHSS

<25mW <25mW <25mW - 10mW (BLE)

10 6 19 79 40

USA: UHF

(917-922.20MHz)

RUS: UHF

(868.75-869.12MHz)

AUS: UHF

(922.30-927.50MHz)

JPN: UHF

(922.80-926.40MHz)

SGP: UHF

(920.50-924.50MHz)

CRMX

(2402-2480MHz)

Bluetooth 5.0 LE
(2402-2480MHz)

BUILT-IN BLUETOOTH AND UHF TRANSMITTER

106 mm

97.5 mm

134 mm

Connect directly to a PixelBrick via Blue­tooth. This master light will revert AsteraApp
commands to all other NYX Bulbs and other
Astera lights via UHF band.

DRAWINGS

WITHOUT BRACKET

94 mm

91 mm

UHF

91 mm

WITH BRACKET

134 mm

106 mm

SOCKETS, AIRLINE TRACK, THREADS

97.5 mm

M5 threads for

hanging or safety

Power+Data IN/OUT

Astera LED Technology GmbH | Stahlgruberring 36 | 81829 Munich - Germany | [phone] | www.astera-led.com

BrickMount System:

4 Airline Tracks with quick lock for
flexible and safe mounting

Quickly merge several PixelBricks to build clusters
and shapes.

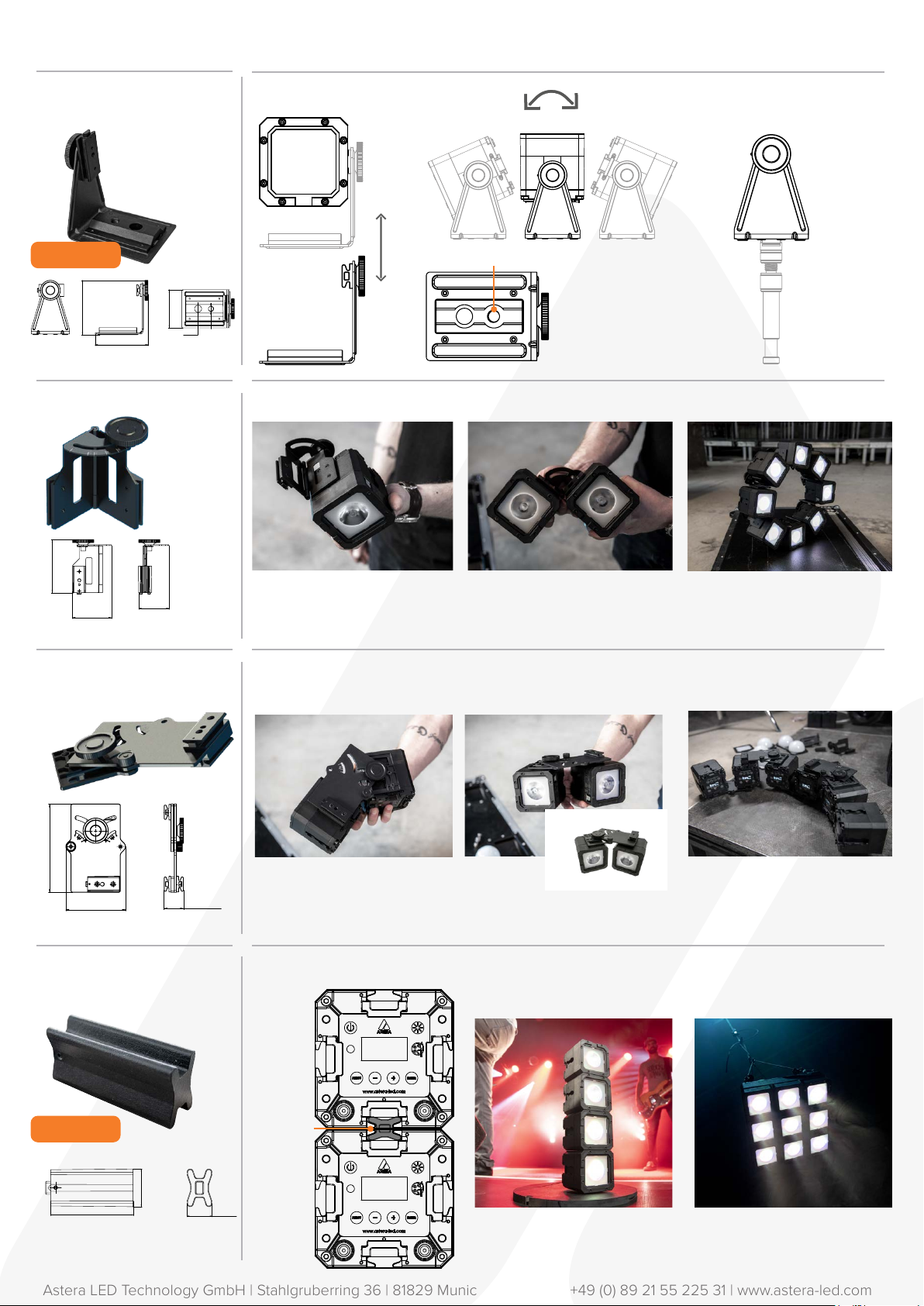

ACCESSORIES

105 mm

108.5 mm

76 mm

BrickBracket

PB15-BBR

included

108.5 mm

105 mm

Weight (1pc): 270g / 5.59lbs

BrickHinge

PB15-BHI

Ø14 mm

3/8“-16 UNC

Removeable AirlineTrack on bottom

Tiltable

for mounting

3/8“-16 UNC

BrickHinge on PixelBrick to create several shapes

100 mm

73.1 mm

57 mm

Weight: 220g / 0.48lbs

BrickTilt

PB15-BTLT

139 mm

94 mm

Weight: 270g / 0.59lbs

BrickConnect

PB15-BCN

30.5 mm

BrickTilt on PixelBrick Tilt the angle of the Pixel-

Brick outward or inward

Connect your PixelBricks to several shapes

Build creative shapes

included

Weight (1pc): 27g / 0.059lbs

50 mm

23 mm

BrickConnect

15.2 mm

Astera LED Technology GmbH | Stahlgruberring 36 | 81829 Munich - Germany | [phone] | www.astera-led.com

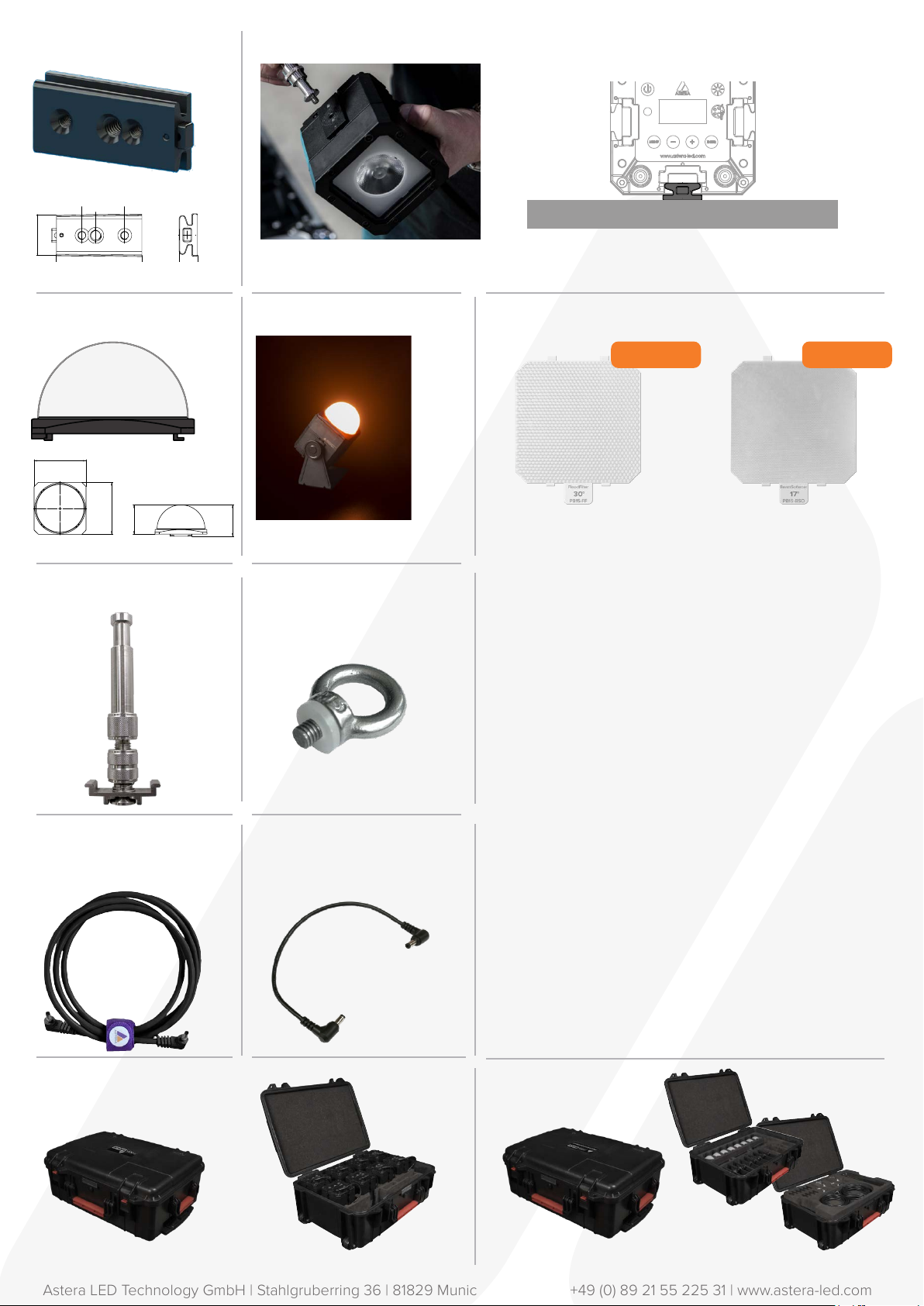

BrickMount

M5 M5

53.3 mm

49.7 mm

PB15-BMO

1/4“ - 20 UNC

24 mm

Weight (1pc): 25g / 0.55 lbs

BrickMount on PixelBrick

Mounted on plate

BrickDome

PB15-BDM

88.3 mm

TrackPin

AX-TP

88.3 mm

BrickDome on PixelBrick

53.3 mm

EyeBolt

FP1-EBLT

Filters

FloodFilter 30°

PB15-FF

included included

BeamSoftener 17°

PB15-BSO

Power/Data Cable
5m, 10m, 15m

PWB-CAB-5/-10/-15

ChargingCase

PB15-CHRCSE

Weight (empty ): 6.8kg / 15lbs
Weight (full): 16.3kg / 36lbs

Astera LED Technology GmbH | Stahlgruberring 36 | 81829 Munich - Germany | [phone] | www.astera-led.com

Power/Data Cable
0,2m

PWB-CAB-0.2

Dimensions (mm/inch)

541.5 x 400 x 205.5 / 21.3 x 17.44 x 8.1

AccessoryCase

PB15-ACCCSE

Weight (empty ): 7kg / 15.4lbs
Weight (full): 13.3kg / 29.3lbs

Dimensions (mm/inch)

541.5 x 400 x 205.5 / 21.3 x 17.44 x 8.1

CHARGING & CONNECTING

With PowerBox 2x86 (PWB-2-86)

RJ45 Socket for Artnet or sACN

AC power IN
PowerCON TRUE 1

XLR DMX OUT XLR DMX IN

2 Sockets for DC Cables
with Power + Data

AC power OUT
PowerCON TRUE 1

With Titan PowerBox (FP1-PWB)

Power/Data

Cable

Power/Data Cable

10 Sockets for DC Cables
with Power + Data

TYPICAL SPECTRAS

RJ45 Socket for Artnet or
sACN

XLR DMX IN

XLR DMX OUT

AC power IN

AC power OUT
