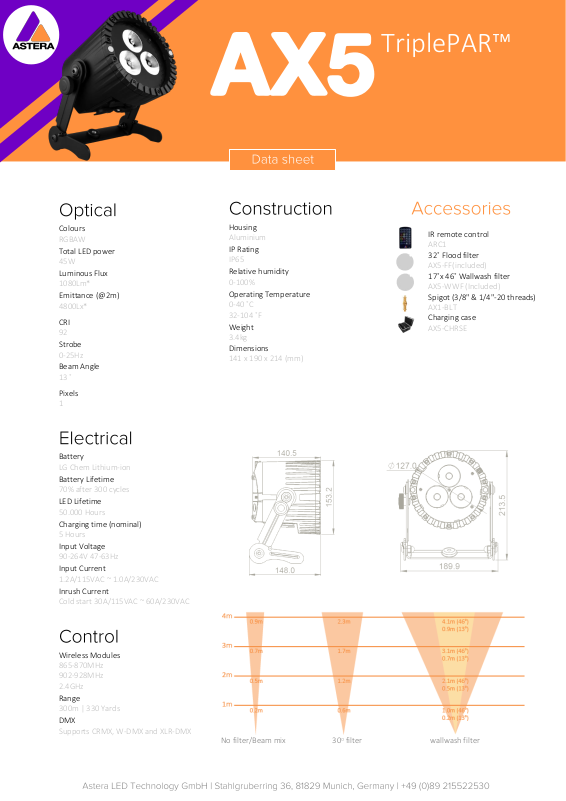

Astera AX5 User Manual

TriplePAR™

Colours

RGBAW

Total LED power

45W

Luminous Flux

1080Lm*

Emittance (@2m)

4800Lx*

CRI

92

Strobe

0-25Hz

Beam Angle

13 ˚

Pixels

1

Battery

LG Chem Lithium-ion

Battery Lifetime

70% after 300 cycles

LED Lifetime

50.000 Hours

Charging time (nominal)

5 Hours

Input Voltage

90-264V 47-63Hz

Input Current

1.2A/115VAC ~ 1.0A/230VAC

Inrush Current

Cold start 30A/115VAC ~ 60A/230VAC

Wireless Modules

865-870MHz
902-928MHz

2.4GHz

Range

300m | 330 Yards

DMX

Supports CRMX, W-DMX and XLR-DMX

Housing

Aluminium

IP Rating

IP65

Relative humidity

0-100%

Operating Temperature

0-40 ˚C
32-104 ˚F

Weight

3.4kg

Dimensions

141 x 190 x 214 (mm)

IR remote control

ARC1

32˚ Flood filter

AX5-FF(included)

17˚x 46˚ Wallwash filter

AX5-WWF (Included)

Spigot (3/8" & 1/4"-20 threads)

AX1-BLT

Charging case

AX5-CHRSE

No filter/Beam mix 30º filter wallwash filter
