ASTEL CCTV TS 081 Operating Instructions Manual

TS 081

VIDEO AUTO SWITCHER

OPERATING INSTRUCTIONS v2.0

CONTENTS

Safety precautions....................................................................................................................2

Preface......................................................................................................................................3

Features....................................................................................................................................3

Precautions...............................................................................................................................3

Controls and connectors...........................................................................................................4

Connections..............................................................................................................................5

Specifications............................................................................................................................5

SAFETY PRECAUTIONS

In order to prevent any fatal accidents caused
by misoperation or mishandling of the video
switcher, be fully aware of all the following
precautions.

WARNING:
THIS APPARATUS MUST BE EARTHED

WARNING:
To prevent fire or shock hazard, do not
expose this appliance to rain or moisture.

This unit is produced to comply with
Directives 93/68/EEC (IEC Publ.65) and
89/336/EEC.

2

PREFACE

The TS 081 is a video switcher which is
suitable to connect up to eight cameras or
other video sources.
The sophisticated built-in electronic circuit
allows smooth switchings without picture roll
or flutter
Standard BNC type input and output
connectors enables TS 081 to be used with
other CCTV switchers, cameras, monitors
and video tape recorders.

FEATURES



8 video inputs

 1 video output
 vertical interval switching
 rack mountable using optional rack mount

kit

PRECAUTIONS



Use only the power source specified on the

rating label located on rear of the cabinet.

 When not using this unit for a long period

of time, or when cleaning it, be sure to
disconnect the power plug from the AC
outlet.

 Do not drop metallic parts through slots.

This action could permanently damage this
unit. Do turn power off immediately and
refer servicing to qualified service
personnel.

 Avoid using this unit under the following

conditions:

-in extremely hot, cold or humid places,

-in dusty places,

-near appliances generating strong
magnetic fields,

-in places subject to direct sunlight, and

-in badly ventilated places.

 Unplug this unit from the AC outlet and

refer servicing to qualified service
personnel under the following conditions:

-when the power cord is frayed or plug is
damaged

-If the unit does not operate normally
following the operating instructions

-if the unit has been dropped or the cabinet
has been damaged

-when the unit exhibits a distinct change in
performance.

3

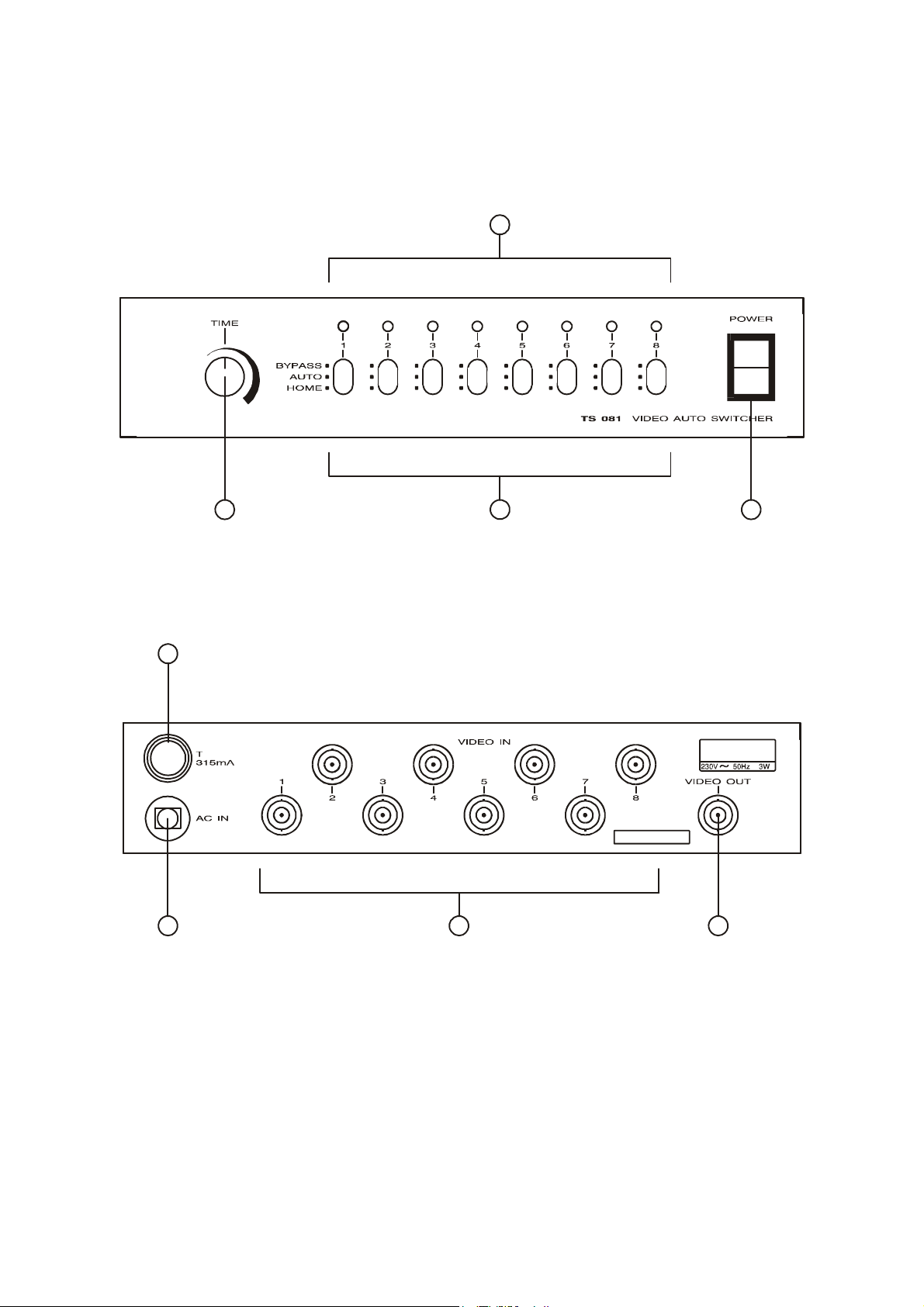

CONTROLS AND CONNECTORS

FRONT PANEL

1

REAR PANEL

5

FUSE

(1) LED indicators - for each video input.

(2) Sequential time adjustment.
(3) By pass/auto/home selectors.
(4) Power switch.
(5) Fuse socket.

324

MODEL No. TS 081

Ser.No:

867

(6) Power cord.
(7) Video input connectors.
(8) Video output connector.

4

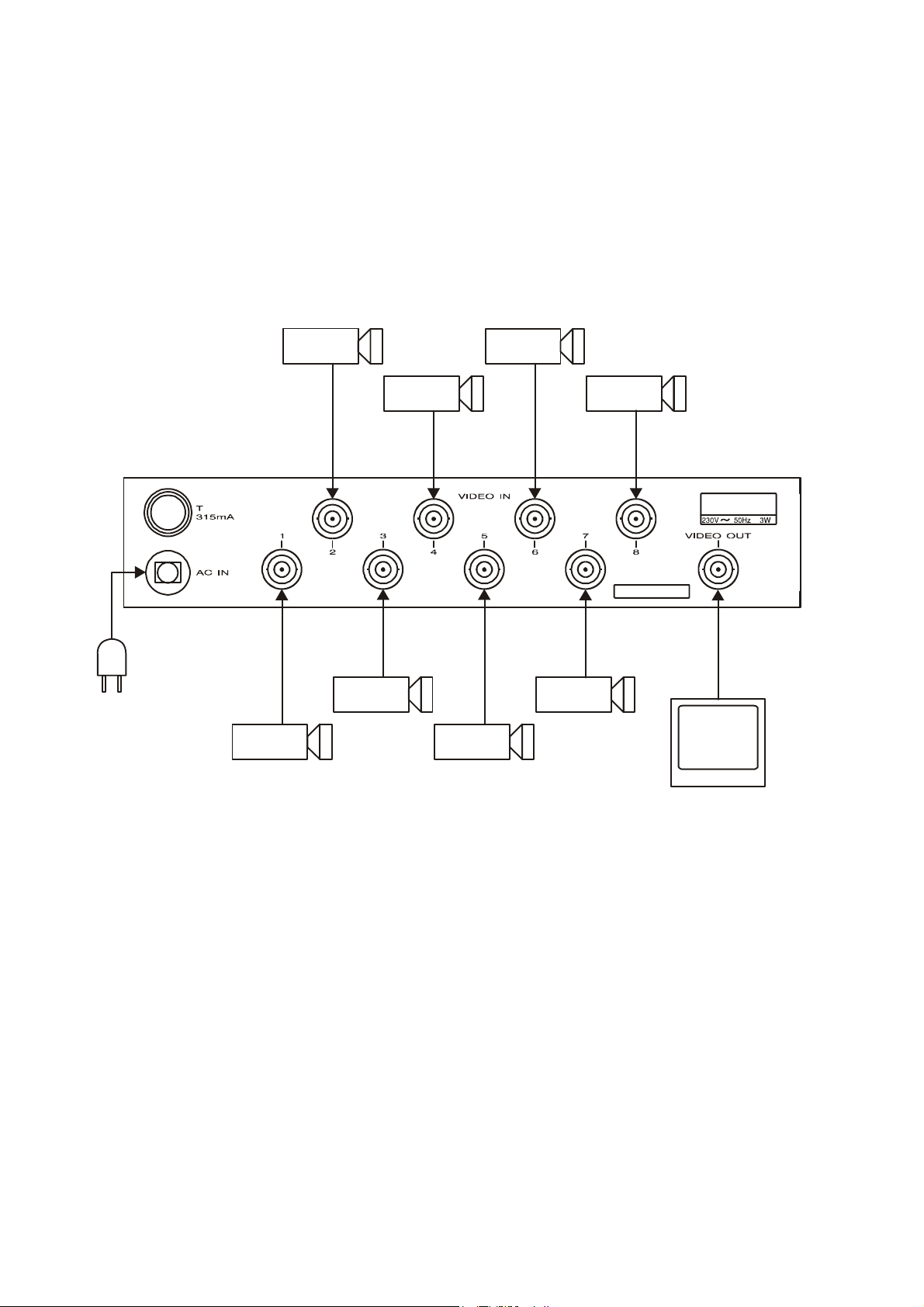

CONNECTIONS



Be sure to disconnect the power plug from

the AC outlet before connecting to other
equipment.

 Also refer to the instruction manual of the

equipment to be connected.

CAM 2

CAM 4

FUSE

CAM 6

CAM 8

Ser.No:

CAM 3 CAM 7

AC MAINS

CAM 1

CAM 5

SPECIFICATIONS

Video input 1Vpp/75, BNC
Video output 1Vpp/75, BNC
Video bandwidth 10MHz3dB
Signal/noise ratio 55dB
Crosstalk 40dB
Switching interval adjustable, 1-40sec.
Power requirement 230V, 50Hz
Power consumption 3W max.
Dimensions 216x44x240mm
Weight 2.2 kg

MODEL No. TS 081

MON

5

6

7

ASTEL d.o.o., Dutovlje 138, 6221 Dutovlje, Slovenia

Tel: [phone]

Fax:[phone]

E-mail: [e-mail]

Web: www.astel-cctv.com
