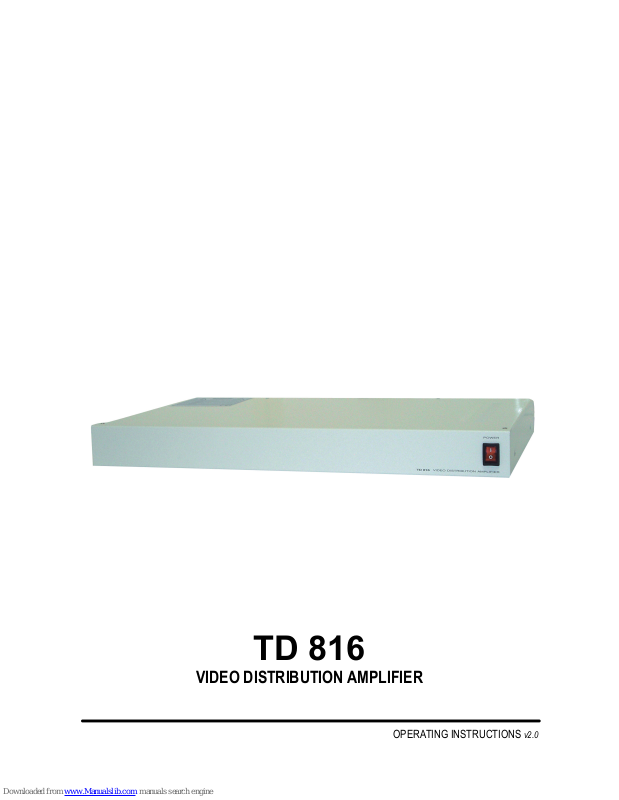

TD 816
VIDEO DISTRIBUTION AMPLIFIER
OPERATING INSTRUCTIONS v2.0
2
CONTENTS
Safety precautions..................................................................................................................2
Preface...................................................................................................................................3
Features .................................................................................................................................3
Precautions ............................................................................................................................3
Controls and connectors.........................................................................................................4
Connections ...........................................................................................................................4
Specifications .........................................................................................................................5
Installation ..............................................................................................................................5
SAFETY PRECAUTIONS
In order to prevent any fatal accidents caused by misoperation or mishandling of the video distribution amplifier, be fully aware of all the following precautions.
WARNING: THIS APPARATUS MUST BE EARTHED
WARNING: To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
This unit is produced to comply with Directives 93/68/EEC (IEC Publ.65) and 89/336/EEC.
3
PREFACE
The TD 816 is a high quality video distribution amplifier with sixteen video outputs. Internal jumpers allows the distribution of two video input to eight video outputs, four video inputs to four video outputs or eight video inputs to two video outputs. Standard BNC type input and output connectors enables the TD 816 to be used with other CCTV amplifiers, switchers, cameras, monitors and video tape recorders.
FEATURES
2 (4, 8) video inputs
2 x 8 (4 x 4, 8 x 2) video outputs
rack mountable using optional rack mount
kit
PRECAUTIONS
Use only the power source specified on the
rating label located on rear of the cabinet.
When not using this unit for a long period
of time, or when cleaning it, be sure to disconnect the power plug from the AC outlet.
Do not drop metallic parts through slots.
This action could permanently damage this unit. Do turn power off immediately and refer servicing to qualified service personnel.
Avoid using this unit under the following
conditions:
-in extremely hot, cold or humid places,
-in dusty places,
-near appliances generating strong magnetic fields,
-in places subject to direct sunlight, and
-in badly ventilated places.
Unplug this unit from the AC outlet and
refer servicing to qualified service personnel under the following conditions:
-when the power cord is frayed or plug is damaged
-If the unit does not operate normally following the operating instructions
-if the unit has been dropped or the cabinet has been damaged
-when the unit exhibits a distinct change in performance.
4
CONTROLS AND CONNECTORS
FRONT PANEL
REAR PANEL
FUSE
Ser.No:
MODEL No. TD 816
230V 50Hz 12W
2
4
3
5
(1) Power switch. (2) Fuse socket. (3) Video input connectors.
(4) Power cord. (5) Video output connectors.
CONNECTIONS
Be sure to disconnect the power plug from
the AC outlet before connecting to other equipment.
Also refer to the instruction manual of the
equipment to be connected.
CAM
CAM
CAM
CAM
CAM
CAM
CAM
CAM
MON
MON
MON
MON
MON
MON
MON
MON
MON
VCR
VCR
VCR
VCR
VCR
MON
MON
AC MAINS
FUSE
Ser.No:
MODEL No. TD 816
230V 50Hz 12W
1
5
SPECIFICATIONS
Video input 1-2Vpp/75, BNC Video output 1-2Vpp/75, BNC Video bandwidth 10MHz±3dB Signal/noise ratio >55dB Power requirement 230V, 50Hz Power consumption 12W max. Dimensions 432x44x240mm Weight 4.7 kg
INSTALLATION
JUMPER SETTINGS - PCB 1
VIDEO INPUT
JUMPER 1 2 3 4
Video Output 1-1
OUT1 - J201
VIDEO INPUT
JUMPER 1 2 3 4
Video Output 2-1
OUT2 - J211
VIDEO INPUT
JUMPER 1 2 3 4
Video Output 1-2
OUT3 - J221
VIDEO INPUT
JUMPER 1 2 3 4
Video Output 2-2
OUT4 - J231
6
VIDEO INPUT
JUMPER 1 2 3 4
Video Output 1-3
OUT5 - J241
VIDEO INPUT
JUMPER 1 2 3 4
Video Output 2-3
OUT6 - J251
VIDEO INPUT
JUMPER 1 2 3 4
Video Output 1-4
OUT7 - J261
VIDEO INPUT
JUMPER 1 2 3 4
Video Output 2-4
OUT8 - J271
JUMPER SETTINGS - PCB 2
VIDEO INPUT
JUMPER 5 6 7 8
Video Output 1-5
OUT1 - J201
VIDEO INPUT
JUMPER 5 6 7 8
Video Output 2-5
OUT2 - J211
7
VIDEO INPUT
JUMPER 5 6 7 8
Video Output 1-6
OUT3 - J221
VIDEO INPUT
JUMPER 5 6 7 8
Video Output 2-6
OUT4 - J231
VIDEO INPUT
JUMPER 5 6 7 8
Video Output 1-7
OUT5 - J241
VIDEO INPUT
JUMPER 5 6 7 8
Video Output 2-7
OUT6 - J251
VIDEO INPUT
JUMPER 5 6 7 8
Video Output 1-8
OUT7 - J261
VIDEO INPUT
JUMPER 5 6 7 8
Video Output 2-8
OUT8 - J271
8
TRIMMER ADJUSTMENTS - PCB 1
LINEAR GAIN
ADJUSTMENT
TRIMMER
VIDEO OUT 1-1 TP201 VIDEO OUT 2-1 TP211 VIDEO OUT 1-2 TP221 VIDEO OUT 2-2 TP231 VIDEO OUT 1-3 TP241 VIDEO OUT 2-3 TP251 VIDEO OUT 1-4 TP261 VIDEO OUT 2-4 TP271
TRIMMER ADJUSTMENTS - PCB 2
LINEAR GAIN
ADJUSTMENT
TRIMMER
VIDEO OUT 1-5 TP201 VIDEO OUT 2-5 TP211 VIDEO OUT 1-6 TP221 VIDEO OUT 2-6 TP231 VIDEO OUT 1-7 TP241 VIDEO OUT 2-7 TP251 VIDEO OUT 1-8 TP261 VIDEO OUT 2-8 TP271
