Page 1

A41606-ENC, D60-6A

Dual Ported 16-Bay 6Gb/s Storage Enclosure

with Cryptographic Erase Functions “Key

Erase”

User’s Manual

April 25, 2016 Version: A

Page 2

A41606-ENC, 60 6A User Manual

Page 3

Page 4

A41606-ENC, 60 6A User Manual

APRIL 29, 2016 VERSION A

This document describes Astek’s a41606-ENC, 60 6A design and will remain the official reference source for all revisions/releases of this product until rescinded by an update.

To receive product literature, visit us at http://www.astekcorp.com.

DISCLAIMER

Astek Corporation reserves the right to make changes to any products herein at any time without notice. Astek does not assume any responsibility or liability arising out of the application or use of any product described herein, except as expressly agreed to in writing by Astek; nor does the purchase or use of a product from Astek convey a license under any patent rights, copyrights, trademark rights, or any other of the intellectual property rights of Astek or third parties. Astek products are not intended for use in critical navigation, industrial control, nuclear power or life-support appliances, devices, or systems. Use of any Astek product in such applications without written consent of the appropriate Astek officer is prohibited.

TECHNOLOGY LICENSES

The hardware and/or software described in this document are furnished under a license and may be used or copied only in accordance with the terms of such license.

REGULATORY COMPLIANCE Notice: FCC and CE testing is pending. This board is for ENGINEERING USE ONLY.

Note: The A34812-ITX has been designed to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These Limits are designed to provide reasonable protection against harmful interference when the equipment is operated in its installation. This equipment generates, uses, can radiate radio frequency energy, and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. If this equipment does cause harmful interference the user will be required to correct the interference.

The A41606-ENC 60 6A has been designed to meet the safety requirements of IEC/EN 60950-1.

TRADEMARK ACKNOWLEDGMENT

The Astek logo design is the trademark or registered trademark of Astek Corporation.

Page 5

Page 6

A41606-ENC, 60 6A User Manual

Table of Contents

1. Introduction .................................................................................................................................................... 7

2. Hardware Installation ..................................................................................................................................... 7

3. Cryptographic Erase ...................................................................................................................................... 9

4. Electrical Specifications ............................................................................................................................... 10

5. Environmental Specifications ....................................................................................................................... 10

6. Mechanical Specifications ........................................................................................................................... 11

7. Use Cases ................................................................................................................................................... 12

8. Support ........................................................................................................................................................ 14

Page 7

CAUTION

Use proper ESD safety procedures whenever working with electronic equipment or parts.

1. Introduction

The Astek A41606-ENC, D60-6A utilizes two Gen2 Serial Attached SCSI (SAS) expanders operating at 6Gbps with a sanitization algorithm that will sanitize up to 16 Self-Encrypting Drives

(SED) that support the Cryptographic Erase Functions “Key Erase” (SBC-3, Sections 5.24/2/4) and “Block Erase” (SBC-3, Section 5.24.2.3).

The A41606-ENC, D60-6A provide a dual ported storage enclosure based on Astek’s innovative SAS expander module, combined with a precision machined chassis, and a unique 'sled-less' disk mounting mechanism, these enclosures can hold up to sixteen 2.5” hard disks.

The A41606-ENC provides two external SAS x4 wide-port input/output connections per expander, with each wide port supporting up to 24Gbps of I/O. Each port can be connected either to a host or another A41606-ENC, allowing system designers to cascade multiple enclosures to further increase the total available storage.

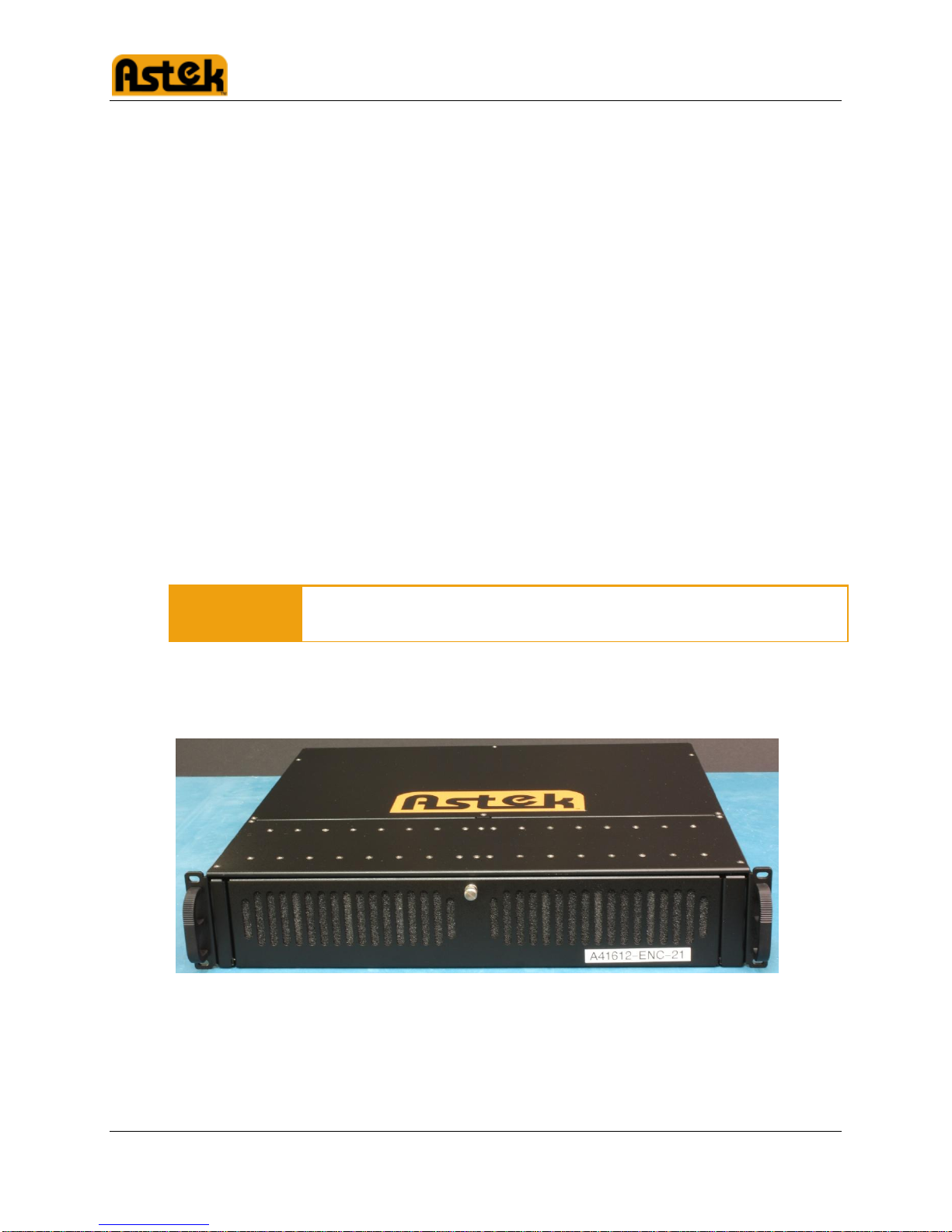

2. Hardware Installation

Step 1: Secure chassis in rack mount or free standing on a flat level surface so that it

cannot slide or move.

Page 8

A41606-ENC, 60 6A User Manual

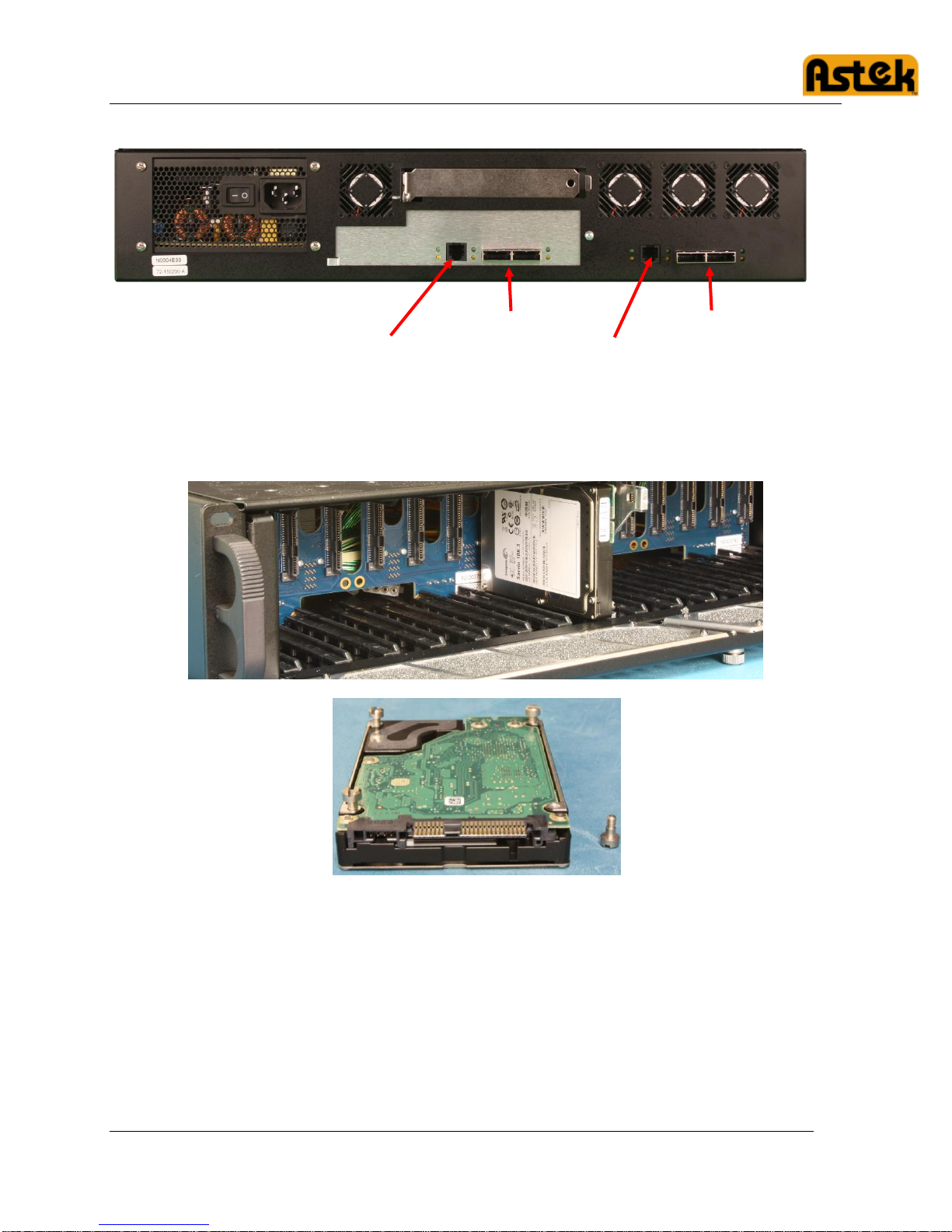

Primary Ports

Secondary Ports

CLI RS232-Serial Interface for Primary

CLI RS232-Serial Interface for Secondary

Step 2: Connect SAS cables to back of chassis.

Step 3: Insert Hard Drives using four shoulder screws for each drive

Page 9

CLI Functions

Command

Description

Read or Write All Drives

rwAll [Write(0) | Read (1)]

rwAll 0: Writes 512 Bytes of an A5A5 repeating

pattern to LUN 0 of each drives in the system using SCSI Block level commands.

rwAll 1 Reads 512 Bytes from LUN 0 of each

drives in the system using SCSI Block level commands.

Start Sanitization

santest

: Start the entire Sanitization process

- Disable Host-Side Phys

- Perform Sanitize Key Erase on all drives

- Prints first 512B of LUN 0 from each drives

- Block Erase all drives in the systems

- Prints test results

Sanitize LED

gpioState [On(0) | OFF(1) | BLINK(2)

| BLINK_FAST(3)]

Verify the Sanitization LED is operating properly Disable Host Phys

SSpDisablePhy

Disables the Host-Side(PC) SAS ports

Sanitize Key Erase

SSpKeyErase [drive-sasAddrHigh(H)

drive-sasAddrLow(H) timeOutInSec(d)]

Issues the SBC-3 Cryptographic command to change the encryption key stored in the crypto drive, thus effectively performing an instant erase.

Writes LBA(0)

SSpBlockWrite [drive-sasAddrHigh(H)

drive-sasAddrLow(H) WriteFlag(d) timeOutInSec(d)] WriteFlag [0:0xA5 pattern | 1: Block Erase Verification String]

Writes 512 Bytes of an A5A5 repeating pattern to LUN 0 of a specified drive

Sanitize Block Erase

SSpBlockErase [drive-sasAddrHigh(H)

drive-sasAddrLow(H) timeOutInSec(d)]

Block erase an entire drive

Reads LBA(0)

SSpBlockRead [drive-sasAddrHigh(H)

drive-sasAddrLow(H) timeOutInSec(d)]

Reads 512 Bytes from LUN 0 of a specified drive

Request Sense

SSpRequestSense [drive-sasAddrHigh(H)

drive-sasAddrLow(H) timeOutInSec(d)]

Issues the SCSI Request Sense Command

3. Cryptographic Erase

The Astek A41606-ENC, D60-6A has a sanitization algorithm that will sanitize up to 16 SelfEncrypting Drives (SED) that support the Cryptographic Erase Functions “Key Erase”.

 Key Erase” (SBC-3, Sections 5.24/2/4  Block Erase” (SBC-3, Section 5.24.2.3

To erase data from drives connect to the CLI using the serial port with connection speed of 38400 and parameters 8-N-1. A password is needed; the default is “expander”

The “santest” CLI command starts the erase process. It changes the encryption key stored in the crypto drive, thus effectively performing an instant erase then does a block erase of the drive.

Cryptographic Erase “Key Erase” Command Line Interface (CLI) commands.

Page 10

A41606-ENC, 60 6A User Manual

4. Electrical Specifications

Power

 Operating Voltage: 12100-240 VAC @ 50/60 Hz  Minimum Power Consumption: 40W w/o drives  Maximum Power Consumption: 200W

SAS/SATA

 SAS/SATA speeds: 1.5Gb/s 3.0Gb/s 6.0Gb/s  Number of SAS/SATA bays: 16

Serial Port

 Connection Speed 115,200  Connection Parameter 8-N-1

5. Environmental Specifications

Operating Conditions

 Temperature: 15 °C to +45 °C  Humidity: 5 to 90% non-condensing

Storage Conditions

 Temperature: -10 °C to +85 °C  Humidity: 5 to 90% non-condensing

Airflow

 Number of Fans 4

Page 11

CAUTION

Do not operate the A41606-ENC, 60-6A continuously without sufficient cooling. The default configuration does NOT support auto-shutdown due to exceeding thermal limits, and as such, damage many occur to your board is operated continuously without airflow.

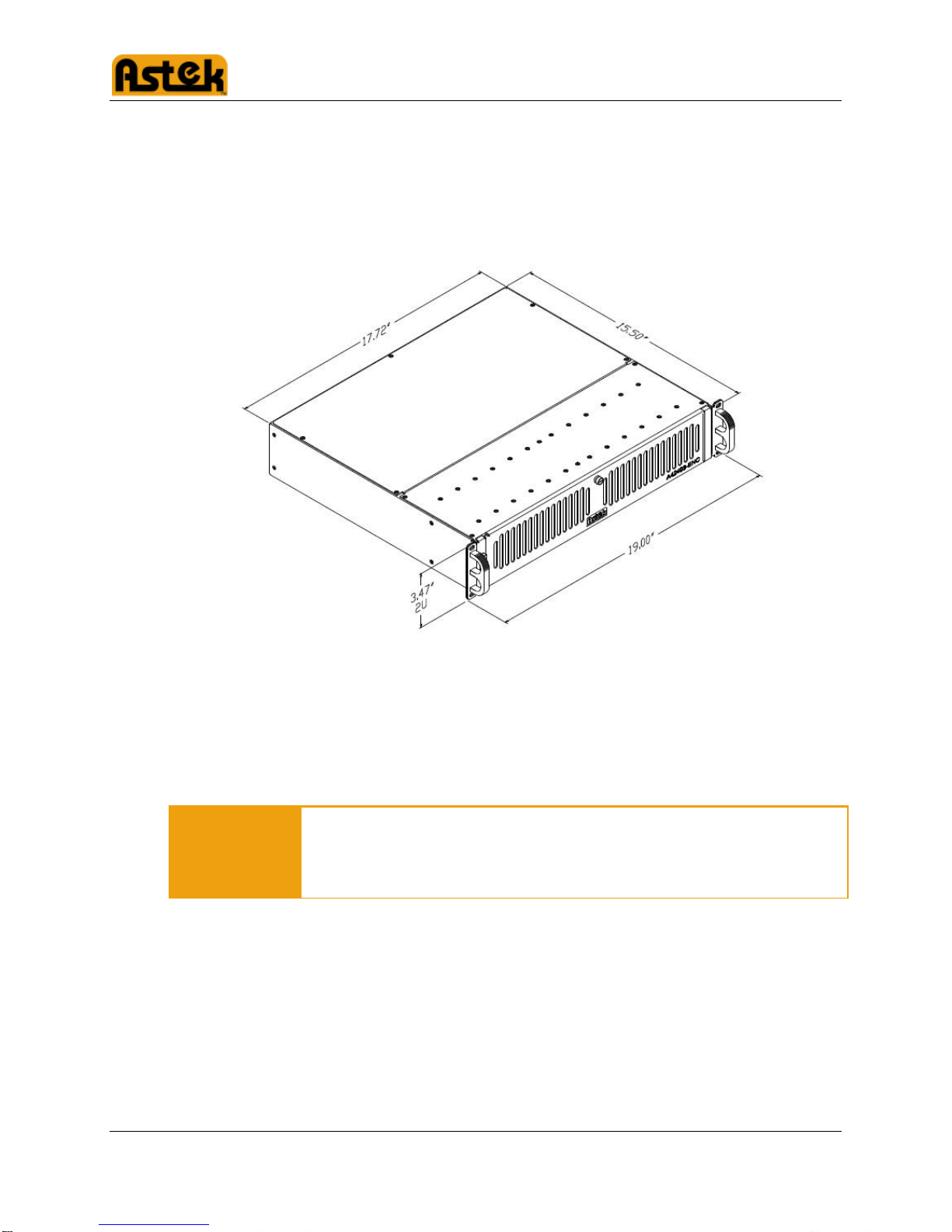

6. Mechanical Specifications

Dimensions

 Form factor: 2U 19” rack-mount compatible (short depth

3.47” x 17.72” x 15.50

Airflow

The A41606-ENC, 60-6A enclosure provides four fans to cool the board and chassis elements. By default all fan outputs will be configured for full speed operation at start.

Page 12

A41606-ENC, 60 6A User Manual

7. Use Cases

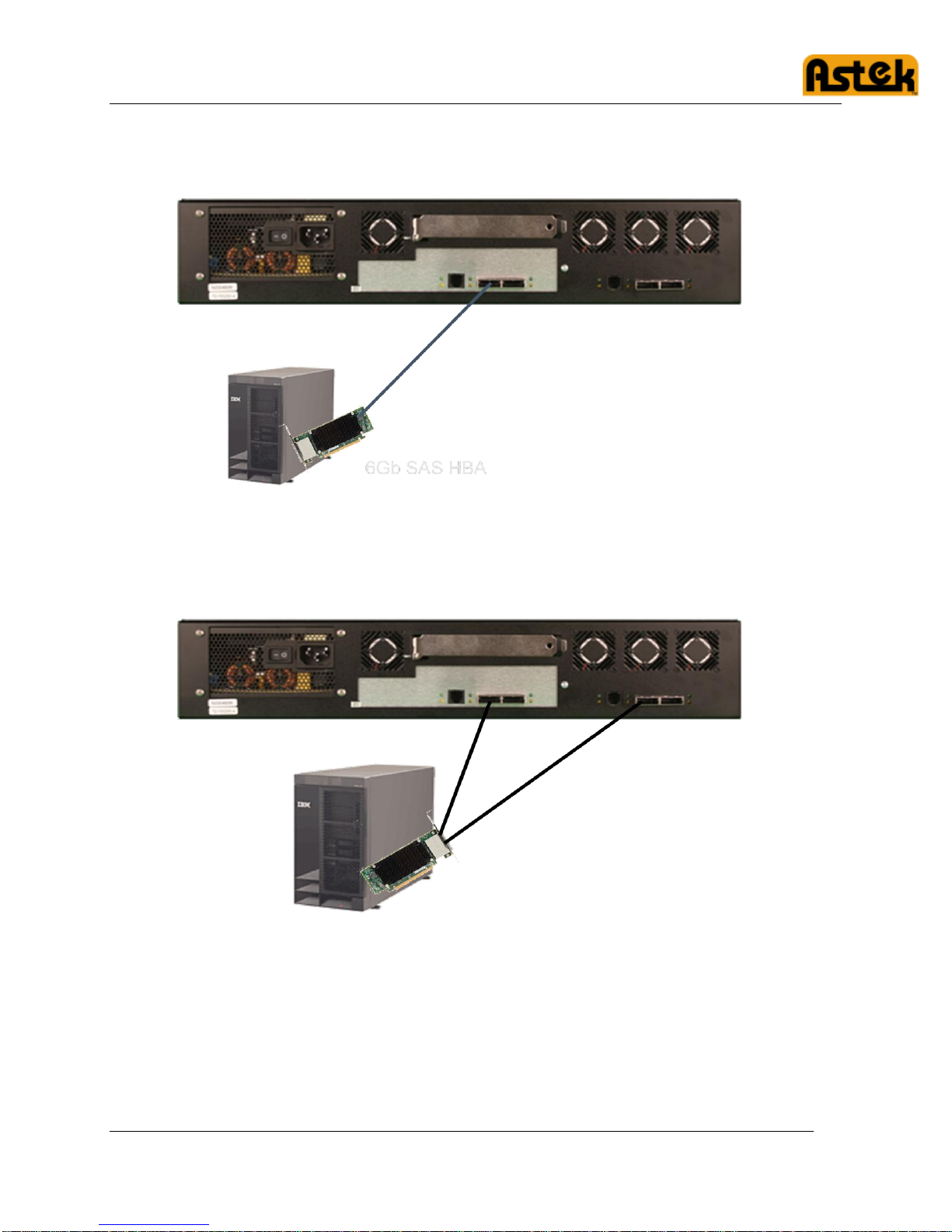

Single Host

Single Host with Redundant Path

Page 13

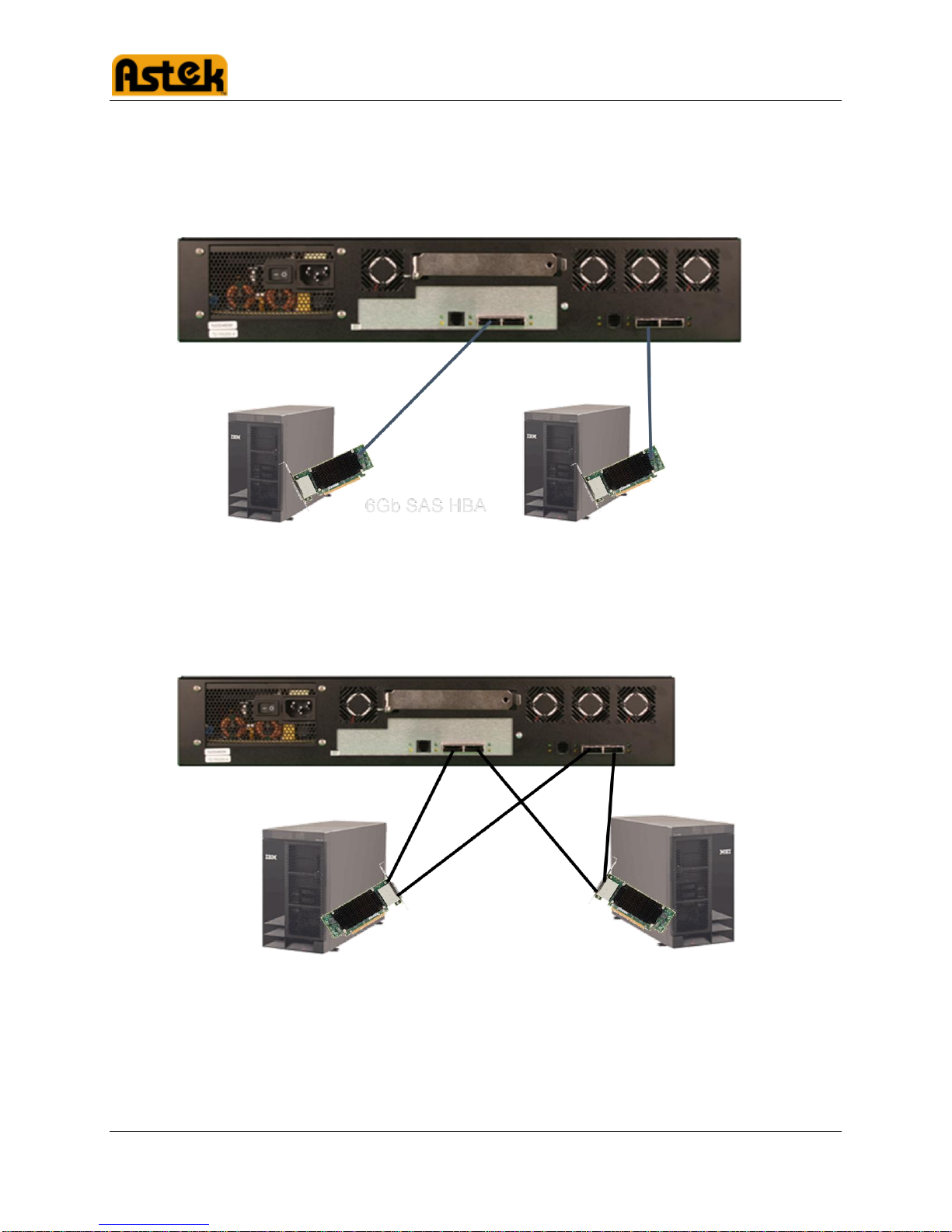

Dual Host for Shared Storage

Dual Host with Redundant Path

Page 14

A41606-ENC, 60 6A User Manual

8. Support

For additional support, email [email protected]. Astek can be contacted at (719) 260-1625 or toll-free at (800) 850-9055.
