Astar PD-3020 User Manual

Download

Page 1

User Manual

Please read this User Manual carefully to ensure proper use of this product and keep this manual for further reference.

PD-3020

Page 2

Safety Precautions Important Safety Instructions Panel Illustration Remote Control

Introduction

2 3 5 6

Connecting to a TV set

Connecting to an AV Receiver with Digital Audio Input

Connections

Basic Operation

Basic Playback

Modes and Features Setup Remote Control Operation MP3 Playback KODAK Picture CD playback

Advanced Features

Others

Troubleshooting

26 27

Specifications Macrovision function instruction

-1-

Content

Page 3

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE MANUAL ACCOMPANYING THE UNIT.

WARNING:

CAUTION:

WARNING:

FCC REGULATIONS STATE THAT ANY CHANGE OR MODIFICATION TO THE EQUIPMENT, NOT EXPRESSLY APPROVED BY MAKER OR ITS AUTHORIZED PARTIES, COULD VOID USER'S AUTHORITY TO OPERATE THIS EQUIPMENT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Safety Precautions

Introduction

-2-

THE DVD VIDEO PLAYER IS A CLASS 1 LASER PRODUCT. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. AS THE LASER BEAM USED IN THIS DVD VIDEO PLAYER IS HARMFUL TO THE EYES, DO NOT ATTEMPT TO DISASSEMBLE THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

THE UNIT EMPLOYS A LASER SY S T E M. TO ENSURE THE PROPER USE OF THE UNIT, READ THIS MANUAL CAREFULLY AND KEEP IT FOR FUTURE REFERENCE.

IF THE UNIT REQUIRES SERVICING, CONTACT THE SELLER OR SEE "TROUBLESHOOTING".

TO PREVENT DIRECT EXPOSURE TO THE LASER RADIATION, DO NOT OPEN THE CABINET. VISIBLE LASER MAY RADIATE WHEN THE CABINET IS OPENED OR THE INTERLOCKS ARE DEFEATED. DO NOT STARE INTO THE LASER BEAMS.

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED "DANGEROUS VOLTAGE" WITHIN THE UNIT'S CABINET THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.

TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE. NEVER A TTEMPT TO OPEN THE CABINET, DANGEROUS HIGH VOLTAGES ARE PRESENTED IN THE UNIT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

TO PREVENT ELECTRIC SHOCK, MATCH WIDE- BLADE PLUG WITH WIDE SLOT AND FULLY INSERT. THE APPARATUS SHALL NOT BE EXPOSED TO WATER AND NO OBJECTS FILLED WITH LIQUID SUCH AS VASES SHALL BE PLACED ON THE APP A RATUS.

Specifications

Other

-27-

Type Model Play mode Disc mode Video characteristic Video S/N ratio Resolution Audio characteristic Frequency response Audio S/N ratio Dynamic range Distortion D/A Converter Output characteristic Video output Audio output Power Voltage Power consumption Size Weight

PD-3020 NTSC/PAL DVD, CD, MP3, CD-R, CD-RW, JPEG, DVD-R/W

65dB 500 lines

fs 96KHz: 20Hz-20KHz:+/-1dB

90dB

90dB < 0.01% 96KHz/24bit

1Vp-p(75 W) COAXIAL, 2CH DC IN 12V

10W 205x158x40mm

0.7kg

Specifications are subject to change without notice.

Accessories:

1. Remote controller 1 pcs, 2. Audio/Video cable 1 pcs 3. Users manual 1 pcs

4. Adapter 1 pcs (check that all accessories are included )

Page 4

Important Safety Instructions

-3-

Introduction

1. Read Instructions

All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Heed Warnings

All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions

All operating instructions should be followed.

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture

Do not use this product near water for example, near a bathtub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

9. Portable Cart Warning

A product and cart combination should be moved with care. Quick stop, excessive force, and uneven surface may cause the product and cart combination to overturn.

10. Ventilation

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

11. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power or other sources, refer to the operating instructions.

12. Grounding or Polarization This product may be equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

13. Power Cord Protection Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

(Symbol provided by RETAC)

-26-

"BAD DISC" DISPLAYED

Ensure the disc is not warped, damaged or deformed. Ensure the disc is not badly stained or damaged. Ensure the disc format is compatible with the player.

Please check whether you have tried to play a software CD. If so, please restart the player.

NO PICTURE OR SOUND

Ensure the power button is on. Ensure the power outlet is operational. Ensure the power cord is not damaged. Ensure the power plug is connected firmly to the outlet.

"NO DISC" DISPLAYED

Ensure you have put the disc on the tray. Ensure the disc is not upside down. Ensure the disc is not distorted, stained or scratched.

Ensure the audio jacks are securely connected. Ensure the audio connector is not damaged. Ensure the volume is turned up in VOL/CH setup. Ensure you have set the player's AUDIO settings correctly. Ensure you have ENTERed the correct AV input for your TV. Ensure the audio is not set to mute.

POOR PICTURE OR SOUND

Ensure you have set the player's AUDIO settings correctly. Ensure the disc is not scratched or stained. Ensure the AV connector or the output terminal is not damaged.

Ensure the video jacks are securely connected. Ensure you have ENTERed the correct AV input for your TV. Ensure the video connector is not damaged. Ensure you have set the player's VIDEO settings correctly.

REMOTE NOT WORKING

Ensure the remote batteries are working. Point the remote control directly at the player's IR sensor. Remove any obstacles between the remote and the IR sensor.

UNIT NOT WORKING

Turn off the power, and then turn it on again.

SOUND BUT NO PICTURE

PICTURE BUT NO SOUND

If you have any questions, please consult the troubleshooting guide below.

Troubleshooting

Other

Page 5

Introduction

-4-

Important Safety Instructions

14. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antennadischarge unit, connection to grounding electrodes, and requirements for the grounding electrode. See figure below.

19. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

20. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: A)When the power-supply cord or plug is damaged, B)If liquid has been spilled, or objects have fallen into the product, C)If the product has been exposed to rain or water, D)If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation, E)If the product has been dropped or damaged in any way. F)When the product exhibits a distinct change in performance this indicates a need for service.

21. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

22. Safety Check Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

23. Wall or Ceiling Mounting The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

24. Heat The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

15. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power lines surges.

16. Power Lines An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

17. Overloading Do not overload wall outlets, extension cords, or integral convenience receptacles, as this can result in a risk of fire or electric shock.

18. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

Kodak Picture CD Playback

Advanced Features

-25-

Image Rotation

There are three modes to rotate a picture: original, 90 Deg, and 180 Deg. These operations are allowed only when a picture is being displayed normally and will be cancelled automatically when a new picture is displayed. The ANGLE keys are used to select the different rotation modes:

Press ANGLE OSD display original. Press ANGLE again OSD display 90 Deg. Press ANGLE again OSD display 180 Deg.

The introduction of KODAK Picture CD

A Kodak Picture CD has the size and shape of a regular CD. You can order a KODAK Picture CD simply by checking the box on the photo finishing envelope when you drop off a roll of film (35 mm or Advanced Photo System (APS) color print film) at the time of processing in Kodak Express store displaying "Kodak Picture CD" sign. When your order is returned, you receive your prints, negatives, and your full roll of pictures safely stored on your KODAK Picture CD. Each KODAK Picture CD brings you the tools to enhance, share and manage your pictures on your computer. You also can record the JPEG picture into CD-R or CD-RW with the CD-Rewriter yourself.

Note: 1. The Max. Size of JPEG Picture can be supported: 3840X3840 pels

2. JPEG stands for Joint Picture Experts Group. It is the first International Standard on Still Picture Compressing: ISO 10918-1, constituted by the Committee on Still Picture Compressing Standard of ISO. The pictures on KODAK Picture CD are stored in this format (JPEG). This player can decode the JPEG pictures in KODAK Picture CD and playback the pictures in different modes. Now, you can playback Kodak Picture CDs on this player and view your wonderful pictures on your TV in the comfort of your living room. When a Kodak Picture CD is inserted on a player an automatic slide show is launched. Each picture in the Kodak Picture CD will be displayed consecutively in a slide-show fashion and will be scaled to fit in the whole TV screen.

General function:

You can set slideshow transition modes for any pictures.

Press PAUSE to stop playing.

Press PLAY to continue slideshow transitions.

Press or to see the previous or next picture.

Press STOP to return to root menu.

Zoom Function:

Note: During the ZOOM function, slideshow transitions and image rotation are disabled.

Q off: close zoom, press PLAY again to resume slideshow transition mode.

This player provides both Zoom in/out and Zoom pan function. Press the ZOOM consecutively, the picture will zoom in/out in turn as followings:

Q4/3 Q3/2 Q2

Q1/4Q1/2Qoff

Page 6

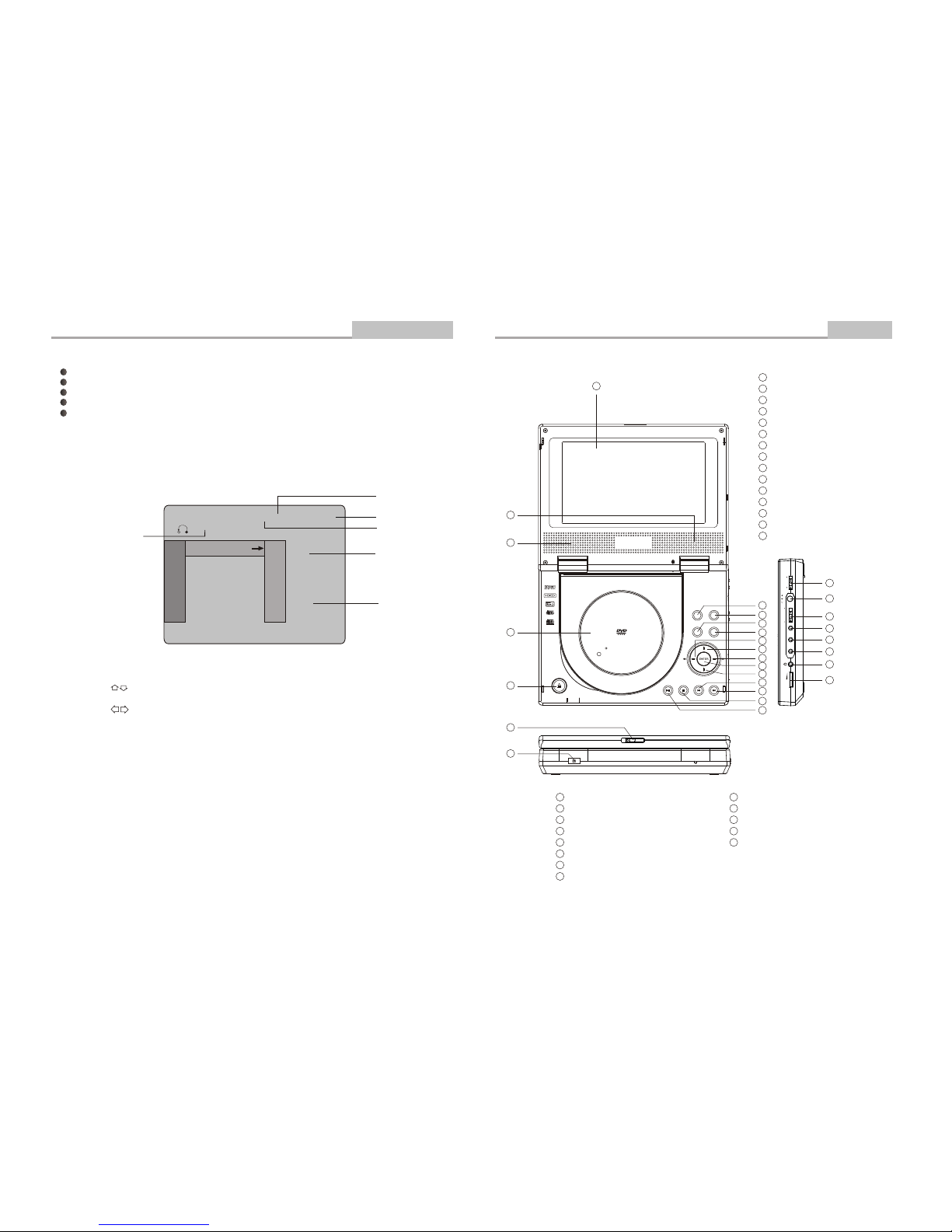

Panel Illustration

-5-

Introduction

1 2 3 4 5 6 7 8

9 10 11 12 13 14

16 17 18 19 20 21 22 23

24 25 26 27 28

LCD DISPLAY SPEAKER RIGHT SPEAKER LEFT DISC TOP OPEN DISC TOP OPEN LCD DISPLAY SENSOR MENU BUTTON 16:9/4:3 SELECT BUTTON FUNCTION BUTTON SETUP BUTTON LEFT/REV BUTTON UP BUTTON RIGHT/FWD BUTTON ENTER BUTTON

DOWN BUTTON PREV BUTTON NEXT BUTTON STOP BUTTON PLAY/PAUSE BUTTON POWER DC 12V INPUT JACK INPUT/OUTPUT SELECT

VIDEO JACK AUDIO JACK COAXIAL OUTPUT JACK EARPHONE JACK VOLUME KNOB

VOLUME

DC IN 12V

POWER

ON OFF

COAXIAL AUDIO VIDEO INPUT OUTPUT

9 10 11 12 13 14 15 16 17 18 19 20

24 25

MP3 Playback

Advanced Features

-24-

File: A01

File window

Directory

File name

Current track

Total tracks

Elapsed time of the current track

056/140

0:00:01

Press to select the file when the cursor appears in the file window. Press ENTER to play the current file selected by the cursor. Press to switch between the directory window and the file window. Note: During MP3 playback, Forward Scan and Reverse Scan are not available.

MP3

Supported formats

Disc format: ISO 9660, Joliet Music file format: MP3 MP3 bit rate (data rate): 32 -192 kbps Total number of music files and albums: around 350 per disc. Sampling rate: (CBR)32kHz/44. 1kHz/48kHz/64kHz; (VBR) 16kHz/22kHz/24kHz/32kHz (MPEG ) Note: The player will not identify or play MP3 discs under the following conditions: recording format is not supported, badly scratched or deformed disc, MP3 recorded in CD-R or CD-RW which is not finalized, or a dirty pickup. When a MP3 disc is loaded, the screen will display as follows:

CDA

1 2 3 4 5 6

A01 A02 A03 A04 A05 A06

A07 A08 A09

7 8 9

DIGITAL VIDEO

DIGITAL AUDIO

FUNCTION

16:9 / 4:3

SETUP

Page 7

Introduction

-6-

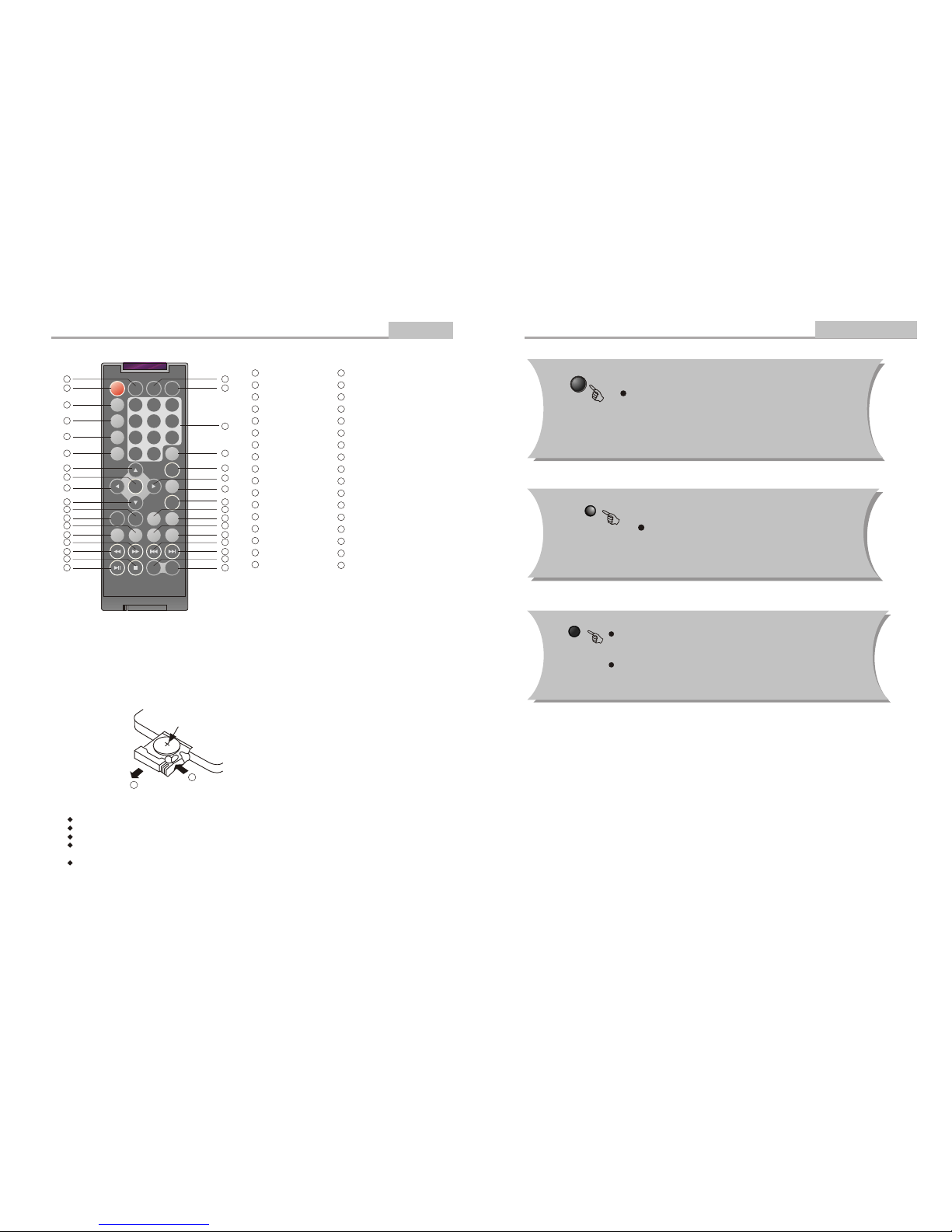

Remote Control

CR2025

HOW TO REPLACE THE BATTERY STEP 1: PUSH THE BUTTON TOWARD LEFT;

STEP 2: PULL THE BATTERY LOADER OUT.

PROGRAM

NTSC/PAL SUBTITLE LANGUAGE ANGLE UP

LEFT

ENTER

L/R CHANNEL

DOWN

Resume

STOP

REV

FORWARD

MUTE

SETUP

ZOOM

DISPLAY

NUMBER KEY SELECT TIME

MENU/PBC

TITLE

FUNCTION

RIGHT

SLOW

STEP

A-B REPEAT

REPEAT

VOLUME +

VOLUME -

TFT POWER ON/OFF

PLAY/PAUSE

Using the Remote Control Point the remote control at the remote sensor in order for the player to function correctly. The remote will function to approximately 21' from the remote sensor at an angle of approximately 30 each direction. Note: Directing the remote sensor toward any light source, such as direct sunlight, may cause the unit to malfunction. Do not spill water or put wet items on the remote control. Never disassemble remote control.

BATTERIES INCORRECT USE OF BATTERIES MAY CAUSE THEM TO LEAK, CORRODE OR EXPLODE. Be sure to place the batteries in the correct direction. It is dangerous to charge/heat/open or short-circuit the batteries. Do not leave dead or expired batteries or mix old/new batteries. When not using the remote control for a long duration of time, remove the batteries. When operating range becomes reduced, replace all batteries with new, fresh ones. If leakage from the battery occurs, wipe the battery liquid from the battery compartment, then replace.

PROG

DISPLAY

A-B

N/P

SUBTITLE

ANGLE

SETUP

MENU/PBC

STEP

L/R

TITLE

REPEAT

ZOOM

MUTE

ENTER

SLOW

FUNCTION

1 2

8 9

Resume

LANGUAGE

TIME

VOL- VOL+

TFT

ON/OFF

1 2

7 8

11 12 13 14 15 16 17 18

19 20

23 24 25

26 27 28 29

30 31

32 33

Remote Control Operation

Advanced Features

-23-

16:9/4:3

Switch the display mode of 16:9 or 4:3 format.

TFT ON/OFF

Press TFT ON/OFF key to TFT-LCD display

press it again to TFT-LCD turn off.

L/R

When a DVD is played, the active dubbing language will be shown. When a SVCD or VCD is played the left track, right track or stereo will be displayed accordingly.

When a bilingual story VCD is played, you may press the button to select the language desired.

Page 8

VOLUME

DC IN 12V

POWER

ON OFF

COAXIAL AUDIO VIDEO

INPUT OUTPUT

-7-

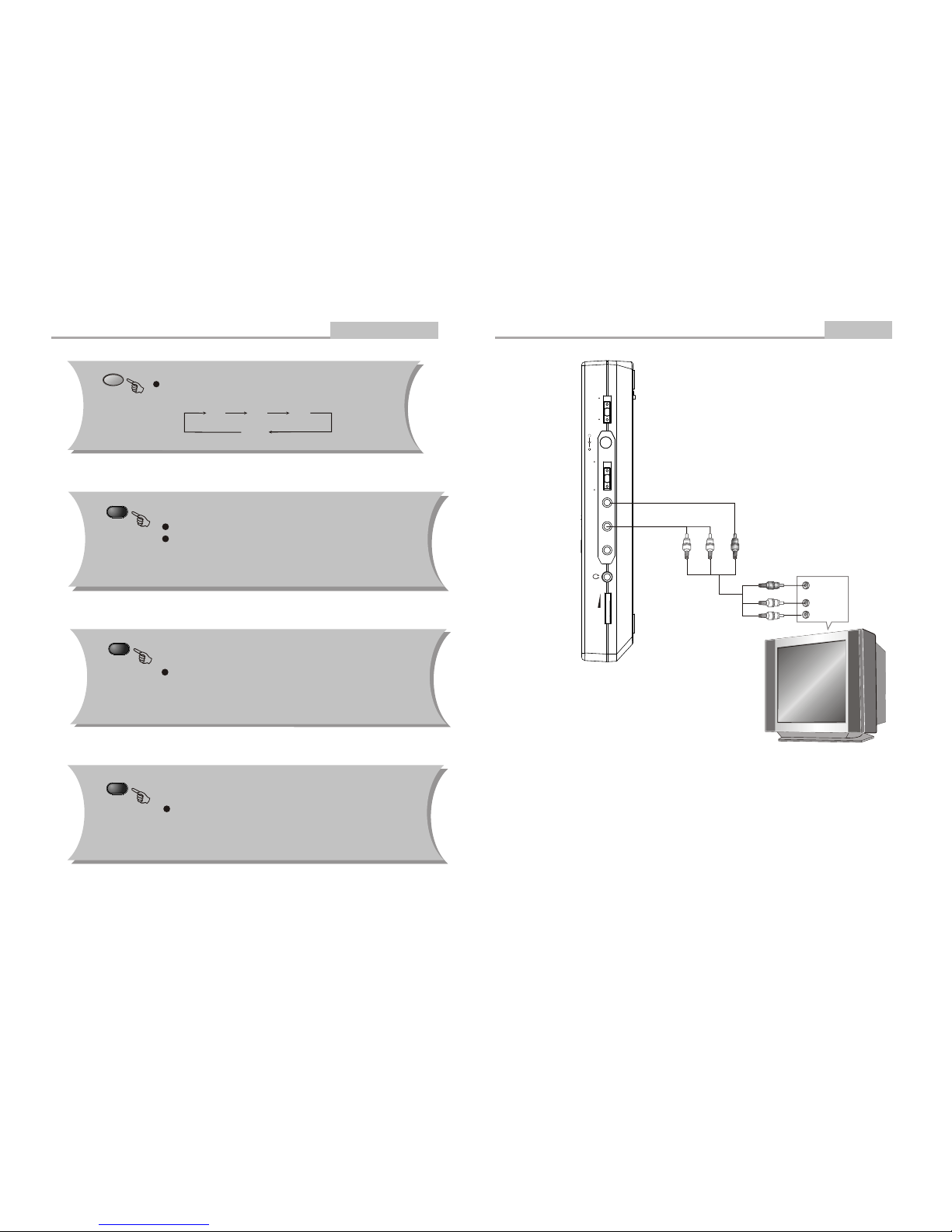

Connecting to a TV Set

Connections

VIDEO IN

AUDIO IN

WHITERED Yellew

-22-

Advanced Features

Remote Control Operation

ZOOM

Q1 Q2 Q3

Q Off

During DVD playback, press ZOOM to magnify the image as

follows:

LANGUAGE

Note: This function is disc specific.

During DVD playback

Press LANGUAGE repeatedly to select from up to 8 audio

languages/formats.

ANGLE

During DVD playback

Press ANGLE to view scenes from different camera angles. Press ANGLE repeatedly to change from one camera angle to

another.

Note: This function is disc specific.

Note: This function is .

disc specific (languages will vary)

SUBTITLE

During DVD playback

Press SUBTITLE repeatedly to select from up to 32

subtitle languages.

Page 9

Remote Control Operation

-21-

Advanced Features

STEP

Press STEP during playback to pause playback. Press STEP repeatedly to play frame. Press play to resume normal playback.

Select to press REPEAT to select Repeat Title, Repeat

chapter, Repeat off During DVD playback.

Press REPEAT to select Repeat Single, Repeat All and

Repeat off ( CD or Others).

REPEAT

MUTE

Press MUTE to mute the Audio output Press MUTE again to resume normal audio output

VOL+ VOL-

Press Volume <VOL+> button to increase Volume Press <VOL-> button to reduce volume till to no volume output.

-8-

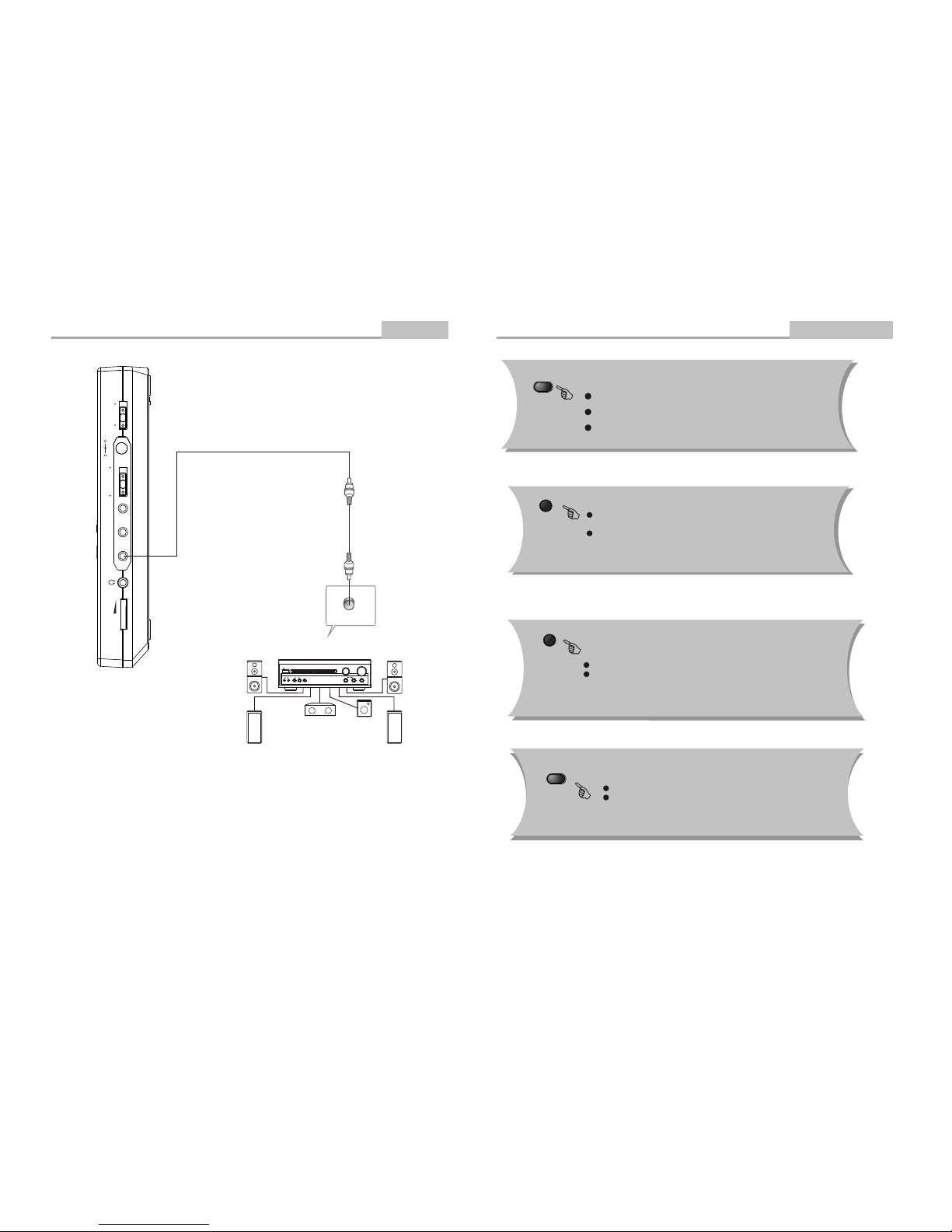

Connecting to an AV Amplifier with Digital Audio Input

Connections

Notes:

1. Select the Coaxial digital audio output.

2. Set the player's audio out to Raw or PCM mode .

3. Set the Amplifier to the AV input connected to the DVD player.

BASS

TREBLE

ECHO

DOWN UP

VOLUME

INPUT SELECTOR

MUTE

KARAOKE

CHANNEL

TEST

MODE

3 STEREO

PRO LOGIC

BYPASS

EXCITE

POWER

MIC

211

MIC VOL

MIC

Amplifier

Coaxial

Coaxial cableCoaxial cable

VOLUME

DC IN 12V

POWER

ON OFF

COAXIAL AUDIO VIDEO

INPUT OUTPUT

Page 10

Remote Control Operation

-20-

Advanced Features

While [PROGRAM] is on, press ENTER to display the [Program] submenu:

1 _ _

_ _

3 _ _

Program Input

4 _ _ 5 _ _ 6 _ _

7 _ _ 8 _ _ 9 _ _

10 _ _ 11 _ _ 12 _ _

DVD

1 _ _:_ _ 2 _ _:_ _ 3 _ _:_ _

Program Input Title / chapter

4 _ _:_ _ 5 _ _:_ _ 6 _ _:_ _

7 _ _:_ _ 8 _ _:_ _ 9 _ _:_ _

10 _ _:_ _ 11 _ _:_ _ 12 _ _:_ _

Play Program Clear All

Input the track numbers in the order you would like them to

play. When finished, select [Play Program] and then press

ENTER to play the tracks in the new programmed order.

Select [Clear All] and press ENTER to clear all the numbers you have input.

Input the title number and the chapter number in the desired order. Then select [Play Program] and press ENTER to play the chapters in the order you have set. Select [Clear All] and press ENTER to clear all the numbers you have input.

Others

PROG

Play Program Clear All

Function

Push the Function button once, the following menu show in the display screen: Sharpness, TINT, Color, Contrast, Brightness, Rest and push the Function again select the Parameter you wanted. Press the UP button or DOWN button adjust the

param e ter till available.

-9-

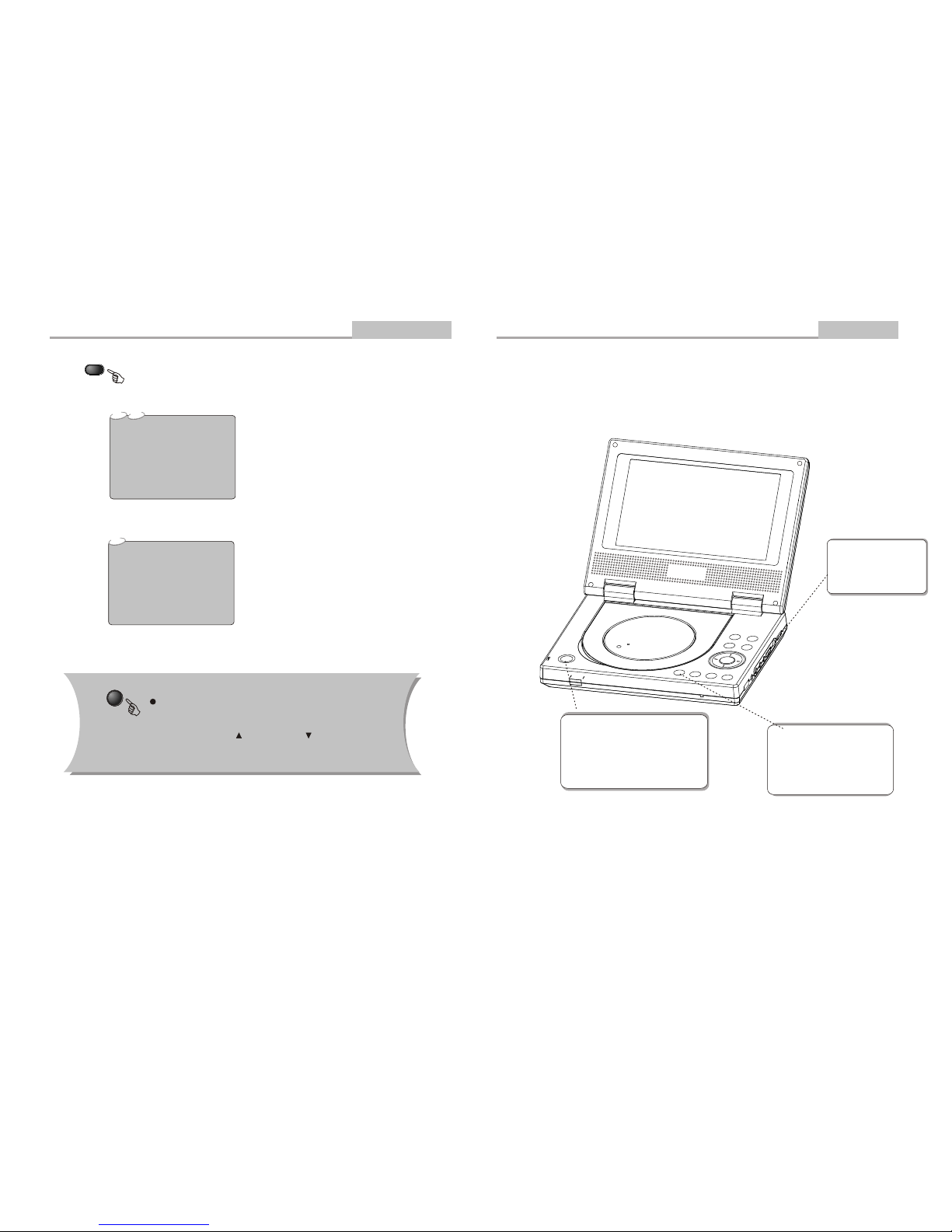

Basic Playback

Basic Operation

STEP 3 - Press the PLAY button on the front panel or remote control. The player will automatically read and identify the disc, and begin playback.

STEP 2 - Push OPEN either on the front panel or remote control. When the tray is opened, place the disc on the tray with the label side up. Push OPEN again to close the disc tray.

STEP 1 - Press POWER to start the player. The DVD logo appears on the TV screen.

Preparation before playing:

Page 11

TITLE

Note: This function is subject to the disc.

During DVD playback, press TITLE to display the DVD title

menu or play the first title.

MENU/PBC

Note: This function is subject to the disc.

During DVD, playback , press MENU to return to the program menu. In the Setup Menu, press MENU to return to the main menu

or stop mode.

Any time, press MENU to cancel the current OSD or some menus

Note: MP3 discs and some DVD discs do not have a 10 second review feature.

PLAY/PAUSE

Press PLA Y from stop mode to start playback. Press P AUSE during playback to pause playback.

Press PLA Y to resume normal playback. This function is not available if the elapsed time of current track is less than 10 seconds.

-19-

Advanced Features

Remote Control Operation

SLOW

Press slow repeatedly to slow motion playback at

variable speeds.

Language Video Audio Rating

English

French Spanish German

OSD Menu Subtitle Audio DVD Menu

English

English English English

Modes and Features Setup

SETUP

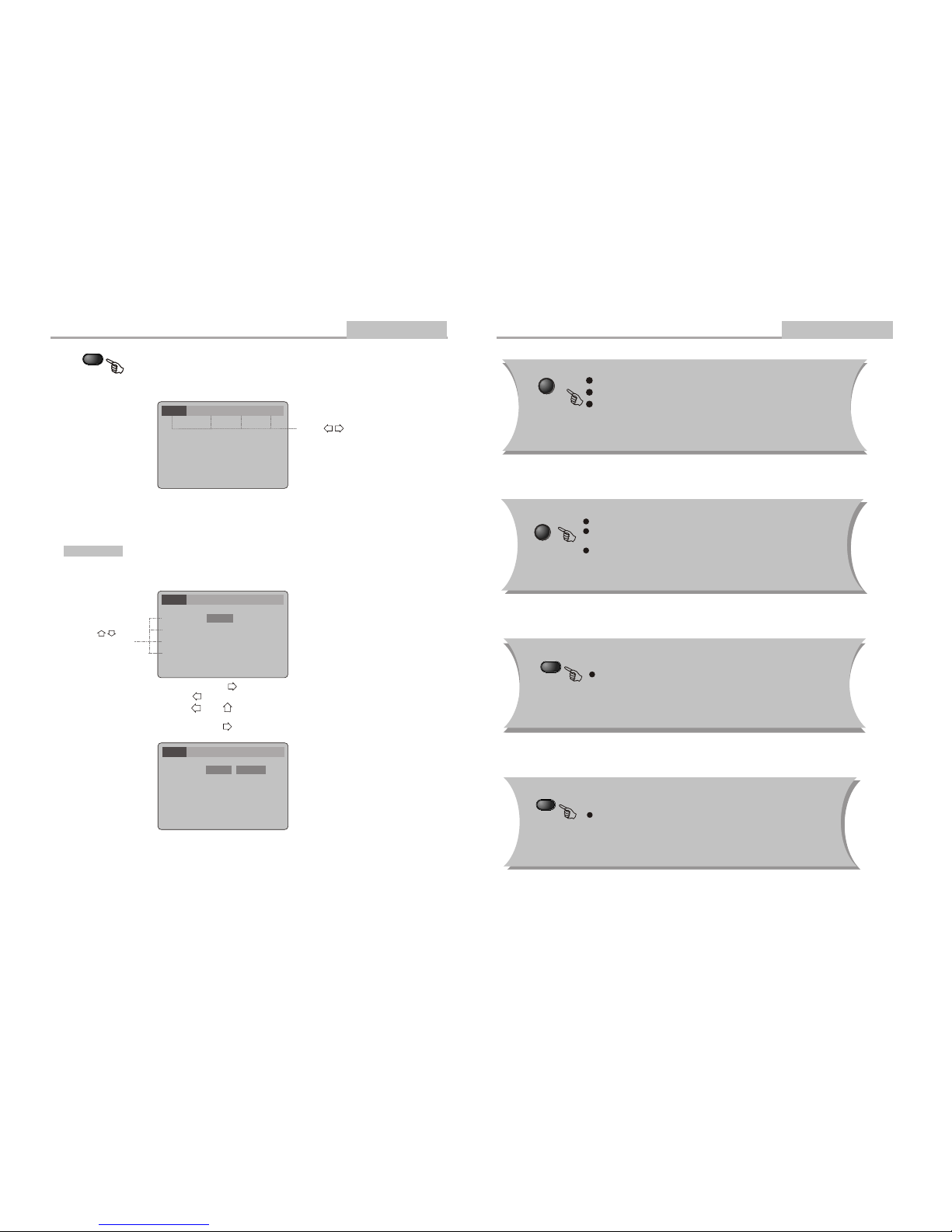

In stop mode, press SETUP, and the TV screen will display the Setup Menu as follows:

A. Press ENTER to display each submenu B. Press SETUP to exit the Setup Menu

Language Setup

Select [Language] in the Setup Menu, and press ENTER to display [Language] submenu: the

Select press ENTER to display submenu[OSD Menu], and or the [OSD Menu] :

Press to change items

Press to select the menu item

Language Video Audio Rating

OSD Menu Subtitle Audio DVD Menu

English

English English English

A . Press ENTER to confirm. B. Press SETUP to exit the Setup Menu.

A or . Press ENTER to set B. Press to go back one menu C. Press OR repeatedly to return to the Setup Menu

Setup Menu

-10-

Advanced Features

Language Video Audio Rating

Page 12

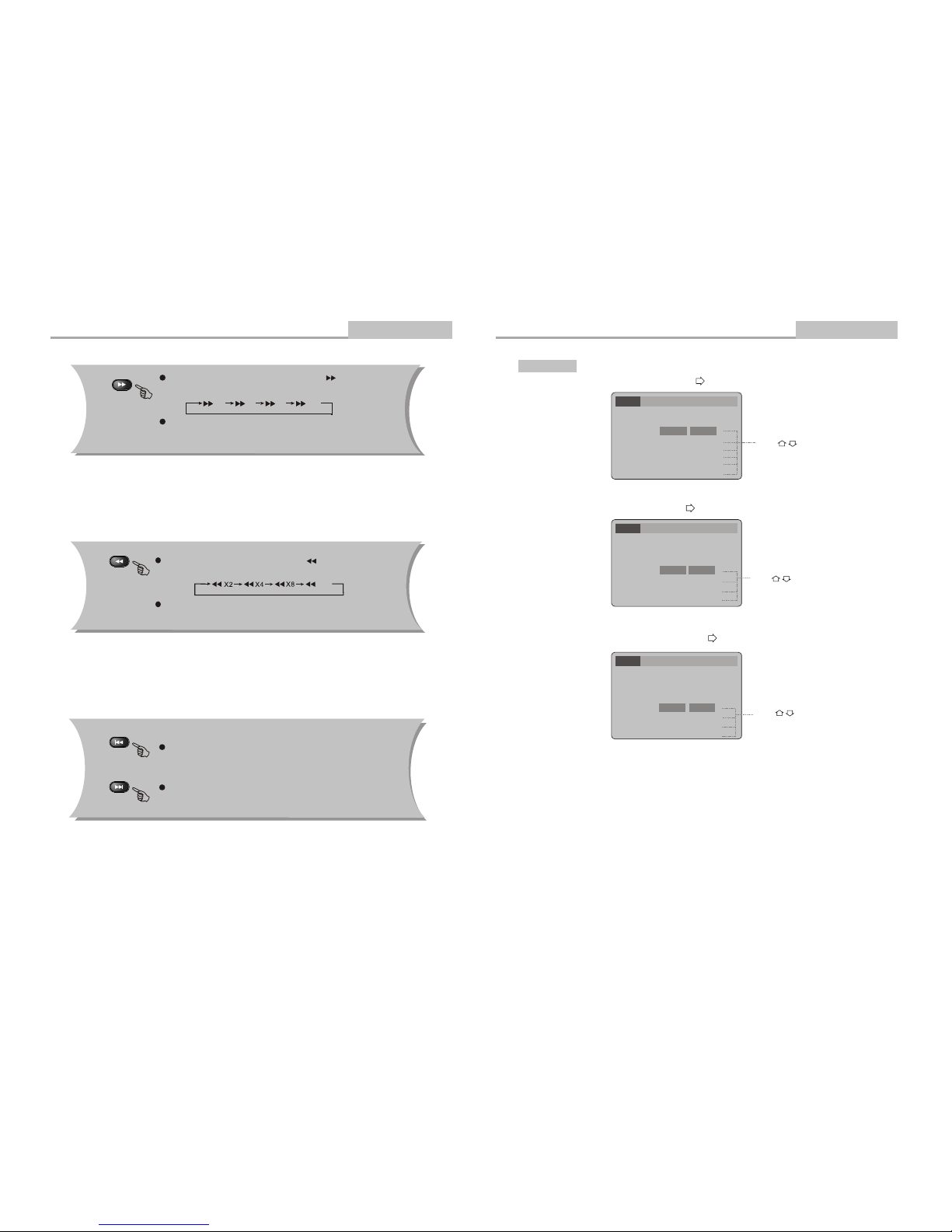

X2 X4 X8 X20X2 X4 X8

During DVD or CD playback, press and hold to scan forward. The player will review the disc at 2, 4, 8 and 20 times normal speed as follows:

Press PLAY to resume normal playback.

During DVD or CD playback, press and hold to scan in reverse. The player will review the disc at 2, 4, 8 and 20 times normal speed as follows:

Press PLAY to resume normal playback.

X20

Press PREV to skip to previous chapter or track.

Press NEXT to skip to the next chapter or track.

-18-

Remote Control Operation

Advanced Features

Language Video Audio Rating

English

A. Press ENTER to confirm B. Press SETUP to exit the Setup Menu

Language Setup

OSD Menu Subtitle Audio DVD Menu

Subtitle Audio DVD Menu

OSD Menu Subtitle Audio DVD Menu

English

English English

English

English English

English

English English

English

Press to change your selection

Note: Subtitle languages vary by disc.

Note: Audio languages vary by disc.

Note: Menu languages vary by disc.

-11-

Modes and Features Setup

Advanced Features

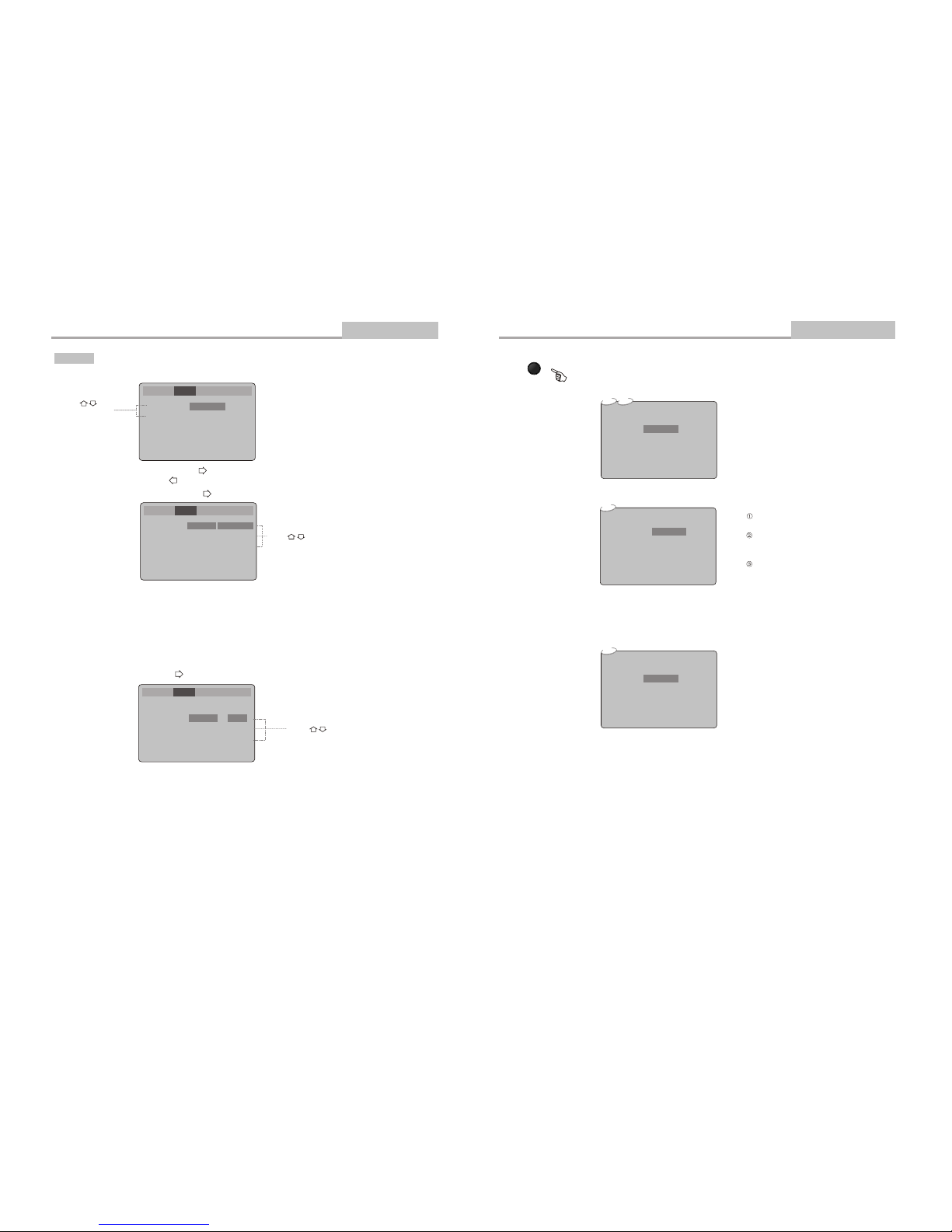

Select [Audio],and press ENTER or to display the [Audio] submenu:

Select [DVD Menu], and press ENTER or to display the [DVD Menu] submenu:

Select [Subtitle], and press ENTER or to display the [Subtitle] submenu:

French Spanish German Auto Off

French Spanish German

OSD Menu

English

French Spanish German

Page 13

TIME

Search Time Track

Notes:

Time searches for an exact time in

the movie.

In Title/Chapter mode, you cannot SELECT a value outside the range of the total number of titles or chapters

For some DVD discs, the Search

function is unavailable.

DVD

Search Time Title / Chapter

-:--:--

Use the number keys to input the desired Time, Title or Chapter, then press ENTER to confirm.

- - / - -

During playback, press TIME, and the [Track Search] menu will display as follows:

Press TIME again , the [Disc Search] menu will display as follows:

Disc Search Time

-:--:--

Others

-17-

Remote Control Operation

Advanced Features

- -

Language Video Audio Rating

-12-

TV shape TV system

16:9

4:3

[Video] the [Video] sub :Select in the Setup Menu, and press ENTER to display menu

Video Setup

A . Press ENTER to confirm B. Press SETUP to exit the Setup Menu

Press to change your selection

Press to select the menu item

Note: Not all DVDs offer movies in Full Screen format. If not, the disc will override your TV Display setting and the movie will be displayed in Letterbox format.

A or set. Press ENTER to B. Press to return to the Setup Menu

TV shape TV system

16:9

NTSC

[4:3] -Letter Box refers to pictures where black bands appear at the top and bottom. [16:9] -The picture fills the screen of a wide-screen (16:9) television.

Advanced Features

Modes and Features Setup

Select [TV shape], and press ENTER or to display the [TV shape] submenu:

[TV system] the [TV system] sub :Select and press ENTER or to display menu

Press to change your selection

A . Press ENTER to confirm B. Press SETUP to exit the Setup Menu.

TV shape TV system

16:9

NTSC

16:9

NTSC

NTSC PAL AUTO

Page 14

-16-

Advanced Features

Remote Control Operation

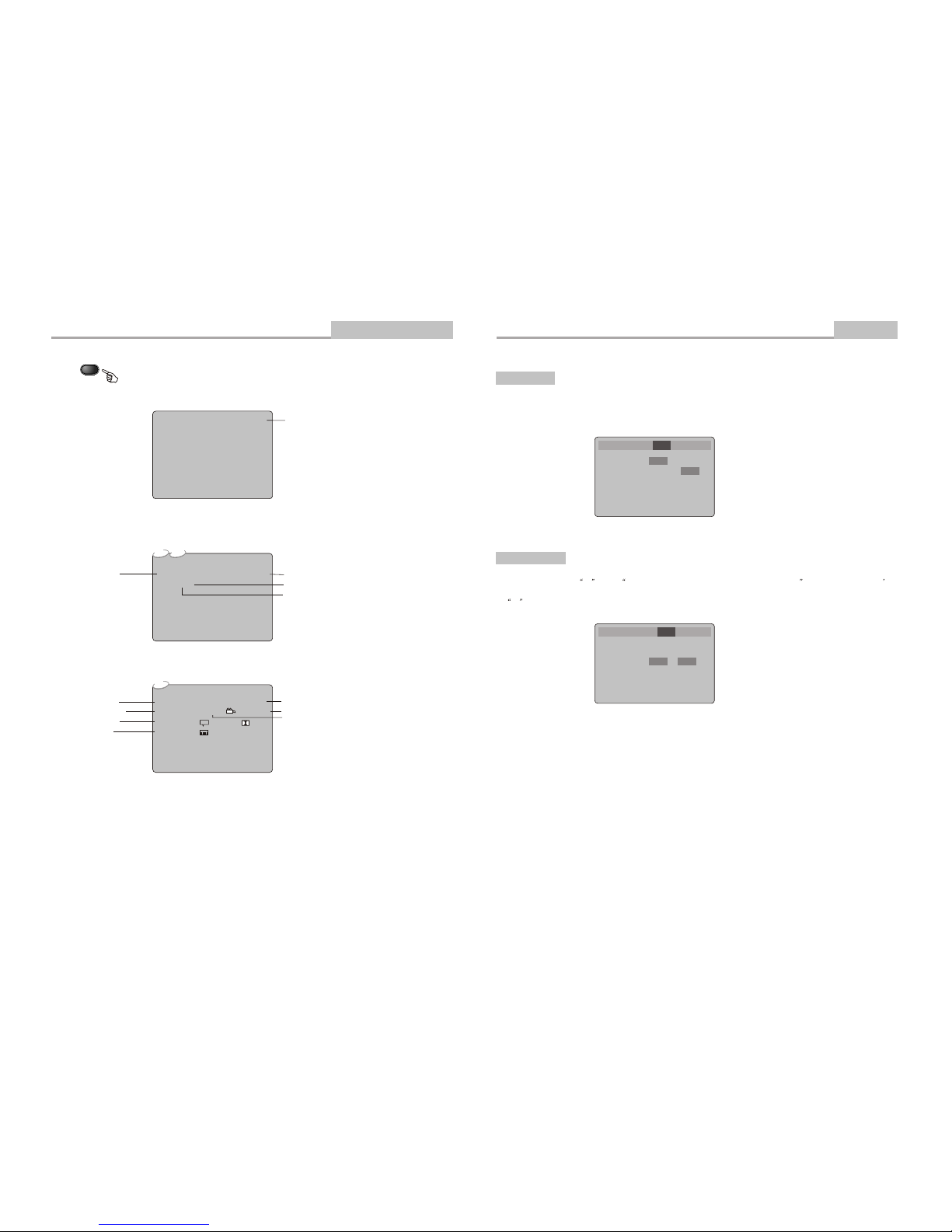

During playback, press DISPLAY to display the current time counter position.

Elapsed time of the current track/chapter

Press DISPLAY again to display additional information about the playing disc.

0:04:45

Other Track

1/15

Disc type

Elapsed time of the current track Total tracks Current track

0:04:45

DVD Title 1/10 Audio Subtitle

DVD

Disc type

Elapsed time of the current title Current chapter

Current title Audio type Subtitle

Chapter 2/20 Angle 2/2

1 Eng

5.1Ch

1 Eng

Angle

0:04:45

DISPLAY

Others

0:00:10

Language Video Audio Rating

Digital Out LPCM 48KDS

AUDIO SETUP

Digital out:ln this setup item, you can choose the digital output (SPDIF output).

Set Digital out to:

PCM To output 2 channel digital from the Coaxial digital audio outputs; e.g., to a Minidisc recorder. RAM To output the raw 5.1 channel digital bitstream form the coaxial digital audio audio outputs; e.g.,to an external amplifier. Off To disable digital out.

Digital Output

Language Video Audio Rating

This option sets the audio output format sent using the units optical digital andio output on you can tum on/off funetion. in the linear PCM setting, on means the digital audio output maximun sampling rate is 48KHz Therefore, when the title s encoding sampling rate is 96KHz,the output will be forced converted to 48KHz. lf off is selected,then the maximun output sampling rate is 96KHz and no conversion will take place.

LPCM 48KDS

Digital Out

RAW

Introduction

RAW OFF

RAW

PCM

OFF

Modes and Features Setup

-13-

LPCM 48KDS

Page 15

Note: 1. During CD playback, points A and B must be within the same track. During DVD playback, points A and B can be selected from different chapters.

2. This function is subject to the disc.

A-B

During playback, press A-B to select point A. Press it again to select point B. The player will repeat the section from A

to B automatically.

Press A-B third time to cancel A-B repeat and clear points A and B.

0-10+ keys

These keys are used to input the time, as well as

title, chapter and track numbers.

When a numeric item is displayed on the screen, press the 0-10+ keys to select the desired entry, and press ENTER to confirm.

-15-

Remote Control Operation

Advanced Features

-14-

Modes and Features Setup

Advanced Features

Language Video Audio Rating

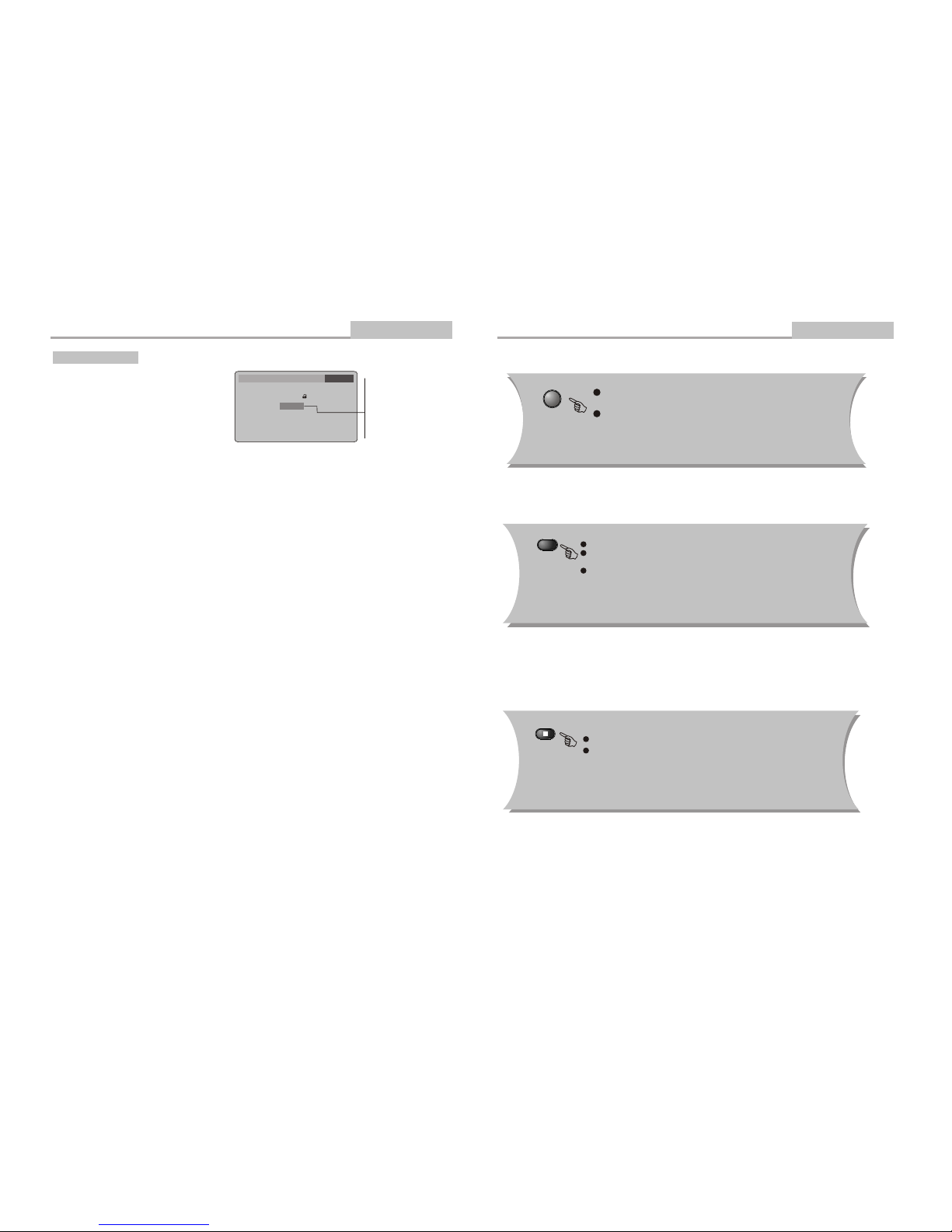

Rating Setup

Password ---Rating LOAD Factory

8. Adult Reset

1:Kid Safe 2:G 3:PG 4:PG-13 5:PG-R 6:R 7:NC-17 8:Adult

The Rating menu allows you to block playback of DVDs based on their ratings.

Setting the Password & Rating Level

The DVD player allows you to block playback of inappropriate content with a passwordprotected Rating system (not all discs are rated). A. From Stop mode, press SETUP. B. Select Rating and press ENTER. C. Select Rating and press ENTER repeatedly to set the rating from 1 (most restrictive) to 8( least restrictive ). If a password has already been set, the lock icon will be closed. You will not be able to select Rating until you SELECT the correct password using the 0-9 keys. D. Select Password. E. Use the 0-9 keys to SELECT a 4-digit password and press ENTER. The lock icon will close to indicate that the rating and password are set. F. Press SETUP t o save and exit.

Not all DVDs are rated. DVDs that are rated higher than the level you select will not play without SELECTING the correct password.

If you forget your Rating password, select 8888 to clear the memory. Keep this pass word out of reach of children as if will always unlock the Parental Control setting.

Note: T f playback is stopped about 5 minutes(when Screen Saver is set to on).

he screen saver will automatically turn on i

STOP

Press STOP during playback to stop and hold playback. Press RUSEME to resume playback from the point you pressed STOP.
