Page 1

27” TFT LCD TV 27” TFT LCD TV

INSTRUCTION MANUALINSTRUCTION MANUAL

MODEL: LTV-2701

Page 2

Please read all the safety and operating instructions carefully before you begin.

Safety class

This is an IEC safety class I product and must be grounded for safety.

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS....................................................................................................................

PREFACE...................................................................................................................................................................

WARNING AND CAUTIONS......................................................................................................................................

SPECIFICATIONS......................................................................................................................................................

INSTALLATION

TV ASSEMBLY DRAWINGS...............................................................................................................................

FRONT....................................................................................................................................................... .......

BACK.................................................................................................................................................................

PC......................................................................................................................................................................

ANTENNA..........................................................................................................................................................

AV EQUIPMENT ASSESSORIES...................................................................................................................

BATTERY INSTALLATION (REMOTE CONTROL UNIT).........................................................................................

REMOTE CONTROL DESCRIPTION.....................................................................................................................

OPERATION INTRODUCTIONS

TURN ON/OFF

TV...........................................................................................................................................

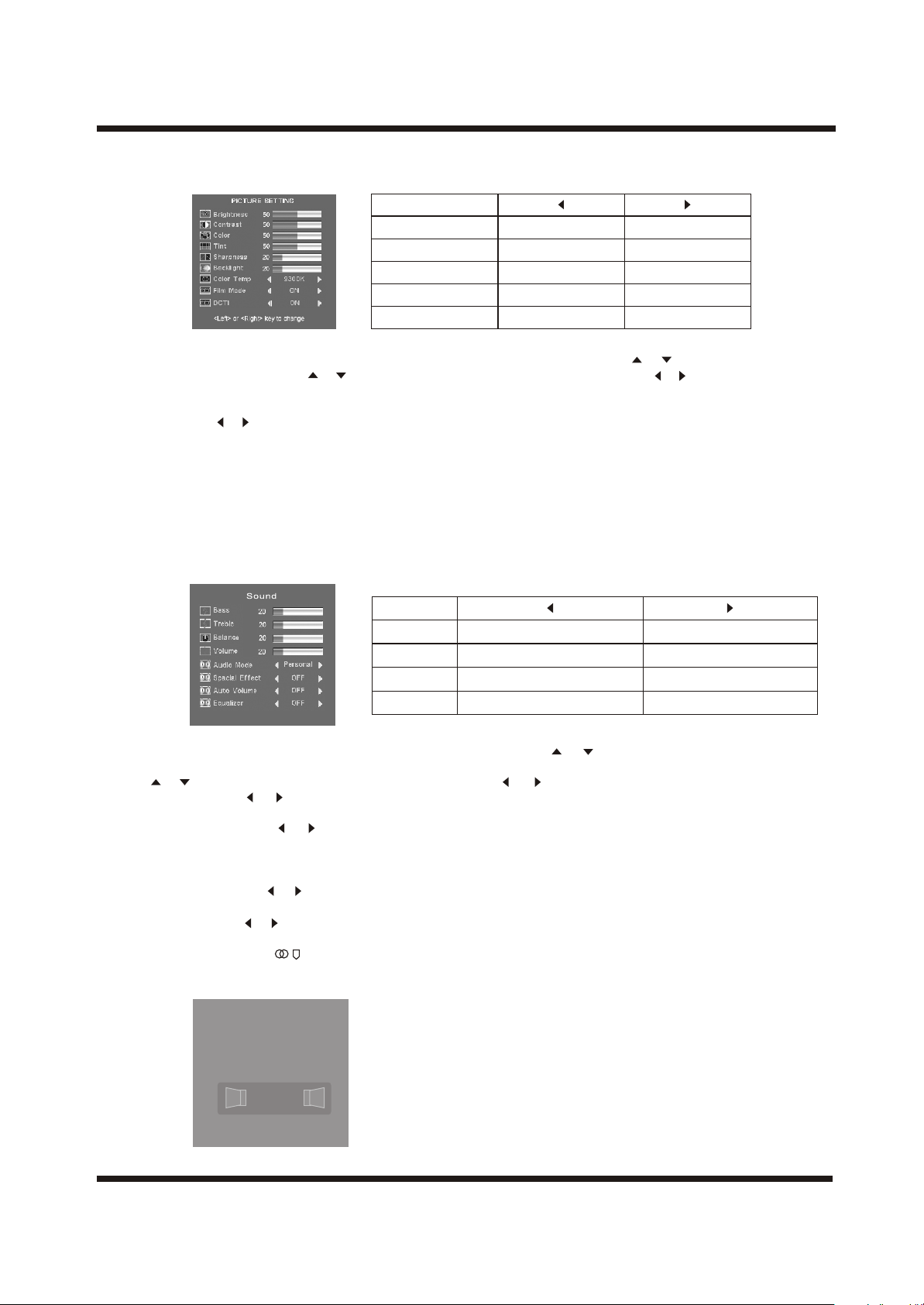

PICTURE SETTING SOUND...............................................................................................................

..........

CLOSED CAPTION................................................................................................................................

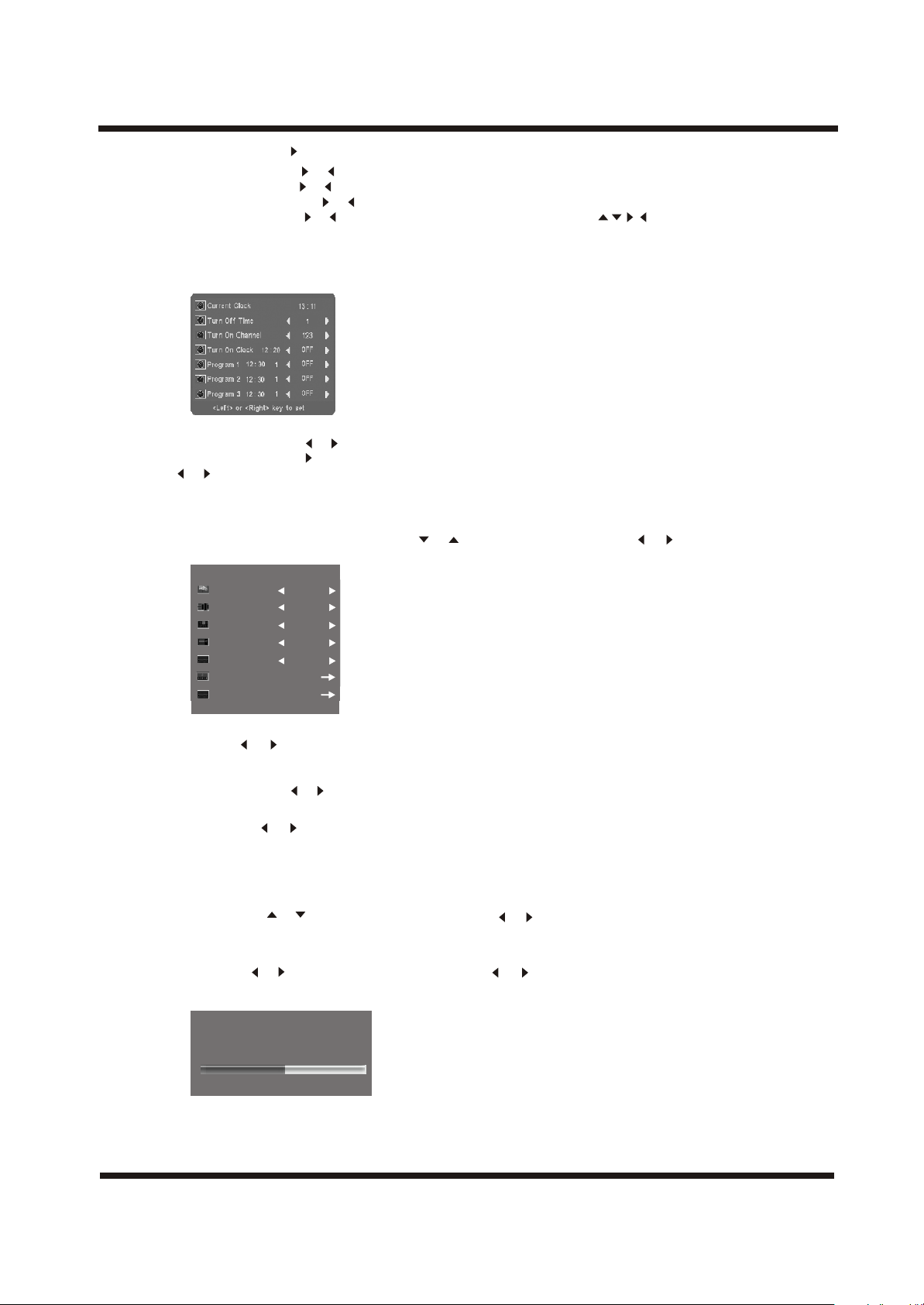

SETUP.....................................................................................................................................................

CHANNEL SETTING........................................................................................................................................

ANALOG RGB AND DVI PICTURE SETTING..................................................................................

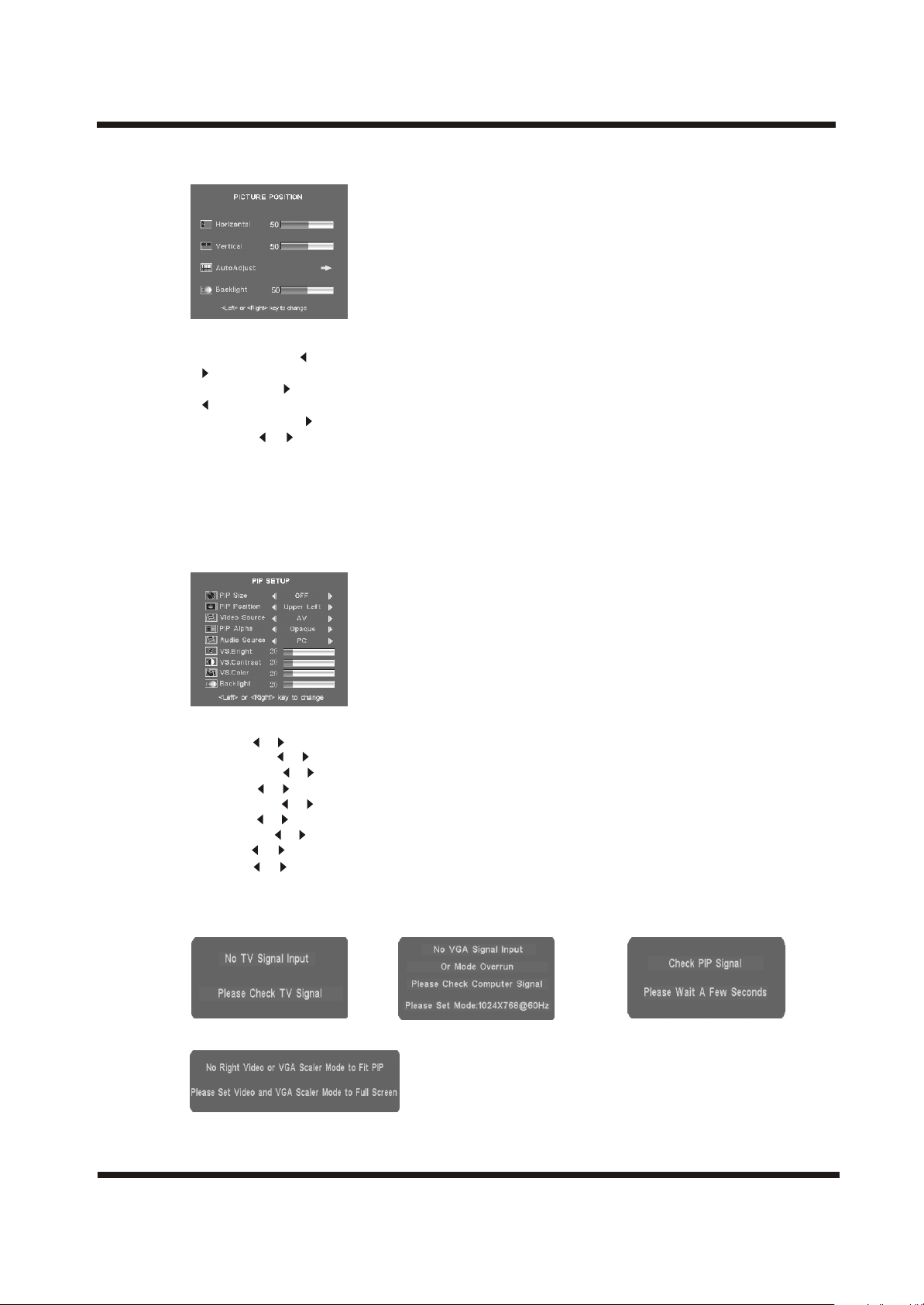

PICTURE POSITION

TROUBLESHOOTING GUIDE.................................................................................................................................

PERSONAL COMPUTER.............................................................................................................................

PIP...............................................................................................................................

..........

1-2

4-6

15-17

Page 3

IMPORTANT SAFETY INSTRUCTIONS

1.Read these safety instructions.

2.Keep these safety instructions.

3.Heed all warnings.

4.Follow all safety instructions.

5.Do not use this apparatus near water.

6.Clean only with dry cloth.

7.Do not block any ventilation openings. Install in accordance with the manufacturers instructions.

8.Do not install near any heat sources such as radiators, heat registers,stoves, or other apparatus (including

Amplifiers) that produce heat.

9.Do not defeat the safety purpose of the polarized or grounding type plug.A polarized plug has two blades with

one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or

the third prong are provided for your safety. If electrician for replacement of the obsolete outlet.

10.Protect the power cord from being walked on or pinched particularly at plugs convenience receptacles, and

the point where they exit from the apparatus.

11.Only use attachments/accessories specified by the manufacturer.

12.Unplug this apparatus during lightning storms or when unused for long periods of time.

13.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have

fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has

been dropped.

14.Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases,

shall be placed on the apparatus. important safety instruction.

15.Splashing The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,

splashing and no objects filled with liquids such as vases, shall be placed on the apparatus.

16.A warning that an apparatus with class I construction shall be connected to a MAINS socket outlet with a

protective earthing connection.

17.where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall

remain readily operable.

-1-

Page 4

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN!

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USE-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.

The symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

POWER SUPPLY:

Connect AC100--240V,50/60Hz,200W output to this unit s power socket. The core of the socket is positive pole. Sheet metal outside is cathode.

-2-

Page 5

PREFACE

Thank you very much for purchasing this TV. To enjoy your set to the full from the very beginning, read this manual carefully and keep it handy for ready reference.

INSTALLATION

Locate the TV in the room where light does not strike the screen . Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing. Allow enough space between the TV and the wall to permit ventilation. Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure. This AC power can be connected to AC 100-240 volts. 50/60Hz. Do not cover the ventilation openings when using the TV.

CAUTION

Never tamper with any components inside the TV, or any other adjustment controls not mentioned in this manual. All LCD-TVs are high voltage instruments. When you clean up dust or water drops on the LCD PANEL or CABINET, the power cord should be pulled out from the receptacle, then wipe the receiver with dried soft cloth. During thunder and lighting, unplug the power cord and antenna cord to prevent damage to your TV. All repairs to this TV should only be performed by the TV service personnel.

directly

-3-

Page 6

WARNINGS AND CAUTIONS

Caution

Carry the set requires two or more people.

Caution

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Caution

Do not insert anything in the ventilation holes. If metal or something flammable enters, it may result in fire or electric shock.

Caution

Do not place objects on this unit, it may damage the screen surface.

Caution

Do not squash power supply cord under the television receiver.

Caution

Do not throw anything at the set. The screen glass may explode by impact and cause serious injury.

-4-

Page 7

WARNINGS AND CAUTIONS

Caution

Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it should fall.

Caution

Do not place your television on an unstable cart , stand , shelf or table. Serious injury to an individual, and damage to the television, may result if it should fall.

Caution

When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet .

Caution

Do not block the ventilation holes in the back cover. Adequate ventilation is essential to prevent failure of electrical component.

Avoid exposing the television receiver to direct sunlight and other source of the heat. Do not stand the television receiver directly on other produces which give off heat .E.g.video cassette players. Audio amplifiers. Do not place naked flame sources, such as lighted candle on the television.

expose the LCD screen surface to the sun, it may damage the screen surface.

Warning

Do not

-5-

Page 8

WARNINGS AND CAUTIONS

Warning

Take care not to connect many appliances to the same mains socket as this could result in fire or elecric shock. Do not place objects on this unit. it may damage the screen surface.

Warning

High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set.Refer servicing to qualified service personnel.

Dim:515*320mm(

Warning

To prevent fire or electrical shock hazard, Do not expose the television receiver to rain or moisture.

Warning

For you own safety, Do not touch any part of the set, main lead or aerial lead during lighting storms.

Caution

If the television is to be built into a Compartment or similarly enclosed, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous.

-6-

Page 9

SPECIFICATONS

Model LCD pane Television system

AV system

Channel coverage

Analog RGB mode Y Pb/Cb Pr/Cr mode Resolution Display Color Comb Filter Contrast Brightness Viewing angle OSD language Power source Power consumption Audio power Lamp life

Video/Audio terminals

Supplied accessories

LTV-2701 27 INCHES TFT LCD NTSCM PAL-4.43MHz-50Hz NTSC-3.58MHz-60Hz SECAM-4.29MHz-50Hz NTSC-4.43MHz-60Hz PAL-3.58MHz-50Hz PAL-3.58MHz-60Hz PAL-4.43MHz-60Hz VHF-L: 46.25~163.25MHz VHF-H: 158.25~466.25MHz UHF: 461.25~865.25MHz 640X480/ 60Hz, 800X600/ 60Hz, 1024X768/ 60Hz,1280X720/60Hz 480P,576P,720P,1080i 1280X720

16.7 million colors Adaptive 2/4 line 600:1 550cd/m

170° (H)/170° (V) English/French/Italian/Spanish/German AC 100-240V , 50/60Hz 200W 6W+6W 50,000 hours RF input: Cable/ antenna RFx1 VIDEO input: VIDEOx2 S-VIDEOx1 Y Pb/Cb Pr/Cr x1 GRAPHIC input: Analog RGB 15pin x1 DVIx1 AUDIO input: AV audio x2 HDTV audiox1 AUDIO output: TV1 audiox1 Remote control, AC cord, Instruction Manual,batteries.

Design and specifications are subject to change without notice.

Accessories:

One Remote Control

Two size AAA batteries

-7-

One AC cord

Page 10

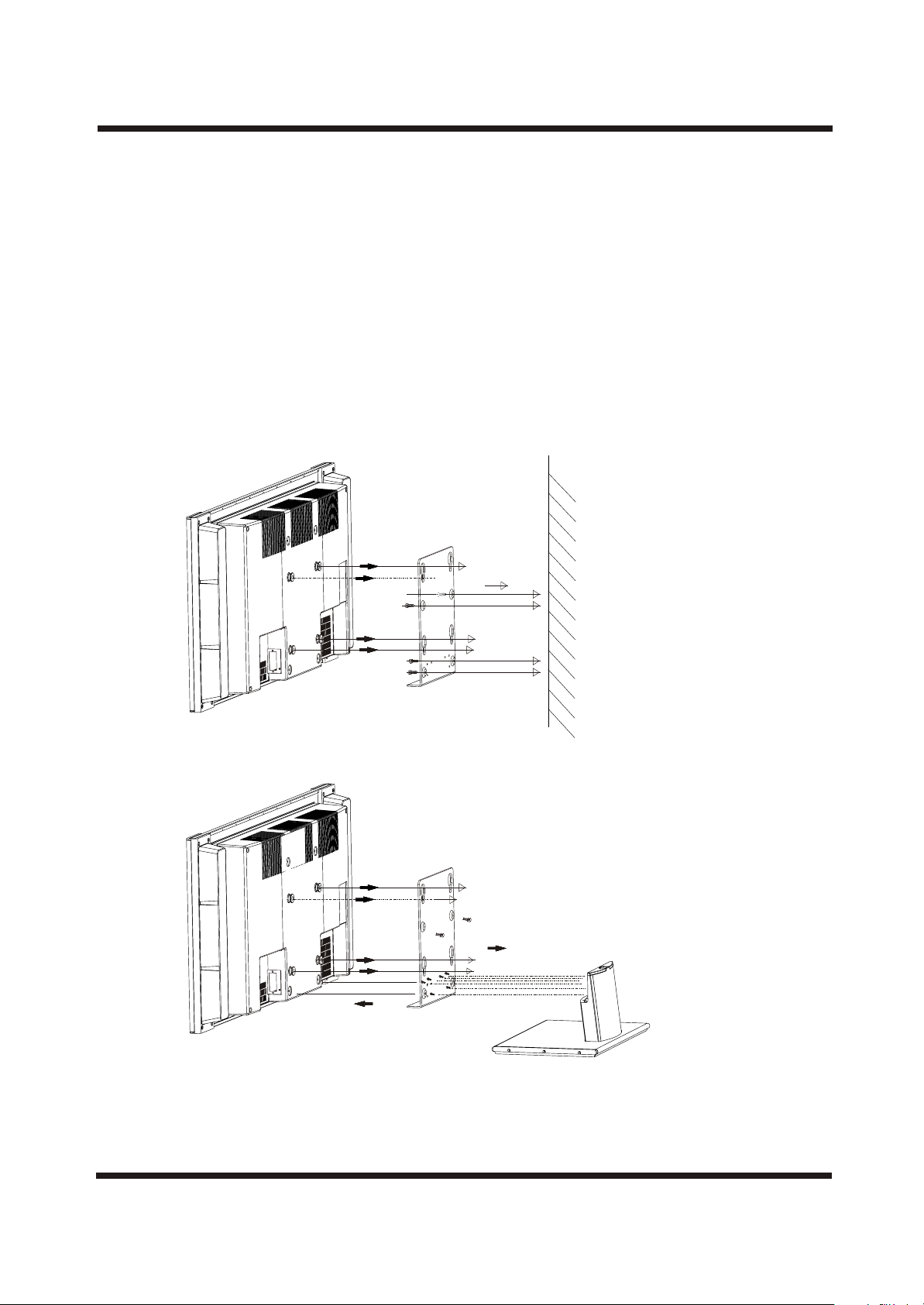

TV ASSEMBLY DRAWINGS

Hang the TV on the wall

Step1: Disassemble the pedestal. Step2: Install part A on the wall. Step3: Hang the TV on the wall.

Note:

1.Installation of the display unit on the wall should be carried out by qualified servicemen. Improper Installation may render the unit unsafe in the event of an earthquake.etc.

2.Hang the TV on the wall requires two or more people.

3.The unit must be installed concrete wall.

Refer to drawings below:

Wall

-8-

Page 11

INSTALLATION

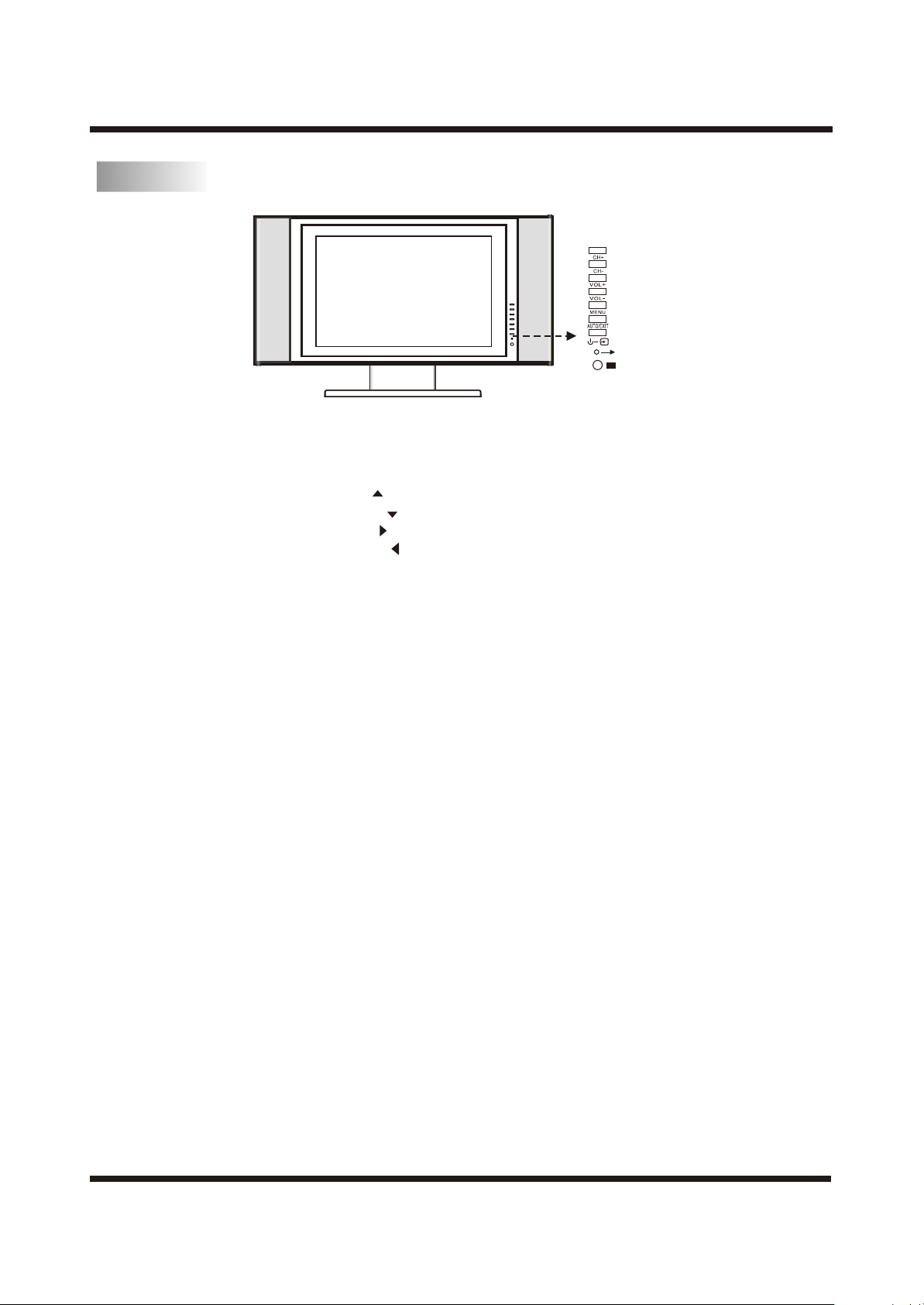

FRONT

(Power on/standby)indicator

IRIR

KEYS:

1.CH+: channel up select, it is equivalent .

2.CH-: channel down select, it is equivalent .

3.VOL+: volume up adjust, it is equivalent .

4.VOL-: volume down adjust, it is equivalent .

5.MENU: to enter into menu operation.

6.AUTO/EXIT: automatically adjust picture/exit OSD.

7.POWER/ SIGNAL SELECT: press the key at least 5 seconds to turn off the set (standby). Press the button once in 3 seconds to select a signal source.

8.(Power on/standby)indicator:Lights up in green when the set is working.when the standby mode, the

indicator lights up flash.

-9-

Page 12

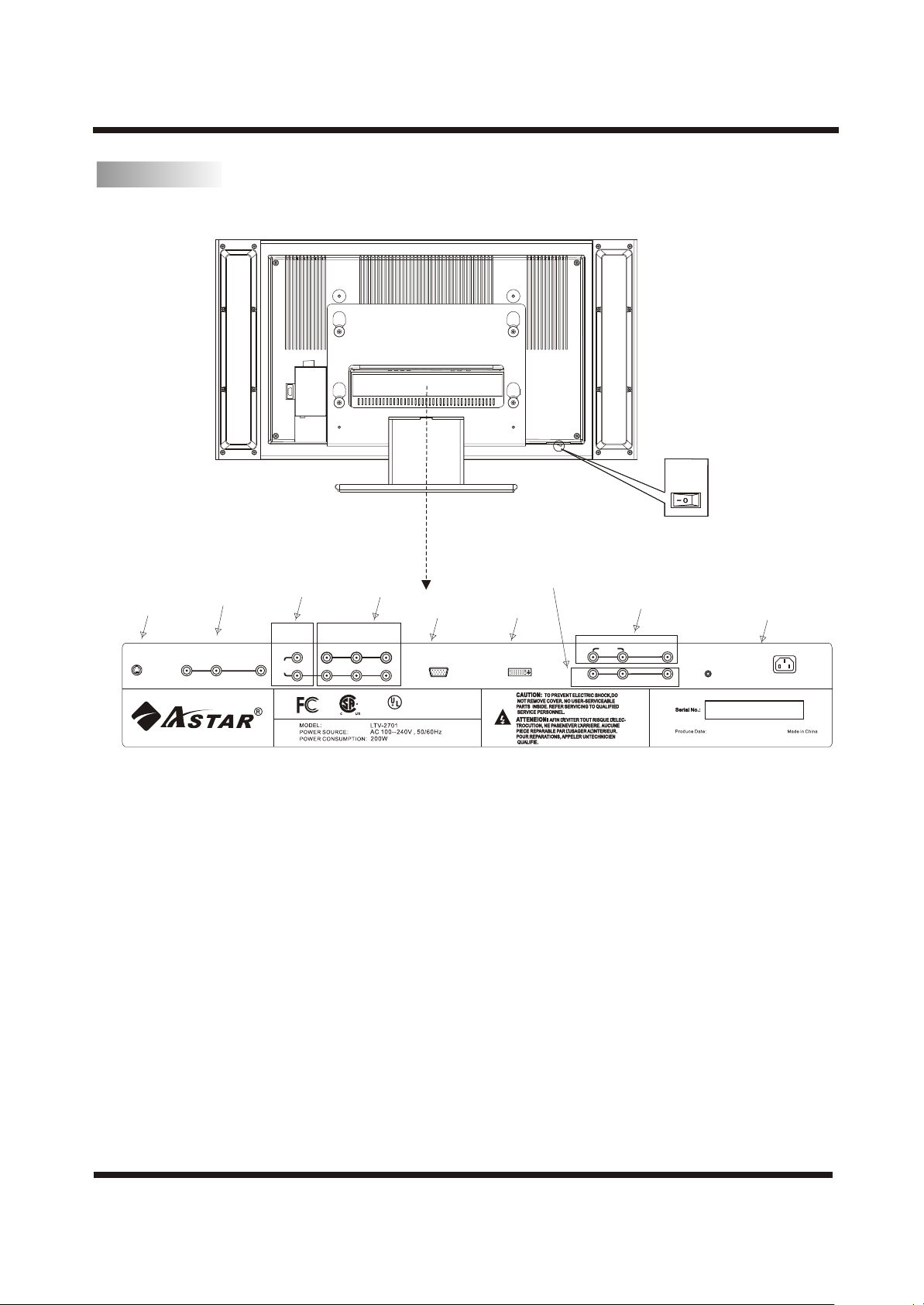

BACK

INSTALLATION

SCALE

1.000

Power switchPower switch

VIDEO input and Audio input

S-VIDEO Input

L/MONO

S-VIDEO IN

HDTV Audio Input

AV2

R Cb Cr

HDTV

AUDIO

YC Input

Analog RGB Input

YPr

C US

LISTED

VGA DVI

Audio/Video Apparatus

58WJ

221338

DVI Input

VIDEO output and Audio output VIDEO is fixed TV signal

AUDIO

L/MONO

VIDEO

AV1

Power Input

AUDIO

OUT

AC IN

VIDEO input and Audio input

-10-

Page 13

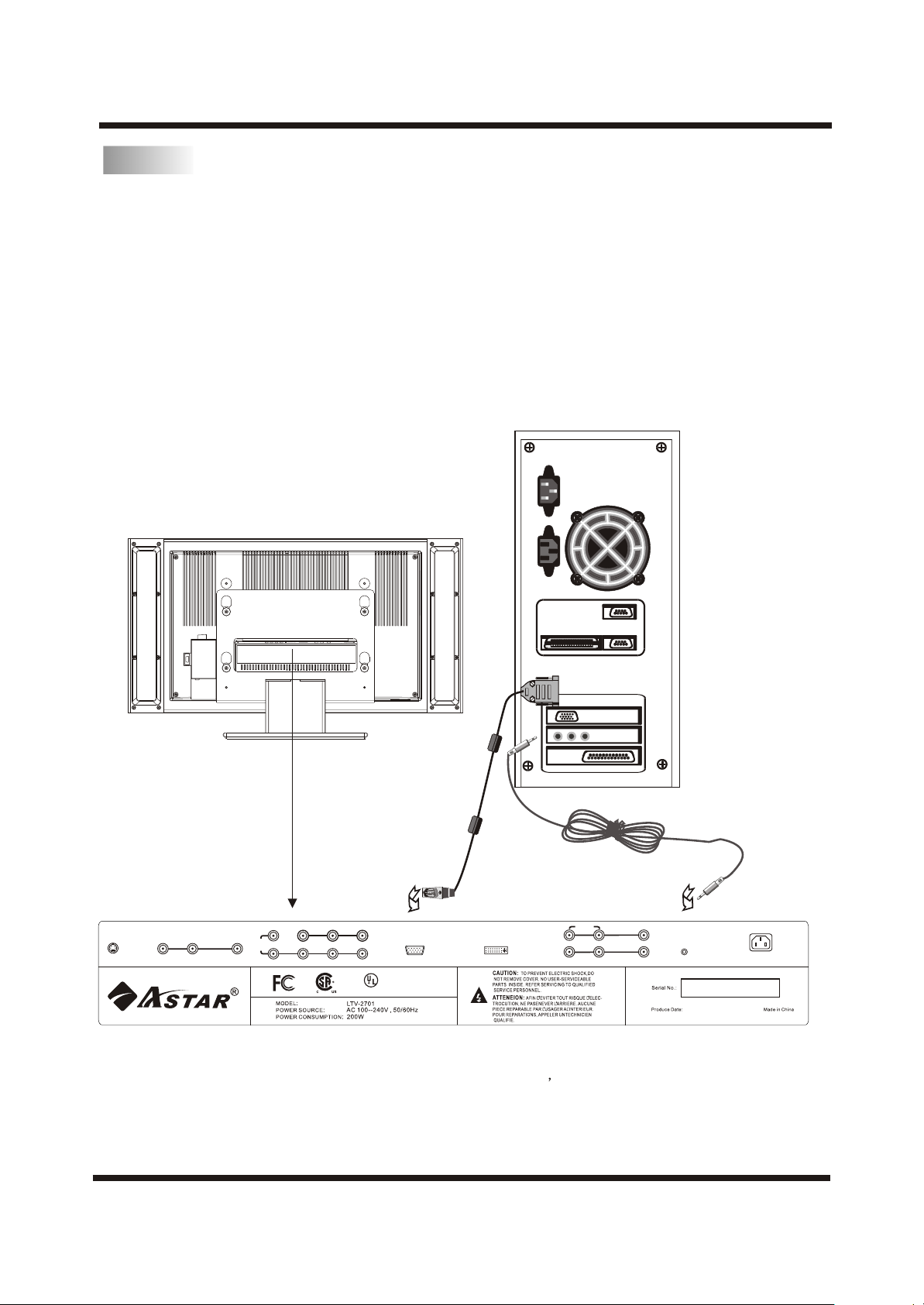

INSTALLATION

STEPS:

1. Connect Video Cable a. Make sure both the TV and computer are powered-OFF. b. Connect the video cable to the computer.

2. Connect the Audio cable.

3. Connect power cord

4. Power-ON Computer Power-ON the TV first, then Power-ON the computer. This sequence is very important.

5. If the TV still does not function properly, please refer to the troubleshooting section to diagnose the problem.

* Please don't open the Cover

VIDEO

AUDIO

OUT

AV1

AC IN

S-VIDEO IN

L/MONO

AUDIO

AV2

R Cb Cr

HDTV

AUDIO

YPr

C US

LISTED

VGA DVI

Audio/Video Apparatus

58WJ

221338

CAUTION:

Hold on to the connector lug when you unplug any one of the connectors Do not pull direct pull on the cord as it is prone to damage.

-11-

Page 14

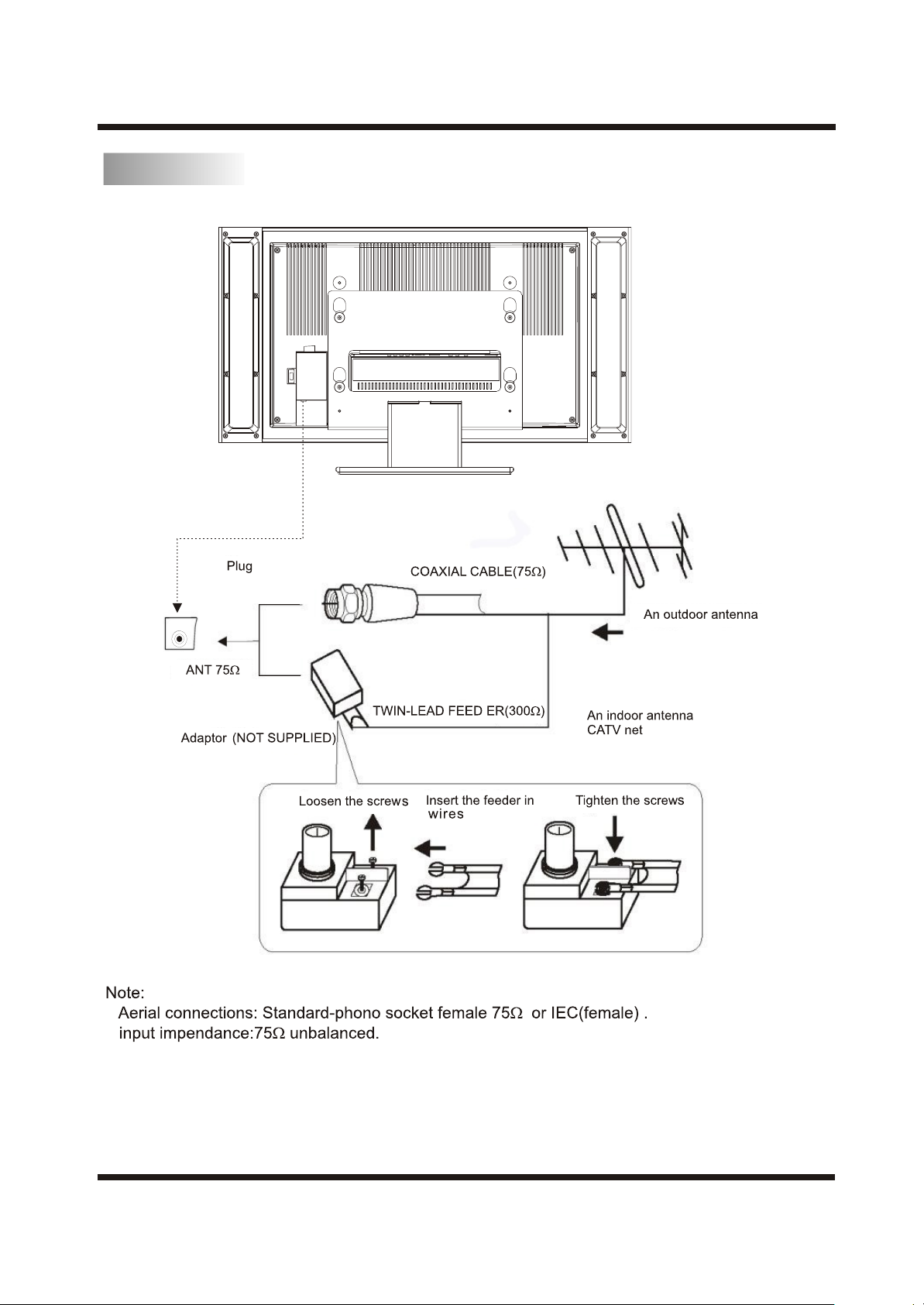

ANTENNA

INSTALLATION

-12-

Page 15

INSTRUCTION

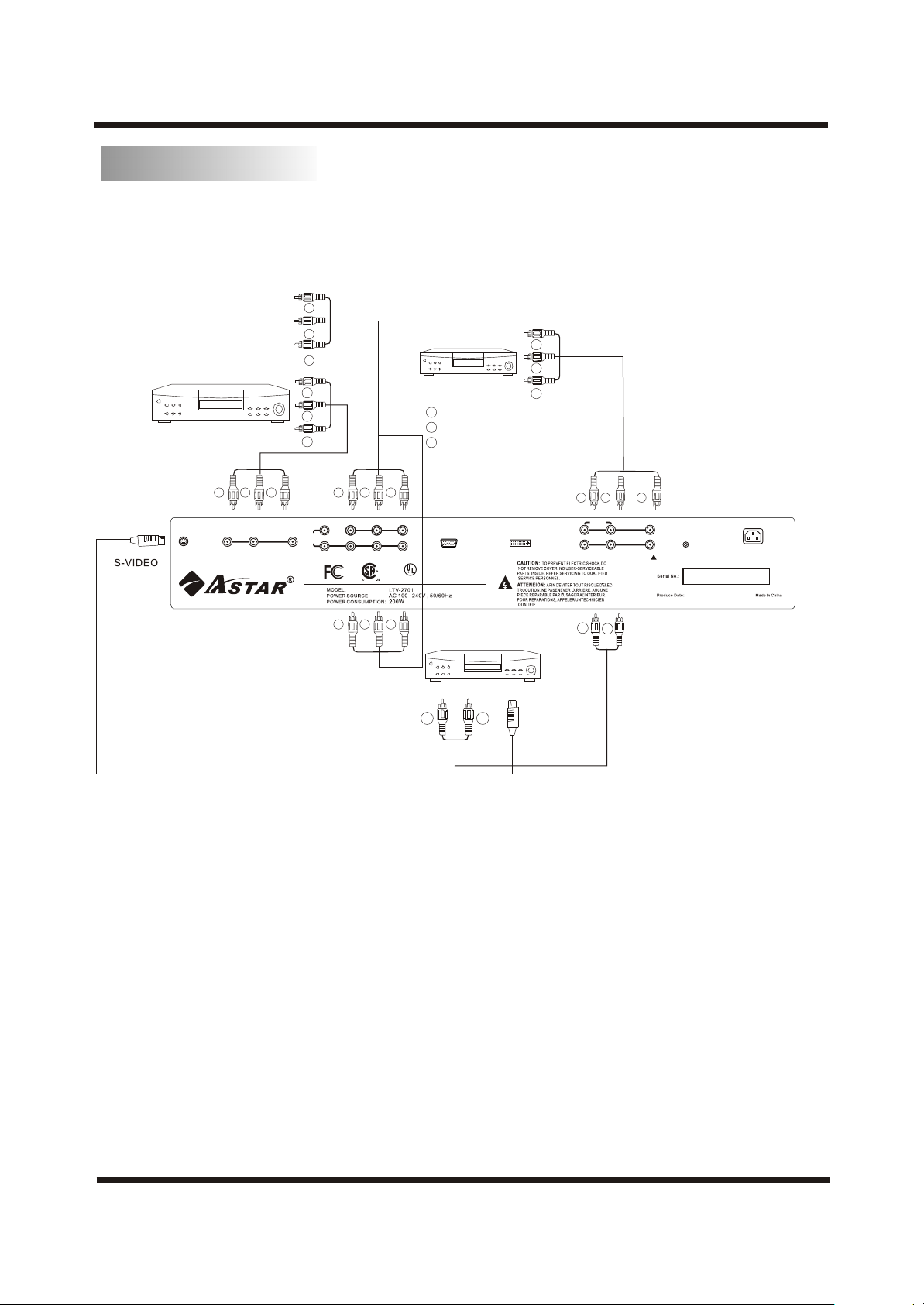

AV EQUIPMENT

This TV provides 2 group of AV input terminal including one S-Video and one group of YCbCr terminal for connection to VCR,DVD or other video equipment. To enjoy the high quality picture. Please refer to the owner s manual of the equipment to be connected as well. '

You can use the AV input terminals on TV set rear as follows.

VIDEO EQUIPMENT

L/MONO

S-VIDEO IN

with terminal

VIDEO EQUIPMENT

RW Y

AV2

HDTV AUDIO

R Cb Cr

Yellow (video)

White(audol L,mono input)

Red(audio R)

YPr

VGA DVI

Audio/Video Apparatus

C US

58WJ

221338

LISTED

RW Y

To audio inputs

To video inputs

AUDIO

L/MONO

YW R

VIDEO

AUDIO

OUT

AV1

AC IN

with S-video terminal

VIDEO EQUIPMENT

W R

To S-VIDEO

The audio is fit for Av1, S-VIDEO and YCbCr

output

To audio outputs

You can also the S-VIDEO terminal if your video equipment has S-VIDEO.

It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game or stereo system,

etc.....

If your DVD player can output interlace and progressive mode signals, select the interlace output when connecting to component video input on your TV. Your TV can receive either 525i/60Hz or 625i/50Hz interlace signals.

*Please keep AC cord unplugged when connecting TV system.

-13-

Page 16

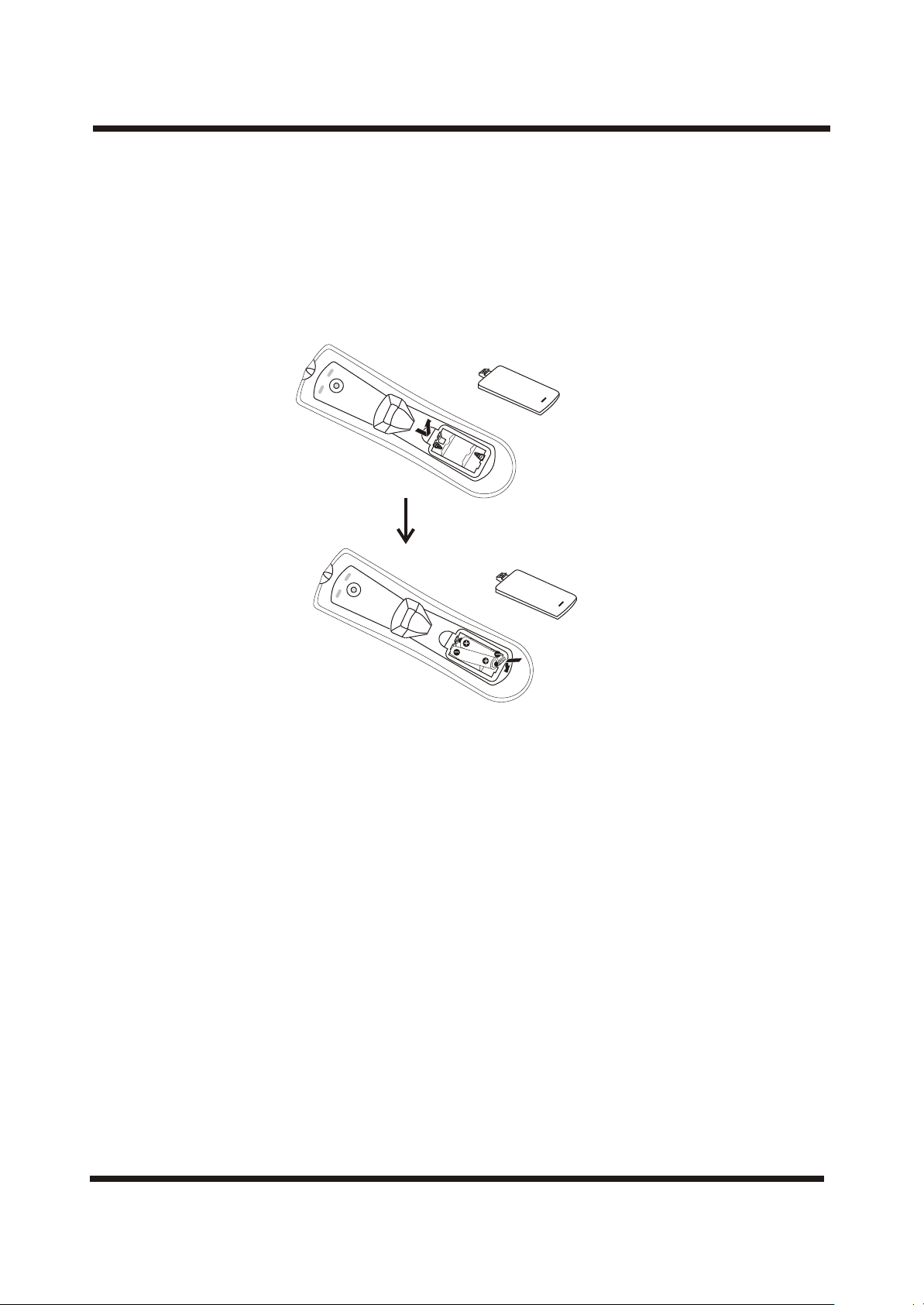

BATTERY INSTALLATION (REMOTE CONTROL)

Insert Batteries Into the Remote Control

1. Remove the battery cover.

2. Insert the 2 AAA 1.5V batteries,ensurecorrect polarity (+ or -)

3. Replace the battery cover. Replace with new batteries when the TV set begins to show the following symptoms: Operation is unsteady, erratic or when TV set shows no response to the remote control.

Remark:

1. Alkaline battery recommended

2. Remove batteries when they are exhausted or if the remote control has not been used for a long time.

3. Do not mix new and old batteries of different types/brands.

-14-

Page 17

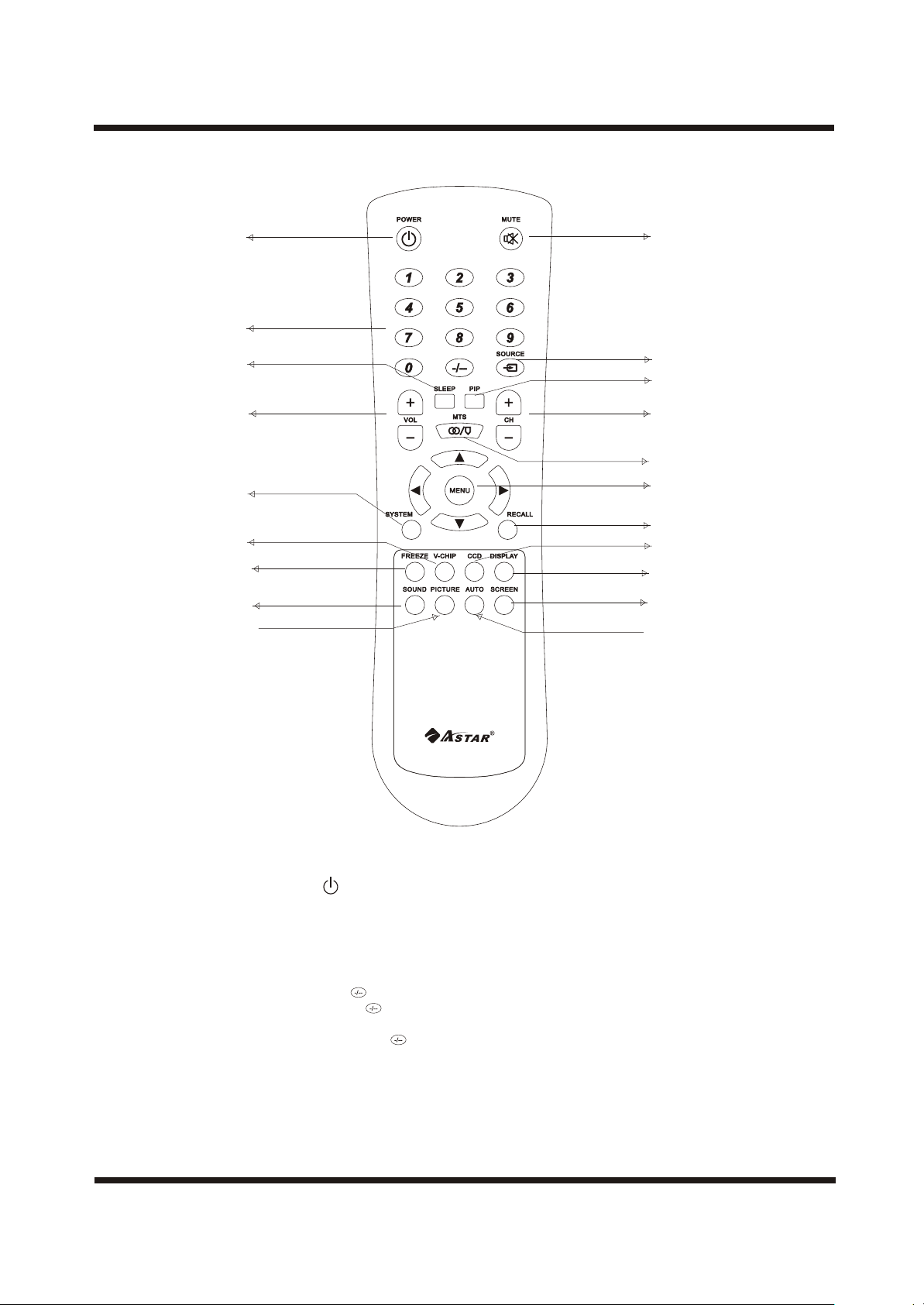

REMOTE CONTROL DESCRIPTION

13 14

9 12

8 17

1.POWER (STAND BY) BUTTON ( )

Press this button to turn on or turn off (Standby mode).Press Power Button, picture and sound will appear on within a few seconds.

2.PROGRAM SELECTION BUTTON (0-9 BUTTONS)

Push the number for your desired program and the program indicator will be displayed on the screen.

1.To input a one-digit number(0-9):press button to display - ,then press 0-9 digit button.

2.To input a two-digit number(10-99):press button to display -- ,then press two digit button in order to input the

channel number.For example, you need channel 25, please input

3.To input a three-digit number(100-135):press button to display press three digit button in order to input the channel number.

3.VOL+/- BUTTONS (VOL+/-)(TV top control key)

Press VOL+/- buttons to adjust sound level.

"2" button followed "5" button.

"---", then

-15-

Page 18

REMOTE CONTROL DESCRIPTION

4.CH+/- (TV top control key)BUTTON

1.Press the CH+/- button to select the program forwards.

2.Press the CH+/- button to select the program backwards.

(Use these two buttons for Page Up/Down to increase/decrease page number in TELETEXT mode,option)

5.MENU BUTTON

(TV top control key)

Use "MENU" button for the tuning procedure, please refer to page19-27 for the details.

6.SLEEP BUTTON

This key is used to set the sleep timer from 10 minutes to 240 minutes. Time will display on bottom-right corner and decrease in second when one minute left. Monitor will go into stand by mode when time off. To switch off this function, Press this key step by step until off display.""

7.DISPLAY BUTTON

Press this button to recall program number, system etc on the screen.

8.RECALL BUTTON

Press this button to return to the previously viewed program.

9.SOURCE SELECT BUTTON ( )

(TV top control key)

Press this button to display external video signal such as VCR or DVD player.

*Remark:

PC DVI AV1

S-VIDEO

YCbCr HDTVTV AV2

10.MUTE BUTTON ( )

Press once to mute the sound, press again to return to previous sound level.

11.MONO/STEREO BUTTON ( ) (OPTION)

As stereo program is received. You can select STEREO/MONO/Dual A/Dual B or MONO/STEREO/SAP or FM/A2/Germem stereo/BTSC/Nicam by pressing the button.

12.PIP BUTTON

The PIPfunction is workable when the main picture is only PC signal at 1024 768/60Hz and wide format video signal at Full Screen

13.SOUND BUTTON

Press this button is to select the sound mode:Personal/Cinema/Music/Speech.

14.PICTURE BUTTON

Press this button to select the user picture mode:Personal/Bright/Mild/Standard.

15.Auto BUTTON

Press this button to automatically adjust picture.

16.Screen BUTTON

Press this button to select the screen format:Fill Screen/4:3/Wide /Cinema/Smart/14:9.(Video Format)

-16-

Page 19

REMOTE CONTROL DESCRIPTION

17.CCD

Press this button to setup CCD

18.V-CHIP

Press this button to setup V-CHIP

19.FREEZE

Press this button to hold the current video picture, Press the button twice to canncel.

Signal

13:15

CH 9 I

Current time

TV channel and soundformat

20.SYSTEM BUTTON

Press this button to select TV/IRC/HRC/STD format at NTSC TV signal.

13:15

CH 9 I

-17-

Page 20

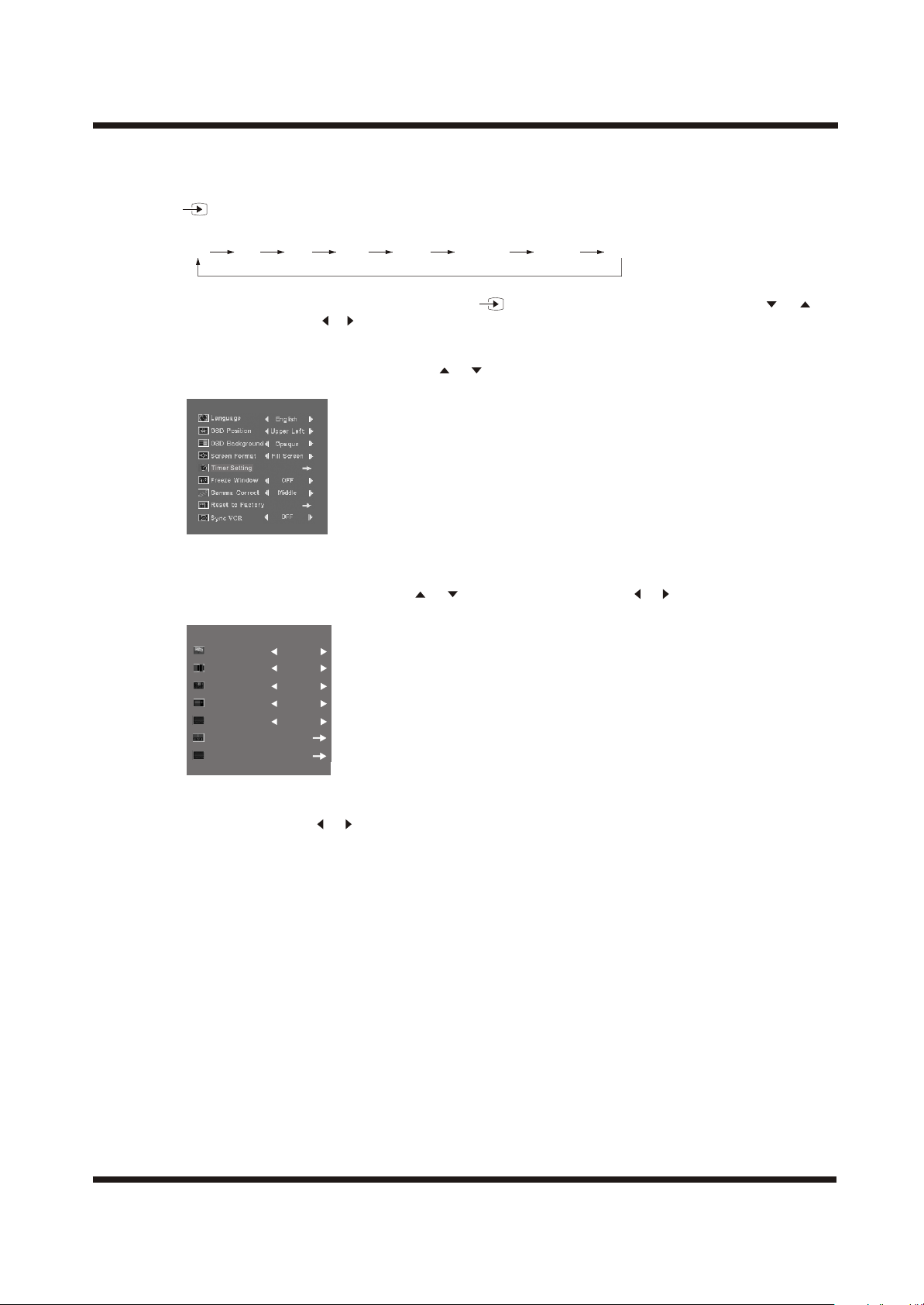

OPERATION INSTRUCTIONS

TURN ON/OFF

1. Insert the AC plug into a conveniently located AC outlet (100-240VAC,50/60Hz).

2. Turn on the on/off switch

3. Press the to select the signals

*Remark:

If no input signal, then a blue background appears.

4. Press menu and the menu will display, continue press menu to select follow the menu, press or to select the language menu, press or select the language.

Note: The item of selected is highlight when press or .

PC DVI AV1

SETUP

S-VIDEO

YCbCr HDTVTV AV2

<Left> or <Right> key to change

The tuner must be correctly installed before switching on AC power. Otherwise the set has no TV source, To enter the channel setting menu

1. Press menu to select the follow menu. Press or to select Color sys, press or to set local system.

CHANNEL SETTINGCHANNEL SETTING

Color System

TV/CATV

Current Program

Add/Erase

AFT

Auto Search

Fine Tune

<Left> or <Right> key to change<Left> or <Right> key to change

2 It has two way for Channel search: A.Select the format in TV/CATV ,then input the number of the channel directly. B.Select Auto search and press or .

Auto

AIR

Erase

-18-

Page 21

OPERATION INSTRUCTIONS

PICTURE SETTING

Item

Brightness

Contrast

Color

Tint

Sharpness

Darker

Weaker

Paler

Purplish

Softer

The PICTURE SETTING menu allows you to alter the picture adjustments. Press or to highlight the item you want to alter.Press or to select the item you want to alter ,then press or to adjust it. Film Mode---If the signal source is film mode, please select ON, the menu will be best displayed.If the signal source is not film mode, please select OFF. Backlight ---press or to set up the Brightness of the Backlight.

DCTI---Digital color transient improvement logic improves the color transitions and redues color smeaning introduced.you can select ON/OFF to enjoy video.

Note:

Tint can be adjusted only for NTSC color signal.

Lighter

Stronger

Deeper

Greenish

Sharper

SOUND

Item

Bass

Treble

Blance

<Left> or <Right> key to change

Volume

The SOUND menu allows you to alter the sound adjustments. Press or to highlight the item you want to alter.

1.Press or to select the item you want to alter, then press or to adjust it.

2.Sound mode: Press or to select you like sound mode, Personal,Cinema,Music,Speech. 3 .Special effect --- press or to select you like sound mode. PSE --- pseudo stereo effect SBE --- stereo base width enlargement OFF --- No special effect.

4. Auto Volume --- press or to select on or off volume level of the channels will stay the same, independent of the broadcast signal."on" is unlocked the function, "off" is selected automatically.

5.Equalizer --- press or to select off or natural or dynamic.

6.For a stereo broadcast, the TV set is auto identify, the menu wil display. If you want to select the Mono/Stereo/A/B, press .

lower-frequency weaker lower-frequency lighter

higher-frequency weaker higher-frequency stronger

emphasise the left speaker

Littler

emphasise the right speaker

Bigger

SAP

Stereo

-19-

Page 22

OPERATON INSTRUCTIONS

CLOSED CAPTION

Closed caption is an information service transmitted by most TV stations. Press or to highlight the item you want to alter.

1. The CC Mode contain CC1/CC2/Text1/ Text2/XDS/CC3/CC4/ Text3/ Text4 ,press or to select the item

you wish to watch. A.Some TV programs may not be broadcast with closed caption signals, and therefore , the TV will not be able to display captions. Also, text information is not offered by all stations. B. Some TV programs only provide one channel caption, one channel text, or only caption without text.

2. The CC Background has black and transparent, press or to select.

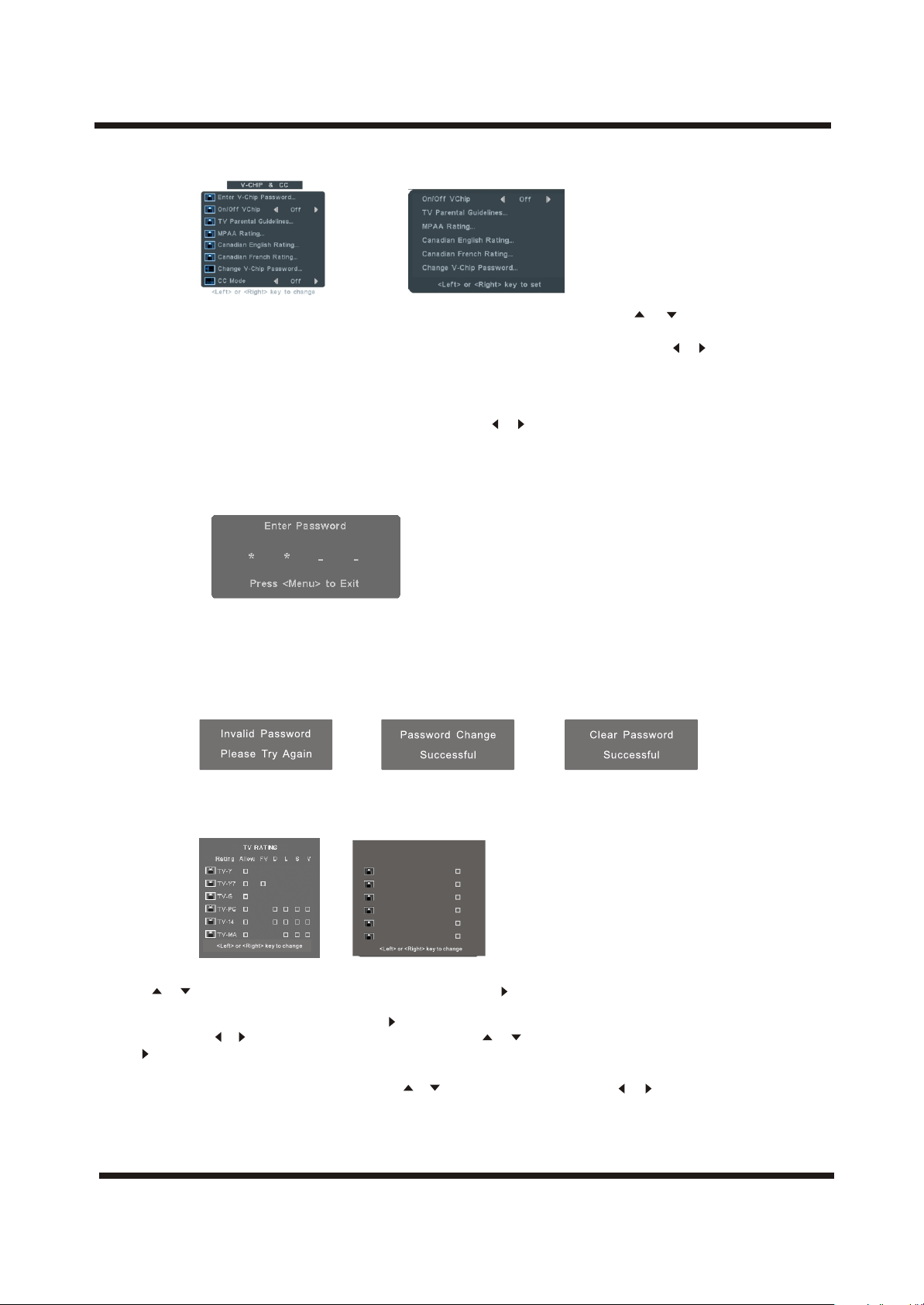

V-CHIP

PASSWORD

The original code is 0000,If you want to clear the code,please press the key VOL+ and Vol- on the panel at the same time.The password of the TV Parental Guidelines...or MPAA Rating...or Canadian English

Rating..or Canadian French Rating....,may be changed at any time,press digital button to input the number

of pass word.

CAUTION MESSAGES:

TV RATING AND MOVIE RATING

MOVIE RATING

Rating Allow

MPAA G

MPAA PG

MPAA PG-13

MPAA R

MPAA NC-17

MPAA X

1.Press or to select the item you want to alter,then press .

2.if you want alter the TV Parental Guidelines...or MPAA Rating...or Canadian English Rating..or

Canadian French Rating....,you must press and input the

password, press or to select the bit of password, press or to input the number of password,then press to select Ok or Cancel,press menu confirm your input.

3.The password is OK, you may alter the TV Parental Guidelines...or MPAA Rating...or Canadian English

Rating..or Canadian French Rating....,Press or to select the rating, press or to select the lock.

Parents can select the rate for your children.

TV-Y --- This program is designed to be appropriate for all children.

-20-

Page 23

OPERATION INSTRUCTIONS

TV-Y7 --- This program is designed for children age 7 and above. TV-G --- Most parents would find this program suitable for all ages. TV-PG --- This program contains material that parents may find unsuitable for younger children. TV-14 --- This program contains some material that many parents would find unsuitable for children under 14 years of page. TV-MA --- This program is specifically designed to be viewed by adults and therefore may be unsuitable for children under 17. FV --- Fantasy Violence V --- Violence

S --- Sexual Situations L --- Adult Language D --- Sexually Suggestive Dialog A --- Allow B --- Blocked G --- General audience PG --- Parental guidance suggested PG-13 --- 13 years and up R --- Restricted NC-17 --- 18 years and up The picture will be screened when the input signal contains V-chip information, if you setup the rate.

Canadia English Lanugage Ratings:

E:Exempt. C:Children. C8+:Children 8 years and older. G:General programming,suitable for all audiences. PG:Perenal guidance. 18+:Adult programming. Canadian French Lanuage Ratings: E:Exempt G:Children 8ans+: Children 8 years and older 13ans+:Children 13 years and older 16ans+:Viewers 16 years and older 18ans+:Adult programming

- - - -

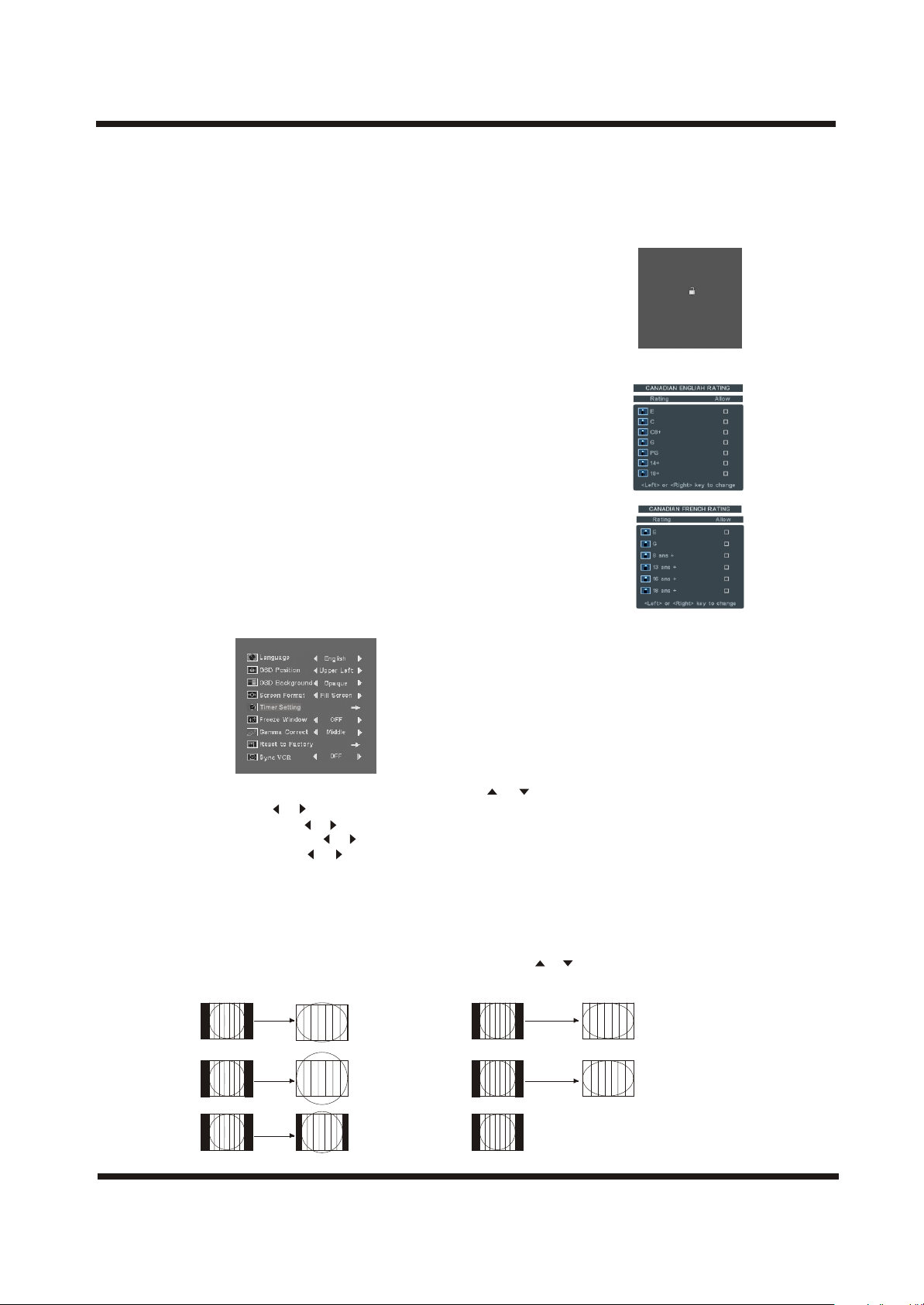

SETUP

<Left> or <Right> key to change

The setup menu allows you to setup other function. Press or to highlight the item you want to alter.

1. Language --- press or to select language

2. OSD Position --- press or to select the display position of OSD.

3. OSD Background --- press or to setup Opaque or translucent.

4. Screen Format --- press or to select the mode of picture displayed. Fill screen --- the each format signal is displayed fill screen. 4:3 --- Conventional 4:3 picture size, full picture information. Wide --- For 16:9 broadcast. 14:9 --- For 14:9 broadcast. Cinema --- Wide screen format for letterbox movies. Smart --- Imitation of wide screen effect for 4:3 broadcast. If parts of the top and bottom of the screen are cut off, press or to adjust the position of the image on the screen.

Smart

Cinema

Fill screen

Wide

14:9

4:3

-21-

Page 24

OPERATION INSTRUCTIONS

5. Timer Setting --- press to enter the menu ,it is equivalent to the Sleep button. Current Clock --- press or to select the item you want to alter, press or to input the number.

Turn Off Time --- press or to select the turn off time Turn On Channel --- press or to select the channel of the set auto turn on . Turn On Clock --- press or to select the function is on or off.press to setup the time of set auto turn on you want. Program 1/2/3 --- when you watch TV , you can setup the time and channel which you want to enjoy. You can setup ONCE or EVERYDAY. It is automatic .

6. Freeze Window ---press or to select on/off."ON":the picture is frozen.

7. Reset to Factory---press to resume the originally setting.

8. Press or to select ON/OFF. ON : The effect of picture is fine at VCR signal.

CHANNEL SETTING

1. Press menu to select the follow menu. Press or to select Color sys, press or to set local system.

CHANNEL SETTINGCHANNEL SETTING

Color System

TV/CATV

Current Program

Add/Erase

AFT

Auto Search

Fine Tune

<Left> or <Right> key to change<Left> or <Right> key to change

Auto

AIR

Erase

2.TV/CATV--- press or to select the format(AIR,STD.IRC.HRC) of NTSC signal.STD/IRC/HRC is identified automatically at CATV.

3.Current program---press or to switch the channel.

4.Add/Erase --- press or to select add or erase the current channel. you can select the channel by the Current prog menu by the number buttons if you want to switch to the skipped channel, then switch the add.

5.AFT ---Auto frequency control.

6.Auto Search --- Press or to select Auto search, press or to begin searching and storing all available broadcast channels for you.

7.Fine Tune --- press or to enter the menu, then press or continue to tune the effect of picture.

Fine Tuning

<Left> or <Right> key to Change

Note:

Press menu will end the auto search during searching, but automatic tuning will not be completed.

-22-

Page 25

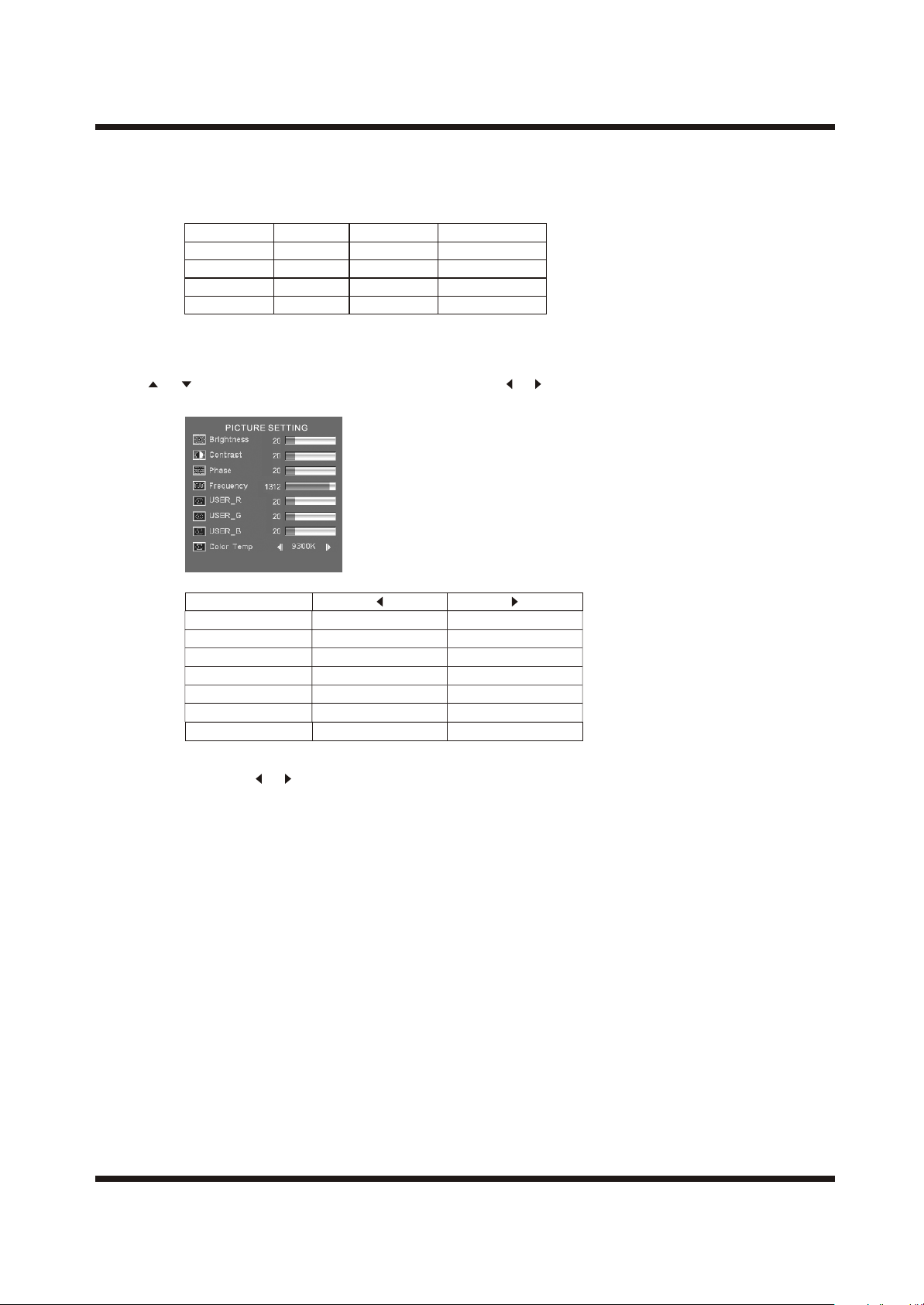

ANALOG RGB AND DVI

Following modes are strongly suggested for set up mode.

OPERATION INSTRUCTIONS

RESOLUTION

640x480

800x600

1024x768

1280x768

V.Freq.(Hz) H.Freq.(KHz) GRAPHIC MODE

59.940

60.317

60.004

59.870

31.469

37.879

48.363

47.776

VGA

PICTURE SETTING

Press or to select the item you want to alter, then press or to adjust it.

<Left> or <Right> key to change

Item

Brightness

Contrast

Phase

Frequency

USER_R

USER_G

USER_B

Darker

Weaker

Decrease Increase

Left

Weaker

Lighter

Stronger

Right

Stronger

Color Temp --- press or to select the color temperature.

NB: The DVI input only fit with VIDEO player.

-23-

Page 26

OPERATION INSTRUCTIONS

PICTURE POSITION

1. Horizontal --- Press the to move the Screen to the left. Press the to move the Screen to the right.

2. Vertical --- Press the to move the Screen to up. Press the to move the Screen to down.

3. Auto Adjust --- Press the , the picture will be adjusted at best setting.

4. Backlight ---press or to set up the Brightness of the Backlight.

Note: If the picture is abnormal at any signal, please press VCR/AUTO The SETUP and Sound operation

with reference to the TV.

PIP PIP function is only effective at PC source.

1. PIP Size--- Press or to select the video Picture Size(Big/Medium/Small /Off).

2. PIP Position--- Press or t select the displayed position of video picture.

3. Video Source---Press or to select the video signal.

4. PIP Alpha---Press or to select opaque or translucent.

5. Audio Source---Press or to select the Audio Signal.

6. VS.Bright---Press or to adjust the Brightness of video signal.

7. VS.Contrast---Press or to adjust the contrast of video signal.

8. VS.Color---Press or to adjust the color of video signal.

9. Backlight---Press or to adjust the lightness of Backlight.

10. If the setting is not fit for PIP,caution messages will be displayed.

-24-

Page 27

TROUBLESHOOTING GUIDE

SYMPTOM POSSIBLE CAUSE POSSIBLE SOLUTION

No power

Poor/no picture

Poor/no sound

TV shuts off

The AC power cord is not connected

The switch is switch off TV station experiencing problems Picture setting is not adjusted

Possible local interference Double images or ghosting

Only snow and noise appears on the Screen No color on color programme Some tiny black points or bright

points on the screen

Noisy picture when viewing a

TV channel Good picture, no sound TV station experiencing problems Possible local interference Good picture ,noisy sound

Sleep timer is set

Off timer is set

Connect the AC power corcd to the AC outlet

Switch on the switch Try another channel Check picture control adustments Check for source of reception

Check aerialcable connections Check if the aerial is broken or bent

Press VCR/AUTO The picture of a display units is composed of pixels. It is not indicate a malfunction Using the menu system, select the Channel setting to adjust Fine Tune to obtain better picture reception

Press the + - or (mute) Try another channel Check for source of reception disturbance Check the sound sys

Set sleep timer to off

Clear off timer

-25-

Page 28

PERSONAL COMPUTER

The computer is in power saving mode.Try Pressing any

The NO INPUT SIGNAL message

appears on the screen

No picture

If the OUT OF SCANRANGE message appears on the screen

Pictureis fuzzy

If the set don’t turn on when you turn on AC Power, please turn off AC power and wait a moment, then turn on AC power.

If the picture is wrong at any signal, press VCR/AUTO, the picture will be displayed had best.

If you feel the pictures is glaring,please adjust the lightness of backlight.

key on the computer key board.

Check the computer power is on .

Check the cable is properly connected.

Check the video frequency range is within

that specified for the monitor ,adjust the

frequency range to the following:

Horizontal:15.6-90KHz

Vertical:48-85

Resolution:£1280´720

Using the menu system, adjust Brightness

and Contrast .

Press VCR/AUTO

Note: If you continue to experience problems,have your TV serviced by qualified personnel.Never open the

casing yourself.

-26-
