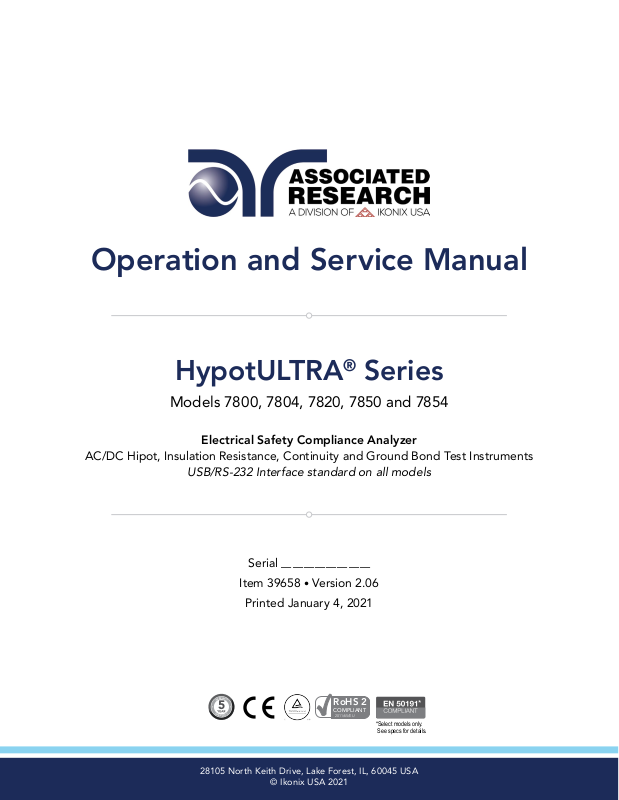

Page 1

Operation and Service Manual

HypotULTRA® Series

Models 7800, 7804, 7820, 7850 and 7854

Electrical Safety Compliance Analyzer

AC/DC Hipot, Insulation Resistance, Continuity and Ground Bond Test Instruments

USB/RS-232 Interface standard on all models

Serial

————————

Item 39658

• Version 2.06

Printed January 4, 2021

28105 North Keith Drive, Lake Forest, IL, 60045 USA

RoHS 2

COMPLIANT

2011/65/EU

*Select models only. See specs for details.

Page 2

DECLARATION OF CONFORMITY

Manufacturer: Associated Research

A Divison of Ikonix USA

Address: 28105 North Keith Drive, Lake Forest, IL, 60045 USA

Product Name: HypotULTRA® Electrical Safety Compliance Analyzer

Model Number: 7800/7820/7850

Conforms to the following Standards:

Safety: IEC 61010-1:2010

IEC 61010-2-030 :2010 IEC 61010-031 :2002+A1 :2008/EN 61010-031 :2002+A1 :2008 UL 61010-1:2012, UL 61010-2-030:2012 CAN/CSA-C22.2 NO. 61010 -1-12 CAN/CSA-C22.2 NO. 61010-2-030-12

EMC: EN 61326 -1:2013 Class A EN 61000-3-3 :2013/IEC 61000-3-3 :2013 EN 61326-1 :2013 (industrial locations) EN 61000-4-2 :2009/IEC 61000-4-2 :2008 IEC 61000-4-3 :2006+A1 :2008+A2 :2010 EN 61000-4-4 :2012/IEC 61000-4-4 :2012 EN 61000-4-5 :2006/IEC 61000-4-5 :2005 EN 61000-4-6 :2014/IEC 61000-4-6 :2013 EN 61000-4-8 :2010IEC 61000-4-8 :2009 EN 61000-4-11 :2004/IEC 61000 :4-11 :2004

Supplementary Information

The product herewith complies with the requirements of the Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU with respect to the following substances: Lead (Pb), Mercury (Hg), Cadmium

(Cd), Hexavalent chromium (Cr (VI)), Polybrominated biphenyls (PBB), Polybrominated diphenyl ethers (PBDE), Deca-BDE included.

Last two digits of the year in which the CE marking was afxed: 14

The technical le and other documentation are on le with Associated Research

Joseph Guerriero President Associated Research Lake Forest, Illinois USA July 20th, 2017

Page 3

DECLARATION OF CONFORMITY

Manufacturer: Associated Research

A Divison of Ikonix USA

Address: 28105 North Keith Drive, Lake Forest, IL, 60045 USA

Product Name: HypotULTRA® Electrical Safety Compliance Analyzer

Model Number: 7804/7854

Conforms to the following Standards:

Safety: IEC 61010-1:2010

IEC 61010-2-030 :2010 IEC 61010-031 :2002+A1 :2008/EN 61010-031 :2002+A1 :2008 UL 61010-1:2012, UL 61010-2-030:2012 CAN/CSA-C22.2 NO. 61010 -1-12 CAN/CSA-C22.2 NO. 61010-2-030-12

Supplementary Information

(Cd), Hexavalent chromium (Cr (VI)), Polybrominated biphenyls (PBB), Polybrominated diphenyl ethers (PBDE), Deca-BDE included.

Last two digits of the year in which the CE marking was afxed: 14

The technical le and other documentation are on le with Associated Research

Joseph Guerriero President Associated Research Lake Forest, Illinois USA July 20th, 2017

Page 4

Warranty Policy

Ikonix USA, certies that the tester listed in this manual meets or exceeds published manufacturing specications. This tester was

calibrated using standards that are traceable to the National Institute of Standards and Technology (NIST).

Your new tester is warranted to be free from defects in workmanship and material for a period of (5) years from date of shipment.

We aim to provide an amazing experience and quality testers that last a long time. If you’re not satised with your tester, return

it within 45 days for a full refund. Calibrate annually with us, or one of our authorized partners, and we’ll extend your warranty

an additional year for the service life of your tester, and at least ve years after discontinuation. If it breaks during that time, we promise to x it for free (unless abuse or excessive damage is present). When your tester reaches the end of its service life,

we’ll responsibly recycle it and give you a discount on a replacement. Annual calibration and inspection must be made in each successive year starting one year after the original purchase date in order to remain eligible for extended warranty coverage

beyond the standard warranty period (ve years).

Ikonix USA recommends that your tester be calibrated on a twelve-month cycle. A return material authorization (RMA) must be obtained from Ikonix USA. To obtain an RMA please contact our Customer Support team at 1-847-367-4077 or visit arisafety.com. Damages sustained as a result of improper packaging will not be honored. Transportation costs for the return of the tester for warranty service must be prepaid by the customer. Ikonix USA will assume the return freight costs when returning the tester to the customer. The return method will be at the discretion of Ikonix USA.

Except as provided, herein Ikonix USA makes no warranties to the purchaser of this tester and all other warranties, expressed or

implied (including, without limitation, merchantability or tness for a particular purpose), are hereby excluded, disclaimed and

waived.

Any non-authorized modications, tampering or physical damage will void your warranty. Elimination of any connections in the

earth grounding system or bypassing any safety systems will void this warranty. This warranty does not cover accessories not of

Ikonix USA manufacture. Parts used must be parts that are recommended by Ikonix USA as an acceptable specied part. Use of

non-authorized parts in the repair of this tester will void the warranty.

*5 year warranty is valid on any model purchased in 2021 or after.

Operator Modications

Any non-authorized modications, tampering or physical damage will void this warranty. Elimination of any connections in the

earth grounding system or bypassing any safety systems will void this warranty. This warranty does not cover accessories not of Associated Research manufacture. Parts used must be parts that are recommended by Associated Research as an acceptable

specied part. Use of non-authorized parts in the repair of this instrument will void the warranty.

Associated Research will not be responsible for any injuries sustained due to unauthorized equipment modications or use of parts not specied by Associated Research Instruments returned to Associated Research with unsafe modications will be

returned to their original operating condition at your expense.

Page 5

Table of Contents

Safety Precautions and Warning Symbols for High Voltage Testing ...........................................................................................6

Front Panel Controls (7800, 7820 and 7850) ................................................................................................................................7

Rear Panel Controls (7800, 7820 and 7850) .................................................................................................................................8

Front Panel Controls (7804 and 7854) ..........................................................................................................................................9

Rear Panel Controls (7804 and 7854) .........................................................................................................................................11

Setup Instructions ....................................................................................................................................................................... 13

Getting to Know Your Instrument ..............................................................................................................................................14

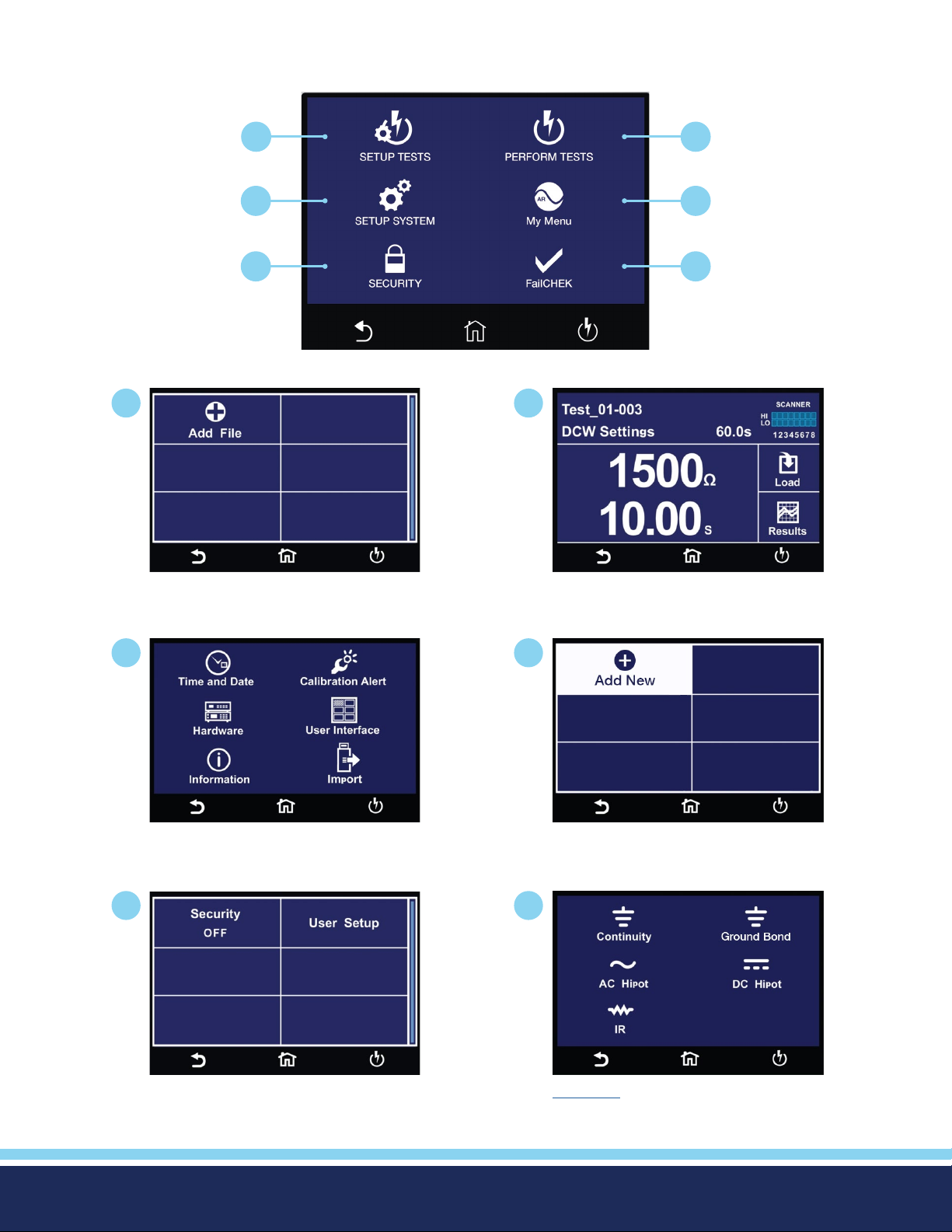

Main Menu ..................................................................................................................................................................................16

1. Setup System .............................................................................................................................................................................. 17

2. Setup Tests .................................................................................................................................................................................. 38

2.1 Setup Continuity Test .......................................................................................................................................................39

2.2 Setup Ground Bond Test .................................................................................................................................................40

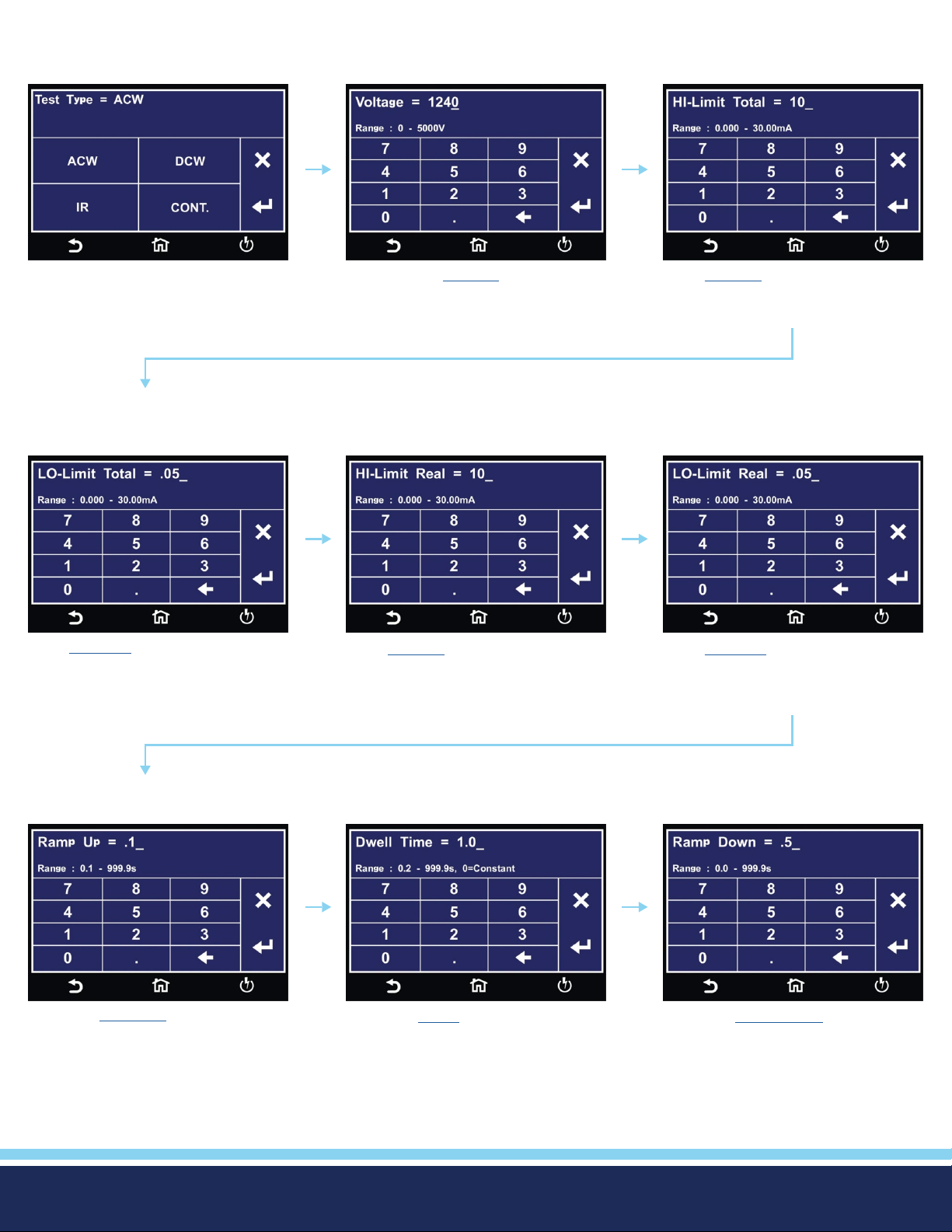

2.3 Setup AC Withstand Test .................................................................................................................................................42

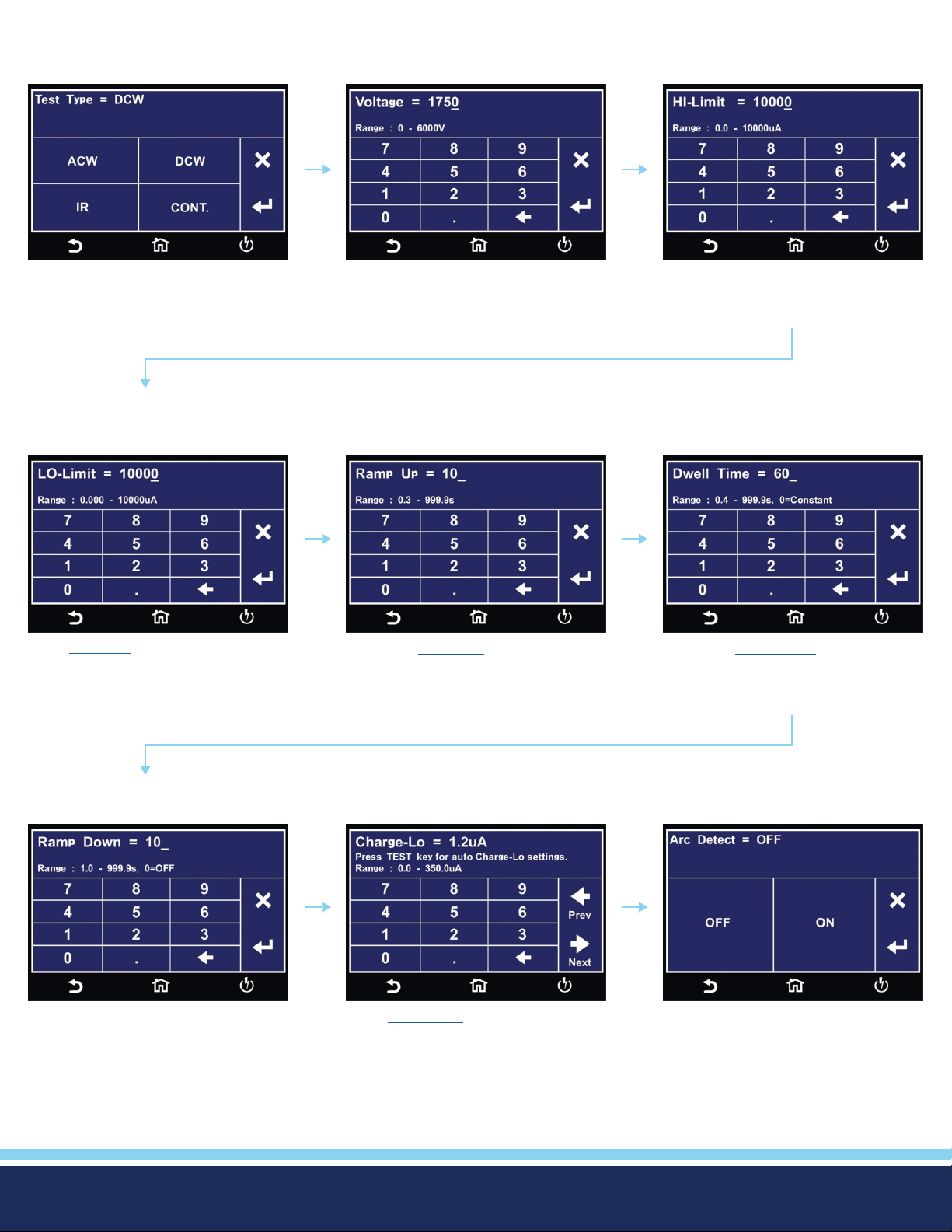

2.4 Setup DC Withstand Test ................................................................................................................................................ 44

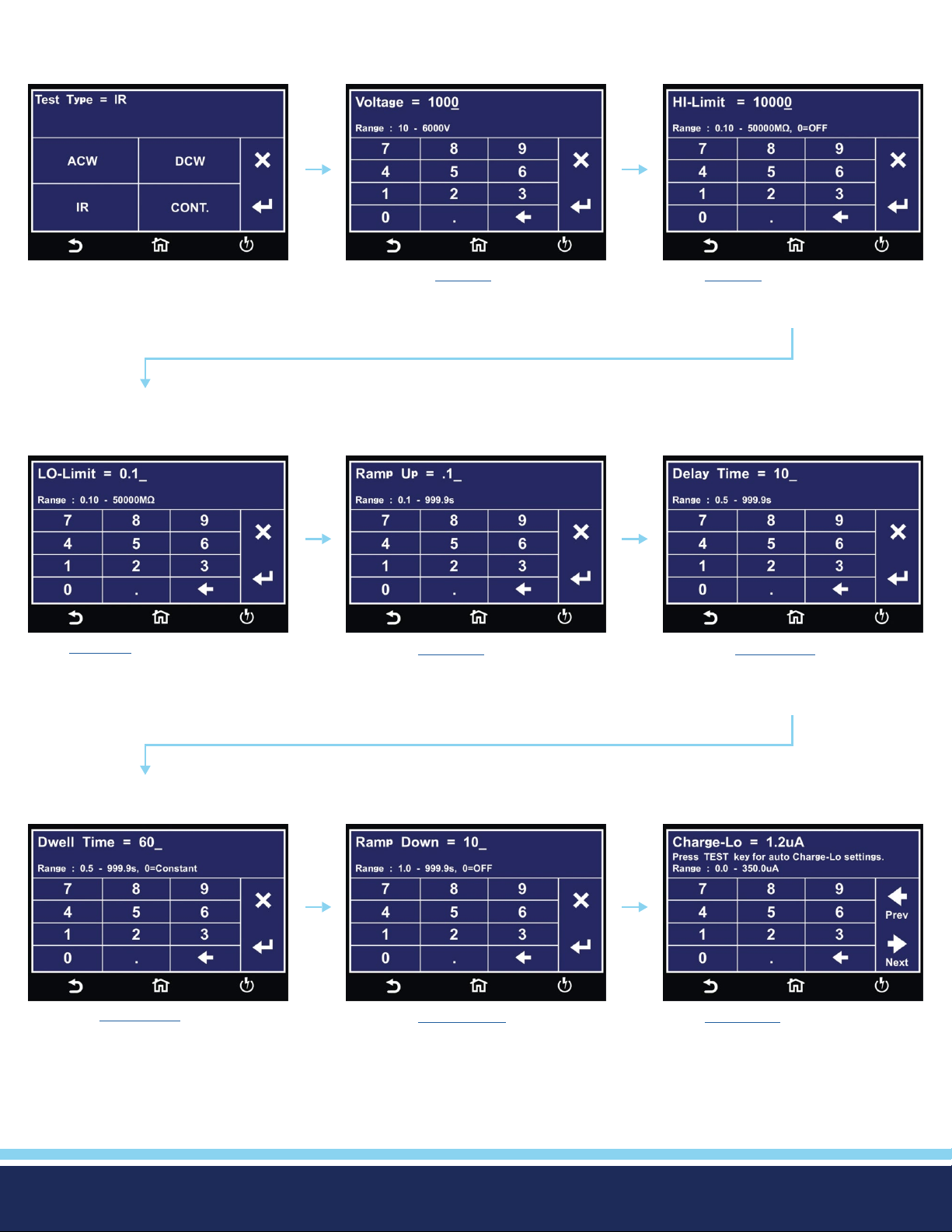

2.5 Setup Insulation Resistance Test ............................................................................................................................................46

3. Perform Test ................................................................................................................................................................................53

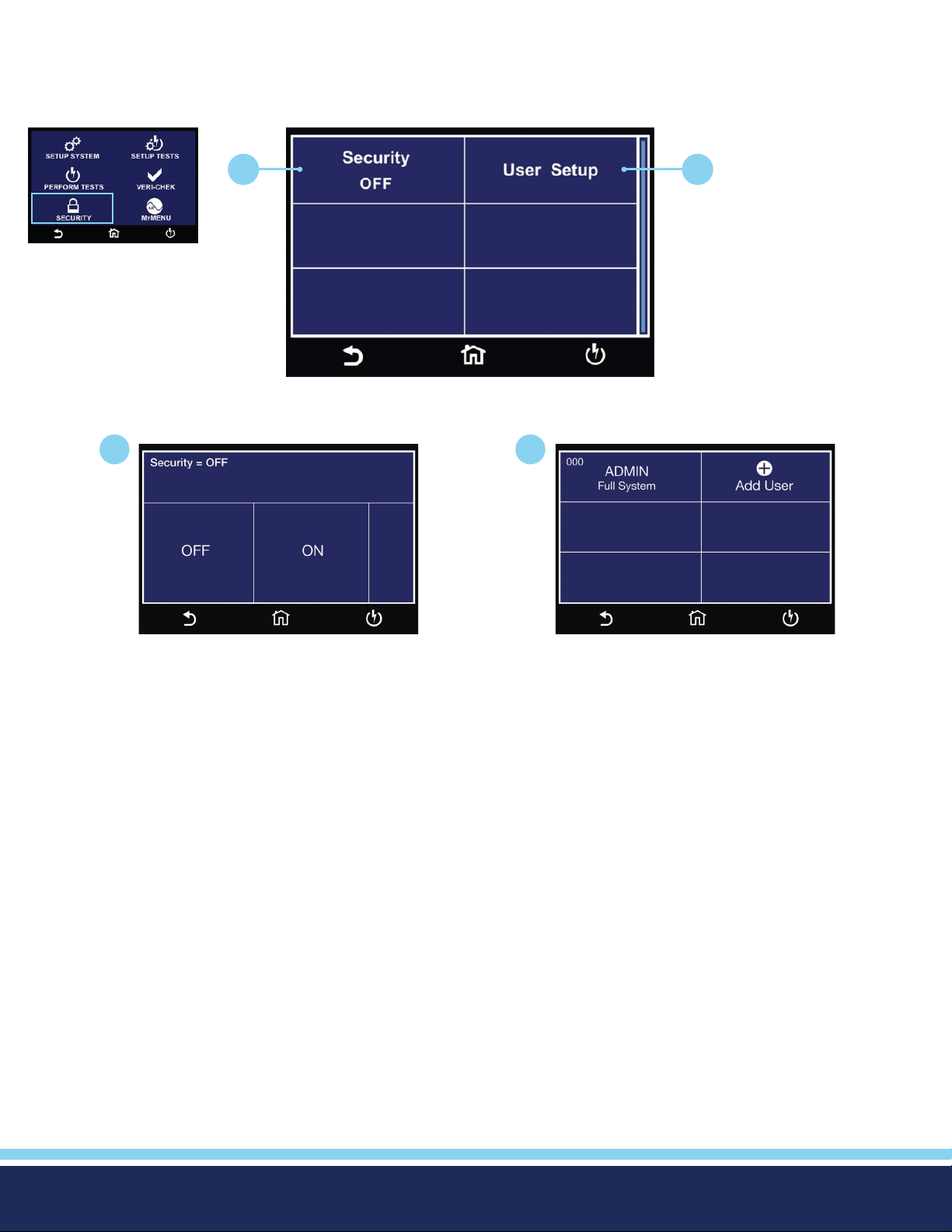

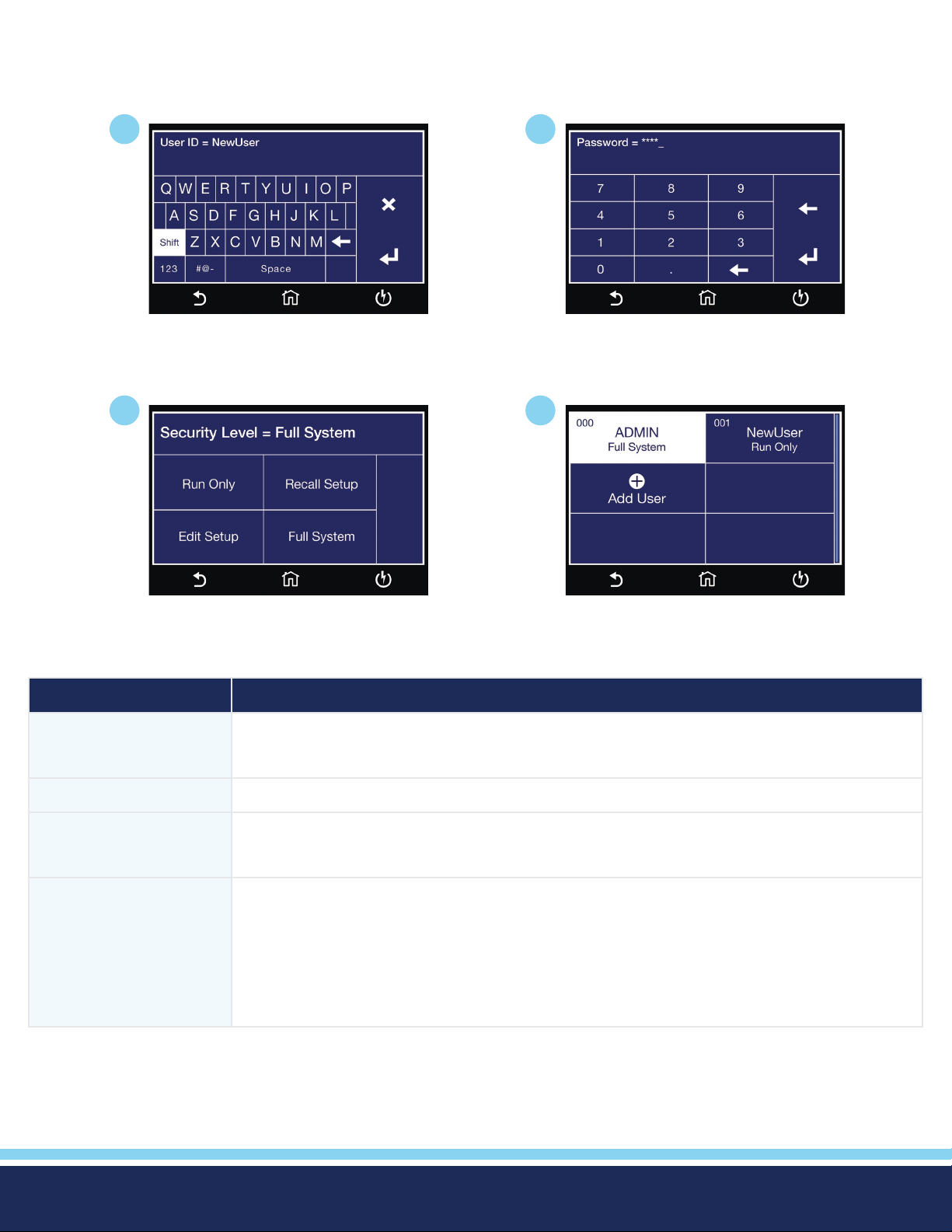

4. Security ........................................................................................................................................................................................ 61

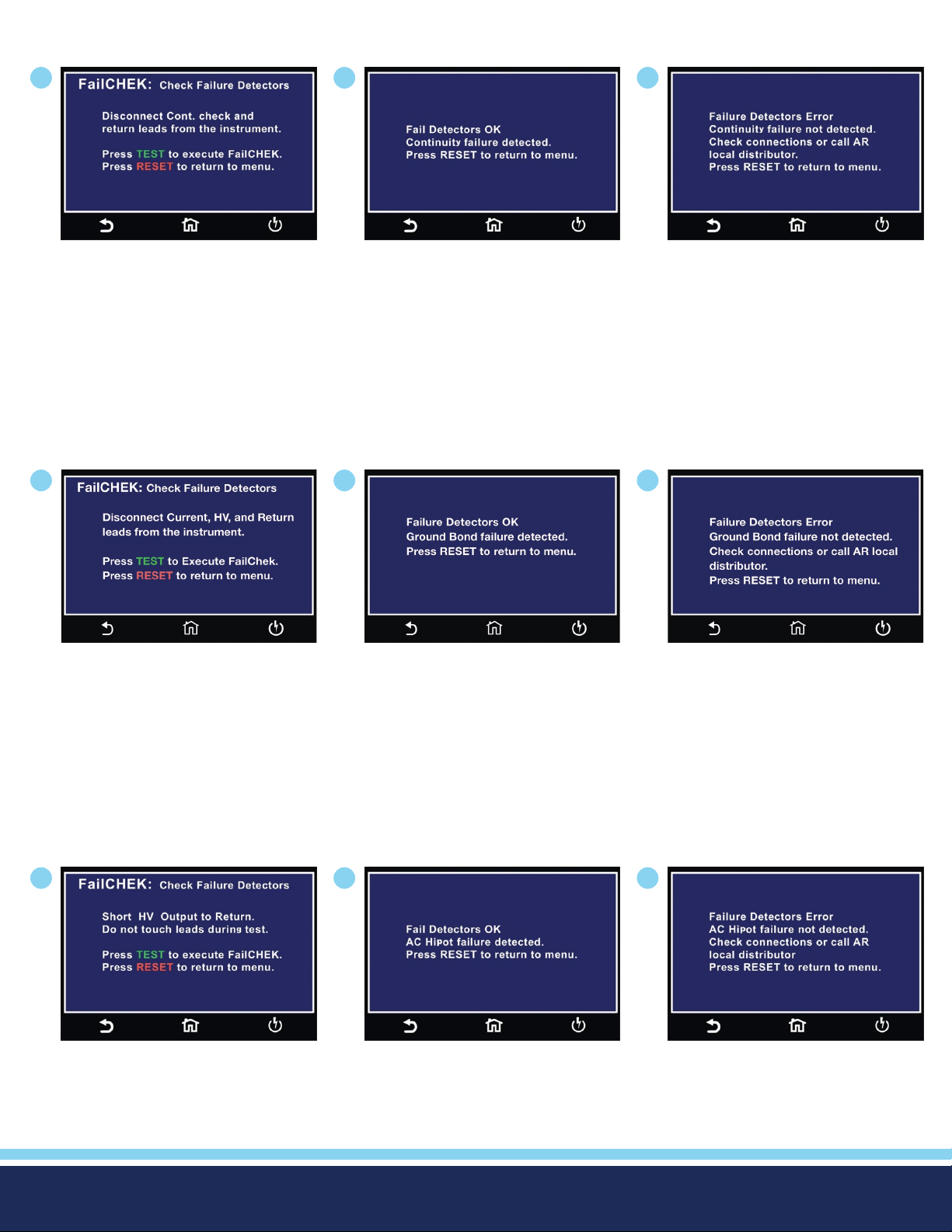

5. FailCHEK ...................................................................................................................................................................................... 63

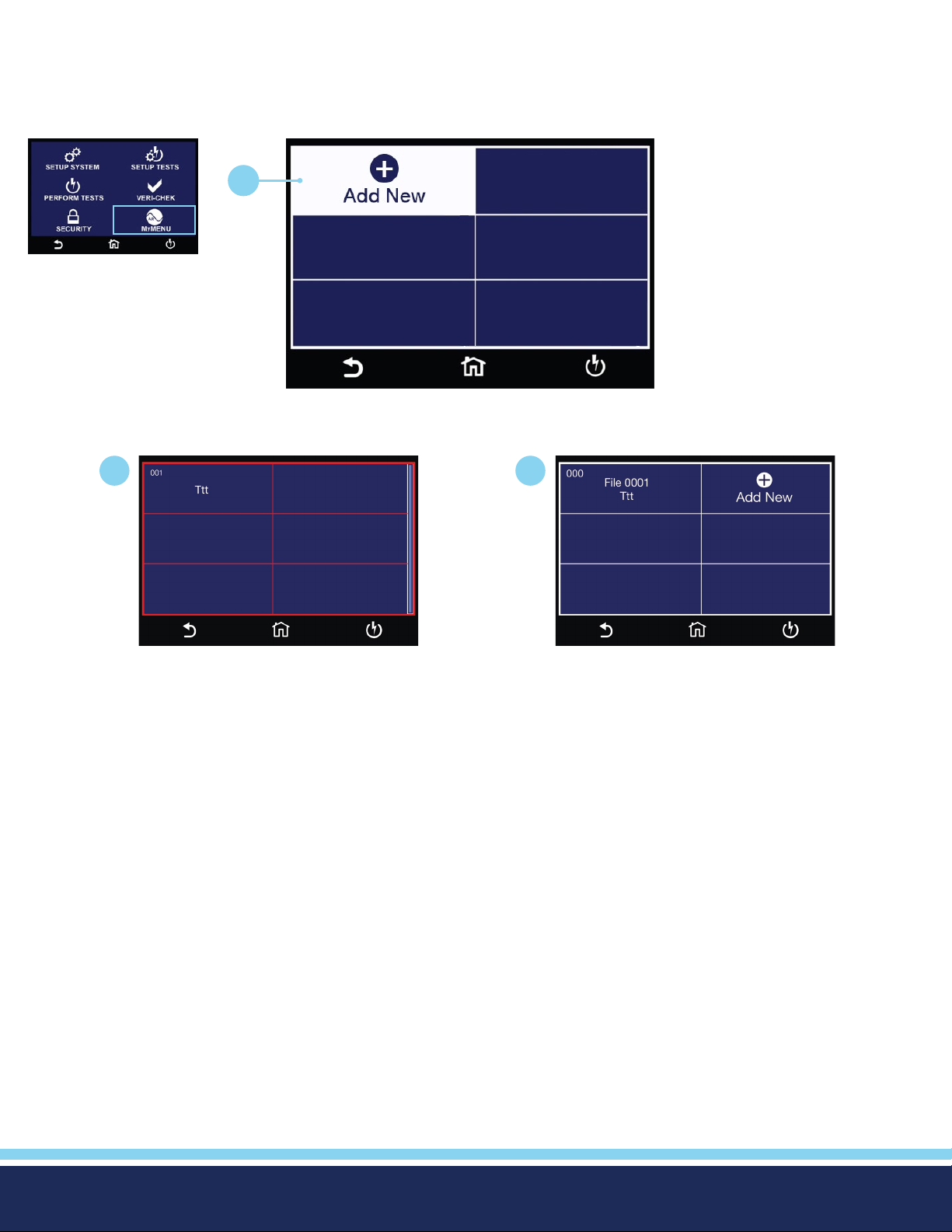

6. MyMenu ....................................................................................................................................................................................... 66

Using Remote I/O and PLC Control ............................................................................................................................................67

Appendix A - Installation and Test Operator Information ........................................................................................................ 68

Installation ............................................................................................................................................................................70

1. Unpacking and Inspection ................................................................................................................................................. 70

2. Safe Lifting and Carrying Instructions ............................................................................................................................. 70

3. Contents of the Carton ...................................................................................................................................................... 70

4. Preparation for Use ............................................................................................................................................................ 71

5. Power Cable ........................................................................................................................................................................ 71

Operating Environment ........................................................................................................................................................72

Storage and Shipment ..........................................................................................................................................................72

Test Operator and Safety Considerations ...........................................................................................................................72

1. Qualifications ...................................................................................................................................................................... 72

2. Safety Procedures ...............................................................................................................................................................73

3. Dress ..................................................................................................................................................................................... 73

4. Medical Restrictions ........................................................................................................................................................... 73

5. Test Station .......................................................................................................................................................................... 73

Appendix B - Instrument Specifications .....................................................................................................................................75

Appendix C - Series Options ..................................................................................................................................................... 83

Appendix D - Remote Bus Interface: RS-232 ...........................................................................................................................100

Appendix E - Replacement Parts List ...................................................................................................................................... 118

Appendix F - Calibration Procedure ......................................................................................................................................... 120

NOTE: This is an interactive PDF, if viewing on a computer click on our quick links to jump quickly to that section.

Return to the Table of Contents by simply clicking on the page number with a  above it in the bottom right corner.

Page 6

Safety Precautions and Warning Symbols for High Voltage Testing

GENERAL: Review this product and its related documentation for familiarization with safety markings and instructions before operation.

This product is a Safety Class I instrument (provided with a protective earth terminal). Before applying power verify that the input voltage to the instrument is 115VAC±10% or 230VAC±10% and the correct fuse is installed.

Product will be marked with this symbol when it is necessary to refer to the operation and service manual in order to

prevent injury or equipment damage.

S’il vous plaît se référer au manuel d’instructions de mise en garde ou information sur la prudence pour éviter des

blessures ou des dommages au produit

Product will be marked with this symbol when hazardous voltages may be present.

Avertissement des tensions dangereuses qui peuvent être présentes

Product will be marked with this symbol at connections that require earth grounding.

Le produit sera marqué de ce symbole au niveau des connexions qui nécessitent à la terre.

Caution and Warning Symbols

Calls attention to a procedure, practice, or condition that could possibly cause bodily

WARNING

Appelle l’attention sur une procédure, une pratique ou une condition qui pourrait causer des blessures corporelles ou la mort.

CAUTION

Appelle l’attention sur une procédure, une pratique ou une condition qui pourrait causer des blessures corporelles ou la mort.

WARNING

Le HypotULTRA, des tensions et des courants qui peuvent causer des chocs électriques dangereux ou mortel. Pour éviter toute blessure ou un décès accidentels, ces procédures de sécurité doivent être strictement respectées lors de la manipulation et l’utilisation de l’appareil de contrôle.

injury or death.

Calls attention to a procedure, practice, or condition that could possibly cause damage to equipment or permanent loss of data.

The HypotULTRA produces voltages and currents that can cause harmful or fatal electric shock. To prevent accidental injury or death, these safety procedures must be strictly observed when handling and using the test instrument.



Page 7

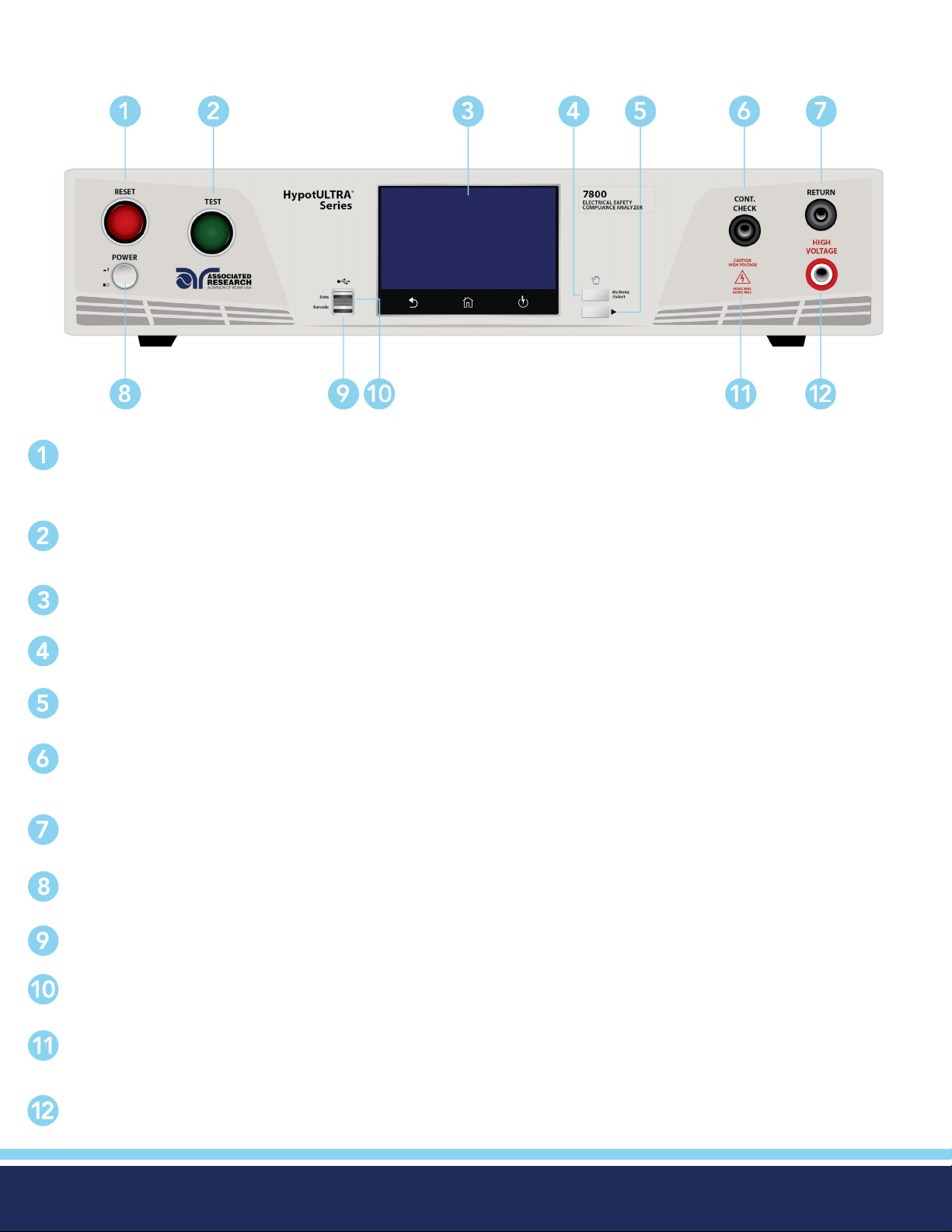

Front Panel Controls (7800, 7820 and 7850)

RESET BUTTON - Resets the instrument. If a failure condition occurs during a test, pressing this button will reset the

system, shut off the alarm and clear the failure condition. You must press the Reset button before performing another test or changing any of the setup parameters. This button also serves as an abort signal to stop any test in progress.

TEST BUTTON - This is a momentary contact switch used to start a test. Press the green button to turn on the high voltage output when in test mode. The indicator lamp within the button will light when test expires with pass condition.

TOUCH SCREEN GRAPHIC LCD - Displays all the information and allows full control of the instrument.

MY MENU - Brings up the MyMENU screen.

TOGGLE - This button allows you to toggle between test les if you are wearing high voltage gloves.

CONTINUITY OUTPUT TERMINAL - Connector used to attach the return test lead, adaptor box return lead, or test xture

return lead used during Continuity testing.

RETURN TERMINAL - Connector used to attach the return test lead, adapter box return lead or test xture return lead to the instrument. This connection provides the return current path.

POWER SWITCH - Powers the test instrument ON or OFF.

BARCODE USB PORT - This USB style port allows for connecting a barcode scanner.

DATA USB PO R T - This USB style port allows for connecting a USB ash drive to extract test and system data.

HIGH VOLTAGE INDICATOR - This indicator ashes to warn the operator that high voltage is present at the high voltage

output terminal.

HIGH VOLTAGE OUTPUT TERMINAL - Connector used to attach the high voltage test lead, adapter box high voltage lead

or test xture high voltage lead to the instrument. This connection provides the high voltage used during a Hipot test.



Page 8

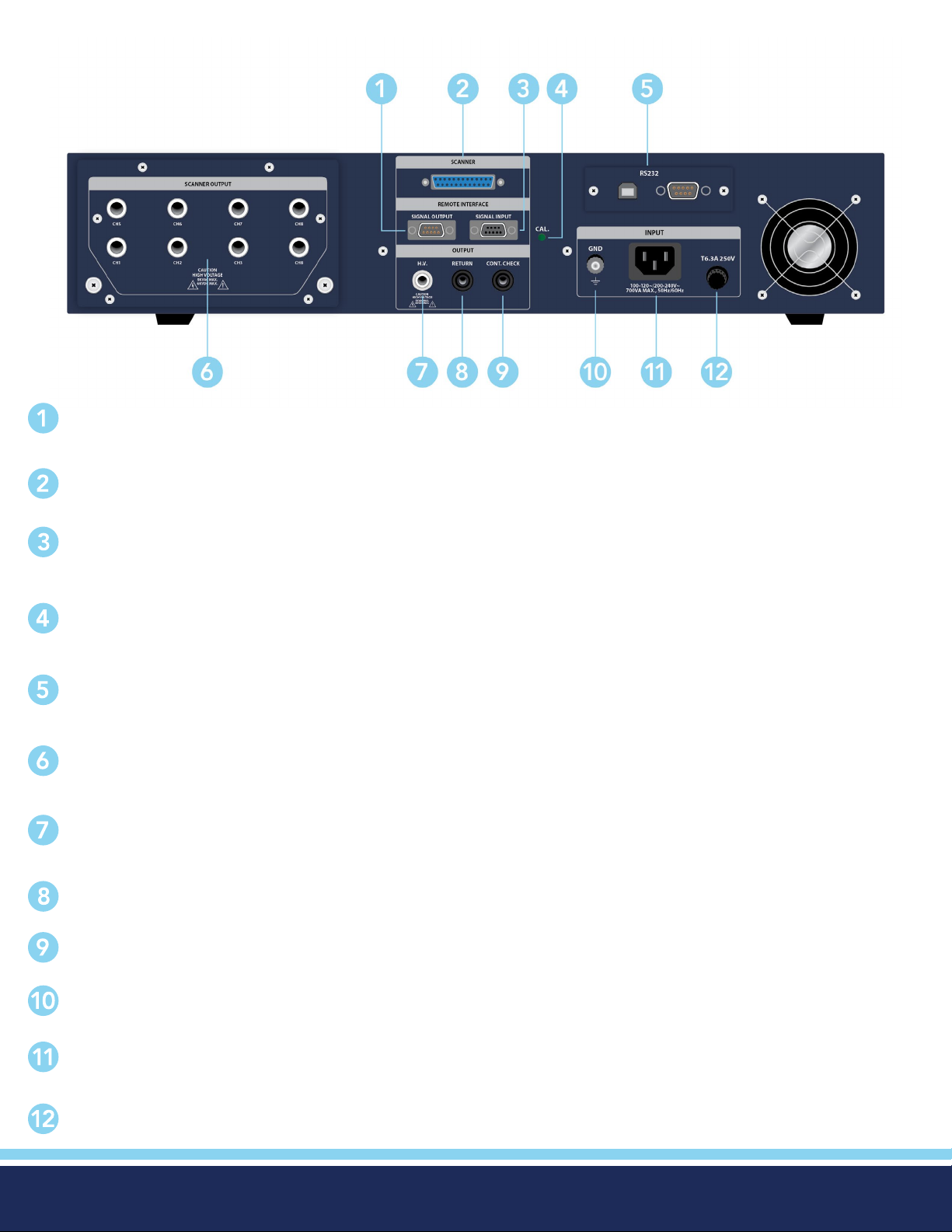

Rear Panel Controls (7800, 7820 and 7850)

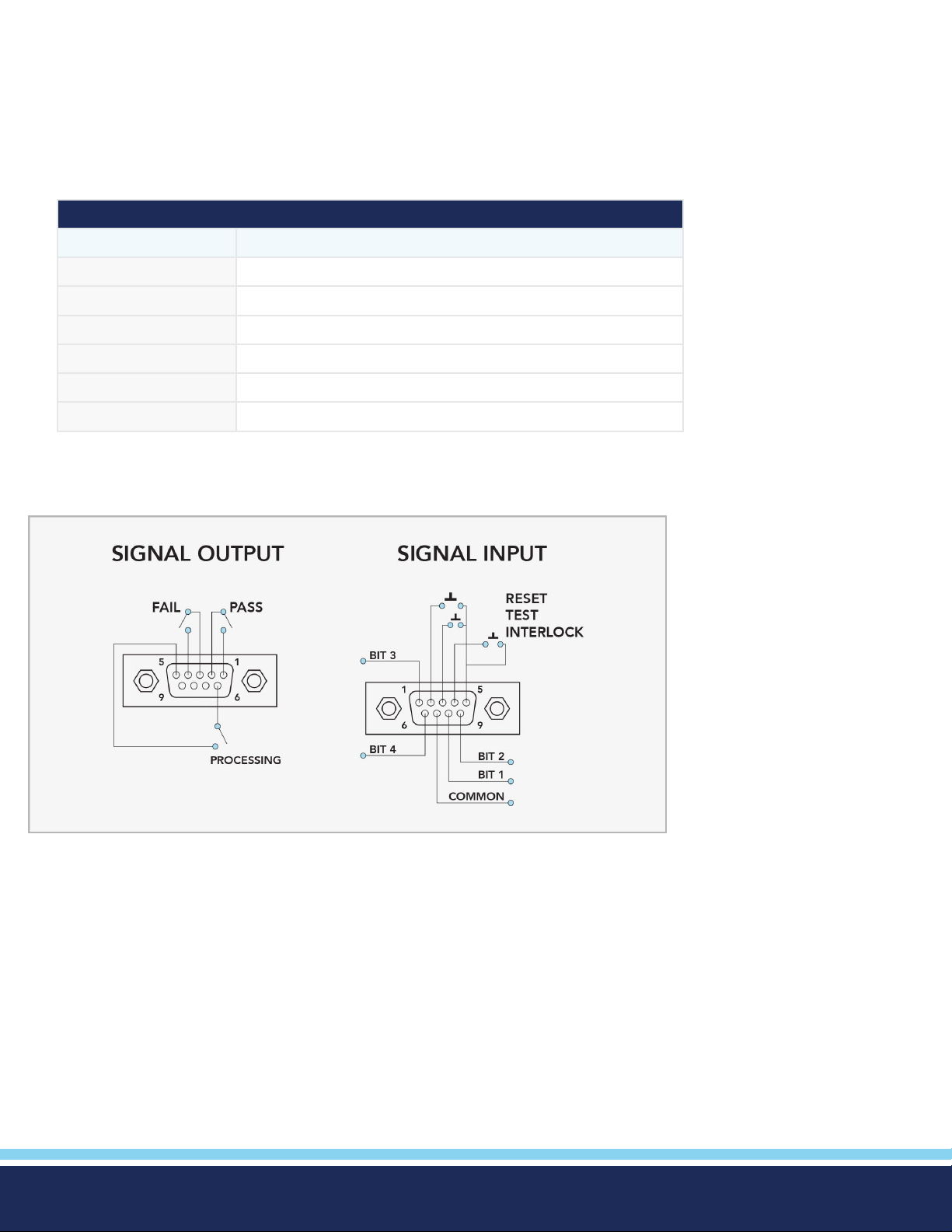

REMOTE SIGNAL OUTPUT - 9-Pin D-type subminiature female connector for monitoring PASS, FAIL, and PROCESSING

output relay signals.

SCANNER CONNECTOR - For connection of optional external Scanner.

REMOTE SIGNAL INPUT - 9-Pin D-type subminiature male connector for remote control of TEST, RESET, and REMOTE

INTERLOCK DISABLE functions, as well as MEMORY SELECTION.

CALIBRATION BUTTON - To put the instrument into the calibration mode push this button and turn on the power switch simultaneously.

BUS INTERFACE - Standard connector for interconnection to the USB/RS-232 Bus interface. You can substitute an Optional IEEE 488 (GPIB) or Ethernet interface for the USB/RS-232.

SCANNER OUTPUTS - Optional internal Scanner matrix that provides 8 HV/Continuity/Return connections. Please refer to the Options section of this manual for additional connection information.

REAR PANEL HIGH VOLTAGE OUTPUT TERMINAL - 2nd high voltage output connector in parallel with the front panel connector.

REAR PANEL RETURN TERMINAL - 2nd return output connector in parallel with the front panel connector.

REAR PANEL CONTINUITY OUTPUT TERMINAL - 2nd continuity output connector in parallel with the front panel output.

CHASSIS GROUND (EARTH) CONNECTION - Connect this terminal to a good earth ground before operation.

INPUT POWER RECEPTACLE - Standard IEC 320 connector for connection to a standard NEMA style line power (mains) cord.

FUSE RECEPTACLE - To change the fuse, unplug the power (mains) cord and turn the fuse receptacle counter-clockwise.

This will expose the fuse compartment. Please replace the fuse with one of the proper rating.



Page 9

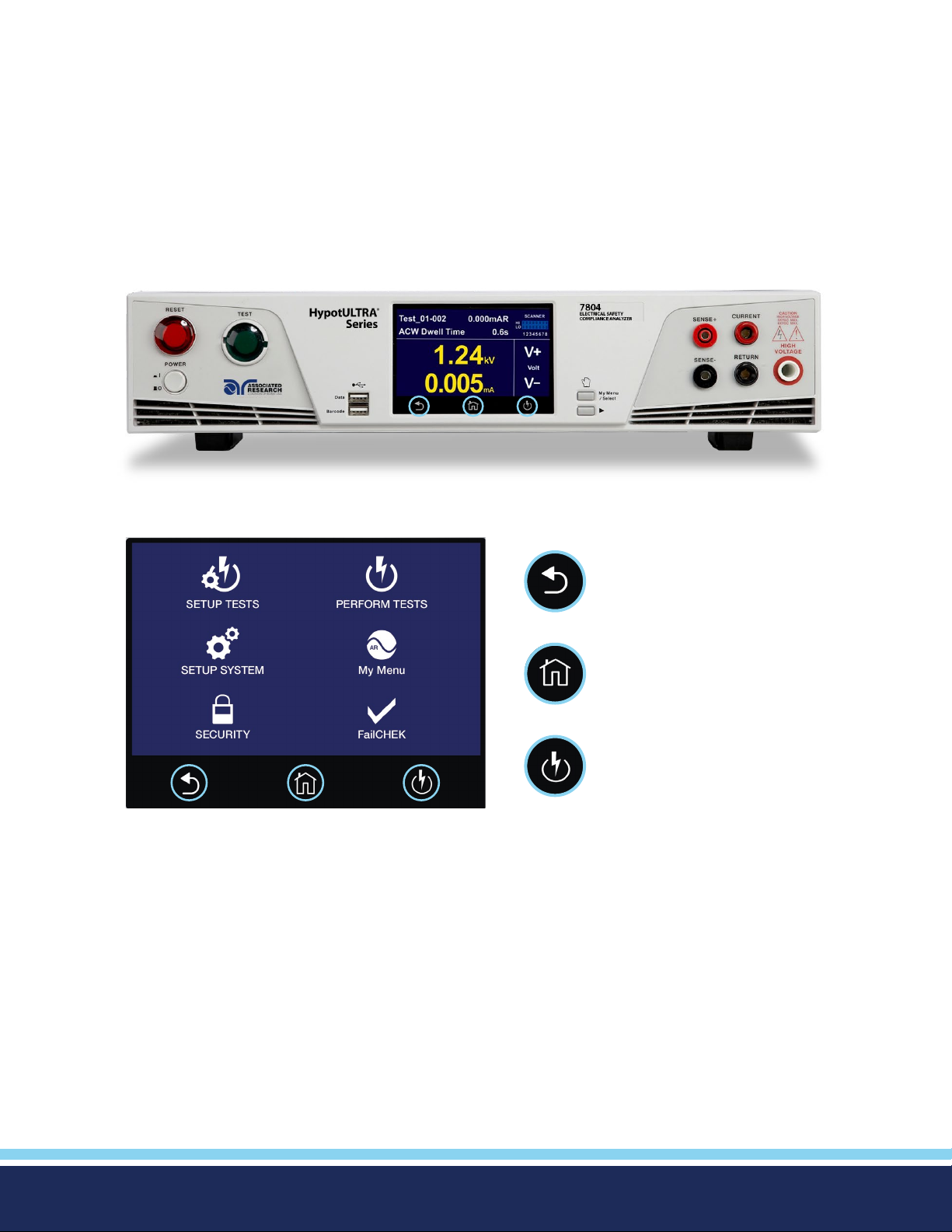

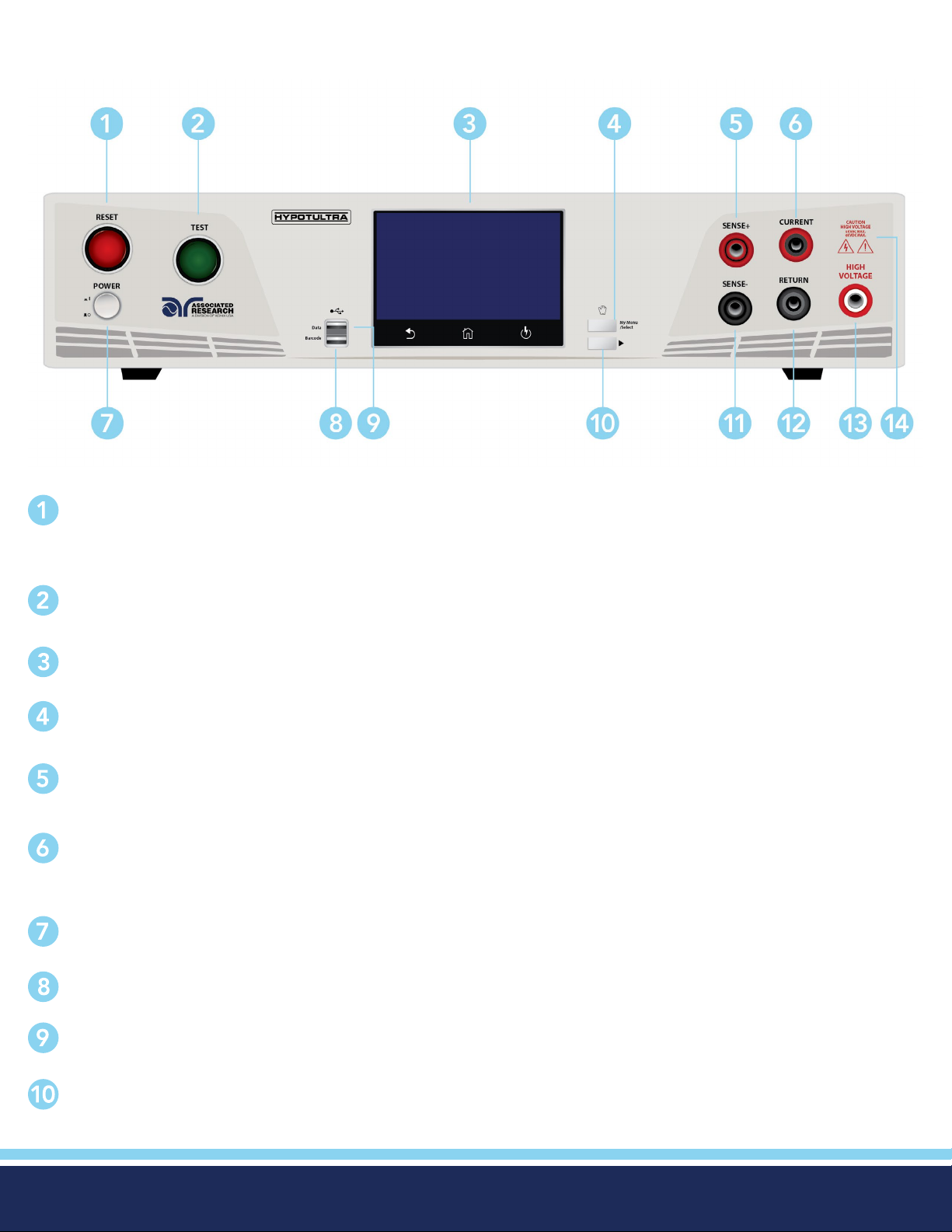

Front Panel Controls (7804 and 7854)

RESET BUTTON - Resets the instrument. If a failure condition occurs during a test, pressing this button will reset the

TOUCH SCREEN GRAPHIC LCD - Displays all the information and allows full control of the instrument.

MY MENU - Brings up the MyMENU screen.

SENSE+ TERMINAL - Connector used to attach the + sense lead for 4-wire Kelvin current measurement. This connection

provides for accurate current measurement during the Ground Bond test.

CURRENT OUTPUT TERMINAL - Connector used to attach the high current output lead, adapter box high current lead

or test xture high current lead to the instrument. This connection provides the output current for the ground bond and

continuity.

POWER SWITCH - Powers the test instrument ON or OFF.

BARCODE USB PORT - This USB style port allows for connecting a barcode scanner.

DATA USB PO R T - This USB style port allows for connecting a USB ash drive to extract test and system data.

TOGGLE - This button allows you to toggle between test les if you are wearing high voltage gloves.

Continued on next page



Page 10

SENSE- TERMINAL - Connector used to attach the - sense lead for 4-wire Kelvin current measurement. This connection provides for accurate current measurement during the Ground Bond test.

RETURN TERMINAL - Connector used to attach the return test lead, adapter box return lead or test xture return lead to

the instrument. This connection provides the return current path.

HIGH VOLTAGE OUTPUT TERMINAL - Connector used to attach the high voltage test lead, adapter box high voltage lead

or test xture high voltage lead to the instrument. This connection provides the high voltage used during a Hipot test.

HIGH VOLTAGE INDICATOR - This indicator ashes to warn the operator that high voltage is present at the high voltage

output terminal.



Page 11

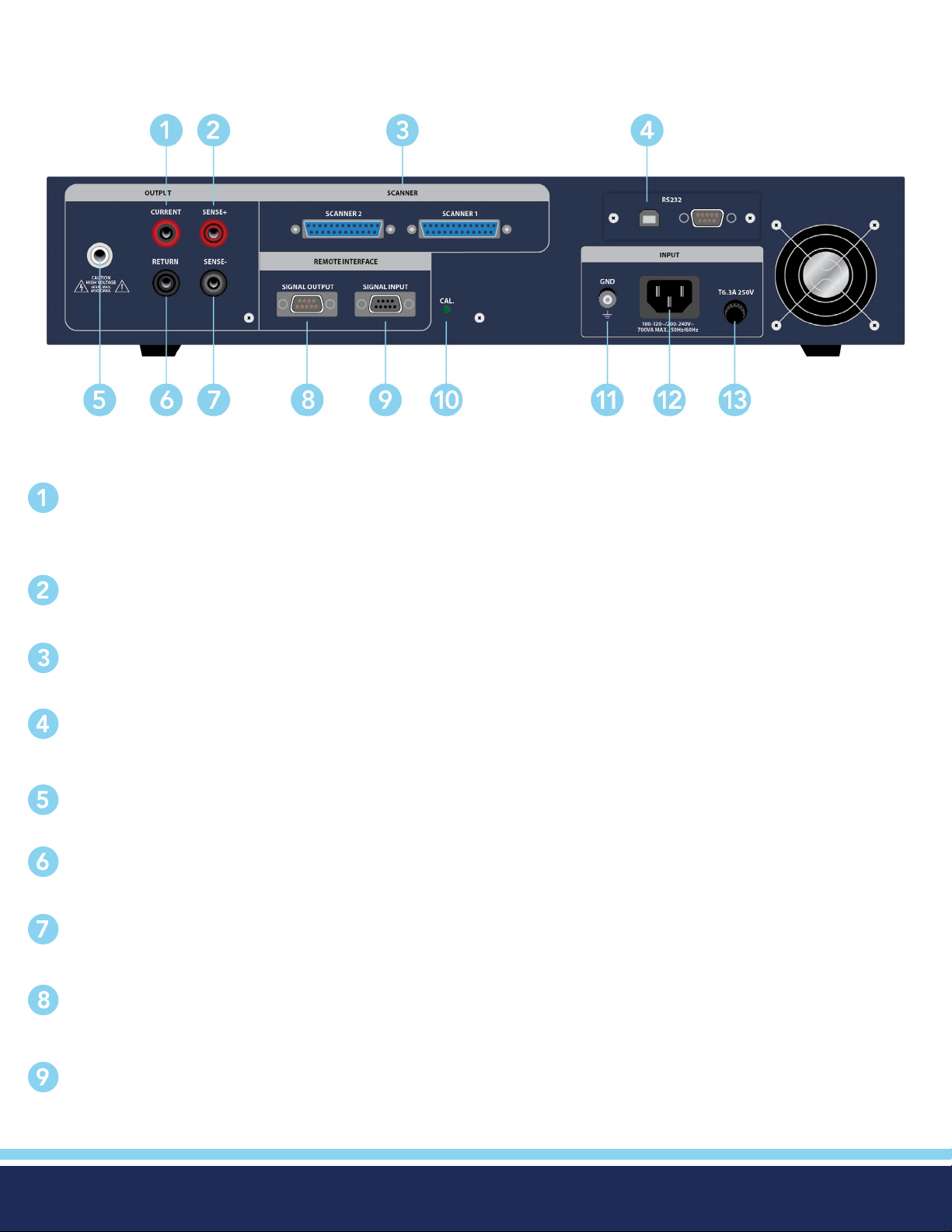

Rear Panel Controls (7804 and 7854)

CURRENT OUTPUT TERMINAL - Connector used to attach the high current output lead, adapter box high current lead or

test xture high current lead to the instrument. This connection provides the output current for the ground bond and continuity.

SENSE+ TERMINAL - Connector used to attach the + sense lead for 4-wire Kelvin current measurement. This connection provides for accurate current measurement during the Ground Bond test.

SCANNER CONNECTOR - For connection of optional external Scanner.

BUS INTERFACE - Standard connector for interconnection to the USB/RS-232 Bus interface. You can

substitute an Optional IEEE 488 (GPIB) or Ethernet interface for the USB/RS-232.

REAR PANEL HIGH VOLTAGE OUTPUT TERMINAL - 2nd high voltage output connector in parallel with the front panel connector.

REAR PANEL RETURN TERMINAL - 2nd return output connector in parallel with the front panel connector.

SENSE- TERMINAL - Connector used to attach the - sense lead for 4-wire Kelvin current measurement. This connection provides for accurate current measurement during the Ground Bond test.

REMOTE SIGNAL OUTPUT - 9-Pin D-type subminiature female connector for monitoring PASS, FAIL, and PROCESSING output relay signals.

REMOTE SIGNAL INPUT - 9-Pin D-type subminiature male connector for remote control of TEST, RESET, and REMOTE INTERLOCK DISABLE functions, as well as MEMORY SELECTION.

Continued on next page



Page 12

CALIBRATION BUTTON - To put the instrument into the calibration mode push this button and turn on the power switch simultaneously.

CHASSIS GROUND (EARTH) CONNECTION - Connect this terminal to a good earth ground before operation.

INPUT POWER RECEPTACLE - Standard IEC 320 connector for connection to a standard NEMA style line power (mains) cord.

FUSE RECEPTACLE - To change the fuse, unplug the power (mains) cord and turn the fuse receptacle counter-clockwise. This will expose the fuse compartment. Please replace the fuse with one of the proper rating.



Page 13

Setup Instructions

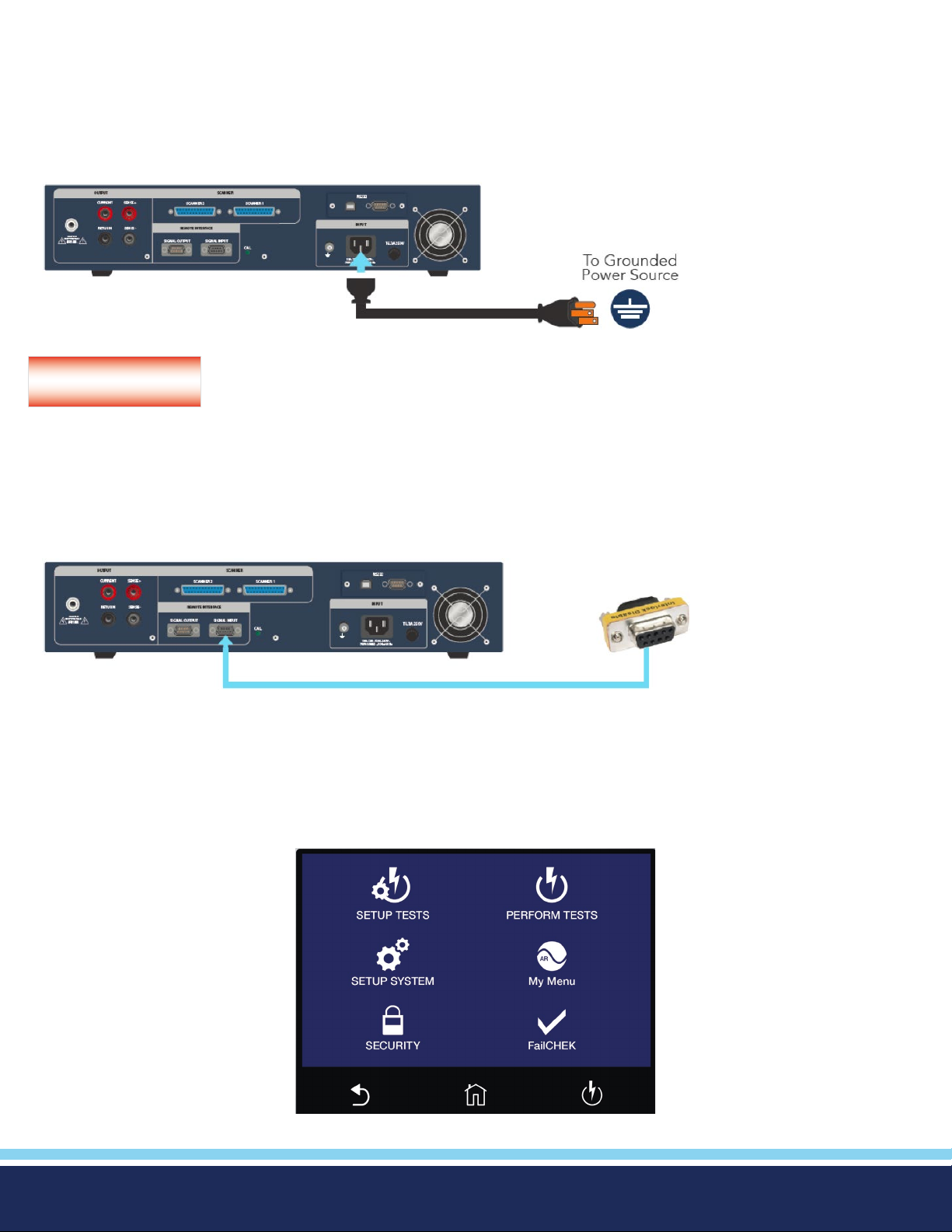

Power Up Sequence

1. Connect the power input plug into its socket on the rear panel of the instrument. Connect the male end of the plug to the outlet receptacle.

Only insert the main plug in a socket outlet with a protective ground (earth) contact. This protective

WARNING

La che principale ne doit être insérée dans une prise de courant avec une masse (terre) avec système de protection. Cette terre

de protection ne doit pas être vaincu par l’utilisation d’ une rallonge sans conducteur de protection.

ground must not be defeated by the use of an extension cord without a protective conductor.

2. Connect the Interlock Disable key to the Remote Input connector on the back panel of the instrument. This is required in order to run a test. For more information on the interlock, see section for Remote Interlock.

3. Turn on the POWER switch located on the lower left hand side of the front panel. Upon powering the instrument up, a POWER ON SELF TEST (POST) will automatically be performed. This test will check for the condition of the ram chips, PCB’s and other critical components. The instrument screen will then default to the main menu.

The default screen is the main menu screen of the instrument. From this screen you can access all the functions and settings of the instrument:

Main Menu



Page 14

Getting to Know Your Instrument

Using the Touch Screen

The touch screen display of the HypotULTRA provides full control of the instrument. Use the he touch screen to setup system and test parameters as well as security setup and calibration. HypotULTRA’s touch screen functions just like any other touch screen.

Soft Keys

The HypotULTRA touch screen has 3 functional keys: Back, Home and Perform Tests:

Use the Back key to return to a previous menu.

Use the Home key to return to the Main Menu.

Use the Perform Tests key to navigate to the Perform Tests screen.



Page 15

Touc h

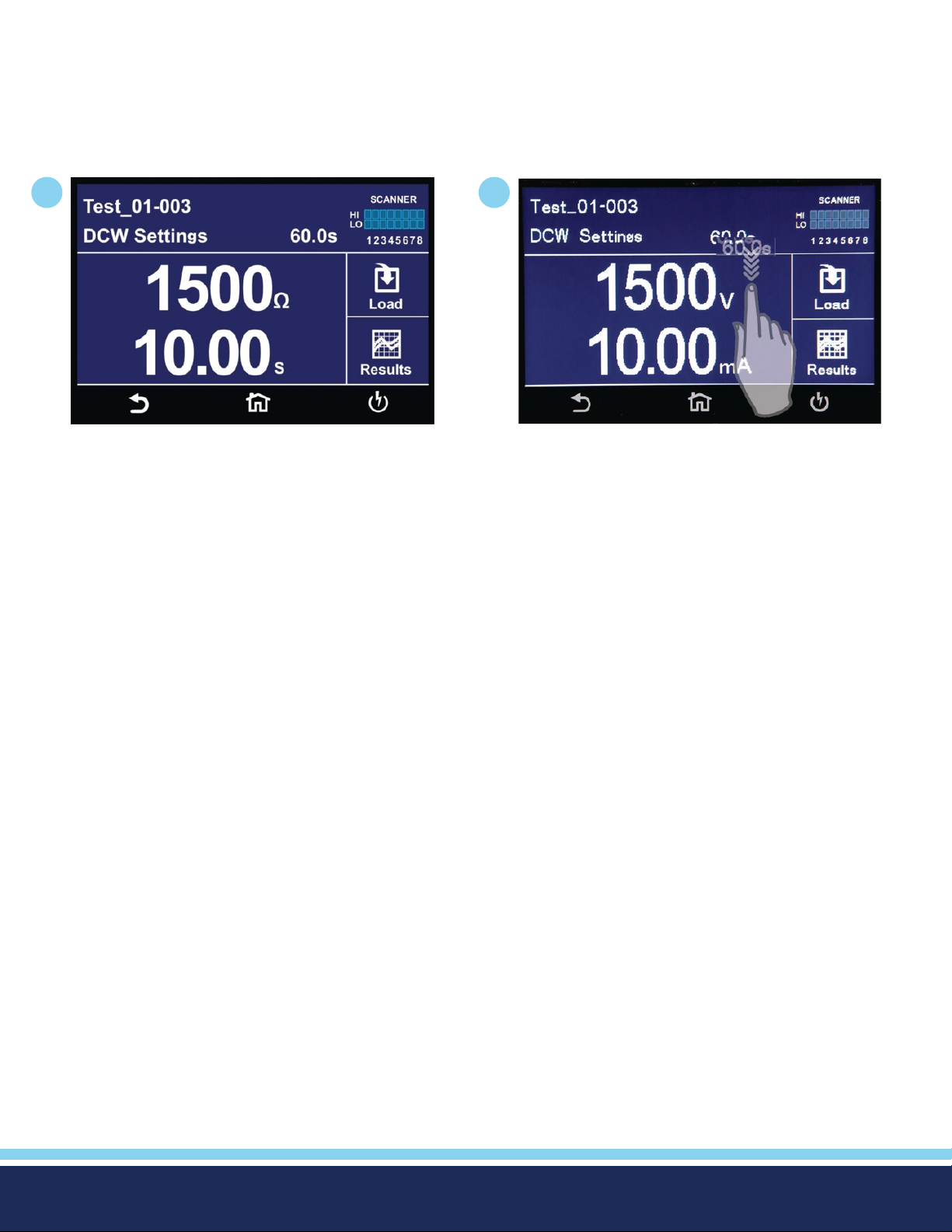

The various screens of the HypotULTRA will display icons and parameters. Touch the appropriate icon or parameter with the

ngertip as shown in the image to the right.

Scroll and Swipe

A scroll bar on the right side of the screen indicates that there are additional parameters or features. To scroll up and down between parameters touch the screen anywhere scroll upward or downward. Swipe left to right in order to change parameters when setting up test or system values.

Drag and Drop

You can drag and drop test les and steps on certain HypotULTRA screens. To use this feature simply touch and hold the test le, test step or parameter. Drag the le to the appropriate location as

shown in the following screen to the right.



Page 16

Main Menu

Upon powering up, the instrument will default to the Main Menu. The Main Menu is also the default home screen.

Setup Tests Screen - Create test les.

Main Menu

Perform Test Screen - Navigate to the Perform Tests screen in order to run a test sequence.

Setup System Menu - Instrument global parameters such as time and date, calibration and hardware.

Security Menu - Access instrument lockout and security features.

*Note – Details of each system and test parameter are listed in the relevant sections of the manual.

My Menu Screen - User customized menu.

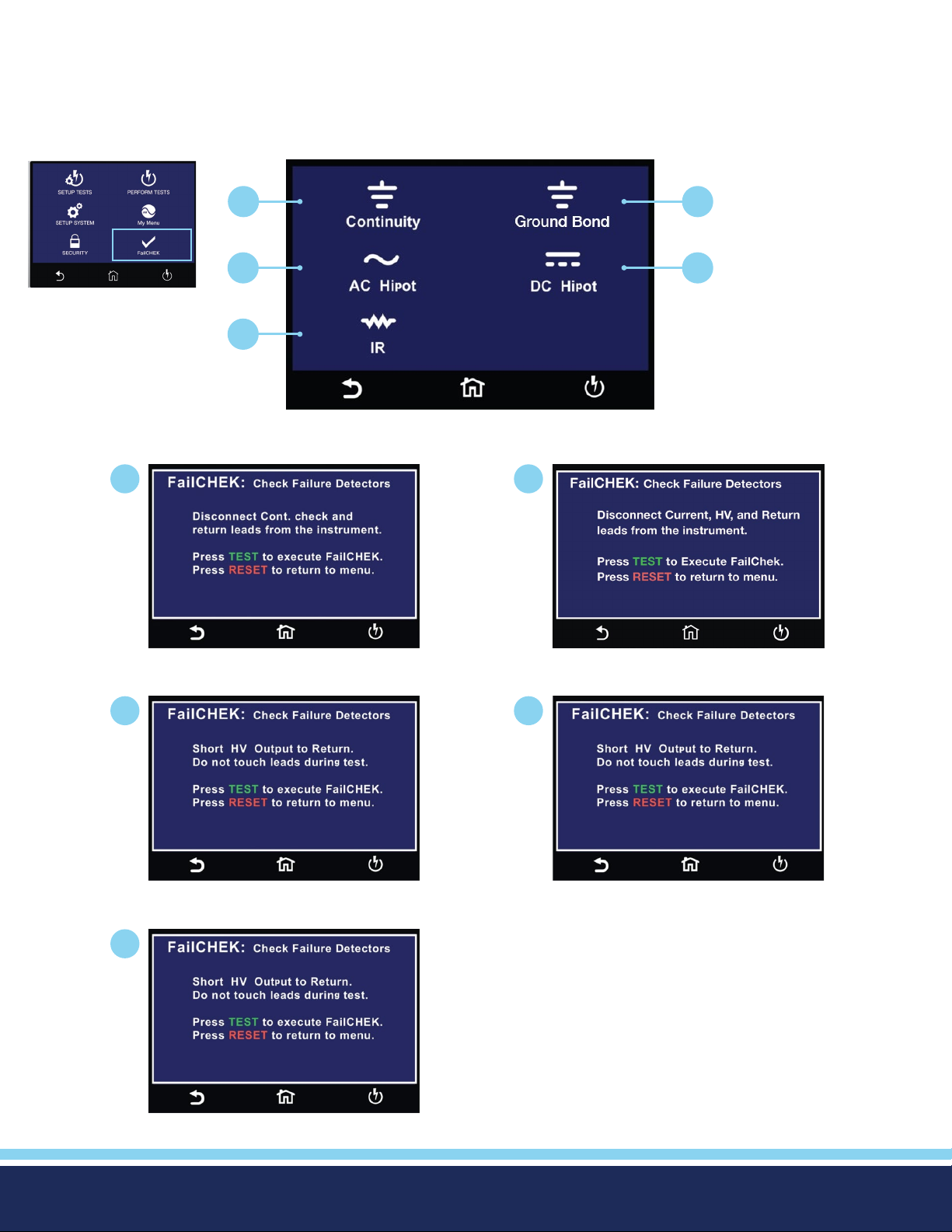

FailCHEK Menu - Check the instrument’s

failure detectors



Page 17

1. Setup System

From the default main menu touch the Setup System icon to enter the Setup System sub menu. This is where all System Parameters can be edited:

Main Menu

5 6

Setup System Menu

Time and Date Menu Calibration Alert Menu

Continued on next page



Page 18

Setup System Continued

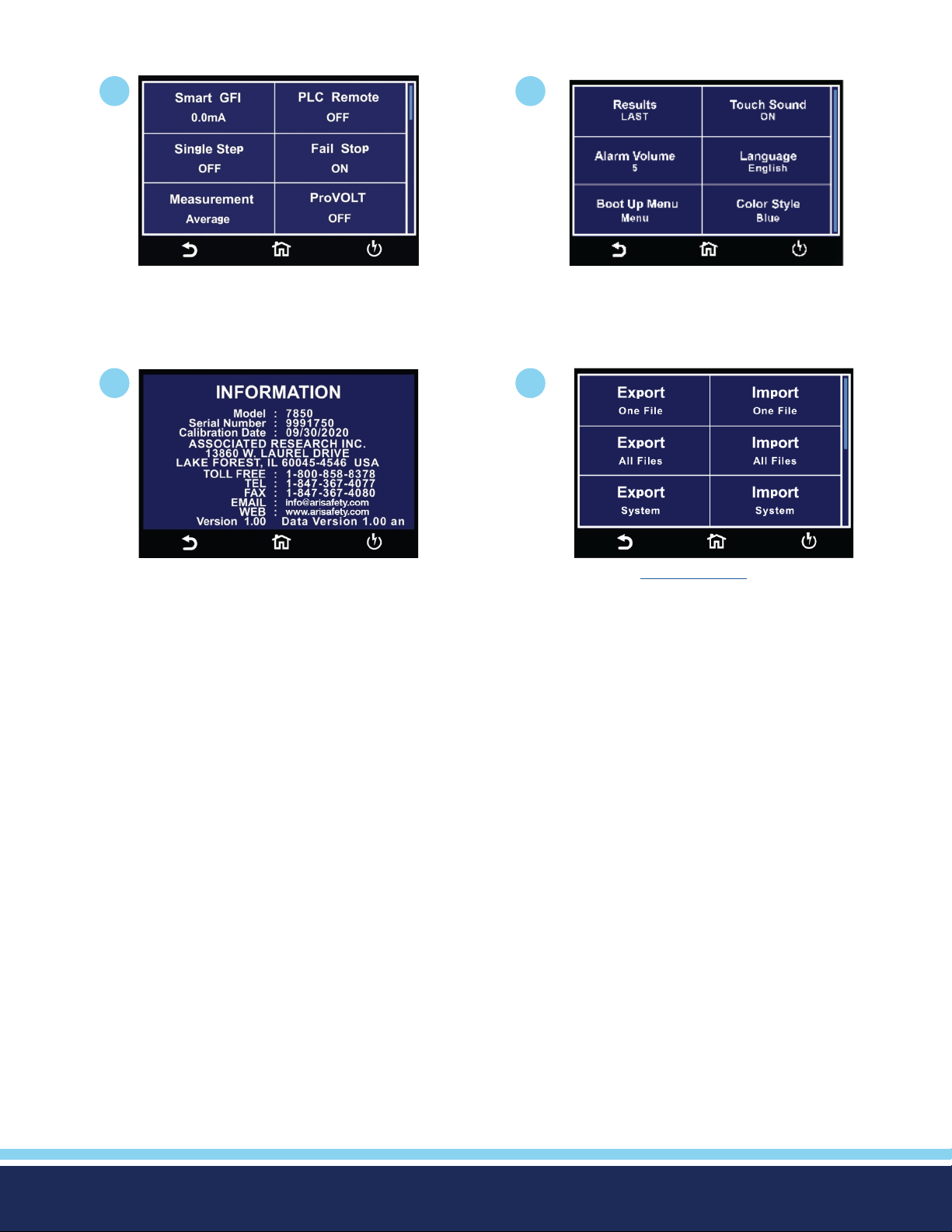

Hardware Menu

User Interface

Information Screen Import/Export Menu



Page 19

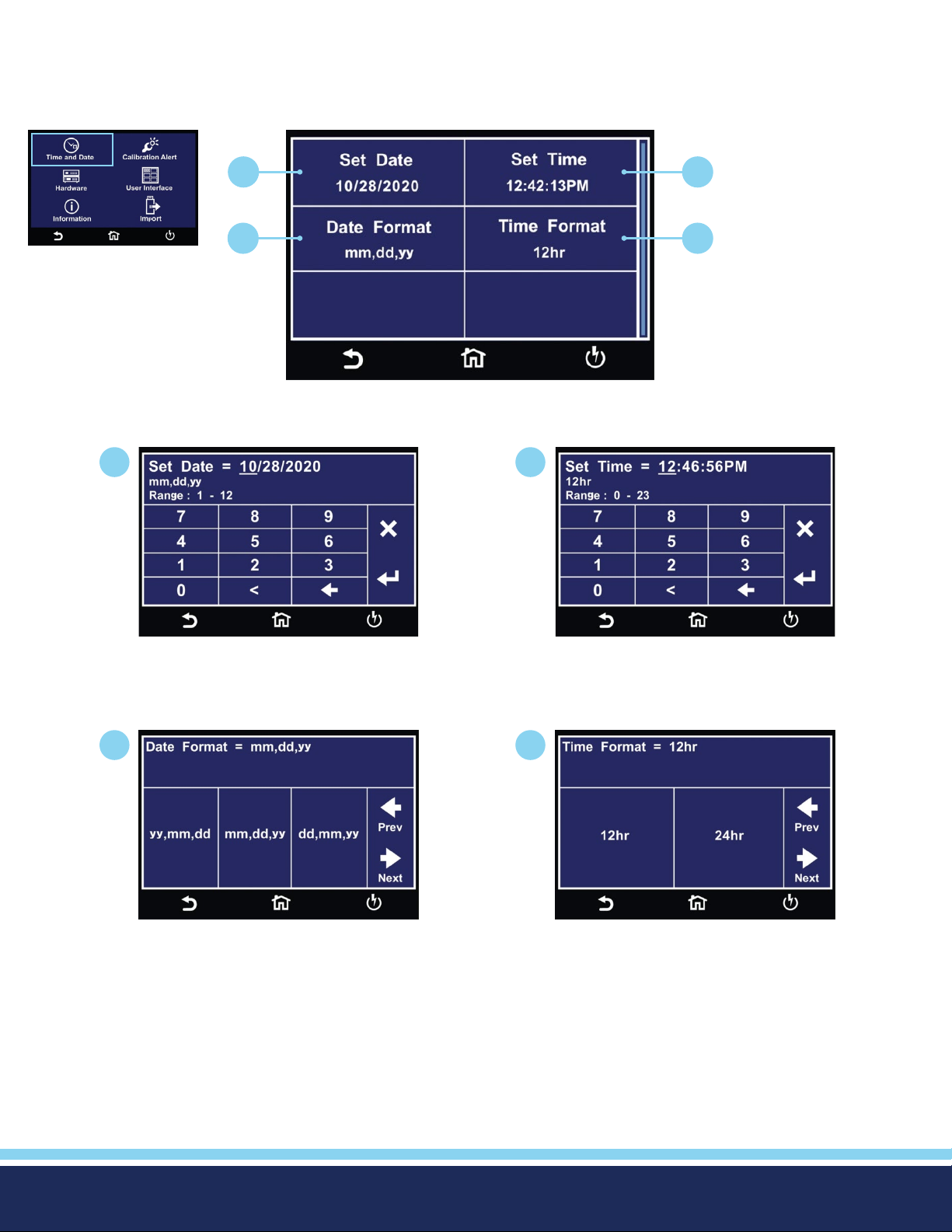

Time and Date

Time and Date menu allows the user to edit and save the System Time and Date. This time and date will be used to stamp the test results data.

Setup System Menu

3 4

Time and Date Menu

Enter the current date to set System Date.

Select the Date Format for System Date.

Enter current time to set System Time.

Select the Time Format for System Time.



Page 20

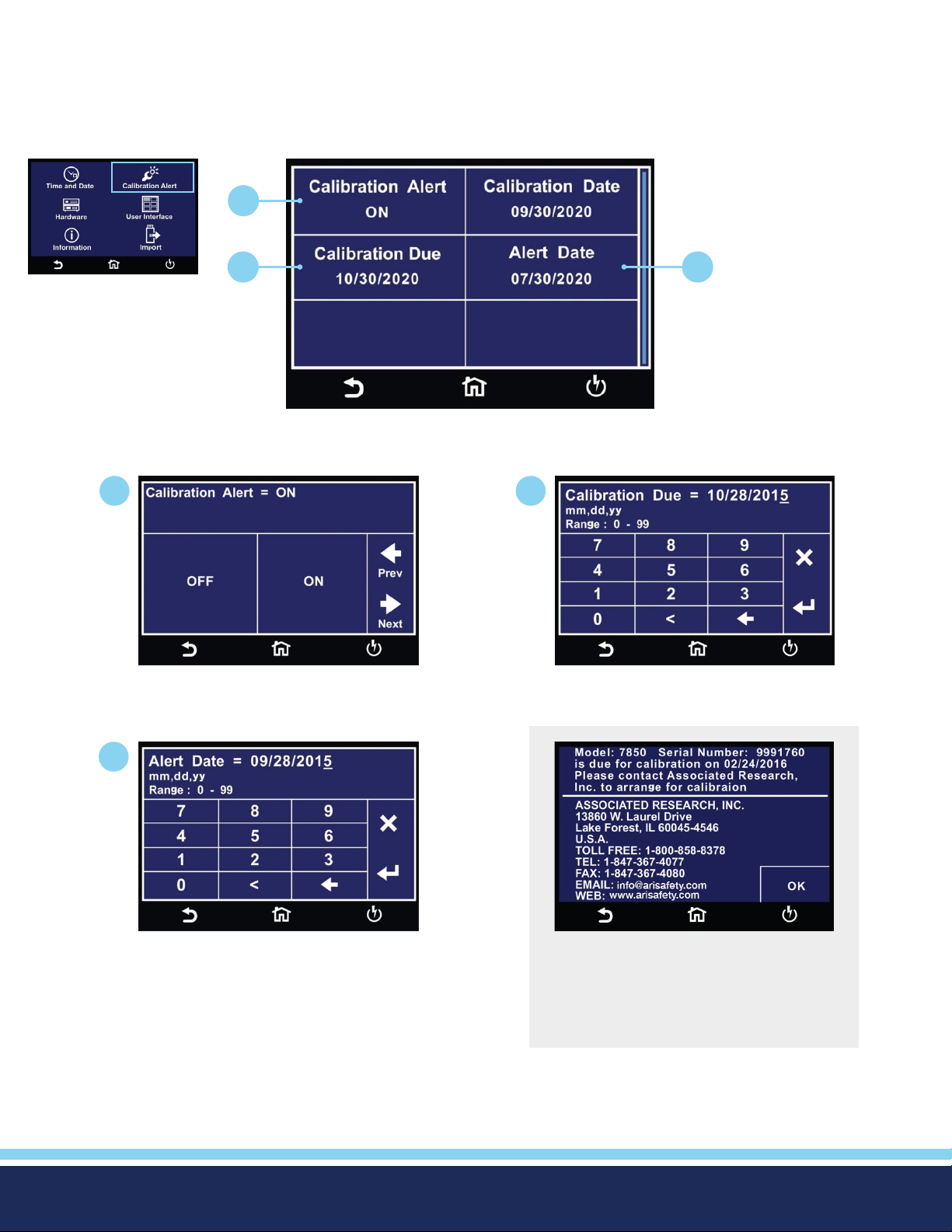

Calibration Alert

The Calibration Alert menu allows the user to setup alerts prior to the Calibration Due date. The user can also edit the Calibration Due date. It is not recommended that the Calibration Due date be changed once the instrument has been calibrated. Associated Research recommends annual calibrations for all models.

Setup System Menu

2 3

Calibration Alert Menu

1 2

Select Calibration Alert ON or OFF.

Enter a Calibration Due date.

Enter a Calibration Alert Date.

The above Calibration Alert screen will be displayed upon powering up the instrument, on and after the Calibration Alert Date. This screen will display the Calibration Due Date of the instrument.



Page 21

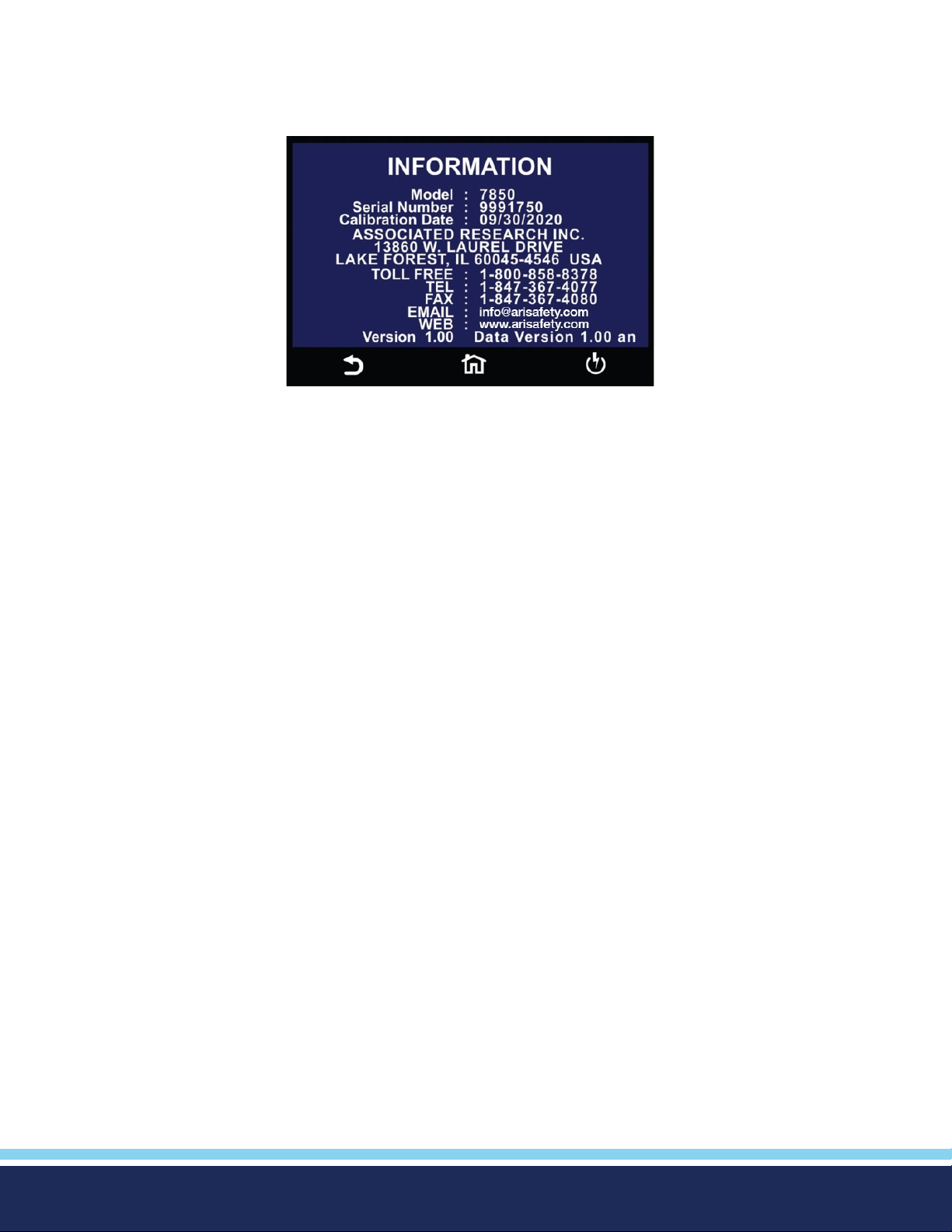

Information Screen

The Information screen displays all instrument information including: Model Number, Serial Number, Calibration Date, Company Information and Firmware Version.



Page 22

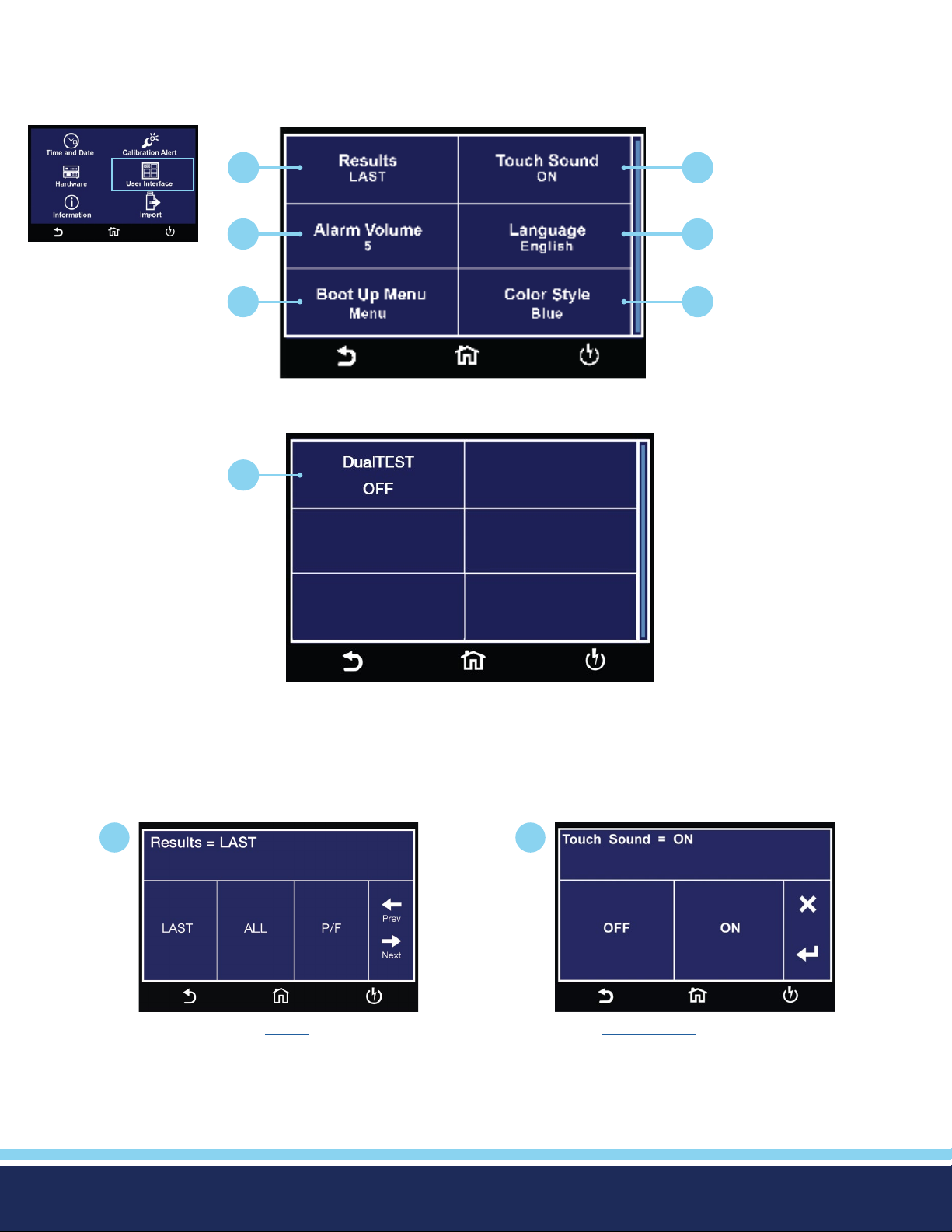

User Interface

The User Interface menu allows the user to edit Results, Touch Sound, Alarm Volume, Language, Home Screen, Color Style and Dual Test parameters.

Setup System Menu

5 6

User Interface Menu

User Interface Cont.

Select end of test Result Screen. Select Touch Sound ON or OFF.

Continued on next page



Page 23

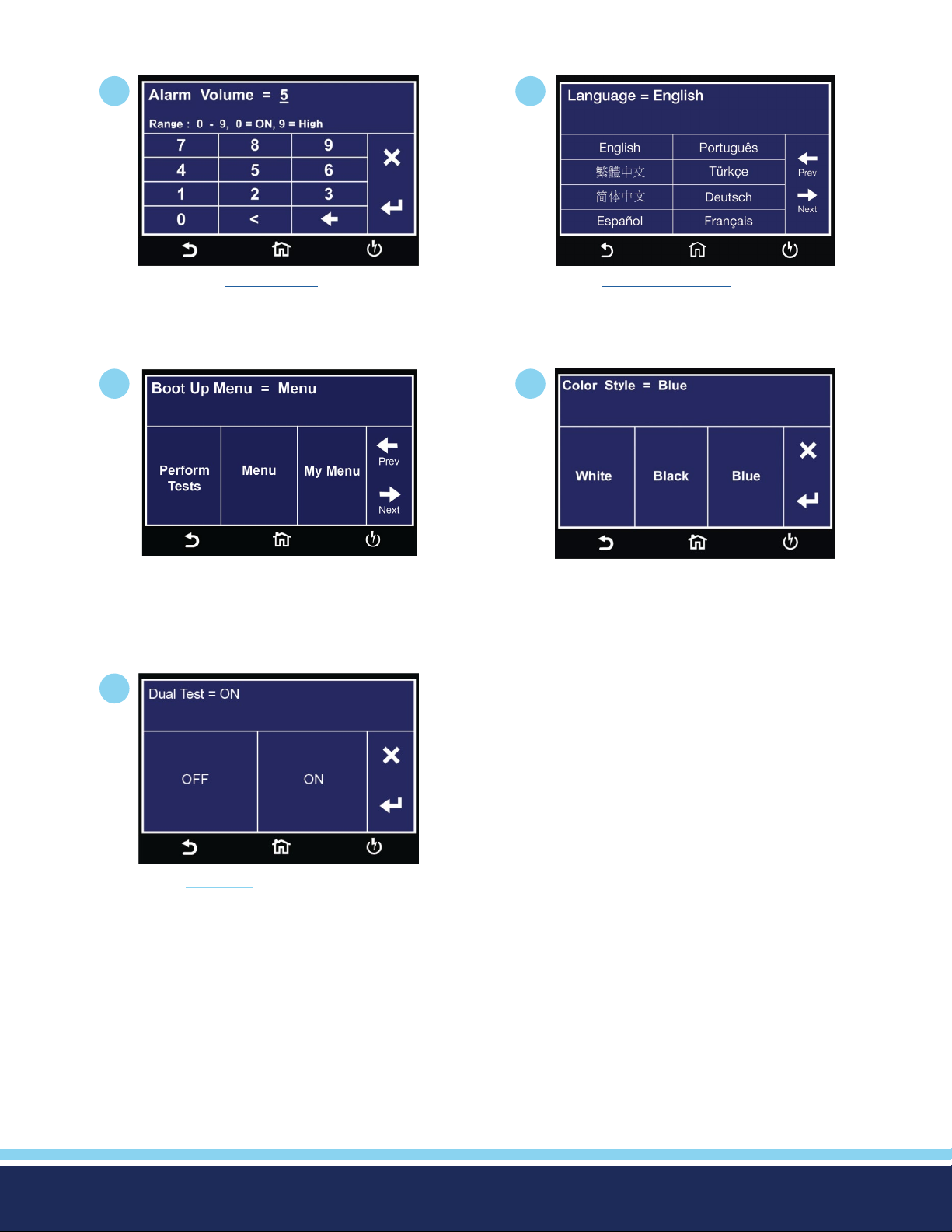

User Interface Continued

Enter Alarm Volume level.

Select System Language.

Select start up Boot Up Menu.

Select Dual Test ON or OFF for Dual Remote Palm Switches.

Select System Color Style.



Page 24

User Interface Parameter Descriptions

Descriptions of User Interface parameters are listed in the following table:

RESULT Select how the test results will be displayed at the end of a test or test sequence.

LAST The results of the last step performed will be

displayed on the Perform Tests screen. There will not be a change in appearance or special screen displayed in this mode

ALL Results summary screen will be displayed at the

end of the test or sequence of connected steps displaying the results of all of the steps.

P/F Pass or Fail screen will be displayed at the end

of the test.

Touch Sound

Alarm Volume

Language Set the instrument display in the desired language. The available languages on the HypotULTRA instruments are

Home Screen

Color Style

Set the instrument to emit a short audible beep anytime the screen is touched. Select between ON or OFF.

Set the instrument alarm volume. The numbers corresponding to the different volume settings are 0 through 9, 0 meaning the volume is off, and 9 being the loudest setting.

English, Chinese, Simplied Chinese, German, French, Turkish, Portuguese and Spanish.

Set the default screen upon instrument power up. Choose between Perform Test, Menu or My Menu.

Set the color style of the touch screen.

Dual Test The Dual Remote Test Switch option allows you to congure dual palm switches for safe production line operation.

Both PLC Remote and Dual Test must be ON in order for dual remote test switch operation below to work.

The rear panel remote interface is recongured to allow two test switches instead of the standard reset and test

inputs. The two test switches have to be pressed within 0.5 seconds to activate the test process. The two test switches must remain closed to continue the test. If either of the test switches is released, the process will be shut down immediately. The functions of the Test and Reset switches on the front panel will be disabled if the dual test switches are enabled. When the Dual Test parameter is turned OFF, the Test and Reset switches on the front and rear panel behave the same as the standard instrument, and are controlled by the PLC Remote On/Off selection.



Page 25

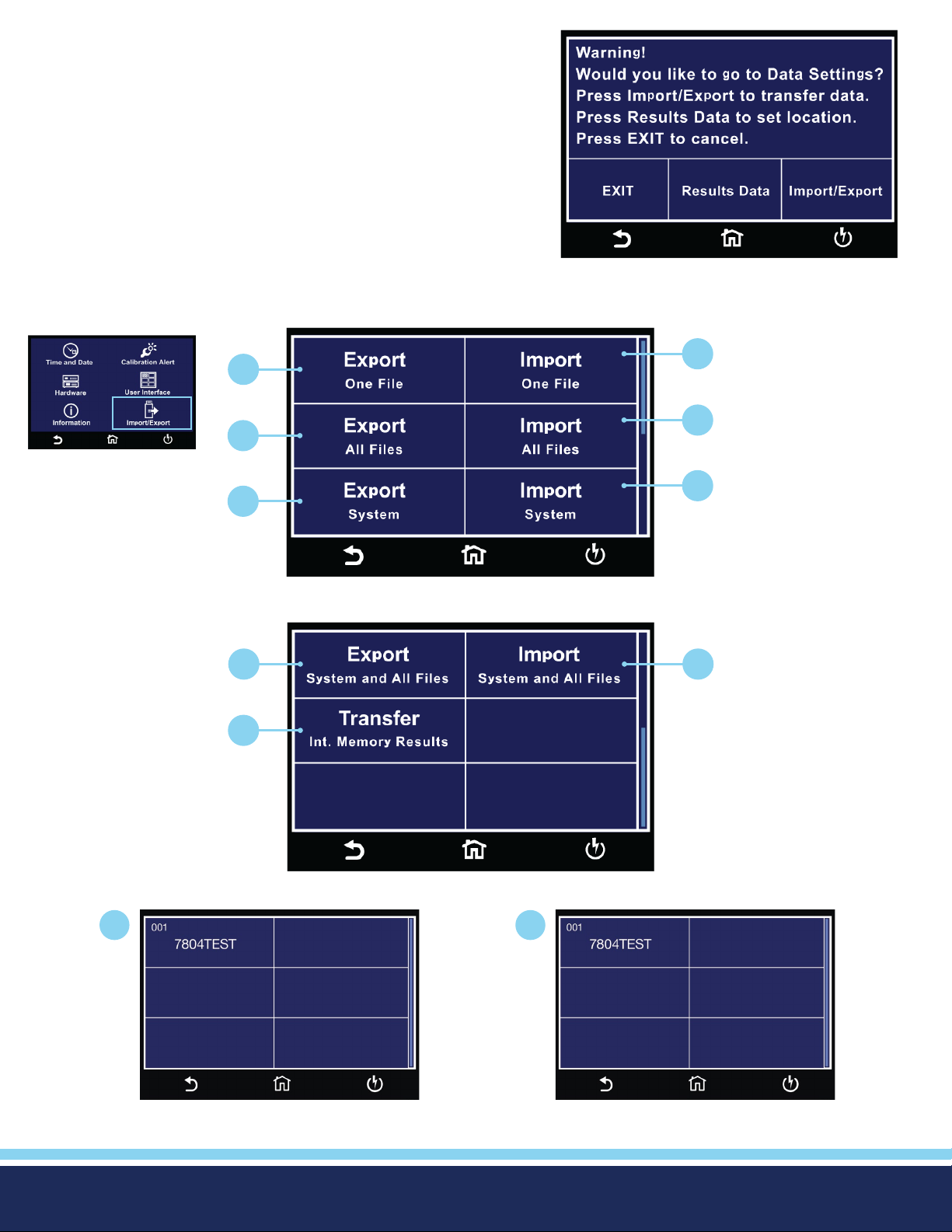

Import/Export

Insert USB disk into Data port and the following screen will appear. Select Import/Export to use the Import/Export menu to transfer data. Select Result Data to go to Result Data settings menu. Please refer to the Results Data section of this manual.

The Import/Export menu allows the user to import or export System and Test Files from a USB ash drive into the instrument memory. The Import/Export menu will only appear under the Hardware menu if a USB ash drive is inserted into the Data port

on the front panel of the instrument.

Setup System Menu

Import/Export Menu

Select the Test File to export. Import a single Test le.

Continued on next page



Page 26

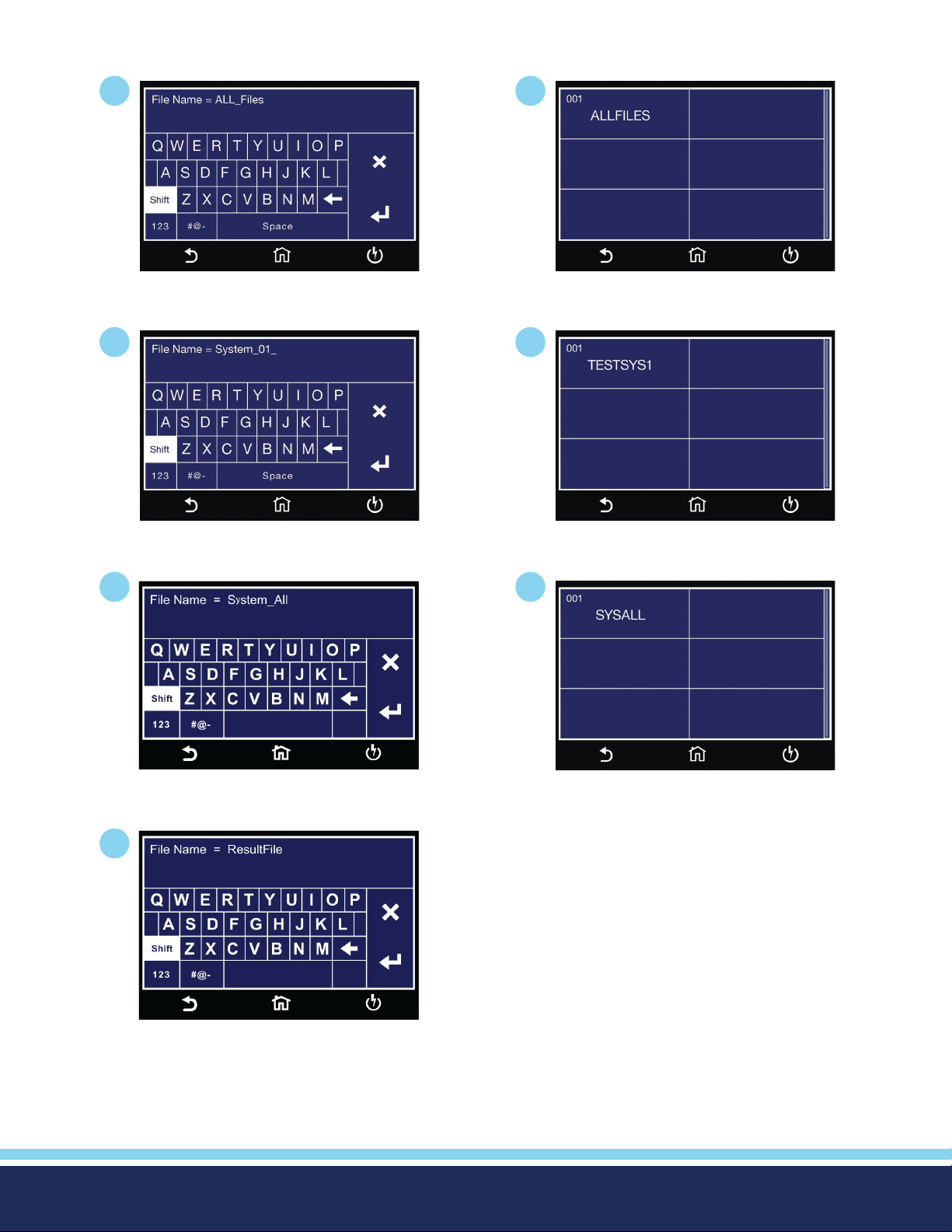

Import/Export Continued

Import all Test les.Enter le name for exporting All Files.

Import System le.Enter le name for exporting System File.

Enter le name for exporting System

and All Files.

Enter le name for exporting results

from internal memory.

Import System and all Test les.

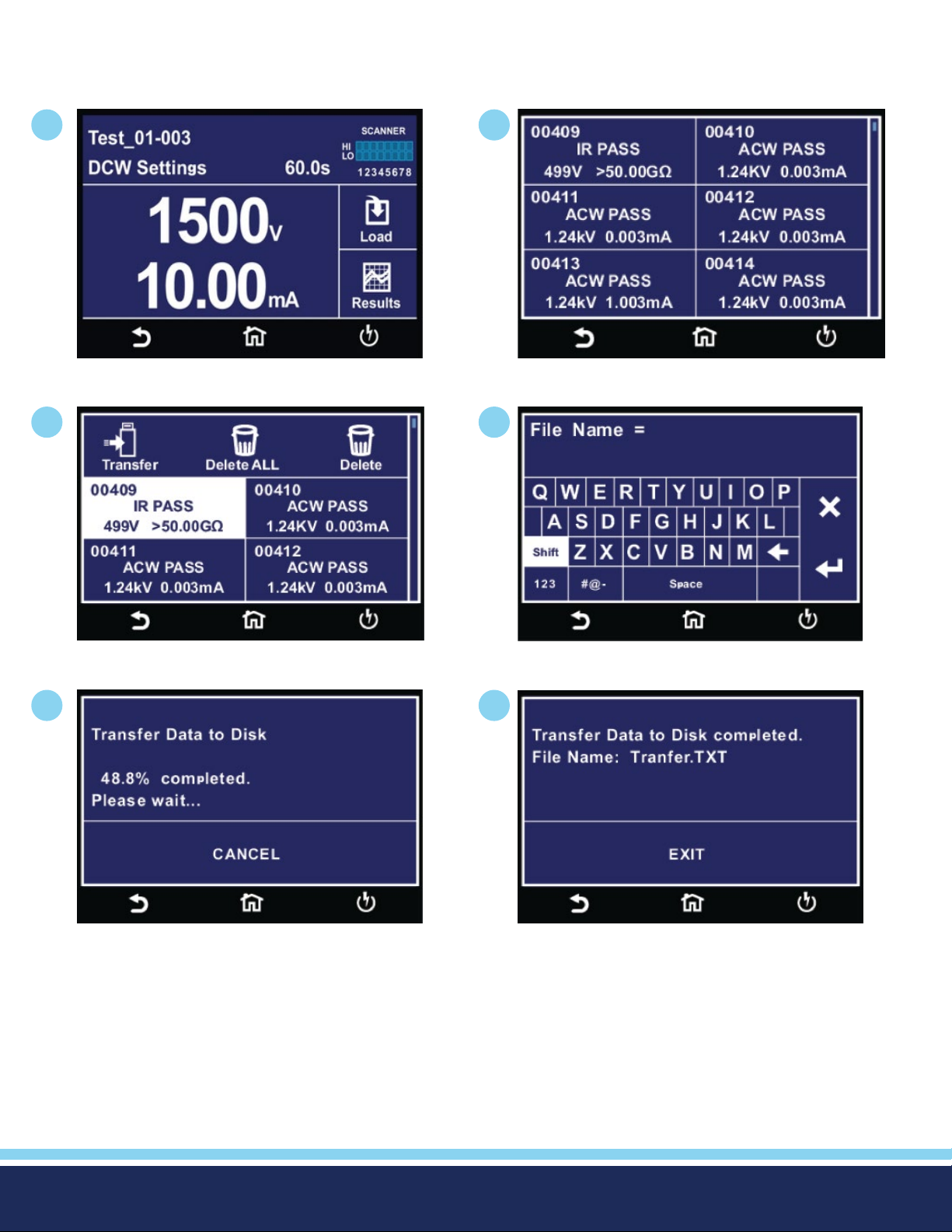

With Result Setup Location set to Int. Memory, Transfer can be used to export result data stored on the internal memory. The number displayed shows total number of available results stored on internal memory.



Page 27

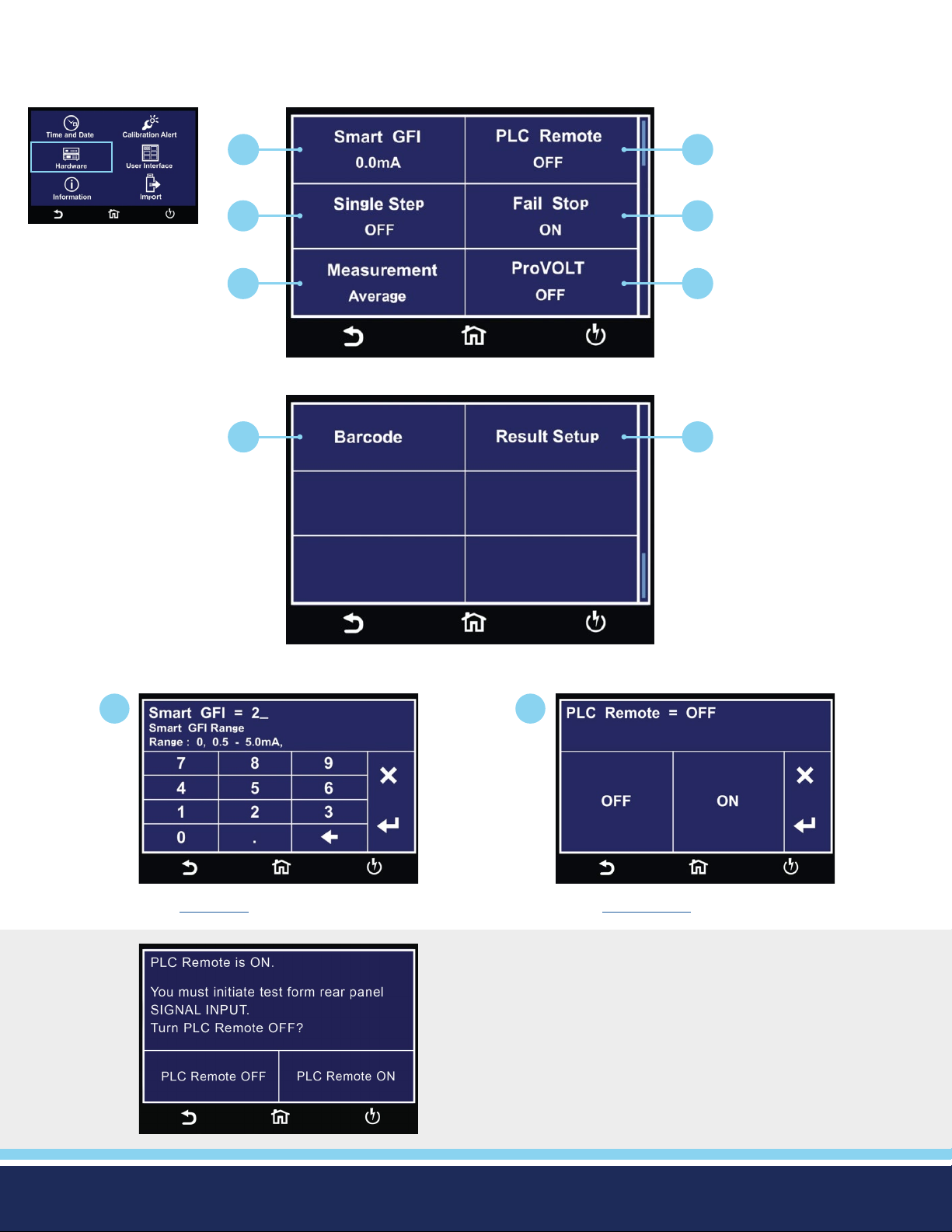

Hardware

The Hardware menu allows the user to setup hardware parameters.

Setup System Menu

5 6

Hardware Menu

Hardware Menu Cont.

Enter SmartGFI value. Select PLC Remote ON or OFF.

This screen comes up when pressing TEST button while PLC is ON warning customer to adjust PLC setting if need to use the TEST button.

Continued on next page



Page 28

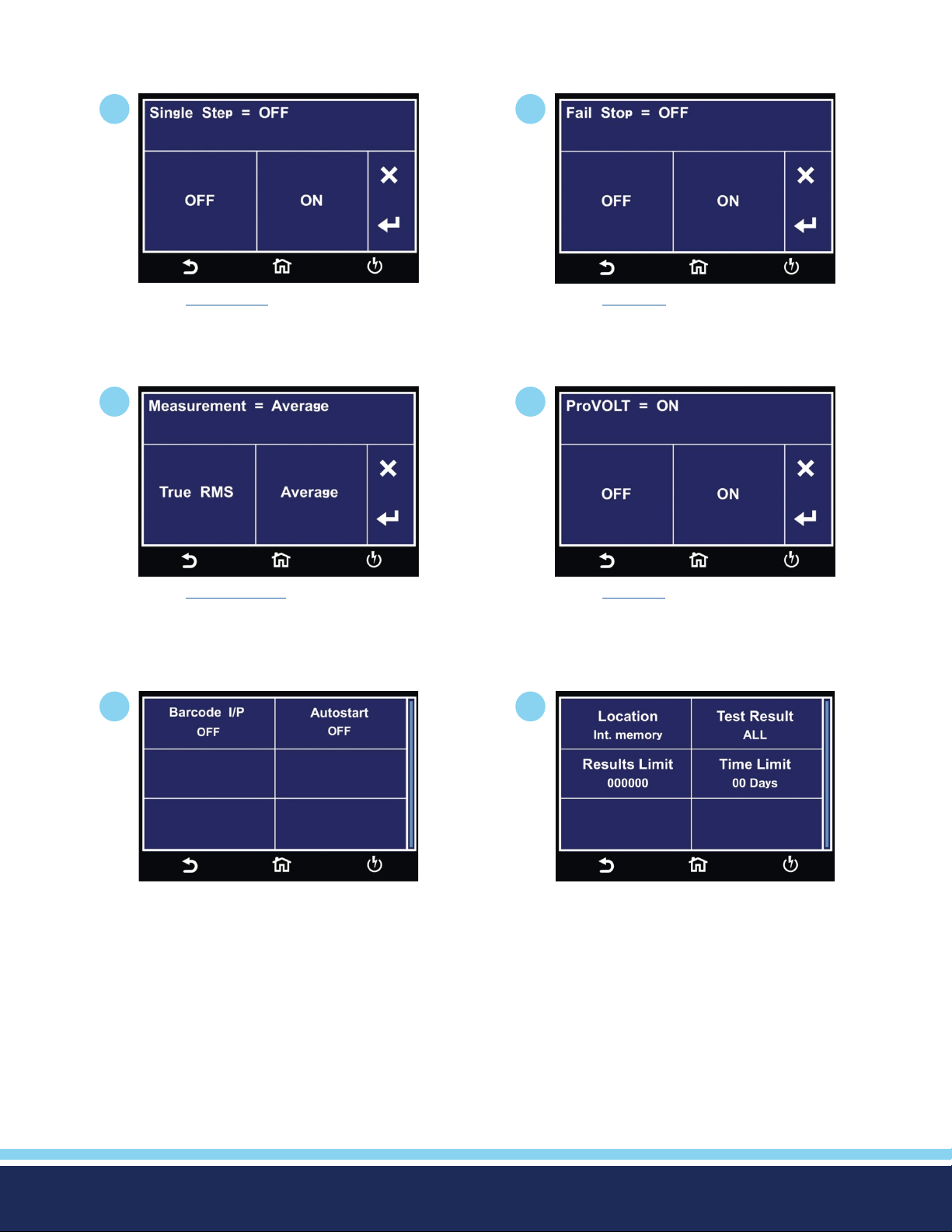

Hardware Continued

Select Single Step ON or OFF.

Select Fail Stop ON or OFF.

Select Measurement.

Barcode Menu.

Select Pr oVOLT ON or OFF (optional).

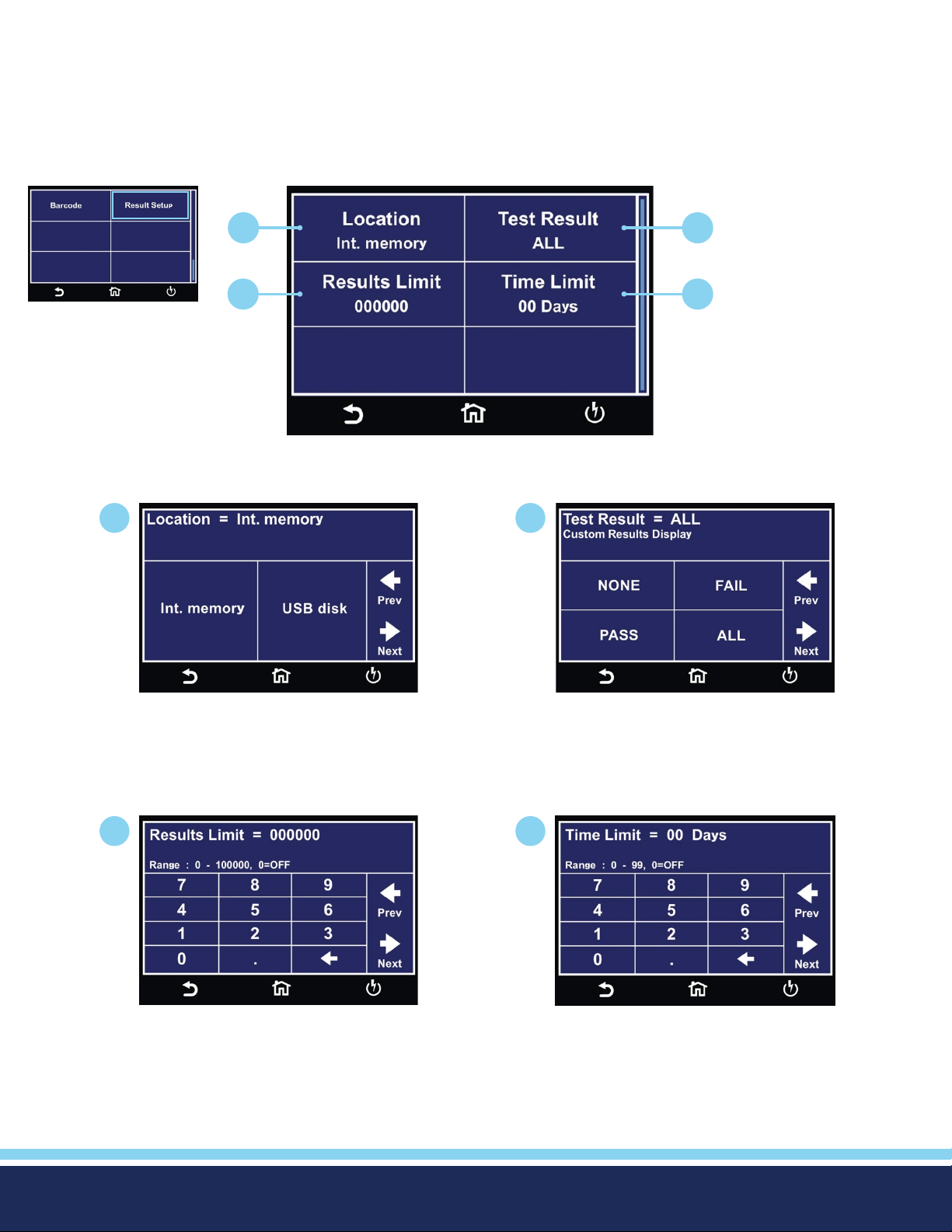

Results Setup Menu.



Page 29

Hardware Parameter Descriptions

Descriptions of Hardware parameters are listed in the following table:

System Parameter Setting Description

Smart GFI 0 – 5 mA The high voltage power supply of the HypotULTRA is internally referenced to earth

ground. Since the leakage current measuring circuit of the instrument monitors only current that ows through the return lead the possibility exists for current to ow directly from the high voltage output to earth ground without being measured. The SmartGFI (Ground Fault Interrupt) circuit monitors the current between the high voltage output and earth ground. Therefore, if you touch the high voltage lead and earth ground, the instrument will detect this hazardous condition and shut off immediately.

SmartGFI goes beyond a standard GFI circuit by automatically determining the return

conguration of the DUT (grounded or oating) and enabling or disabling depending on the situation. When the HypotULTRA’s Return lead is oating, the SmartGFI circuit

enables, protecting the test operator from electric shock. When the HypotULTRA’s Return lead is earth grounded, the SmartGFI circuit disables and the instrument operates in a grounded return mode of operation. If the GFI were to remain active in this state, the instrument would continuously fail since all current is returning through earth ground. By disabling the SmartGFI circuit and operating in a grounded return mode, Hypot allows the user to perform tests on devices that have their chassis’s earth

grounded by the test xture or test environment.

PLC Remote ON/OFF Allows the user to initiate a test through the REMOTE INPUT on the rear panel of the

instrument. If PLC Remote = ON the front panel TEST button is disabled and a test may only be started through the rear panel Remote I/O. If PLC Remote = OFF, the test must be initiated via the front panel TEST button.

Single Step ON/OFF Temporarily overrides the automatic connection feature. If Single Step = ON the

instrument will pause after each step is completed, even if step Connect function is set to ON. To continue the test sequence, press the TEST button to execute the next connected step. Each time the TEST button is pressed the next connected step will execute. If you press the RESET button before completing all connected steps, it will return the instrument to the original starting step. If a step fails and you wish to continue to the next step, do not press the RESET button but press the TEST button.

Fail Stop ON/OFF If Fail Stop = ON, a sequence of tests will stop if a failure occurs. If Fail Stop = OFF, the

sequence of tests will continue to the end of the sequence regardless of whether or not a failure has occurred. If a failure has occurred, the red RESET button will light and alarm will sound indicating failure during the sequence. Pressing the RESET button will silence the alarm and reset the instrument.

Measurement True RMS or

Average

Pr oVOLT ON/OFF The ProVOLT function allows for maintaining, stepping up or stepping down the voltage

The Measurement function allows the user to set the instrument to either True RMS or Average measurement mode.

output between steps without the voltage dropping to 0V. If ProVOLT = ON, the output voltage will not drop to 0V between test steps.

1. Test steps must be of the same test type (ACW, DCW, IR or –DCW). For example if an ACW test is followed by a DCW test, the ProVOLT function will not operate

2. If stepping up the voltage between steps, the ramp down parameter is ignored.

3. If stepping down the voltage between steps, the ramp up parameter is ignored.



Page 30

HypotULTRA® comes from the factory with the following system presets:

System Parameters

Setup Sys. PLC Remote

Single Step Fail Stop Alarm Results Address (GPIB only) Smart GFI Results Cal Alert Security

Initializing the instrument will overwrite all memories and steps with ACW default parameters!

WARNING

Initialisation de l’instrument va écraser toutes les mémoires et les étapes avec les paramètres par défaut ACW

OFF OFF ON 5 Last 8 ON Last ON OFF



Page 31

Barcode

Barcode I/P

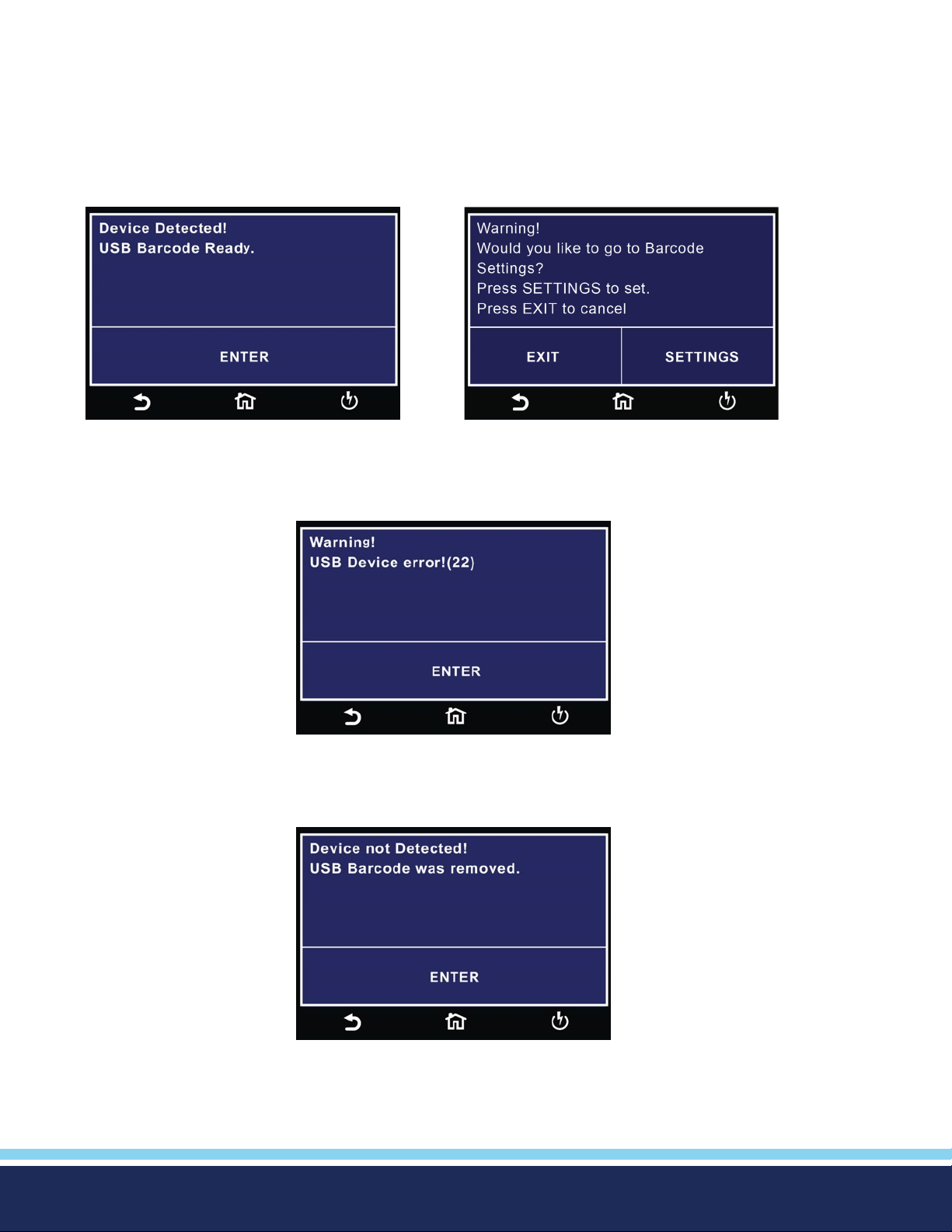

The Barcode function allows you to connect a barcode scanner directly to the front panel of the instrument’s barcode port. This is utilized to enter product and serial number information for testing.

To use this function, plug a USB type barcode reader into the barcode port on the front panel of the instrument. Once a USB barcode is plugged in, the instrument will notify you that a reader has been detected:

If there is a problem with the connection to the barcode reader or an incompatible device is plugged into the USB barcode port, the following message will appear:

If the USB barcode device is removed while the instrument is powered on, the following message will appear:



Page 32

Barcode I/P

Barcode Menu

Select Barcode input option.

Select Barcode type.

Example SERIAL # screen.

Example SER/PROD screen.

Example PRODUCT # screen.



Page 33

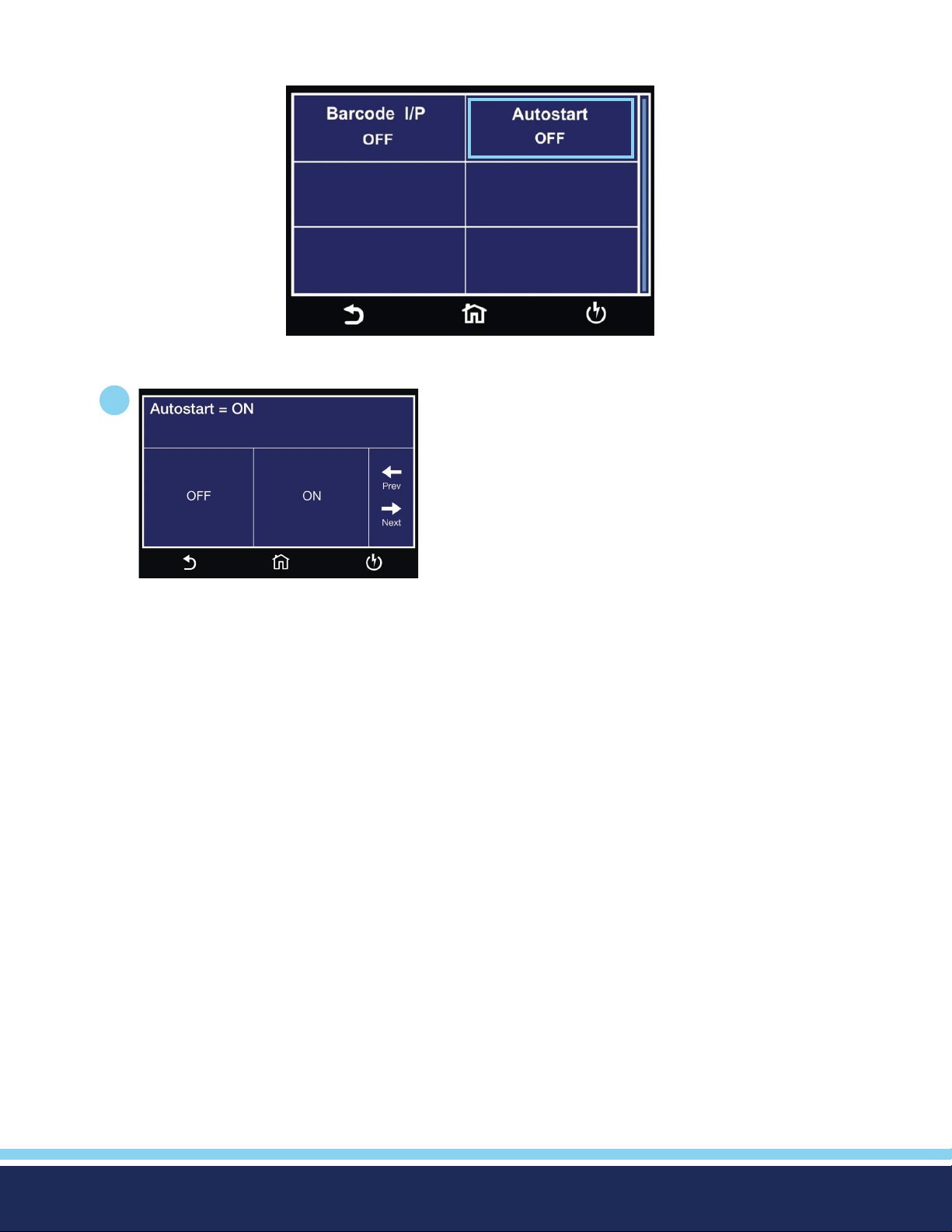

Barcode Autostart

Barcode Menu

Select Autostart ON or OFF.



Page 34

Mode Description Auto Start On/OFF

Serial / Product If test lename (CASESENSTIVE)

matches the Product Name/Number, the instrument will Auto Load that

test le. Test results will store both

product and serial number.

Serial #

Product # If test lename (CASESENSTIVE)

Records the serial number for the

currently loaded test le.

matches the Product Name/Number, the instrument will Auto Load that

test le. Test results will store both

product and serial number.

ON – Enables the test to be auto started on the second scan of the matching product number. Serial and Product numbers are recorded and included in the results data.

Example Steps:

• Scan Serial Number

• Scan Product Number

• Scan same Product Number again to start the test.

N/A

ON – Enables the test to be auto started on the second scan of the matching product number. Product number is recorded and included in the results data.

OFF – Manually press TEST button to start test.

Run File Finds the test le name same as the

scanned barcode and loads this test. The test will also auto start once the test is loaded.

Example Steps:

• Scan Product Number or Name

• Scan same Product Number or Name again to start the test

N/A



Page 35

Important Information regarding ther Barcode Feature

There are two options under Barcode, Barcode I/P and Autostart. You can set the Barcode I/P function to OFF, SER/PROD, SERIAL #, PRODUCT # or RUN FILE. When the setting is SERIAL#, PRODUCT# or SER/PROD you can scan barcodes in the Perform Tests screen before the test is started.

After the barcodes are scanned, pressing TEST will initiate the test sequence. Pressing RESET will abort the TEST sequence. The barcode function allows for the re-scanning of barcodes if the previously scanned barcode was incorrect. Re-scanning is available in the SERIAL#, PRODUCT# and SER/PROD modes. Any time before a test is initiated; you can re-scan a barcode. If you decide

to re-scan barcodes when the Barcode I/P setting is set to SER/PROD, the barcode function will rst replace the data in the Serial Number eld, and if you re-scan another barcode, the barcode function will replace the data in the Product Number eld.

The RUN FILE selection gives you the ability to automatically load a test le based on what barcode is scanned from the Perform

Tests screen.

To completely enable this feature you must name the desired test le for a particular product with the exact alpha-numeric code that is on the product’s barcode label. For example, if Product A has barcode “123456789”, then the test le that you would like

to run when testing Product A must be named “123456789”. Upon scanning the barcode, the HypotULTRA will immediately load

the test associated with that barcode. The test le name is limited to 8 characters. However, if you name a test le with the maximum 8 characters, this function will still initiate a test when a product’s barcode begins with those rst 8 characters, even if the

barcode has more than 8 characters.

The maximum length of the barcode Model/Serial number is limited to 21 characters.

When using certain features of barcoding, the instrument’s response to the TD? and RD x? commands will differ slightly to an

instrument that is not utilizing this function. For all types of tests (ACW, DCW, IR, CONT) two elds are added to the end of the

standard response when the Barcode I/P setting is set to SERIAL#, PRODUCT# or SER/PROD.

The rst eld contains the Serial Number information and the second eld includes the Product Number information. Both elds

are included regardless of which of these three modes are selected. The Data Storage Card will simply substitute a “0” for the

eld if it is not applicable to the setting. For example, if a user had their Barcode I/P setting set to SERIAL#, and scanned a Serial

Number with the value “123456789”, the TD? response for an ACW test could be:

01,ACW,Pass,1.24,1.00 0,0.90 0,1.0,123456789,0

Note that there is a “0” in the Product Number eld because the Barcode I/P setting is SERIAL#. When the Barcode I/P setting is RUN FILE or OFF, these elds are not included in the TD? and RD x? responses.



Page 36

Results Setup

Select Int. memory if you wish to store the test results on the onboard instrument memory. Select USB disk if you wish to save the

test results on an external USB ash drive. For best results use the USB ash drive provided by Associated Research.

Select PASS to save the results of the steps that passed. Select FAIL to save the results of the steps that failed. Select ALL to save all the test results. Selecting NONE will not save any results to the internal memory.

Hardware Menu

3 4

Result Setup Menu

Select Location for Result Data.

Enter Results Limit.

You can set the Results Limit. Select from 0 up to 100000 with 0 being OFF. Selecting 0 will set the Results limit to OFF which means you can store as many results as desired until you reach the maximum capability of 100000 results.

Select type of Test Results to be saved.

Enter Time Limit.



Page 37

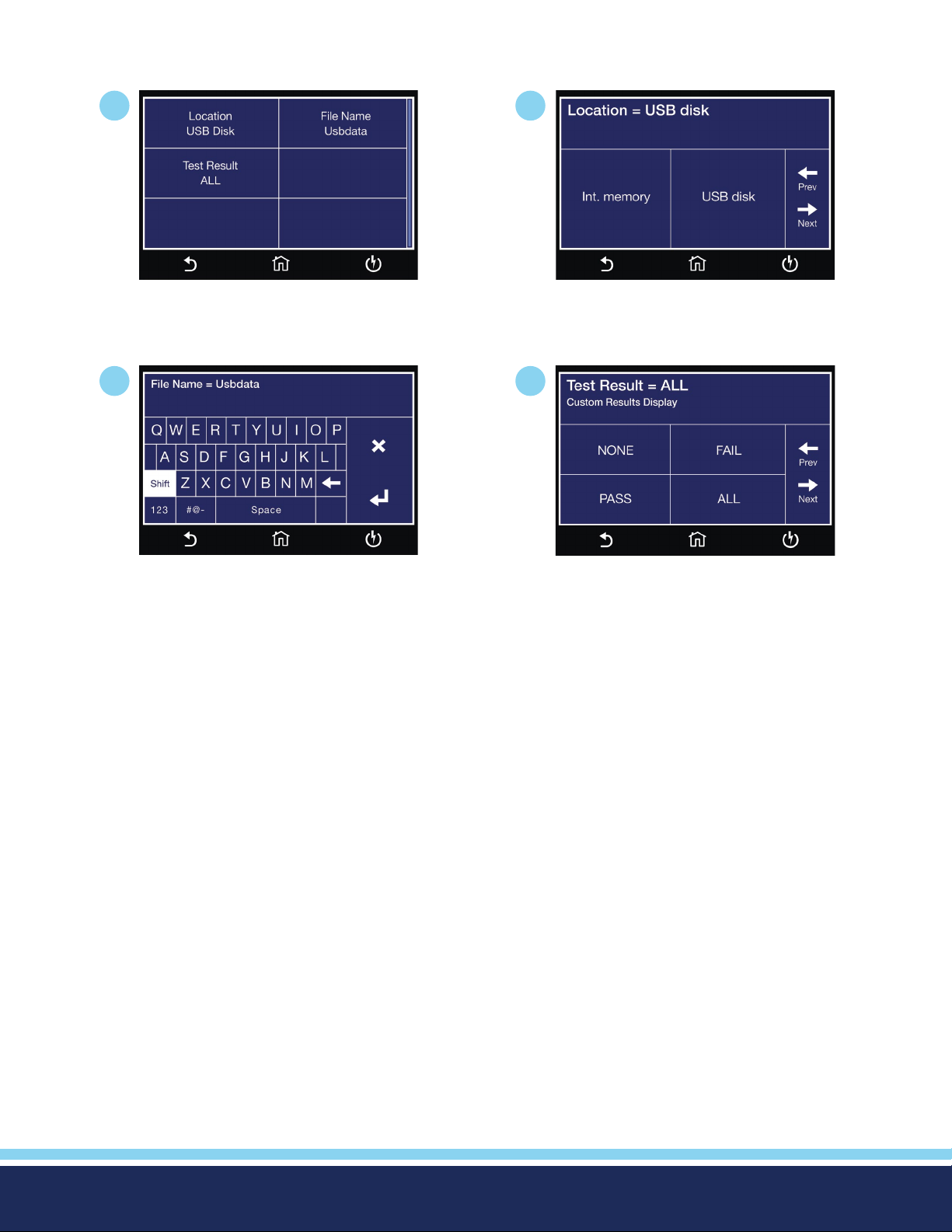

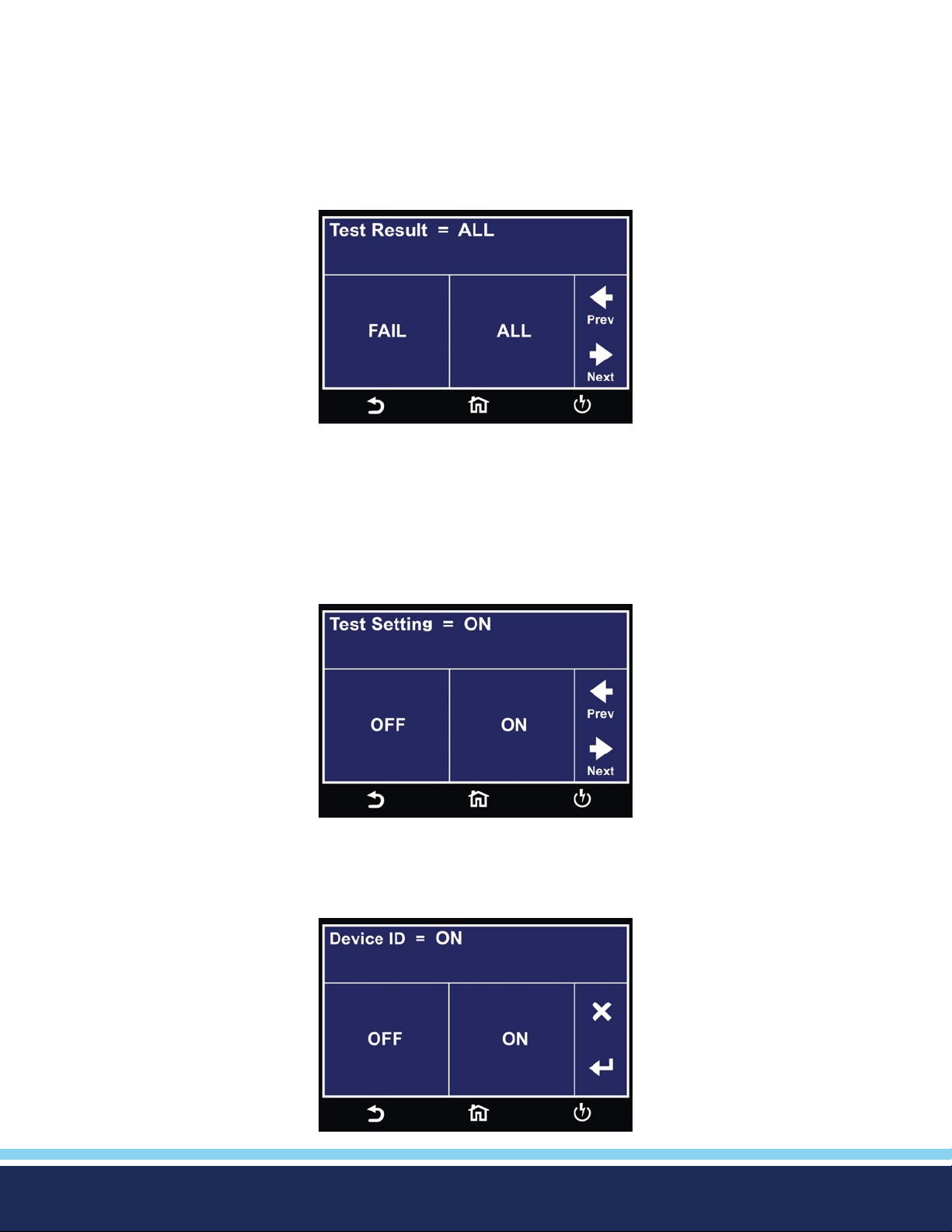

Internal Memory

Result Setup USB DISK Menu.

Select Location for Result Data.

Enter File Name.

Select type of Test Results to be saved.



Page 38

2. Setup Tests

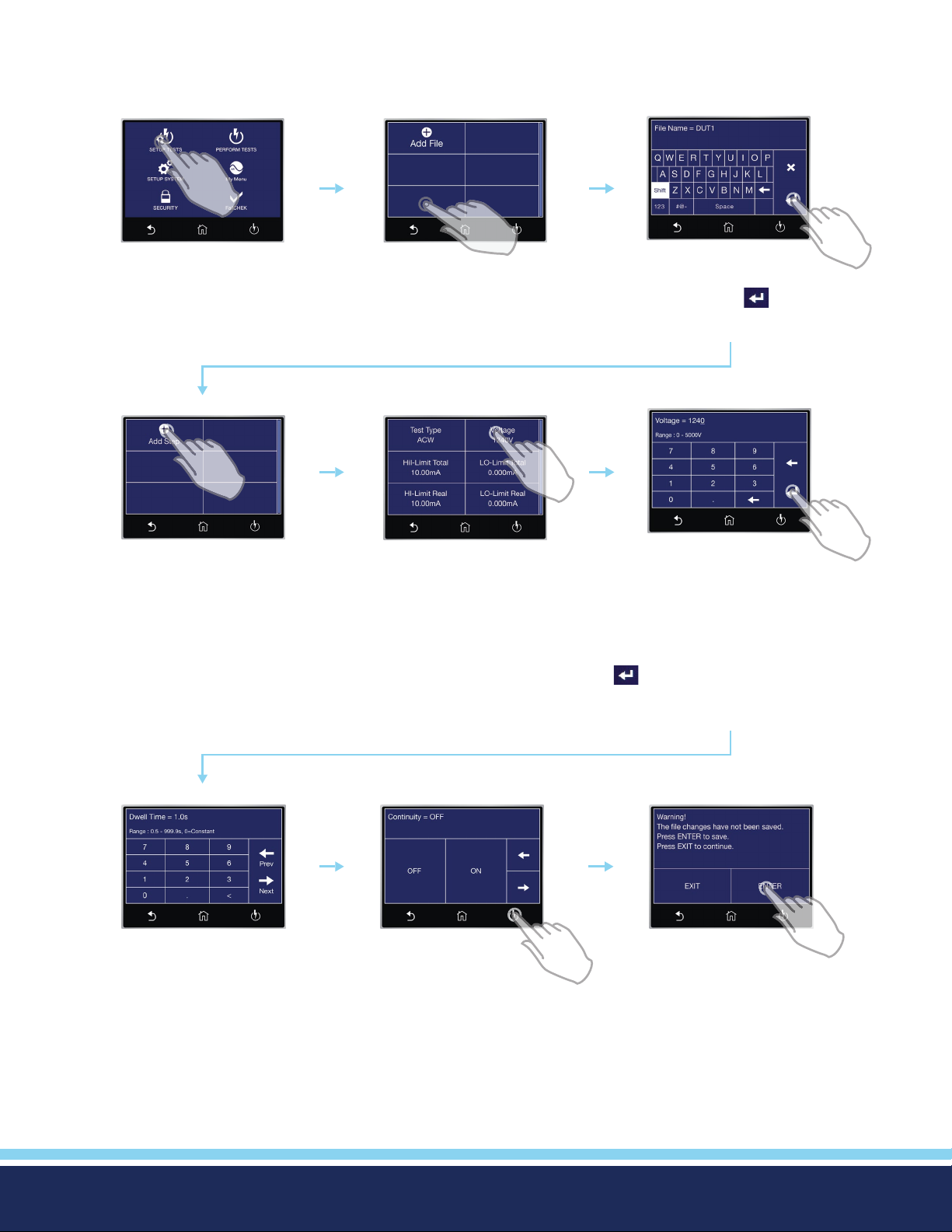

The following sequence describes the steps necessary to create a test le, program the test parameters and save the test le:

TAP SETUP TESTS

Home Screen

TAP ADD STEP

Add Step

TAP ADD FILE

File Screen

TAP TEST SETTING

Tap the test parameter you

would like to edit. Swipe up

and down to scroll through test

parameters.

ADD FILE NAME

Tap the ENTER ( ) key to

save your selection

EDIT

PARAMETERS

Tap parameter values to edit individually. After you adjust

each parameter, tap ENTER

( ) arrow key to save changes.

PARAMETERS

Scroll through each parameter to adjust values based on your

ADJUST

application.

EXIT

PARAMETERS

Press the Test Screen button to

exit out of Parameters.

SAVE FILE

CHANGES

Press ENTER to save your le

changes. You will be redirected

to the Test Screen.



Page 39

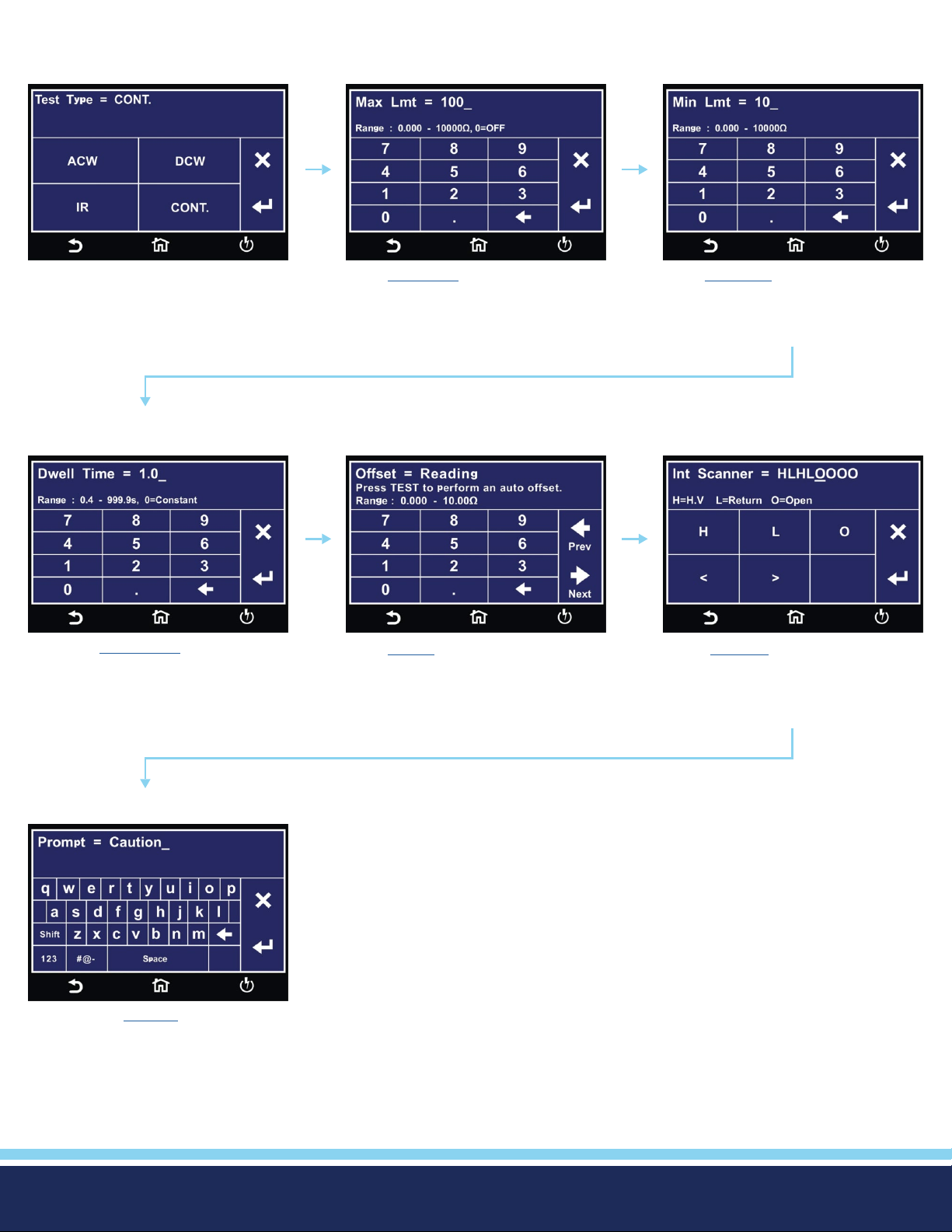

2.1 Setup Continuity Test

Select CONT. Test type.

Enter test Dwell Time.

Enter Max Limit for resistance.

Enter Offset value to manually set Offset or Press TEST to perform auto offset.

Enter Min Limit for resistance.

Select Scanner settings.

Enter text for Prompt.



Page 40

2.2 Setup Ground Bond Test (7804 and 7854 only)

Select GND Test type.

Enter HI-Limit for resistance.

Enter test Current value.

Enter LO-Limit for resistance.

Enter test Voltage value.

Enter HI-Limit for Voltage.

Enter LO-Limit for Voltage.

Enter test Dwell Time.

Select test Frequency.

Continued on next page



Page 41

Setup Ground Bond Test Continued

Enter Offset value to manually set Offset or Press TEST to perform auto offset.

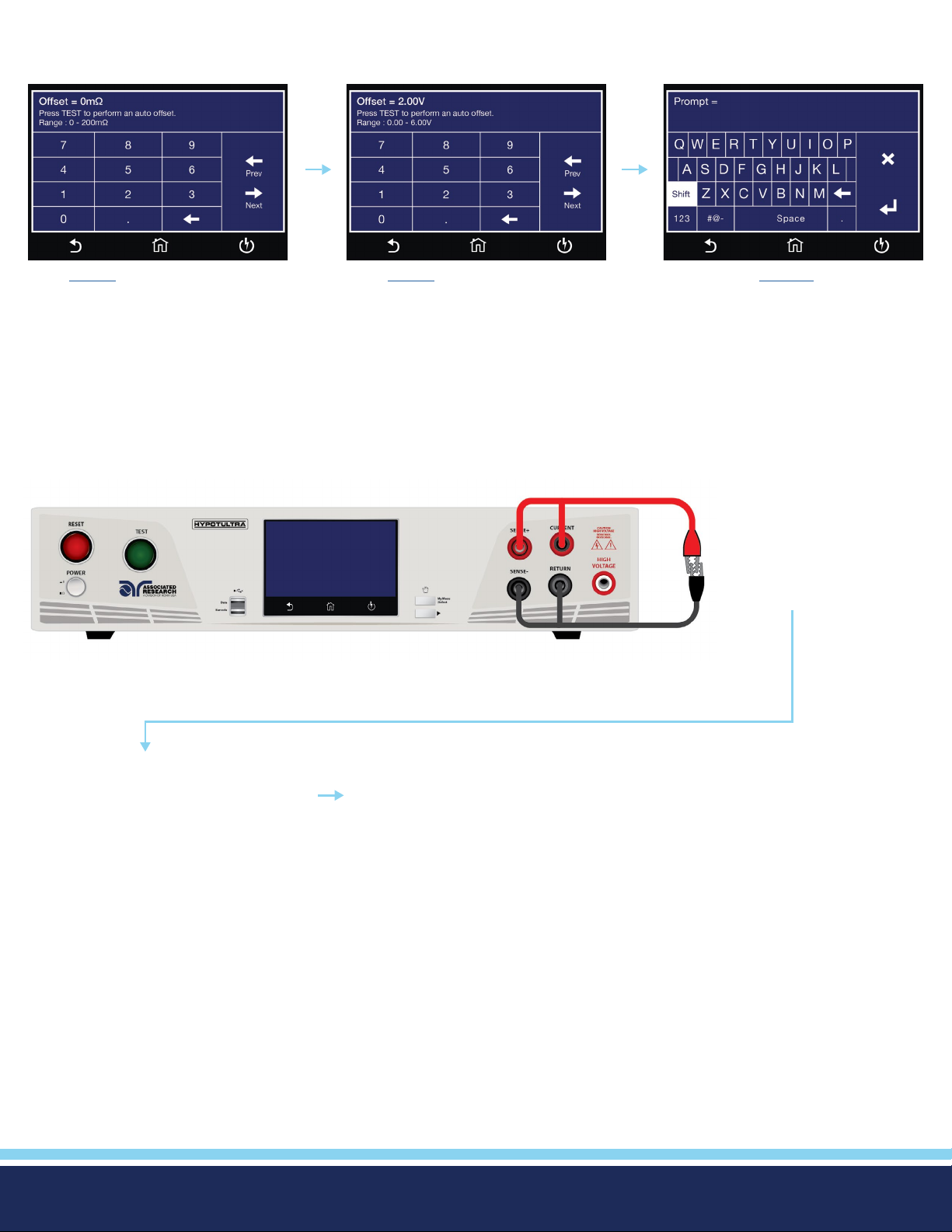

Offset Connections

Enter Offset value to manually set Offset or Press TEST to perform auto offset.

Enter text for Prompt.

Connect the Red and Black alligator clips together.

To perform mOhms or Voltage Auto Offset short Red Current/Sense+ Lead with Black Return/Sense- Lead.

Push TEST button. The instrument will Auto Offset measurements and save the value to the test step.*

* Note: Perorming either mOhms or Voltage Auto

Offset will set two values, mOhms and Voltage offset parameters of the test step.



Page 42

2.3 Setup AC Withstand Test

Select ACW Test type.

Enter LO-Limit Total.

Enter AC test Voltage.

Enter HI-Limit Real.

Enter HI-Limit Total.

Enter LO-Limit Real.

Enter test Ramp Up time.

Enter test Dwell time.

Enter test Ramp Down time.

Continued on next page



Page 43

Setup AC Withstand Test Continued

Select Arc Detect ON or OFF.

Select test Frequency.

Enter Arc Sense value.

Select Continuity ON or OFF.

Press TEST button to perform an auto offset or select Reset offset to

0.000mA to reset Offset parameter.

Select Range Auto or Fixed.

Select Scanner channel settings.

Enter text for Prompt.



Page 44

2.4 Setup DC Withstand Test

Select DCW Test type.

Enter LO-Limit.

Enter DC test Voltage.

Enter test Ramp Up time.

Enter HI-Limit.

Enter test Dwell Time time.

Enter test Ramp Down time.

Enter Charge-Lo value to manually set Charge-Lo or Press TEST to perform auto Charge-Lo.

Select Arc Detect ON or OFF.

Continued on next page



Page 45

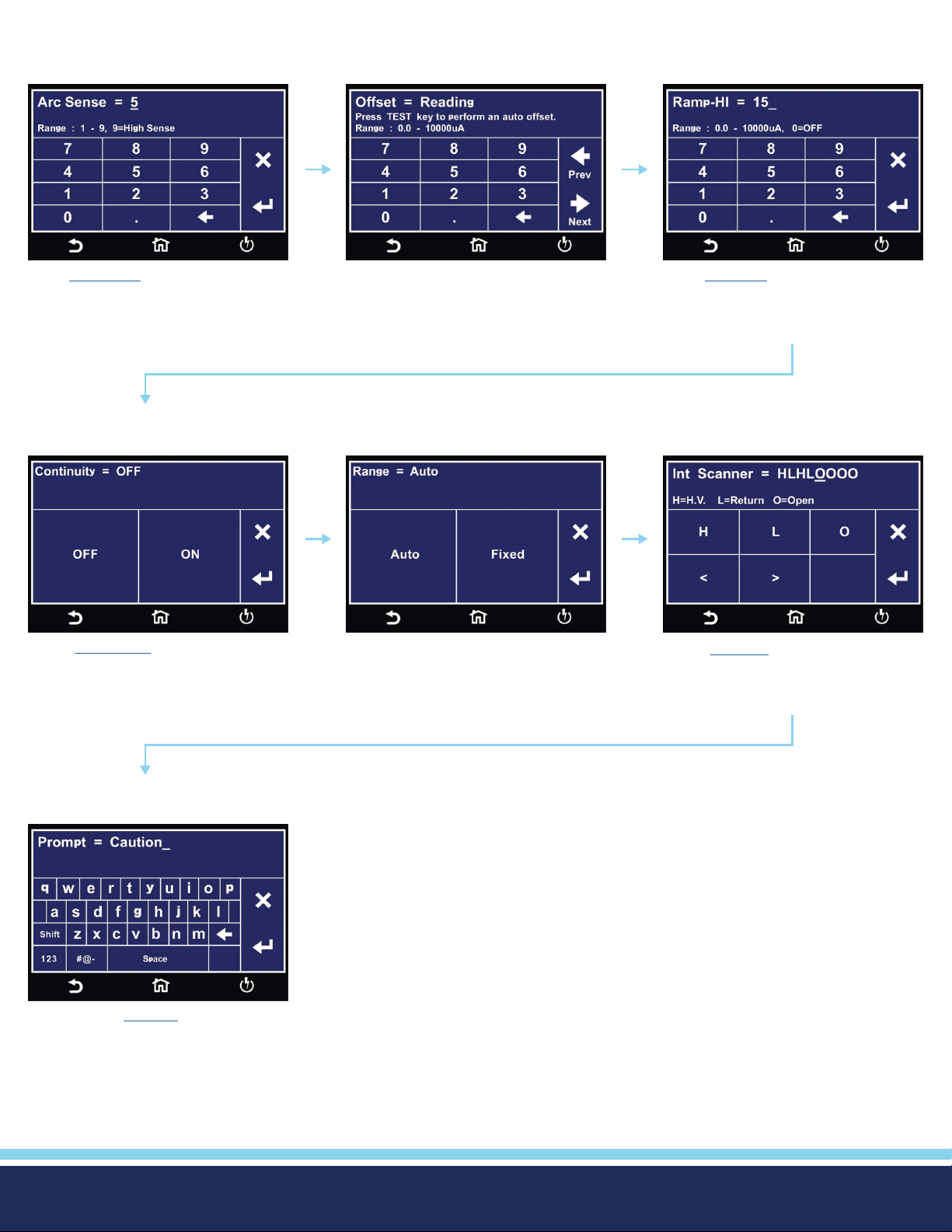

Setup DC Withstand Test Continued

Enter Arc Sense value.

Select Continuity ON or OFF.

Enter Offset value to manually set Offset or Press TEST to perform auto offset.

Select current Range Auto or Fixed.

Enter Ramp-HI value.

Select Scanner channel settings.

Enter text for Prompt.



Page 46

2.5 Setup Insulation Resistance Test

Select IR Test type.

Enter LO-Limit.

Enter IR test Voltage.

Enter test Ramp Up time.

Enter HI-Limit.

Enter test Delay Time.

Enter test Dwell Time.

Enter test Ramp Down time.

Enter Charge-Lo value to manually set Charge-Lo or Press TEST to perform auto Charge-Lo.

Continued on next page



Page 47

Setup Insulation Resistance Test Continued

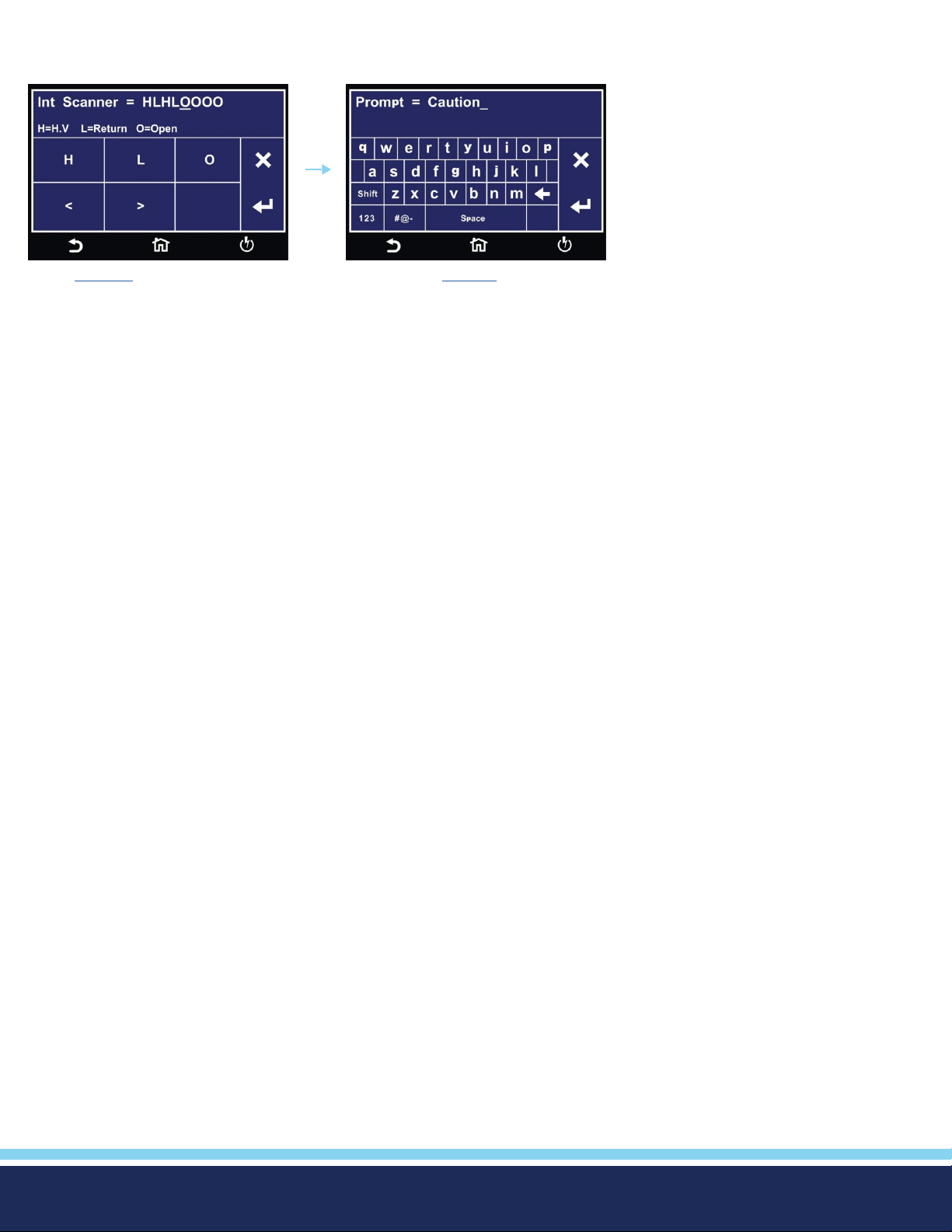

Select Scanner channel settings. Enter text for Prompt.



Page 48

Test Parameters Description

Test Parameter Test Typ e Description

Voltage ACW, DCW, IR The voltage that is applied to the high voltage and return

terminals during a test.

Voltage GND No load voltage applied between high current and return

terminals during Ground Bond test.

Current GND The current applied during Ground Bond Test.

Hi-Limit Volt GND The maximum voltage drop threshold that triggers a failure

when exceeded.

Lo-Limit Volt GND The minimum voltage drop threshold that triggers a failure

when not exceeded.

HI-Limit T ACW Total current maximum limit. The maximum current

threshold that triggers a failure when exceeded.

LO-Limit T ACW Total current minimum limit. The minimum current or

resistance threshold that triggers a failure when not exceeded.

HI-Limit R ACW Real current maximum limit. The maximum current or

resistance threshold that triggers a failure when exceeded.

LO-Limit R ACW Real current minimum limit. The minimum current or resis-

tance threshold that triggers a failure when not exceeded

HI-Limit GND, ACW, DCW, IR The maximum current or resistance threshold that triggers

a failure when exceeded.

LO-Limit GND, ACW, DCW, IR The minimum current or resistance threshold that triggers

a failure when not exceeded.

Max-Lmt Continuity The maximum resistance threshold that triggers a failure

when exceeded.

Min-Lmt Continuity The minimum resistance threshold that triggers a failure

when not exceeded.

Ramp Up ACW, DCW, IR The length of time that is allowed for the test voltage to

climb from 0 to the programmed test voltage.

Dwell Time GND, ACW, DCW, IR The length of time that is allowed for the programmed test

voltage to be applied.

Delay IR The length of time that the programmed test voltage is

applied but no judgment of the set parameters is made. Judgment of the parameters is not made until the end of the delay time.

Continued on next page



Page 49

Test Parameters Description Continued

Test Parameter Test Typ e Description

Ramp Down ACW, DCW, IR The length of time that is allowed for the test voltage to

decay from programmed test voltage to 0.

Charge-LO DCW, IR Use the Charge-LO function to check if the cables are con-

nected properly at the beginning of a test. A capacitive DUT will draw charging current on the DC Withstand test when the Output is activated. If the charging current is lower than the setting, the test cables may not be connected properly. The instrument can set the Charge-LO parameter manually or automatically. To manually set the Charge-LO current, use the touchscreen keypad to enter the value. To automatically set the Charge-LO current select the Charge-LO parameter and connect all test leads to the DUT as you would when performing an actual DCW test. Press the TEST button on the front panel of the instrument.

Please be aware that the program

CAUTION

will activate high voltage on the output connector while the TEST button is pressed.

S’il vous plaît soyez conscient que le programme va activer haute tension sur le connecteur de sortie tandis que le bouton TEST est pressé

The program will read the charging current of the DUT and set the Charge-LO current at approximately one half (1/2) of the reading. The instrument will beep and the new value will

automatically be updated in the eld. You do not need to

select the ENTER key for the new parameter to be accepted.

Ramp-HI DCW The Ramp-HI function is active during the Ramp period only.

Ramp-HI will allow current higher than the normal HI-Limit current setting of the DC Withstand Voltage test to avoid false failure due to charging current.

Arc Sense ACW, DCW The maximum allowable threshold for arcing. The numbers

0 through 9 correspond to the different arc sensitivity levels, 1 meaning the maximum threshold of allowable arcing, 9 meaning the minimum threshold of allowable arcing, and 0 being OFF. Arc detection is not required for testing.

Frequency ACW, GND The frequency of the applied voltage or current. Select

between 50 and 60 Hz.

Continuity ACW, DCW This function checks for a connection between the Cont.

Check and Return lead. This is a basic DC continuity check that measures the continuity value but does not display it. Continuity may be turned ON or OFF.

Continued on next page



Page 50

Test Parameters Description Continued

Test Parameter Test Typ e Description

Offset Continuity, ACW, DCW, GND Used to factor out leakage current or resistance due to test

leads or test xture. Set manual or measure automatically.

To automatically set an Offset value, set the output voltage, current, and frequency to the values you will use on the DUT

and connect the test cables, test xture, or Scanner channel with xturing to the instrument. Next, for the

Ground Bond and Continuity test, short the ends of the test cables and press the TEST button. For ACW or DCW tests leave the end of the test cable open, as this is an open leads test and press the TEST button. The instrument will beep

and automatically update the new value in the eld. You do

not need to select the ENTER key for the new parameter to be accepted. For the Ground Bond, performing either milli-ohm or voltage auto-offset will automatically udpate both mill-ohm and voltage offset values.

Please be aware that the program

CAUTION

will activate high voltage on the output connector while the TEST button is pressed.

Note: Do not connect the DUT to the instrument when performing an offset. This will create erroneous results when you perform a test.

Scanner or EX Scanner All (This parameter will only be seen on units equipped with a

scanner). This parameter allows for setup of multiple Scanner channels. The three different selectable Scanner states are L (scanner channel set to the return point), H (scanner set to the high voltage point) and O (OFF).

Prompt All The Prompt function allows you to insert a short line of text

in a step. The Prompt will appear on the screen before the step is initiated and remains on the screen until you press the TEST button. After you press the TEST button, the Prompt will clear and the step will initialize.



Page 51

View Test Files

Once you have programmed and saved all tests, navigate to the Main Menu. Select the Setup Tests icon and select the test le that you previously created. The screen should display all tests that you have programmed in this test le. For example:

Edit Test Files

Once you have programmed and saved all test les you can edit these les from the Setup Test menu. From the main menu select Setup Test. The next screen will display all the test les that are stored on the instrument memory.

To edit test les touch and hold the screen on a test le name and the screen should change to the following:



Page 52

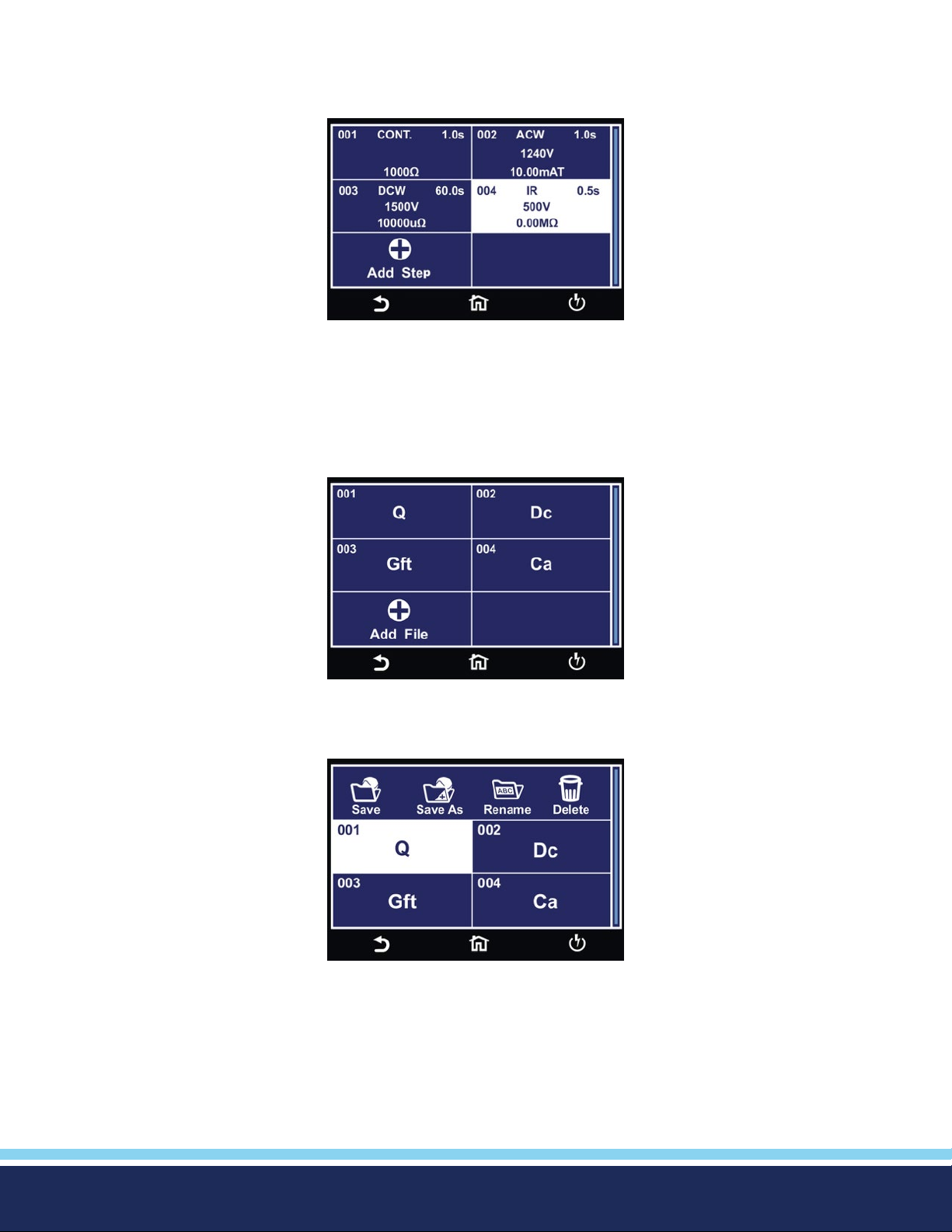

Select the test le and choose the operation you wish to perform from the following:

Save Make changes to an existing test le and save the changes

Save As Edit an existing test le and save the test le with a different name

Rename Rename an existing test le

Delete Delete an existing test le

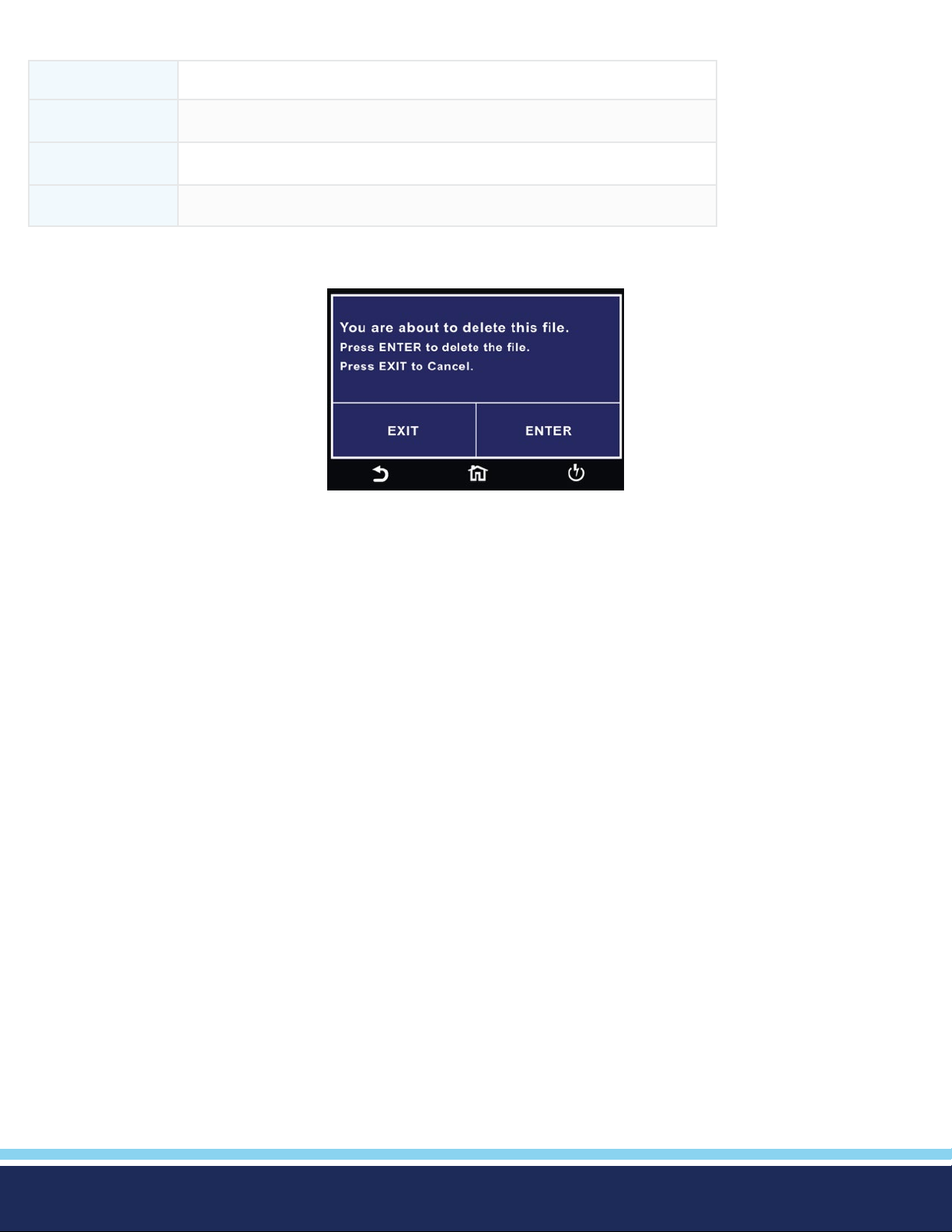

If you choose to delete an existing test le a conrmation screen will appear as follows:

Select Exit to cancel deleting the test le or Enter to conrm the action.



Page 53

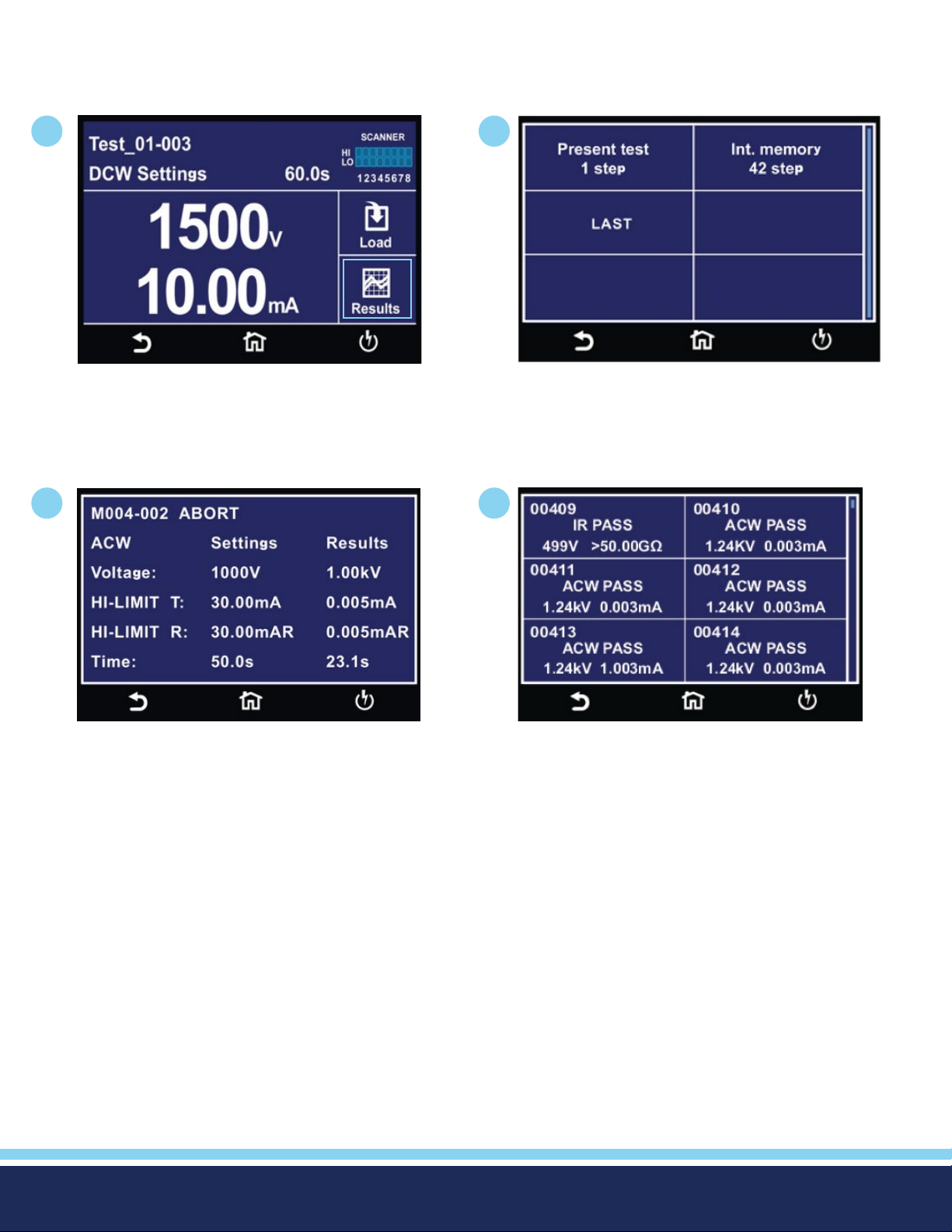

3. Perform Tests

From the main menu select the Perform Test icon and the Perform Test screen will appear.

File Name and

Step Number Tes t T ime

Test Type

Multiplexer

Channels (Optional)

Voltage or

Current

Setting

Current or Resistance

Limit

Perform Tests Screen

Load Different File

View Results

Load Test screen, if there are multiple test les saved

in the instrument select the Load icon and all the

test les will be displayed. You can select the test le and the rst test step in the selected test le will be

displayed.



Page 54

Instrument Connections

You may connect the test leads and the adaptor box to the receptacles located on the front or back of HypotULTRA. These receptacles are wired in parallel and you can use either depending upon the application.

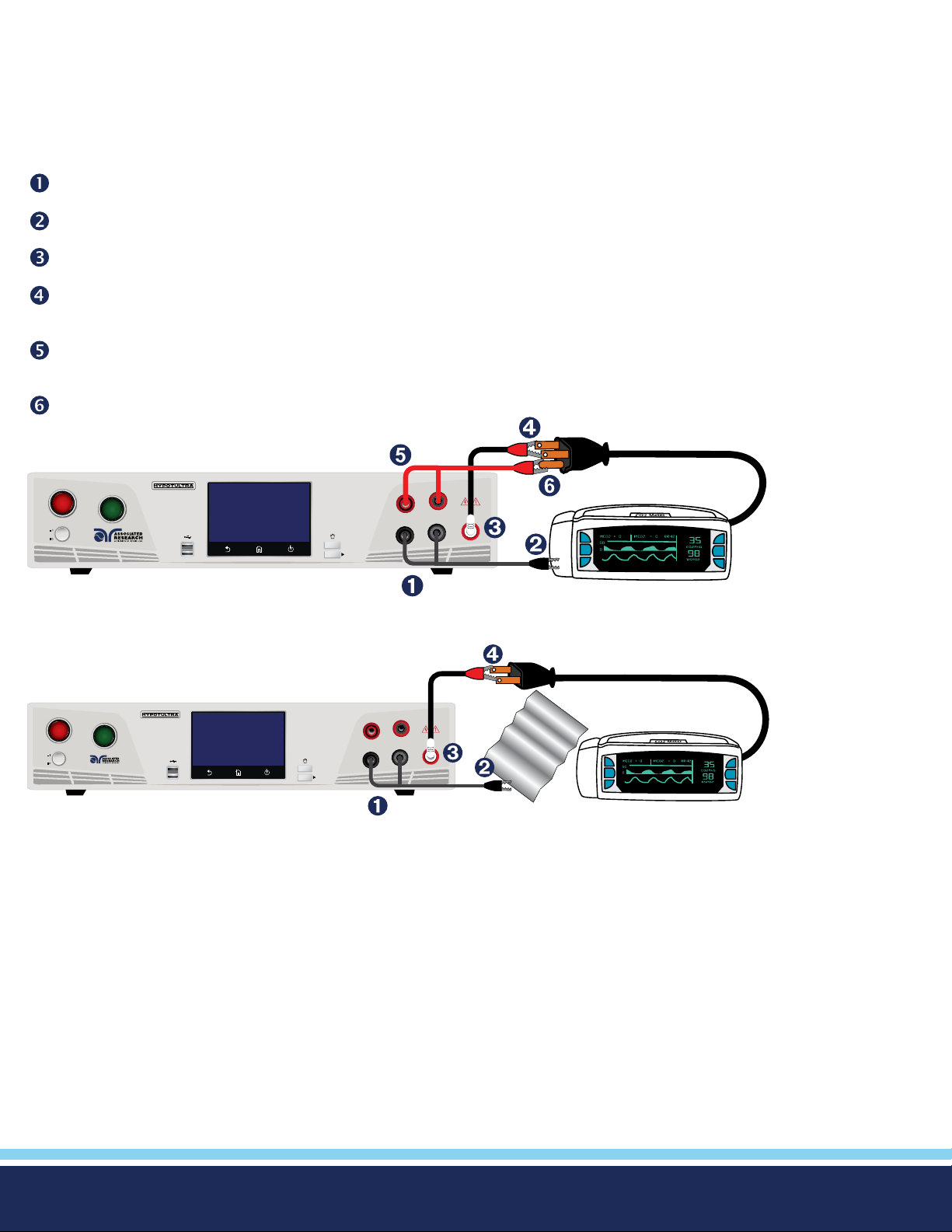

Test Lead Connections

Plug the black return lead (P/N 38490) into the Return terminal. Plug black sense lead into the Sense (-) terminal.

Attach the clip-terminated end of the return lead to the dead metal on the chassis of the DUT.

Connect the High Voltage lead (P/N 4040A-08) into the high voltage terminal on the front panel of the instrument.

Attach the high voltage lead to the current-carrying conductors of the DUT.

Plug the sense lead into the sense (+) terminal and the high current test lead into the Current terminal. These two red leads act as the high current output.

Clip the other end to the ground pin of the DUT plug.

Class I Product

RESET

POWER

TEST

My Menu

Data

Barcode

/Select

SENSE+

SENSE-

CURRENT

RETURN

CAUTION

HIGH VOLTAGE

5KVAC MAX. 6KVDC MAX.

HIGH

VOLTAG E

Class II Product

POWER

RESET

TEST

My Menu

Data

Barcode

/Select

SENSE+

SENSE-

CURRENT

RETURN

CAUTION

HIGH VOLTAGE

5KVAC MAX. 6KVDC MAX.

HIGH

VOLTAGE

FOIL

If there is no ground circuit present on the DUT, you can use test leads to connect the HypotULTRA® to the DUT.

Did you know? If necessary, a 10 x 20 cm piece of foil can be attached to the enclosure to simulate a full hand contact to the

DUT. This foil acts as the return point. The return and sense (-) terminal are attached to the foil. Always check to make sure you made a good connection between the DUT and the return clip.



Page 55

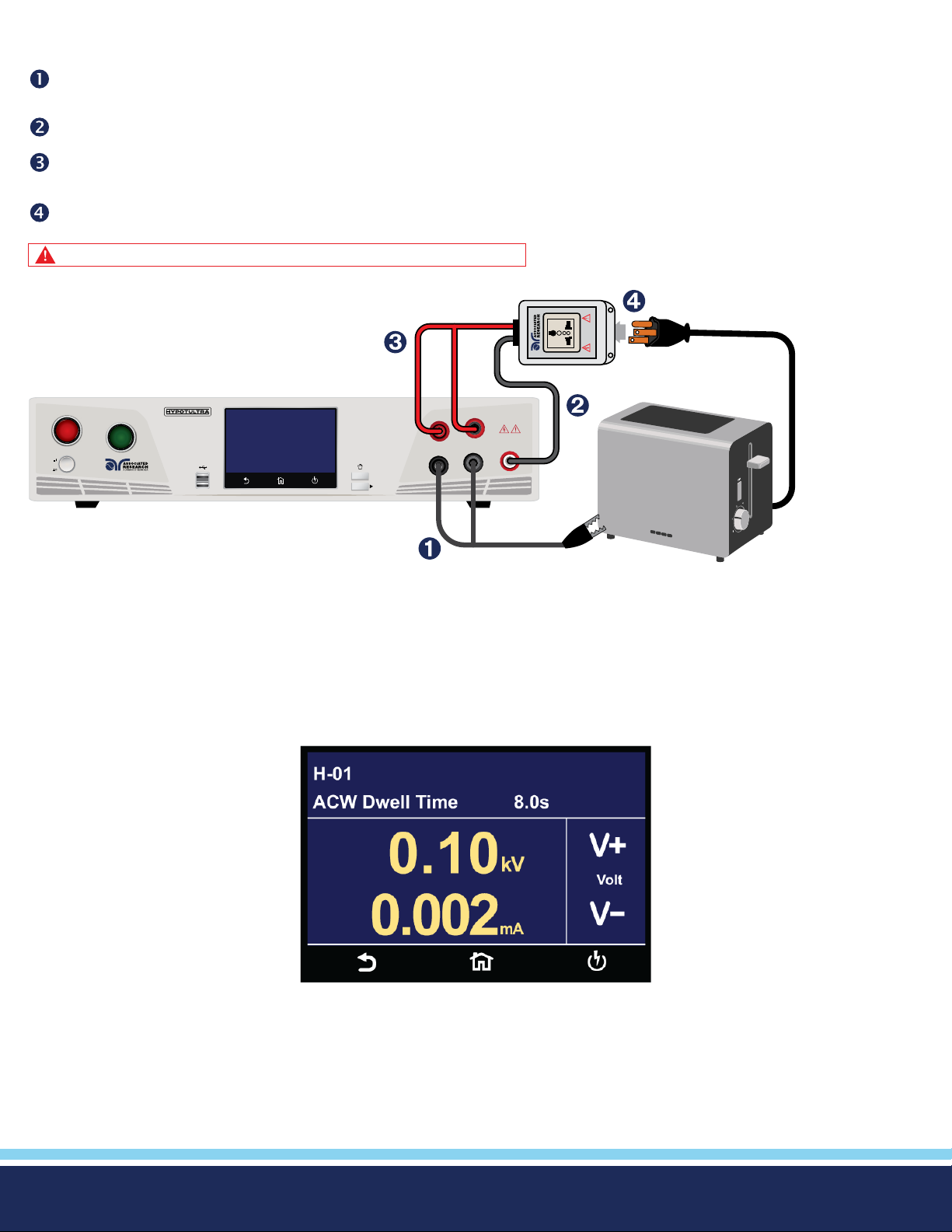

Adapter Box Connections

Connect the ground return clip (P/N 38490) to the dead metal on the chassis of the DUT. Plug the sense lead into the Sense (-) terminal. Plug the return lead into the Return terminal. Always check to make sure a good connection is made between the DUT and the return clip.

Using the output ports on the front panel, plug the black high voltage lead in the High Voltage terminal.

Plug the sense lead into the Sense (+) terminal and the high current test lead into the Current terminal. These two red leads act as the high current output.

Plug the power cord of the DUT into the adapter box receptacle.

WARNING: DO NOT TOUCH THE DEVICE UNDER TEST ONCE YOU START THE TEST.

5KVAC MAX.

6KVDC MAX.

HIGH VOLTAGE

CAUTION

RESET

POWER

TEST

My Menu

Data

Barcode

/Select

SENSE+

SENSE-

CURRENT

RETURN

CAUTION

HIGH VOLTAGE

5KVAC MAX. 6KVDC MAX.

HIGH

VOLTAG E

Manual Voltage Adjustment

When HypotULTRA is performing a test, “+” and “-” icons will appear on touch screen. These icons may be used to adjust the output voltage while performing a test.

Pressing the “+” icon will increase the output voltage and pressing the “-” icon will decrease the output voltage. Manual voltage adjustment temporarily overrides the voltage setting and only remains in effect until the test is terminated by Pass, Fail, or Abort conditions. When Security feature is ON, manual voltage adjustment is disabled for users with limited access. You will not see the “+” and “-” soft key selections in this case.



Page 56

Failure Modes

Failure Message Test Typ e Description

Abort All This message appears on the display if you abort the test in process with the

RESET button or remote Reset control.

HI-Limit GND, ACW, DCW, IR This message appears on the display if the DUT measurement exceeds the

HI-Limit setting of any parameter.

LO-Limit GND, ACW, DCW, IR This message appears on the display if the DUT measurement drops below the

LO-Limit.

Max-Lmt Continuity This message appears on the display if the DUT measurement exceeds the

Max-Lmt setting of any parameter.

Min-Lmt Continuity This message appears on the display if the DUT measurement drops below the

Min-Lmt.

CONT- Fail ACW, DCW This message appears on the display if the DUT fails the basic continuity check

performed during an AC/DC Withstand test (if Continuity is selected “ON”).

Arc-Fail ACW, DCW This message appears on the display if the DUT arcing current exceeds the Arc

Sense limit and Arc function is active (Arc Sense = 1…9) of the AC/DC Withstand test.

Short ACW, DCW, IR This message appears on the display if the DUT current is well beyond the

metering range of the test.

Charge-LO DCW, IR This message appears on the display if the leakage current during Ramp-up falls

below the Charge -LO setting.

Breakdown ACW, DCW This message appears on the display if the DUT current is well beyond the

metering range of the test and the arcing condition beyond the arc sense limit.

GND-Fault ACW, DCW This message appears on the display if the GFI threshold is exceeded during the

test.

Interlock Open All This message appears on the display if the Remote Interlock feature is activat-

ed before or during a test. The Remote Interlock feature utilizes a set of closed contacts which will disable the instrument’s output if they are opened before or during a test. You can also refer to the Remote Interlock as a remote system lockout, utilizing “fail when open” logic. You can disable the Remote Interlock feature by plugging the “Interlock Disable Key” provided into the Signal Input connector

Ramp-Hi DCW This message appears on the display when the Ramp-Hi limit is exceeded during

the test.



Page 57

Error Messages

Output Error: This message appears on the display, if the instruments output reading does not match the setting. You will only

see this message if you press the EXIT key at the Output Error screen. If the instrument has an output problem when the TEST button is pressed, the Output Error screen will appear as follows:

The RESET button is not active in this situation. Only the EXIT key will allow you to return to the Perform Test screen.

Voltage at Return: The HypotULTRA contains a protective circuit on the Return. This circuit has the capability to protect the instrument from getting damaged as result of line voltage coming back into the Return circuit. If the instrument detects any line voltage on the Return circuit then the following screen will appear:

You can then check for any inappropriate connections.

Low or Dead Battery

The HypotULTRA contains internal battery to keep system data and time. The following message will appear on the screen once the battery voltage level falls below described value.

Battery voltage below 2 Volts

Note: The message will appear on the screen when the internal battery voltage falls below 2 Volts. It is recommended to replace the battery during your next

calibration or service request.

Battery voltage below 0.5 Volts.

Note: When the internal clock battery dies the timestamping of results data may become corrupted. The instrument’s testing capabilities are not affected by dead battery. After this message appears, the instrument will store the last known data and time for results data.

After replacing a new battery.

Note: Update the System Date and Time after replacing the battery.



Page 58

Meters

The Perform Test screen of the HypotULTRA has several different meters depending on the type of test you are performing. You can arrange these meters as desired. You can also tie these meters to the user security setup. The drag and drop feature of the instrument allows you to set large and small meters. For example the following screen shot shows the Perform Test screen of the DCW test:

In the image above, the two large meters display the DCW test voltage and the Dwell Time.

Touch and hold the display on any of the meters and drag it on to the location of a different meter and the two meters will be swapped.



Page 59

Viewing Test Results

After a test has completed the Results icon will be available on the screen. For example:

Select the Results icon to enter the results screen.

The Results screen will appear. The Results screen allows you to view the results of the last test step the instrument performed and the results of the previously performed tests.

Select Present Test to view test results from the current test sequence that was executed. Select any test step to view more details regarding the test.

Select Int. Memory to view all the test results stored on the internal memory of the instrument. Scroll down to view all the test results.



Page 60

Transfer Test Results

Touch and hold any test step result on the previous screen and a new screen will pop up:

Perform Test Screen.

Tap Results icon.

Select Result(s) to transfer or delete.

Transfer results progress.

From this screen you can transfer All results to a USB disk, delete All results or delete a single result. Selecting Delete ALL will delete all the test results from the internal memory. Selecting delete will delete a selected step.

To transfer results to a USB disk select the Transfer icon and a new pop up screen will appear where a le name must be entered for the results le. The results will be saved on the USB disk with this le name: Once you assign and save a le name the following screen will appear showing the transfer status:

Enter name for Results File.

Transfer results complete.

Once the results le transfer is complete a message will appear on the screen conrming the successful transfer along with the results le name that was previously assigned.



Page 61

4. Security

Instrument security and user setup screen. The rst option under Security allows you to set Security to ON or OFF.

Setup System Menu

Security Menu

Select Security ON or OFF. User Setup Menu.



Page 62

User Setup

The next option under security is User Setup where multiple users can be added and assigned different privileges.

Enter New User ID.

Enter Password.

Select Security Level.

Security Level Description

Full System In this mode you have full access level to all instrument setup parameters as well as system

conguration and security levels. Access at this level should be restricted to System Administrators

Edit Setup In this mode you can load les and edit test parameters.

Recall Setup This mode allows you to load previously congured test les but it does not allow any editing

of the parameters. In this mode you are restricted from access to the “Setup Test Parameters” screen.

Run Only This is the most restricted mode of user access. You can only initiate a test, reset a failure or abort

a test from the Perform Tests screen.

NOTE: whenever your security level is Run Only, “Single Step” and “Fail Stop” soft keys will be disabled at the Perform Test screen.

NOTE: whenever your security level is Run Only, you may only start at test step 1.

User Setup Menu updated.

Security – Forgotten Password

If you have forgotten your password you may access all security functions by typing in the number “8000” into the password

eld. The old password cannot be recovered and a new password needs to be entered.



Page 63

5. FailCHEK

FAILCHEK is the process by which an instrument’s failure detectors are proven to be functioning properly. Safety agencies such as CSA, UL and TÜV require checking the failure detection circuitry of the electrical safety instrument. To perform FAILCHEK touch the test icon and follow instructions on the instrument screen.

Main Menu

FailCHEK Menu

Continuity FailCHEK screen

AC Hipot FailCHEK screen

Ground Bond FailCHEK screen

DC Hipot FailCHEK screen

IR FailCHEK screen



Page 64

FailCHEK Continuity

To perform Continuity FailCHEK follow on-screen instructions.

FailCHEK Ground Bond

Continuity Fail Detectors OK screen.

Continuity Fail Detectors ERROR screen.

To perform Continuity FailCHEK follow on-screen instructions.

FailCHEK AC Hipot

To perform AC Hipot FailCHEK follow on screen instructions.

Ground Bond Fail Detectors OK screen.

AC Hipot Fail Detectors OK screen.

Ground Bond Fail Detectors ERROR screen.

AC Hipot Fail Detectors ERROR screen.



Page 65

FailCHEK DC Hipot

To perform DC Hipot FailCHEK follow on screen instructions and press Green TEST Button or Red RESET to return to previous menu.

FailCHEK Insulation Resistance

DC Hipot Fail Detectors OK screen.

DC Hipot Fail Detectors ERROR screen.

To perform IR Hipot FailCHEK follow on screen instructions and press Green TEST Button or Red RESET to return to previous menu.

IR Fail Detectors OK screen.

IR Fail Detectors ERROR screen.



Page 66

6. MyMenu

The MyMenu function allows the user to congure a custom menu. User can store the desired test les under MyMenu and access the les by a single touch.

Main Menu

Select Add New to add test le to MyMenu

Select le to be added to MyMenu. MyMenu Screen.



Page 67

Using Remote I/O and PLC Control

Two 9-pin “D” type connectors mounted on the rear panel provide REMOTE-INPUT-OUTPUT control and information.

• These connectors mate with a standard 9 pin D-sub-miniature connector provided by the user.

• The output mates to a male (plug) connector while the input mates to a female (receptacle) connector.

• For best performance, you should use a shielded cable. To avoid ground loops you should not ground the shield at both ends of the cable.

Suggested AMP part numbers for interconnecting to the Remote I/O

Part Number Description

205204-4 Plug shell with ground indents

205203-3 Receptacle shell

745254 -7 Crimp snap-in pin contact (for plug)

745253-7 Crimp snap-in socket contact (for receptacle)

745171-1 Shielded cable clamp (for either plug or receptacle)

747784 -3 Jackscrew set (2)

Remote I/O Pinouts



Page 68

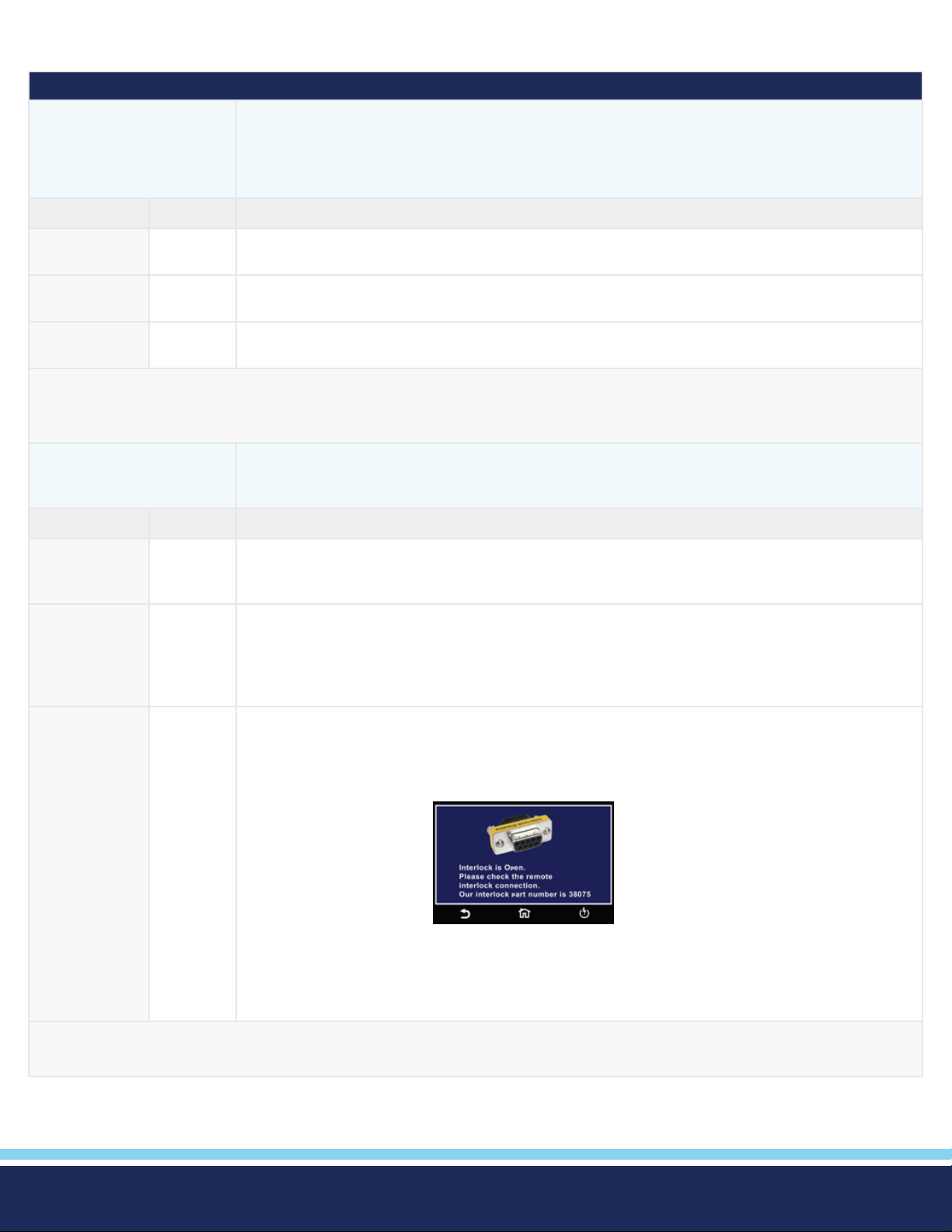

Signals on Remote I/O

REMOTE INPUT/OUTPUT

Remote Output The rear panel connector provides three output signals to remotely monitor PASS, FAIL,

and PROCESSING conditions. The monitoring signals are provided by three normally open internal relays that toggle ON and OFF to indicate the condition of the instrument. These are normally open free contacts and will not provide any voltage or current.

Output Signal Pins Description

PASS 1 and 2 The relay contact closes after detecting that the device under test passed all tests. The

connection is opened when the next test is initiated or the reset function is activated.

FAIL 3 and 4 The relay contact closes after detecting that the device under test failed any test. The connection

is opened when the next test is initiated or the reset function activated.

PROCESSING 5 and 6 The relay contact closes while the tester is performing a test. The connection is opened at the

end of the test.

These are normally open free contacts and will not provide any voltage or current. The ratings of the contacts are 1 AAC / 125 VAC (0.5 ADC / 30 VDC). When a terminal becomes active, the relay closes thereby allowing the external voltage to operate an external device.

Remote Input The HypotULTRA remote connector enables remote operation of the TEST, RESET, and

REMOTE INTERLOCK functions, and allows you to select one of 10 pre-programmed test les.

Output Signal Pins Description

TEST 3 and 5 A normally open momentary switch can be wired across pins 3 and 5 to allow remote operation

of the TEST function. A minimum pulse width or contact closure of 20mS is required to guarantee a test start.

RESET 2 and 5 A normally open momentary switch can be wired across pins 2 and 5 to allow remote operation

of the RESET function. For safety, the front panel RESET button remains active even when a remote reset switch is connected so that high voltage can be shut down from either location. A minimum pulse width or contact closure of 50mS is required to guarantee that a running test will abort.

INTERLOCK 4 and 5 Remote Interlock utilizes a set of closed contacts to enable the tester’s output. The output of the

tester will be disabled under the following conditions:

• If the Interlock contacts are open and the TEST button is pushed

• If the interlock contacts are opened during a test (test will automatically abort)

A pop-up message will be displayed on the screen:

The tester can still be used without the external interlock device as long as the Interlock Connector (P/N # 38075 provided with unit) is plugged into the Remote Interface, Signal Input port. If there is nothing connected to the Remote Interface, Signal Input port to provide a connection to the interlock, the tester will not perform tests.

When the PLC Remote mode is ON, the tester will respond to simple switch or relay contacts closures. When the PLC Remote function is ON the TEST button on the front panel will be disabled.



Page 69

Remote Signal Inputs and Memory Access

• The Remote File Select function gives you the capability to quickly select and initiate a test remotely.

• You can access rst ten (10) pre-programmed test les by connecting pins 1, 6, 8 and 9 to the common pin 7, in different

combinations.

• The memory select bits should be set simultaneously and remain set for a

minimum of 20ms to guarantee that the correct memory will be selected.

• The memory select bits may be set in sequential manner, provided that the time

delay between each bit is less than 4ms.

• When the desired bit pattern has been established it should remain set for a

minimum of 20ms to guarantee that the correct memory will be selected.

• It may be necessary to “OR” the momentary switches (relay contacts) to

prevent incorrect program selection due to timing errors.

REMOTE FILE SELECT TRUTH TABLE

BIT 4 BIT 3 BIT 2 BIT 1 FILE #

0 0 0 1 01

0 0 1 0 02

DID YOU KNOW...

The Remote Signal Input connector may be used with various accessories, including light curtains, foot switches, and safety probes. Contact Associated Research for more information.

0 0 1 1 03

0 1 0 0 04

0 1 0 1 05

0 1 1 0 06

0 1 1 1 07

1 0 0 0 08

1 0 0 1 09

1 0 1 0 10

1= Momentary Contact closure between BIT and COMMON

0= No Contact closure between BIT and COMMON

Activating memory program functions through the remote connector, selects the program and starts

WARNING

Activation des fonctions de mémoire programme via le connecteur remote , sélectionne le programme et lance le test qui est préprogrammé dans cette mémoire

the test which is preprogrammed into that memory

Do not connect voltage or current to the signal inputs, this could result in damage to the control

CAUTION

Ne pas connecter tension ou de courant aux entrées de signal, cela pourrait provoquer des dommages au circuit de contrôle

circuitry.



Page 70

Appendix A - Installation and Test Operator Information

Installation

1. Unpacking and Inspection

Your instrument ships in a custom foam insulated container. If the shipping carton is damaged, inspect the contents for visible damage such as dents, scratches or a broken display. If the instrument is damaged, notify the carrier and Associated Research’s customer care department. Please save the shipping carton and packing material for the carrier’s inspection. Our customer care department will assist you in the repair or replacement of your instrument. Please do not return your product without rst notifying us and receiving an RMA (return material authorization) number. To receive an RMA number, please contact our customer care department at 1-800-858-TEST (8378).

2. Safe Lifting and Carrying Instructions

Proper methods of lifting and carrying can help to protect against injury. Follow the recommendations below to ensure that instruments are handled in a safe manner.

• Determine if the instrument can be lifted by one individual or requires additional support.

• Make sure that your balance is centered and your feet are properly spaced, shoulder width apart behind the instrument.

• Bend at the knees and make sure your back is straight.

• Grip the instrument with your ngers and palms and do not lift unless your back is straight.

• Lift up with your legs, not your back.

• Keep the instrument close to your body while carrying.

• Lower the instrument by bending your knees. Keep you back straight

3. Contents of the Carton

DESCRIPTION AR PART NUMBER

HypotULTRA

High Voltage Cable 04040A-08

Return Cable 02100A -13 (Qty. 2)

USB Cable AB-Type 1.8m 39066

Fuse 37780

Line Cord

Adapter Box

2U Rack Mount Handle (Qty 2) 38794

2U Rack Mount Bracket (Qty 2) 38793

Screw M4 x 12mm FHMS (Qty 4) 38549 For Rack Mount Handle

Interlock Connector 38075

8GB USB Flash Drive 39571

Instrument 7820, 7850, 7800

33189 Standard

36544 Standard

DESCRIPTION AR PART NUMBER

HypotULTRA

High Voltage Cable 04040A-08

High Current Output Cable 38489

High Current Return Cable 38490

Fuse 37780

USB Cable AB-Type 1.8m 39066

Line Cord

Adapter Box

Interlock Connector 38075

2U Rack Mount Handle (Qty 2) 38794

2U Rack Mount Bracket (Qty 2) 38793

Screw M4 x 12mm FHMS (Qty 4) 38549 For Rack Mount Handle

Instrument 7804, 7854

33189 Standard

38482 Standard

The Line Cord listed is American. Other combinations of the Line Cord are available upon request.



Page 71

Use only accessories that meet the manufacturer’s specication.

WARNING

Utiliser uniquement des accessoires conformes aux spécications du fabricant.

4. Preparation for Use

Power Requirements

This instrument requires a power source of either 115 volts AC ± 10%, 50/60 Hz single phase or 230 volts AC ±10%, 50/60 Hz single phase. See section for Rear Panel Controls for an image of the rear panel.

Do not replace the power supply cord with an improperly rated cord. For North American: A UL listed

CAUTION

125VAC, 10A, number 16 gauge (or 125VAC, 15A, number 14 gauge) wire or larger, and the length of the cord does not exceed 2

m must be used. For European: A certied power supply cord not lighter than light PVC sheathed exible cord according to IEC

60227, designation H03 VV-F or H03 VVH2-F (for equipment mass not exceeding 3 kg), or H05 VV-F or H05 VVH2-F2 (for equipment mass exceeding 3 kg), and be rated for at least 3G 0.75 mm² (for rated current up to 10 A) or 3G 1.0mm² (for rated current over 10 A up to 16 A) wire or larger, and the length of the cord does not exceed 2 m must be used.

Ne remplacez pas le cordon d’alimentation avec un cordon mal classé . Pour l’Amérique du Nord: Une UL et CSA marqué cordon d’alimentation doit être olariz avec l’instrument aux États-Unis et

Canada . Le cordon d’alimentation doit comporter une che mâle NEMA5-15 de style , SVT ou ensembles SJT de la moelle , et être classé pendant au moins 125VAC , 10ª , numéro de calibre 16 ( ou 125VAC , 15ª , numéro de calibre 14 ) l ou plus, et la longueur de le cordon ne dépasse pas 2 m doit être utilisé . Pour européenne : Un cordon d ‘alimentation certié , pas plus léger que le PVC lumière câbles souples sous gaine selon la norme IEC 60227 , la désignation H03 VV- F ou

H03 VVH2 – F ( pour la masse de l’équipement ne dépassant pas 3 kg) , ou H05 VV- F ou H05 VVH2 – F2 (masse d’ équipement de plus de 3 kg) , et être prévus pour au moins 3G 0,75 mm ² ( pour courant nominal jusqu’à 10 A ) ou 3G 1.0mm² ( pour l nominale ou plus actuelle plus de 10 A à 16 A) , et la longueur du cordon ne doit pas excéder 2 m doit être utilisé.

and CSA labeled power cord must be used with the instrument in the United States and Canada. The power cord must include a NEMA5-15 style male plug, SVT or SJT cord sets, and be rated for at least

The HypotULTRA must be connected to a good ground. Be certain that the power wiring is properly

WARNING

L’HypotULTRA doit être relié à un bon sol. Assurez-vous que le câblage d’alimentation est correctement polarisé et que la bonne

résistance à la terre est en place.

polarized and that the proper low resistance bonding to ground is in place.

5. Power Cable

The instrument is shipped with a line cord containing a protective earth ground. When the line cord is connected to an appropriate AC power source the cable will connect the chassis to earth ground.

Only insert the main plug in a socket outlet with a protective ground (earth) contact. This protective

WARNING

La che principale ne doit être insérée dans une prise de courant avec une masse (terre ) avec système de protection . Cette terre

de protection ne doit pas être vaincu par l’utilisation d’ une rallonge sans conducteur de protection.

This instrument is shipped with a three-wire power cable. When this cable is connected to an appropriate AC power source, this cable connects the chassis to earth ground. The type of power cable shipped with each instrument depends on the country of destination.

ground must not be defeated by the use of an extension cord without a protective conductor.



Page 72

Operating Environment

This equipment is intended for indoor use only. The equipment has been evaluated according to Installation Category II

and Pollution Degree 2 as specied in IEC 664.

Operate this instrument in environments with the following limits:

Temperature ......................... 41° - 104° F (5° - 40°C)

Relative humidity .................. 0 – 80%

Altitude ................................. 6560 feet (2,000 meters)

Do not block any ventilation openings to prevent over heating of the equipment. Keep the ventilation

WARNING

Ne pas bloquer les ouvertures de ventilation pour éviter la surchauffe de l’équipement Gardez les fentes de ventilation découverts au cours de l’opération. Ne pas le faire pourrait entraîner l’instrument de surchauffer et endommager les composants internes.

slits uncovered during operation. Failure to do so could cause the instrument to overheat and may damage internal components.

Storage and Shipment

Store or ship this instrument in environments with the following limits:

Temperature ......................... -40° - 167° F (-40° - 75°C)

Altitude ................................. 50,000 feet (15,240 meters)

Also protect this instrument against temperature extremes that may cause condensation within the instrument.

Failure to operate this instrument within the specied conditions could result in damage.

CAUTION

L’incapacité à manipuler cet instrument dans les conditions spéciées peuvent entraîner des dommages.

If the instrument is used in a manner not specied by the manufacturer, the protection provided by the instrument may be impaired.

More Information

For more information on test operator and workstation safety please visit the Events and Training section of our website at www.arisafety.com

Test Operator and Safety Considerations

1. Qualications

This instrument generates voltages and currents that can cause harmful or fatal electric shock and

WARNING

Cet instrument produit des tensions et des courants qui peuvent causer des chocs électriques

dangereux ou mortel et ne doivent être exploitées par un travailleur qualié formé à son olarize ve . L’opérateur doit comprendre

les principes fondamentaux électriques de tension, courant et la résistance.

must only be operated by a skilled worker trained in its use. The operator should understand the electrical fundamentals of voltage, current, and resistance.

Do not touch the device under test, high voltage test lead, alligator clip, or clip insulator once the test

WARNING

Ne touchez pas l’appareil sous test, le l de test haute tension, le crocodile ou l’isolateur de clip une fois le test lancé.

has been started.



Page 73

Do not touch the front panel when testing or after a malfunction has occurred.

WARNING

Ne olariz pas la face avant lors de l’essai ou après un dysfonctionnement s’est produit.

The operator should understand the electrical fundamentals of voltage, current, and resistance.

2. Safety Procedures

Operators should be thoroughly trained to follow these and all other applicable safety rules and procedures before they begin a test. Defeating any safety system should be treated as a serious offense and should result in severe penalties, such as removal from the Hipot testing job. Allowing unauthorized personnel in the area during a test should also be dealt with as a serious offense.

Refer to the following standards for more information:

• NFPA 70E

• OSHA 1910 subpart (S)

• EN50191

3. Dress

Operators should not wear jewelry that could accidentally complete a circuit.

WARNING

Do not observe ESD protocols while performing electrical safety tests. Intentionally grounding the test operator could lead to a harmful or fatal electric shock.

Protocoles de l’EDD ne devraient pas être respectées lors de l’exécution des tests de sécurité électrique. Intentionnellement à la terre à l’opérateur de test pourrait conduire à un choc électrique dangereux ou mortel.

4. Medical Restrictions

Inform personnel with heart ailments or devices such as pacemakers that the voltages and currents generated by the instrument are very dangerous. If contacted, the instrument may cause heart-related problems. Please have the test operator consult a physician for recommendations.

5. Test Station

Location

Select an area away from the main stream of activity which employees do not walk through in performing their normal duties. If this is not practical because of production line ow, then the area should be roped off and marked for HIGH VOLTAGE TESTING. No employees other than the test operators should be allowed inside. If benches are placed back-to-back, be especially careful about the use of the bench opposite the test station. Signs should be posted: “DANGER - HIGH VOLTAGE TEST IN PROGRESS - UNAUTHORIZED PERSONNEL KEEP AWAY.”

The mains plug is used as the disconnecting device and shall remain readily operable. The socket-out-

WARNING

let shall be installed. Near the equipment and shall be easily accessible.

La che secteur est utilisée comme dispositif de déconnexion et doit rester facilement opérationnelle. La prise de courant doit

être installée. Près de l’équipement et doit être facilement accessible.



Page 74

Work Station

Perform the tests on a non-conducting table or workbench, if possible.

There should not be any metal in the work area between the operator and the location where products being tested will be positioned.

Position the instrument so the operator does not have to reach over the product under test to activate or adjust the instrument. If the product or component being tested is small, it may be possible to construct guards or an enclosure, made of a non-conducting material such as clear acrylic, such that the item being tested is within the guards or enclosure during the test, and t them with switches so that the instrument will not operate unless the guards are in place or the enclosure closed. The outlet which is used to provide power to the instrument should be easily accessible.

Keep the area clean and uncluttered. All test equipment and test leads not absolutely necessary for the test should be removed from the test bench and put away. It should be clear to both the operator and to any observers which product is being tested, and which ones are waiting to be tested or have already been tested. If the instrument is used in a matter not specied by Associated Research the protection provided by the instrument may be impaired.

Do not perform Hipot tests in a combustible atmosphere or in any area where combustible materials are present.

KEY SAFETY POINTS TO REMEMBER

• Keep unqualied and unauthorized personnel away from the test area.

• Arrange the test station in a safe and orderly manner.

• Never touch the product or connections during a test.

• In case of any problem, turn off the high voltage rst.

• Properly discharge any item tested with DC before touching connections.



Page 75

Appendix B – Instrument Specications

Models 7800, 7804, 7820, 7850 and 7854 Functional Specications

Unless otherwise stated, accuracy’s are relative to a laboratory standard measurement.

INPUT

Voltage 100 - 120VAC / 200 - 240VAC±10% Auto Range

Frequency 50/60Hz ± 5%

Fuse 7804, 7820 and 7850: 6.3A / 250VAC Slow-Blow

7800 and 7854: 15A / 250VAC Fast- Blow

AC WITHSTAND VOLTAGE (All HypotULTRA Models)

Range Resolution Accuracy

Output Voltage, AC 0 - 5000 1 ± (2% of setting + 5V)

Output Frequency 50Hz/60Hz ± 0.1% , User Selection,

Output Waveform Sine Wave , Crest Factor = 1.3 - 1.5

Short Circuit Protection 7804, 7820 and 7850: minimum current 33mA RMS at short circuit, Response time < 2ms

7800 and 7854: Output short Circuit current >200mA

Output Regulation ± (1% of output + 5V), From no load to full load and Low Line to High Line

(combined regulation)

SETTINGS

Auto Range

HI and LO-Limit (Total), current, mA

HI and LO-Limit (Real), current, mA

Ramp-Up Timer, second 0.1 - 999.9

Ramp-Down Timer, second 0.0 - 999.9

Dwell Timer, second 0, 0.2 - 999.9 (0=continuous)

Ground Continuity Current Current: DC 0.1 A ± 0.01A, xed

0.000 - 9.999 0.001 7820, 7850 & 7804: ± (2% of setting + 2 counts)

10.00 - 30.00

10 - 99.99 (Models 7800 &7854)

0.000 - 9.999 0.001

10.00 - 30.00

10 - 99.99 (Models 7800 & 7854)

0.01

0.1 ± (0.1% + 0.05 sec)

7800 & 7854: ± (2% of setting + 6 counts)

± (3% of setting + 50µA)

Max. Ground Resistance: 1.0 Ω ± 0.1Ω

Current Offset 7820, 7850 & 7804: 0.000 - 30.00mA (PF=0.00 - 1.00) *(Total current + current offset ≤30mA)

7800 & 7854: 0.000 - 100.00mA (PF=0.00 - 1.00) *(Total current + current offset ≤100mA)

Arc Detection 1 - 9 ranges (9 = highest sensitivity)

Continued on next page



Page 76

Fixed Range

Range Resolution Accuracy

HI and LO-Limit (Total), current, mA

0.000 - 3.500 0.001

± (2% of setting + 2 counts)

3.51 - 30.00 0.01

DC WITHSTAND VOLTAGE (Models 7800, 7804, 7850 and 7854)

Output Voltage, DC 0 - 6000 1 ± (2% of setting + 5V)

DC Output Ripple <4 % (6KV/20mA at Resistive Load)

Short Circuit Protection Minimum current 11mA AVG at short circuit, Response time < 2ms

SETTINGS

Auto Range

HI and LO-Limit, current, µA 0.0000 - 0.9999 0.0001

1.000 - 9.999 0.001

± (2% of setting + 10 counts)

Low Range is ON

10.00 - 99.99 0.01

100.0 - 999.9, Low Range = ON

0.0 - 999.9 Low Range = OFF

1000 - 10000 (Models 78X0)

0.1 ± (2% of setting + 2 counts)

1000 - 20000 (Models 78X4)

Ramp-Up Timer, second 0.4 - 999.9, Low Range = OFF

0.5 - 999.9, Low Range = ON

Ramp-Down Timer, second 0.0, 1.0-999.9

0.1 ± (0.1% + 0.05 sec)

Dwell Timer, second 0, 0.4 - 999.9, (0=continuous)

and 0, 1.0 - 999.9 when low current range is selected

Ramp-HI, current, µA 0.0000 - 0.9999 0.0001

± (2% of setting + 10 counts)

1.000 - 9.999 0.001

Low Range is ON

10.00 - 99.99 0.01

100.0 - 999.9 0.1

1000 - 10000 (Models 78X0)

± (2% of setting + 2 counts)

1000 - 20000 (Models 78X4)

Charge-LO, current 0.0 - 350.0 µA DC or Auto Set, When current range is 3 ranges.

0.00 - 35.00 µA DC or Auto Set, When current range is 6 ranges.

Discharge Time ≤ 50 ms for no load, < 100 ms for capacitor load (all capacitance values in MAX load spec below)

Maximum Capacitive Load

DC Mode

1µF < 1KV 0.08µF < 4KV

0.75µF < 2KV 0.04µF < 5KV

0.5µF < 3KV 0.015µF < 6KV

Ground Continuity Current Current: DC 0.1 A ± 0.01A, xed

Max. Ground Resistance: 1.0Ω ± 0.1Ω

Continued on next page



Page 77

Range Resolution Accuracy

Current Offset, µA 0.0 - 10000 *(Total current + current offset ≤10mA)

Arc Detection 1 - 9 ranges (9 = Highest sensitivity)

Fixed Range

DC Current, µA 0.0000 - 0.3500 0.0001

0.351 - 3.500 0.001

± (2% of setting + 10 counts)

Low Range is ON

3.51 - 35.00 0.01

35.1 - 350.0 0.1

351 - 3500 1

± (2% of setting + 2 counts)

350 - 20000 1

INSULATION RESISTANCE (Models 7800, 7804, 7850 and 7854)

Output Voltage, DC 10 - 1000 1 ± ( 2% of setting + 2 counts)

1001 - 6000 1 ± (2% of setting + 5V)

Charging Current Maximum > 20mA peak

SETTINGS

HI and LO-Limit, resistance,MΩ0.10 - 99.99

(HI – Limit: 0 = OFF)

0.01 0.10 - 999.9, ± (2% of setting + 2 counts)

1.00 - 99.99 when voltage > 1000V

100.0 - 999.9 0.1 1000 - 9999, ± (5% of setting + 2 counts)

1000-50000 1 10000 - 50000,

± (15% of setting + 2 counts)

Ramp-Up Timer, second 0.1 – 999.9

Ramp-Down Timer, second 0.0, 1.0-999.9

Dwell Timer, second 0, 0.5 - 999.9 or 0

0.1 ± (0.1% + 0.05 sec)

(0=continuous)

Delay Timer, second 0.5 - 999.9

Charge-LO, current, µA 0.00 - 3.50 or Auto Set

GROUND BOND (Models 7804, 7854)

Output AC Current, A 1.00 - 40.00 0.01 ± (2 % of setting + 2 counts)

Output Voltage, Vac

3.00 - 8.00 0.01 ± (2 % of setting + 3 counts) O.C.

Open Circuit Mode

Output Frequency, Hz 50Hz/60Hz ± 0.1%, User Selection

Output Regulation ± (1% of output + 0.02A), Within maximum load limits, and over input voltage range.

Continued on next page



Page 78

Maximum Loading 1.00 - 10.00A/0 - 600mΩ

10.01 - 30.00A/0 - 200mΩ

30.01 - 40.00A/0 - 150mΩ

SETTINGS

Range Resolution Accuracy

Lead Resistance Offset, mΩ 0 - 200 1 ± (2 % of setting + 2 counts )

HI and LO-Limit Resistance, mΩ0 - 150 (30.01-40.00A), 0 = OFF

6.00 - 40A,± (2 % of setting + 2 counts )

0 - 200 (10.01-30.00A), 0 = OFF

0 - 600 (6.00-10.00A), 0 = OFF

1.00-5.99A,± (3 % of setting + 3 counts )

0 - 600 (1.00-5.99A) , 0 = OFF

Dwell Timer, second 0, 0.5 - 999.9

0.1 ± (0.1% + 0.05 sec)

(0 = continuous)

HI and LO-Limit Voltage, V 0 - 6.00 , 0 = OFF 0.01 ± (2 % of setting + 2 counts )

Offset, V 0.00-6.00 0.01 ± (2 % of setting + 2 counts )

CONTINUITY TEST (All HypotULTRA Models)

Output Current, DC 1A for 0.000 - 1.000Ω

0.1A for 1.01 - 10.00Ω

0.01A for 10.1 - 100.0Ω

0.001A for 101 - 1000Ω

0.0001A for 1001 - 10000

1A is Max

SETTINGS

Max-Lmt, Ω 0.000 - 1.000 0.001

1.01 - 10.00 0.01

10.1 - 100.0 0.1

101 - 1000 1

1001 - 10000 1 ± (1% of setting + 10 counts)

Min-Lmt, Ω 0.000 - 1.000 0.001

1.01 - 10.00 0.01

10.1 - 100.0 0.1

101 - 1000 1

1001 - 10000 1 ± (1% of setting + 10 counts)

Dwell Timer, second 0.0, 0.4 - 999.9

0.1 ± (0.1% + 0.05 sec)

(0=continuous)

± (1% of setting + 3 counts)

Continued on next page



Page 79

Resistance Offset, Ω 0.000 - 10.00 0.001 / 0.01 ± (1 % of setting + 3 counts)

MEASUREMENT

Voltage, KV(AC/DC) 0.00 - 6.00 0.01 ± ( 2% of reading +1 count)

Voltage, Vdc (IR only) 1001 - 6000 0.01 ± (2% of reading + 5V)

0 - 1000 1 ± ( 2% of reading + 2 counts)

Range Resolution Accuracy

Accuracy for AUTO range

AC Current (Total), mA 0.000 - 4.000 RMS

0.001

(0.000 - 5.657 Peak)

± (2% of reading + 2 counts)

3.50 - 30.00 RMS

0.01

(4.95 - 42.42 Peak)

AC Current (Real), mA 0.00 - 9.999 0.001 ± (3% of reading + 50µA)

All Ranges PF > 0.1 , V > 250VAC

10.00 - 30.00 0.01

DC Current, nA 0.0 - 400.0 DC

0.1

(0.000 - 565.7 Peak)

DC Current, µA 0.350 - 4.000 DC

(0.380 - 5.657 Peak)

3.50 - 40.00 DC

0.001

0.01

± (2% of reading + 10 counts)

Low Range is ON

(4.24 - 56.57 Peak)

35.0 - 400.0 DC,

0.1

Low Range = ON

(38.0 - 565.7 Peak)

0.0 - 400.0 DC,

Low Range = OFF

(0.0 - 565.7 Peak)

± (2% of reading + 2 counts)

DC Current, mA 0.300 - 4.000 DC

0.001

(0.424 - 5.657 Peak)

3.50 - 10.00 DC

0.01

(3.80 - 14.14 Peak) (Models 78X0)

3.50 - 20.00 DC

0.01

(3.80 - 28.28 Peak) (Models 78X4)

AC Current, A (GB) 0.00 - 40.00 0.01 ± (3 % of reading + 3 counts)

Continued on next page



Page 80

Resistance, MΩ (IR) 10 - 499V 500 - 6000V 10 - 29V

0.05 - 999.9, ± (15% of reading + 2 counts)

30 - 499V

0.05 - 999.9, ± (7% of reading + 2 counts)

0.10 - 1.999 0.10 - 9.999

0.001 500 - 6000V (1.00 - 9.999 V setting > 1000V)

2.00-19.99 10.00 - 99.99 0.01 0.05 - 999.9, ± (2% of reading + 2 counts)

20.00 - 199.9 100.00 - 999.9 0.1 1000 - 9999, ± (5% of reading + 2 counts)

200 - 50000 1000 - 50000 1 10000 - 50000,

± (15% of reading + 2 counts)

Range Resolution Accuracy

Resistance, Ω (Continuity) 0.00 - 1.000 0.001

1.01 - 10.00 0.01

10.1 - 100.0 0.1

± (1 % of reading + 3 counts)

101 - 1000 1 1001 - 10000 1 ± (1 % of reading + 10 counts)

Resistance, mΩ (GB) 0-600 1 6.00 - 10.00 A,

± (2% of reading + 2 counts)

1.00 - 5.99 A, ± (3% of reading + 3 counts)

0-200 1 10.01 - 30.00 A,

± (2% of reading + 2 counts)

0-150 1 30.01 - 40.00 A,

± (2% of reading + 2 counts)

Accuracy for Fixed range

AC Current (Total), mA 0.00 - 3.500 0.001 ± (2% of reading + 2 counts)

0.00 - 30.00 0.01 ± (2% of reading + 2 counts) Additional error when reading

< 6% of range ± (0.1% of range)

DC Current, nA 0.0 - 350.0 0.1 ± (2% of reading + 10 counts)

Low Range is ON

DC Current, µA 0.00 - 3.500 0.001 ± (2% of reading + 10 counts)

Low Range is ON

Additional error when reading

0.00 - 35.00 0.01

< 6% of range ± (0.1% of range)

00.0 - 350.0 0.1 ± (2% of reading + 2 counts)

Continued on next page



Page 81

Resistance, MΩ (IR) 10 - 499V 500 - 6000V 10 - 29V

0.05 - 999.9, ± (15% of reading + 2 counts)

30 - 499V

0.05 - 999.9, ± (7% of reading + 2 counts)

0.10 - 1.999 0.10 - 9.999

0.001 500 - 6000V (1.00 - 9.999 V setting > 1000V)

2.00-19.99 10.00 - 99.99 0.01 0.05 - 999.9, ± (2% of reading + 2 counts)

20.00 - 199.9 100.00 - 999.9 0.1 1000 - 9999, ± (5% of reading + 2 counts)

200 - 50000 1000 - 50000 1 10000 - 50000,

± (15% of reading + 2 counts)

GENERAL SPECIFICATIONS

Safety Agency Listing CE, cTUVus, RoHS2

PLC Remote Control Input: Test, Reset, Interlock, Recall File 1 through 3(Standard),

Recall File 1 through 7(Option).

Hardware Interlock- Direct control sine wave and amplier relay off when Interlock signal is

disable. Output:- Pass, Fail, Test-in-Process

(Output relay contact ratings is 1AAC/125VAC, 0.5ADC/30VDC)

Memory 2000 steps

200 steps per memory max

Color LCD 4.3” Color Display (Touch Panel)

GFI Built-in Smart GFI circuit,

GFI trip current 0.4 – 5.0mA max, 0 = OFF. Resolution of 0.1 mA, HV shut down speed: <1mS Accuracy: +/- 0.1mA( on DC/50/60Hz and test under 1000V)

Multinational language User interface available in English, Traditional Chinese, Simplied Chinese, Turkish, Portuguese,

Spanish, German, French

Interface Standard: USB/RS232

Optional: GPIB (IEEE-488.2), RS232/Ethernet or USB Printer

Security (Standard Password Protection)

Programmable User ID and Password capability to avoid unauthorized access to test set-up program.

Alarm Volume Setting Range: 0 - 9 ; 0 = OFF, 1 is softest volume, 9 is loudest volume

Calibration Software and adjustments are made through the front panel. Automatic Calibration alert

function to signal operator when the next calibration is due.

Environment Temperature: 0 - 40°C, Humidity: 20 - 80%

Dimension Bench or rack mount (2U height) with tilt up front feet

Dimensions (W x H x D) 16.92 x 3.50 x 15.75in (430 x 88.1 x 400 mm)

Continued on next page



Page 82

Weight 7800 = 45lb (20.4kg)

7804 = 41lb (18.6kg) 7820 = 34lb (15.4kg) 7850 = 35lb (15.9kg) 7854 = 46.3lb (21kg)

Why use the term “Counts”?

Associated Research publishes some specications using COUNTS which allows us to provide a better indication of the instrument’s capabilities across measurement ranges. A COUNT refers to the lowest resolution of the display for a given measurement range. For example, if the resolution for voltage is 1V then 2 counts = 2V.



Page 83

Appendix C - Options

Introduction

This section contains a list and descriptions of available factory installed options at the time of this printing. The list of options contains an option code number which can be referenced on the model option label on the rear panel of the unit when options are present.

Model Option Label

On the rear panel of the instrument, you will nd a label that contains the option code.

For example, your options code will appear as follows:

tted with option 01 OPT: 01 tted with option 01 and 02 OPT: 0102

HypotULTRA Options

CODE DESCRIPTION

01 Internal 8 Channel Scanner with Continuity (7820 & 7850 only)

02 Internal 4 Channel Scanner with Continuity (7820 & 7850 only)

04 3mA AC/DC Output (7804, 7820 & 7850 only)

05 5mA AC/DC Output (7804, 7820 & 7850 only)

07 Printer Port (all models)

08 GPIB Card (all models)

09 Ethernet Card (all models)

10 Burn Hipot Test (7820, 7850 & 7804 only)

12 Negative DCW (7850, 7800, 7804, 7854)

13 400/800 Hz AC Hipot Output (7820, 7850 & 7804 only)

14 Mimic HU3 Command Set (7820 & 7850 only)



Page 84

01 Internal 8 Channel Scanner with Continuity

The Scanner option provides 8 high voltage/continuity channels on the rear panel of the HypotULTRA. The high voltage/continuity channels can be set to a High (H) or Low (L) level giving the operator the capability to test from one channel to another channel or from any channel to a common Low or Return point. The channels can be connected in parallel if desired but there is only one leakage current measurement for all channels.

02 Internal 4 Channel Scanner with Continuity

This option is the same as Option 01, 8 Channel Scanner with Continuity, with the exception that the numbers of channels are limited to 4. The Scanner functions the same as the 8-channel option but the Scanner status display will only indicate the status of channels 1-4, even though all 8 channel indicators are displayed.

04 3mA AC/DC Output

The 3 mA AC Output option limits the AC Dielectric Withstand Mode output current with software control. The trip points are

adjusted to a maximum of 3 mA and the software has been modied so the high-speed maximum current shutdown is xed at 3 mA. The following table shows the specications for this option:

3mA AC / DC Output

AC WITHSTAND VOLTAGE

SETTINGS

HI and LO-Limit (Total), current, mA 0.000-3.000 0.001 ± (2% of setting + 6 counts)

HI and LO-Limit (Real), current, mA 0.000-3.000 0.001 ± (3% of setting + 50µA)

MEASUREMENT

HI and LO-Limit (Total), current, mA 0.000-3.000 0.001 ± (2% of setting + 2 counts)

HI and LO-Limit (Real), current, mA 0.000-3.000 0.001 ± (3% of setting + 50µA)

Current Offset 0.000 - 3.000mA (PF=0.00-1.00) *(Total current + current offset ≤3.000mA)

Short Circuit Protection Minimum current 3.5mA RMS at short circuit, Response time < 2ms

DC WITHSTAND VOLTAGE

SETTINGS

HI and LO-Limit, current, nA 0.0-999.9 0.1 ± (2% of setting + 10 counts)

Low Range is ON

1000 - 9999 1

HI and LO-Limit, current, uA 10.00 - 99.99 0.01

100.0 - 999.9 , Low range = ON

0.1 ± (2% of setting + 2 counts)

0.0 - 999.9 , Low range = OFF 1000 - 3000 1

Continued on next page



Page 85

MEASUREMENT

DC Current, nA 0.0 - 400.0 DC

(0.000 - 565.7 Peak)

DC Current, µA 0.350 - 4.000 DC

0.1 ± (2% of setting + 10 counts) Low Range is ON

0.001

(0.380 - 5.657 Peak)

3.50 - 40.00 DC

0.01

(3.80 - 56.57 Peak)

35.0 - 400.0 DC, Low Range = ON

0.1 ± (2% of setting + 2 counts)

(38.0 - 565.7 Peak)

0.0 - 400.0 DC, Low Range = OFF (0.0 - 565.7 Peak)

DC Current, mA 0.300 – 3.000 DC

0.001

(0.424 - 4.242 Peak)

Current Offset 0.000 - 3.000mA (PF=0.00-1.00) *(Total current + current offset ≤ 3.000mA)

Short Circuit Protection Minimum current 3.5mA DC at short circuit, Response time < 2ms

05 5mA AC/DC Output

The 5mA Output option limits the output current with software control. The trip points are adjusted to a maximum of 5mA and

the software has been modied so the high-speed maximum current shutdown is xed at 5mA. The following table shows the specications for this option:

5mA AC / DC Output

AC WITHSTAND VOLTAGE

SETTINGS

HI and LO-Limit (Total), current, mA 0.000-5.000 0.001 ± (2% of setting + 6 counts)

HI and LO-Limit (Real), current, mA 0.000-5.000 0.001 ± (3% of setting + 50µA)

MEASUREMENT

HI and LO-Limit (Total), current, mA 0.000-3.500 RMS

0.001 ± (2% of setting + 2 counts)

(0.000 - 5.657 Peak)

3.00-5.00 mA RMS

0.01

(4.24 - 7.07 Peak)

HI and LO-Limit (Real), current, mA 0.000-3.500 0.001 ± (3% of setting + 50µA)

3.00- 5.00 0.01

Current Offset 0.000 - 5.00mA (PF=0.00-1.00) *(Total current + current offset ≤ 5.00mA)

Short Circuit Protection Minimum current 5.8mA RMS at short circuit, Response time < 2ms

Continued on next page



Page 86

DC WITHSTAND VOLTAGE

SETTINGS

HI and LO-Limit, current, nA 0.0-999.9 0.1 ± (2% of setting + 10 counts)

Low Range is ON

1000 - 9999 1

HI and LO-Limit, current, uA 10.00 - 99.99 0.01

100.0 - 999.9 , Low range = ON

0.0 - 999.9 , Low range = OFF 1000 - 5000 1

MEASUREMENT

DC Current, nA 0.0 - 400.0 DC

(0.000 - 565.7 Peak)

DC Current, µA 0.350 - 4.000 DC

(0.380 - 5.657 Peak)

3.50 - 40.00 DC (3.80 - 56.57 Peak)

35.0 - 400.0 DC, Low Range = ON (38.0 - 565.7 Peak)

0.0 - 400.0 DC, Low Range = OFF (0.0 - 565.7 Peak)

DC Current, mA 0.300 – 4.000 DC

(0.424 - 5.657 Peak)

3.50 - 5.00 RMS (3.80 - 7.07 Peak)

0.1 ± (2% of setting + 2 counts)

0.1 ± (2% of setting + 10 counts) Low Range is ON

0.001

0.01

0.1 ± (2% of setting + 2 counts)

0.001

0.01

Current Offset 0.000 - 3.000mA (PF=0.00-1.00) *(Total current + current offset ≤3.000mA)

Short Circuit Protection Minimum current 5.8mA DC at short circuit, Response time < 2ms



Page 87

07 Printer Port

This option allows the instrument to generate a hard copy printout of the test results. The printout can be congured to print

automatically with each test or manually by pressing a front panel key. There is also the capability to enter a device ID number for

each test that will increment automatically after each test is performed. The test can be further congured to print only results

from tests that have failed or to print all test results from every test performed.

The Printer Port is a USB interface and should be compatible with most USB printers. The printer port output uses simple ASCII

characters and control codes. Simply connect the printer to the HypotULTRA and congure the printer output using the Setup

Systems menu. Once the Printer Port option is installed select the Setup System screen and the Print Format icon will now be displayed:

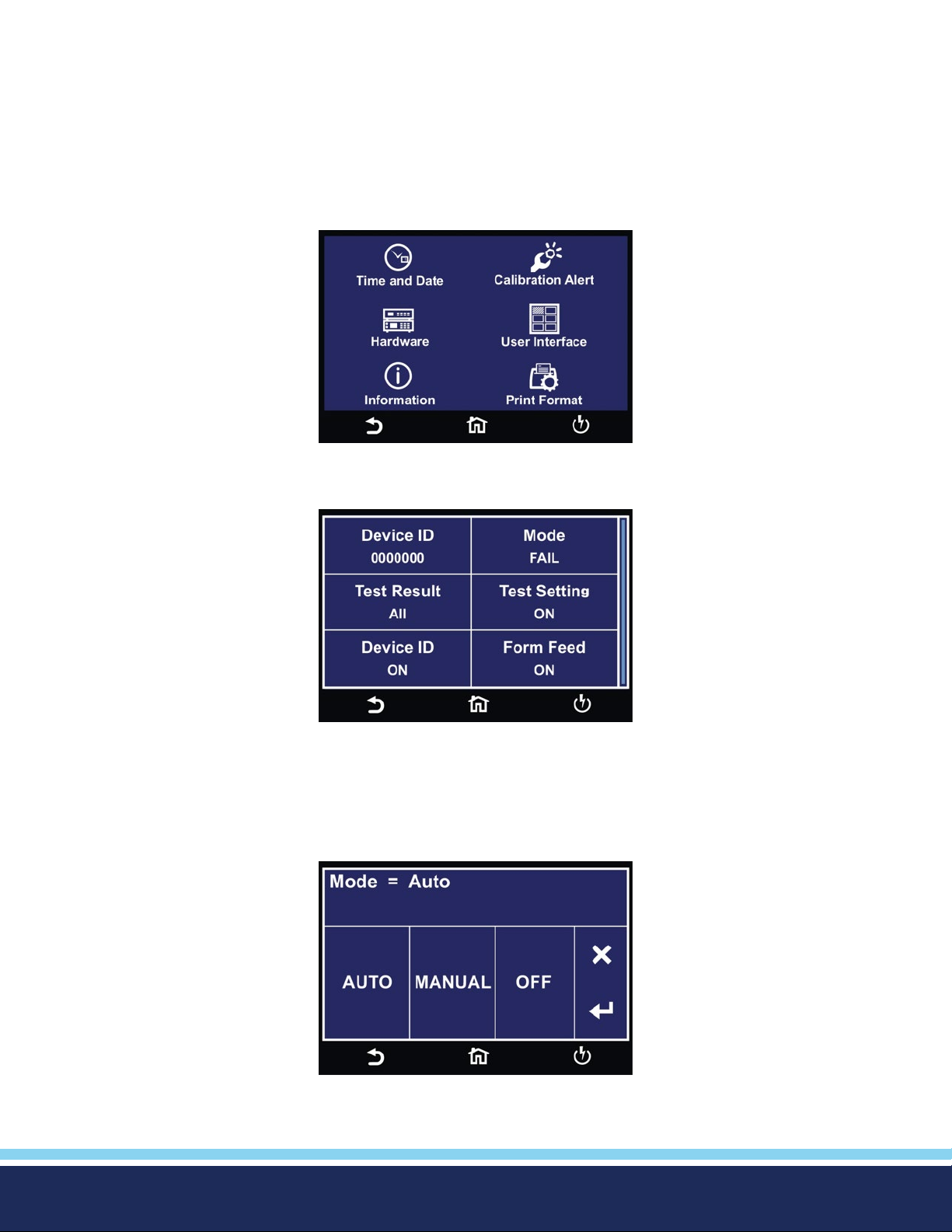

Select the Print Format icon and the next screen will display all the parameters for this option:

From the Print Format setting screen, six different parameters may be accessed; Device ID number, Mode, Test Result, Test Setting, Device ID, and Form Feed.

Mode

From the Print Format setting screen, select “Mode” and the following screen will appear:



Page 88

The three modes available are Auto, Manual and OFF. In the Auto mode, the HypotULTRA will automatically send the test results to the printer at the end of every complete test. If Manual mode is selected, at the end of the test you will need to select the Results icon to view the results. Under Results you will then select Present test. The next screen will display the results of the present test along with an option of Print Results. You can then select Print Results to send the test results to a printer.

OFF mode disables the printer card and printer menu.

Test Result

From the Print Format Setting screen, select “Test Result”:

The two options available for Test Result are “All” and “Fail”. This option allows you to select which test results will be printed. “All”, selects printing all test results and “Fail only”, selects printing only failed test results.

Test Setting

From the Print Format setting screen you can turn the Test Setting print enable ON and OFF. This parameter selects printing the test parameters as well as the test results:

Device ID

The Device ID parameter appears twice in under the Print Format option. The rst parameter allows you to set the Device ID to

ON or OFF:



Page 89

The Device ID number is a counter that increments once every time a test is performed. The number can be set to match the

exact serial number or some portion of the actual serial number of the item under test, or just used as an identier or tracking

number. From the Print Format Setting screen select Device ID:

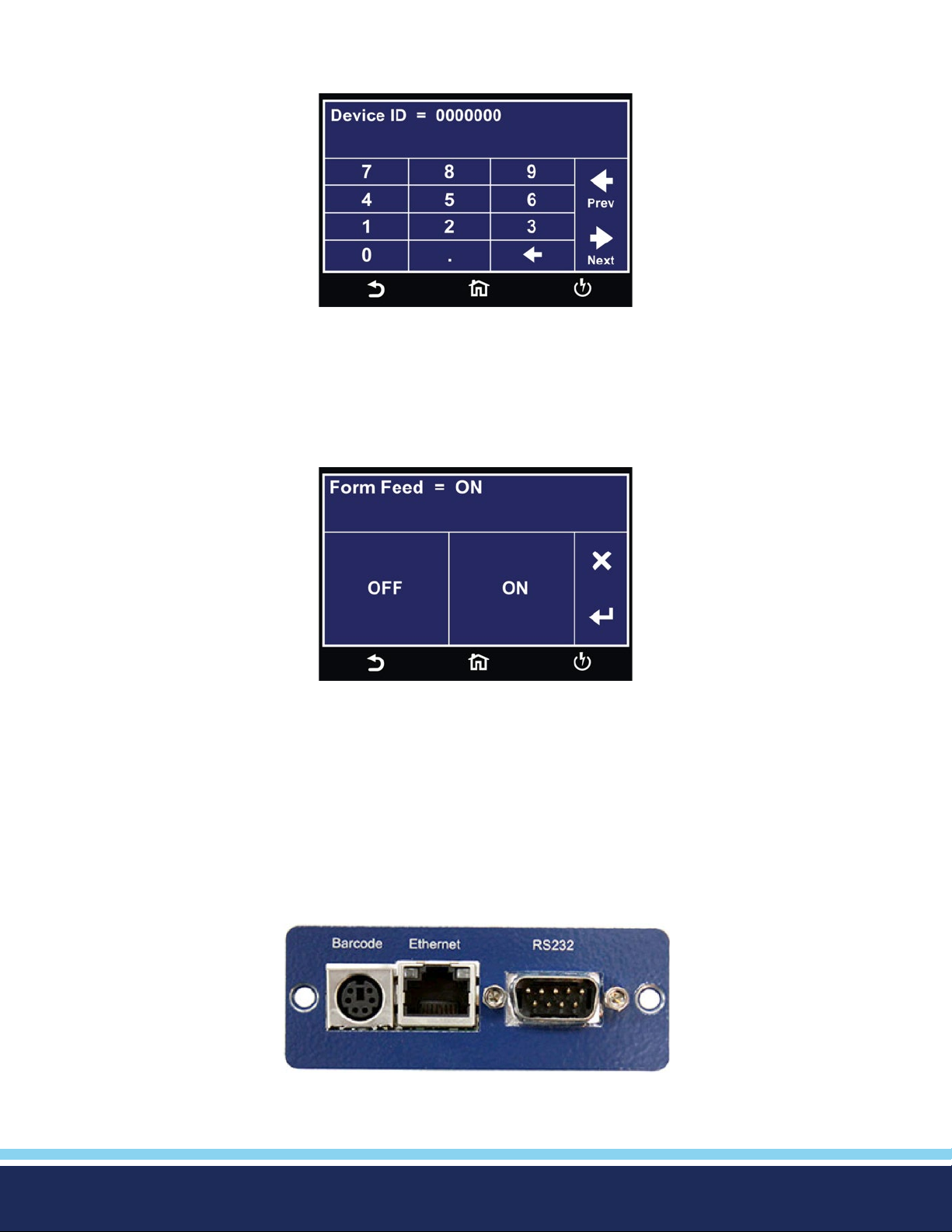

The Device ID number can be entered and saved using the touchscreen keypad.

Form Feed

From the Print Format Setting screen, you may turn the Form Feed ON and OFF by selecting the “Form Feed”. This parameter forces a form feed after each complete test sequence. When the form feed is turned OFF, the signature line will not appear. When the form feed is turned ON the pages will break whenever the page is determined to be full by the printer:

08 GPIB Card

This option may be substituted for the RS232 interface. This option provides all of the function control of the RS232 interface with the addition of SRQ functions. All commands can be found in section 7. Bus Remote Interface GPIB/USB/RS-232 of this manual.

09 Ethernet Card The Ethernet Card option provides RS-232 and Ethernet communication interfaces, as well as barcode scanning capability.

The Ethernet Card has three input/output ports, shown in the following gure:



Page 90

The port labeled “Barcode” is a PS/2-type connector that is used for the connection of a barcode scanner. The Ethernet port is for use with a standard CAT-5 Ethernet cable and may be connected to any compatible PC. The 9-pin D-type subminiature connector labeled “RS232” is for connection of the HypotULTRA to an RS-232 communication bus.

RS-232 Interface

The protocol for interfacing and communicating using the RS-232 interface can be found in section 8. Bus Remote Interface GPIB/USB/RS-232 of this manual.

Ethernet Interface

The Ethernet interface provides all of the function control of the standard RS-232 interface. Some commands are only exclusive to GPIB control.

Default Settings

The default settings for the Ethernet interface are as follows:

IP Setup: AUTO IP Address: 010.000.000.000 Gateway IP: 000.000.000.000 Subnet Mask: 255.000.000.000

The source port number for the Ethernet Card in TCP connections is 10001.

Ethernet Card Setup

In order to setup the Ethernet card, the operator will need information from the local network administrator. Please have your

network administrator ll out the required information on the next page and keep it for your records:

Associated Research Ethernet Card Communications Information

(To be completed by Network Administrator)

Ethernet Card Address: ______:______:______:______:______ Device Name: _____________________ Device IP Address: _______._______._______._______ Gateway IP Address: _______._______._______._______ Subnet Mask: _______._______._______._______



Page 91

Saving New Settings

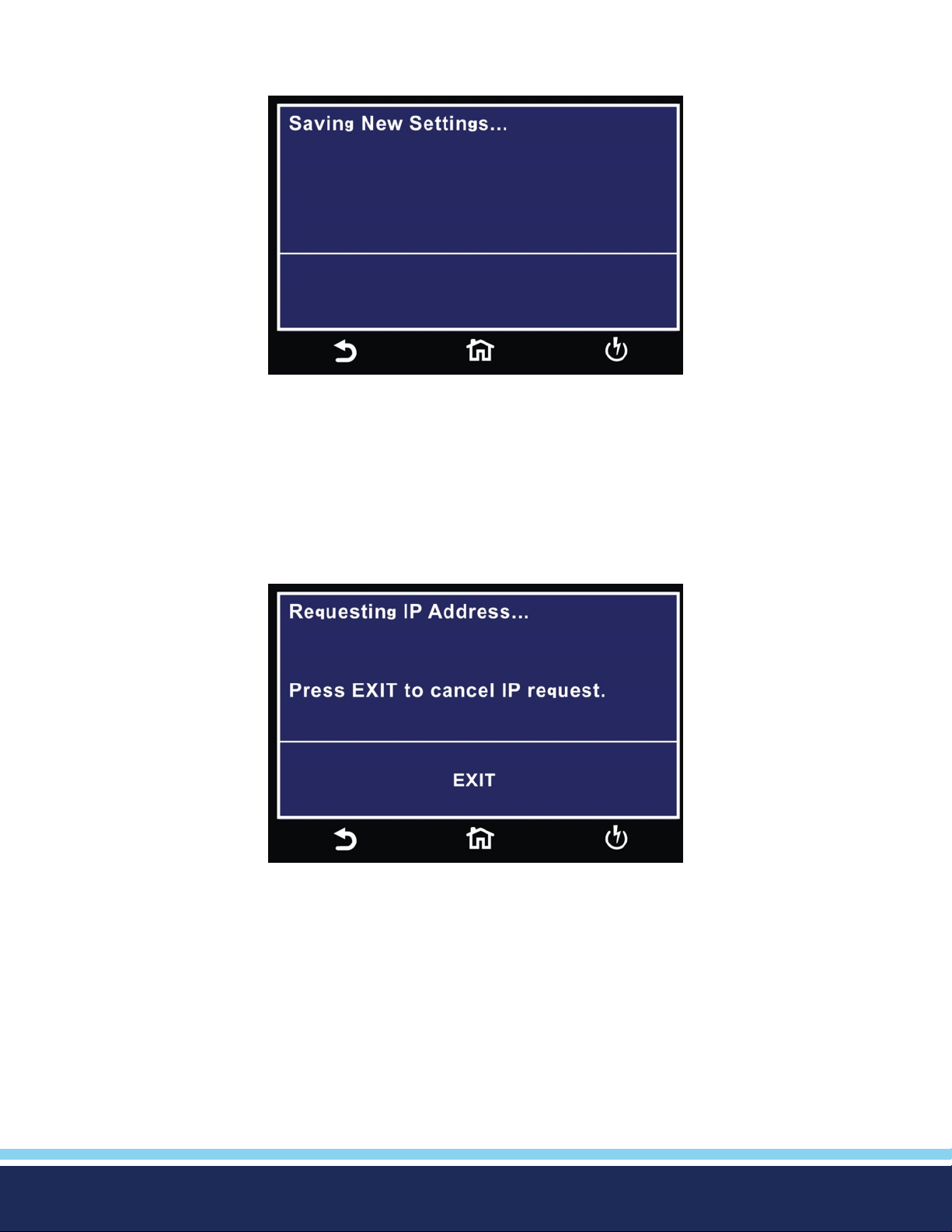

Any time you edit one of the Ethernet Card parameters and exit the Ethernet Card Settings menu, HypotULTRA displays the following message:

The Ethernet Card will attempt to re-establish a connection with the server anytime you modify a parameter and exit the Ethernet Card Parameters Menu or use the command set at the end of this option description. Thus, if the IP Setup is set to AUTO, the Ethernet Card will request a new IP Address every time a parameter is edited and, as a result, the “Requesting IP Address. . .” message will appear.

Power Up

The Ethernet Card will be installed with the default options listed above. After the HypotULTRA initially powers up, the following pop-up message will appear:

NOTE: The “Requesting IP Address…” pop-up message only appears at power up when the Ethernet Card has its IP Setup

congured to AUTO.

There are two options to choose from this screen. Select the EXIT key to escape from this screen and stop the HypotULTRA from requesting an IP address or allow the HypotULTRA to request an IP address automatically from the network to which it is connected.



Page 92

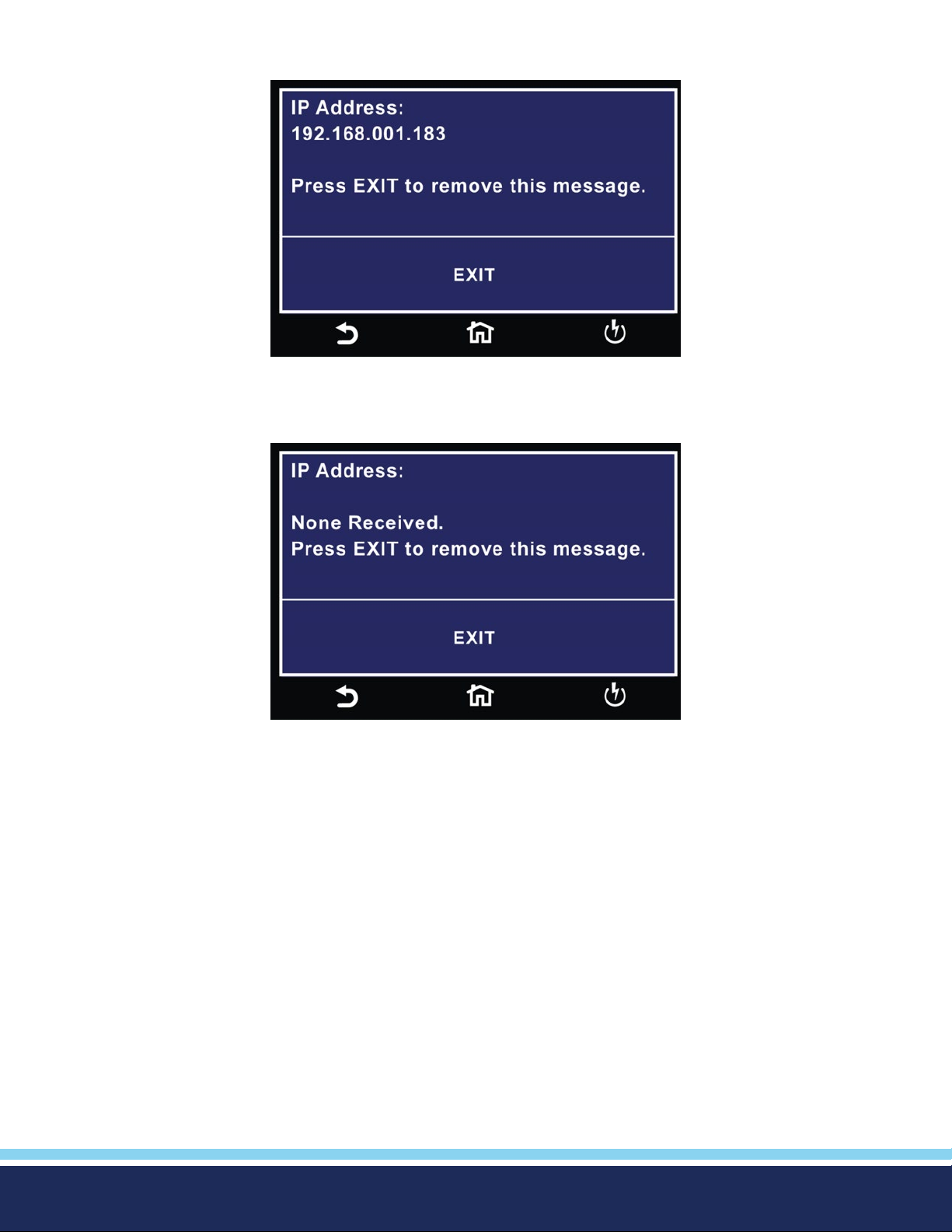

The Ethernet Card will wait for an IP Address for approximately 20 seconds. If the HypotULTRA successfully receives an IP Address from the server the following pop-up message will be displayed:

If the HypotULTRA

fails to receive an IP Address after approximately 20 seconds, the following pop-up message will be

displayed:

Select the EXIT key to remove the pop-up message.



Page 93

Ethernet Card Menu

When the Ethernet Card option is installed, the “Ethernet Card” icon will appear in the System Settings menu.

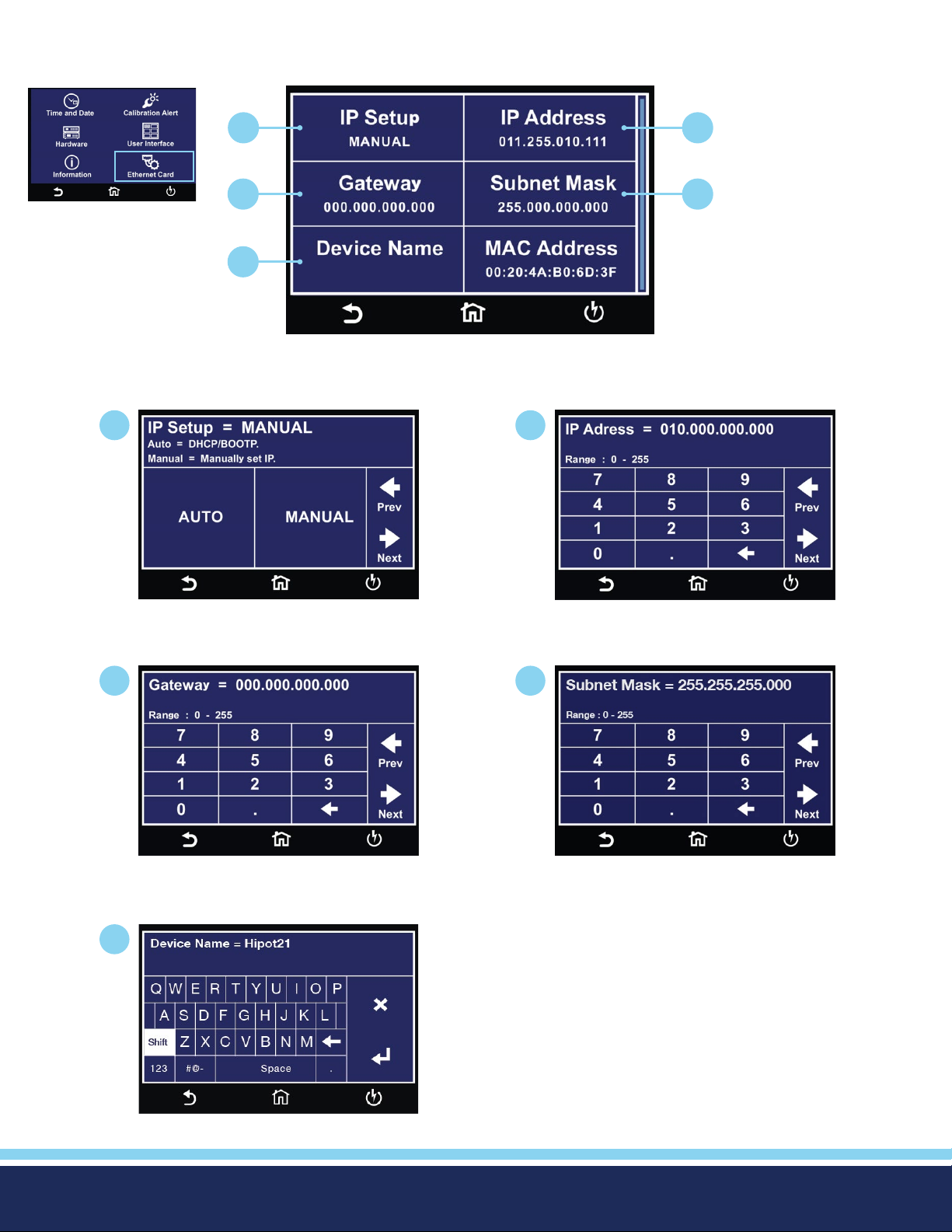

System Menu

Ethernet Card Menu

Select IP Setup Manual or Auto.

Enter Gateway IP Address.

Enter IP Address.

Enter Subnet Mask.

Enter Device Name.



Page 94

IP Setup IP Setup is used to determine how the HypotULTRA will request an IP address from the

server to which it is connected. When AUTO is selected, the HypotULTRA will attempt to automatically request an IP Address from the server upon power up. To resolve the IP Address automatically, the HypotULTRA will use DHCP or BOOTP protocols. When MANUAL is

selected, the HypotULTRA will request a specic IP Address from the server. The IP Address that will be requested must be entered in the subsequent IP Address parameter eld.

IP Address A specic IP Address must be entered into this eld if the IP Setup parameter is congured

to MANUAL. Enter the IP Address that you wish using the numeric keypad. The IP Address must be entered in the following format: XXX.XXX.XXX.XXX. A valid IP Address must be entered. Users may not use the following IP Addresses:

255.255.255.255

000.000.000.000

Gateway IP A specic Gateway IP must be entered into this eld if the IP Setup parameter is congured

to MANUAL. Enter the Gateway IP using the touchscreen keypad. The Gateway IP must be entered in the following format: XXX.XXX.XXX.XXX.

Subnet Mask Select the Subnet Mask parameter using the touchscreen. A specic Subnet Mask must be

entered into this eld if the IP Setup parameter is congured to MANUAL. Enter the Subnet

Mask using the touchscreen keypad. The Subnet Mask must be entered in the following format: XXX.XXX.XXX.XXX.

If the IP Setup parameter is set to AUTO, you do not need to enter a Subnet Mask manually.

Device Name he Device Name is used to identify the HypotULTRA on your server and may be used in place

of a dedicated IP Address.

The Device Name parameter is only active when the IP Setup is set to AUTO.

Mac Address View the MAC address of the Ethernet Card. This parameter is not adjustable.



Page 95

Ethernet Card Settings Commands and Companion Queries

COMMAND NAME VALUE

SIM {1|0} SIM?

SIA <value> SIA?

SGA <value> SGA?

SSM <value> SSM?

SDN <value> SDN?

MAC? MAC Address Query Example response: 00:20:4A:8B:B4:30

Mimic HU3 Command Set

SBI {4|3|2|1|0} SBI?

SAS {1|0} SAS?

Communication Considerations

Set IP Mode 1=Manual, 0=Auto

Set IP Address Dotted decimal form. Ex. 192.168.1.50

Set Gateway IP Address Dotted decimal form

Set Subnet Mask Dotted decimal form

Set Device Name Any word

Set Barcode Input 0=Off, 1=Serial# and Product#, 2=Serial#

Only, 3=Product# Only, 4=Run File

Set Autostart 1=On, 0=Off

• All of the above commands (excluding the query commands) will respond with the 06 hex (6 decimal) Acknowledge (ACK) ASCII control code if the transfer was recognized by the instrument.

• If there was an error with the command string, the instrument will respond with 15 hex (21 decimal), the Not Acknowledge (NAK) ASCII control code.

• However, the presence of this response does not mean that the instrument (in the case of these commands only) completed the command. These commands require a restarting of the hardware that controls the Ethernet Protocols. Because of this, you must wait before the Ethernet Card will respond to another command. See the table below for the approximate wait times necessary after one of the commands in the table is sent. In addition, the current socket connection between you terminal and the Ethernet Card is no longer valid, and you will need to close their current connection and establish a new one.

Ethernet Card Settings Command Wait Times

IP MODE COMMAND WAIT TIME AFTER COMMAND IS SENT*

Manual SIA, SGA, SSM 8 seconds

SIM 0 14 seconds

Auto SDN 14 seconds

SIM 1 8 seconds

*Wait times are approximate and can vary based on the user’s network.



Page 96

10 Burn Hipot Test

The Burn Hipot Test option allows you to repeat two ACW test periods during one step which yields a single test result. The rst

test of the step performs the Burn function and the second test performs the standard AC Withstand test. The Burn part of the test can also be deactivated by setting the Burn to OFF in the Edit menu of each step. When Burn is set to OFF the test will not be repeated, therefore only one ACW test will be performed. To activate the Burn mode, be sure that the Burn setting is set to ON for each step of the memory that the Burn period is required.

CAUTION

During the Burn period of the test the Max\Min Limits and ARC failures are disabled. If a Breakdown or Short occurs during the Burn function that exceeds 30mA the Burn test will be discontinued and proceed to the standard ACW test period. If the current remains below 30mA, the Burn test will continue for the full time that has been programmed before restarting the ACW test period.

The Burn Hipot Test option reduces the standard minimum Dwell time from 0.4 seconds to 0.1 seconds. The option optimizes the single test cycle time and results in a fast overall test cycle time of two tests in less than 600ms; measured from the Remote Test input to the Remote Pass output.

The Ramp UP, Dwell, and Ramp DN cycle times as well as the Test Voltage settings apply to both the Burn and standard ACW portions of the test. To minimize the cycle time and achieve the 600ms overall test time the Ramp UP and Dwell times must be set to the minimum of 0.1s and Ramp DN should be disabled by setting it to 0.0s.

In order to provide the decreased cycle time some of the instruments normal functions have been limited or disabled. If the Dwell time is set to less than 0.4 seconds the Real current meter, auto-ranging, and the Results selection in the System Menu will all be

disabled. The current meter range will be determined by the Max Limit setting of the tests. The meter will be set to a xed range

so that it can accurately measure the current to perform the Max limit judgment during the ACW period. The Results selection will be preset to “Last” and the “All” and “P/F” settings (Pass/Fail) will not be available.

The following specications will be altered by the installation of the Burn Hipot Test option, all other specications will remain the

same.

During the Burn period visual arcing or short circuit conditions that would typically disable the high voltage will cause the high voltage to be reactivated.

BURN SPECIFICATIONS

Dwell Timer Range: 0.0, 0.1 – 999.9 sec (0 = Continuous)

Resolution: 0.1 sec Accuracy: ± (0.1% + 0.05 sec)

HI-Limit and LO-Limit AC Real Disabled for Dwell time settings of < 0.4 seconds

Current Display AC Real Disabled for Dwell time settings of < 0.4 seconds



Page 97

12 Negative DCW

The Negative DCW option, when activated, adds another test eld in the Setup Test screen –DCW. This is the same test as the normal DCW but in reverse polarity. A negative DC voltage will be applied. The following table shows the specications for this

option:

NEGATIVE DCW

Output Voltage, DCV 0 - (-6000) 1 ± (2% of setting + 5V)

DC Output Ripple <4 % (-6KV/10mA at Resistive Load)

SETTINGS

Auto Range

Range Resolution Accuracy

HI and LO-Limit, current, uA 0.0000-0.9999 0.0001

1.000 - 9.999 0.001

± (2% of setting + 10 counts)

Low Range is ON

10.00 - 99.99 0.01

100.0 - 999.9 , Low range = ON

0.0 - 999.9 , Low range = OFF

0.1 ± (2% of setting + 2 counts)

1000 - 10000 1

Ramp-Up Timer, second 0.4 - 999.9

Ramp-Down Timer, second 0.0, 1.0-999.9

0.1 ± (0.1% + 0.05 sec)

0, 0.4 - 999.9 ,(0=continuous) and 0, 1.0 - 999.9 when it be selected low current range.

Ramp-HI, current , uA 0.0000-0.9999 0.0001

1.000 - 9.999 0.001

± (2% of setting + 10 counts)

10.00 - 99.99 0.01

100.0 - 999.9 0.1 ± (2% of setting + 2 counts)

1000 - 10000 1

Charge-LO, current 0.0 - 350.0 µA DC or Auto Set, When current range is 3 ranges.

0.00 - 35.00 uA DC or Auto Set, When current range is 6 ranges.

Discharge Time ≤ 50 msec for no load, < 100 msec for capacitive load

Maximum Capacitive Load

1µF < 1KV 0.08µF < 4KV

DC Mode

0.75µF < 2KV 0.04µF < 5KV

Low Range is ON

0.5µF < 3KV 0.015uF < 6KV

Continued on next page



Page 98

Ground Continuity Current Current: DC 0.1 A ± 0.01A, xed

Max. Ground Resistance: 1.0 Ω ± 0.1Ω

Current Offset (like U3) 0.0 - 10000uA *(Total current + current offset ≤10mA)

Arc Detection 1 - 9 ranges (9 is the most sensitivity)

Fixed Range

Range Resolution Accuracy

DC Current, µA 0.0000 - 0.3500 0.0001

0.351 -3.500 0.001

± (2% of setting + 10 counts)

Low Range is ON

3.51 - 35.00 0.01

35.1 - 350.0 , Low range = ON

0.1

0.0 - 350.0 , Low range = OFF

351 – 3500 1

± (2% of setting + 2 counts)

3501 - 10000 1

Measurement

Voltage, KV(AC/DC) 0.00-(-6.00) 0.01 ± (2% of reading +1 count)

Accuracy for Auto Range

DC Current, nA 0.0 - 400.0 DC

0.1

(0.000 - 565.7 Peak)

0.350 - 4.000 DC

(0.380 - 5.657 Peak)

3.50 - 40.00 DC

0.001

0.01

± (2% of reading + 10 counts)

Low Range is ON

(3.80 - 56.57 Peak)

35.0 - 400.0 DC, Low Range = ON

0.1

(38.0 - 565.7 Peak)

0.0 - 400.0 DC, Low Range = OFF

(0.0 - 565.7 Peak)

DC Current, mA 0.300 – 4.000 DC

0.001

± (2% of reading + 2 counts)

(0.424 - 5.657 Peak)

3.50 - 10.00 DC

0.01

(3.80 - 14.14 Peak)

Accuracy for Fixed Range

DC Current, nA 0.0 - 350.0 0.1 ± (2% of reading + 10 counts)

Low Range is ON

DC Current, µA 0.000 -3.500 0.001 ± (2% of reading + 10 counts)

Low Range is ON

0.00 - 35.00 0.01 Additional error when reading

< 6% of range ± (0.1% of range)

00.0 - 350.0 0.1 ± (2% of reading + 2 counts)

Continued on next page



Page 99

Range Resolution Accuracy

DC Current, mA 0.000 – 3.500 0.001 ± (2% of reading + 2 counts)

Additional error when reading < 6% of range

± (0.1% of range)

0.00 - 10.00 0.01 ± (2% of reading + 2 counts)

Additional error when reading < 6% of range

± (0.2% of range)

13 400/800 Hz Hipot Output

Perform ACW test at 400Hz or 800Hz.

14 Mimic HU3 Command Set

The Mimic HU3 Command Set option for the new HypotULTRA allows you to emulate the HypotULTRA 3 making it a drop-in replacement for the older model. The new interface commands and structure of the HypotULTRA can emulate those of the HypotULTRA 3 interface. This will allow HypotULTRA 3 users to integrate the new model into existing test systems easier. For a complete list of bus commands for this option refer to the HypotULTRA 3 product manual.

The following specications apply to the Continuity Test with this option:

CONTINUITY TEST

Output Current, DC 0.1A for 0.00-10.00Ω, 0.01A for 10.01-100.0Ω, 0.001A for 100.1-1000Ω, 0.0001A for

1000-2000Ω.

All ranges have 10% over range capability Range indicated is for total resistance which includes any programmed offset value Therefore when offset is used the meter display may fall into a higher resistance range

SETTINGS

Range Resolution Accuracy

Max-Lmt, Ω 0.00 – 9.99 0.01

10.0 – 100.0 0.1

101 – 1000 1

1001 – 2000 1 ± (1% of setting + 10 counts)

Resistance Display, Ω 0.00 – 9.99 0.01 ± (1% of setting + 3 counts)

10.00 – 20.00 .01 ± (1% of setting + 30 counts)

20.1 – 100.0

0.1

100.1 – 199.9 ± (1% of setting + 30 counts)

± (1% of setting + 3 counts)

200 – 1000

1001 – 2000 ± (1% of setting + 10 counts)

± (1% of setting + 3 counts)



Page 100

Appendix D - Remote BUS Interface: RS-232

This section provides information on the proper use and conguration of the bus remote interface. The USB/RS-232 remote interface is standard on the HypotULTRA but the GPIB (IEEE-488) interface option can be substituted for the USB/RS-232 interface. Please refer to Options for details on the HypotULTRA options. The USB/RS-232 interface uses the same command set as the GPIB interface for setting test parameters; however, many functions of the GPIB 488.2 interface are not available through USB/ RS-232. The IEEE-488 interface included with the HypotULTRA conforms to the requirements of the IEEE-488.2 standard.

The USB/RS-232 interface card requires you to download a driver in order for the instrument to recognize the USB interface. The driver can be found on the Associated Research website:

http://www.arisafety.com/products/software/USB-driver.aspx

Click on “USB/RS-232 Driver” to download the driver. This link contains an automatic extract and install program. Follow the instructions of the installation program to initialize the driver install. NOTE: The USB port acts as a USB to RS-232 converter. As a result, the PC will recognize the USB port as a virtual COM port.

USB/RS-232 Interface

This interface provides all of the control commands and parameter setting commands of the GPIB interface with the exception of some of the 488.2 Common Commands and SRQ capability. All commands can be found in USB/RS-232/GPIB Command List.

The identication command *IDN and the Status Reporting commands are also available through USB/RS-232.

RS-232 Connector

The RS-232 cabling should be congured as follows for a 9-pin serial port interface:

Communications Port Conguration

The COM port should have the following conguration:

• 38400 baud

• 8 data bits

• 1 stop bit

• No parity

This interface does not support XON/XOFF protocol or any hardware handshaking. The controller should be congured to ignore the handshaking lines DTR (pin 4), DSR (pin 6) CTS (pin 8) and RTS (pin 7). If the port cannot be congured through

software to ignore these lines the handshake lines should be jumpered together in two different sets. Pins 4 and 6 should be jumpered together and pins 7 and 8 should be jumpered together at the controller end of the cable.



100
