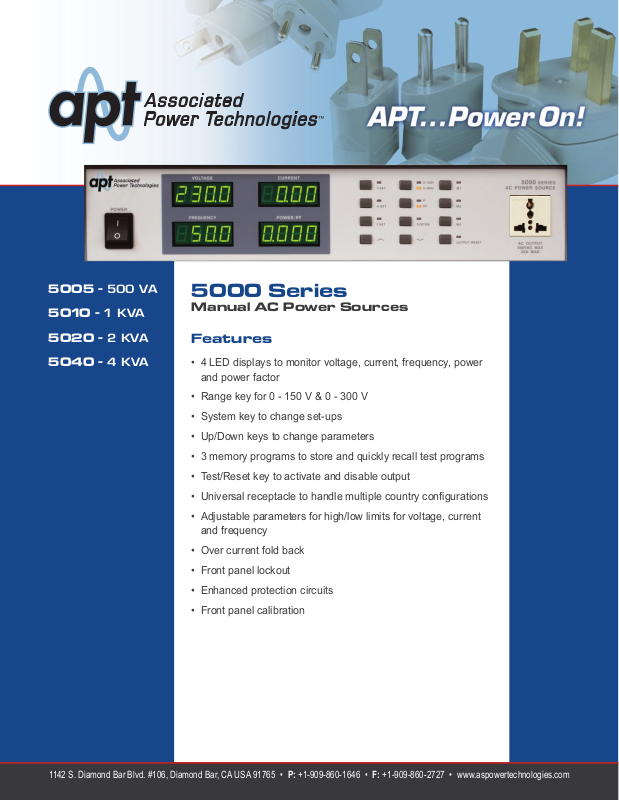

Associated Power Technologies 5005 Data Sheet

5005 –

5010 –

500 VA

1 KVA

5000 Series

Manual AC Power Sources

5020 –

5040 –

2 KVA

4 KVA

Features

• 4 LED displays to monitor voltage, current, frequency, power
and power factor

• Range key for 0 - 150 V & 0 - 300 V

• System key to change set-ups

• Up/Down keys to change parameters

• 3 memory programs to store and quickly recall test programs

• Test/Reset key to activate and disable output

• Universal receptacle to handle multiple country congurations

• Adjustable parameters for high/low limits for voltage, current
and frequency

• Over current fold back

• Front panel lockout

• Enhanced protection circuits

• Front panel calibration

1142 S. Diamond Bar Blvd. #106, Diamond Bar, CA USA 91765 •• P: [phone] •• F: [phone] •• www.aspowertechnologies.com

Specifications

Input

Phase

5005/5010/5020/5040 1 Ø

Voltage

5005/5010 115/230 Vac ± 10%

5020/5040 208 Vac ± 10%
OPTION: 230 Vac ± 10%

Frequency

5005/5010/5020/5040 47 - 500 Hz

Output

Power Rating

5005 500 VA
5010 1000 VA
5020 2000 VA
5040 4000 VA

Max. Current (RMS)

5005 0 - 150 V: 4.6 A at < 110 V
0 - 300 V: 2.3 A at < 220 V

5010 0 - 150 V: 9.2 A at < 110 V
0 - 300 V: 4.6 A at < 220 V

5020 0 - 150 V: 18.4 A at < 110 V
0 - 300 V: 9.2 A at < 220 V

5040 0 - 150 V: 36.8 A at < 110 V
0 - 300 V: 18.4 A at < 220 V

Frequency

5005/5010/5020/5040 Range: 40 - 450 Hz

Phase

5005/5010/5020/5040 1 Ø/2 W

Total Harmonic
Distortion (T.H.D)

5005/5010/5020/5040 < 1% Resistive Load

Crest Factor

5005/5010/5020/5040 ≥ 3

Line Regulation

5005/5010/5020/5040 ± 0.1 V

Load Regulation

5005/5010/5020/5040 ± (0.5% of output +0.5 V)
at Resistive Load

Response Time

5005/5010/5020/5040 < 400 μ/sec

Voltage

5005/5010/5020/5040 0 - 300 V

Measurement

Voltage

Resolution: 0.1 V
Accuracy:

Resolution: 0.1 V
Accuracy:

Frequency

5005/5010/5020/5040 Range: 0.0 - 500.0 Hz
Resolution: 0.1 Hz
Accuracy: ± 0.1 Hz

Current

5005 Range: 0.00 - 6.50 A
Resolution: 0.01 A
Accuracy: ± (1% of reading +5 counts)

5010 Range: 0.00 - 13.00 A
Resolution: 0.01 A
Accuracy: ± (1% of reading +5 counts)

5020 Range: 0.00 - 26.00 A
Resolution: 0.01 A
Accuracy: ± (1% of reading +5 counts)

5040 Range: 0.05 - 52.00 A
Resolution: 0.01 A
Accuracy: ± (1% of reading +5 counts)

Power
5005 Range: 0 - 650 W

Resolution: 1 W
Accuracy: ± (2% of reading +5 counts) at PF > 0.2

5010 Range: 0 - 1300 W
Resolution: 1 W
Accuracy: ± (2% of reading +5 counts) at PF > 0.2

5020 Range: 0 - 2600 W
Resolution: 1 W
Accuracy: ± (2% of reading +5 counts) at PF > 0.2

5040 Range: 0 - 5200 W
Resolution: 1 W
Accuracy: ± (2% of reading +5 counts) at PF > 0.2

Power Factor

5005/5010/5020/5040 Range: 0.000 - 1.000

Resolution: 0.001
Accuracy: W/VA, Calculated and displayed

Inrush Current

5005/5010/5020/5040 4 times the rated current

Enhanced Over
Load Capacity

5005/5010/5020/5040 4 times the rated current, over current of

5005/5010

5020/5040 Range: 0.0 - 400.0 V

Range: 0.0 - 400.0 V

± (1% of reading +2 counts)

± (1% of setting +5 counts) > 5 V

to three signicant digits

110% can held for 1000 ms

Toll Free: [phone]

Specifications

Settings

Over Current Fold
Back Mode

5005/5010/5020/5040 On/Off Setting < 1400 ms

Power Up

5005/5010/5020/5040 Selectable On, Off, Last

Hi & Lo Volt

5005/5010/5020/5040 Adjustable 0 - 300 V

Hi & Lo Frequency

5005/5010/5020/5040 Adjustable 40 - 450 Hz

Hi Current

5005/5010/5020/5040 Adjustable

General

Memory

5005/5010/5020/5040 3 memories (M1, M2, M3)

Key Lock

5005/5010/5020/5040 Menu Selectable Lock Function

Protection

5005/5010/5020/5040 Over Current Protection, Over Voltage

Protection, Over Power Protection,
Over Temperature Protection

Calibration

5005/5010/5020/5040 Front Panel Calibration

Efciency

5005/5010/5020/5040 ≥ 80% (at Full Load)

Environment

5005/5010/5020/5040 0 - 40°C/20 - 80% RH

Mechanical

Fan

5005/5010/5020/5040 Built-in Cooling Fan

Front Panel Output

5005/5010/5020/5040 Universal Receptacle

Rear Panel Output

5005/5010 N/A
5020 Universal Receptacle
5040 Terminal Block (L, N, G)

Dimension
(W×H×D, in)

5005 17 x 3.5 x 12
5010 17 x 3.5 x 16
5020 17 x 3.5 x 20
5040 17 x 8.75 x 20

Net Weight
5005 25 lbs

5010 40 lbs
5020 66 lbs
5040 143 lbs

Options

Option 1

5005/5010 N/A
5020/5040 230 Vac ± 10% Input

Option 2

5005/5010/5020/5040 Grounded Neutral

APT...Power On!

*Specications subject to change

Toll Free: [phone]

Associated Power Technologies, Inc. (APT) provides
superior products and services to a variety of test &
measurement, avionics, manufacturing, and military
applications requiring power conversion equipment.

Our AC power sources are feature rich and highly
adaptable to multiple applications. Our engineering
group is focused on providing the latest technology to
meet and exceed your expectations. We do this while
keeping our power sources competitively priced.

Our value goes far beyond what our competition
can provide. In addition to offering innovative and
competitively priced products, all of our power sources
are stocked and we guarantee to ship any instrument
within 24 hours! We understand that your need for
quality instrumentation is immediate and it hurts your
bottom line to wait weeks for a piece of equipment.
Furthermore, all of our power sources come with a
45 day satisfaction guarantee. This means that if you
are unhappy with your purchase for any reason
whatsoever, then you can simply return your power
source to us within 45 days and we give you a full
refund or credit towards another APT power source –
no questions asked.

Lastly, all of our power sources come with a standard

one year warranty. Three year and ve year warranties

are also available.

We provide world class customer support and service

so you can be condent that we will always be there

standing behind our products. Our elite engineering
group continues to develop exciting products to meet
new testing demands. We can do this and more
because we place our focus on you, the customer!

Please give us a call today!
Toll Free: [phone]

APT...Power On!

APT offers two distinct lines of AC power sources: Our
6000 series of automated AC power sources and our
5000 series of manual AC power sources.
