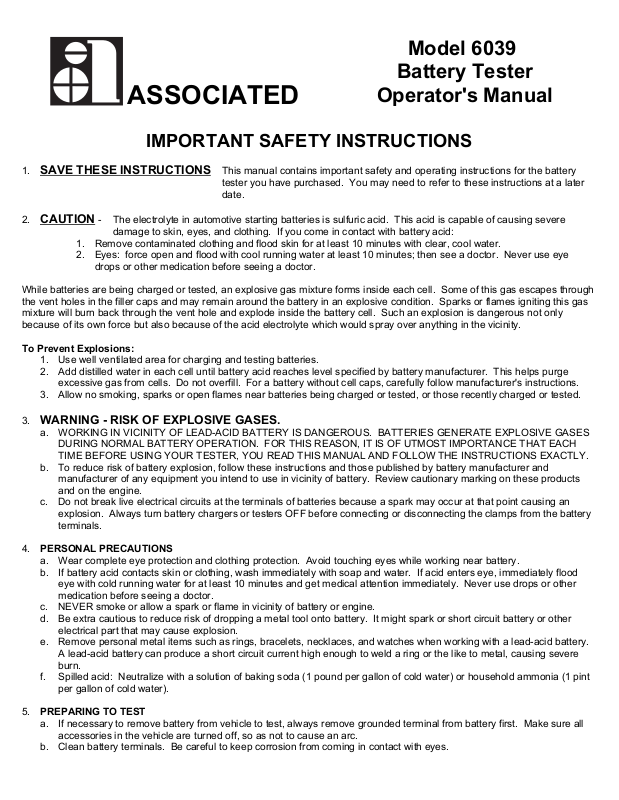

Associated 6039 User Manual

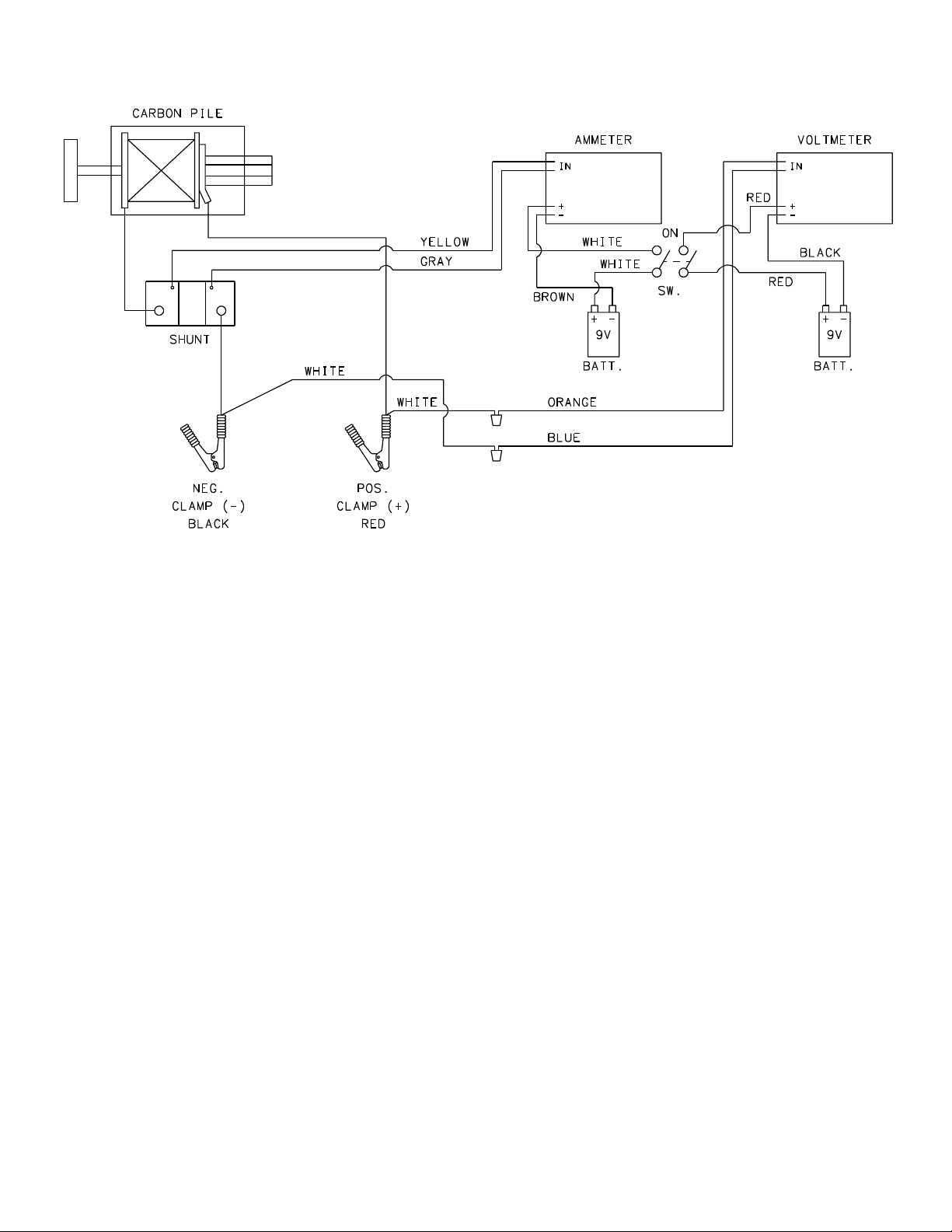

Model 6039

Battery Tester

ASSOCIATED

Operator's Manual

IMPORTANT SAFETY INSTRUCTIONS

1. SAVE THESE INSTRUCTIONS This manual contains important safety and operating instructions for the battery

tester you have purchased. You may need to refer to these instructions at a later
date.

CAUTION - The electrolyte in automotive starting batteries is sulfuric acid. This acid is capable of causing severe

2.
damage to skin, eyes, and clothing. If you come in contact with battery acid:

1. Remove contaminated clothing and flood skin for at least 10 minutes with clear, cool water.

2. Eyes: force open and flood with cool running water at least 10 minutes; then see a doctor. Never use eye
drops or other medication before seeing a doctor.

While batteries are being charged or tested, an explosive gas mixture forms inside each cell. Some of this gas escapes through
the vent holes in the filler caps and may remain around the battery in an explosive condition. Sparks or flames igniting this gas
mixture will burn back through the vent hole and explode inside the battery cell. Such an explosion is dangerous not only
because of its own force but also because of the acid electrolyte which would spray over anything in the vicinity.

To Prevent Explosions:

1. Use well ventilated area for charging and testing batteries.

2. Add distilled water in each cell until battery acid reaches level specified by battery manufacturer. This helps purge
excessive gas from cells. Do not overfill. For a battery without cell caps, carefully follow manufacturer's instructions.

3. Allow no smoking, sparks or open flames near batteries being charged or tested, or those recently charged or tested.

WARNING - RISK OF EXPLOSIVE GASES.

3.
a. WORKING IN VICINITY OF LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES

DURING NORMAL BATTERY OPERATION. FOR THIS REASON, IT IS OF UTMOST IMPORTANCE THAT EACH
TIME BEFORE USING YOUR TESTER, YOU READ THIS MANUAL AND FOLLOW THE INSTRUCTIONS EXACTLY.

b. To reduce risk of battery explosion, follow these instructions and those published by battery manufacturer and

manufacturer of any equipment you intend to use in vicinity of battery. Review cautionary marking on these products
and on the engine.

c. Do not break live electrical circuits at the terminals of batteries because a spark may occur at that point causing an

explosion. Always turn battery chargers or testers OFF before connecting or disconnecting the clamps from the battery
terminals.

4. PERSONAL PRECAUTIONS
a. Wear complete eye protection and clothing protection. Avoid touching eyes while working near battery.
b. If battery acid contacts skin or clothing, wash immediately with soap and water. If acid enters eye, immediately flood

eye with cold running water for at least 10 minutes and get medical attention immediately. Never use drops or other

medication before seeing a doctor.
c. NEVER smoke or allow a spark or flame in vicinity of battery or engine.
d. Be extra cautious to reduce risk of dropping a metal tool onto battery. It might spark or short circuit battery or other

electrical part that may cause explosion.
e. Remove personal metal items such as rings, bracelets, necklaces, and watches when working with a lead-acid battery.

A lead-acid battery can produce a short circuit current high enough to weld a ring or the like to metal, causing severe

burn.
f. Spilled acid: Neutralize with a solution of baking soda (1 pound per gallon of cold water) or household ammonia (1 pint

per gallon of cold water).

5. PREPARING TO TEST
a. If necessary to remove battery from vehicle to test, always remove grounded terminal from battery first. Make sure all

accessories in the vehicle are turned off, so as not to cause an arc.

b. Clean battery terminals. Be careful to keep corrosion from coming in contact with eyes.

c. Determine cold cranking amp (CCA) rating of battery by referring to car owner's manual or label on battery.

6. TESTER LOCATION
a. Locate tester as far away from battery as DC cables permit.
b. Never allow battery acid to drip on tester when reading specific gravity or filling battery.
c. Do not set a battery on top of tester.
d. Position cables to reduce risk of damage by hood, door, or moving engine parts.
e. Stay clear of fan blades, belts, pulleys and other parts that can cause injury to persons.

7. CONNECTION PRECAUTIONS
a. Check that the load knob is fully counter clockwise before connecting clamps.
b. When attaching clamps to battery posts, twist or rock back and forth several times to make a good connection. This

tends to keep clamps from slipping off terminals and helps to reduce risk of sparking.

OPERATING INSTRUCTIONS

Duty Cycle: It is difficult to specify a duty cycle on a carbon pile load tester. It will vary greatly with ambient temperature,

length of test and load current on battery.

For maximum life, we recommend that the carbon pile never be heated until it is red hot. This can be easily seen by looking in
the unit when running a test. A red glow will indicate that the discs are so hot that the binders which hold the carbon granules
together are burning and deteriorating. This will lead to a deterioration of the discs, which will be exhibited by the surfaces of the
disc turning soft and powdery.

1. Visually inspect battery for obvious damage. Do not test battery if posts are loose, case is cracked, or fluid level in cells is
below the top of the plates. With "maintenance free" batteries, see manufacturer's instructions for checking water level.

Do not test a frozen battery.

2. See connection precautions before connecting or disconnecting clamps prior to test.

3. Connect RED clamp to POSITIVE (POS, +, P) battery post and BLACK clamp to NEGATIVE (NEG, -, N) battery post. Rock
clamps to be sure of good electrical connection.

4. DETERMINE STATE OF CHARGE OF BATTERY.
a. Adjust LOAD CONTROL clockwise (CW) to ½ CCA rating for 3 seconds and release. Do not exceed 300 Amps on a

24-Volt battery.

b. Determine State of Charge by reading voltmeter and comparing to chart.

6 Volt 12 Volt 24 Volt % Charge

6.3 or greater 12.6 or greater. 25.2 or greater 100%

6.2 - 6.3 12.4 - 12.6 24.8 - 25.2 75 - 100%

6.1 - 6.2 12.2 - 12.4 24.4 - 24.8 50 - 75%

6.0 - 6.1 12.0 - 12.2 24.0 - 24.4 25 - 50%

5.8 - 6.0 11.7 - 12.0 23.4 - 24.0 0 - 25%

5.8 or less 11.7 or less 23.4 or less 0%

If the state of charge is less than 75%, charge battery and retest.

8. LOAD TEST:

NOTE: DURING HEATING CAUSED BY A LOAD TEST, THE CARBON PILE MAY EMIT STEAM AND

ODORS THAT HAVE BEEN ABSORBED BY THE CARBON DISCS. THIS IS NORMAL.

a. Adjust LOAD CONTROL knob CW to ½ the amps of the CCA rating of the battery (do not exceed 300 Amps on a 24-

Volt battery) under test for 15 seconds. During the 15-second load test, it may be necessary to adjust the load to give
the correct current. This is made necessary by the changing voltage of the battery & the change in resistance of the
tester.
