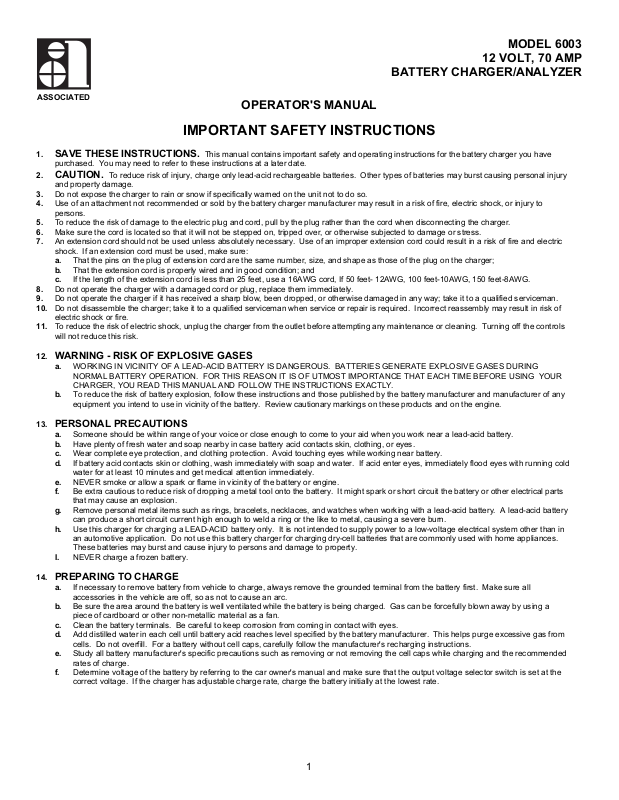

Associated 6003 User Manual

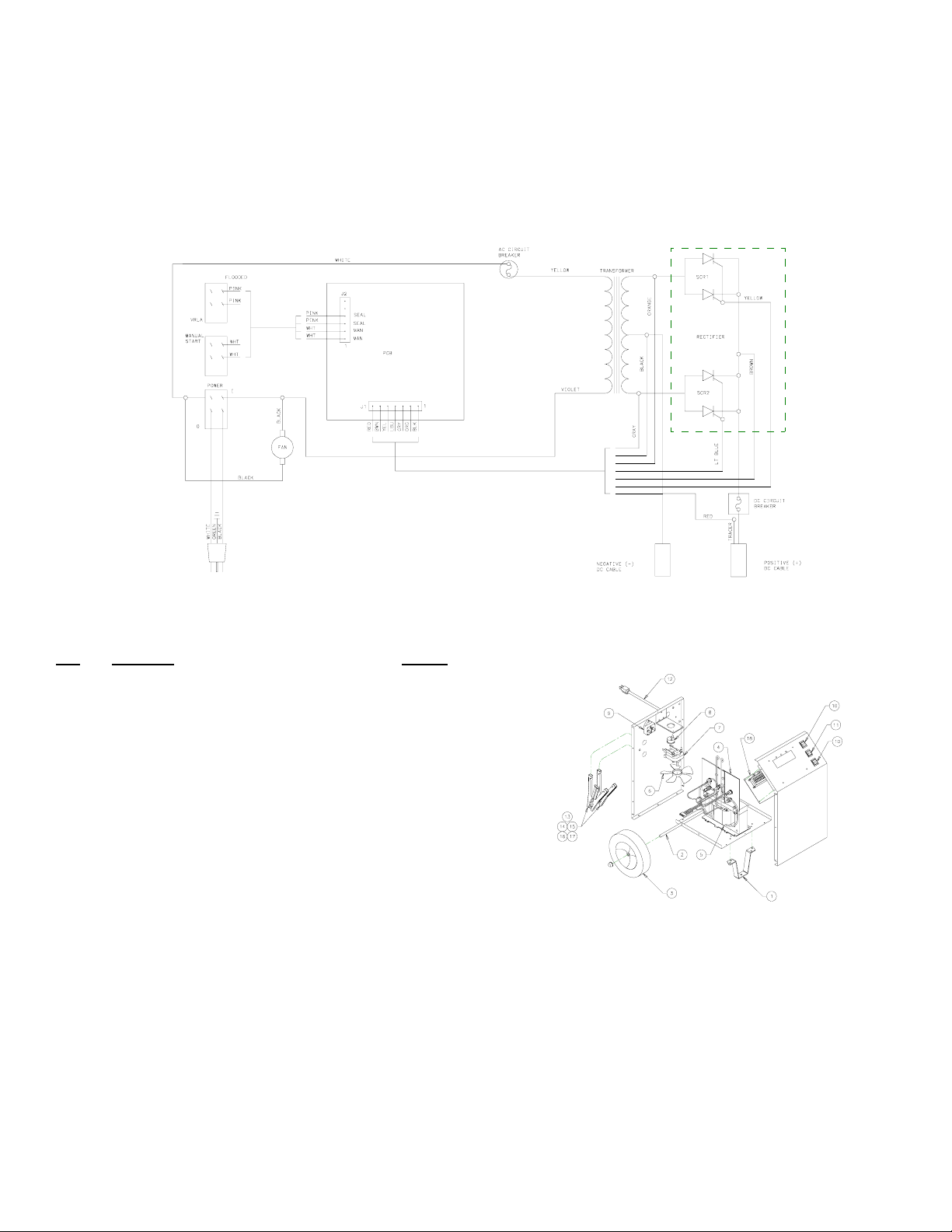

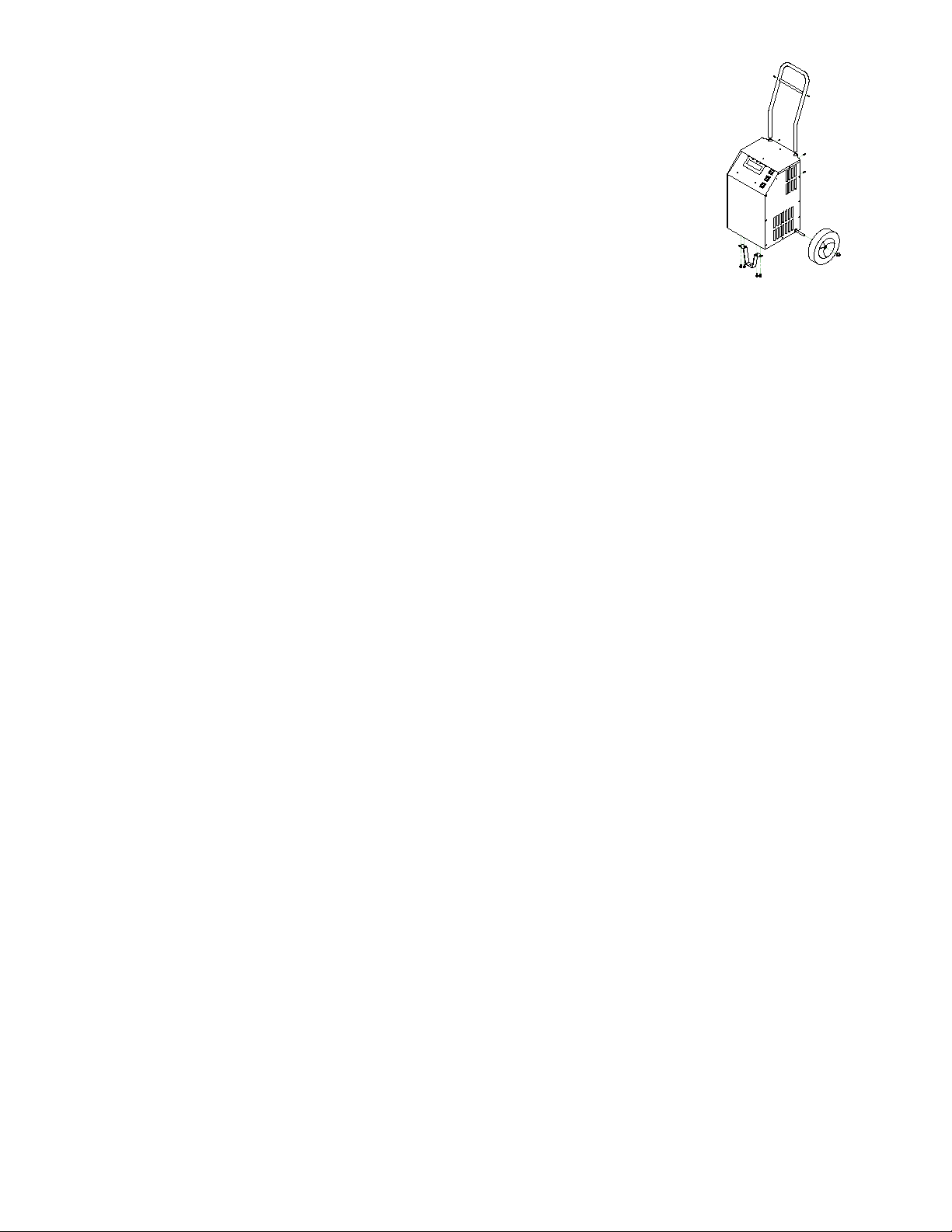

MODEL 6003

12 VOLT, 70 AMP

BATTERY CHARGER/ANALYZER

ASSOCIATED

OPERATOR'S MANUAL

IMPORTANT SAFETY INSTRUCTIONS

1. SAVE THESE INSTRUCTIONS. This manual contains important safety and operating instructions for the battery charger you have

purchased. You may need to refer to these instructions at a later date.

CAUTION. To reduce risk of injury, charge only lead-acid rechargeable batteries. Other types of batteries may burst causing personal injury

2.

and property damage.

3. Do not expose the charger to rain or snow if specifically warned on the unit not to do so.

4. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to

persons.

5. To reduce the risk of damage to the electric plug and cord, pull by the plug rather than the cord when disconnecting the charger.

6. Make sure the cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.

7. An extension cord should not be used unless absolutely necessary. Use of an improper extension cord could result in a risk of fire and electric

shock. If an extension cord must be used, make sure:

a. That the pins on the plug of extension cord are the same number, size, and shape as those of the plug on the charger;
b. That the extension cord is properly wired and in good condition; and
c. If the length of the extension cord is less than 25 feet, use a 16AWG cord, If 50 feet- 12AWG, 100 feet-10AWG, 150 feet-8AWG.

8. Do not operate the charger with a damaged cord or plug, replace them immediately.

9. Do not operate the charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman.

10. Do not disassemble the charger; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in risk of

electric shock or fire.

11. To reduce the risk of electric shock, unplug the charger from the outlet before attempting any maintenance or cleaning. Turning off the controls
will not reduce this risk.

WARNING - RISK OF EXPLOSIVE GASES

12.
a. WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING

NORMAL BATTERY OPERATION. FOR THIS REASON IT IS OF UTMOST IMPORTANCE THAT EACH TIME BEFORE USING YOUR
CHARGER, YOU READ THIS MANUAL AND FOLLOW THE INSTRUCTIONS EXACTLY.

b. To reduce the risk of battery explosion, follow these instructions and those published by the battery manufacturer and manufacturer of any

equipment you intend to use in vicinity of the battery. Review cautionary markings on these products and on the engine.

PERSONAL PRECAUTIONS

13.
a. Someone should be within range of your voice or close enough to come to your aid when you work near a lead-acid battery.
b. Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, or eyes.
c. Wear complete eye protection, and clothing protection. Avoid touching eyes while working near battery.
d. If battery acid contacts skin or clothing, wash immediately with soap and water. If acid enter eyes, immediately flood eyes with running cold

water for at least 10 minutes and get medical attention immediately.

e. NEVER smoke or allow a spark or flame in vicinity of the battery or engine.
f. Be extra cautious to reduce risk of dropping a metal tool onto the battery. It might spark or short circuit the battery or other electrical parts

that may cause an explosion.

g. Remove personal metal items such as rings, bracelets, necklaces, and watches when working with a lead-acid battery. A lead-acid battery

can produce a short circuit current high enough to weld a ring or the like to metal, causing a severe burn.

h. Use this charger for charging a LEAD-ACID battery only. It is not intended to supply power to a low-voltage electrical system other than in

an automotive application. Do not use this battery charger for charging dry-cell batteries that are commonly used with home appliances.
These batteries may burst and cause injury to persons and damage to property.

I. NEVER charge a frozen battery.

PREPARING TO CHARGE

14.
a. If necessary to remove battery from vehicle to charge, always remove the grounded terminal from the battery first. Make sure all

accessories in the vehicle are off, so as not to cause an arc.

b. Be sure the area around the battery is well ventilated while the battery is being charged. Gas can be forcefully blown away by using a

piece of cardboard or other non-metallic material as a fan.

c. Clean the battery terminals. Be careful to keep corrosion from coming in contact with eyes.
d. Add distilled water in each cell until battery acid reaches level specified by the battery manufacturer. This helps purge excessive gas from

cells. Do not overfill. For a battery without cell caps, carefully follow the manufacturer's recharging instructions.

e. Study all battery manufacturer's specific precautions such as removing or not removing the cell caps while charging and the recommended

rates of charge.

f. Determine voltage of the battery by referring to the car owner's manual and make sure that the output voltage selector switch is set at the

correct voltage. If the charger has adjustable charge rate, charge the battery initially at the lowest rate.

1

15. CHARGER LOCATION
a. Locate the charger as far away from the battery as the DC cables permit.

b. Never place the charger directly above the battery being charged; gases from the battery will corrode and damage the charger.

c. Never allow battery acid to drop on the charger when reading the specific gravity or filling battery,
d. Do not operate the charger in a closed-in area, or restrict ventilation in any way.
e. Do not set a battery on top of the charger.

DC CONNECTION PRECAUTIONS

16.
a. Connect and disconnect the DC output clamps only after setting the charger switches to the OFF position and removing the AC cord from

the electric outlet. Never allow the clamps to touch each other.

b. Attach the DC clamps to the battery post and twist or rock back and forth several times to make a good connection. This tends to keep the

clamps from slipping off the terminals and helps to reduce the risk of sparking.

FOLLOW THESE STEPS WHEN THE BATTERY IS INSTALLED IN A VEHICLE. A SPARK NEAR THE BATTERY

17.

MAY CAUSE A BATTERY EXPLOSION. TO REDUCE THE RISK OF A SPARK NEAR THE BATTERY:

a. Position the AC and DC cords to reduce the risk of damage by the hood, door, or moving engine parts.
b. Stay clear of fan blades, belts, pulleys, and other parts that can cause injury to persons.
c. Check the polarity of the battery post. The POSITIVE (POS, P, +) battery post usually has a larger diameter than the NEGATIVE (NEG, N,

-) post.

d. Determine which post of the battery is grounded (connected) to the chassis. If the negative post is grounded to the chassis (as in most

vehicles), see item "e". If the positive post is grounded to the chassis, see item "f".

e. For negative-grounded vehicles, connect the POSITIVE (RED) clamp from the battery charger to the POSITIVE (POS, P, +) ungrounded

post of the battery. Connect the NEGATIVE (BLACK) clamp to the vehicle chassis, heavy gauge metal part of the frame, or engine block,
away from the battery. Do not connect to the carburetor, fuel lines, or sheet metal body parts.

f. For positive-grounded vehicle, connect NEGATIVE (BLACK) clamp from the battery charger to the NEGATIVE (NEG, N, -) ungrounded

post of the battery. Connect POSITIVE (RED) clamp to the vehicle chassis or engine block away from the battery. Do not connect the
clamp to the carburetor, fuel lines, or sheet-metal body parts. Connect to a heavy gauge metal part of the frame or engine block.

g. When disconnecting the charger, turn the switches to OFF, disconnect the AC cord, remove the clamp from the vehicle chassis, and then

remove the clamp from the battery terminal.

h. See the operating instructions for length of charge information.

FOLLOW THESE STEPS WHEN THE BATTERY IS OUTSIDE THE VEHICLE. A SPARK NEAR THE BATTERY

18.

MAY CAUSE A BATTERY EXPLOSION. TO REDUCE THE RISK OF A SPARK NEAR THE BATTERY:

a. Check the polarity of the battery post. The POSITIVE (POS, P, +) usually has a larger diameter than the NEGATIVE (NEG, N, -) post.
b. Attach at least a 24 inch long 6-gauge (AWG) insulated battery cable to the NEGATIVE (NEG, N, -) battery post.
c. Connect the POSITIVE (RED) charger clamp to the POSITIVE (POS, P, +) post of the battery.
d. Position yourself and free end of cable as far away from the battery as possible - then connect the NEGATIVE (BLACK) charger clamp to

the free end of cable.

e. Do not face the battery when making the final connection.
f. When disconnecting the charger, always do so in reverse sequence of connecting procedure, and break the first connection while standing

as far away from the battery as practical.

g. A marine (boat) battery must be removed and charged on shore. To charge it on board requires equipment specially designed for marine

use.

GROUNDING AND AC POWER CORD CONNECTION INSTRUCTIONS

19.

The charger should be grounded to reduce the risk of electric shock. This charger is equipped with an electric cord having an equipment
grounding conductor and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with
all local codes and ordinances.

DANGER. Never alter the AC cord or plug provided - if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

Improper connection can result in a risk of an electric shock. This battery charger is for use on a nominal 120-volt circuit, and has a grounding
plug that looks like the plug illustrated in FIGURE (A). A temporary adapter, which looks like the adapter illustrated in FIGURE (C), may be used
to connect this plug to a two-pole receptacle, as shown in FIGURE (B), until a properly grounded outlet can be installed by a qualified
electrician.

DANGER. Before using an adapter as illustrated, be certain

that the center screw of the outlet plate is grounded. The green­colored rigid ear or lug extending from the adapter must be
connected to a properly grounded outlet - make certain it is
grounded. If necessary, replace the original outlet cover plate
screw with a longer screw that will secure the adapter ear or lug
to the outlet cover plate and make ground connection to
grounded outlet.

NOTE: USE OF AN ADAPTER IS NOT ALLOWED IN CANADA. IF A GROUNDING TYPE RECEPTACLE IS NOT AVAILABLE, DO NOT

USE THIS APPLIANCE UNTIL THE PROPER OUTLET IS INSTALLED BY A QUALIFIED ELECTRICIAN.
