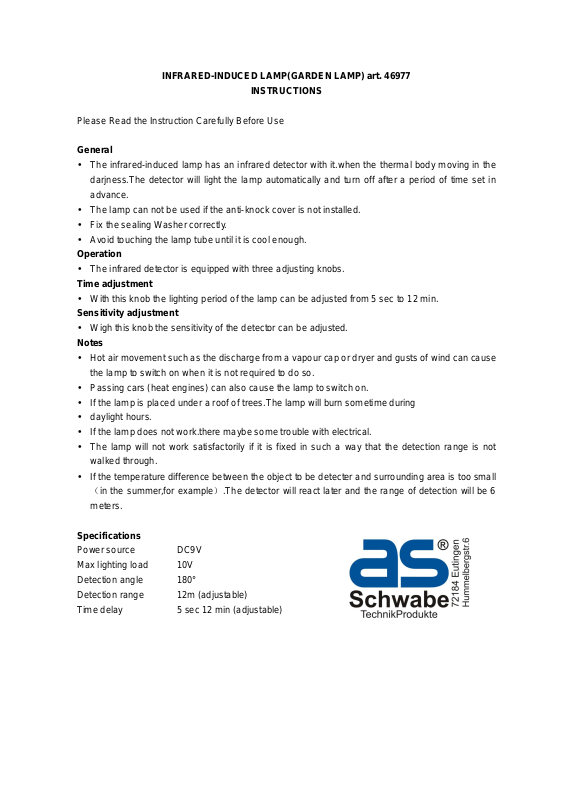

INFRARED-INDUCED LAMP(GARDEN LAMP) art. 46977

INSTRUCTIONS

Please Read the Instruction Carefully Before Use

General

• The infrared-induced lamp has an infrared detector with it.when the thermal body moving in the
darjness.The detector will light the lamp automatically and turn off after a period of time set in
advance.

• The lamp can not be used if the anti-knock cover is not installed.

• Fix the sealing Washer correctly.

• Avoid touching the lamp tube until it is cool enough.

Operation

• The infrared detector is equipped with three adjusting knobs.

Time adjustment

• With this knob the lighting period of the lamp can be adjusted from 5 sec to 12 min.

Sensitivity adjustment

• Wigh this knob the sensitivity of the detector can be adjusted.

Notes

• Hot air movement such as the discharge from a vapour cap or dryer and gusts of wind can cause
the lamp to switch on when it is not required to do so.

• Passing cars (heat engines) can also cause the lamp to switch on.

• If the lamp is placed under a roof of trees.The lamp will burn sometime during

• daylight hours.

• If the lamp does not work.there maybe some trouble with electrical.

• The lamp will not work satisfactorily if it is fixed in such a way that the detection range is not

walked through.

• If the temperature difference between the object to be detecter and surrounding area is too small
（in the summer,for example）.The detector will react later and the range of detection will be 6
meters.

Specifications

Power source DC9V
Max lighting load 10V
Detection angle 180°
Detection range 12m (adjustable)
Time delay 5 sec 12 min (adjustable)
