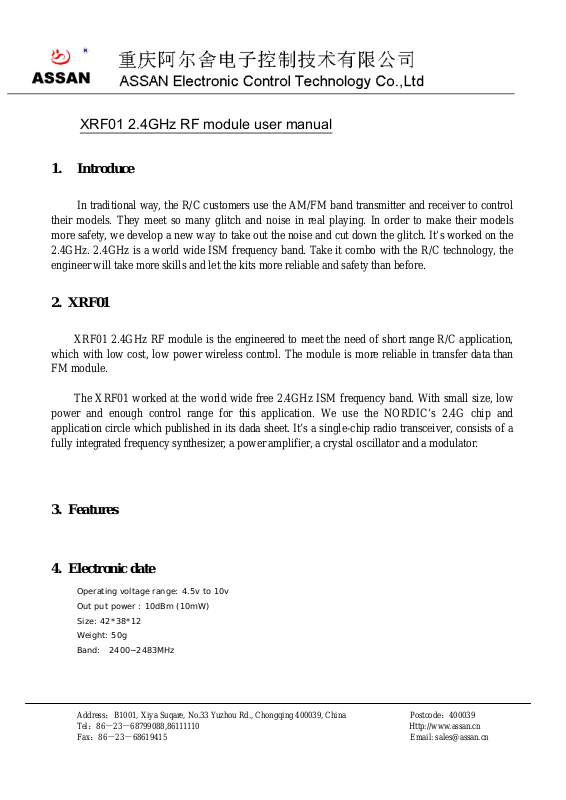

ASSAN ELECTRONIC CONTROL TECHNOLOGY XRF01 Users Manual

XRF01 2.4GHz RF module user manual

1. Introduce

In traditional way, the R/C customers use the AM/FM band transmitter and receiver to control
their models. They meet so many glitch and noise in real playing. In order to make their models
more safety, we develop a new way to take out the noise and cut down the glitch. It’s worked on the

2.4GHz. 2.4GHz is a world wide ISM frequency band. Take it combo with the R/C technology, the
engineer will take more skills and let the kits more reliable and safety than before.

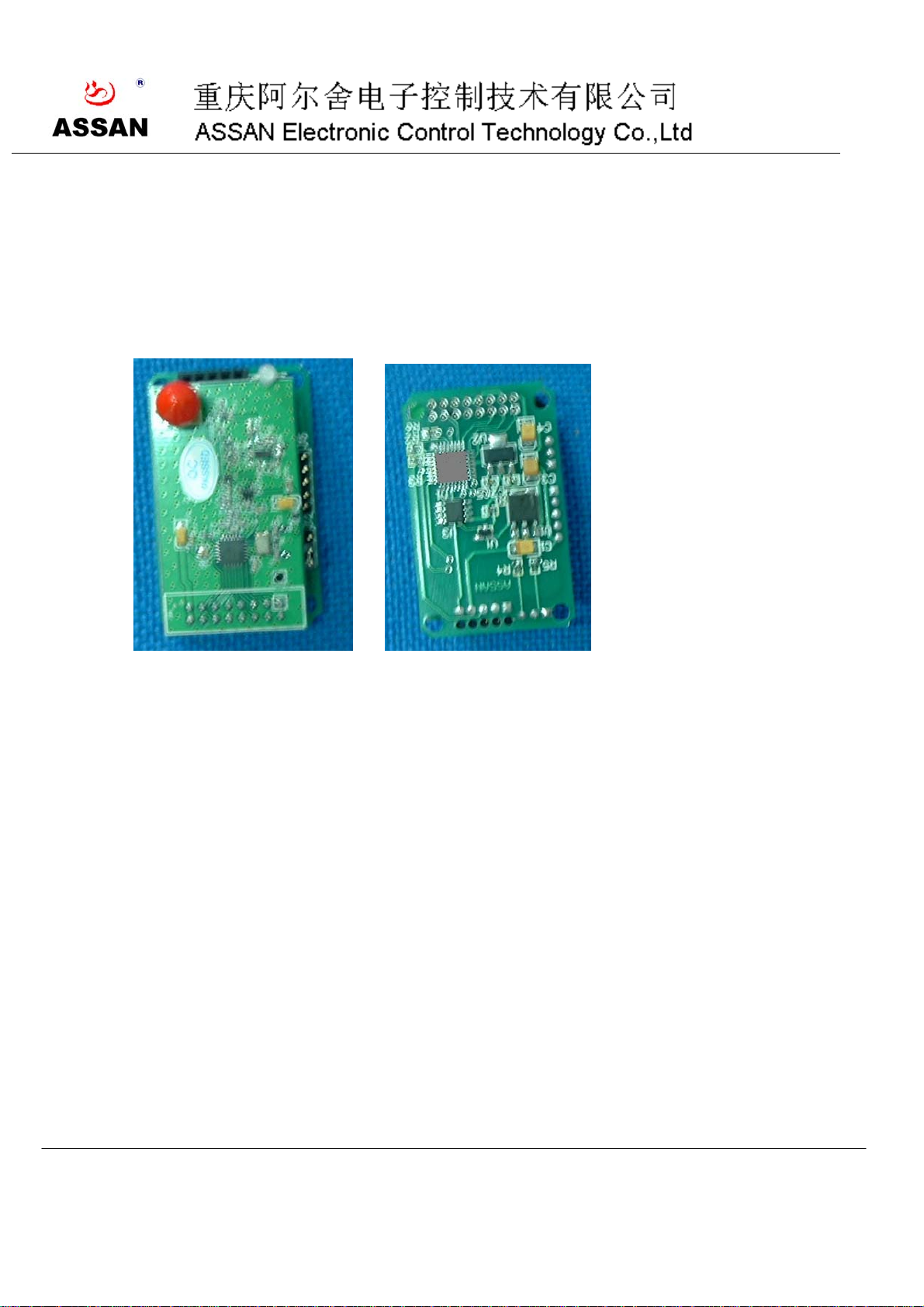

2. XRF01

XRF01 2.4GHz RF module is the engineered to meet the need of short range R/C application,
which with low cost, low power wireless control. The module is more reliable in transfer data than
FM module.

The XRF01 worked at the world wide free 2.4GHz ISM frequency band. With small size, low
power and enough control range for this application. We use the NORDIC’s 2.4G chip and
application circle which published in its dada sheet. It’s a single-chip radio transceiver, consists of a
fully integrated frequency synthesizer, a power amplifier, a crystal oscillator and a modulator.

3. Features

4. Electronic date

Operating voltage range: 4.5v to 10v
Out put power : 10dBm (10mW)
Size: 42*38*12
Weight: 50g
Band: 2400~2483MHz

Address：B1001, Xiya Suqare, No.33 Yuzhou Rd., Chongqing 400039, China Postcode：400039
Tel：[phone] Http://www.assan.cn
Fax：[phone] Email: [email protected]

5. Interface PIN describe

6. Applications
