ASSALOY SCYPROX5 User Manual

Certification Exhibit

FCC ID: U4A-SCYPROX5

IC: 6982A-SCYPROX5

FCC Rule Part: 15.209, 15.249

IC Radio Standards Specification: RSS-210

ACS Project Number: 12-0305

Manufacturer: Assa Abloy

Model: C2-PA/PK

Manual

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598

IN100

Preliminary

with Aperio™ Technology

Mortise Lock Installation Instructions

These installation instructions include Microsoft® Tags that you can

scan to view videos of certain installation steps. The Microsoft Tag

A8122B 8/12

Copyright 2012, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

mobile app is required to scan the Tags. Download the free mobile

app at http://gettag.mobi

Table of Contents

Preliminary

1

Warning ...................................................................................2

2

General Description

3

Speciﬁcations

4

System Overview

5

Parts Breakdown

6

Lock Installation

7

Maintenance

8

Operational Check

9

Lock LED Indications

..........................................................................3

.........................................................................15

.................................................................3

.....................................................................3

.....................................................................4

......................................................................6

................................................................16

............................................................17

1

Warning

FCC:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Industry Canada:

This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Cet appareillage numérique de la classe B répond à toutes les exigences de l’interférence canadienne causant des règlements d’équipement. L’opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer l’interférence nocive, et (2) ce dispositif doit accepter n’importe quelle interférence reçue, y compris l’interférence qui peut causer l’opération peu désirée. “This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.”

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

Changes or modiﬁcations to this device not expressly approved by ASSA ABLOY could void the user’s authority to operate the equipment.

Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante.

!

Any retroﬁt or other ﬁeld modiﬁcation to a ﬁre rated opening can potentially impact the ﬁre rating of the opening,

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

8/05/12

1-800-810-WIRE • www.sargentlock.com • A8122B

and SARGENT Manufacturing makes no representations or warranties concerning what such impact may be in any speciﬁc situation. When retroﬁtting any portion of an existing ﬁre rated opening, or specifying and installing a new ﬁre-rated opening, please consult with a code specialist or local code ofﬁcial (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

IN100 Mortise Lock

Preliminary

2

3

4

General Description

The SARGENT® IN100 mortise lock with Aperio™ Technology makes it easy and cost-effective to bring access control to doors. It uses local wireless communication between the lock and an Aperio hub to connect to an access control system, eliminating the greatest cost and inconvenience of traditional access control – the wiring at the door. The IN100 utilizes HID® iCLASS® 13.56 MHz smart card technology and all technology features are supported by the physical security of SARGENT ANSI/BHMA Grade 1 hardware.

This product is operated by six (6) “AA” alkaline batteries. SARGENT mortise locks are designed with quality components to provide high security, performance, and durability.

The IN100 mortise lock may be used for both indoor and exterior applications. A weather-protective gasket is required for exterior applications.

Specifications

Lock

• IEEE 802.15.4 UHF interface

• AES 128 bit encryption

Credential Support

• HID 13.56 MHz iCLASS (full authentication, all formats

• HID 125 kHz prox

System Overview

When a user presents a supported credential to the lock, the Aperio system is designed to send the credential wirelessly to the Aperio Hub. The Aperio Hub (wired through RS-485 or Wiegand) then communicates with an EAC (Electronic Access Control) system. The EAC system provides the access decision to the Aperio Hub where access to the lock is either granted or denied.

Electronic Access

Control System

TCP/IP

Access Control Panel

RS-485/Wiegand

IEEE 802.15.4 (2.4GHz)

Aperio Hub

To comply with “Fire Listed” doors, the batteries must be replaced with alkaline batteries only.

!

Warning: SARGENT Mfg. Co. IN100 locksets utilizing a door position switch (DPS) are not rated for, or intended for use in life safety applications.

1-800-810-WIRE • www.sargentlock.com • A8122B 3

IN100 Patent Pending

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

8/05/12

5

Preliminary

Parts Breakdown

13.56 MHz iCLASS & 125kHz Prox

2

1*

IN100 Mortise Lock

8

7

1*

6

5

3

4

3

15

14

19

21

13

20

21

10

18

17

16

21

19

* Patent pending

Tools Required:

• #2 Phillips screwdriver

• Flat head

• T20 Torx Driver

• Security allen wrench (provided)

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

8/050/12

4 1-800-810-WIRE • www.sargentlock.com • A8122B

IN100 Mortise Lock

Preliminary

Parts Breakdown 13.56 MHz iCLASS & 125kHz Prox (Continued)

ITEM PART NO.

1 52-4481 Reader Assembly* 1

52-5359 Incepta Electronic Replacement Pack, iCLASS only, IA-C2, 7976

52-5360 Incepta Electronic Replacement Pack, iCLASS only, IA-C2 , 7977

52-5361 Incepta Electronic Replacement Pack, iCLASS only, IA-C2 , 7978

52-5362 Incepta Electronic Replacement Pack, iCLASS only, IA-C2 , 7979

52-5363 Incepta Electronic Replacement Pack, Prox only, PA-C2 , 7976

52-5364 Incepta Electronic Replacement Pack, Prox only, PA-C2 , 7977

52-5365 Incepta Electronic Replacement Pack, Prox only, PA-C2 , 7978

52-5366 Incepta Electronic Replacement Pack, Prox only, PA-C2 , 7979

2 52-1332 Gasket (Optional) 1

3 52-2847 Conduit Pack (Optional) 1

4 52-1370 Fire Shield* 1

5 52-1327 Mounting Plate 1

6 52-4488 Screw Pack 1

7 01-0898 AA battery 6

8 52-4483 Inside Cover Assembly 1

9 52-4321 Door Position Switch Pack 1

10 A8120 Field Prep Template (not shown) 1

11 4697 Door Manufacturers Template (not shown) 1

12 A8122 Instructions (not shown) 1

13 C2-7976-hand-ﬁnish Lock body with dead bolt with Cylinder 1

C2-7977-hand-ﬁnish Lock body with dead bolt without Cylinder

C2-7978-hand-ﬁnish Lock body without dead bolt with Cylinder

C2-7979-hand-ﬁnish Lock body without dead bolt without Cylinder

14 79-0035 Without dead bolt 1

79-0036 With dead bolt (shown) 1

15 77-4236 Mortise Screw Pack - Specify Finish (Includes: Wood and Metal

Lock body Screws, Faceplate Screws, and Strike Screws)

16 Consult Factory #41 Mortise Cylinder 1

DESCRIPTION QTY.

1

17 13-2131 97 Ring 1

18 77-4081 130W Turn Lever 1

19 Consult Factory Reference Incepta Catalog 2

20 78-3696 O-rose 2

21 79-2162 Trim Pack 1

* Patent Pending

1-800-810-WIRE • www.sargentlock.com • A8122B 5

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

8/05/12

6

Preliminary

Lock Installation

1 Prepare Door

A. Verify Hand and Bevel of Door

Stand on outside of locked door when determining door hand.

IN100 Mortise Lock

LH

Left Hand

Hinges Left

Open Inward

LH RB

Left Hand

Reverse Bevel

Hinges Left

Open Outward

Fig. 1A

RH

Right Hand Hinges Right Open Inward

RH RB

Right Hand

Reverse Bevel

Hinges Right

Open Outward

B. Door Preparation

Prior to installation, all holes must be free of burrs, debris and sharp edges.

Prepare door according to appropriate template (see website www.intelligentopenings.com).

• Field Template: A8120 (ships with product)

• Door Manufacture’s Template: 4697

Inside of Door

Ribbon Cable Hole

Outside of Door

External DPS

Hole

Ribbon Cable Hole

Through-bolt Hole

Outside Cylinder Hole

(only with cylinder

installation)

Mortised

Lever Handle Hole

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

8/050/12

6 1-800-810-WIRE • www.sargentlock.com • A8122B

Pocket

Fig. 1B

Through-bolt Hole

Inside of Lock body Wire Hole

Thumb Turn Lever Hole

Lever Handle Hole

IN100 Mortise Lock

Preliminary

2 How to Change Hand of Lock body

A. Reverse Lock Hand

1. Position lock body so the red surface of the locking piece is visible.

2. Insert blade type screwdriver into locking piece slot to rotate locking piece.

3. Push locking piece toward the back of the lock body and rotate the locking piece 180°.

Note: Red indicates locked (outside) side.

B. Reverse Latch Hand

1. Rotate the latchbolt 180°.

2. Flip deadlatch by hand to match bevel of latchbolt.

Locking piece

Fig. 2B

3 Install Door Position Switch (DPS)

1. Insert DPS into the raceway on the latch edge of the door.

2. Push wires through raceway toward lock prep. For hollow metal doors with a conduit installed, route DPS wire to the same preparation hole as the cylinder hole.

3. Push DPS ﬁrmly into place by hand. Note: DO NOT TAP SWITCH WITH ANY TOOL.

4. Install magnet into door frame. Push ﬁrmly into place by hand. See A7983A.

5. To connect DPS to lock controller per diagram, refer to the wiring in Step #14 section 3.

Door Position

Switch (DPS)

Locking piece

Fig. 2A

Outside of Door

Note: Alternate routing for hollow metal doors when using optional weather

Scan this Microsoft® Tag using your mobile phone to see a video of this installation step. The Microsoft Tag mobile app is required to scan the Tag. Download the free mobile app at http://gettag.mobi

conduit, p/n 52-2847.

1-800-810-WIRE • www.sargentlock.com • A8122B 7

Fig. 3

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

8/05/12

4

Preliminary

Weather Conduit Installation (Optional P/N 52-2847)

Install weather conduit on NON FIRE-RATED metal exterior doors only (Fig. 4A).

1. Carefully insert the weather conduit into the ribbon cable hole

from the outside of the door.

2. Place the O-ring around the weather conduit on the inside and

up against the door (Fig. 4B).

IN100 Mortise Lock

Inside of Door

O-Ring

Fig. 4B

Fig. 4A

5 Install Lock body

1. Feed the wire harness through the mortise pocket and inside preparation hole as depicted in Fig. 5.

2. Carefully push the lock body into the pocket while lightly applying tension to the wire harness. Note: Do not pull the lock into the pocket with the harness alone. Ensure that the wire harness is not pinched between the lock and the mortise pocket.

3. Insert (2) #12-24 screws into the lock body and tighten with a screw driver.

(2) #12-24 screws

Scan this Microsoft® Tag using your mobile phone to see a video of this installation step. The Microsoft Tag mobile app is required to scan the Tag. Download the free mobile app at http://gettag.mobi

Mortise Connectors

Inside of Door

Fig. 5

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

8/050/12

8 1-800-810-WIRE • www.sargentlock.com • A8122B

IN100 Mortise Lock

Preliminary

6

Attach Front Plate

Attach front plate with (2) ﬂat head screws.

Scan this Microsoft® Tag using your mobile phone to see a video of this installation step. The Microsoft Tag mobile app is required to scan the Tag. Download the free mobile app at http://gettag.mobi

Outside of Door

(2) ﬂat head screws

Fig. 6

7 Assemble Trim

1. With outside lever horizontal, insert the mounting post through outside of door and lock body.

Make certain the lever spindle is properly engaged inside the lock body (Fig 7A).

2. On the inside of the door, insert spindle into square hole of mortise lock (Fig 7B).

3. Slide inside adapter and plate assembly over spindle and secure with (2) 8-32 X 5/8” Phillips oval head and lock washer machine screws.

Assemble Trim

Scan this Microsoft® Tag using your mobile phone to see a video of this installation step. The Microsoft Tag mobile app is required to scan the Tag. Download the free mobile app at http://gettag.mobi

Inside Lever Assembly

Outside Trim

Inside of DoorOutside of Door

8-32 X 5/8” Phillips

Oval Head and Lock

Washer Machine Screw

Fig. 7A

1-800-810-WIRE • www.sargentlock.com • A8122B 9

Fig. 7B

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

8/05/12

8

Preliminary

Install Inside Rose and Inside Lever Assembly

1. Rotate the inside rose ﬁrst counter clock wise to seat the threads then clockwise to securely tighten.

2. Slide lever handle onto spindle until fully seated. Be sure handle is horizontal and facing the hinge side of the door. Push lever onto spindle so minimum gap is visible.

3. Tighten the set screw securely with a T20 Torx.

4. Before closing the door, test that the lever is functional and ensure smooth operation of the latchbolt.

IN100 Mortise Lock

Inside of Door

Spindle

Rose

Set Screw

Fig. 8A

Inside Lever

Fig. 8B

9 Outside Cylinder Installation

1. Slide the spring and the rosette onto the cylinder.

2. Rotate the cylinder into cylinder hole with ﬁngers.

3. Insert key 75% of the way and utilize the key to rotate the cylinder into the rest of the cylinder hole. Note: Do not attempt to tighten all the way.

4. Verify the orientation of the cylinder has the Sargent logo as depicted in Fig. 9A.

5. Hand tighten the cylinder clamp screw with Phillips screwdriver to prevent unscrewing of the cylinder (Fig 9C).

6. Test cylinder function:

• Key retracts latchbolt and deadbolt (7976 function). Key retracts latchbolt (7978 function).

• Cylinder not present for 7977 and 7979 functions.

NOTE: Use lever handle holes to manipulate lock to ease thread engagement of cylinder.

IMPORTANT: Position cylinder so that the

SARGENT logo is positioned correctly.

Rosette

Spring

Cylinder

Outside of Door

Phillips Screwdriver

Correct Incorrect

Fig. 9A

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

8/050/12

10 1-800-810-WIRE • www.sargentlock.com • A8122B

Fig. 9B

Cylinder ClampScrew

Fig. 9C

IN100 Mortise Lock

Preliminary

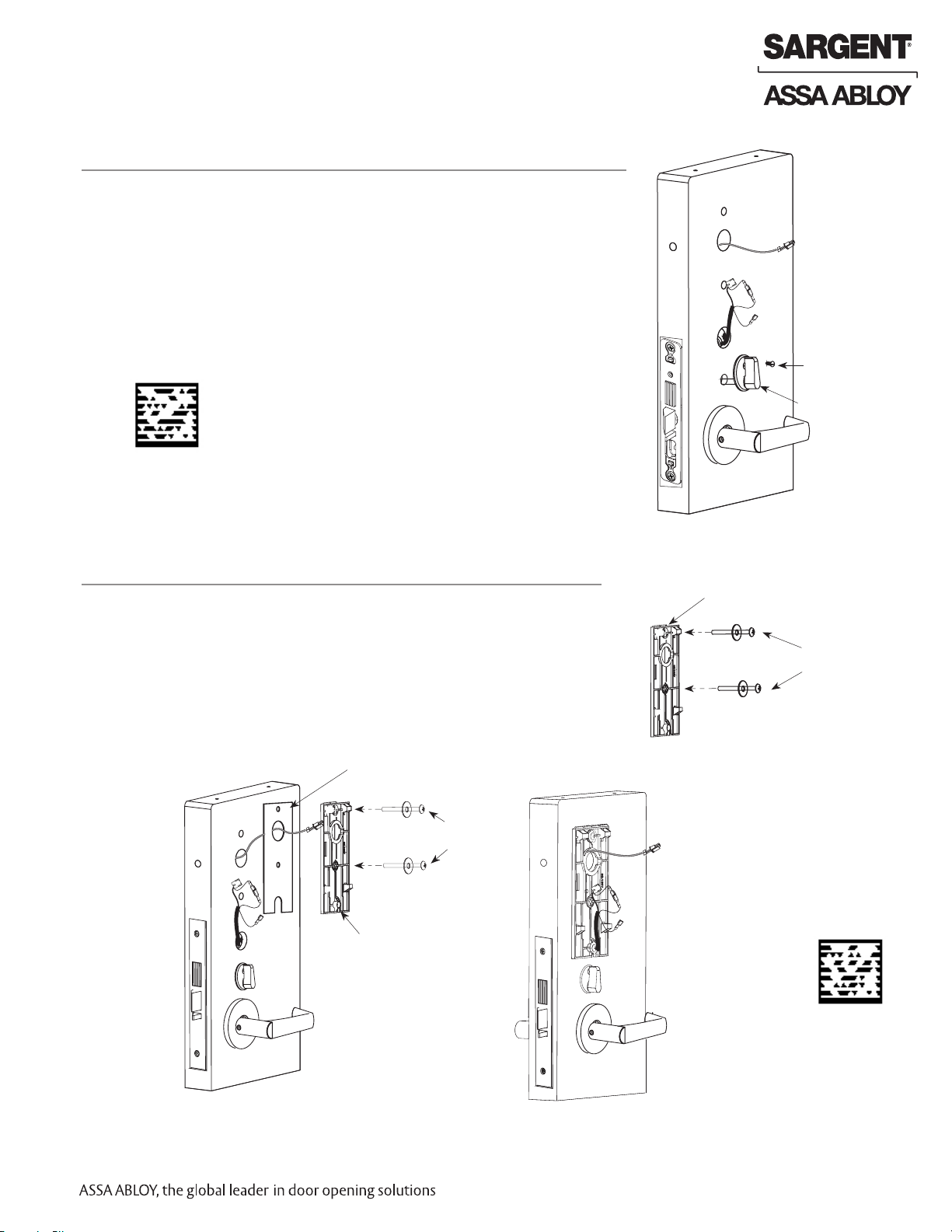

10 Install Thumb Turn

1. Insert thumb turn into preparation hole and engage slot in lock body.

2. Orient mounting plate so screw hole is vertical (aligned with preparation holes).

3. Secure plate with phillips screw provided.

4. Test thumb turn for function by retracting and projecting the deadbolt (7976 and 7977 functions only).

Scan this Microsoft® Tag using your mobile phone to see a video of this installation step. The Microsoft Tag mobile app is required to scan the Tag. Download the free mobile app at http://gettag.mobi

Inside of Door

Phillips screw

Thumb Turn

Fig. 10

11

Inside Mounting Plate Installation

1. Install washers onto both through bolts, Fig. 11A. Insert the through bolts through the upper and lower holes of the mounting plate.

2. Feed the DPS wire through the hole of the ﬁre shield and feed the lock wiring into the slot, Fig. 11B.

3. Place the ﬁre shield against the door and place the mounting plate over it so the through bolts align with the door holes.

Fire shield

2x Through bolts

open slot

Fig. 11B

Inside of Door

Fig. 11C

Mounting Plate

2x Through bolts

Fig. 11A

Scan this Microsoft® Tag using

your mobile phone to see a

video of this installation step.

The Microsoft Tag mobile app

is required to scan the Tag.

Download the free mobile app at

http://gettag.mobi

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

1-800-810-WIRE • www.sargentlock.com • A8122B 11

8/05/12

12

Preliminary

Gasket Installation (Optional P/N 52-1332)

Gasket required for exterior doors (not required for ﬁre rating). Figure 12.

1. Place the gasket on the on the reader posts and ensure the shape is aligned with the edge of the reader.

Scan this Microsoft® Tag using your mobile phone to see a video of this installation step. The Microsoft Tag mobile app is required to scan the Tag. Download the free mobile app at http://gettag.mobi

IN100 Mortise Lock

Fig. 12

13

Outside Reader Installation

1. Orient the reader so the HID logo is at the bottom

and the lens is at the top.

2. Feed the ribbon cable through the door (from out

side to inside).

3. Install the reader to the outside of door by aligning the mounting posts with the door preparation holes. Hold the reader in position with hand.

4. While gently pressing upward on the outside reader, tighten the (2) through bolts on the inside of the door to secure the reader.

HID Reader

Outside of Door

Inside of Door

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

8/050/12

12 1-800-810-WIRE • www.sargentlock.com • A8122B

Scan this Microsoft® Tag using your mobile phone to see a video of this installation step. The Microsoft Tag mobile app is required to scan the Tag. Download the free mobile app at http://gettag.mobi

Fig. 13A

Fig. 13B

IN100 Mortise Lock

Preliminary

14

Configuring RX Switch Handing

Inside of Door

1. Each lever handle has a sensor installed but only the inside lever is

utilized for RX sensing.

2. To properly conﬁgure the RX functionality, connect the terminals as indicated below: RH or RHRB door handing (blue to blue) LH or LHRB door handing (yellow to blue)

3. Note: Factory default is blue to blue (right hand lock). IMPORTANT: grasp each connector ﬁrmly before separating. Do not pull wires apart.

Scan this Microsoft® Tag using your mobile phone to see a video of this installation step. The Microsoft Tag mobile app is required to scan the Tag. Download the free mobile app at http://gettag.mobi

15

Battery Housing Wiring

1. Connect the outside reader ribbon cable to the top of the

battery housing (See Fig.15B for detail).

2. Connect the DPS wire to the 3-wire header at the lower

left corner of the PCB.

3. Connect the lock body harness to the 5-wire header at the lower right corner of the PCB. IMPORTANT: Conﬁrm the correct connector orientation prior to assembly. Do not force connectors

Note: If the HID wire harness must be twisted to connect to the battery housing the HID reader has been installed upside down. Turn the HID reader right side up and reinstall, then connect.

Wire harness

DPS

Lock body wiring

Fig. 14

Wire harness

DPS

Lock body wiring

Fig. 15B

1-800-810-WIRE • www.sargentlock.com • A8122B 13

Fig. 15A

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

8/05/12

16

Preliminary

Battery Housing Installation

1. Position the DPS and harness below the tabs of the

mounting plate.

2. Align the tabs of the battery housing with the tabs of the

mounting plate. Push down.

3. Lightly press the lock harness to assemble.

4. Snap battery compartment into position.

Scan this Microsoft® Tag using your mobile phone to see a video of this installation step. The Microsoft Tag mobile app is required to scan the Tag. Download the free mobile app at http://gettag.mobi

IN100 Mortise Lock

Inside of Door

17

Battery Installation

1. Place (6) “AA” alkaline batteries in the compartment, being careful to align polarity properly.

2. After batteries are installed an audible “beep” will sound, the lock motor will cycle. Refer to page 18, section “Lock Self Test LED Indication”, for proper power up LED indications.

Fig. 16

Inside of Door

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

8/050/12

14 1-800-810-WIRE • www.sargentlock.com • A8122B

Scan this Microsoft® Tag using your mobile phone to see a video of this installation step. The Microsoft Tag mobile app is required to scan the Tag. Download the free mobile app at http://gettag.mobi

Fig. 17

IN100 Mortise Lock

Preliminary

18

Inside Cover Installation

1. Assemble cover by hooking top edge on inside mounting plate.

2. Carefully press bottom of cover toward door without pinching any wires.

3. Secure the cover utilizing a 1/8” security Allen wrench.

Inside of Door

Inside Cover

1/8” Security Allen Screw

7

When replacing the (6) “AA” alkaline batteries in the

Maintenance

For battery replacement:

compartment, please note batteries must be replaced within 5 minutes to prevent the internal clock from becoming inaccurate.

Fig. 18

1-800-810-WIRE • www.sargentlock.com • A8122B 15

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

8/05/12

IN100 Mortise Lock

Preliminary

8

Operational Check

For 7976- and 7978-function mortise locks with cylinders:

1. Insert key into cylinder and rotate.

There should be no friction against lock case, wire harness or any other obstructions.

2. Check that the key retracts the latch: the key should rotate freely.

3. Throw the deadbolt (if present): Check that the key retracts both the deadbolt and the latch.

4. Try the inside lever: Ensure it retracts latch and deadbolt (if provided).

5. Present a valid iCLASS or 125 kHz prox credential to unlock outside lever and retract latch.

Note: The credential should approach the inscription on the reader as indicated to ensure the

credential is read properly. Do not wave credential.

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

8/050/12

16 1-800-810-WIRE • www.sargentlock.com • A8122B

IN100 Mortise Lock

Preliminary

9

Lock LED Indications

1

Lock Normal Operation LED indication

The lock has three LEDs that support an optical scheme with red, yellow and green. The indication scheme is described by the ﬁgures below:

Card read (conﬁgurable)

Access granted, EAC ofﬂine or online

Access denied, EAC online

Access denied, EAC ofﬂine

Lock mechanism is blocked when

closing

Error in lock, maintenance required

Time to replace the battery

Battery reached end of life, lock

disabled

Fig. Lock Normal operation LED indication

NOTE: Ensure the tamper switch activator does not fall out of the cover during assembly. A tamper event message will be sent to the EAC panel if tamper is enabled. The “Error in lock” indication is also shown instead of the POST ﬂashes if the battery is not accepted as new after a power-on-reset.

One yellow ﬂash (.25 seconds)

One green ﬂash (1 second)

One red ﬂash (1 second)

Three red ﬂashes (.5 second each)

Continuous red ﬂashes blocked when closing (.125 seconds every 1 second)

Ten red ﬂashes (.125 seconds each), maintenance required; repeated if lock can’t close

Continuous yellow ﬂashes (.25 seconds every 5 seconds)

Continuous red ﬂashes, (.25 seconds every 5 seconds)

2

Lock Maintenance LED Indication

Some special LED indication schemes are used during lock maintenance actions:

Enter configuration

mode

Fig. Lock maintenance LED indication

1-800-810-WIRE • www.sargentlock.com • A8122B 17

Five yellow flashes (.125 seconds each)

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

8/05/12

3

Preliminary

Lock Self Test LED Indication

After replacing the battery, a Power On Self Test (POST) is performed. The result is indicated using a series of red and green LED ﬂashes as is described by the ﬁgure below:

IN100 Mortise Lock

Good POST

Bad POST

The “Error in lock” indication is also

shown instead of the POST ﬂashes

if the battery is not accepted as new

after a power-on-reset.

The ﬁrst ﬂash is always red. If the POST fails, the color of the 16 trailing ﬂashes indicate the status of each individual test as described by the following table:

Blink Meaning if Red Code in Event Log

2 Main board firmware corrupt 0x0001

3 Override list corrupt 0x0002

4 Production data corrupt 0x0004

5 Security data corrupt 0x0008

6 Configuration data corrupt 0x0010

7 Battery power low 0x0020

8 RFID reader circuit error 0x0040

9 Voltage regulator error 0x0080

10 Card detection circuit error 0x0100

11 Secure area communication error 0x0200

12 Secure area memory corrupt 0x0400

13 Secure area sensor or motor error 0x0800

14 Radio modem communication error 0x1000

15 Radio modem memory corrupt 0x2000

16 Radio modem configuration error 0x4000

17 Radio modem RF circuit error 0x8000

Fig. Lock POST LED indication

One red, one green ﬂash (1 second each)

One red ﬂash followed by 16 red or green ﬂashes (.5 seconds each)

10 red ﬂashes.

NOTE: If the battery is not accepted as new after a power on reset, no POST is performed. Instead, the 10 quick red ﬂashes used to indicate Error in lock is shown.

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

8/050/12

18 1-800-810-WIRE • www.sargentlock.com • A8122B

Notes

Preliminary

The global leader in door opening solutions

SARGENT Manufacturing

Preliminary

100 Sargent Drive New Haven, CT 06511 USA 800-810-WIRE (9473) • www.sargentlock.com

Founded in the early 1800s, SARGENT® is a market leader in locksets, cylinders, door closers, exit devices, electro-mechanical products and access control systems for new construction, renovation, and replacement applications. The company’s customer base includes commercial construction, institutional, and industrial markets.

Copyright © 2012, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.

A8122B - 8/12

ASSALOY SCYPROX5 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
