Certification Exhibit
FCC ID: U4A-MODBLE9051
IC: 6982A-MODBLE9051
FCC Rule Part: 15.247
IC Radio Standards Specification: RSS-247
ACS Project Number: 15-0143
Manufacturer: Assa Abloy Inc.
Model: BLE9051
5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598
Manual
Assa Abloy: Sargent Manufacturing and Corbin Russwin Factory Installaon
Instrucons
Factory Installaon Instrucons for IN120 reader assemblies Models BIP, BIP-M, BIPS, BIPS-M,
BCP and BCP-M, with Bluetooth Smart Model: BLE9051 Assembly: 52-9051 RF Module.
FCC Specic Statement:
“NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable pro
tection against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that inter
ference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.”
-
-
General Statements (For all devices):
Warning: Changes or modications to this device not expressly approved by Assa Abloy could void the
user’s authority to operate the equipment.
Industry Canada Specic Statements:
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce po
tential radio interference to other users, the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful com
munication.
Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner
avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Indus
trie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres
utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée
équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication
satisfaisante.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must ac
cept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio ex
empts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit
pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
-
-
-
-
-
Copyright © 2015, ASSA ABLOY Inc. All rights reserved. Reproduction in whole
09/15
or in part without the express written permission of ASSA ABLOY Inc. is prohibited.
BTMN1A • PAGE 1
Users in the USA and Canada English:
Operation is subject to the following two conditions:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
RF Exposure
For Mobile Devices include the following:
“This equipment complies with FCC radiation exposure limits set forth for an uncontrolled envi
ronment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.”
Pour les usagers résidant au Canada (French):
L’exploitation est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Énoncé d’exposition à la radiation
Pour les appareils mobiles sont les suivants:
“Cet équipement est conforme aux limites d’exposition à la radiation RF
FCC prévues pour un environnement non contrôlé. Cet équipement doit être
installé et doit fonctionner avec une distance minimum de 20 centimètres des
utilisateurs et des personnes Environnantes. Cet émetteur ne doit pas être colocalisées ou opérant en conjointement avec une autre antenne ou émetteur
-

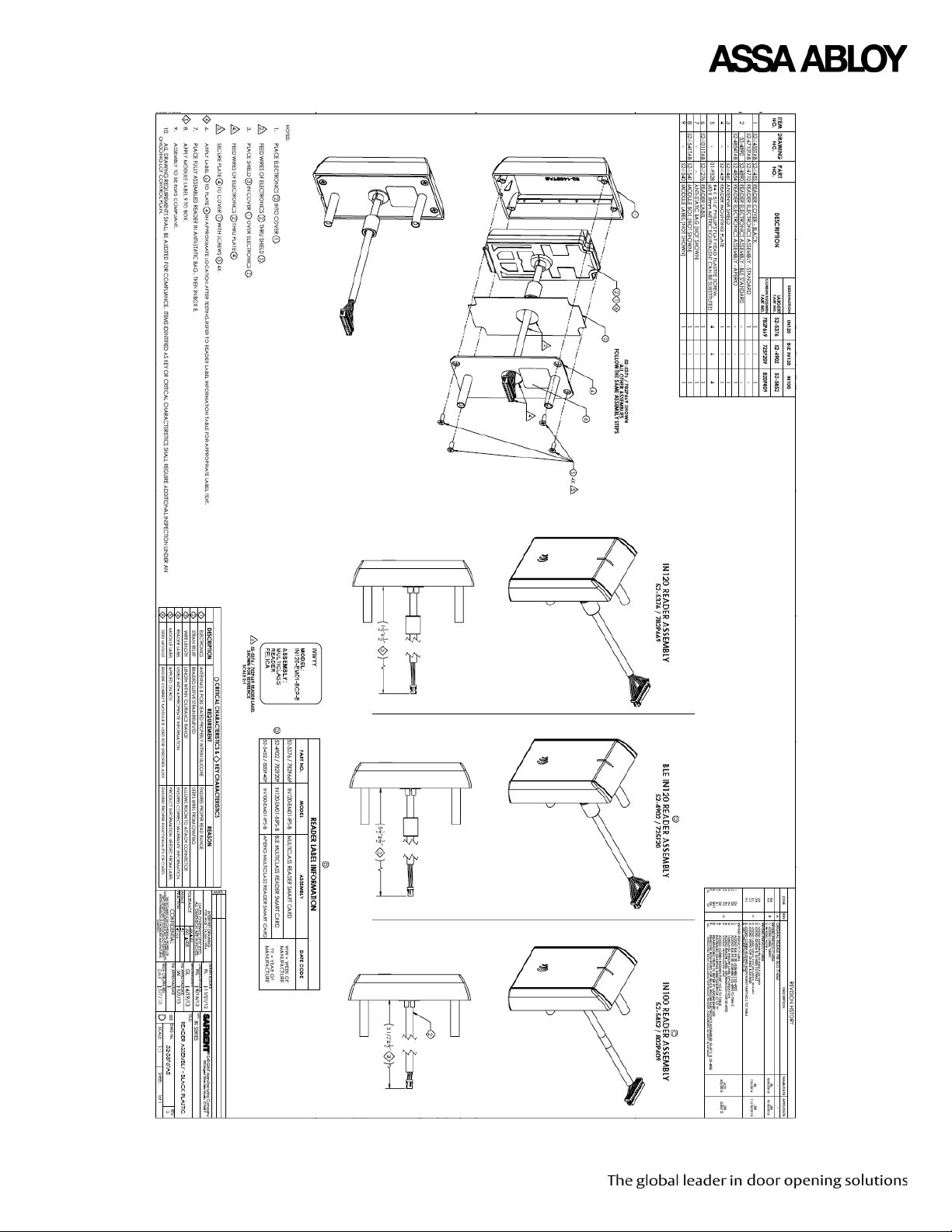

Assembly Drawings and Instrucons:
53-5378TAB
52-5376RTAB
52-4890
Factory Conguraon Instrucons:
The assembly 52-9051-0000-000 IN120 BT shall be programmed at the manufacturing facility with
rmware. The rmware version to be programmed into the unit shall be V5.09, which applies an
adversing rate of 20ms and a RSSI tap sensivity of -55dB.
Field Conguraon Instrucons:
At the customer site, encrypon keys are loaded by a “Mobile Keys” cered technician using an HID
conguraon card. This installaon can be performed on mobile enabled readers only. Once the “Mo
-
bile Keys” have been loaded interface with mobile devices can be achieved.
The HID BLE Conguraon applicaon is currently available on Android OS and provides addional
conguraon that can be used to congure tap sensivity and transmission power. Transmission power
is restricted to a maximum of 0dBm. The HID BLE Conguraon applicaon can be used to upgrade
the BLE devices rmware using the OTA technology. Field rmware upgrades can only be performed
through and HID cered technician that are authorized to use a controlled administraon card.
Copyright © 2015, ASSA ABLOY Inc. All rights reserved. Reproduction in whole
09/15
or in part without the express written permission of ASSA ABLOY Inc. is prohibited.
BTMN1A • PAGE 2
Copyright © 2015, ASSA ABLOY Inc. All rights reserved. Reproduction in whole
09/15
or in part without the express written permission of ASSA ABLOY Inc. is prohibited.
BTMN1A • PAGE 3
Copyright © 2015, ASSA ABLOY Inc. All rights reserved. Reproduction in whole
09/15
or in part without the express written permission of ASSA ABLOY Inc. is prohibited.
BTMN1A • PAGE 4
Copyright © 2015, ASSA ABLOY Inc. All rights reserved. Reproduction in whole
09/15
or in part without the express written permission of ASSA ABLOY Inc. is prohibited.
BTMN1A • PAGE 5
