PRO SERIES

USER MANUAL

FOR THE

PS 285

POWER SUPPLY BOOSTER

PS 285

Power Supply Booster

over load

Power

On Standby On Standby

CHANNEL A CHANNEL B

CONTENTS

1.0 GENERAL DESCRIPTION..........................................3

2.0 UNPACKING...............................................................3

3.0 MECHANICAL INSTALLATION...................................3

4.0 MAINS POWER ..........................................................4

5.0 SET-UP.......................................................................4

6.0 FRONT PANEL CONTROLS.......................................5

7.0 REAR PANEL CONTROLS AND CONNECTORS.......6

8.0 CABLING.....................................................................7

9.0 PARTY LINE, TECHNICAL CONCEPT .......................8

10.0 GUARANTEE..............................................................8

11.0 TECHNICAL SPECIFICATIONS..................................8

Pro series

Intercom

1.0 GENERAL DESCRIPTION

The PS 285 is designed for use as an auxiliary 2-channel power supply unit, should the main power supply of an ASL intercom system be insufficient to drive the required number of stations. The unit has to be placed in a network in such a way that it feeds its own group of user stations. The PS 285 can be used in portable as well as fixed applications. It uses only 1U of 19” rack space.

The unit is very versatile and ideal for use in applications where standard microphone cable is available and ease of set-up is of paramount importance.

2.0 UNPACKING

The shipping carton contains the parts listed below

* The PS 285 * Mains power cable * Spare fuses * User manual

If any are missing, contact your dealer.

With the PS 285 will be a small packet of spare fuses. Please keep them in a safe place. There is also one spare fuse included in the mains inlet.

3.0 MECHANICAL INSTALLATION

A vertical rack space of 1U (1.75”, 44mm) is required for the PS 285. It is not necessary to provide rear support by extra bracing or shelving.

Adequate ventilation must be provided by allowing sufficient space around the sides and rear of the unit to ensure free circulation of air. Forced cooling is not required.

The intercom line power supply is fully protected and is capable of safely driving 20 beltpacks or 10 speaker stations, or a combination of the two, operating at full power.

Fully electronic switching increases reliability and allows for remote Mic Mute facility.

ASL has taken great care to ensure that this product reaches you in flawless condition. After unpacking the unit please inspect for any physical damage to the unit, and retain the shipping carton and relevant packing materials for use should the unit need returning.

If any damage has occurred, please notify your dealer immediately so that a written claim can be initiated. Please also refer to the guarantee section of this manual.

The power supply regulator is mounted on the rear of the unit, and after a period of time it will feel hot to the touch. This is quite normal, and should be no cause for alarm.

4.0 MAINS POWER

The PS 285 may be connected to the mains power outlet to which other audio equipment is connected. The outlet should have a clean earth. Avoid using mains power outlets which also power dimmer controlled lighting equipment.

This appliance must be earthed

WARNING

4.1 SAFETY EARTHING

The green-and-yellow wire of the mains cord must always be connected to the electrical installation safety earth or ground. It is essential for personal safety as well as for proper operation of the PS 285 and the other connected stations. This wire is internally connected to all exposed metal surfaces and any rack framework into which this unit might be mounted is assumed to be connected to the same grounding circuit.

4.2 POWERING UP

Powering up procedure:

- Make sure that the red power switch on the left side of the front panel is OFF.

Connect the power cord to the rear of the

station.

Plug the other end of the power cord into a

PROPERLY GROUNDED outlet.

The PS 285 employs professionally designed audio input and output circuits which do not require the disconnection of any safety earth for the avoidance of hum loops.

Turn on the power with the red button. The red

overload LED will light up for about 3 seconds, then extinguishes. The yellow LEDS will go on, indicating the station is standby.

When a powered partyline is connected to the

intercom line input the green LED will go on, indicating the station is active.

See for further installation and operation the concerning sections.

5.0 SET-UP 5.1 REMOTE CONTROLLED STANDBY MODE

When the main power supply has reached its limit, a PS 285 can be used to feed another group of user stations. Make sure the unit is placed correctly. When, for example, 30 beltpacks are needed, they should be equally devided between the main power supply and the PS 285. The booster should be placed in the middle of the chain of user stations. Refer to page 10 for an example of a 2-channel intercom network with a booster.

This feature enables the user to activate or de-activate the PS 285 with the power on/off switch of the main power supply. The standby LED’s on the front panel illuminate if there is no line power (from the main power supply) available at the input connectors. The PS 285 will not supply power until the standby mode has been released by providing line power at the input.

6.0 FRONT PANEL CONTROLS

over

PS 285

Power Supply Booster

load

Power

On Standby On Standby

CHANNEL A CHANNEL B

Pro series

Intercom

1 POWER ON/OFF switch

Mains power push button for switching ON and OFF

the internal power supply.

2 OVERLOAD LED

This LED illuminates if the internal power supply has

shut off line power due to overload.

If the internal power supply is overloaded (too many

user stations are connected or short-cicuit in the interconnecting cables), it activates a circuit-breaker which immediately shuts off line power. This circuitbreaker resets automatically 3 seconds after the overload situition is terminated, restoring line power automatically.

During short-circuit, the overload LED extinguishes

very shortly every 3 seconds.

This overload LED also comes on every time you

switch on the main power.

3 ON LED

This LED illuminates if a partyline is connected to the

intercom input and the unit supplies power to the output.

4 STANDBY LED

This LED illuminates when no line power is detected at the input connector and no power is supplied to the output connector.

AC Input voltage :

90 - 240 V 50 - 60 Hz

Fuse :

T 1250 mA

Type Serial Number

B B A A

Intercom Line Intercom Line

Intercom

HOLLAND

WARNING : THISUNIT MUSTBE EARTHED.

HIGH VOLTAGE INSIDE

DISCONNECT MAINS INPUT BEFORE REMOVINGCOVER.

USE 250V FUSES ONLY

PUSH

5 6

7.0 REAR PANEL CONTROLS & CONNECTORS

5 OUTPUT connector

This XLR-3 supplies power to the user stations

connected to the PS 285 when line power is supplied to the input connector.

There is one connector for channel A and one

connector for channel B.

Pin assignments :

1. 0V / ground shield

2. +30V power wire

3. audio wire

6 INPUT connector

This XLR-3 is the sense input and should be connected to the intercom line from the main power supply. There is one connector for channel A and one connector for channel B. Pin assignments are like the output connector.

7 FUSE

This fuse protects the PS 285 against severe internal

damage, in case of malfunction in the power section. To remove the fuse the mains cord must be removed.

It is most important to place the correct fuse in the

holder: mains voltage fuse 90 – 240 VAC T 1250 mA

Spare fuses will be found in the small packet supplied

with the unit.

8 MAINS inlet

IEC Mains connector. For correct wiring and

operation refer to section 4.0.

WARNING

Before you plug in the mains voltage, check if: * The fuse is correct

8.0 CABLING

For the PRO Series Intercom system the interconnecting cables are of the shielded two-conductor microphone cable type and the intercom line connectors are of the XLR-3 type. Audio and Call signals are on XLR pin 3, DC power is on XLR pin 2. XLR pin 1 is connected to the shield of the cable which functions as the common return for audio and power.

Since the audio signal is transferred in an way, certain rules have to be obeyed when installing the cables of an intercom network. This is to avoid earth loops and to minimize power loss and the possible effect of electromagnetic fields.

These rules are:

• Use high quality (multipair) cable.

For interconnecting user stations, power supplies

and accessories in an ASL Intercom network, use high quality shielded two-conductor (minimum 2x

0.30 mm2) microphone cable only.

In case of a multi channel intercom network, use

high quality microphone 'multipair' cable only, each pair consisting of two conductors (minimum 2x 0.15 mm2) with separate shield. Multipair cable should also have an overall shield.

• Use flexible cables.

Use flexible single and multipair microphone cable

instead of cable with solid cores, especially when the cable is subjected to bending during operation or installation.

• Separate cable screen to XLR pin 1.

The screen of each separate microphone cable

and/or the screen of each single pair in a multipair cable, should be connected to pin 1 of each XLR-3 connector. Do not connect this cable screen to the metal housing of the connector or to metal wall boxes (outlets).

See page 12 for Earthing Concept.

• Cable trunks, connection boxes and overall multipair cable screen to clean earth.

Metal cable trunks, metal connection boxes and

overall multipair cable screen should be interconnected and, at one point (the 'central earthing point') in the intercom network only, be connected to a clean safety earth.

See page 12 for Earthing Concept.

• Keep metal connection boxes and cable trunks isolated from other metal parts.

Metal housings for intercom cables and connectors

should be mounted in such a way that they are isolated from other metal cable and connector housings and from any other metal construction parts.



See Party Line, Technical Concept

unbalanced



• Keep cables parallel as much as possible

When two (multi channel) units in a network are

connected by more than one cable, make sure that these cables are parallel to each other over the whole distance between those units. When using multipair cable, parallelism is ensured in the best possible way.

• Avoid closed loops.

Always avoid that cables are making a loop. So-called

'ring intercom' should not physically be cabled as a ring. All cable routes should have a 'star' configuration, with the central earthing point (usually close to the power supply position) as the centre of the star.

• Keep cables away from electromagnetic sources.

Keep intercom cables away from high energy cables,

e.g. 110/220/380V mains power or dimmer controlled feeds for spotlights.

Intercom cables should cross high energy cables at an

angle of 90° only.

Intercom cables should never be in the same trunking

as energy cables.

• Place power supplies in a central position.

In order to avoid unacceptable power losses, place the

power supplies as close as possible to where most power consumption occurs or, in other words, most user stations are placed.

• Connect ASL power supply to a 'clean' mains outlet.

The ASL power supply may be connected to the mains

power outlet to which other audio equipment is connected. Avoid using mains outlets which also power dimmer controlled lighting systems.

In case of more complex installations, don't hesitate to

contact us. Please send us a block diagram of the planned network with a list of all user stations and their positions, and we are happy to advise you on cabling lay-out.

9.0 PARTY LINE, TECHNICAL CONCEPT 11.0 TECHNICAL SPECIFICATIONS PS 285

ASL's PRO Series offers a complete two way ('full duplex') communications system. Users of the system are connected via a 'party line'. Master stations (with built-in power supply), beltpacks, speaker stations and power supplies are interconnected via standard microphone cable. One wire is used as an audio line, one as a power line and the screen of the cable functions as earth/return.

Current drive is used for signal transfer. Each station utilises a current amplifier to amplify the microphone signal and place it on the common audio line where, due to the constant line impedance (situated in the power supply between XLR pin 3 and 1), a signal voltage is developed which can be further amplified and sent to headphones or loudspeakers.

This principle has three advantages:

- the use of a single audio line allows several stations to talk and listen simultaneously.

- due to the high bridging impedance offered by each station, the number of stations 'on line' has no influence on the level of the communications signal.

- power and audio to the intercom stations use the same cable.

The Call signal is also sent as a current on the audio line. It develops a DC potential over the line impedance which will be sensed by each station and interpreted as a Call signal.

10.0 GUARANTEE

This unit is warranted by ASL Intercom to the original end-user purchaser against defects in workmanship and materials in its manufacture for a period of one year from the date of shipment to the end-user.

Faults arising from misuse, unauthorised modifications or accidents are not covered by this warranty. If the unit is faulty, it should be sent in its original packing to the supplier or your local ASL dealer, with shipping prepaid. A note must be included stating the faults found and a copy of the original suppliers invoice.

THIS PRODUCT WAS DESIGNED, DEVELOPED AND MANUFACTURED BY :

ASL-INTERCOM BV UTRECHT, THE NETHERLANDS

http://www.asl-inter.com email: info@asl-inter.com

POWER SUPPLY

mains voltage range 90 – 230 V 60Hz AC DC ouput voltage +30 V +/- 5% DC ripple and noise < 11 mV rms max. output current 1.7 A continous, 3 A peak circuit-breaker delay time 0.2 sec. automatic reset time 3.0 sec.

DIMENSIONS AND WEIGHT

width 19" (483mm) height 1U (44.5mm) depth 150mm weight 1.60 Kg

GENERAL SPECIFICATIONS

intercom line impedance 350 ohms (1kHz)

2.2 Kohms (DC) intercom line audio level nom. –18 dBu Max. +4 dBu dynamic range 80 dB call send signal +2.8 mA call receive signal threshold +2.4 V DC supply voltage +30 V DC (12 V to 32 V)

Note: 0 dBu = 775 mV into open circuit. ASL reserve the right to alter specifications without further notice.

Switched mode power supply

Fuse

1,25A

Mains

switch

earth

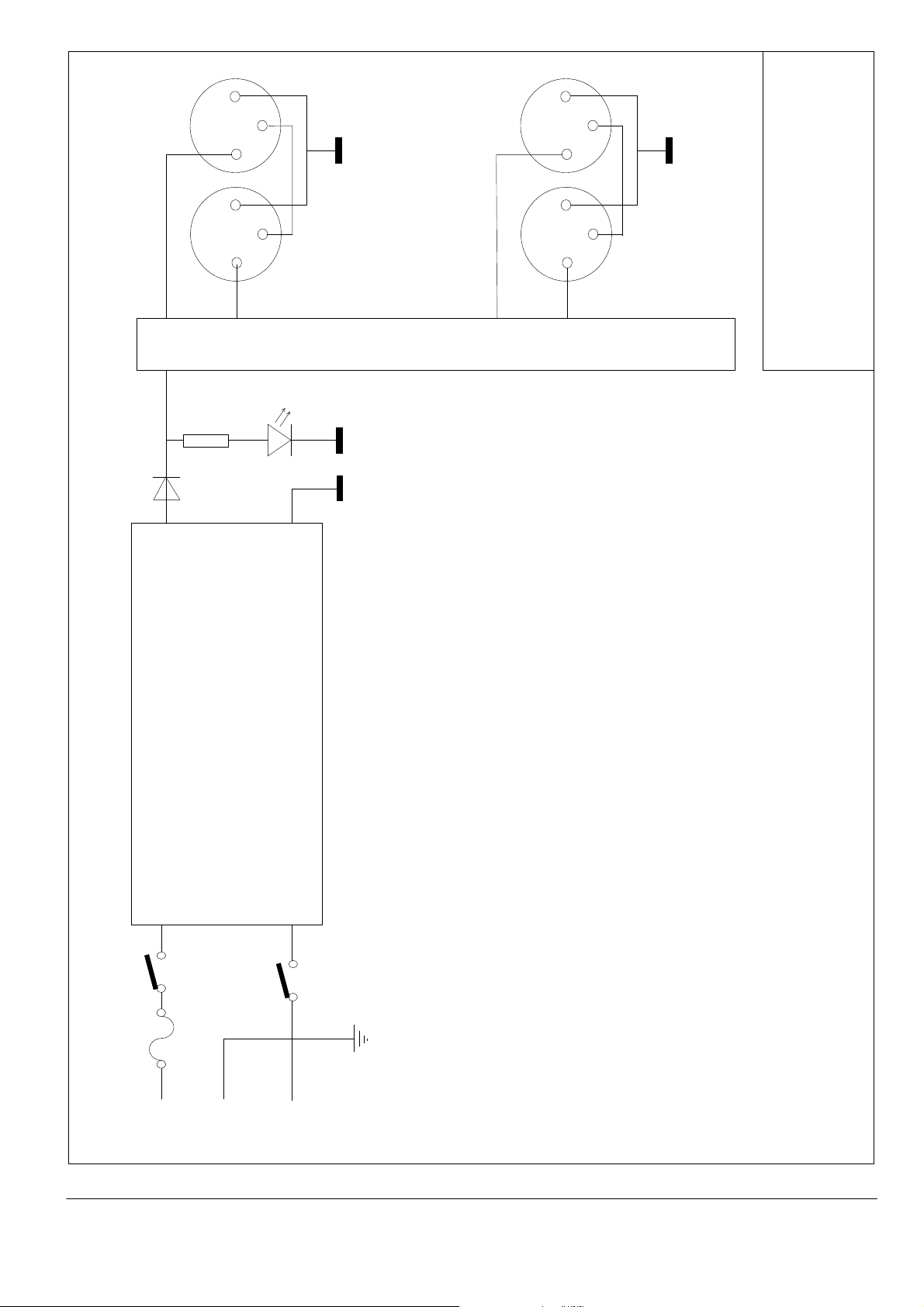

Block diagram PS-285

Power

control

circuit

PS 19

PS 285

PS 19

PS 29

PS 19A

PGM

PS 278

2-CHANNEL INTERCOM NETWORK WITH BOOSTER

IS 140

AUX
