ASKO

USE AND CARE GUIDE

IMPORTANT!

, read all operating

washer

To get the best performance from

washer

your

instructions before using it for

the first time.

WASHER

ENGLISH

ÇAIS

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS 2 CHILD SAFETY FEATURES 2 ASKO WASHER FEATURES 3 INSTALLATION INSTRUCTIONS 4 PREPARING THE LAUNDRY 6 THE DETERGENT DRAWER 8 DETERGENTS 8 FABRIC SOFTENERS 9 FABRIC DYEING 9 RECOMMENDED WASH TEMPERATURES 9 W6021 OPERATING INSTRUCTIONS 10 W6221 OPERATING INSTRUCTIONS 11 W6641 AND W6661 OPERATING INSTRUCTIONS 12 CARE AND MAINTENANCE INSTRUCTIONS 18 COMMON LAUNDRY PROBLEMS 19 TROUBLESHOOTING 20 ASKO PRODUCT WARRANTY 22 INDEX 23

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Page 1

FRAN

AÑOL

ESP

Page 2

IMPORIMPOR TTANT SAFETY INSTRANT SAFETY INSTRUCTIONSUCTIONS

To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

♦ Read all instructions before using the appliance. ♦ Do not run appliance while you are out of the home. ♦ Do not allow children to play on or in the appliance.

Close supervision of children is necessary when the appliance is used near children.

♦ Before the appliance is removed from service or

discarded, remove the door to the washing compartment.

♦ Do not reach into the appliance if the drum is moving. ♦ Do not install or store this appliance where it will be

exposed to the weather.

♦ Do not tamper with controls. ♦ Do not repair or replace any part of the appliance or

attempt any servicing unless specifically recommended in the user-repair instructions or in published user-repair instructions that you understand and have the skills to carry out.

♦ Do not add gasoline, dry-cleaning solvents, or other

flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.

♦ Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been

used for such a period, before using a washing machine or combination washer-dryer, turn on all water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

WARN ING !

Do not wash or dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, cooking oils, or other flammable or explosive substances because they give off vapors that could ignite or explode.

WARN ING !

This appliance must be properly grounded. Improper connection of the equipment grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded.

The plug must be plugged into an appliance outlet that is properly installed and grounded in accordance with all local codes and ordinances.

NOTE: This manual does not cover every possible

condition and situation that may occur. Use common sense and caution when installing, operating, and maintaining any appliance.

CHILD SAFETY FEACHILD SAFETY FEATURESTURES

CHILD-SAFE DETERGENT DRAWERCHILD-SAFE DETERGENT DRAWER

ASKO washers have a child-safety catch on the detergent drawer that can be engaged to prevent a child from opening the drawer and possibly coming into contact with the detergent or fabric softener. Refer to page 8 for instructions on how to engage the child-safe catch.

CHILD-SAFE CHILD-SAFE TEMPERATEMPERATURE KNOBTURE KNOB

Models W6021 and W6221 have a child-safety catch that can be engaged to prevent children from tampering with the temperature knob. The catch is located below the temperature knob behind the edge of the control panel. To engage it, insert a flathead screwdriver in the slot on the catch. Press upwards as you turn the catch clockwise. When you release the catch it should protrude slightly below the control panel.

Once the catch is engaged, you must hold it up as you turn the temperature knob to the desired setting.

CHILD-SAFE STCHILD-SAFE ST A RAR TT

You can program Models W6641 and W6661 not to start unless the Start button is held down for three seconds. This is to prevent children from inadvertently

Page 2

starting the machine. Refer to page 17 for instructions on how to program this safety feature.

MORE CHILD-SAFETY TIPSMORE CHILD-SAFETY TIPS

♦ Laundry detergents are corrosive, so always keep

them out of reach of children.

♦ Should a child swallow detergent, give plenty to drink

immediately, i.e., one or two glasses of milk or water. Do not try to induce vomiting. Seek medical advice immediately: 1-800-POISON1

♦ Always close the door and start the appliance as

soon as you put in the detergent.

♦ Always turn the power off to the machine when it is

not in use.

♦ Always keep small children away from the machine

when it is open. There may be some detergent residue left inside the machine.

♦ If laundry detergent gets in someone’s eyes, rinse

them with plenty of water for at least 15 minutes.

♦ Do not allow children to use or play on or in the

appliance.

Page 3

ASKASKO O WWASHER FEAASHER FEATURESTURES

Your new energy-efficient ASKO washer is designed to give you maximum cleaning performance using less water, energy and detergent. To make the most of the washer’s functions and features, we recommend that you read this manual carefully before using your machine for the first time. For operating instructions, refer to pages 10 through 17.

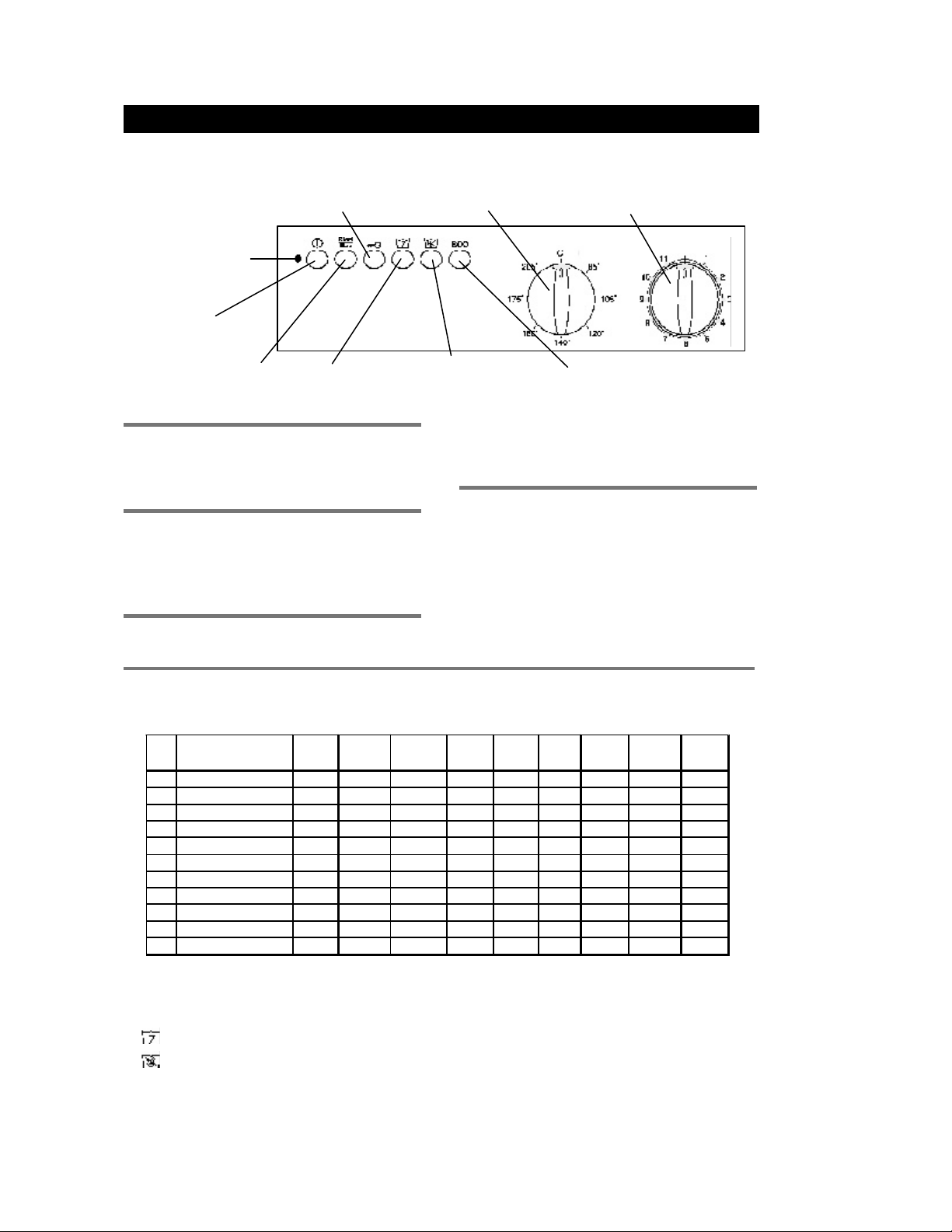

Below is an illustration of the external parts and features of your ASKO washer.

Detergent and Fabric Softener Dispenser

Type Plate

(with Type and Serial Number)

Power Button

Control Panel

Glass Door

Outer Door (W6221 and W6661)

THE GLASS DOORTHE GLASS DOOR

To open the glass door, the power to the machine must be on and you must press the Door Open button (

There will be a few seconds delay before the door opens.

Refer to “The door won’t open” section in the Troubleshooting chart on page 21 for instructions on how to open the glass door in case of a mechanical o r power failure.

Models W6021 and W6221Models W6021 and W6221

On these models, the unit must be at the end of a program to open the glass door. If you need to stop or interrupt a program after you start the machine, press

the Door Open button ( ). Any water in the machine will be pumped out and the door should open on its own. To restart the washer, close the door, add detergent (if needed), and turn the controls to the desired settings.

Models W6641 and W6661Models W6641 and W6661

On these models, if you need to open the door during a wash or rinse cycle, press and hold Door Open for three seconds. The machine will stop and automatically drain enough water so the door can be opened safely. The program will resume when you close the door.

SENSOR LEVEL CONTRSENSOR LEVEL CONTROL OL

ASKO washers do not need high, medium, or low water level settings to compensate for different sized loads. ASKO units have a consumption sensor—Sensor Level Control—that ensures the correct amount of water is pumped into the machine for any size load. It even compensates for fabric saturation, letting in more water if needed. This eliminates worry about selecting the right water level setting for each laundry load.

TEMPERATEMPERA TURE CONTRTURE CONTROLOL

Because wash water temperature is a major factor in getting laundry clean, ASKO washers have built-in heating elements and a sensor that keeps the temperature to within +/-1° F of the selected program temperature .

ASKO washers are programmed not to advance in a cycle until the selected water temperature is reached, so the length of the cycles may vary, depending upon the household cold water temperature, the amount of laundry in the washer, and the wash temperature setting.

ENZYME STEPENZYME STEP

To successfully remove all dirt and stains from fabric, the enzymes in your detergent need to work at a temperature between 105° and 140° F for a longer time period. For this reason, the main wash cycle in a Normal wash program on ASKO washers is 43 minutes (plus the amount of time it takes to heat the water to the selected temperature). This longer wash cycle gives the enzymes in the detergent ample time to remove stains, eliminating the need for stain sprays and spot removers.

The prewash option should be used only for heavily soiled loads. Starting the machine at the main wash stage will save about 25 minutes.

MORE RINSE CYMORE RINSE CYCLESCLES

Most washers have only two or three rinse cycles; some have an option to add a fourth. ASKO washers have five rinses and a Super Rinse option that adds two more. ASKO washers get the soil and detergent out of your laundry that most other washers leave in. That’s why your whites will remain white and your colored fabrics will remain bright.

SUPER RINSE OPTIONSUPER RINSE OPTION

This option is designed for people with sensitive skin or who are allergic to detergents. It can also be used for large, heavily soiled loads.

SPIN OPTIONSSPIN OPTIONS

ASKO washers have faster spin speeds than most other washers, which decreases the time it takes to dry your laundry by up to half. The spin speeds range from 400 rpm to 1600 rpm, depending on the model. You can also turn the spin cycle off.

(SL(SL C)C)

ENGLISH

Page 3

Page 4

INSTINSTALLAALLATION INSTRTION INSTRUCTIONSUCTIONS

Read these instructions carefully and completely before you install the machine. The installation should be carried out by a qualified person who is familiar with all local codes and ordinances for electrical and plumbing connections.

SPECIFICASPECIFICATIONSTIONS

Height 33-1/2”–34-1/2 (850–876 mm) Width 23-7/16” (595 mm) Depth W6641/W6661: 23-7/16" (595 mm)

W6021/W6221: 24-7/16” (620 mm) Weight 167 lbs. (73 kg) Rated load See data plate Supply voltage Single-phase 230 V, 60 Hz Heating element 2000 W Fuse 15 A (2 internal fuses)

REMOREMOVING VING THE SHIPPINGTHE SHIPPING SUPPORTSSUPPORTS

The machine is transported with three shipping supports, as illustrated below. These supports hold the tub in place during shipment. When you unpack the machine, you must remove these supports.

You must remove the shipping supports before you install the washer.

IMPORTANT NOTE:

Cosmetic damage must be reported to your dealer within five days from the date of purchase. After unpacking the washer, thoroughly check the unit for cosmetic damage.

Drum and Barrel Stainless steel Outer casing Stove-enamelled hot-dipped

galvanized steel or stainless steel

Mounting Four adjustable rubber-covered

feet

Inlet supply hose 5 ft. (1.5 m) PEX tubing with

brass ferrules Supply pressure 15–142 PSI Outlet hose 5.5 ft. (1.7 m) polypropylene hose,

3/4” ID

LEVELING LEVELING THE MATHE MACHINECHINE

It is important that the machine is level so it won’t vibrate excessively during the spinning cycles. Each foot on the washer is adjustable, so you can level the washer on any surface. Once it is level, securely tighten the lock nuts on the feet to prevent excessive vibration during the spin cycles.

Be sure to tighten the lock nuts securely when you level the machine.

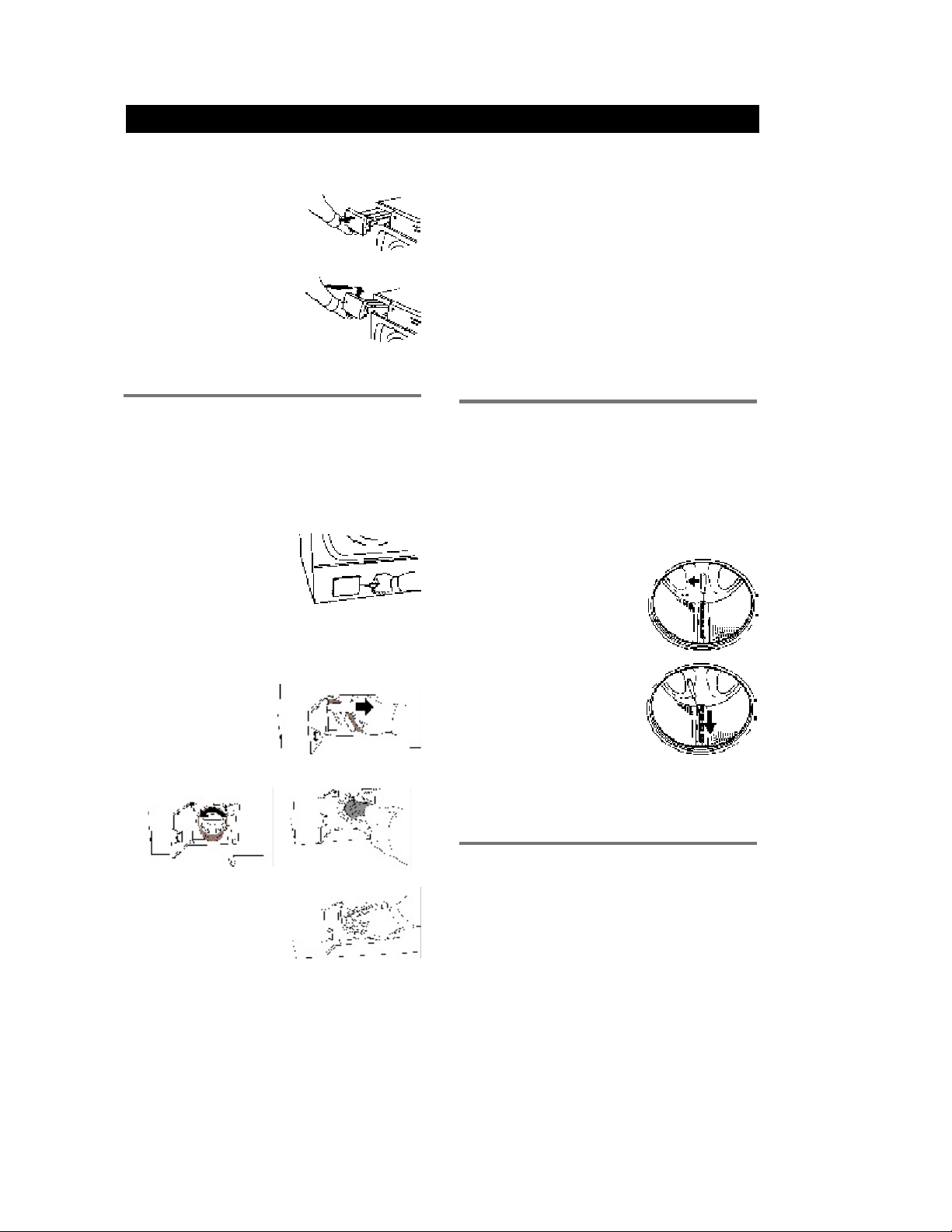

To remove the shipping supports, follow the instructions below:

1. Unscrew the 5/8” (12 mm) bolts holding the supports in place and remove the bolts.

2. Push the rubber spacer up then pull it out of the slot.

ACCESSORIESACCESSORIES

3. Rotate the spacer so that the extruded end points toward the machine.

4. Insert it into the slot and push down to lock it into position.

Page 4

WAWATER SUPPLTER SUPPLY CONNECTIONY CONNECTION

Because ASKO washers have their own heating element, you only need to have a cold water inlet. The connection should be made by someone who is sufficiently skilled. Use the hose supplied with the washer.

Water pressure must be in the range of 15–146 PSI. A tap should be fitted on the water supply pipe. If a new supply pipe has been installed for the washer,

it should be flushed thoroughly to remove any foreign particles that might clog the strainer in the water inlet.

Tap

Cold water supply

NOTE: If unit is installed on a second story, follow

local building codes. We recommend a drip pan be installed.

Page 5

DRAIN OUTLET CONNECTIONDRAIN OUTLET CONNECTION

The machine is supplied with the outlet hose already attached. The hose should be extended over a suitable sink edge or drain pipe at a height of 24” to 36” (610 mm to 914 mm) above the bottom of the unit. (The lower height is preferable.) Make sure that the hose is not kinked.

NOTE: If the hose is extended, the internal diameter

of the coupling must not be less than 1/2”.

WARN ING !

Do not extend the drain hose higher than 36” (914 mm) from the bottom of the unit.

ELECTRICAL CONNECTIONSELECTRICAL CONNECTIONS

The machine is delivered ready-fitted with a plug and is intended for connection to an ASKO Dryer, which is equipped with a matching receptacle. The plug supplied with the washer can only be used with an ASKO Dryer. If the washer is used separately or with another dryer, it must be on a separate 220 V single-phase circuit.

If the machine is to be used in a wet area, the supply must be protected by a residual current device.

As supplied: 230 V, 60 Hz

2000 W heating element 15 A fuse required

FREESTFREESTANDING INSTANDING INST ALLAALLATIONTION

The washer can be placed next to the dryer. It is essential that the machine is leveled and the locknuts tight to prevent excessive vibration during the spin cycles. Also be sure to leave a minimum of 1/2” (12 mm) of space between the washer and the dryer.

The height adjustment for the washer is 33-1/2” to 34-1/2” (850 mm to 876 mm). Do not raise it higher than 34-1/2”.

STSTAA CKED INSTCKED INST ALLAALLATIONTION

ASKO washers should never be stacked on a counter or a dryer. You can, however, stack an ASKO dryer on an ASKO washer. Refer to your Dryer Use and Care Guide for instructions on how to do this.

BB UILUILTT -IN INST-IN INSTALLAALLAT IONTION

ASKO washers can be installed beneath a cabinet or worktop with a height of 34-1/2” ( 876 mm). There must be a gap of about 1/2” (12 mm) all around the machine, including between the rear edge of the machine top panel and the back wall. The opening width must be at least 24-1/2” (622 mm).

Space must also be available for the inlet and drain hoses. See the diagram below for measurements and positions.

ENGLISH

WARN ING !

Connection to a permanently wired supply point must be made only by a qualified electrician.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING! Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded.

Do not modify the plug provided with the appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

If the drain outlet is higher than 24”, the connections will need to be recessed.

Page 5

Page 6

PREPP R E PARING ARING THE LATHE LAUNDRUNDRYY

We believe ASKO washers clean better than any other washer available on the market. With proper attention to how you prepare your laundry items for washing and drying, your wardrobe and linens will look like new for years.

SORSOR TING TING THE LATHE LA UNDRUNDRYY

Properly sorting your laundry is a very important factor in ensuring that your clothing and linens look new for a long time. Another important factor is properly following the care label instructions (see next page).

Below are some basic rules for sorting your laundry:

Sort by

1. Fabric color

Whites; pastels and medium colors; bright colors; dark colors

2.2. Amount of soil

Heavily soiled items should be washed separately from lightly soiled items.

3.3. Fabric Type

Delicates should be washed separately. You should also consider separating fabrics that tend to shed lint (e.g., cotton, chenille, and terrycloth) from fabrics that attract lint (e.g., permanent press, corduroy, velveteen, flannel and synthetics).

IMPORTANT NOTE:

If the care label says "Wash Separately," the fabric is likely to lose color (excess dye) for the first few washings. To minimize the possibility of the color transferring to white or lighter colored items, wash new colored garments with items of similar color or separately. Bright reds and oranges on cottons are the dyes most likely to transfer colors to the wash load. Fluorescent colors should always be washed separately.

RECOMMENDED LRECOMMENDED LOO AD SIZESAD SIZES

To reduce wrinkling, you should determine the load size based on the type(s) of fabrics being washed. The chart below gives recommended load sizes for different fabrics.

Load Size Fabrics

Full Cotton, linen Half Perm press, synthetics, acrylics Third Special finish cottons, machine

washable wool, silk, acetates

Cotton and Linen FabricsCotton and Linen Fabrics

These items should be washed in full loads because the tumble action of the tub along with the gentle rubbing and lifting and falling movement of the clothes gives the best cleaning result.

Permanent Press FabricsPermanent Press Fabrics

These items need more room to move freely during washing for the most wrinkle-free results. Therefore, fill the machine only half full for permanent press loads. These items should have only a brief spin cycle and they should be removed promptly from the washer and put directly into the dryer or hung to dry .

Delicate FabricsDelicate Fabrics

More delicate fabrics, such as machine washable wool and silk, should only be washed in one-third size loads for the best results.

ADADVICE FOR PERSONS VICE FOR PERSONS WITHWITH SENSITIVE SKINSENSITIVE SKIN

ASKO washers are ideal for people allergic to detergent. Our Heavy, Normal and Light wash programs have five rinse cycles and a Super Rinse option that adds two more rinses. This ensures that all the detergent residue is rinsed out of your laundry.

As an extra precaution, you should use mild detergents and be careful not to use too much.

GENERAL LAGENERAL LAUNDRUNDR Y Y ADAD VICEVICE

♦ Always follow the care label instructions (see page

7).

♦ Remove any sharp ornaments, pins or buckles to

prevent snags.

♦ Empty pockets and turn them inside out. ♦ Close zippers and hooks to prevent snagging. ♦ Tie sashes and strings to prevent tangling. ♦ Mend any small rips to prevent them from enlarging. ♦ Turn colored cotton garments, velvet and finer

knitwear inside out before washing.

♦ Turn delicate items, sweaters and T-shirts inside

out to prevent pilling and to protect the prints.

♦ Prewash severely soiled items. ♦ Wash colored fabrics separately the first time. ♦ Thoroughly rinse down items, such as comforters

(Super rinse).

♦ Use fabric softener to eliminate static electricity in

synthetic garments and to soften cotton.

Page 6

Page 7

CARE LABEL INSTRCARE LABEL INSTRUCTIONSUCTIONS

Most clothes and other washable items have permanent care labels. Read these labels carefully! Care label instructions and warnings should be followed for the best cleaning results.

The table below defines the symbols used on fabric care labels. (NOTE: Some manufacturers may use slightly different symbols.)

CARE LABEL SYMBOLSCARE LABEL SYMBOLS

As an example, the symbols in the label illustrated below mean: wash in warm water on permanent press setting. Do no bleach. Dry on permanent press setting. Iron on low temperature setting.

ENGLISH

Page 7

Page 8

THE DETERTHE DETERGENT DRAGENT DRAWERWER

The detergent drawer on ASKO washers automatically dispenses the detergent and fabric softener at the appropriate times. Simply pour the measured amounts of detergent and softener into the proper compartments (as illustrated) and close the drawer.

Main wash detergent

Pullout handle

NOTE: To avoid oversudsing, do not put detergent in

the prewash compartment unless you are using one of the Heavy wash programs which has a prewash cycle.

Prewash detergent

Fabric softener

Child-safety catch

DETERGENTSDETERGENTS

Laundry detergents are available in low-, normal- and high-sudsing formulas. A detergent´s ability to clean is not relative to the amount of suds it produces. Excess suds in a front-loading washer actually interfere with the cleaning because they cushion the tumbling action. Also, high-sudsing detergents are more difficult to completely rinse out.

The use of anything other than a low-sudsing detergent can cause severe oversudsing, which could cause suds

to backup through the detergent compartment and run down the front of the washer onto the floor. If oversudsing occurs, run the wash through one or more rinse programs until all items are thoroughly rinsed. Remove the laundry then run the washer through a Normal wash program to get rid of any remaining detergent.

LIQUID DETERGENTSLIQUID DETERGENTS

We don’t recommend liquid detergents because they tend to produce more suds than powder detergents when used in water temperatures of 150° F or higher. If you should try a liquid detergent, start with a very small amount, such as 1 to 2 tablespoons. Also, liquid detergent can be used for all programs without prewash, so add it into the main wash compartment.

Should you prefer to use a liquid detergent, we have provided a partition piece with the detergent drawer specifically for use with liquid detergents. Insert the partition in the slot at the back of the main wash compartment before you pour in the liquid detergent.

NOTE: The partition piece is packaged on the bottom of the detergent drawer.

We recommend that you don’t use bleach in your ASKO washer. The tumbling wash action, temperature control

options, extended wash times and proper amount of detergent are sufficient to remove most stains.

Child-Safe CatchChild-Safe Catch

All ASKO 6000-series washers have a child-safe catch on the detergent drawer that can be engaged to prevent a child from opening the drawer and possibly coming into contact with the detergent or fabric softener.

The safety catch is the red plastic piece on the back right side of the pull-out handle. To engage the catch, open detergent drawer a little then pull the catch forward and release it. Once the catch is engaged, you must push it to the left each time you open the detergent drawer.

To disengage the catch, push it to the left then back.

RECOMMENDED POWDERRECOMMENDED POWDER DETERGENTSDETERGENTS

ASKO washers use 50% to 75% less detergent than most other washers. This is because of their low water consumption and the fact that all the wash water is repeatedly circulated through the laundry, ensuring that all the detergent is fully utilized. We recommend that you use powder detergents made specifically for frontloading washers. These are sometimes called HE (High-Efficiency) detergents. Listed below are some low-sudsing powder detergents that have been successfully tested in ASKO washers:

♦ Fab ♦ Amway SA8 ♦ Fresh Start

We recommend that you do not use any powder detergent that doesn’t wash completely out of the detergent drawer.

♦ All ♦ Tide HE ♦ Wisk HE

AMOUNT OF DETERGENT TO USEAMOUNT OF DETERGENT TO USE

The amount of detergent needed varies among the different brands, but for most detergents, you need only one or two tablespoons. Using too much detergent can result in detergent residue being left in your clothes, which can cause them to appear gray or dingy. You should start with a small amount of detergent and increase it only if the cleaning results are unsatisfactory.

Additionally, you should never put detergent in the prewash compartment unless you are using a wash program that has a prewash cycle. This could cause excess foaming, which could damage the machine.

The amount of detergent needed can also depend on the hardness of the water in your area. See the “Detergent Amounts Based on Water Hardness” section on the next page for more details.

Page 8

Page 9

Detergent Amounts Based on Water HardnessDetergent Amounts Based on Water Hardness

The amount of detergent needed can vary due to differences in water hardness. To determine the water hardness in your area, contact your local water utility or area water softening company. The harder the water, the more detergent you may need. Refer to the chart below for the recommended detergent amounts based on water hardness. Remember, you should adjust the amount of detergent you use by small amounts until you find the correct amount.

Note that 12 grains and higher is extremely hard water and detergent alone may not be enough. You may need

Recommended Detergent Amounts

Based on Water Hardness

Water Hardness

Soft (0-3 grains per gal.) 1 teaspoon 1 to 1-1/2 tablespoons Medium (4-8 grains per gal.) 1 teaspoon 1 to 2 tablespoons Hard (9+ grains per gal.) 1 teaspoon 2 to 3 tablespoons

to use a water softener to maximize the performance of your washer. Also, in areas with extremely hard water (9+) you may need to wash at lower temperatures to prevent hard water deposits from forming in the tank and wash system.

Different brands of detergent have different amounts of phosphorous for softening water. If you have hard water and use a detergent with less than 8.7% phosphorous content, you may need to use more detergent or use a detergent with a higher phosphorous content.

Detergent Amounts

Prewash Main Wash

FABRIC SOFTENERSFABRIC SOFTENERS

Fabric softeners are available in several concentrations. We recommend that you use only two tablespoons of

fabric softener. If more softening is desired, try adding slightly more the next time.

FABRIC DFABRIC DYEINGYEING

To dye fabrics in your washing machine, pour the dye directly into the drum, not in the detergent compartment. Select Normal wash with the Super Rinse option and use the temperature recommended on the dye package. If you’re dyeing polyester, select a spin speed

of 800 rpm. After you have removed the dyed items, be sure to clean

the drum before you wash a load of laundry. Do this by running the empty machine through a Normal wash program using the normal amount of detergent.

ENGLISH

RECOMMENDED RECOMMENDED WWASH ASH TEMPERATEMPERATURESTURES

Different fabrics require different wash temperatures. The table below gives recommended wash temperatures

Wash Wash Load Spin

Fabric Type Temp. Program Size

White cotton w/out elastic 140–205° F Normal Full Long spin, high rpm and/or decorative trim

White cotton w/elastic 120–140° F Normal Full Long spin, high rpm and/or decorative trim

Colored cotton 120–140° F Normal Full Long spin, high rpm Linen (white and colorfast) 120–140° F Normal Half Short spin, low rpm Cotton/polyester blends 105–120° F Normal/Permanent press Half Short spin, low rpm Polyester/acrylic blends 105–120° F Normal/Permanent press Half Short spin, low rpm Rayon and acetate 105° F Delicate/Wool Half Short spin, low rpm Washable silk and nylon 85° F (cold) Delicate/Wool Third Short spin, low rpm Washable wool and 85–105° F Delicate/Wool Third Short spin, low rpm

wool blends (cold) Handwash wool & silk

NOTES:

(1) The load size should be determined by the type of fabric being washed. (See page 6.) (2 ) Spin speed options are not available on all models. (3) Some hand-washable wool and silk items should not go through a spin cycle. These items should be removed

from the washer then pressed out in a terry towel to remove excess water before being hung up or laid flat to dry.

(3)

85° F (cold) Delicate/Wool Third Short spin, low rpm

for different fabrics as well as recommended programs, load sizes, and spin options.

(1)

Options

(2)

Page 9

Page 10

W6021 OPERAW6021 OPERATING INSTRTING INSTRUCTIONSUCTIONS

THE CONTRTHE CONTROL POL PANELANEL

Door Open Button

Press to open the glass door. (Please note that the unit must be at the end of a program to open the glass door.)

Power Indicator Light

Glows when the power is turned on.

Power Button

Press to turn on power to the machine.

Start/Stop Button

Press to start or stop/ interrupt a program.

Super Rinse Button

Press to program seven rinses.

POWER BUTTON

The Power button turns the power to the machine on and off. When the power is on, the power indicator light glows red. The power must be on before you can open the door, set the programs or start the machine.

START/STOP BUTTO N

Once you’ve selected the program and options, press this button to start the washer. To stop the washer during a program, press and hold this button down for a few seconds. If you press this button to stop a program, you will have to reselect the program to restart the unit.

DOOR OPEN BUTTON

The power must be on and you must press this button

Temperature Control

Turn clockwise to select the wash temperature.

Program Control

Turn to select a program. (Please note that the dial does not move as the program advances.)

No Spin/No Drain

Press to omit the spin and final drain cycles.

to open the door. There will be a few seconds delay before the door opens. Please note that the unit must be at the end of a program and the water drained before the door will open.

800 RPM Spin Button

Press to reduce spin speed from 1200 rpm to 800 rpm.

INTERRUPTING OR CHANGING A PROGRAM

If you wish to interrupt a program to add an item to the wash, press and hold the Start/Stop button until the unit stops. Turn the Program Control knob to 11 (Drain) to drain the water. Press the Door Open button. The door will open when the water has drained. Insert the item you wish to wash and close the door. Add detergent (if needed), turn the control knobs to the desired settings, and press Start/Stop to restart the machine.

W6021 PROGRAMS AND OPTIONSW6021 PROGRAMS AND OPTIONS

Your ASKO washer has several programs and options specifically designed to give you the cleanest laundry

Dial

# Program

1 Stain yes Long Normal 140 5 2 Long 1200 Full 2 Heavy wash no Long Normal 140 5 2 Long 1200 Full 3 Normal wash no Short Normal 105 5 2 Long 1200 Full 4 Synthetic wash no Short Normal 105 3 no short 800 Half 5 Quick wash no Short Normal 105 3 no Long 1200 Full 6 Super quick wash no Short Normal 105 2 no Short 800 Half 7 Wool wash no Short Gentle 85 3 no Short 800 Third 8 Hand wash/Delicate no Short Gentle 85 3 no Short 800 Third

9 Rinse n/a n/a n/a n/a 1 n/a Long 1200 Full 10 Spin n/a n/a n/a n/a n/a n/a Long 1200 Full 11 Drain n/a n/a n/a n/a n/a n/a n/a n/a Full

NOTE: Program times will increase when you select higher wash temperatures. (See “Temperature Control” on page 3.)

800

Page 10

CAUTION! Some fabrics may not be able to withstand extremely hot temperatures. Please

DefinitionOption

Super Rinse – Provides two additional rinses. Recommended for persons with sensitive skin or allergies.

No Spin/No Drain – Omits spin cycles in all programs and final drain. If you select this option, you will

have to run the Drain program (11) before you can open the door. Reduces the spin speed from 1200 rpm to 800 rpm. (Does not apply to Rinse and Spin programs.)

refer to the Recommended Wash Temperatures chart on page 9.

Pre-

wash

Main

Wash

Action

possible. The tables below define each program and option.

Temp.

(° F)# Rinses

Int.

Spin

Final Spin

Spin

Speed

Load

Size

Page 11

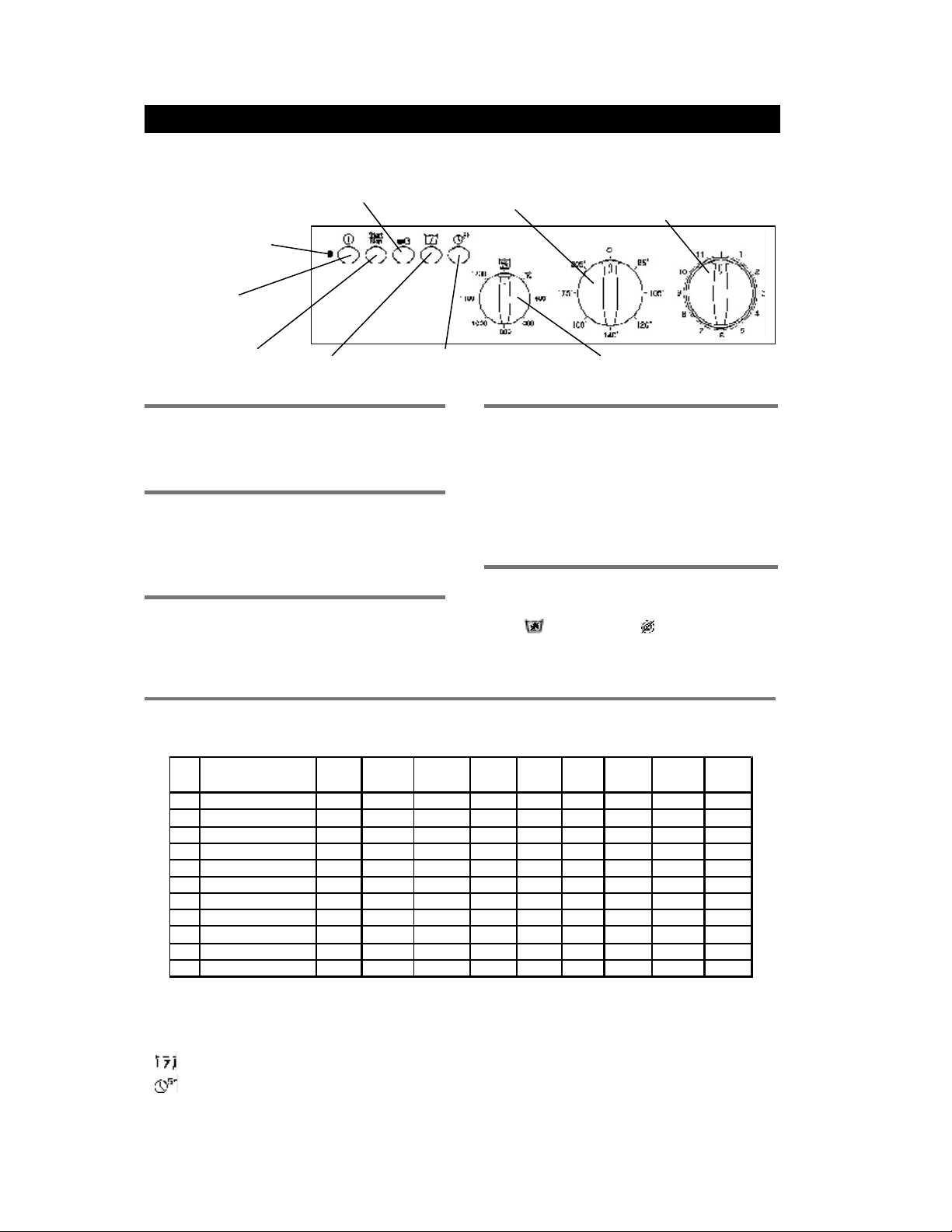

W6221 OPERAW6221 OPERATING INSTRTING INSTRUCTIONSUCTIONS

THE CONTRTHE CONTROL POL PANELANEL

Door Open Button

Press to open the glass door. (Please note that the unit must be at the end of a program to open the glass door.)

Power Indicator Light

Glows when the power is turned on.

Power Button

Press to turn on power to the machine.

Temperature Control

Turn clockwise to set the wash temperature.

Program Control

Turn to select a program. (Please note that the dial does not move as the program advances.)

ENGLISH

Start/Stop Button

Press to start or stop/ interrupt a program.

Super Rinse Button

Press to program two additional rinses.

Delay Start Button

Press to delay starting the program for five hours.

POWER BUTTON

START/STOP BUTTO N

DOOR OPEN BUTTON

The power must be on and you must press this button to open the door. There will be a few seconds delay before the door opens. Please note that the unit must be at the end of a program and the water drained before the door will open.

INTERRUPTING OR CHANGING A PROGRAM

SPIN SPEED CONTROL

In addition to the 400 rpm to 1200 rpm spin speed options, the Spin Speed Control has a No Spin/No Drain option ( delicate fabrics that should not be spun dry. (NOTE: If you select No Spin/No Drain, you will have to run the Drain program (11) before you can open the door.)

) and a No Spin ( ) option. These are for

Spin Speed Control

Turn to select the spin speed for the final spin.

W6221 PROGRAMS AND OPTIONSW6221 PROGRAMS AND OPTIONS

Your ASKO washer has several programs and options specifically designed to give you the cleanest laundry

Dial

# Program

9 Rinse n/a n/a n/a n/a 1 n/a Long 1200 Full 10 Spin n/a n/a n/a n/a n/a n/a Long 1200 Full 11 Drain n/a n/a n/a n/a n/a n/a n/a n/a Full

NOTE: Program times will increase when you select higher wash temperatures. (See “Temperature Control” on page 3.)

CAUTION! Some fabrics may not be able to withstand extremely hot temperatures. Please

refer to the Recommended Wash Temperatures chart on page 9.

DefinitionOption

Super Rinse – Provides two additional rinses. Recommended for persons with sensitive skin or allergies. Delay Start – Automatically delays starting the program for five hours.

Pre-

wash

Main

Wash

Action

possible. The tables below define each program and option.

Temp.

(° F)# Rinses

Int.

Spin

Final Spin

Spin

Speed

Load

Size

Page 11

Page 12

W6641 W6641 AND AND W6661 OPERAW6661 OPERATING INSTRTING INSTRUCTIONSUCTIONS

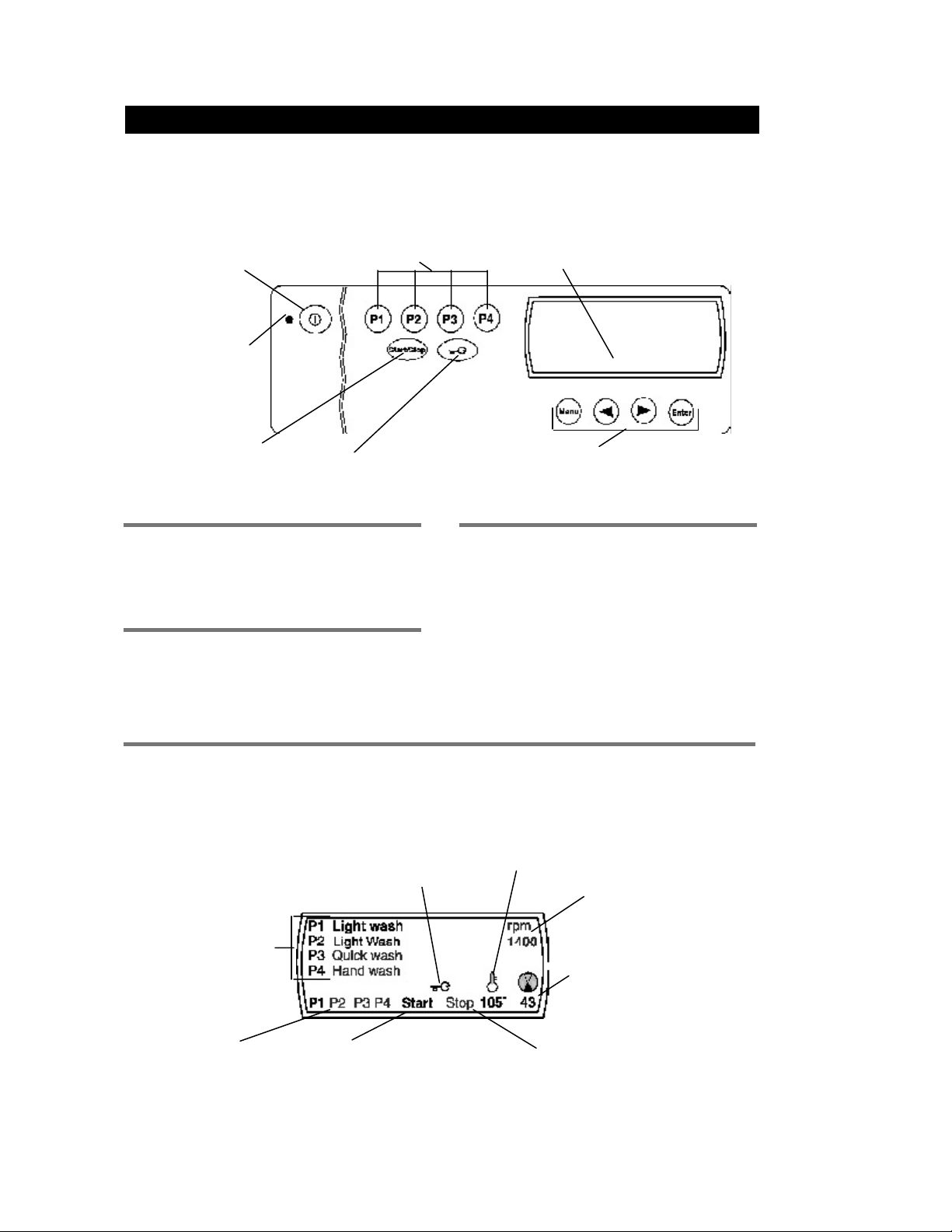

THE CONTRTHE CONTROL POL PANELANEL

Models W6661 and W6641 have ASKO’s state-of-theart EasyControl™ panel, as illustrated below. To select a wash program, simply press one of the preset

Preset Programs

Press one of these buttons

Power Button

Press to turn on power to the machine.

to select a program.

Power Indicator Light

Glows when the power is turned on.

program buttons then press Start. Refer to “Preset Programs” below for a definition of these programs.

LCD Window

Displays the wash program, spin speed, temperature settings, and program run time.

Start/Stop Button

Press to start or stop/interrupt a program.

Door Open Button

Press to open the glass door.

Program Selection Controls

These buttons allow you to customize the preset program settings, such as wash temperatures, spin speed, rinses, display language, etc. Refer to pages 15-17 for instructions.

POWER BUTTON

The Power button turns the power to the machine on and off. When the power is on, the power indicator light glows red. The power must be on before you can open the glass door, set the programs or start the machine.

START/STOP BUTTO N

This button starts or stops a program. To stop a program, press and hold this button for a few seconds. If you stop a program using the Start/Stop button, you will have to reselect a program and press Start/Stop to restart the machine.

UNDERSTUNDERST ANDING ANDING THE LTHE LCD CD WINDOWINDO WW

The LCD window is easy to read and understand. It displays the wash program selection along with the wash temperature, spin speed, and program run time.

Door Open

Displays when you press the Door Open button.

Program

When you press the Power button, the display toggles between the program numbers and the wash program names, (e.g., Normal, Super quick, etc.)

Preset Programs

Displays the program that is selected/running.

Page 12

Start

Indicates that you pressed Start and the program is running.

DOOR OPEN BUTTON

The power must be on and you must press this button to open the glass door. There will be a few seconds delay before the door opens.

If you need to open the door during a program, press and hold Door Open for a few seconds. The machine will stop and automatically drain enough water so the door can be opened safely. The program will resume when you close the door. For instructions on how to open the door manually in case of power failure, see page 21.

The illustration below explains each item on the LCD window.

Temperature

Wash temperature for the selected program.

rpm

Spin speed for the selected program.

Program Time

When you start a program, the total time the program runs is displayed. As the program progresses, the time remaining displays. The program time toggles between the hours (e.g., 1h) and the minutes (e.g., 22).

Stop

Indicates that the program has ended or that you pressed Stop.

Page 13

THE PRESET PROGRAMS THE PRESET PROGRAMS

P 1 P 2 P 3 P 4

ASKO washers are delivered preset with four commonly used programs. The table below lists the preset programs and the settings for each. To select a program, simply press one of the program buttons and press Start. For additional programming options, refer

PRESET PROGRAMS

Preset Wa sh Spin # of # Program Wash Cycle Types of Laundry Temp

P1 Light wash Normally soiled loads 140° F 1600 rpm 5 3 P2 Light wash Normally soiled perm press 105° F 1600 rpm 5 3 P3 Quick wash Lightly soiled fabrics 105° F 1600 rpm 3 1 P4 Hand wash Washable silks, nylon, etc. 85° F 800 rpm 3 1

NOTES:

(1) You can temporarily adjust the temperature and spin speed settings. (See “Making Temporary Program

Changes” below.)

(2 ) The spin speeds in the preset programs are the maximum speed settings for these specific wash

programs.

(3 ) Model W6641 has a maximum spin speed of 1400 rpm.

WARNING!

Some fabrics may not be able to withstand extremely hot temperatures. Please refer to the “Recommended Wash Temperatures” section on page 6.

to “Customizing the Preset Program Buttons” below. Remember, you can temporarily adjust the temperature

setting and spin speed for a preset program. (See “Making Temporary Program Changes” below.)

(1)

Speed

(1)(2)(3)

Rinses Spins

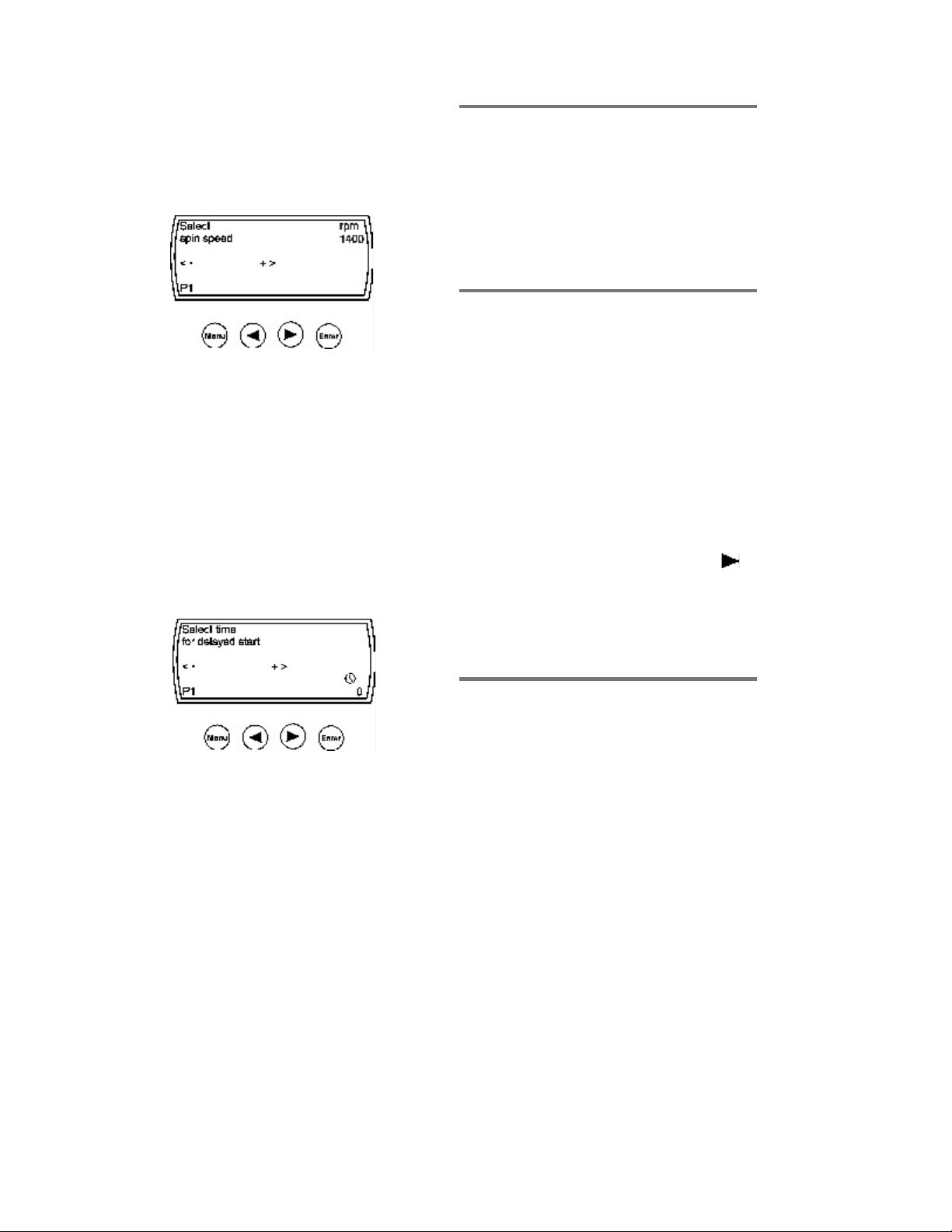

MAKING TEMPORARY PROGRAM CHANGES

You can make temporary changes to the wash temperature and/or spin speed on the preset programs. Simply press the button for the preset program you want to use then follow the instructions at right. The settings will revert to normal at the end of the program.

Temperature – Press displays in the LCD window. (The options are 85°, 105°, 120°, 140°, 160°, 175°, and 205°.) If you also want to change the spin speed, read the following paragraph; otherwise, press Start.

Spin Speed – Press until the desired spin speed displays in the LCD window then press Start. (The spin speeds advance in 200 rpm increments.)

until the desired temperature

ENGLISH

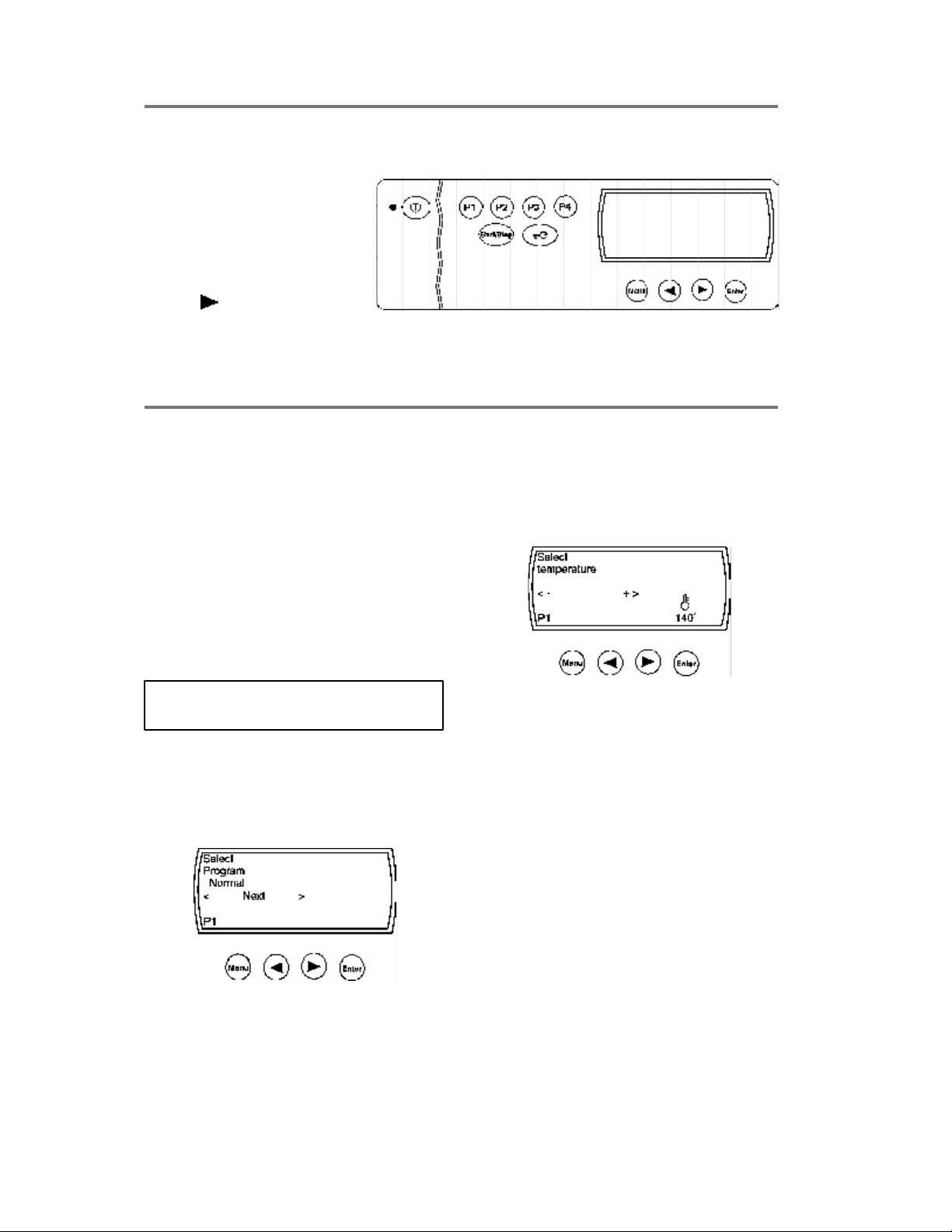

CUSTOMIZING THE PRESET PROGRAM BUTTONS

ASKO’s EasyControl™ panel makes it simple to customize the preset programs to perfectly fit your laundry needs. You needn’t worry about making an error because you can easily restore the original program settings.

In addition to the preset programs listed above, you can customize the preset buttons to use any of the programs listed in the table below.

AVAILABLE PROGRAMS

Pre-

Program

Heavy wash yes Long Normal 140 5 2 Long 1600 Full Normal wash no Long Normal 140 5 2 Long 1600 Full Light wash no Short Normal 140 5 2 Long 1600 Full Synthetic wash no Short Normal 105 3 no Short 800 Half Quick wash no Short Normal 105 3 no Long 1600 Full Super quick wash no Short Normal 105 2 n o Short 800 Half Wool wash no Short Gentle 8 5 3 n o Short 800 Third Hand wash no Short Gentle 85 3 no Short 800 Third Rinse n/a n/a n/a n/a 1 n/a Long 1600 Full Spin n/a n/a n/a n/a n/a n/a Long 1600 Full Drain n/a n/a n/a n/a n/a n/a n/a n/a Full

wash

NOTE: (1) Model W6641 has a maximum spin speed of 1400 rpm.

Main

Wash

Action

This table also lists the pre-programmed settings for each program. For example, if you select Perma Press on the program menu, it is automatically programmed to wash at 105° F using a normal wash action, rinse three times then do a short spin, then rinse two more times, do a long spin and drain. You can modify some of these settings (see “Wash Program Options” on page

14).

Temp.

(° F)# Rinses

Int.

Spin

Final

Spin

Speed

(1)

Load

Size

Page 13

Page 14

WASH PROGRAM OPTIONS

The table below lists the wash programs along with the options available with each. The options are described in detail in the next table. It’s a good idea to scan through the menus a couple of times and

OPTIONS AVAILABLE WITH EACH WASH PROGRAM

Temp Spin

WASH Setting Speed Pre- E2:Eco Super Anti- High

PROGRAMS (° F)

(1)

(rpm)

Heavy Cold, 85°–205° 400-1600 ye s yes y e s yes y e s Normal Cold, 85°–205° 400-1600 ye s y es yes yes y e s Light Cold, 85°–205° 400-1600 ye s yes y e s y e s y e s Synthetic Cold, 85°–205° 400-800 y es no yes yes y e s Quick Cold, 85°–205° 400-1600 ye s no yes yes y e s Super quick Cold, 85°–205° 400-1600 ye s no y e s yes y e s Wool Cold, 85°–105° 400-800 ye s no y es yes no Hand wash Cold, 85°–105° 400-800 yes no yes yes no

familiarize yourself with the wash programs and options before you make any changes. And remember, it’s easy to restore the preset programs.

OPTIONS (On/Off)

(2)

Soak Efficiency Rinse C rease Water

(3)

NOTES:

(1) Program times will increase when you select higher wash temperatures. (See “Temperature

Control” on page 3.) (2) The maximum spin speed for the W6641 is 1400 rpm. The maximum for the W6661 is 1600 rpm. (3) The table below defines each option.

WARNING!

Some fabrics may not be able to withstand extremely hot temperatures. Please refer to the “Recommended Wash Temperatures” section on page 6.

OPTION DEFINITIONS

Option Set this option to “On” to:

Pre-soak Get a two-hour cold presoak before the wash program starts. For heavily soiled items. Only

available with the wash programs.

E2:Eco/ Extend the main wash time by 22 minutes. When used with low wash temperatures (85°–100°

Efficiency

F), this program conserves energy but gives the same high level of cleaning. Can also be used with higher temperature settings to clean heavily soiled items. Only available with the Heavy, Normal, and Light wash programs.

Super rinse Get two additional rinses. Recommended for persons with sensitive skin or allergies. Only

available with the wash programs.

Anti-crease Rotate the drum once every minute at the end of the program to prevent wrinkling. Continues for

two hours or until the door is opened.

High water level Increase the amount of water used for the wash cycle.

NOTE: The main wash cycle in a Normal program is 43 minutes.

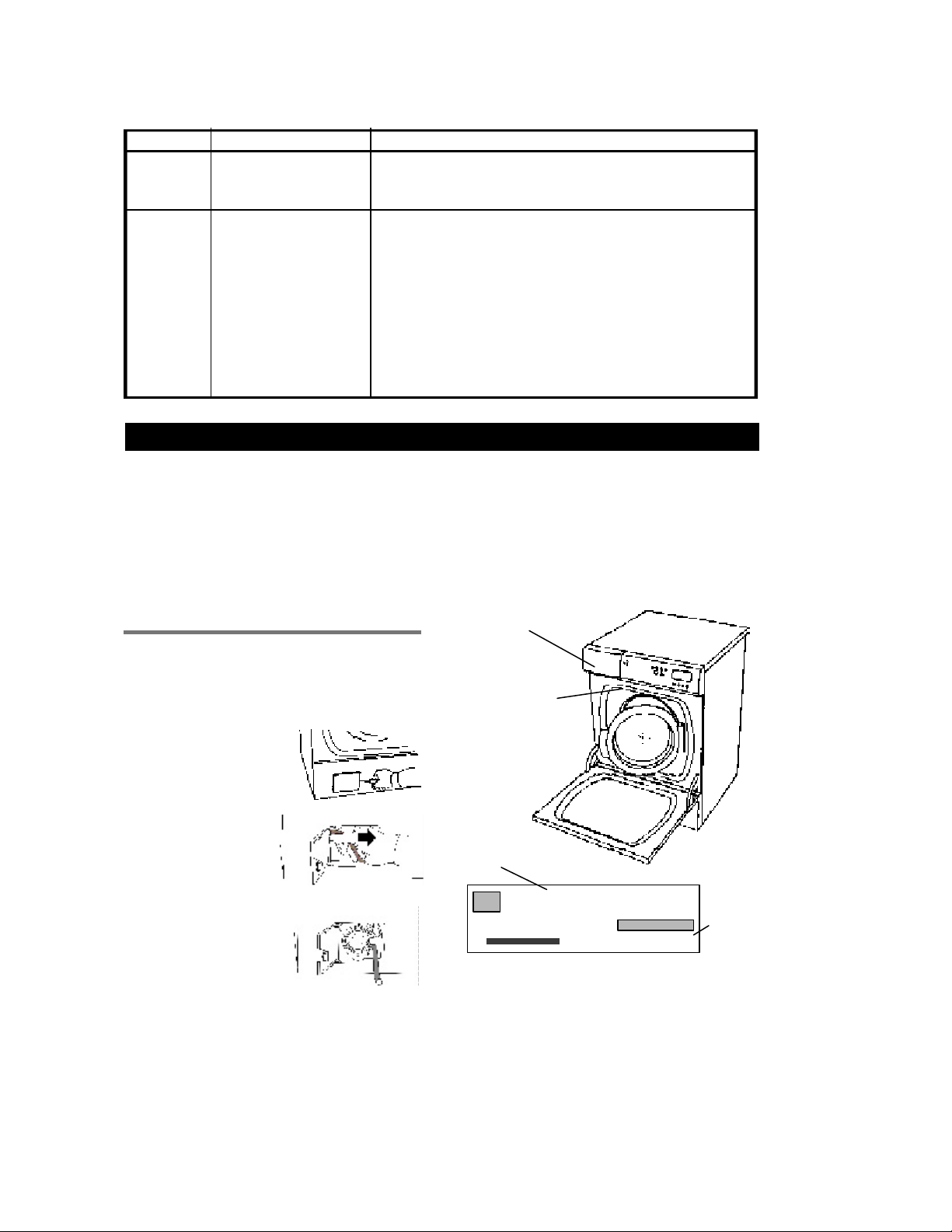

DELAYED START

Models W6641 and W6661 have a Delayed Start option that lets you set a delayed start from 1 to 24 hours. This means you can set the washer to start at the most convenient time for you, such as an hour before you arrive home from work. This feature is also useful in

areas where utility companies offer discount rates during off-peak hours.

Refer to page 16 for instructions on how to set a delayed start.

Page 14

Page 15

PRPROGRAMMING INSTROGRAMMING INSTRUCTIONSUCTIONS

Below are the basic instructions for changing a preset wash program. The following paragraphs explain the menus and how to navigate them. You can make one-time program changes, or you can make permanent program changes.

1. Press the button for the preset program you want to change (P1–P4). The program you select will display in the lower left corner of the LCD window.

2. Press MENU until the menu you want to change displays (e.g., programs, temperature, etc.).

4. Press to scroll through the available options or to toggle between off and on.

5. Press ENTER to save your settings and return to the Main Program screen. The LCD will display your new settings.

6. Press ENTER again to permanently save your settings. (Otherwise, the machine will revert back to the previous settings when the program ends.)

NAVIGATING THE PROGRAM MENU

The following paragraphs explain how to navigate through the menus and change the preset programs. If you don’t want to make changes in all of the menus, continue to press MENU until the one you do want to change displays.

To restore a preset program to its original settings, simply press the button for the preset program you want to restore and hold it down while your press ENTER. The program will revert to its original settings.

We recommend that you make two or three trial changes to understand how easy it is to customize these program.

If you change your mind in the process of changing a program, press the Power button to switch the washer off. When you switch the power back on, the program will be as originally set.

Remember, the first step to customizing a preset program is to press the button for the program you want to customize (P1–P4).

ProgramsPrograms

This lets you set the wash program you prefer. (See the “Available Programs” chart on page 14.) You also use this menu to set the machine for a rinse, spin, or drain program.

1. Press MENU until “Select Program” displays.

TemperatureTemperature

This lets you set the wash temperature. The options are 85°, 105°, 120°, 140°, 160°, 175°, and 205°. Only the temperatures available for the wash program you selected will display. (See chart on page 14.)

1. Press MENU until “Select temperature” displays.

2. Use the Arrow buttons to raise or lower the temperature setting.

3. When the temperature you prefer displays, press ENTER. The LCD will display the new temperature setting.

4. Press ENTER again to permanently save your temperature setting. (See note below.)

NOTE: To prevent inadvertent damage to fabrics,

the highest temperature you can change permanently is 140°.

ENGLISH

2. Use the Arrow buttons to scroll through the programs (Heavy, Normal, Light, etc.).

3. When your preference displays, press ENTER. The LCD will display the new program setting.

4. Press ENTER again to permanently save your program setting.

Page 15

Page 16

Spin SpeedSpin Speed

This lets you set the spin speed. The spin speeds advance in 200 rpm increments. Only the spin speeds available for the wash program you selected will display. (See chart on page 14.)

1. Press MENU until “Select spin speed” displays.

2. Use the Arrow buttons to raise or lower the spin speed setting.

3. When the spin speed you prefer displays, press ENTER. The LCD will display the new spin speed.

4. Press ENTER again to permanently save your program setting.

Delayed StartDelayed Start

This lets you set a delayed start from 1 to 24 hours. This means you can set the washer to start at the most convenient time for you, such as an hour before you arrive home from work. This feature is also useful in areas where utility companies offer discount rates during off-peak hours.

1. Press MENU until “Select time for delayed start” displays.

RESTORING A PRESETRESTORING A PRESET PROGRAMPROGRAM

NOTE: If you change the P3 program then decide to

restore its original settings, after pressing P3 and ENTER, you must go into the Options menu (see page 14) and turn off Short Spin.

CHANGING CHANGING THE LANGUTHE LANGUAAGEGE ON ON THE LTHE LCD CD WINDOWINDOWW

There are eleven languages available for the LCD window:

♦ English ♦ French ♦ Spanish ♦ Portuguese ♦ Italian

♦ Swedish ♦ Danish ♦ Norwegian ♦ Netherlands ♦ Finnish

♦ German

To change the language, follow the steps below:

1. Turn the machine off then on again.

2. Press ENTER five times in succession then press P1 five times. (This must be done within 15 seconds.)

3. When the Language menu displays, press to advance to the desired language.

4. Once the correct language displays, press ENTER to program the LCD window to display the language you selected.

5. Press ENTER again to permanently save your program setting.

2. Use the Arrow buttons to increase or decrease the delay time. (The numbers indicate hours.)

3. When the number of hours you want to delay starting the machine displays, press ENTER. The LCD will display the delay start time.

4. Press ENTER again to permanently save your program setting.

Selecting OptionsSelecting Options

This lets you select Super Rinse, ECO (Economy), Presoak, Anti-crease, or High Water level.

1. Press MENU until “Select options” displays.

2. Continue to press MENU to scroll through the options.

3. When the option you wish to select displays, press an Arrow to toggle between Off and On.

4. Press ENTER. The LCD will display the new setting.

5. Press ENTER again to permanently save your setting.

Page 16

CHANGING CHANGING THE THE TEMPERATEMPERATURETURE READOUT ON READOUT ON THE LTHE LCD CD WINDOWINDOWW FROM CELSIUS TO FAHRENHEITFROM CELSIUS TO FAHRENHEIT

You can change the temperature readout on the LCD window from Celsius to Fahrenheit and vice versa. To do this follow the steps below:

1. Turn the machine off then on again.

2. Press ENTER five times in succession then press P2 five times. (This must be done within 15 seconds.)

3. When the Temperature menu displays, press an Arrow button to toggle between Fahrenheit and Celsius.

4. When your preference displays, press ENTER to program the LCD window to display the temperature reading you selected.

Page 17

CHILD-SAFE STCHILD-SAFE STARART T BB UTTUTTO NON

As a safety measure, you can program the W6641 and W6661 not to start unless the START button is held down for three seconds. To do this, follow the steps below:

1. Turn the machine off then on.

2. Press ENTER five times, then press P3 five times. (This must be done within 15 seconds.)

3. “Delayed start” displays with “0” flashing in the lower right corner. Press the right Arrow button to toggle the display to “3.”

CHILD-SAFE MENU BUTTONCHILD-SAFE MENU BUTTON

Please note that when you set the child-safe Start button, the Menu button is automatically programmed to delay for three seconds before it becomes active. This prevents a child from accidentally changing the program settings.

When you want to change a program, press the Menu button for three seconds to activate the menus. The Menu button will work normally (without the 3-second delay) until you have completed your changes. If it is not pressed for two minutes, it will automatically revert back to the child-safe mode.

W6641 W6641 AND AND W6661 ERRW6661 ERRO R MESSAOR MESSAGESGES

Error messages will display in the LCD window if faults occur while a program is in progress. The table below defines each possible error message.

ERRERROR MESSAOR MESSAGEGE SOLSOL UTIONUTION

When this symbol flashes at the lower right corner of the display it merely means the glass door isn’t closed securely. Close the door and try again.

0000 If this message flashes at the top right of the LCD window, the machine has failed

to spin. This could be because the load is out of balance. Turn the power off then on again. Open the door and redistribute the washing. Run the Spin program again.

Door lock fault Call a service technician. Foaming Run the Rinse program again.

Try using less detergent and softener. Use low-sudsing detergents. (See page 8.)

Overflow Call a service technician Pressure sensor fault Call a service technician. Temperature stop fault Call a service technician. Thermistor fault Call a service technician. Wash motor fault Call a service technician. Water inlet fault Make sure the water tap is open. Water outlet fault Check the pin trap for possible blockage. Make sure the outlet hose isn’t kinked.

To remove the message, turn the power off or change the program.

ENGLISH

Page 17

Page 18

CARE CARE AND MAINTENAND MAINTENANCE INSTRANCE INSTRUCTIONSUCTIONS

CLEANING THE DETERGENTCLEANING THE DETERGENT DRAWERDRAWER

1. Pull the drawer out as far as it goes then lift it up and pull it out completely, as illustrated.

2. Clean the drawer with a soft brush under warm running water. Do not put the drawer

in a dishwasher.

3. Replace the drawer by tilting it into position.

CLEANING THE PIN TRAPCLEANING THE PIN TRAP

Your washing machine has a pin trap designed to trap pins, hairpins, coins and similar items. This trap should be cleaned occasionally. To do this, follow the steps below:

1. Make sure as much water as possible is drained out of the tub then turn off the power to the machine.

2. Using the flat edge of the liquid detergent partition piece, a flathead screwdriver or similar item, gently pry open the drain pump cover, as illustrated.

3. There is always a small amount of water in the drain pump area. Before you open the drain cover, place a shallow container, such as a pie pan, on the floor below the drain to catch the water.

4. Pull the small black drain hose loose from its position on the door cover and let the water drain into the pan.

5. Unscrew the pin trap cover and lift it out.

CLEANING CLEANING THE CONTRTHE CONTROL POL PANELANEL

To clean the control panel, use only a warm, damp cloth. To prevent penetration of water into the door lock and electrical components, never spray water or cleaning solvents on the control panel. Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch the finish and could remove the writing on the control panel. Some paper towels may also scratch the finish.

WARN ING !

Never spray clean the control panel. You could damage the electrical components. Also, never use abrasive cleaners, scouring pads or paper towels on the outer surfaces because they will scratch the finish and they could remove the writing on the control panel.

REMOREMO VING VING AN OBJECT FRAN OBJECT FROMOM BETWEEN BETWEEN THE DRTHE DRUM UM AN DAND OUTER CONTOUTER CONTAINERAINER

Occasionally, a small item may fall between the drum and the outer container. Such items should be removed because they could corrode and cause rust stains on the laundry. To remove the item, follow the instructions below:

1. Insert a flathead screwdriver in the center hole in the paddle and carefully push it to the left.

2. Grip the paddle with your other hand and pull it toward you.

3. Lift up the paddle and remove the object.

4. Replace the paddle in its fixing hole with the F-mark toward you. Check that the paddle clips are properly located in the slots and slide the paddle toward the back as far as it will go.

6. You can now clean out any grit or small objects. You should also clean the pump rotor at the back of the pump housing.

7. Replace the drain cover and reconnect the drain hose securely to its position on the door.

Page 18

REMOREMOVING HARD VING HARD WWAA TERTER STSTAINS FRAINS FROM OM THE DRTHE DRUMUM

If you live in an area with hard water, the washer drum may become coated with a grey-white deposit. To remove it, pour about an ounce of citric acid in the drum and run a Normal wash program at 205° F.

Page 19

COMMON LACOMMON LAUNDRUNDRY PRY PROBLEMSOBLEMS

Most items can be safely washed in an ASKO washing machine. We recommend that you follow the care label instructions as closely as possible for the best cleaning results. Should problems occur, some possible causes and suggested solutions are listed below.

NOTE: ASKO has no control over what is put in our

appliances once installed in a customer’s home. You

are solely responsible for what you wash in your ASKO washing machine.

ProblemProblem Possible CausePossible Cause Suggested SolutionSuggested Solution

Graying Not enough detergent

Water not hot enough Improperly prewashed or

presoaked Washer overload

Soap used in hard water areas

Lint or residue left on clothes

Yellowing Not enough detergent

Shrinkage Improper washing or

Knit shrinkage

Fading and discoloring

Stains Incorrect water

Improper sorting of clothes

Non-phosphate detergent

Fabric softener used improperly

Pilling

Water not hot enough Iron or manganese in

water

drying

Overheating

Delayed or gradual shrinkage

Poor construction

Improper sorting

Crayons or pens in pockets Water too hot

temperature

Old stains

You may need to add slightly more detergent if clothes are heavily soiled, have oily stains, or if your water is very hard.

Select a hotter temperature setting for each type of load. Be sure to add a prewash and/or presoak for heavily soiled or oily

items. Once wet, the clothes must have room to tumble freely, especially

synthetics and permanent press. Be sure you use a laundry detergent, not a “soap.” Soap reacts with

the minerals in hard water to form a soap curd, which can be deposited on clothes.

Separate clothes that shed lint (chenille and terrycloth) from clothes that attract lint (synthetics, corduroy, velveteen).

Non-phosphate detergents can combine with minerals in hard water and form a residue which can appear to be lint. Use a low phosphate detergent. If possible, install a water softener.

Read labels. Most softeners should only be used in the final rinse. Add softener to the softener compartment. If added to the wash cycle, softeners can have a reaction with detergents, producing a white residue.

Pilling, which can look like lint, is produced by normal wear on cotton/ polyester blend fabrics. To reduce pilling, wash these fabrics inside out. For the best results, wash in the delicate cycle.

Add slightly more detergent. Use the hottest recommended temperature for each type of load. If possible, install a water filter. A small amount of Calgon or other

type of water conditioner added once a week is advisable in hard water areas.

Follow garment care label instructions carefully (see page 7). Some fabrics will shrink no matter how they are washed. Some may be machine washed but not machine dried.

Knits tend to shrink more than woven fabrics. If a knit has been heatshaped, wash in cool or warm water. Dry with the low setting.

This can occur when special stabilizing finishes are reduced from wear or repeated washings. Garment may sometimes be reshaped by pressing after washing and drying.

Shrinkage can occur if the knit fabric was not stretched properly by the manufacturer. Press back into shape each time garment is washed and dried.

Dark clothes, especially cottons, can bleed excess dyes into wash water. White or light-colored clothes can absorb the dye and discolor. Separate light items from dark items.

Always empty all pockets before washing. Cool or cold water is best for retaining dark or bright colors.

Protein stains, such as milk, egg, blood and soy formula should be removed in cold water. Oily stains should be washed in the hottest water recommended for each fabric type.

The longer a stain remains on a fabric, the harder it is to remove. Treat stains promptly. Do not set stains by machine drying or ironing fabrics until stains are completely removed.

Page 19

ENGLISH

Page 20

COMMON LACOMMON LAUNDRUNDRY PRY PROBLEMSOBLEMS

(CONTINUED) (CONTINUED)

ProblemProblem Possible CausePossible Cause Suggested SolutionSuggested Solution

Excessive wrinkling

Rips, snags, excess wear

Machine too full

Water too hot Sharp objects in pockets

Hooks, snaps, zippers, buckles

Harsh chemicals

Existing rips and tears Permanent press items

Permanent press items should be washed in half-loads to prevent wrinkling. If possible, use a slower spin speed.

Use lower wash temperature settings.

Empty all pockets and turn inside out before laundering. Fasten all hooks, snaps, and zippers before laundering to avoid snags.

Remove sharp buckles. Turn knits inside out. Before washing, rinse harsh chemicals (such as battery acid, hair

care chemicals, cleaning solutions, etc.) from towels and other articles to avoid holes in fabrics. Do not allow these unrinsed items to contact other fabrics.

Mend all garments before laundering to prevent enlarging of rips. These items may fray at edges from normal wear, not the washer.

Wash only in half loads and don’t wash in the same load with heavy items, such as towels or jeans.

TRT ROUBLESHOOOUBLESHOOTINGTING

If you should experience a problem with your washer, you should review the following list of frequently encountered situations. It could save you the cost and inconvenience of a service call.

Even though the product is under warranty, if the problem is not caused by defective workmanship or materials, you will be charged for a service call. Refer to page 22 to determine what is and is not covered under your warranty. If you’re still not sure, contact the ASKO Advisory Center before you call a service technician.

EMERGENCY DRAIN HOSEEMERGENCY DRAIN HOSE

Should you ever need to drain the water from the unit in the event of a power outage, use the drain hose next to the pin trap, as illustrated below.

1. Using the flat edge of the liquid detergent partition piece, a flathead screwdriver or similar item, gently pry open the drain pump cover, as illustrated.

2. Before you proceed, place a shallow container on the floor near the drain to catch the water.

3. Pull the small black drain hose loose from its position on the door cover and let the water drain into the container.

4. When the machine is empty, reconnect the hose securely to its position on the door before you close the drain pump cover.

BEFORE BEFORE YYOU CALLOU CALL

Before calling for service or contacting ASKO regarding a warranty issue, make a note of the model name, type number and serial number. The model is on the front of the detergent drawer. The type plate with the type name and serial numbers is located above the glass door. (See illustration below.)

Model Name

(e.g., W6021, W6221, etc.)

Type plate

(see below)

Type Name

Type: WMxx

12-digit

000000000000

Serial Number

Page 20

Page 21

TRT ROUBLESHOOOUBLESHOOTINGTING

(CONTINUED) (CONTINUED)

The door won’t open.The door won’t open.

♦ Make sure the power to the unit is on. If the power

is on and the indicator lamp is not lit, there is no power supply. Check that the machine is properly plugged into the electrical outlet. If it is, the fuses may be blown. Call a service technician.

♦ Make sure all the water has drained out. ♦ If there is no water in the machine and the door

won’t open in the normal manner, you should be able to open it manually, as follows:

1. Make sure the tub is as empty as possible and the power is turned off.

2. Using the flat edge of the liquid detergent partition piece, a flathead screwdriver or similar item, gently pry open the drain pump cover.

3. Using a T20 or flathead screwdriver, unscrew the red plastic looped handle.

4. Pull the handle toward you. The door should open.

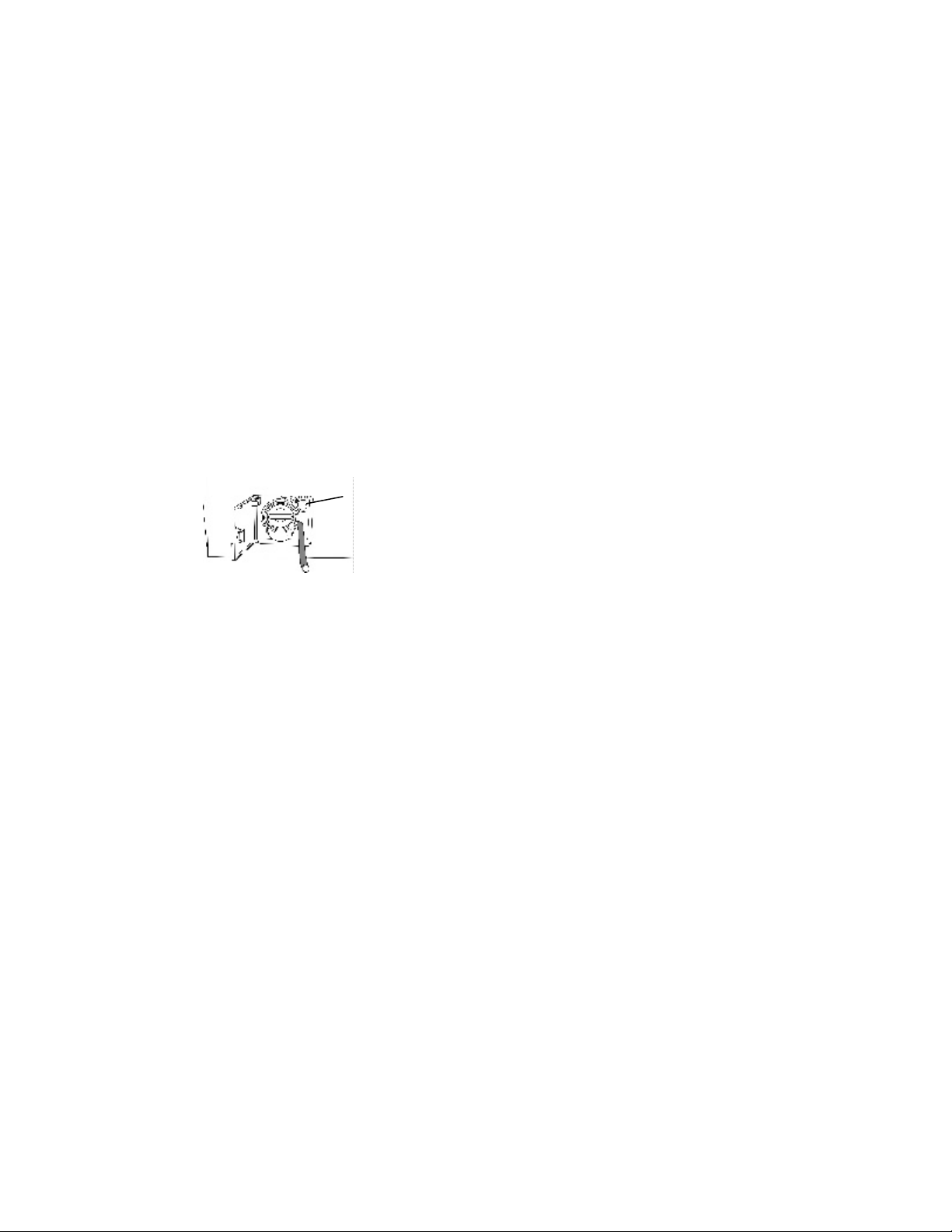

Emergency Door Handle

The machine won’t start.The machine won’t start.

♦ Check that the glass door is closed securely. ♦ Make sure the power switch is turned on. ♦ If the power switch is on and the indicator lamp is not

lit, there is no power supply. Make sure the machine is properly plugged into the electrical outlet.

♦ Check the house breaker switch/fuses.

The machine doesn’t fill.The machine doesn’t fill.

♦ Make sure the tap to the water supply line is open. ♦ Turn off the water supply then disconnect the inlet

hose and check to see if the strainer in the inlet connection is blocked.

The machine will not spin.The machine will not spin.

♦ Make sure the pin trap or outlet hose isn’t blocked.

Clean if necessary. (See page 18.)

♦ Make sure the No Spin option is turned off. ♦ If a load is out of balance, the washer will rotate a

few seconds to redistribute the load then attempt to spin again. It will do this up to ten times at a high spin speed (1000 rpm or higher). If it still isn’t balanced, it will advance the timer with no spin.

Extreme vibration during spinExtreme vibration during spin cycle.cycle.

♦ Make sure the packaging and shipping supports

were removed properly. (See page 4.)

♦ Check that the machine is level. ♦ Adjust machine feet and tighten locknuts. (See page 4.)

Oversudsing.Oversudsing.

♦ Too much detergent could cause suds to backup

through the detergent compartment and run down the front of the washer onto the floor. The suds will condensate into water and form a small puddle on the floor. (See page 8 for detergent recommendations.)

Washer stops during cycle.Washer stops during cycle.

♦ It is normal for the machine to pause occasionally

during operation, especially between cycles and during the delicate wash program.

♦ Make sure the No Spin option isn’t turned on. ♦ If the power switch is on and the indicator lamp is

not lit, there is no power supply. Make sure the machine is properly plugged into the electrical outlet.

♦ Check the house breaker switch/fuses.

Foam in the final rinse water.Foam in the final rinse water.

♦ Make sure nothing is blocking the outlet hose. ♦ Check for kinks in the outlet hose. ♦ Ma k e sure the pin trap isn’t blocked. (See page 18.) ♦ Make sure that no part of the hose (including any

joints) is less than 3/4” (19 mm) in diameter.

Water left in the machine afterWater left in the machine after final spin.final spin.

♦ Make sure the No Spin option isn’t turned on. ♦ Make sure the pin trap isn’t clogged. (See page 18.) ♦ Make sure the outlet hose isn’t clogged. ♦Check for kinks in the outlet hose. ♦ Make sure that no part of the outlet hose (including

any joints) is less than 3/4” (19 mm) in diameter.

Water leaks.Water leaks.

♦ All hoses should be inspected at least once a year.

If they show signs of cracking, they should be replaced.

♦ Check to see if hose connections at faucets are

tight.

♦ Make sure the end of the outlet hose is securely

inserted into the drain receptacle.

♦ Make sure nothing is caught between the Smart Seal

and the tank, such as apron strings, small handkerchiefs, socks, etc.

ENGLISH

Page 21

Page 22

ASKO PRODUCT WARRANTY

MODELS W6021, W6221, W6641, W6661

Be sure to complete the Warranty Registration Card you received with your appliance and mail it to AM Appliance Group to validate your appliance warranty.

Cosmetic damage must be reported to your dealer within five days from the date of purchase. After unpacking the washer, thoroughly check the unit for cosmetic damage.

FOR RESIDENTIAL INSTALLATIONS ONLY

AM APPLIANCE GROUP WILL PAY FOR:LENGTH OF WARRANTY

Three-Year Full

From date of purchase.

Fourth & Fifth Year Limited

Three year full plus fourth and fifth year limited from date of purchase.

Lifetime

ASKO replacement parts and/or repair labor to correct defect in materials or workmanship. Service must be provided by an authorized ASKO service agent.

ASKO replacement parts (labor cost not included) for any defective solid-state controls, timers, motors, or pumps. Service must be provided by an authorized ASKO service agent.

ASKO replacement parts (labor cost not included) of the stainless steel tank if it fails to hold water due to a manufacturing defect, such as rusting or cracking. Service must be provided by an authorized ASKO service agent.

FOR NON-RESIDENTIAL INSTALLATIONS

Six-Month Full Warranty

From date of purchase.

ASKO replacement parts and/or repair labor to correct defect in materials or workmanship. Service must be provided by an authorized ASKO service agent.

AM APPLIANCE GROUP WILL NOT PAY FOR:

A. Service calls to:

1. Correct the installation of the appliance.

2. Repair damage due to shipment, delivery, installation, misuse or abuse.

3. Instruct how to use the appliance.

4. Replace house fuses or correct house wiring.

5. Correct house plumbing, including drainage problems related to improper installation.

6. Clean or service air device in drain line. B. Repair and/or replacement parts for failure of product if appliance is used for other than home/residential use. C. Damage resulting from accident, fire, floods, acts of God, alteration, misuse, abuse, improper installation, or

installation not in accordance with local electrical or plumbing codes. D. Any shipping costs for parts during the limited warranty period. E. Replacement parts or repair labor costs for units operated outside the continental United States. F. Pickup and delivery. ASKO washers are designed to be repaired in the home.

IN NO EVENT SHALL AM APPLIANCE GROUP BE RESPONSIBLE

FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states will not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

For warranty service, contact the dealer from whom you purchased the unit or an authorized ASKO service agent.

Service will be provided during normal business hours. Should you have a service problem that cannot be resolved locally, contact AM Appliance Group at the numbers listed below. Before calling for service or contacting AM Appliance Group regarding a warranty issue, make a note of the model, type name, and serial number (see page 21).

Page 22

Write to us at:

AM Appliance Group

P. O. Box 851805

Richardson, Texas 75085-1805

Customer Service Center at

Or call our

800-898-1879

972-238-0794

Page 23

INDEXINDEX

7 button 10, 11 800 button 10

Allergies 6 Anti-crease option

(W6641 & W6661) 14

Automatic water level control 3

Bleach 8 Built-in installation 5

Care and cleaning 18 Care label instructions 7 Celsius temperature readout,

changing 16 Changing the LCD readout 16 Child safety features 2 Child-safe catch 8 Child-safe menu button

(W6641 & W6661) 17 Child-safe start (W6641 & W6661) 17 Control panel

cleaning 18

W6021 10

W6221 11

W6641 and W6661 12 Cottons 6, 9 Customizing the preset programs 15

Delay Start

menu, W6641 & W6661 16

W6221 11

W6641 & W6661 14 Delicate fabrics 6 Detergent 8, 9 Detergent drawer 8

cleaning 18 Digital display window 12 Discoloring 19 Door

cleaning 18

opening 3 Door lock fault error 17 Door open button 10, 11, 13 Drain hose, emergency 20 Drain outlet connection 5 Drum 18 Drum paddles, removing 18 Dyeing fabric 9

EasyControl Panel 12 Economy option 14 Electrical connections 5 Emergency door handle 21 Emergency drain hose 20 Enzyme step 3 Error messages, W6641 & W6661 17

Fabric softener 9 Fabrics

dyeing 9

recommended wash temps 9 Fading and discoloring 19 Fahrenheit readout

W6641 & W6661 16 Fluorescent colored fabrics 6

Foam in final rinse 21 Foaming error 17 Free-standing installation 5

Glass door 3

emergency opening 21 Graying 19 Grounding instructions 5

Hard water 9 Hard water stains, removing 18 Hazardous materials 2 HE detergents 8 High water level option

(W6641 & W6661) 14

Installation instructions 4, 5 Interrupting a program 3

Knit shrinkage 19

Languages, changing the LCD 16 Laundry detergents 8 Laundry problems 19, 20 Laundry tips 6 LCD window 12 Leveling the machine 4 Linens 6 Lint (Pin) trap 18 Lint left on clothes 19 Liquid detergent 8 Load sizes, recommended 6, 9 Low-sudsing detergents 8

Menus, programming 15

Navigating the menus

(W6641 & W6661) 15 No drain option 14 No spin option 10, 14 No spin/no drain option 11 Nylon 9

Operating instructions

W6021 10

W6221 11

W6641 and W6661 12 Options

W6021 10

W6221 11

W6641 & W6661 15, 16 Overflow error 17 Oversudsing 21

Paddles, removing 18 Permanent press items 6 Pin trap, cleaning 18 Poison hotline 2 Polyester blends 9 Powder detergents 8 Power button 10, 11, 12 Preparing the laundry 6

ENGLISH

Page 23

Page 24

INDEX INDEX (continued)

Preset programs

restoring 16 Preset Programs (W6641 & W6661) 13 Problems (e.g., stains, etc.) 19, 20 Program buttons (W6641 & W6661) 13 Program changes, temporary 13 Program menu (W6641 & W6661) 15 Programming

Celsius or Farenheit 16

Child-safe start 17

Language 16

Menus, W6641 & W6661 15 Programming instructions

W6641 & W6661 15 Programs 10, 11

W6021 10

W6221 11

W6641 & W6661 13

Quick main wash option 14

Rayon and acetate 9 Recommended detergents 8 Recommended wash temps 9 Restoring preset programs 16 Rinse cycles 3 Rips 20

Safety instructions 2 Sensitive skin, advice 6 Sensor Level Control 3 Serial number location 20 Service 22 Shipping supports 4 Short spin option 14 Shrinkage 19 Silk 9 Snags 20 Solutions to problems 20 Sorting the laundry 6 Specifications 4 Spin options 3, 9 Spin Speed (W6641 & W6661)

menu 15 Spin speed (W6641 & W6661)

temporarily changing 13 Spin speed control, W6221 11 Spray cleaner warning 18 Stacked installation 5 Stains 19 Start/Stop button 10, 11, 12 Stopping a program 3 Super Rinse option 3, 10, 11, 14

Temperature

control 3

menu (W6641 & W6661) 15

settings (W6641 & W6661) 13 Temperature stop error 17 Temporary program changes

(W6641 & W6661) 13 Thermistor error 17 Troubleshooting 20 Type plate location on unit 20

Vibration, extreme 21

Warranty information 22 Wash motor error 17 Wash programs 9

options, W6641 & W6661 15 W6021 10 W6221 11

W6641 and W6661 13 Wash temperature control 3 Wash temperatures 9 Washer features 3 Washing special items 19, 20 Water

hardness 9

inlet error 17

leak 21

level control 3

outlet error 17

supply connection 4 Wear 20 Wool and wool blends 9 Wrinkling 20

Yellowing 19

Page 24
