Asko DW95 User Manual

INDEX

DW95

DISHWASHERS

Content

Page

Dishwashers

DW950, 951 952 95C 1-7
DW953, 354 955, 95FI 8-16

DW 950 / 951 / 952 / 95C

1. PROGRAMS D W 950, 951, 952, 95C
Rinse & Hold program

One rinse without heat.

Intensive wash program

3 pre-washes, main wash, 2 rinses and drying.
Basic temperature: 65°C in first pre-wash, main wash and last
rinse. 30°C in second pre-wash . 70°C in drying.

Normal wash program

Two pre-washes, main wash, 2 rinses and drying.
Basic temperature: 30°C in pre-wash, 55°C in main wash and
last rinse. 70°C in drying.

Light wash program

One pre-wash, main wash, 2 rinses and drying.
Basic temperature: 55°C in main wash and last rinse. 70°C in drying.

Rinse program

One rinse and drying.
Basic temperature: 55°C in rinse. 70°C in drying.

Plate heating

One drying sequence.
Basic temperature: 65°C.

DW 950 / 951 / 952 / 95C

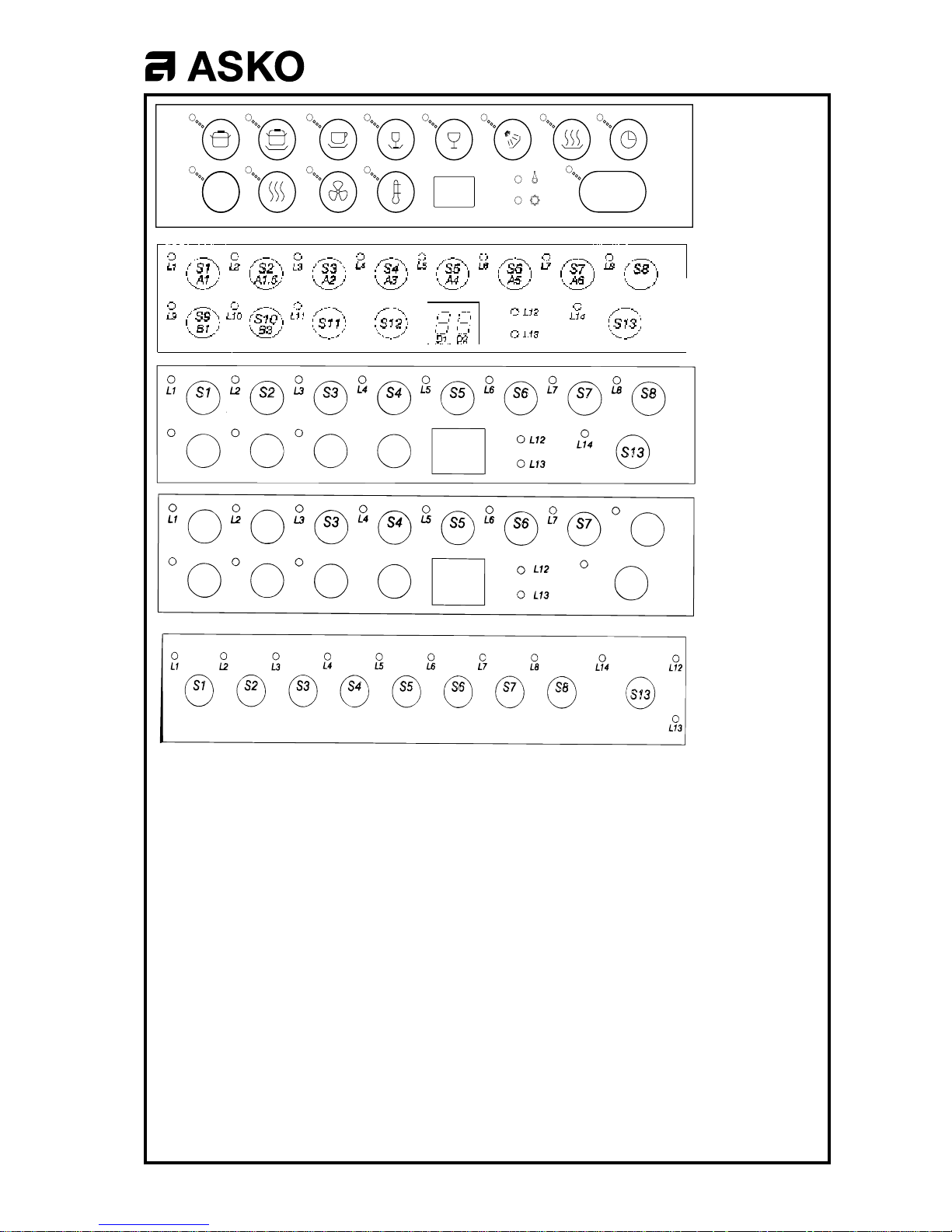

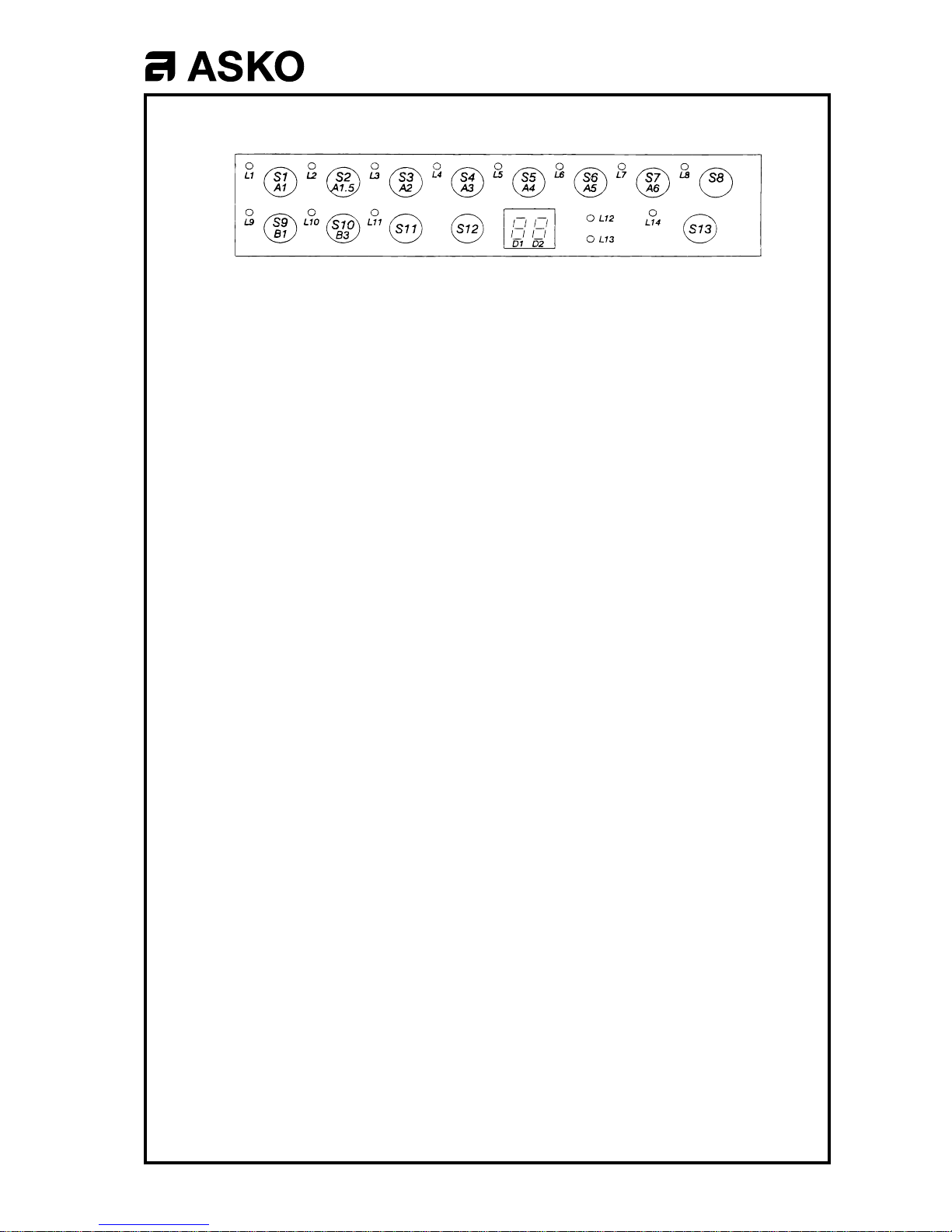

2. PROGRAM OPTIONS BUTTONS

The dishwasher can have 1, 2 or 3, option pushbuttons and 1 rotary switch for
water softner setting.

Drying heat

You can select drying with or without heat.

Temperature

Selection between 55°C and 65°C in main wash, last rinse and in pre-wash in
the Intensive wash program.

Program without heat (Pika pesu)

Y ou can get a program without heat.

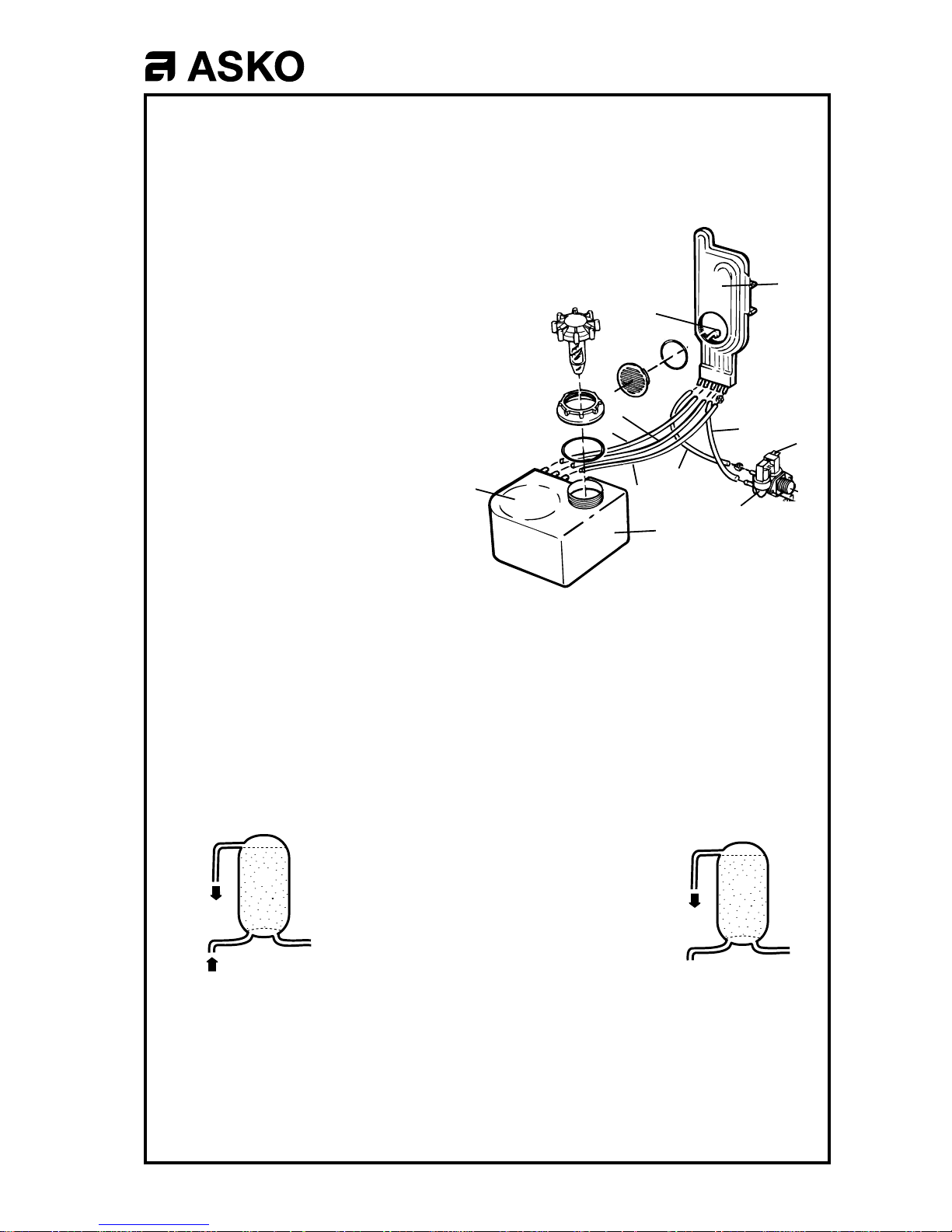

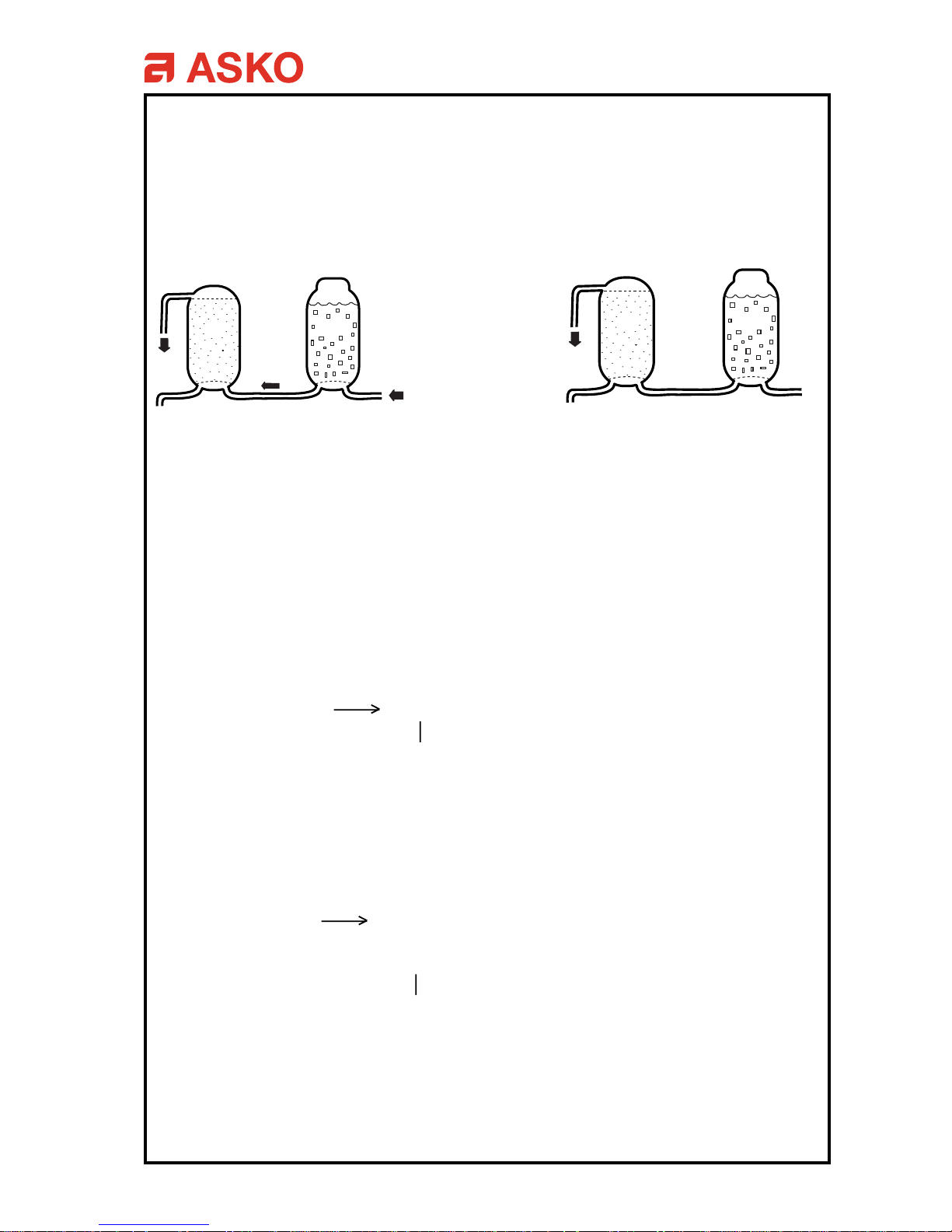

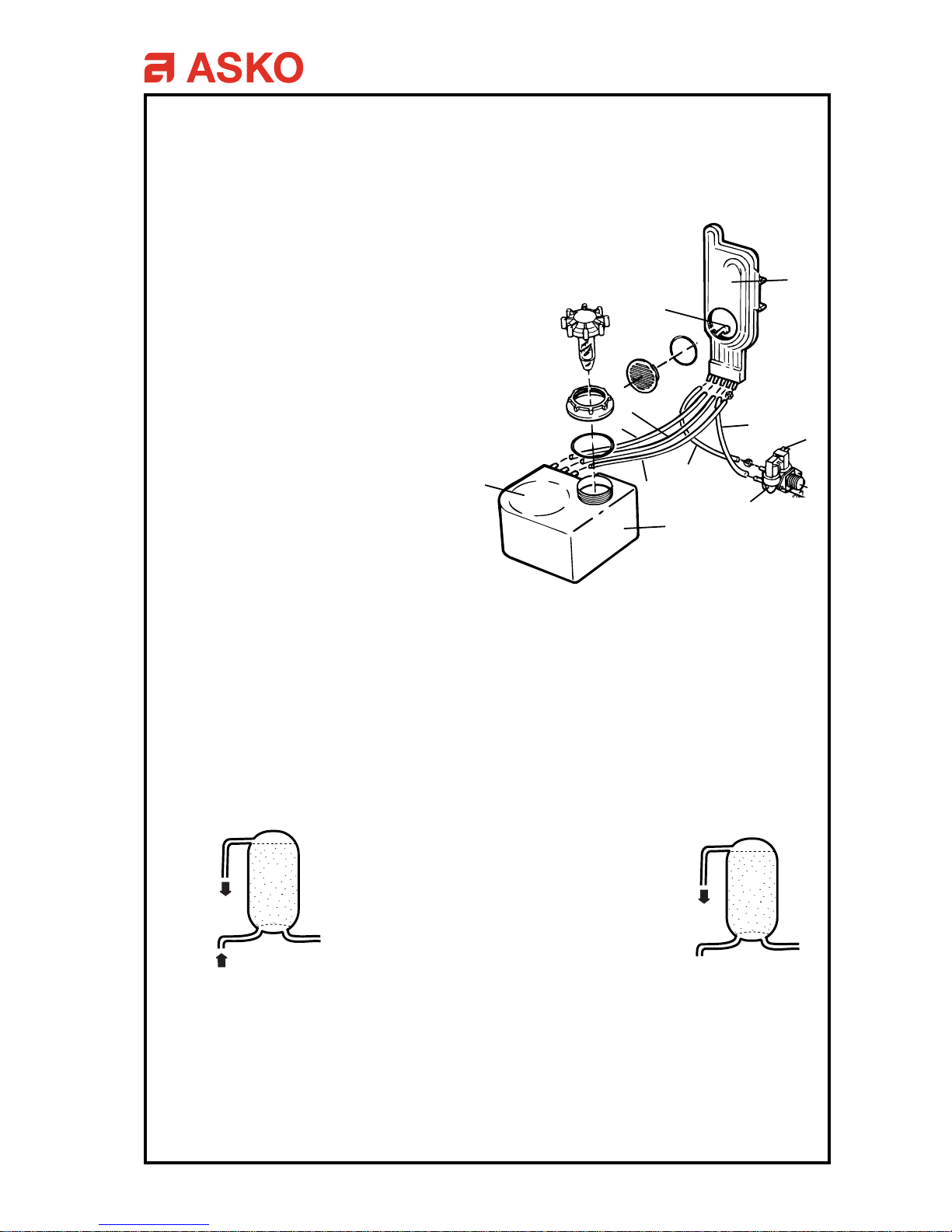

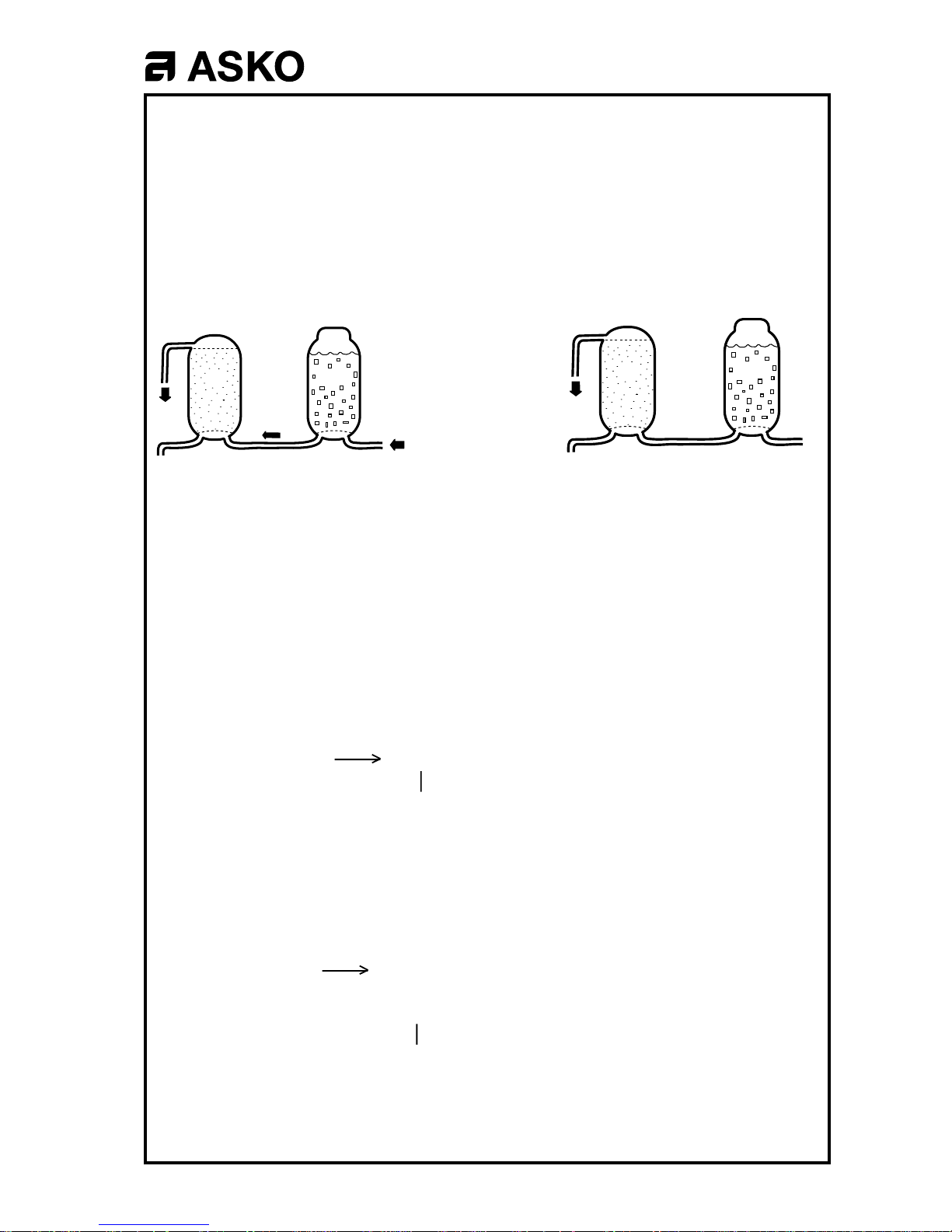

Setting of water softner (just softner machines)

The opening time for the softener inlet valve can be adjusted to suit diffrent
degrees of water hardness.
(3 settings which can be set with screw driver).

1

2

3

Pos 1 Water hardness < 20°dH .
Pos2 Water hardness 20—35 °dH
Pos3 Water hardness > 35 °dH

DW 950 / 951 / 952 / 95C

CONTROL UNIT

DW951, 952, 95C has an electro-mechanical timer.

CIRCULATION PUMP

The circulation pump consists of an asynchronous motor and pump,

constructed in an integrated unit. A 4 µF capacitor is fitted to ensure
reliable starting of the circulation pump.

OUTLET PUMP

The outlet pump consists of a synchronous motor and pump, constructed

in anintegrated unit.

INLET VALVE

Depending on model, there are three types of inlet valves:

1. With safety valve: T wo solenoids independant from each other or valve
seats are connected to a unit.

2. Single-unit type: A solenoid and valve seat.

3. Softener valve: T wo valves in shunt, one for the regeneration of the softe
ner and the other for normal inlet.

HEATING ELEMENT

Heating elements with the following capacities: 1800 W alt. , 2500 W

THERMOSTAT

Different thermostats are mounted, depending on model:
30/70°C Thermostat with two switch-off functions with the temperatures

30°C (reset at 22°C) and 70°C (reset at 62°C) for temperature
stop in pre-wash or drying, respectively .

64153° Thermostat with two switch-off functions with the temperatures

64° C (reset at 56° C) and 53° C (reset at 45° C) for temperature
stop in main wash and last rinse at high, or low temperature,
alternately .

60°C Thermostat with oneswitch-off functions with the temperatures

60°C (reset at 52°C) for temperature stop in main-wash and last
rinse on models without temperature selction.

HIGH TEMPERATURE CUTOUT

Thermostat with switch-off-function at 88°C, 190°F prevents the heating
element from remaining continously energised if the control unit or the timer
should fail.

ELECTRICAL FUNCTION

DW 950 / 951 / 952 / 95C

DOOR SWITCH

A microswitch senses that the door has been opened. This interrupts the pro
gram and cuts the power to all control components (motor , valves etc.). See
fault indications on page 7.

LEVEL SWITCH

The level switch provides protection against overfilling, interrupting the power
supply to the inlet valve and starting the outlet pump.

OVERFILL SWITCH

A float influences a micro switch which shuts the inlet valve and starts the outlet
pump.

COMBI DISPENSER

The combi doser doses both detergent and rinse aid .
In the doser there is an adjustable volume chamber for setting of the de~ired
amount of rinse aid. On certain models there is a sensor for rinse aid level
mounted on the doser .

MAIN SWITCH

The main switch is a 2-pole switch, interrupting both the phase and neutral
supplies.

ELECTRICAL CORD

The machines are fitted with 3x1,0mm2 connection cords and earthed plugs.
V ariations occur for different markets.
