Asko DOD651PHXXLS Specifications

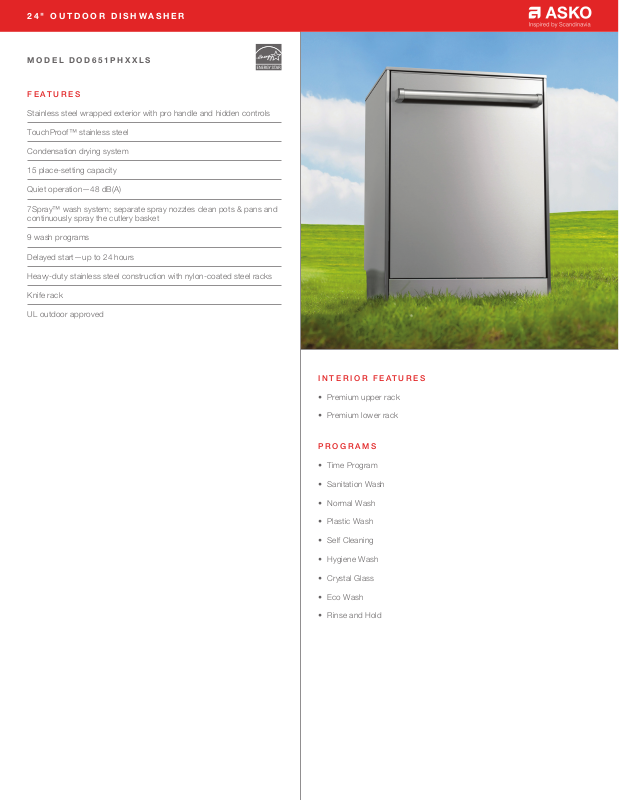

24" OUTDOOR DISHWASHER
MODEL DOD651PHXXLS
FEATURES
Stainless steel wrapped exterior with pro handle and hidden controls
TouchProof™ stainless steel
Condensation drying system
15 place-setting capacity
Quiet operation—48 dB(A)
7Spray™ wash system; separate spray nozzles clean pots & pans and
continuously spray the cutlery basket
9 wash programs
Delayed start—up to 24 hours
Heavy-duty stainless steel construction with nylon-coated steel racks
Knife rack
UL outdoor approved
INTERIOR FEATURES
• Premium upper rack
• Premium lower rack
PROGRAMS
• Time Program
• Sanitation Wash
• Normal Wash
• Plastic Wash
• Self Cleaning
• Hygiene Wash
• Crystal Glass
• Eco Wash
• Rinse and Hold
24" OUTDOOR DISHWASHER
SIDE VIEW
NOTE:
W
OPENING WIDTH
341/2"
(876)
OPENING
HEIGHT
24" (610)
OPENING
DEPTH
TOP VIEW
SIDE VIEW FRONT VIEW
NOTE: 31/2" (89) finished returns will be visible and should be finished to match cabinetry.
31/2" (89)
FINISHED
RETURN
FILLER
FRAMED CABINETRY
W
W
OPENING WIDTH
24"
(610)
OPENING
DEPTH
TOP VIEW
*D
PRODUCT SPECIFICATIONS
Model DOD651PHXXLS
5
Width 24
Height 35"– 35
/8"
3
/4"
Depth 25"
5
Door Clearance 24
/8"
Weight 174 lb
Max Loading Height Upper Rack 9"
3
Max Loading Height Lower Rack 15
/8"
Electrical Supply 115 VAC, 60 Hz
Electrical Service 15 amp circuit
1
Plumbing Supply
/4" OD copper, braided stainless
steel or PEX tubing
Pressure 4.2–140 psi
Electrical supply, plumbing supply and drain should be
located in an adjacent cabinet. If not, they must be located
within the shaded area shown in the illustrations below.
DIMENSIONS
245/8" (625)
OPEN DOOR
23/8"
(60)
35" (889)
H
TO
353/4" (908)
4" (102)*
245/8"
(625)
25" (635)
47/8"
(124)
53/8"
(137)
ELECTRICAL | PLUMBING
OPENING
WIDTH
AREA EXTENDS 2" (51)
FORWARD ON FLOOR
53/8"
(137)
OPENING
WIDTH
AREA EXTENDS 2" (51)
FORWARD ON FLOOR
53/8"
(137)
imension will vary with product height.
INSTALLATION
251/4"
OPENING
DEPTH
TOP VIEW
351/2"
(902)
OPENING
HEIGHT
31/2" (89) finished returns will be visible and should be finished to match cabinetry.
247/8" (632)
W
OPENING WIDTH
FRONT VIEW
(641)
31/2" (89)
FINISHED
RETURN
247/8"
W
(632)
FRAMELESS CABINETRY
31/2" (89)
FINISHED
RETURN
247/8"
W
(632)
FRAMED CABINETRY
TYPICAL
3
/4"
(19)
FILLER
