Asko DBI664THXXLS Specifications

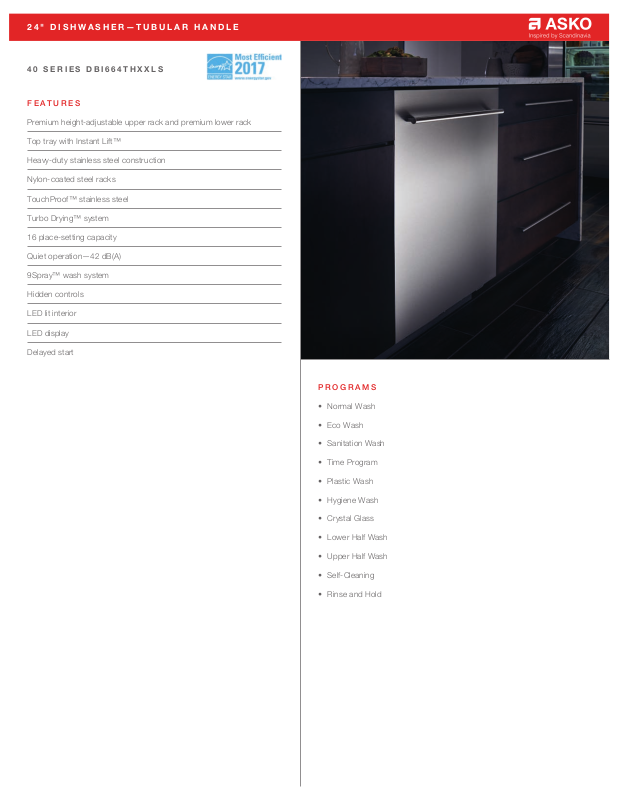

24" DISHWASHER— TUBULAR HANDLE

40 SERIES DBI664THXXLS

FEATURES

Premium height-adjustable upper rack and premium lower rack

Top tray with Instant Lift™

Heavy-duty stainless steel construction

Nylon-coated steel racks

TouchProof™ stainless steel

Turbo Drying™ system

16 place-setting capacity

Quiet operation—42 dB(A)

9Spray™ wash system

Hidden controls

LED lit interior

LED display

Delayed start

PROGRAMS

• Normal Wash

• Eco Wash

• Sanitation Wash

• Time Program

• Plastic Wash

• Hygiene Wash

• Crystal Glass

• Lower Half Wash

• Upper Half Wash

• Self-Cleaning

• Rinse and Hold

24" DISHWASHER— TUBULAR HANDLE

*D

SIDE

NOTE:

W

OPENING WIDTH

341/2"

(876)

OPENING

HEIGHT

24" (610)

OPENING

DEPTH

TOP VIEW

SIDE VIEW FRONT VIEW

NOTE: 31/2" (89) finished returns will be visible and should be finished to match cabinetry.

31/2" (89)

FINISHED

RETURN

FILLER

FRAMED CABINETRY

W

W

OPENING WIDTH

24"

(610)

OPENING

DEPTH

TOP VIEW

PRODUCT SPECIFICATIONS

Model DBI664THXXLS

7

Width 23

/8"

Height 34"—353/4"

Depth 22"

5

Door Clearance 24

/8"

Weight 115 lb

Electrical Supply 115 VAC, 60 Hz

Service 15 amp dedicated circuit

Receptacle 3-prong grounding-type

Power Cord 4'

Water Connection 6' PEX tubing with

3

/8" NPT female connection

Drain Connection 5' corrugated tubing

Pressure 4.2–140 psi

Electrical supply, plumbing supply, and drain should be
located in an adjacent cabinet. If not, they must be located
within the shaded area shown in the illustrations below.

DIMENSIONS

237/8" (606)

OPEN DOOR

23/8"

(60)

34" (864)

H

TO

353/4" (908)

4" (102)*

245/8"

(625)

22"

(559)

(51)

53/8"*

(137)

2"

ELECTRICAL | PLUMBING

OPENING

WIDTH

53/8"

(137)

AREA EXTENDS 2" (51)

FORWARD ON FLOOR

OPENING

WIDTH

AREA EXTENDS 2" (51)

FORWARD ON FLOOR

53/8"

(137)

imension will vary with product height.

INSTALLATION

24" (610)

OPENING

DEPTH

TOP VIEW

341/2"

(876)

OPENING

HEIGHT

VIEW FRONT VIEW

31/2" (89) finished returns will be visible and should be finished to match cabinetry.

24" (610)

W

OPENING WIDTH

31/2" (89)

FINISHED

RETURN

24"

W

(610)

FRAMELESS CABINETRY

31/2" (89)

FINISHED

RETURN

24"

W

(610)

FRAMED CABINETRY

TYPICAL

3

/4"

(19)

FILLER
