WHDHQ10
User Manual
Copyright © 2011 ASKEY COMPUTER CORP. All rights reserved.
Table of Contents
1. PREFACE ....................................................................................................................... ................................. 2
1.1 REVISION HISTORY ....................................................................................................................................................... 2
2. HARDWARE INSTALLATION ......................................................................................................................... 3
3. DRIVER INSTALLA TION .............................................................................................................................. 12
3.1 GENERAL INFO : DRIVER SET ....................................................................................................................................... 12

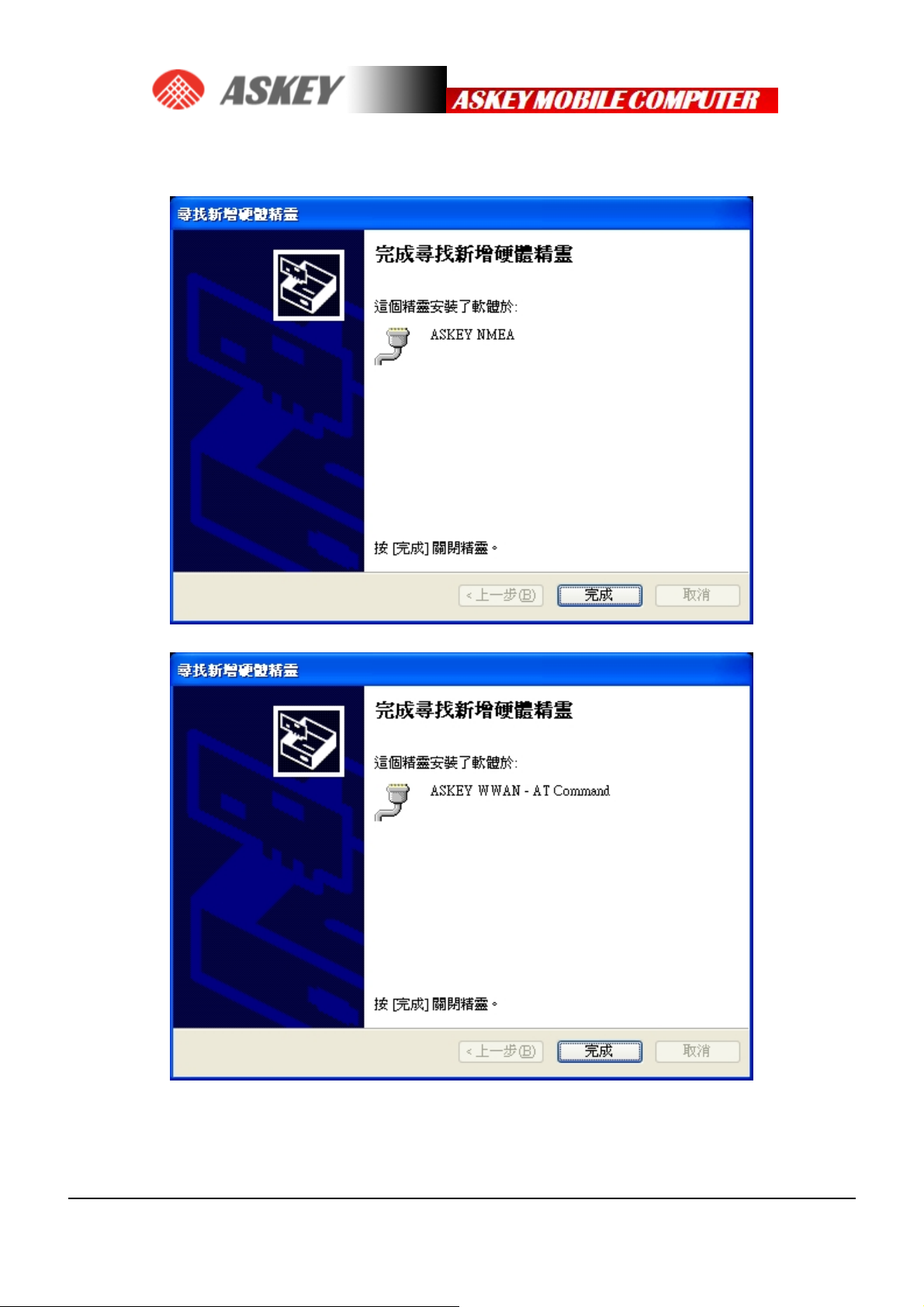

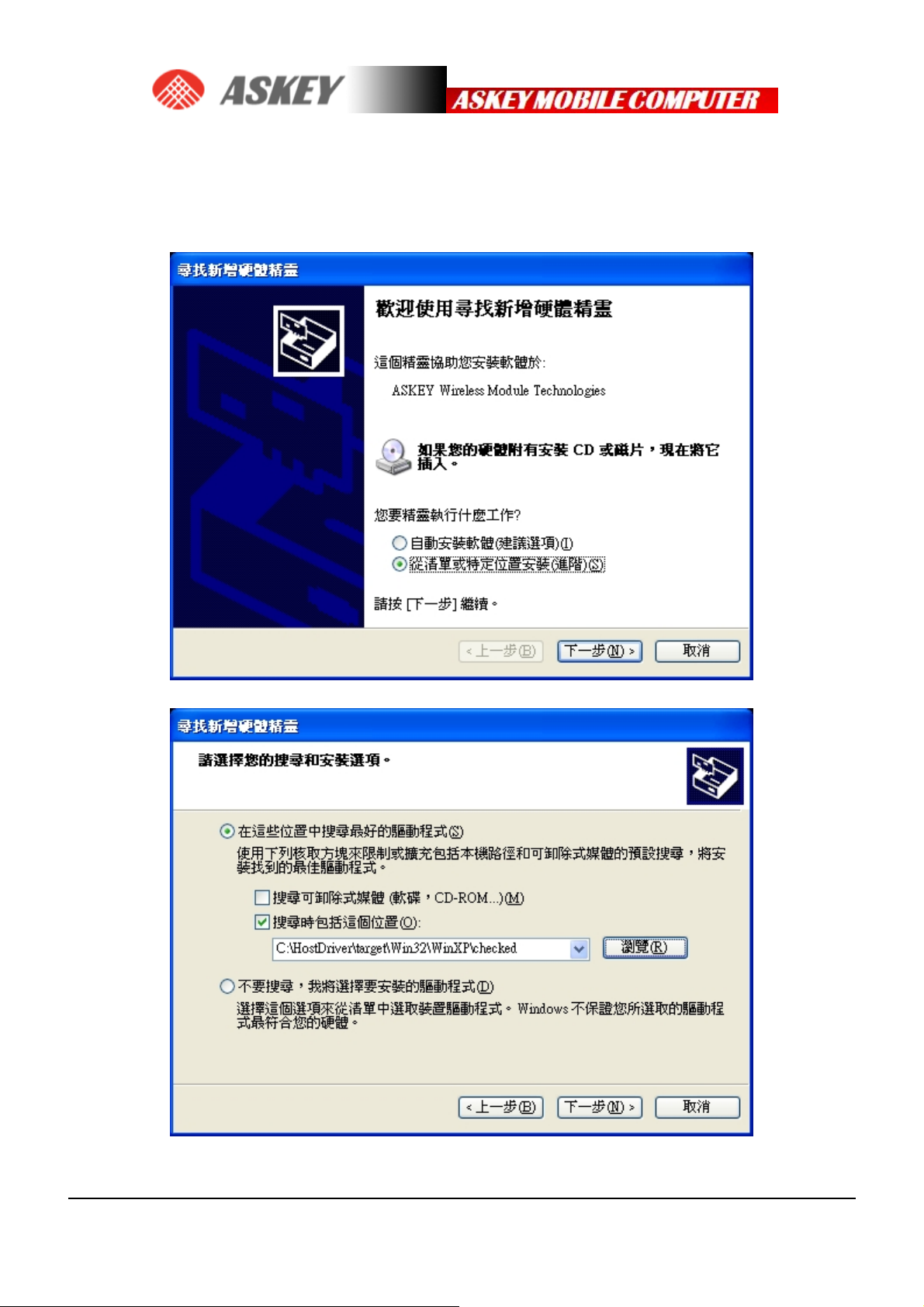

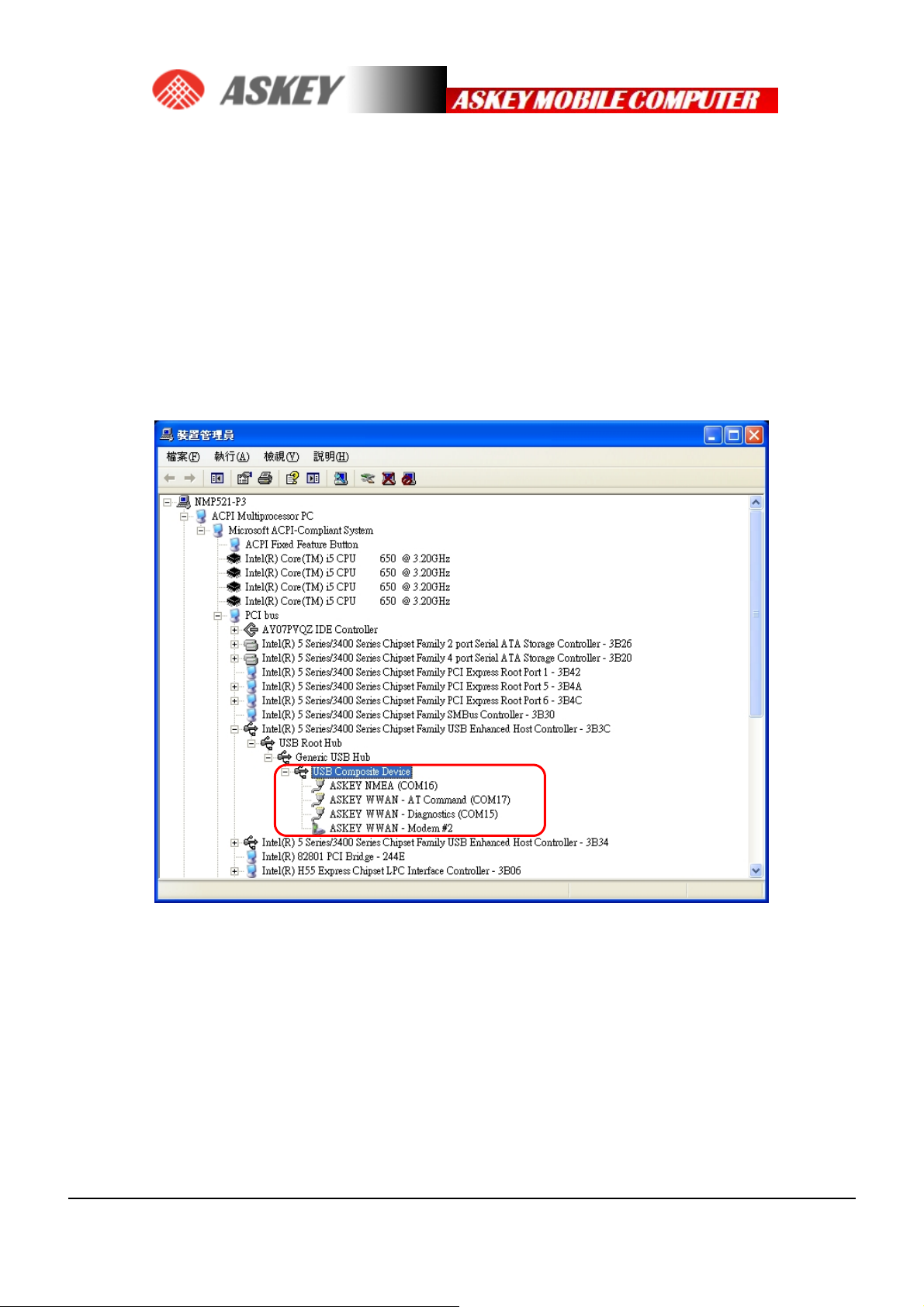

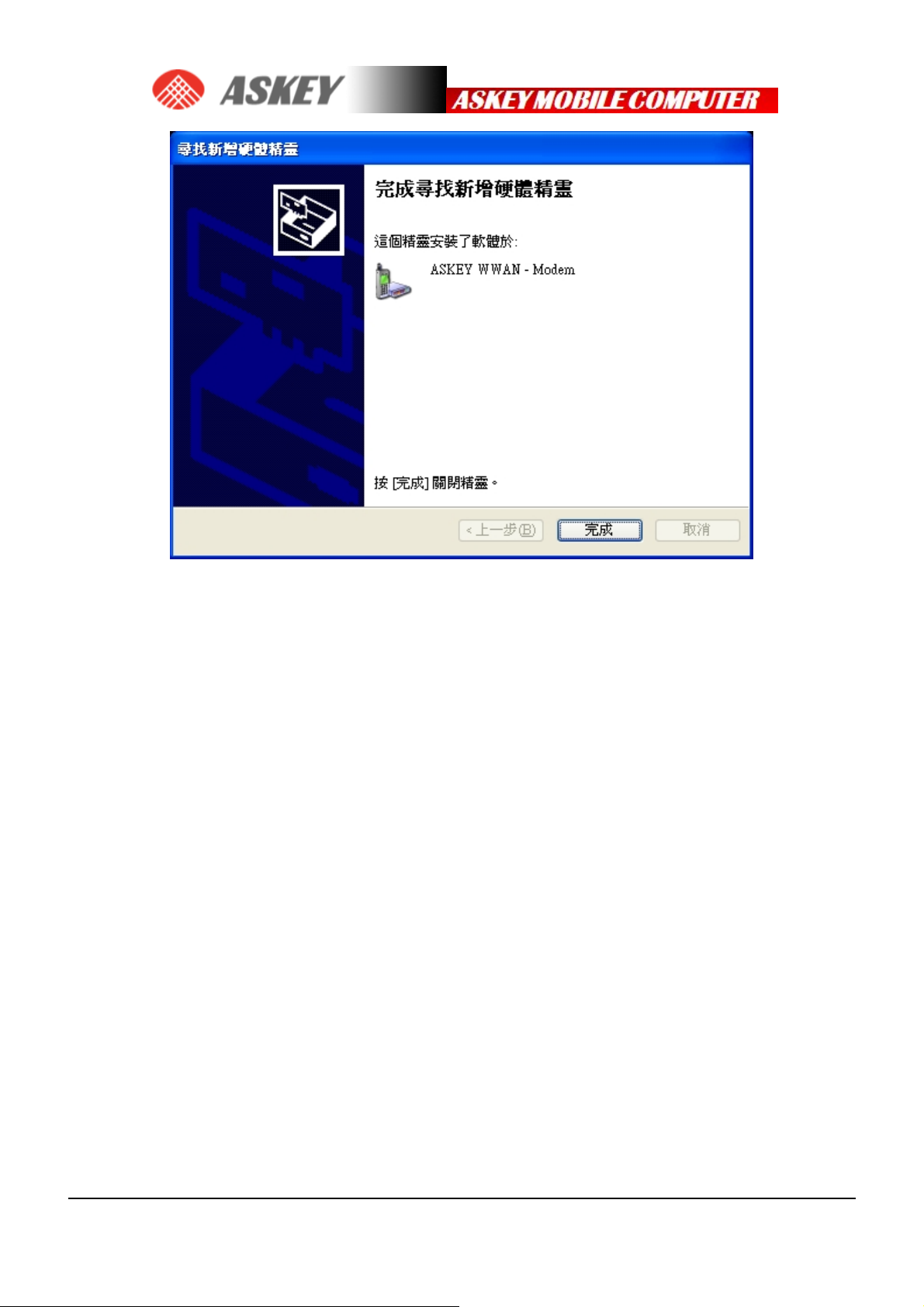

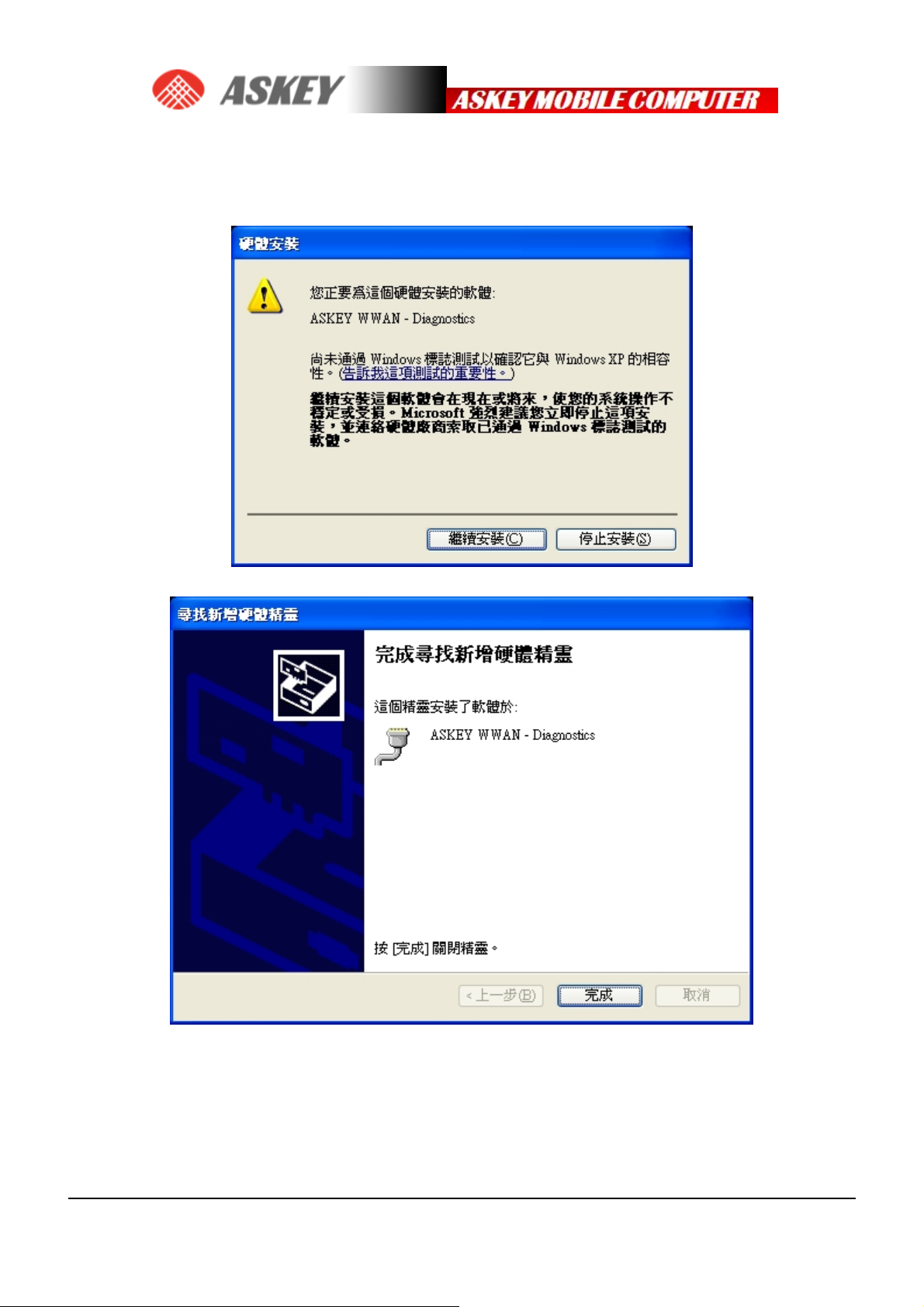

3.2 INSTALLATION PROCEDURE ......................................................................................................................................... 13
4. HOW TO SEND AT COMMANDS ................................................................................................................. 18

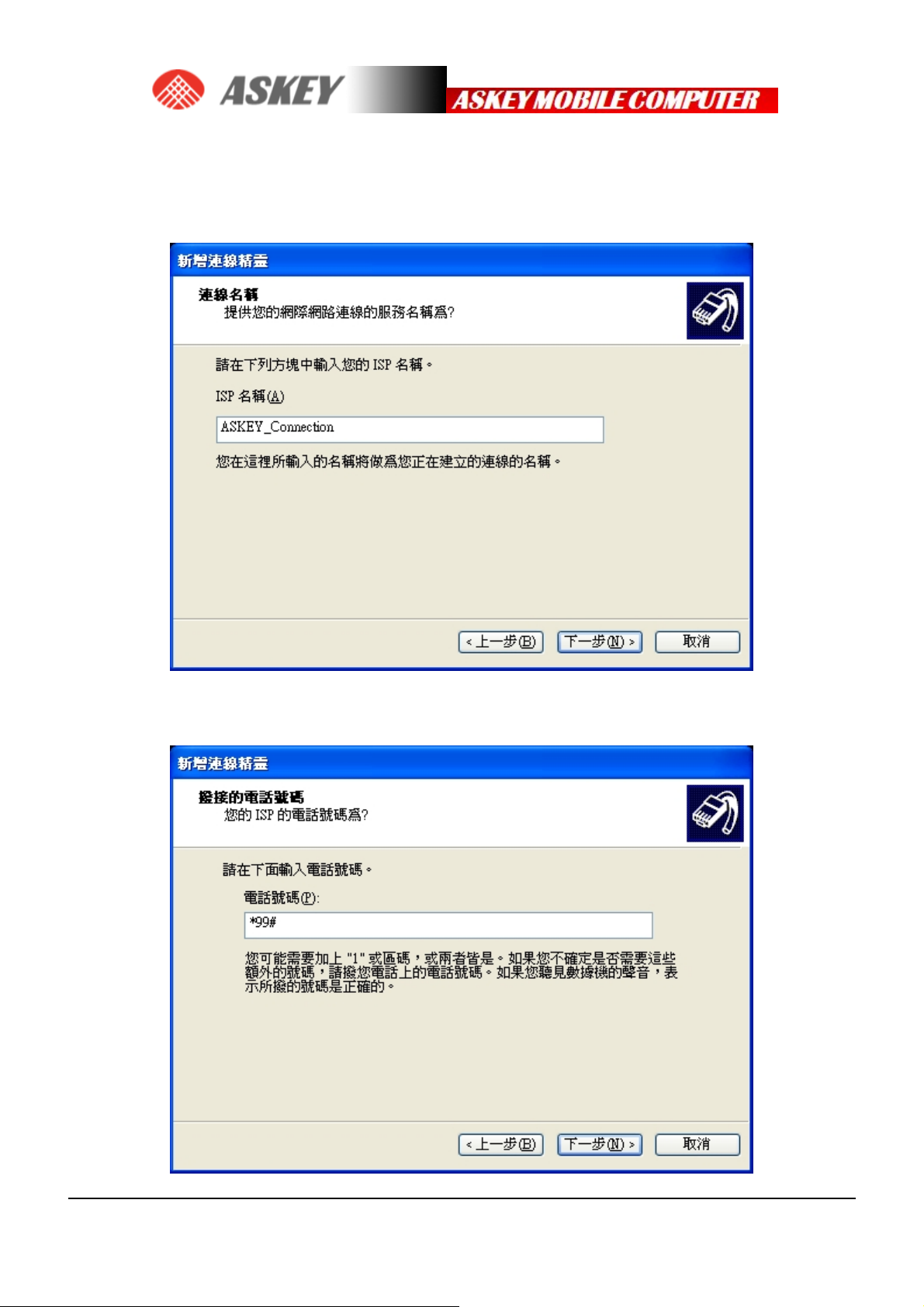

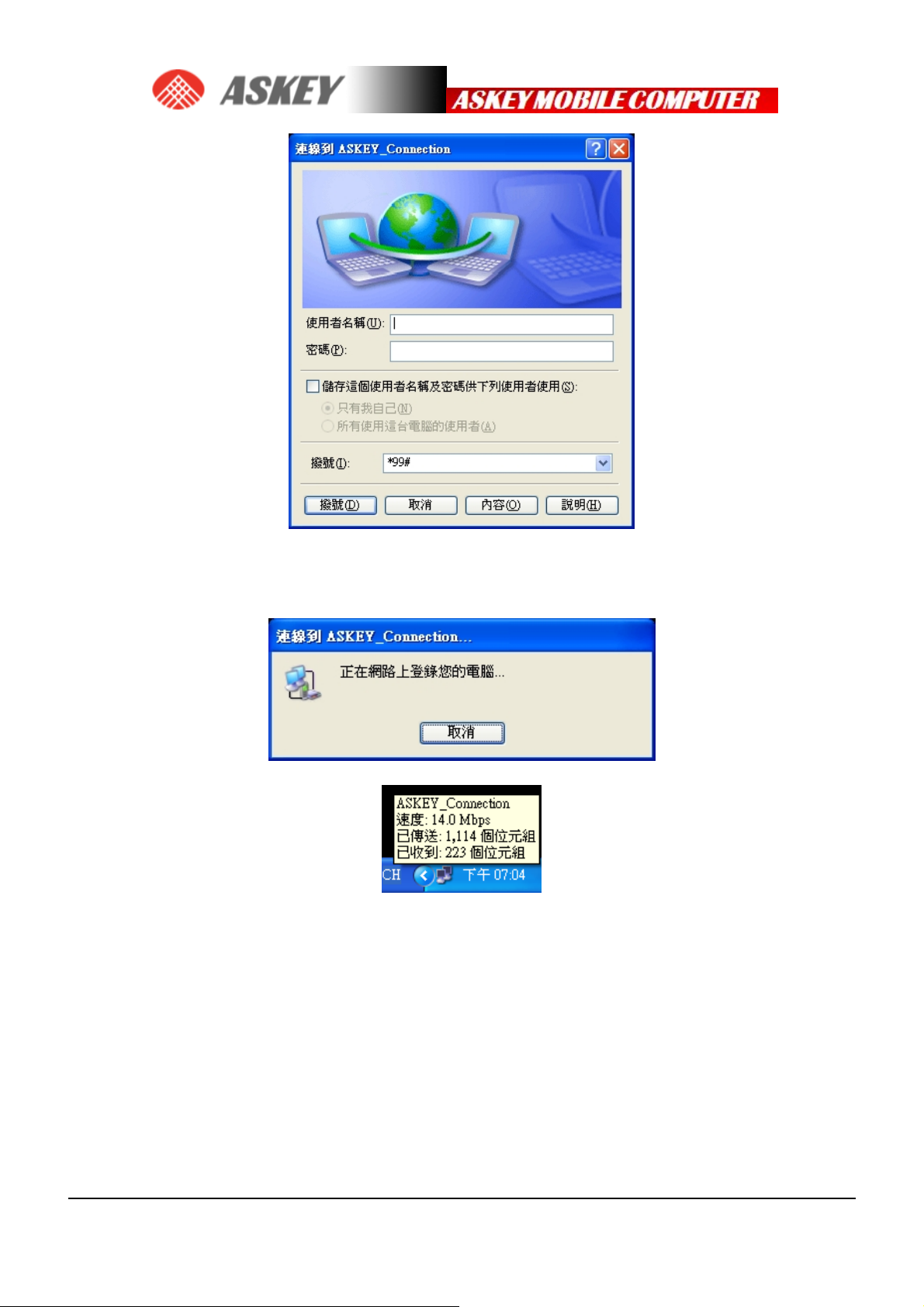

5. SETTING UP A PACKET SWITCHED DATA CALL ..................................................................................... 22

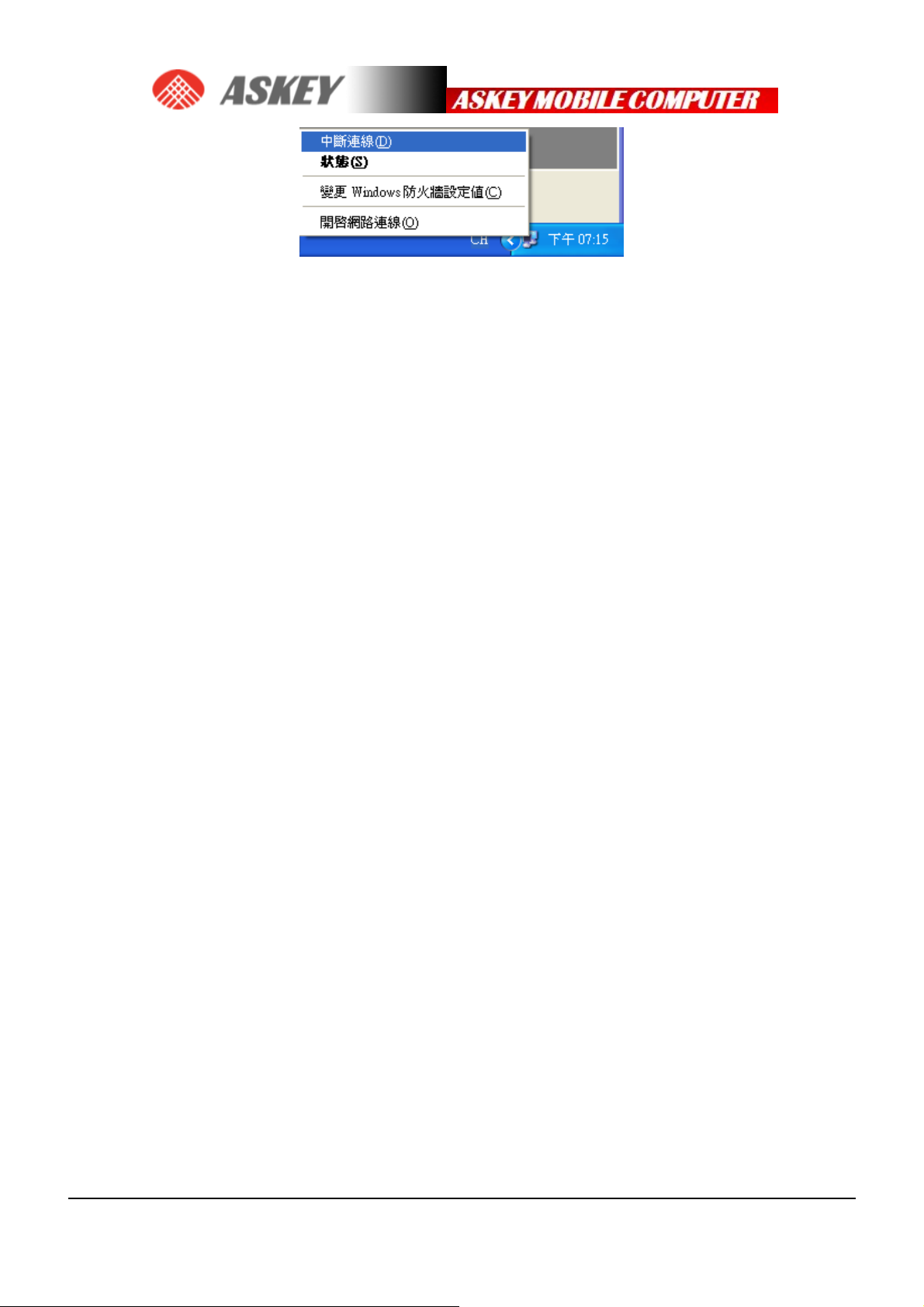

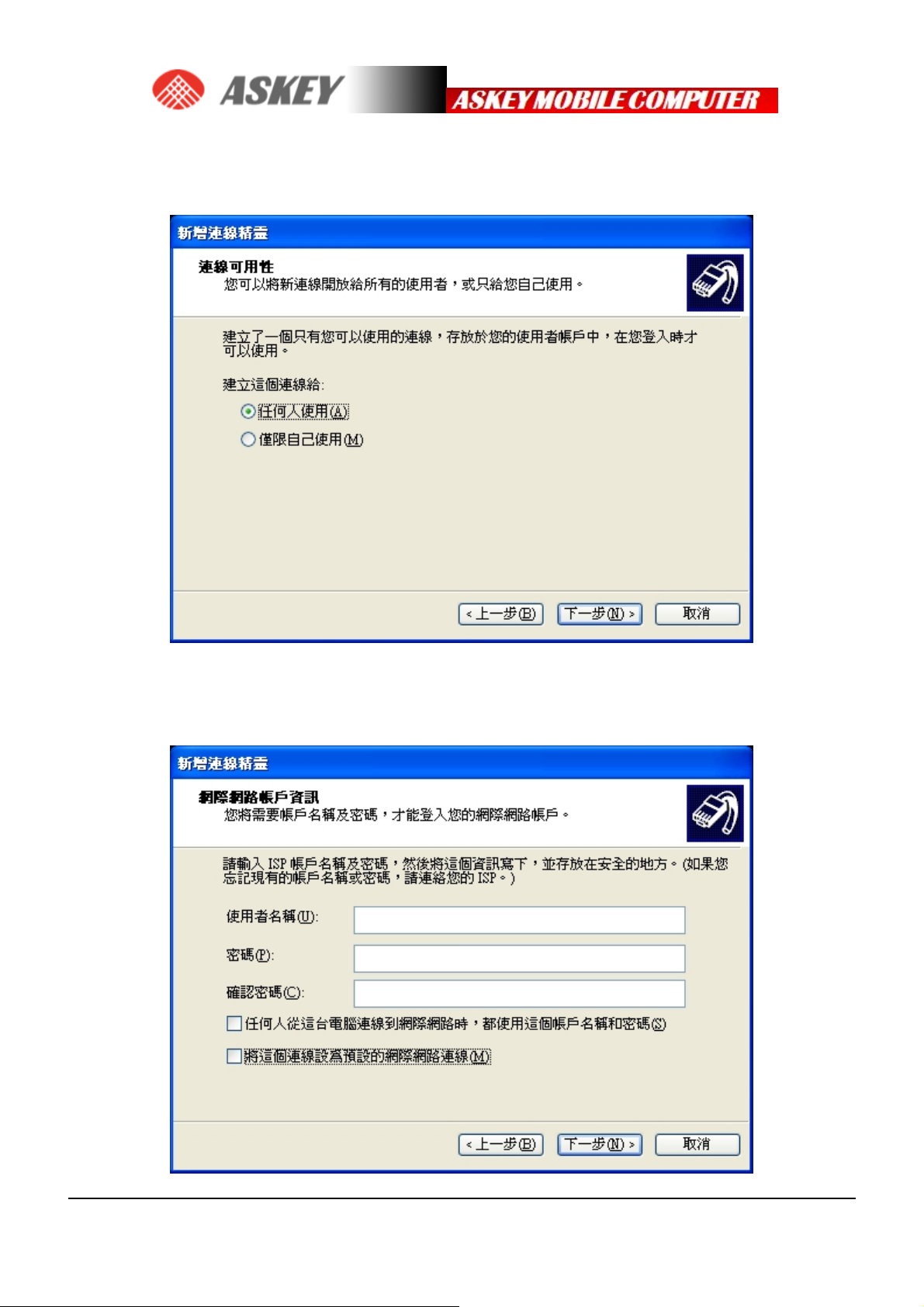

5.1 USING MODEM INTERFACE (DIAL -UP ) ......................................................................................................................... 22
P A G E 1
1. Preface
1.1 Revision History
Revision Date Author Approval Summary
001 2011/11/11
Curtis Tu
Initial version
Neil Lee
P A G E 2
2. HARDWARE INSTALLATION
Required equipment
Power supply Universal power supply, suitable for both AC 100 ~ 240 V
USB cable Standard USB-A to USB-B cable
Antenna The antenna kit includes one Antenna & one Antenna connector
P A G E 3
Power
USB Link to
P A G E 4
Setup and Installation
• Hardware setup
· Insert a SIM card (UMTS Mini Cards only)
· Insert the Mini Card
· Connect the antenna(s)
· Connect the power supply and USB cable
· Connect the Dev Kit and host device using a Mini Card Host Extender
• Software setup
· Install / update Mini Card drivers and Watcher on page 22
Hardware setup
Insert a SIM card (UMTS Mini Cards only)
To use a UMTS Mini Card (MC8xxx), you need to install:
• A live SIM card (with an active account), or
• A test SIM card with a call box (for example, an Agilent 8960 or Rohde&Schwarz CMU200)
To install the SIM card:

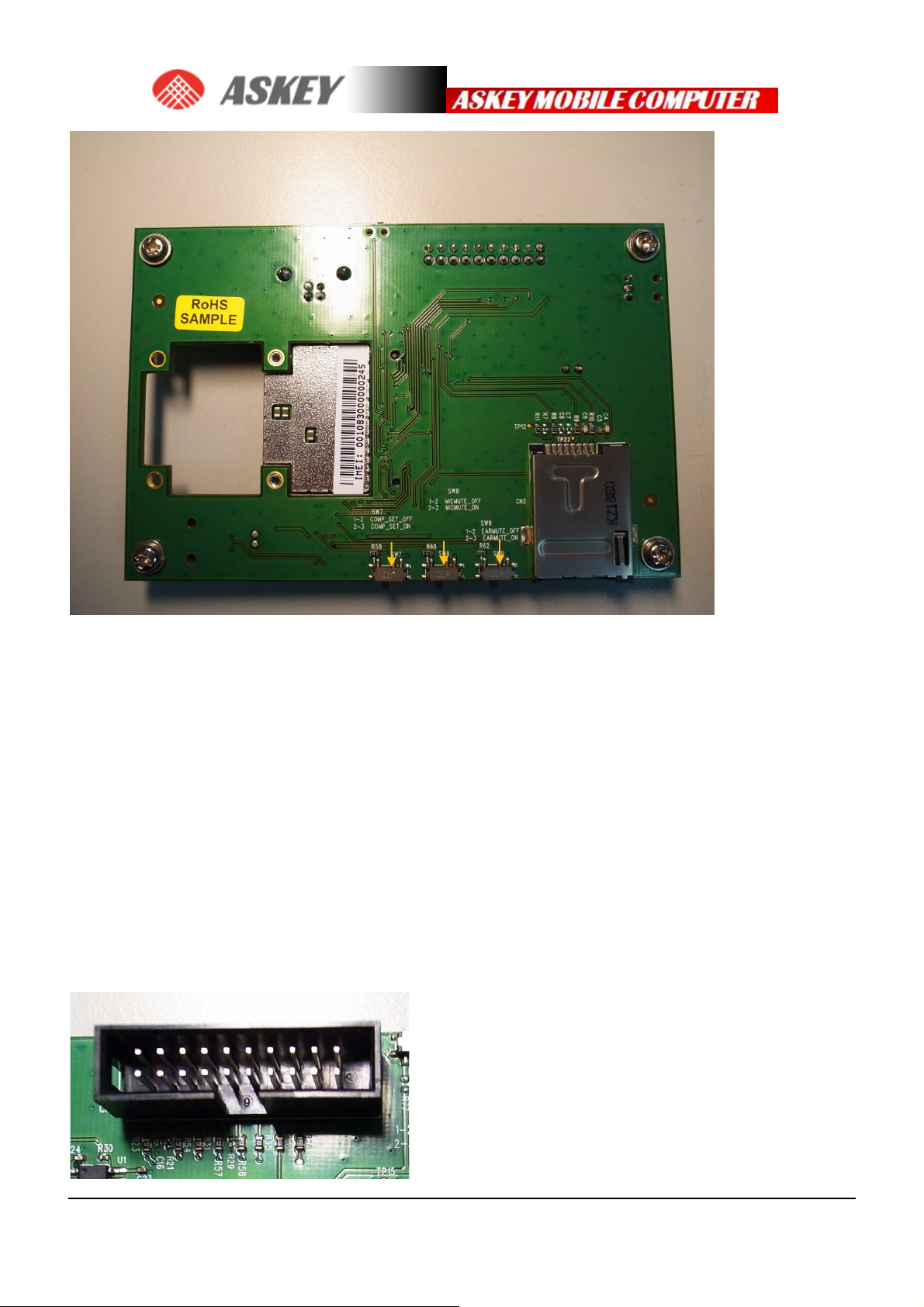

1. Place the Dev Kit face-up(as shown) , the SIM slot is in the bottom side beside
P A G E 5
2. Insert the SIM card into the cover with its circuitry face-up—note the location of the notched
corner of the card in the following image.
3. Push SIM card and then slide the slot cover under the connector base latches into the ‘CLOSED’
position
P A G E 6
Insert the Mini Card
After inserting the SIM card, insert the Mini Card:
1. Place the Dev Kit face-up (as shown)—the Mini Card slot is in the top right corner.
2. Hold the Mini Card at the screw holes and slide it into the Dev Kit’s Mini Card slot at a 45∘angle
(inserting it horizontally may damage the module’s contacts and wear out the host connector).
3. Push the free end of the Mini Card down until it clicks into the screw column.
P A G E 7
4. Use ten screwdrivers screw lock - in
Connect the antenna(s)
After installing the Mini Card, connect the supplied antenna(s) to the Dev Kit. (some Mini Cards include
both a main and an auxiliary (diversity/gps) antenna):
1. Place the Dev Kit face-up. The antenna connectors are on the right side near the top.
2. Link Main antenna connector.
3. Link Diversity antenna connector.
P A G E 8
HARDWARE INSTALLATION
Hardware description
2
3
4 5
6
8
7
1
9
1
1
1
Dev Kit TOP
1) WWH001X Module
2) J2 : Power Plug
3) J8 : Power Jump
4) LED5 : Power LED (Indicates that WWH001X is powered)
5) LED3 : WAN LED (Call State)
6) CN3 : JTAG Connector
7) SW1 : 3G Disable switch
Default : 2-3 (3G ON)
8) CN1 : USB B Type Connector
9) SW3 : PCM Codec Reset switch
10) MIC1 : Microphone
11) JP1 : 3.5mm Audio jack
12) JP2 : Speaker Connector
P A G E 9
