Askey Computer WLU6120 User Manual

ASKEY

WIFI Module
WLU6120-D01(RoHS)
WLU6121-D01(RoHS)

OPERATION

MANUAL

DRAFT_V01

1. Product Spec.

Chip Set Atheros AR9271
Operation Voltage 3.3V
Network Standards IEEE802.11b, IEEE802.11g and IEEE802.11n
Modulation Techniques BPSK, QPSK, CCK, DBPSK, DQPSK, 16QAM, 64QAM
Modulation Technology OFDM, CCK, DSSS, MIMO(1T1R)

802.11b: 11, 5.5, 2, 1 Mbps

802.11g: 54, 48, 36, 24, 18, 12, 9, 6Mbps

Data Rate

Network Architectures Infrastructure and Ad Hoc
Operating Frequencies 2.412~2.462 GHz

802.11n:
HT20: 65, 58.5, 52, 39, 26, 19.5, 13, 6.5Mbps(MCS7-0)
HT40: 135, 121.5, 108, 81, 54, 40.5, 27, 13.5Mbps(MCS7-0)

Antenna Ty pe

RF output power

Receiver sensitivity
(PER<10%)

Power Consumption

Temperatures(AMBIENT) Operation: 0~60℃, Storage:-20~70℃
Humidity(non-condensing) 0~95%RH

Antenna

Antenna 1: RF chain 0 for transmit and receive
Antenna 2: RF chain 1 diversity antenna for receive

11b: 16dBm
11g: 16dBm , 15dBm@54M
11n HT20: 16dBm, 13dBm@MCS6, 12dBm@MCS7
HT40:16dBm, 15dBm@MCS5, 11dBm@MCS6, 10dBm@MCS7

802.11b: -82dBm@11Mbps and PER<8%

802.11g: -65dBm@54Mbps and PER<10%

802.11n: HT20-654dBm, HT40:-62dBm
Tx: 1115mW continuous transmitter 11b @2.4GHz;(1M, 18dBm, 1TX,

IEEE802.11b)
Tx: 1181mW continuous transmitter 11g @2.4GHz;(6M, 18dBm, 1TX,
IEEE802.11g)
Tx: 1184mW continuous transmitter 11n @2.4GHz;(MCS0, 20MHz,
IEEE802.11n)
Tx: 1207mW continuous transmitter 11nb @2.4GHz;( MCS0, 40MHz,
1TX, IEEE802.11n)
Rx: 376mW continuous transmitter 11g @2.4GHz;(1M, IEEE802.11b)
Rx: 379mW continuous transmitter 11g @2.4GHz;(6M, IEEE802.11g)
Rx: 376mW continuous transmitter 11n @2.4GHz;(MCS0, 20MHz,
IEEE802.11n)
Tx: 475mW continuous transmitter 11nb @2.4GHz;( MCS0, 40MHz,
1TX, IEEE802.11n)

Ant1: PCB Antenna/ Gain:2.86
Ant2: PCB Antenna/ Gain:2.74
Ant3: PCB Antenna/ Gain:2.19
Ant4: PCB Antenna/ Gain:2.50
Ant5: PCB Antenna/ Gain:0.77

2. Setup Operation

A. Install WLU6120-D01(RoHS) / WLU6121-D01(RoHS) into the system.

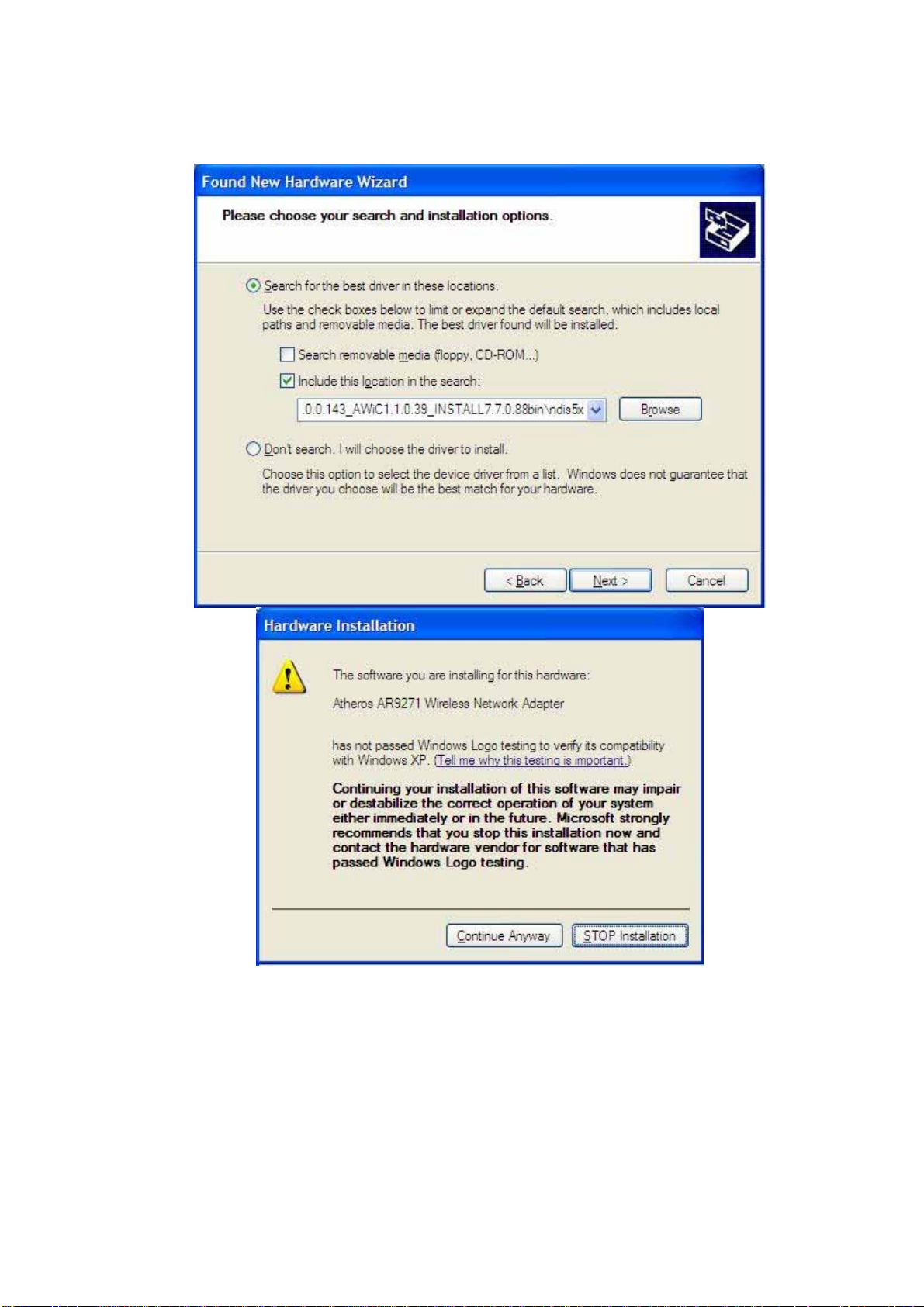

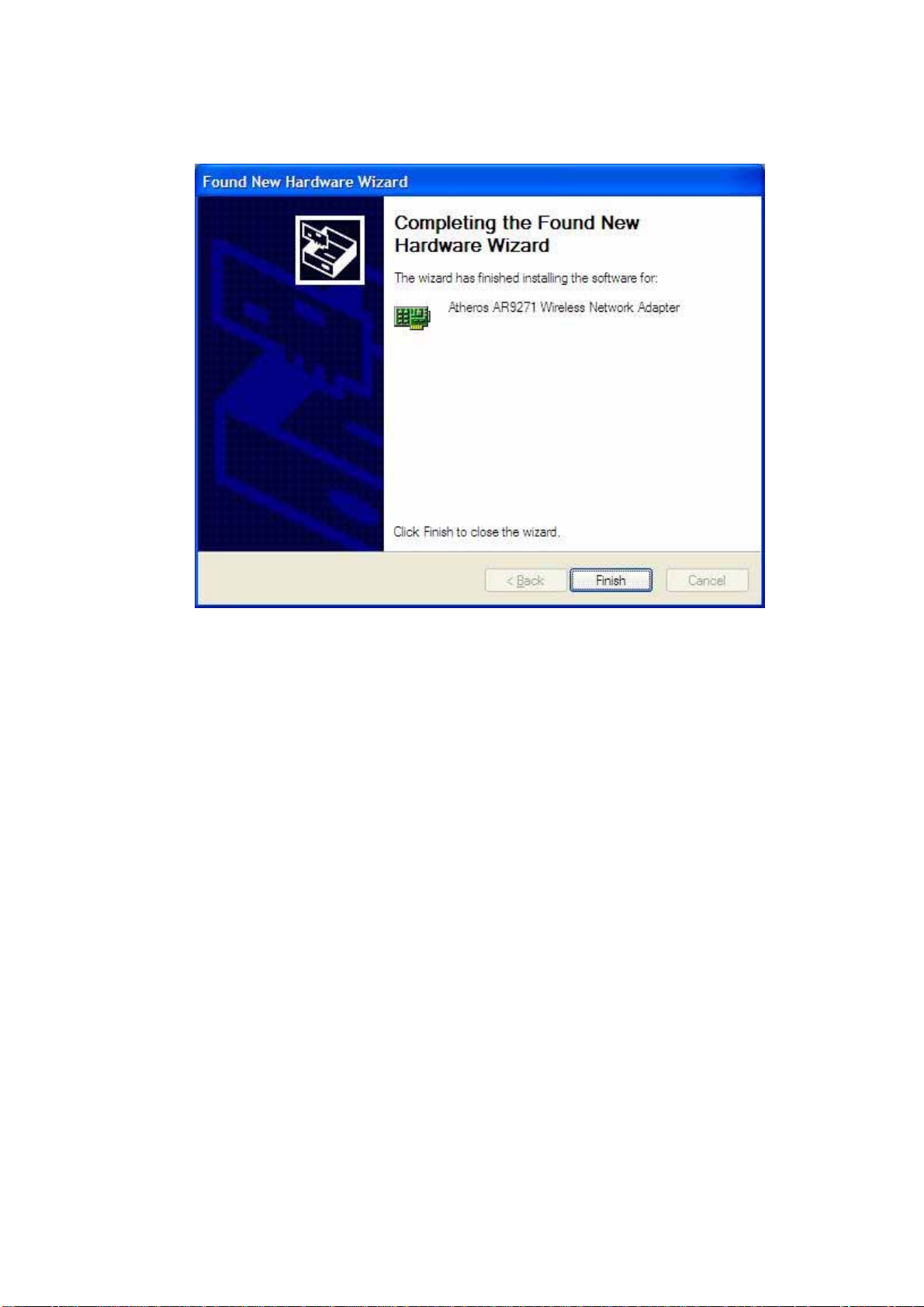

B. Setup Driver as blow windows:
