Askey Computer WLU5054 User Manual

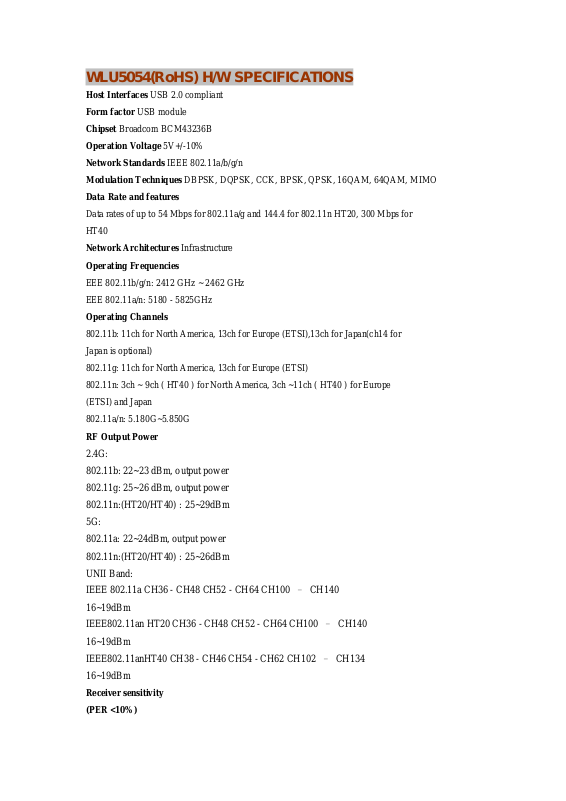

WLU5054(RoHS) H/W SPECIFICATIONS

Host Interfaces USB 2.0 compliant
Form factor USB module
Chipset Broadcom BCM43236B
Operation Voltage 5V+/-10%
Network Standards IEEE 802.11a/b/g/n
Modulation Techniques DBPSK, DQPSK, CCK, BPSK, QPSK, 16QAM, 64QAM, MIMO
Data Rate and features

Data rates of up to 54 Mbps for 802.11a/g and 144.4 for 802.11n HT20, 300 Mbps for
HT40

Network Architectures Infrastructure
Operating Frequencies

EEE 802.11b/g/n: 2412 GHz ~ 2462 GHz
EEE 802.11a/n: 5180 - 5825GHz

Operating Channels

802.11b: 11ch for North America, 13ch for Europe (ETSI),13ch for Japan(ch14 for
Japan is optional)

802.11g: 11ch for North America, 13ch for Europe (ETSI)

802.11n: 3ch ~ 9ch ( HT40 ) for North America, 3ch ~11ch ( HT40 ) for Europe
(ETSI) and Japan

802.11a/n: 5.180G~5.850G

RF Output Power

2.4G:

802.11b: 22~23 dBm, output power

802.11g: 25~26 dBm, output power

802.11n:(HT20/HT40) : 25~29dBm
5G:

802.11a: 22~24dBm, output power

802.11n:(HT20/HT40) : 25~26dBm
UNII Band:
IEEE 802.11a CH36 - CH48 CH52 - CH64 CH100 – CH140
16~19dBm
IEEE802.11an HT20 CH36 - CH48 CH52 - CH64 CH100 – CH140
16~19dBm
IEEE802.11anHT40 CH38 - CH46 CH54 - CH62 CH102 – CH134
16~19dBm

Receiver sensitivity
(PER <10%)

Legacy 6Mbps: -82dBm
MCS 7 HT20: < -64dBm, MCS15 HT20: < -64dBm
MCS 7 HT40: < -61dBm, MCS15 HT40: < -61dBm

Antenna Type Printing Antenna

RoHS compliant Yes

Security Security support for WPS, WPA2, WPA, WAP and protected management frames
Software Support WinXP, Win7
Temperatures Operates from 0 to 60 degree C

Humidity (non-condensing) 15 to 95% non-condensing

SETUP WLAN MODULE CONNECTION

1. Install driver in Windows, then you can link to AP Router

5_102_98_37_WinXP_mfgtest_Bcm_DriverOnly_BMac
