Askey Computer WLU5053 User Manual

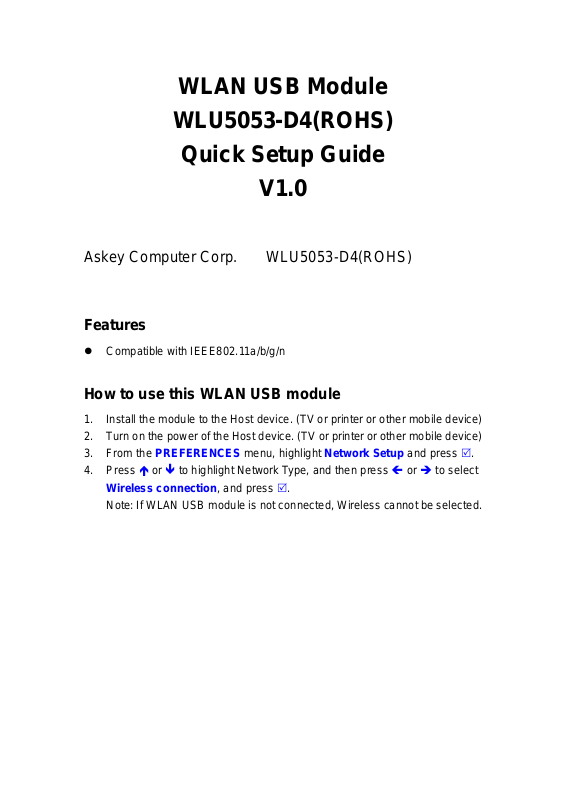

WLAN USB Module
WLU5053-D4(ROHS)
Quick Setup Guide
V1.0
Askey Computer Corp. WLU5053-D4(ROHS)
Features
Compatible with IEEE802.11a/b/g/n
How to use this WLAN USB module
1. Install the module to the Host device. (TV or printer or other mobile device)
2. Turn on the power of the Host device. (TV or printer or other mobile device)
3. From the PREFERENCES menu, highlight Network Setup and press .
4. Press or to highlight Network Type, and then press or to select
Wireless connection, and press .
Note: If WLAN USB module is not connected, Wireless cannot be selected.
Wireless Setup
Note:
• This feature is grayed out when the WLAN USB module is not connected or
Network Type is disconnect.
• Do not remove the WLAN USB module while changing the settings of the
wireless connection or communicating.
There are 3 connection method on “Wireless connection” for wireless setup:
•Easy Setup (WPS)
If AP corresponds to WPS, this can be used. WPS (Wi-Fi Protected
Setup™) is standard designed to execute connection of wireless LAN
equipment and setup of security easily . WPS will automatically configure all
wireless settings.
•Assisted Setup (setup by using AP's notification information)
Network Name, Authentication, and Encryption are decided based on
information from AP. You manually set Security Key.
Note: At this function, The Software Keyboard window will appear.
•Manual Setup (to input all settings)
See below “Manual Setup” for detail.
Manual Setup
1. From the PREFERENCES menu, highlight Network Setup, and press .
2. Press or to highlight Wireless Setup, and press .
3. Press or to highlight Manual setup, and press .
4. Press or to highlight Network Name, and press . The Software
Keyboard window will appear.
5. Input the Network Name by using the Software Keyboard. To save your
setting, press
6. Press or to highlight Authentication, and then press or to
select Open System, Shared Key, WPA-PSK or WPA2-PSK.
7. Press or to highlight Encryption, and then press or to select
None, WEP, TKIP or AES.
8. Press or to highlight Security Key, and press .
9. Input the Security Key by using the Software Keyboard. To save your
setting, press
10. Press or to highlight Done, and press .
(Please refer to the user manuals of your Host device and AP for more details.)
