Askey Computer WLP020 Users manual

ASR-102 / ACR-201 Ethernet Dongle

User’s Manual

Rev:01

2002/09/19

Wireless LAN Card User’s Manual

Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of the seller.

The seller provides this documentation without warranty, term, or condition of any kind. The seller may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time.

Other product and company names herein may be trademarks of their respective owners.

2002/09/19

Rev:01

000020-wlp

Safety Notes

For Installation

 Use only the type of power source indicated on the marking labels.  Use only the power adapter supplied with the product.  Do not overload wall outlet or extension cords as this may increase the risk of electric shock or file. If the power

cord is frayed, replace it with a new one.

 Proper ventilation is necessary to prevent the product overheating. Do not block or cover the slots and openings

on the device, which are intended for ventilation and proper operation. It is recommended to mount the product with a stack.

 Do not place the product near any source of heat or expose it to direct sunshine.  Do not expose the product to moisture. Never spill any liquid on the product.  Do not attempt to connect with any computer accessory or electronic product without instructions from

qualified service personnel. This may result in risk of electronic shock or file.

 Do not place this product on an unstable stand or table.

For Using

 Power off and unplug this product from the wall outlet when it is not in use or before cleaning. Pay attention to

the temperature of the power adapter. The temperature might be high.

 After powering off the product, power on the product at least 15 seconds later.  Do not block the ventilating openings of this product.  When the product is expected to be not in use for a period of time, unplug the power cord of the product to

prevent it from the damage of storm or sudden increases in rating.

For Service

Do not attempt to disassemble or open covers of this unit by yourself. Nor should you attempt to service the product yourself, which may void the user’s authority to operate it. Contact qualified service personnel under the following conditions:

 If the power cord or plug is damaged or frayed.  If liquid has been spilled into the product.  If the product has been exposed to rain or water.  If the product does not operate normally when the operating instructions are followed.  If the product has been dropped or the cabinet has been damaged.  If the product exhibits a distinct change in performance.

Warning

 This equipment must be installed and operated in accordance with provided instructions and a minimum 20 cm

spacing must be provided between computer mounted antenna and person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation.

 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Caution

 Any changes or modifications not expressly approved by the party responsible for compliance could void the

authority to operate equipment.

iii

Wireless LAN Card User’s Manual

Contents

Before you use ................................................................................ vii

Wireless LAN Basics................................................................................ vii

Local Area Network (LAN) .............................................................. vii

Ad Hoc Network ............................................................................ vii

Infrastructure Network .................................................................. vii

Roaming ...................................................................................... vii

System Requirements............................................................................ viii

Unpacking............................................................................................ viii

Chapter 1: Overview ......................................................................... 1

Physical Outlook ..................................................................................... 1

Front Panel ................................................................................... 1

Real Panel..................................................................................... 1

Chapter 2: Installation ...................................................................... 3

Install the Wireless LAN Card .................................................................... 3

Uninstall the Wireless LAN Card................................................................. 3

Chapter 3: Configuration................................................................... 5

Setting TCP/IP on Client PC ...................................................................... 5

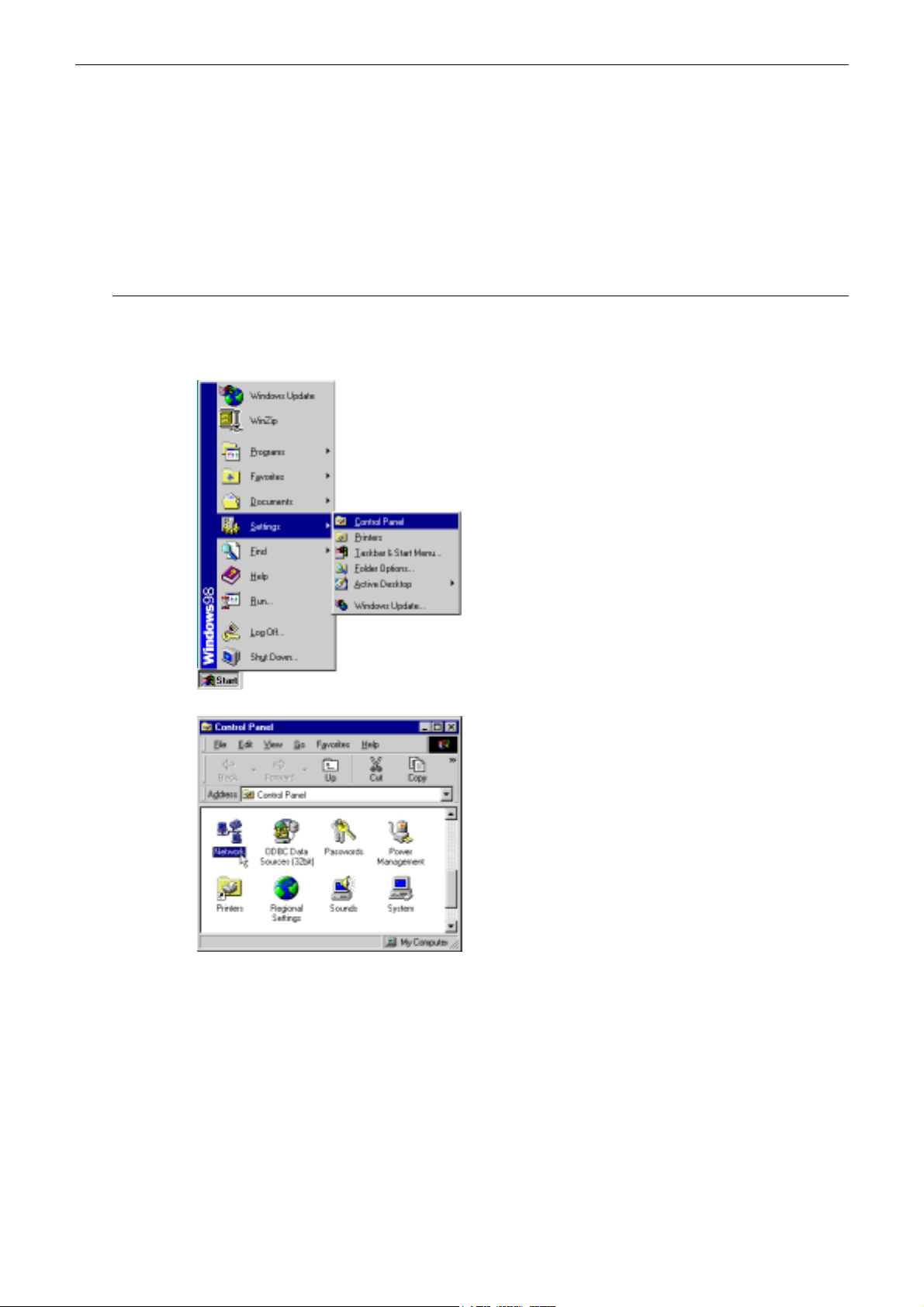

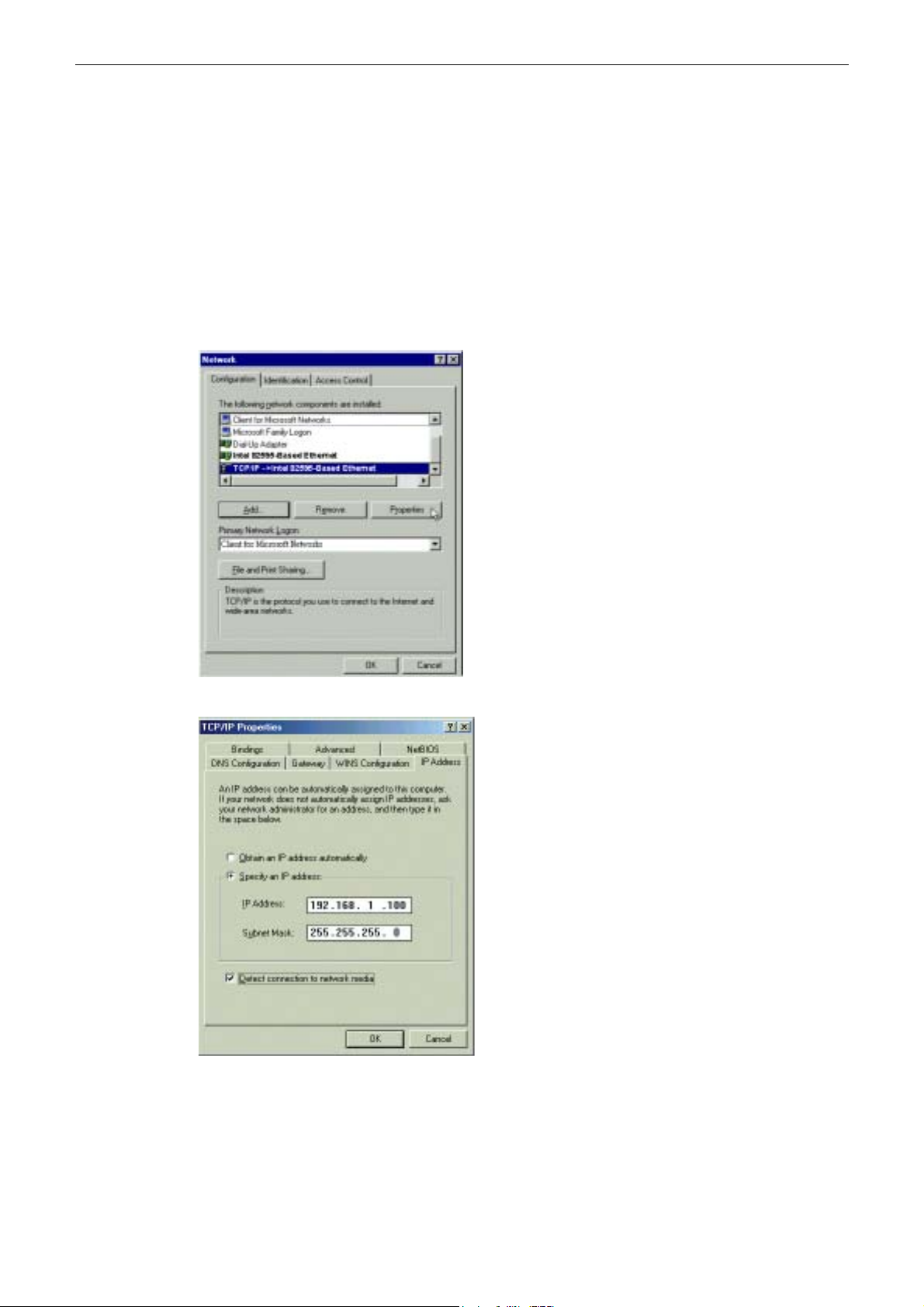

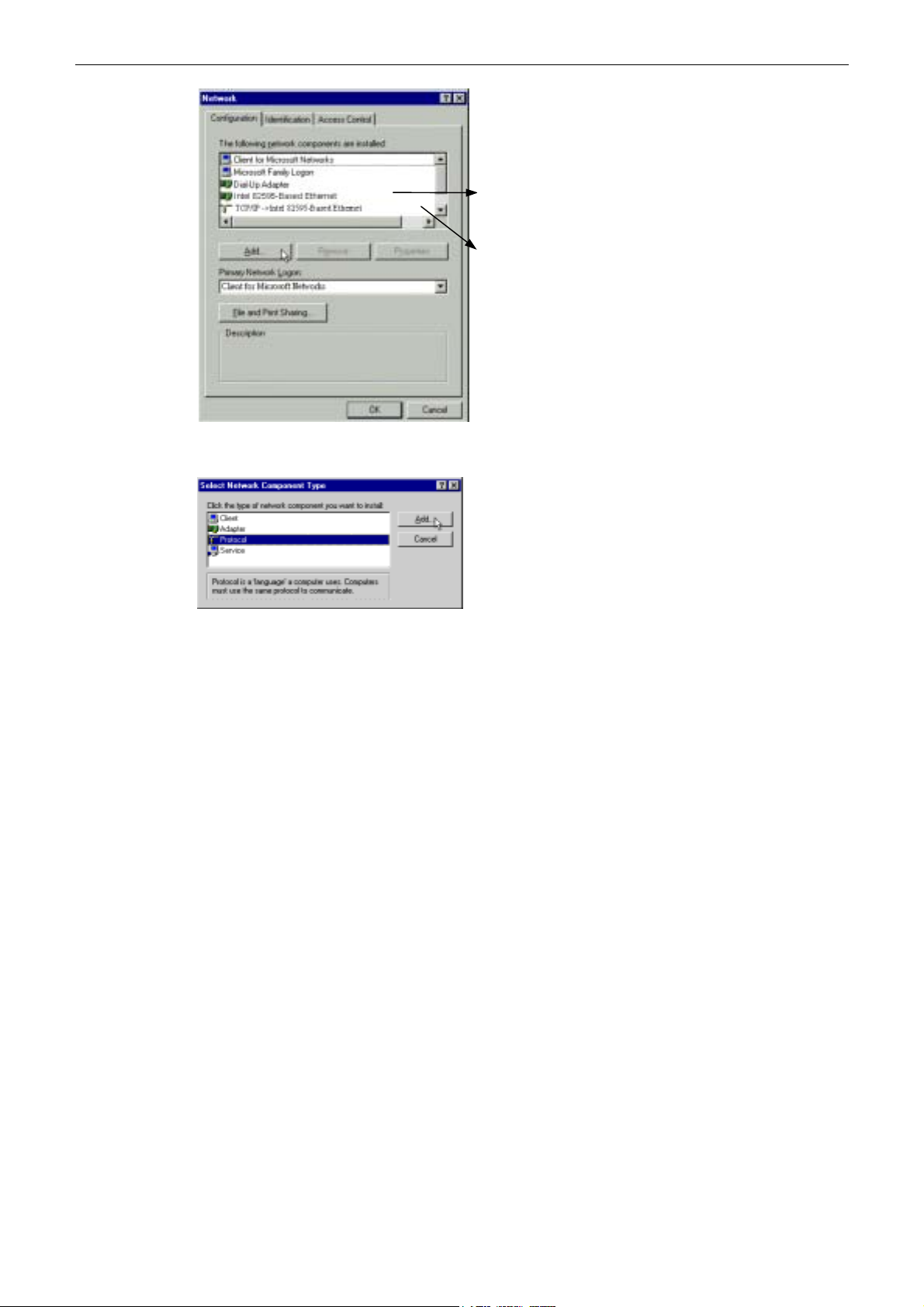

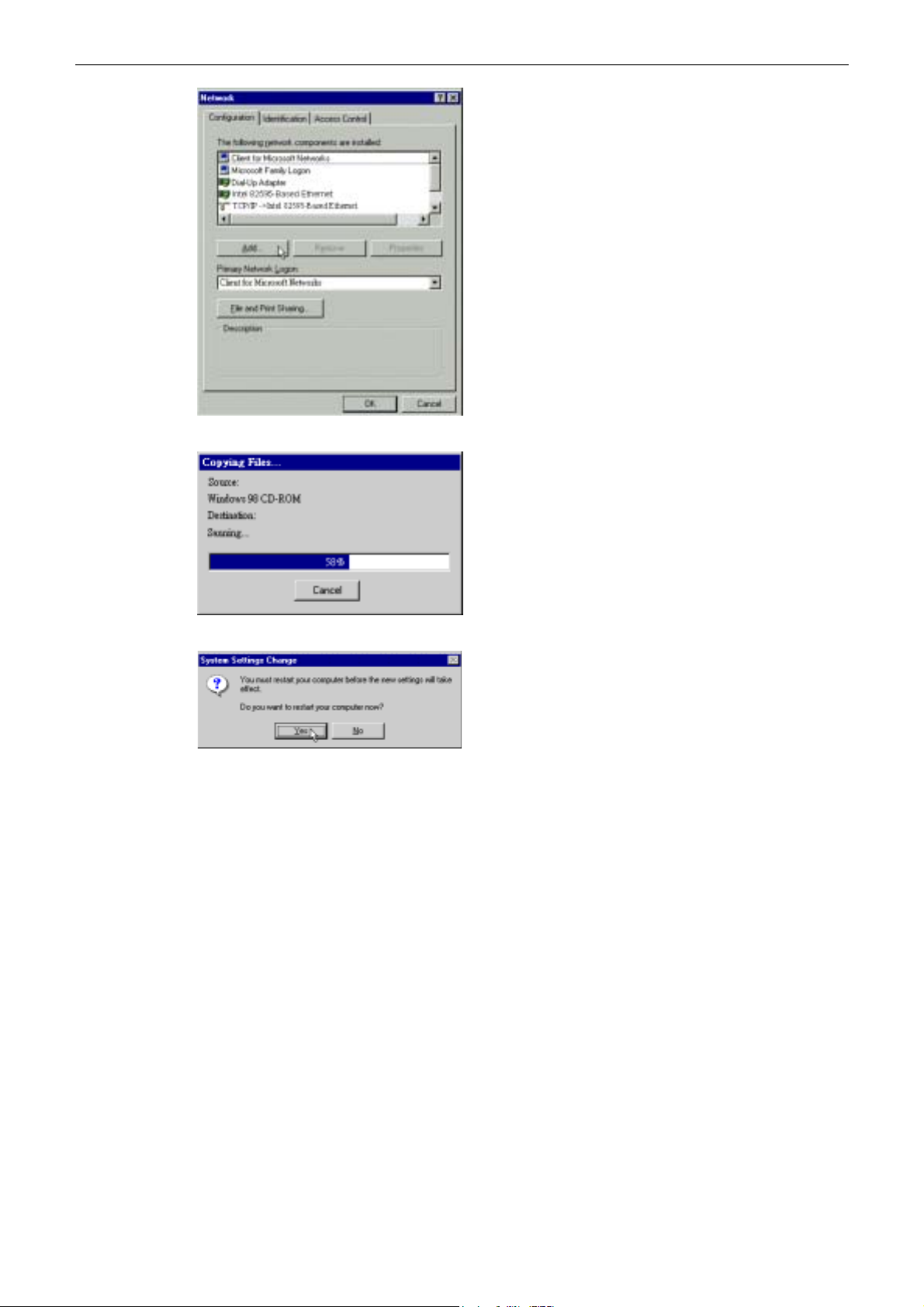

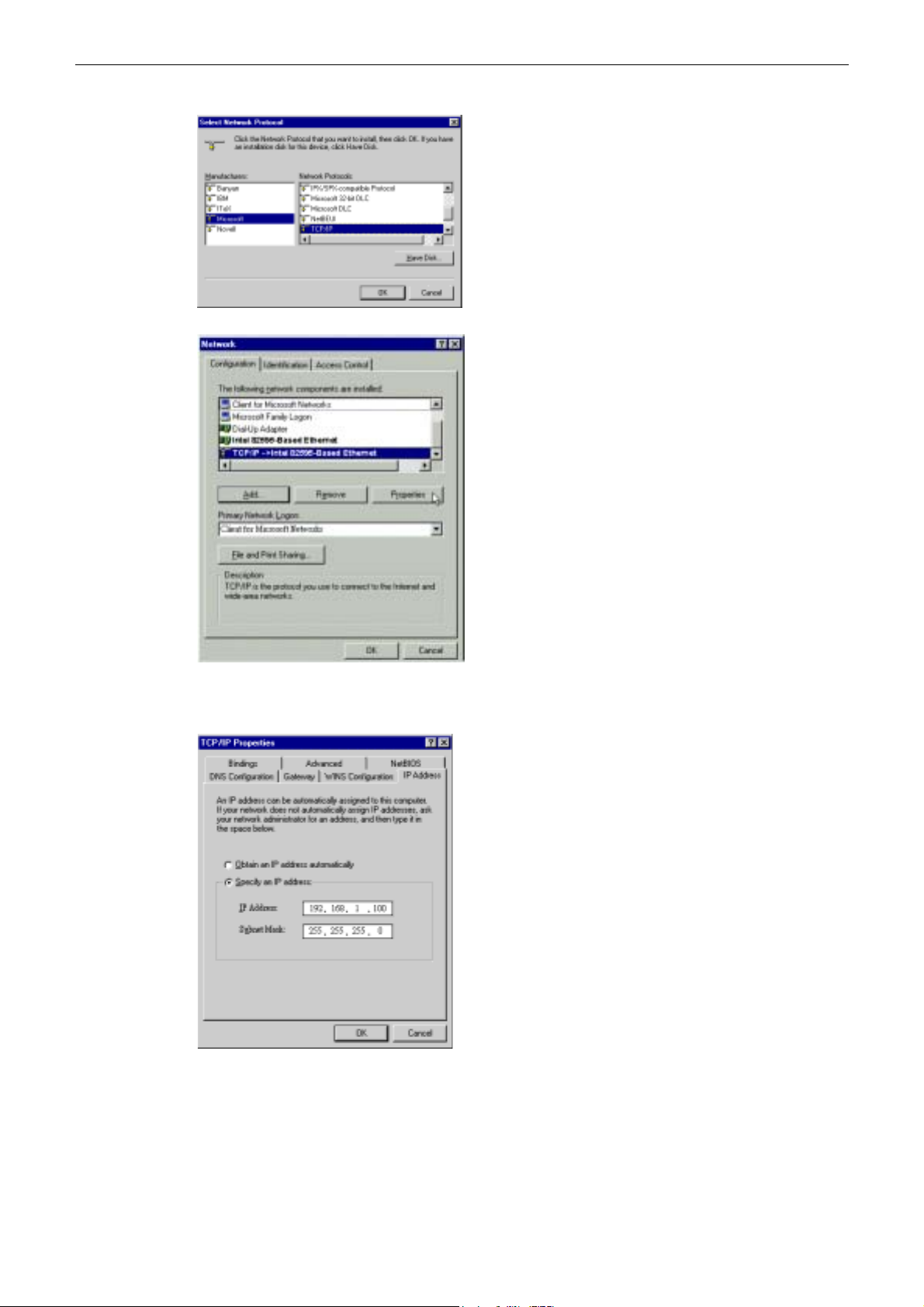

For Windows 98 ............................................................................. 5

For Windows ME ............................................................................ 9

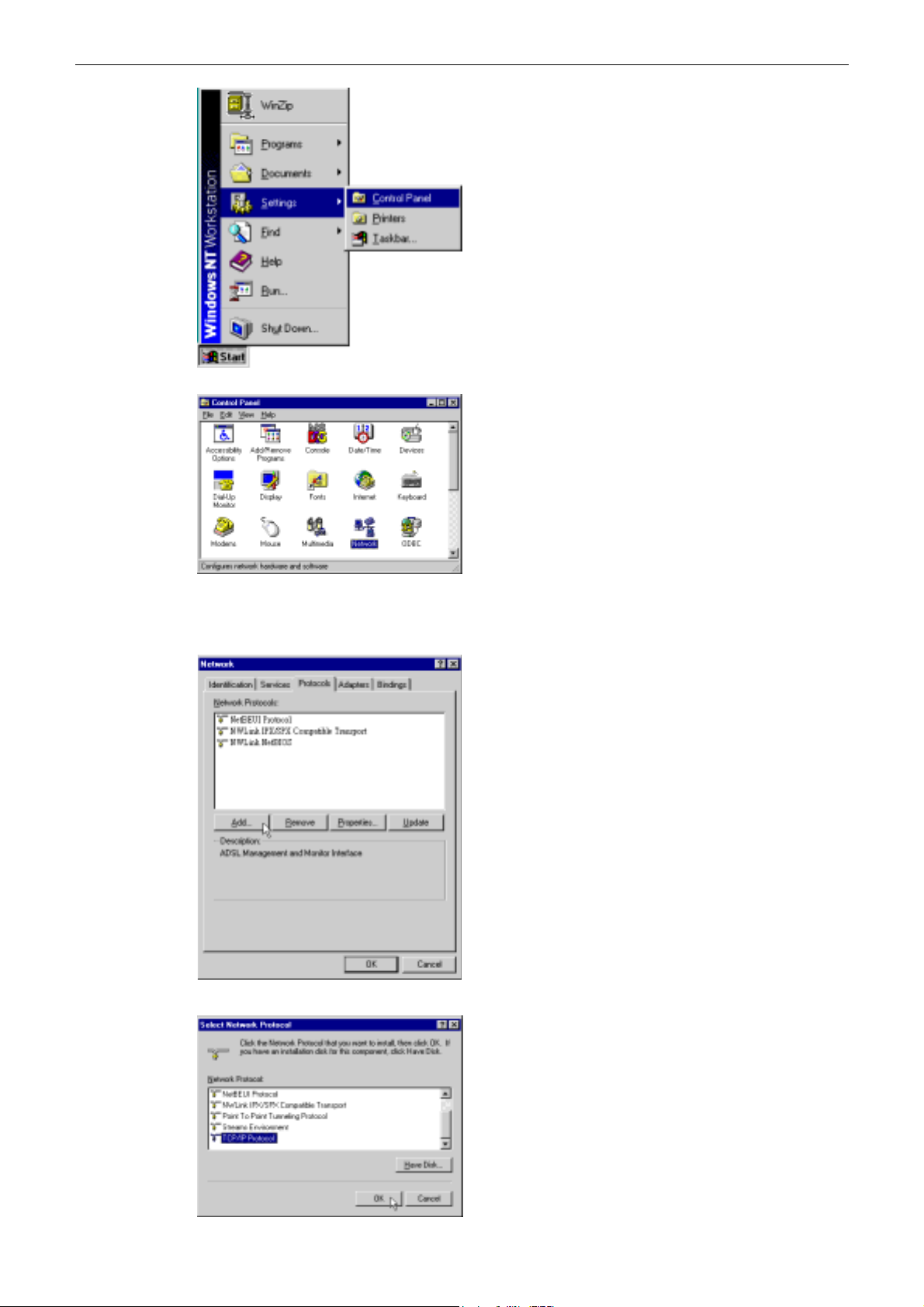

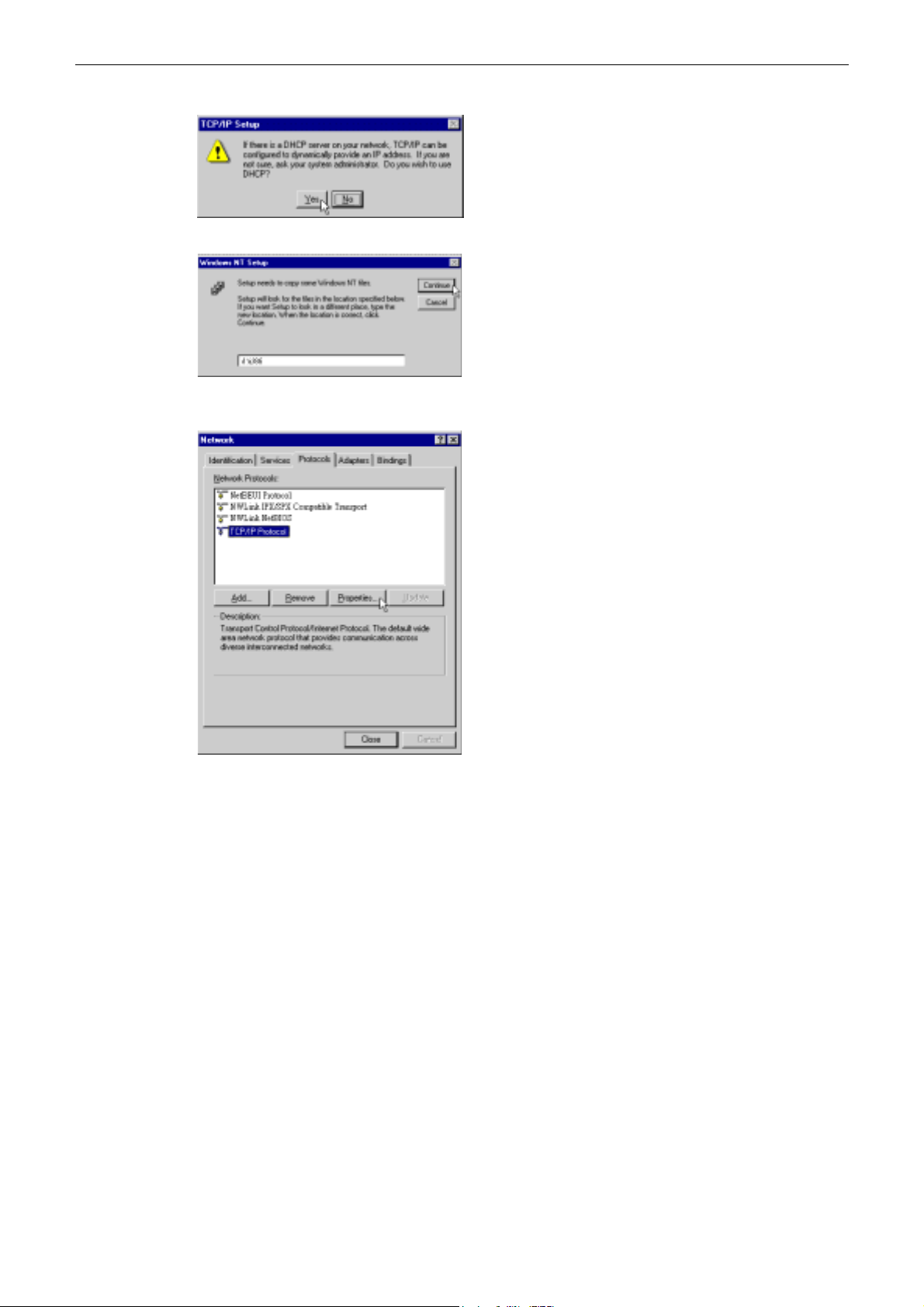

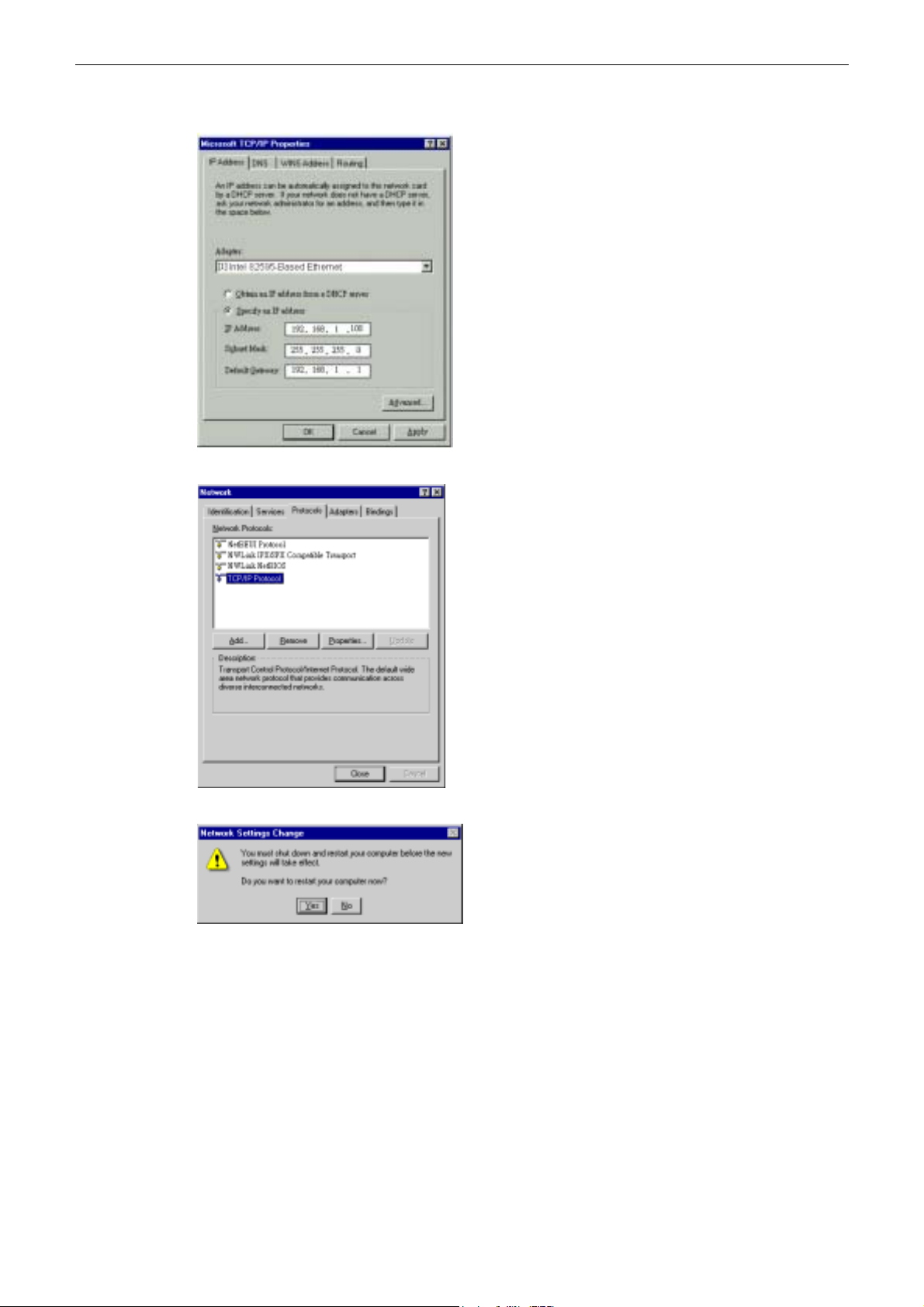

For Windows NT............................................................................. 9

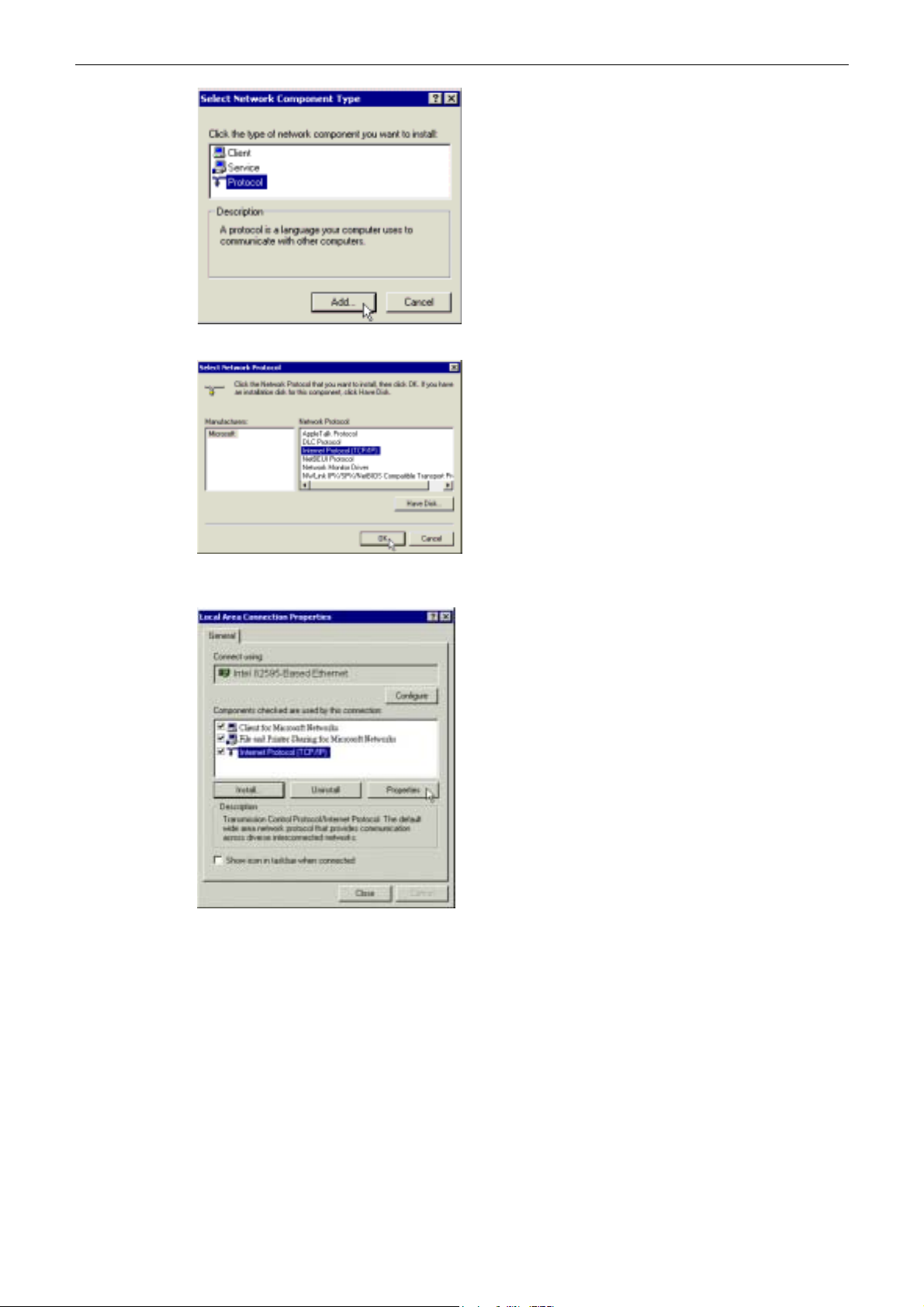

For Windows 2000 ........................................................................13

For Windows XP............................................................................15

Renew IP Address on Client PC.................................................................16

For Windows 98 ............................................................................16

For Windows ME ...........................................................................17

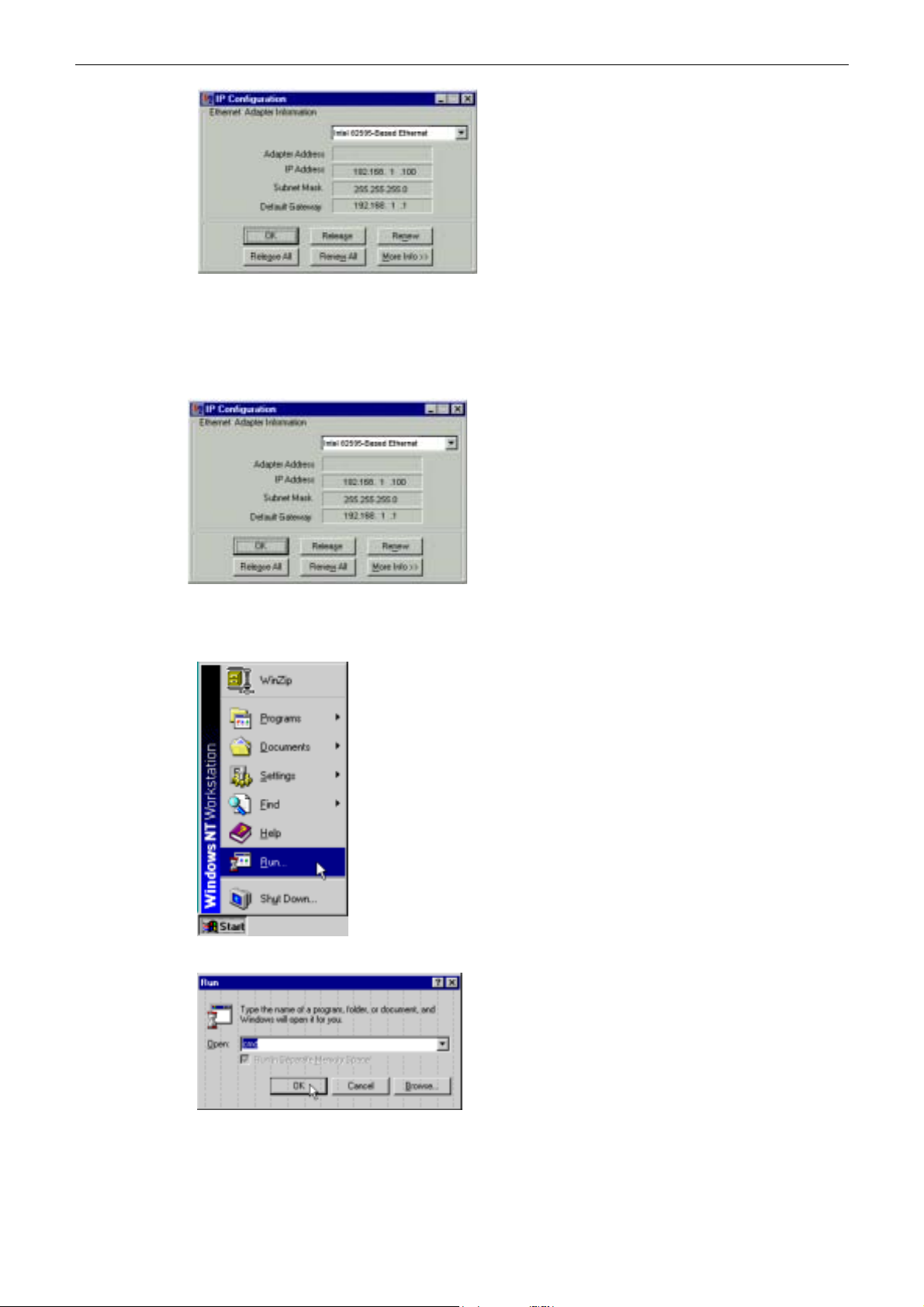

For Windows NT............................................................................17

For Windows 2000 ........................................................................18

For Windows XP............................................................................18

Chapter 4: Web Configuration ......................................................... 19

Using the Web-Based Manager.................................................................19

To Have the New Settings Take Effect ..............................................19

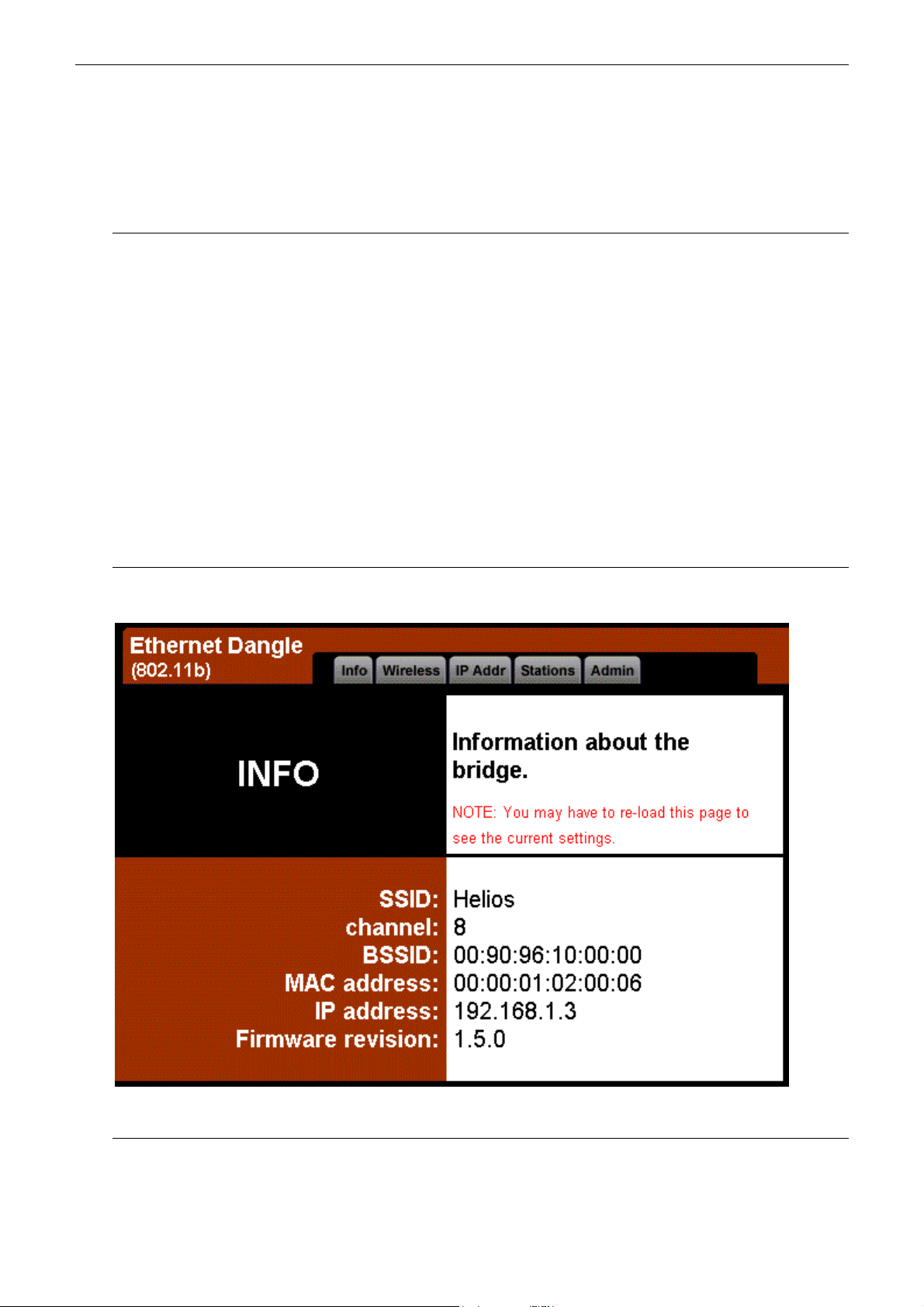

Info......................................................................................................19

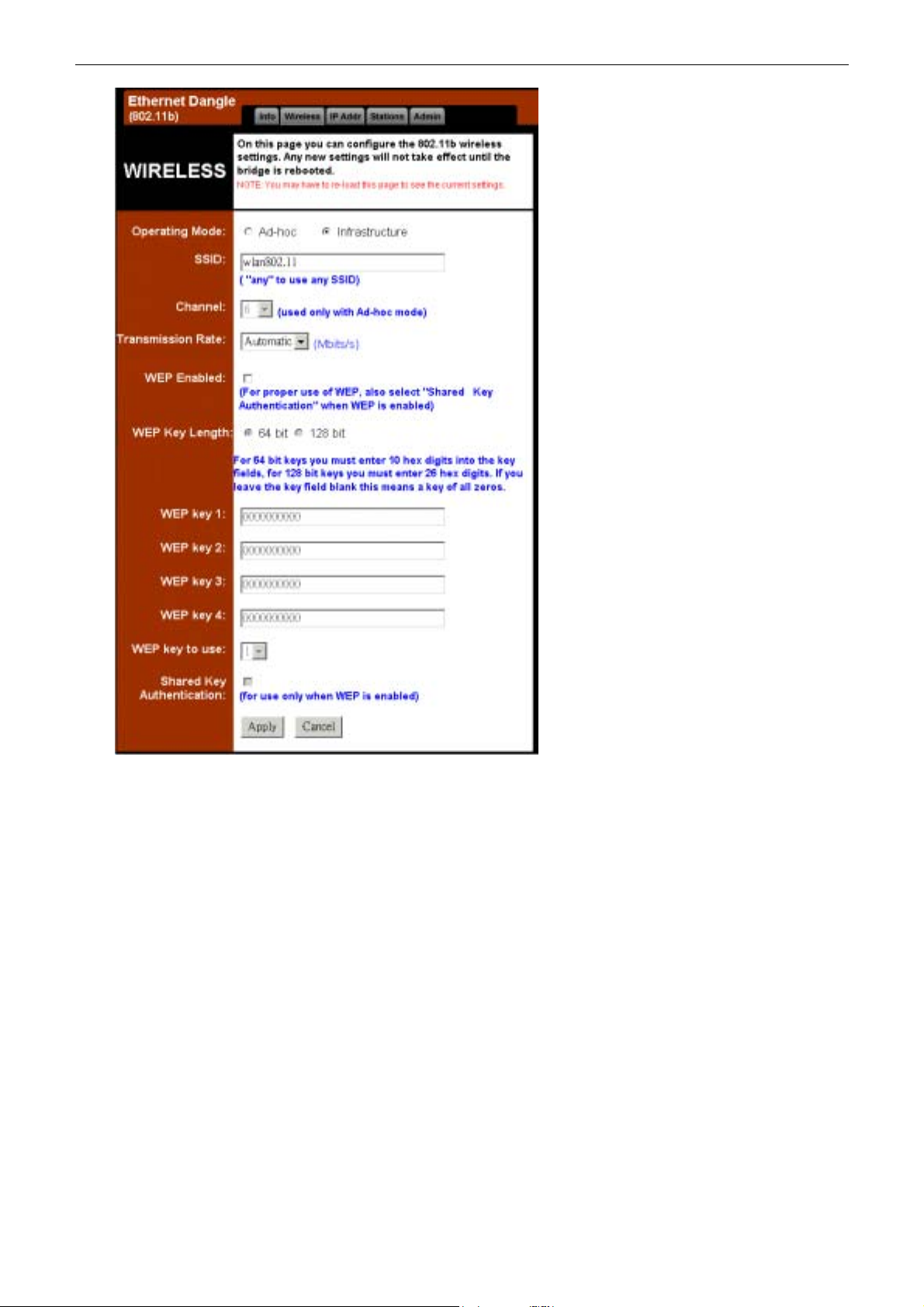

Wireless................................................................................................19

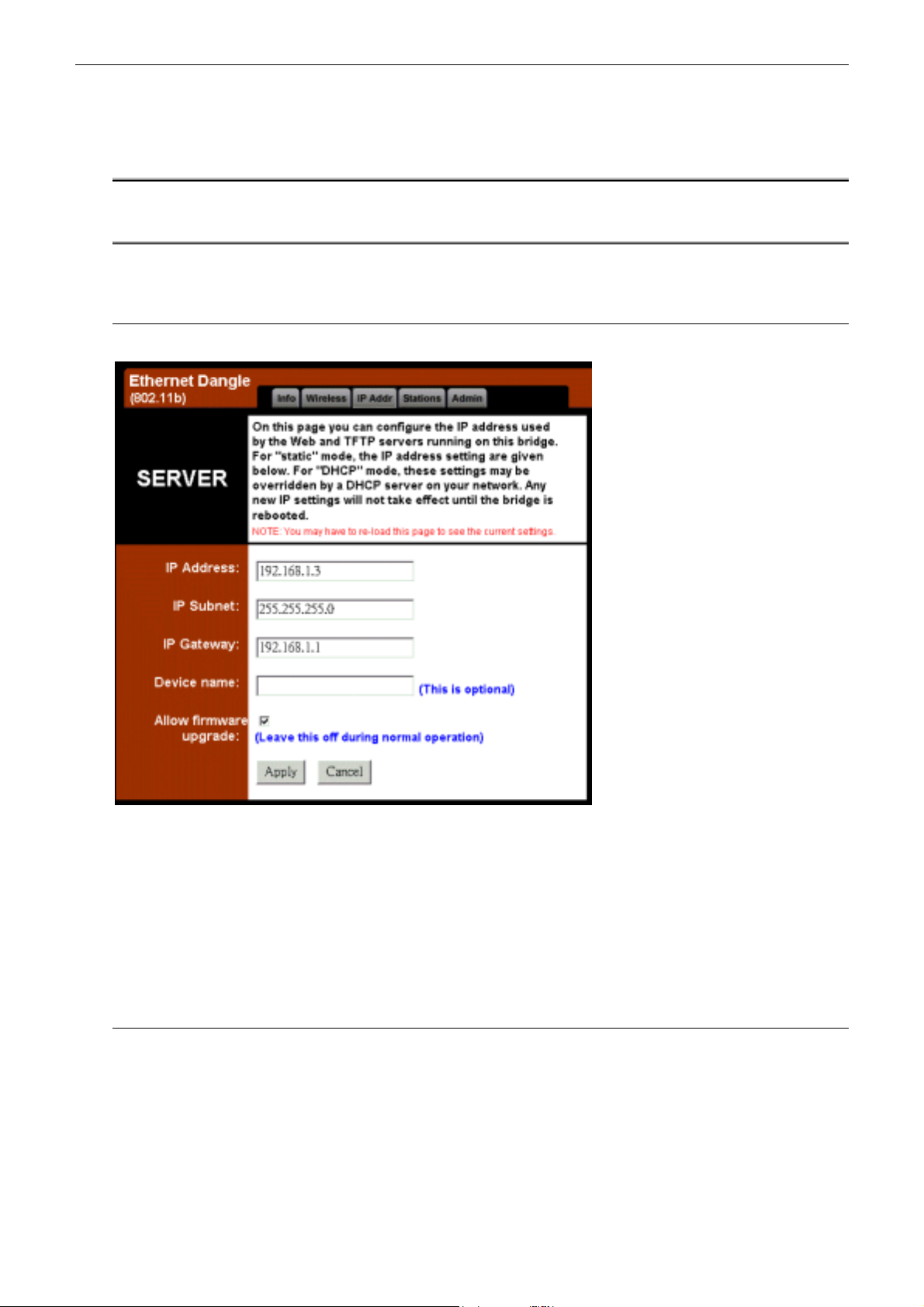

IP Address ............................................................................................21

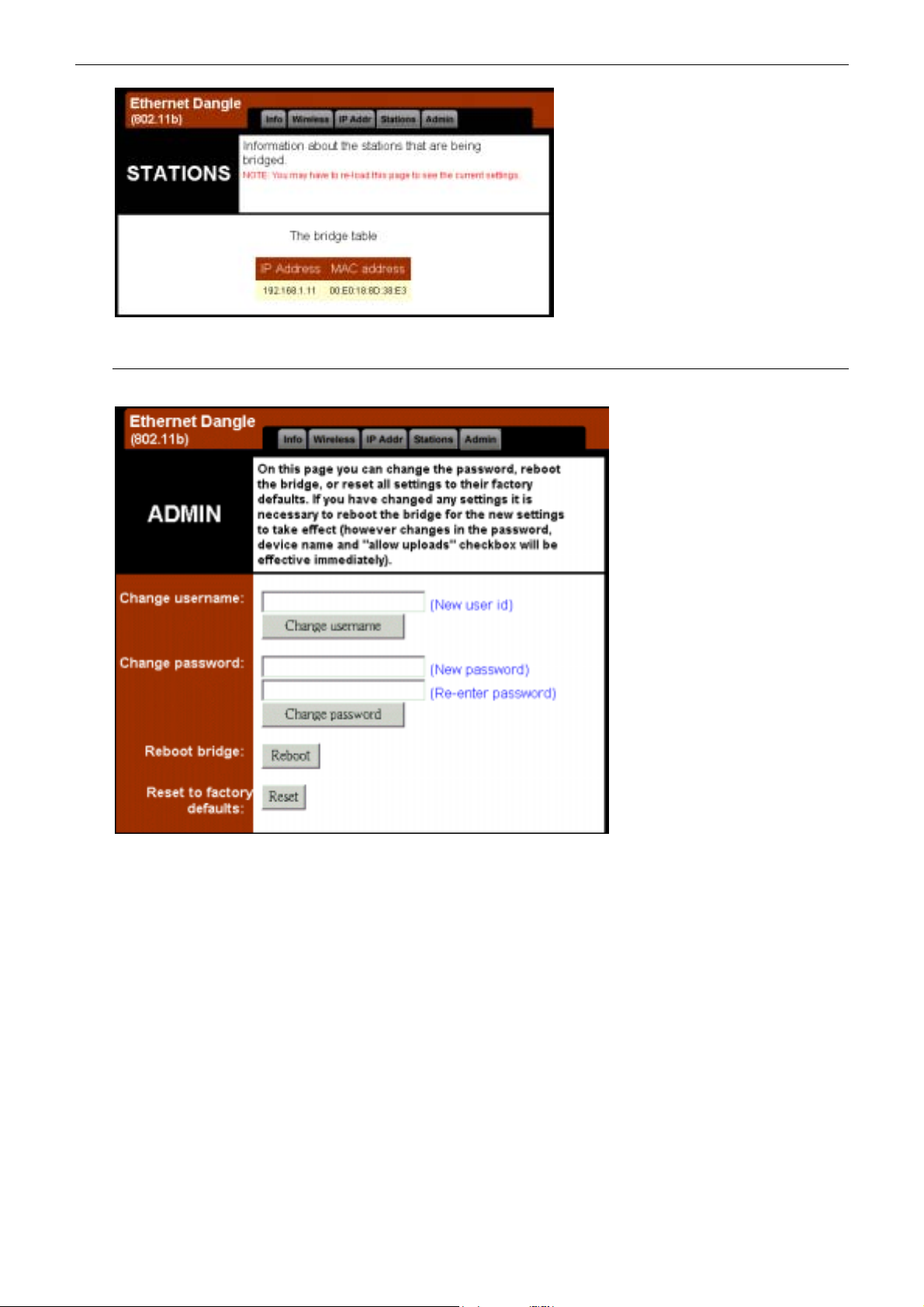

Stations ................................................................................................21

Admin ..................................................................................................22

Chapter 5: Troubleshooting............................................................. 23

Radio Interference..................................................................................23

Card Not Detected..................................................................................23

Cannot Connect to Another Wireless LAN Card ...........................................23

Poor Link Quality....................................................................................23

Cannot Connect to Access Point................................................................23

Wireless LAN Card User’s Manual

Chapter 6: Glossary......................................................................... 25

Appendix: Specifications ................................................................. 27

Software......................................................................................27

Hardware.....................................................................................28

Before You Use

BBeeffoorree yyoouu uusse

This Wireless LAN Card is an IEEE 802.11b Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operating in

2.4GHz Direct Sequence Spread Spectrum (DSSS) radio transmission, the Wireless LAN Card transfers data at speeds up to 11Mbps. Both Ad-Hoc and Infrastructure mode are supported. For network security concern, 64/128-bit Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11b networks.

This User’s Manual contains information on how to install and configure your Wireless LAN Card. Your Wireless LAN Card will allow you to connect your computer to other Wireless LAN Card equipped computers.

Wireless LAN Basics

This section conations some Wireless LAN basics to help you better understand how the product work together to create a wireless network.

LLooccaall AArreeaa NNeettwwoorrkk ((LLAANN)

Simply put, a LAN is a network that exists in a relatively limited area. A network is two or more computers connected together sharing files and peripheral devices such as printers.

The Wireless LAN Card allows you to interact with other computers without having to run cables normally associated with networks. This lets you move your computer around while staying connected to your network.

)

There are two ways to use the Wireless LAN Card. One way is to connect directly to one or more Wireless LAN Card equipped computers, forming an Ad Hoc wireless network. The second way is to connect to an Access Point that gives you access to an existing wired LAN, forming an Infrastructure wireless network.

AAdd HHoocc NNeettwwoorrk

The Ad Hoc network offers peer to peer connections between workstations, allowing communication between computers within range that have an 802.11b DSSS compatible PC card installed. A wireless Ad Hoc network can also access a wired LAN’s TCP/IP service (such as e-mail and the Internet) by using a TCP/IP software on an Ethernet equipped PowerBook or notebook.

IInnffrraassttrruuccttuurree NNeettwwoorrk

The infrastructure network uses an access point (or several access points) as a gateway, linking the wireless network to a wired LAN. As a result, portable workstations or desktops on your wireless network have access to all of the features of your wired LAN including e-mail, Internet access, network printers and files server.

RRooaammiinng

Multiple Access Points can be installed to extend the wireless service coverage area for seamless wireless access. Within an extended service area, all Access Points and wireless clients must have the same Service Set Identity (SSID). Roaming among different Access Points is controlled automatically to maintain the wireless connectivity at all times.

vii

Wireless LAN Card User’s Manual

System Requirements

To use the Wireless LAN Card, your computer must meet the following minimum requirements:

 Windows 98/98(SE)/Me/2000/XP

 32 MB of RAM, additional memory recommended

Unpacking

After unpack the Wireless LAN Card, please check the contents of the package with the checklist stated below. If you find any item is missing, please contact the dealer directly.

 Wireless LAN Card  5V Power Adapter and power cord

vii

Chapter 1: Overview

CChhaapptteerr 11:: OOvveerrvviieew

Before installing the card, please take a look at the front panel and real panel of the card. Getting acquainted with both panels will be helpful for installation later.

Physical Outlook

FFrroonntt PPaanneel

The LEDs on the Wireless LAN Card indicate connection status and data transfer operation status, as described below:

LED Indicators

LED Color State Description

Link Red Blinking Transmission mode. The faster the LED blinks, the

higher the data exchange rate.

RX Green Blinking Indicates that the data is receiving from outside.

TX Green Blinking Indicates that the data is transferring to remote side.

On Green On The adapter is plugged into your computer.

RReeaall PPaanneel

Take a look at the real panel of this wireless LAN card.

PWR - Power connector.

LAN - LAN port. 10/100 Base-TX.

Wireless LAN Card User’s Manual

Chapter 2: Installation

CChhaapptteerr 22:: IInnssttaallllaattiioon

Install the Wireless LAN Card

To install the wireless LAN card onto your computer, please do the following:

1. Plug one end of the Ethernet cable to the Ethernet port (LAN) on the wireless LAN card.

2. Insert the other end of the cable to the Ethernet port on the Network card of your computer.

3. Connect the supplied power adapter to the PWR port of the wireless LAN card, and plug the other end to a power outlet.

4. Turn on the power and then go to do the web configuration for the wireless LAN card.

Note: The red LED on the Wireless LAN Card will light when the Wireless LAN Card is connected to your computer.

To set up the TCP/IP address or the subnet mask, refer to Setting Up TCP/IP section for details.

Uninstall the Wireless LAN Card

Should you need to uninstall the Wireless LAN Card and application software for any reason,, you should remove the hardware from your computer and then uninstall the associated software. Please proceed as follows.

1. Turn off the power of your computer.

2. Disconnect the supplied power adapter to the PWR port of the wireless LAN card.

3. Unplug the cable to the Ethernet port on the Network card of your computer.

4. Unplug the cable to the Ethernet cable to the Ethernet port (LAN) on the wireless LAN card.

5. The card is removed successfully.
