11Mbps Wireless LAN Card
User’s Manual
Information in this document is subject to change without notice. No part of this document may be
reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose,
without the express written permission of the seller.
The seller provides this documentation without warranty, term, or condition of any kind. The seller
may make improvements or changes in the product(s) and/or the program(s) described in this
documentation at any time.
Other product and company names herein may be trademarks of their respective owners.
2002 All rights reserved.
Contents
Chapter 1 Introduct ion .....................................................................................................................................1
Wireless LAN Basics........................................................................................................................................2
Local Area Network (LAN)........................................................................................................................................................ 2
Ad Hoc Network......................................................................................................................................................................... 2
Infrastructure Network............................................................................................................................................................... 3
Roaming ..................................................................................................................................................................................... 3
Chapter 2 Installing the Wireles s LAN Card.....................................................................................................4
System Requirements......................................................................................................................................5
Wir ele s s L AN Card Status LE Ds....................................................................................................................... 5
The Antenna on the Wireless LAN Card ( O nly for W ireless LAN USB Card)........................................................6
Installing the Wireless LAN Card Softwar e ........................................................................................................6
Installing the Hardware and Driver.................................................................................................................. 12
Windows 98(SE)/Me/2000........................................................................................................................................................ 12
Windows NT4.0 (For Wireless LAN PCMCIA Card Only)...................................................................................................... 14
Windows XP............................................................................................................................................................................. 18
Chapter 3 Wireless LAN Cards Monit or Ut ility ............................................................................................... 21
I
11Mbps Wireless LAN Card User's Manual
PART I. Wireless LAN Card Monitor Ut ility for Win98\98SE\Me\2000\ NT .........................................................21
Wireless LAN Cards Monitor ......................................................................................................................... 21
Wireless LAN Cards Monitor Utility .................................................................................................................22

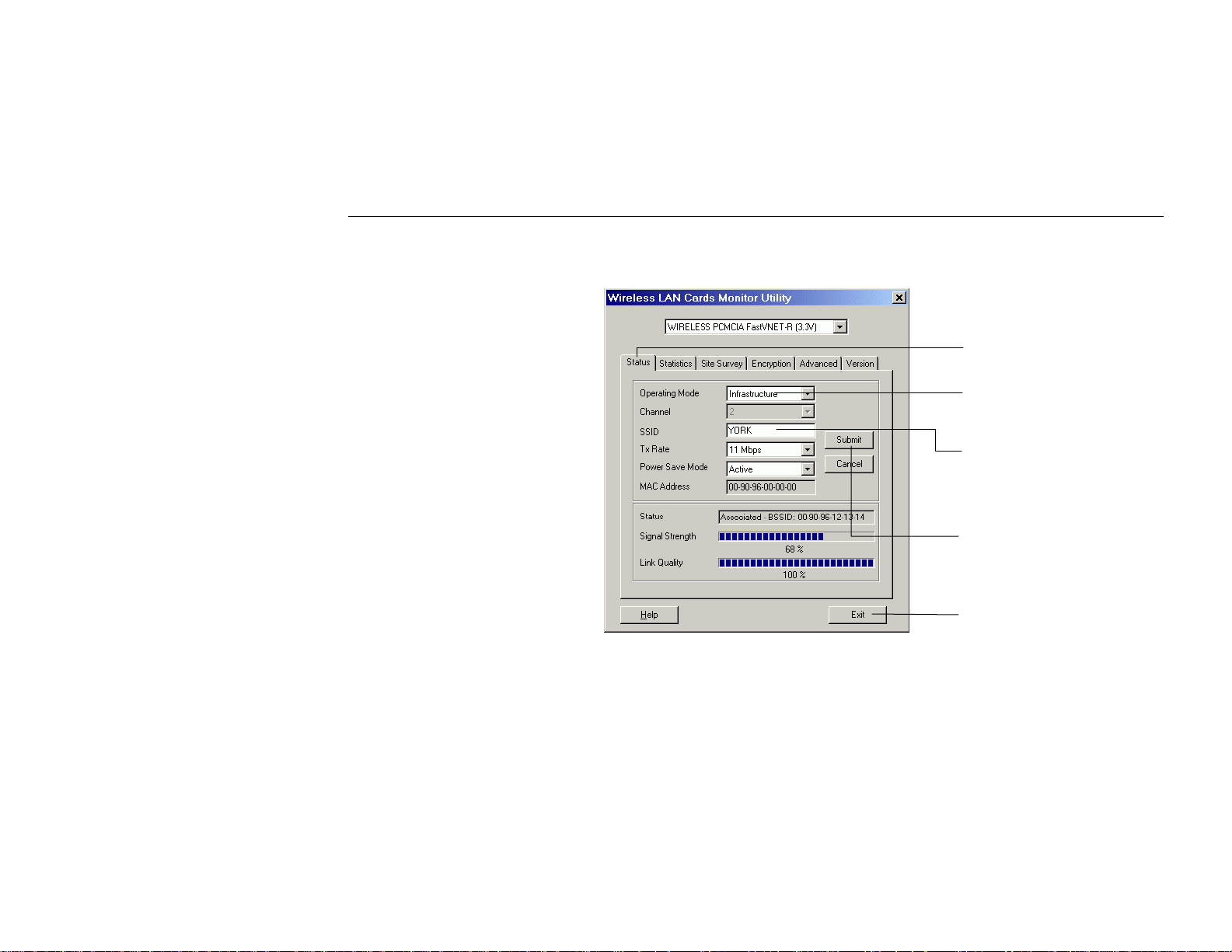

Status...........................................................................................................................................................22
Connecting to Other Wireless LAN Cards (Ad-Hoc Mode)..................................................................................................... 23
Connecting to Access Points (Infrastructure Mode)................................................................................................................ 25
Checking Link Quality ( I nfrastructure Mode Only) ............................................................................................ 27
Statistics.......................................................................................................................................................28
Site Survey....................................................................................................................................................29
Connecting to Desired Site By Site Survey Utility................................................................................................................... 30
Encryption..................................................................................................................................................... 31
Advanced......................................................................................................................................................33
Changing the Fragmentation/RTS Threshold.......................................................................................................................... 33
Version.........................................................................................................................................................35
PART 2. Configurat ion Uti lity f or W indows XP............................................................................................... 36
Connecting to an Access Point or Wireless LAN Card ...................................................................................... 36
Viewing Wireless Connect io n Status............................................................................................................... 38
Conf iguring Y our W ireles s Prope rt ies.............................................................................................................. 39
General..................................................................................................................................................................................... 39
Wireless Networks.................................................................................................................................................................... 41
To Access Certain Wireless Network Only .............................................................................................................................. 43
Authentication.......................................................................................................................................................................... 44
II
Contents
Chapter 4 Uninstalling t he Wireless L AN Card ............................................................................................... 47
Remo v ing the Wireles s LAN Card................................................................................................................... 47
Uninstalli ng the W ir e le s s LAN Card So ft war e ..................................................................................................48
Chapter 5 Updating the Device Driver ............................................................................................................51
Chapter 6 Troubleshooting ............................................................................................................................ 53
Radio Interference......................................................................................................................................... 53
Card Not Detected.........................................................................................................................................54
Cannot Connect to Anot her Wireless LA N Card............................................................................................... 54
Poor Link Quality........................................................................................................................................... 55
Cannot Connect to Acces s Point.....................................................................................................................55
Appendix A Limited Warr ant y ........................................................................................................................ 57
Wireless LAN Hardware.................................................................................................................................57
Wireless LAN Softw ar e.................................................................................................................................. 58
Appendix B Regulator y Compliance .............................................................................................................. 59
FCC Par t 15 De c laration of Conf orm ity ( Do C).................................................................................................. 59
FCC Ru le s and Regula tio ns - Par t 15 ............................................................................................................. 60
FCC Radiation Exposure Stat eme nt................................................................................................................ 61
Appendix C Setting Up T CP/ IP .......................................................................................................................63
III
11Mbps Wireless LAN Card User's Manual
Appen dix D S pe cifica tion............................................................................................................................... 67
Software....................................................................................................................................................... 67
Hardware ...................................................................................................................................................... 69
Glossary.......................................................................................................................................................... 75
IV
Table of Figures
Figure 3-1 Ad-Hoc Configuration................................................................................................................ 24
Figure 3-2 Infras t r ucture Mode Configuratio n .............................................................................................. 26

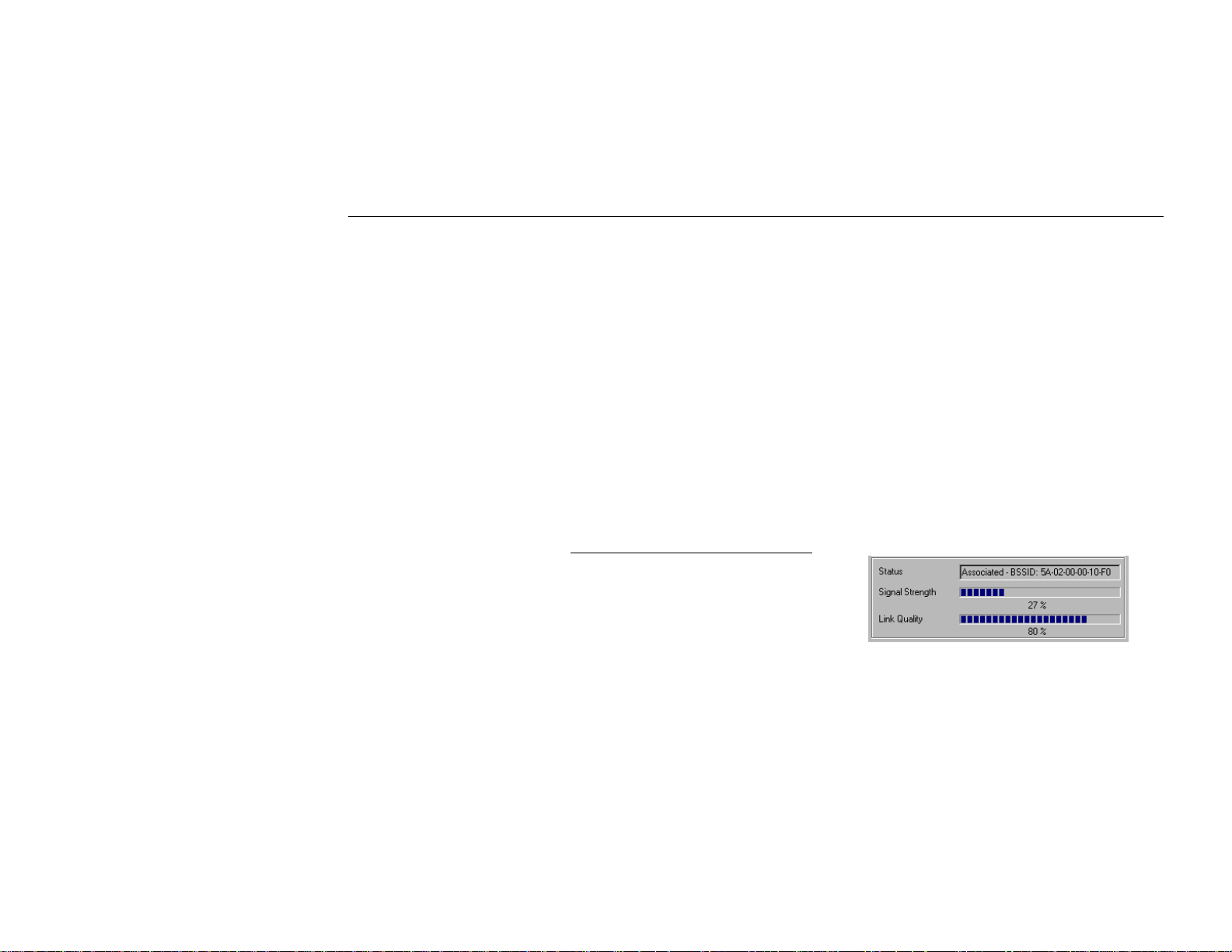

Figure 3-3 Indrast r ucture Mode Link Stat us................................................................................................. 27
Fig ure 3 - 4 W ireles s L AN Ca rds Monito r Utility – Statistics ............................................................................ 28
Fig ure 3 - 5 W ireles s L AN Ca rds Monito r Utility – Site Survey........................................................................ 30

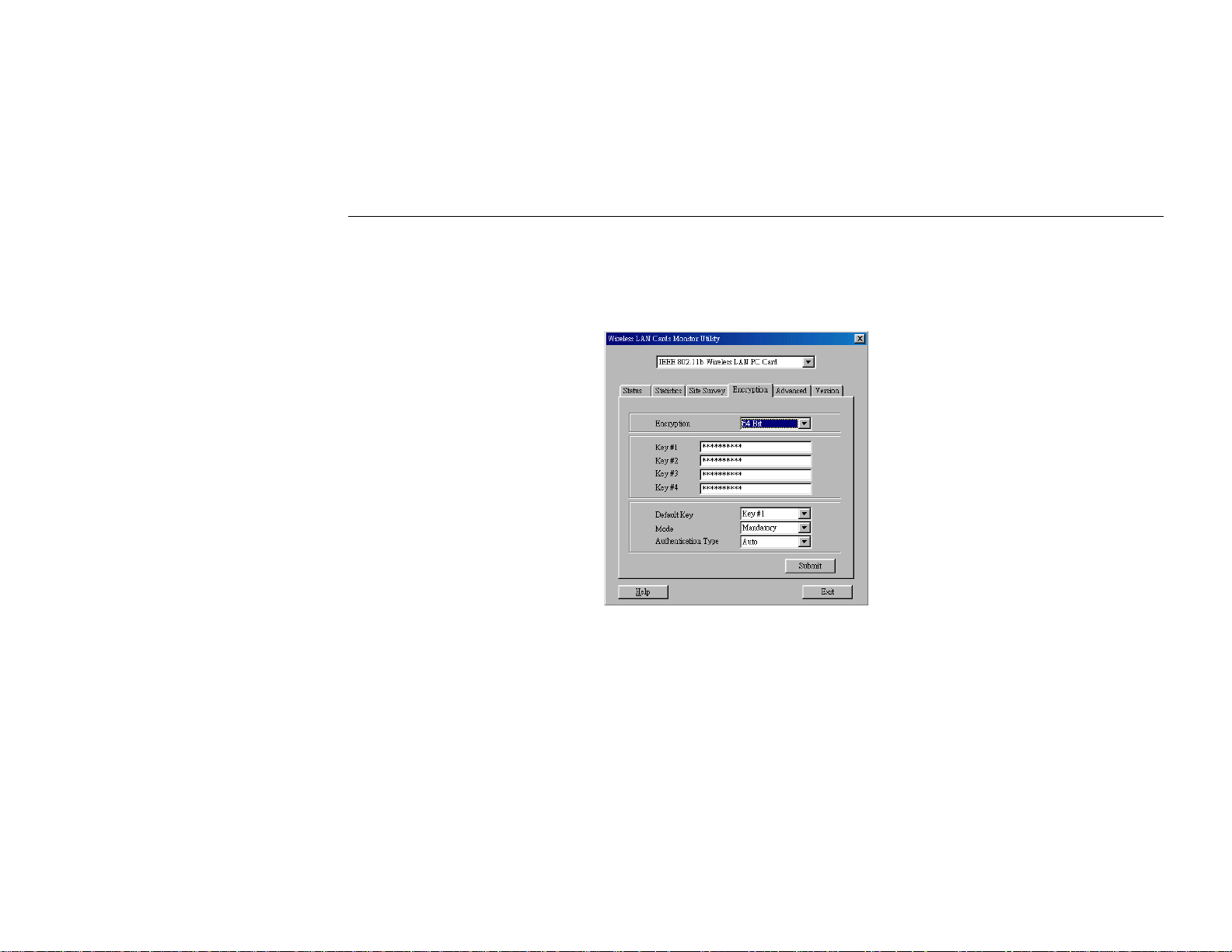

Fig ure 3 - 6 W ireles s L AN Ca rds Monito r Utility – Encr y ption......................................................................... 32

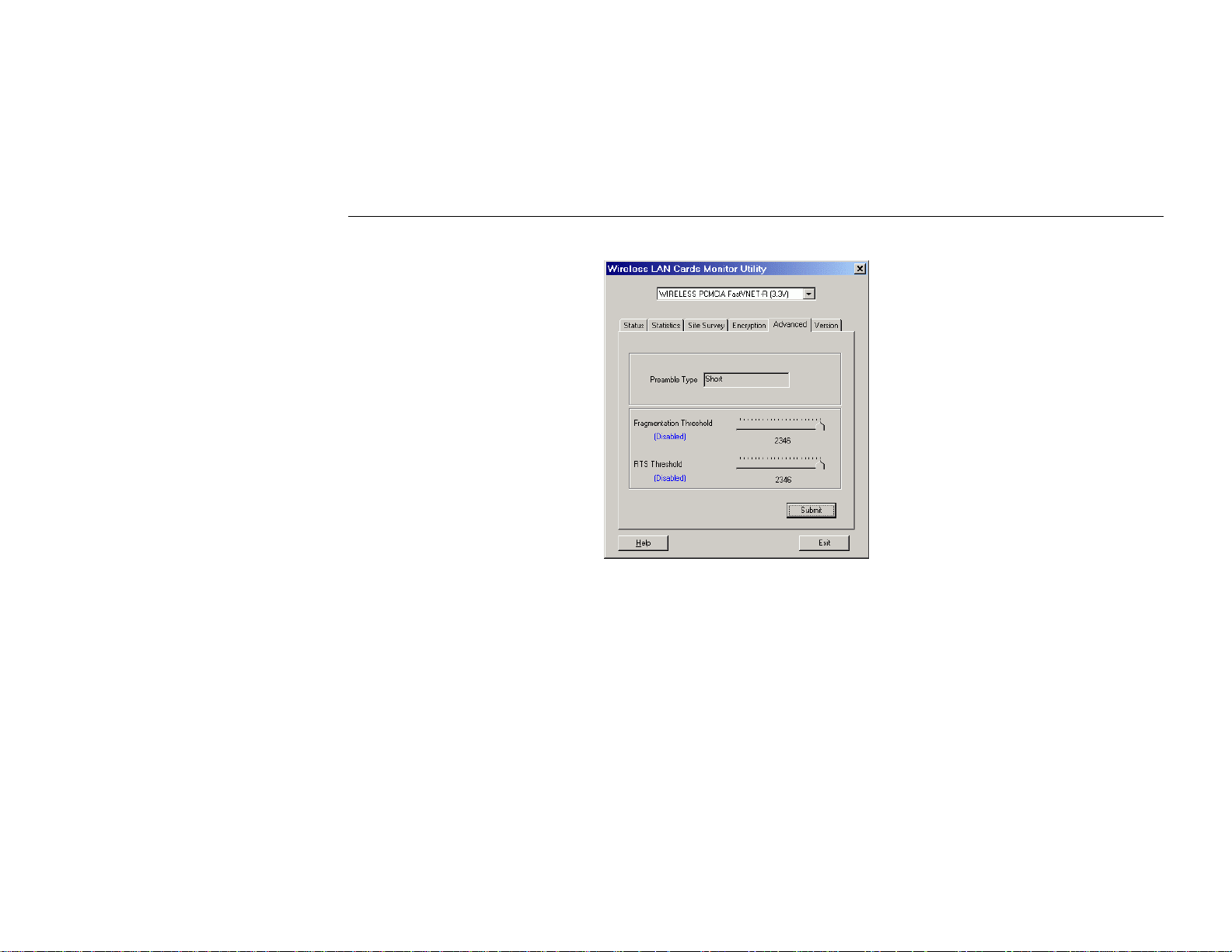

Fig ure 3 - 7 W ireles s L AN Ca rds Monito r Utility – Advanced .......................................................................... 34

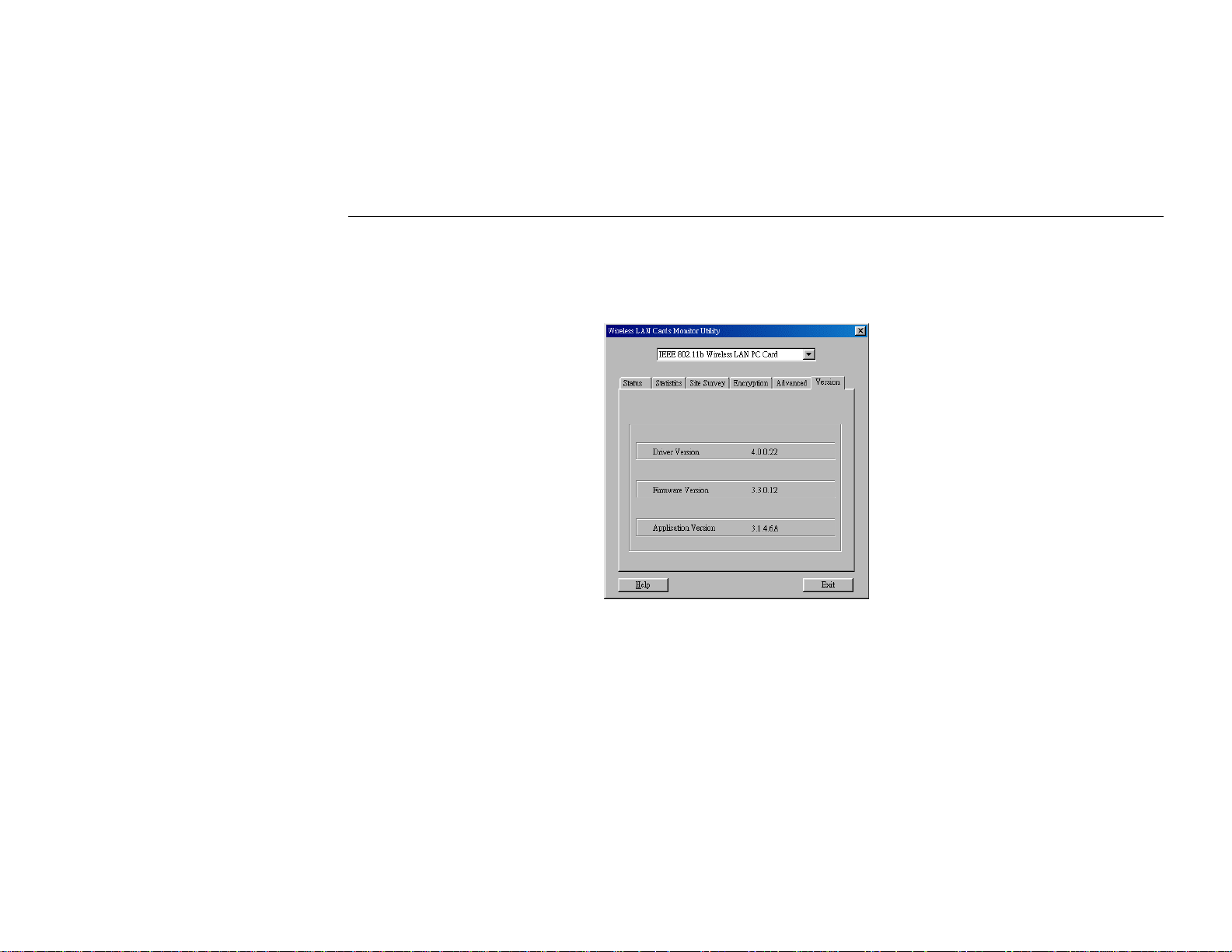

Fig ure 3 - 8 W ireles s L AN Ca rds Monito r Utility – Ve rsion.............................................................................. 35
Fig ure 3 - 9 W indows X P Configura tion Uti lity-Connect to W ireles s Net wor k................................................... 37
Figure 3-10 Windows XP- Connectio n Status.............................................................................................. 39
Figure 3-11 Windows XP Connection Propert ies -General ........................................................................... 40
Figure 3-12 Windows XP Connection Propert ies-W ireless Networks ............................................................ 41
Figure 3-13 Windows XP-Add Prefer r ed Networ k s ...................................................................................... 42
Figure 3-14 Windows XP Configuration Utility-Set up Networ k t o Aceess ...................................................... 44
Figure 3-15 Windows XP Connection Propert ies -Authentication.................................................................. 45
Contents
V
Chapter 1 Introduction
This Wireless LAN Card is an IEEE 802.11b Wireless LAN PCMCIA/USB adapter. It allows
your computer to connect to a wireless network and to share resources, such as files or printers
without being bound to the network wires. Operating in 2.4GHz Direct Sequence Spread
Spectrum (DSSS) radio transmission, the Wireless LAN Card transfers data at speeds up to
11Mbps. Both Ad-Hoc and Infrastructure mode are supported. For network security concern,
64/128-bit Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard
compliance ensures that it can communicate with any 802.11b networks.
This User’s Manual contains information on how to install and configure your Wireless LAN
Card. Your Wireless LAN Card will allow you to connect your computer to other Wireless
LAN Card equipped computers.
1
11Mbps Wireless LAN Card User's Manual
Wire les s LAN Basics
This section conations some Wireless LAN basics to help you better understand how the
product work together to create a wireless network.
Local Area Network (LAN)
Simply put, a LAN is a network that exists in a relatively limited area. A network is two or
more computers connected together sharing files and peripheral devices such as printers.
The Wireless LAN Card allows you to interact with other computers without having to run
cables normally associated with networks. This lets you move your computer around while
staying connected to your network.
There are two ways to use the Wireless LAN Card. One way is to connect directly to one or
more Wireless LAN Card equipped computers, forming an Ad Hoc wireless network. The
second way is to connect to an Access Point that gives you access to an existing wired LAN,
forming an Infrastructure wireless network.
Ad Hoc Network
The Ad Hoc network offers peer to peer connections between workstations, allowing
communication between computers within range that have an 802.11b DSSS compatible PC
2
Chapter 1 Introduction
card installed. A wireless Ad Hoc network can also access a wired LAN’s TCP/IP service
(such as e-mail and the Internet) by using a TCP/IP software router on an Ethernet equipped
PowerBook or notebook.
Infras tructu re N e tw o rk
The infrastructure network uses an access point (or several access points) as a gateway,
linking the wireless network to a wired LAN. As a result, portable workstations or desktops on
your wireless network have access to all of the features of your wired LAN including e-mail,
Internet access, network printers and files server.
Roaming
Multiple Access Points can be installed to extend the wireless service coverage area for
seamless wireless access. Within an extended service area, all Access Points and wireless
clients must have the same Service Set Identity (SSID). Roaming among different Access
Points is controlled automatically to maintain the wireless connectivity at all times.
3
Chapter 2 Installing the Wireless LAN Card
This chapter describes the system requirement and Wireless LAN Card status LEDs. In
addition, we will guide you through the Wireless LAN Card installation as outlined below:
For Windows 98(SE)/Me/2000/NT
1. Installing the software utility using the provided Software Utility CD.
2. Installing the hardware and then driver installation will be auto-processed.
For Windows NT4.0 (for PCMCIA card only)
1. Installing the software utility using the provided Software Utility CD.
2. Manually install the driver and the hardware.
For Windows XP
Installing the hardware and then manually install the driver upon hardware detection.
When connecting the hardware, note that this Wireless LAN Card is for use with UL
Note:
listed I.T.E. computers.
4
After completing the steps above, if you need to set up the TCP/IP protocol to communicate
with your network, refer to “Appendix C Setting Up TCP/IP” on page 63 for details.
System Requirements
To use the Wireless LAN Card, your computer must meet the following minimum
requirements:
!
Windows 98(SE)/Me/2000/XP/NT4.0 (for Wireless LAN PCMCIA Card)
!
Windows 98(SE)/Me/2000/XP (for Wireless LAN USB Card)
!
32 MB of RAM, additional memory recommended
!
Standard
Wire les s LAN Car d Stat u s L EDs
The two LEDs on the Wireless LAN Card indicate connection status and data transfer
operation status, as described below:
LED Color State Description
Power Red On The adapter is plugged into the
PCMCIA
slot/
port
USB
your computer.
Chapter 2 - Installing the Wireless LAN Card
PCMCIA
slot/
USB
port of
Activity Green Blinking Transmission mode. The faster the LED blinks, the higher
the data exchange rate.
5
11Mbps Wireless LAN Card User's Manual
The Antenna on the Wireless LAN Card (Only for Wireless L AN USB Card)
The USB adapter comes with one powerful antenna. You can rotate the antenna from 0 to 180
degrees to adjust its range and the connection quality.
Note:
caused.
Installing the W ireless L AN Card Software
Note:
LAN Card Software, so you don’t have to install extra software but only need to install the
driver to activate the Wireless LAN Card. Please skip this step and go to next section
“Ins t a l ling t he Hard war e” .
Do not rotate the antenna more than 180 degrees, otherwise permanent damage may be
If you are using Windows XP, the operation system is already equipped with Wireless
Caution:
software. If this happens, the Windows PnP function will detect the
issue a dialog box requesting its driver. Click
Do not connect the Wireless LAN Card device to your computer before installing its
device and
to quit the wizard.
Cancel
PCMCIA/USB
Follow these steps to install the Wireless LAN Card software:
1. Close all Windows programs that are running.
6
Chapter 2 - Installing the Wireless LAN Card
2. Insert the provided Software Utility CD into your CD-ROM drive and select
Driver and Utility
. Or, run
Setup.exe
CD where D is the drive letter. When the welcome screen pops up, click
3. For quick installation, select
One Click Installation
from the D:\
folder of the Software Utility
Utility
Next
and Click OK to jump to step 10.
For custom installation ( to select the parameters that you would like to use), select
Custom Installation
and click OK to go to next step.
Install
.
7
11Mbps Wireless LAN Card User's Manual
4. Click
Next
to continue.
5. To install the software to the default destination folder, click
a different folder, click
Browse
, select another folder, and then click
. If you are to install to
Next
.
Next
8
Chapter 2 - Installing the Wireless LAN Card
You can change your
Operating Mode later by the
Wireless LAN Cards
Monitor Utility. See
“Chapter 3 Wireless LAN
Cards Monitor Utility” on
page 23 for details.
6. Click
Next
to continue.
7. Select the Operating Mode (
will operate, and then click
Ad Hoc
.
Next
or
Infrastructure
) in which your wireless client
9
11Mbps Wireless LAN Card User's Manual
You can change your settings
later by the Wireless LAN
Cards Monitor Utility. See
“Chapter 3 Wireless LAN
Cards Monitor Utility” on
page 23 for details.
8. Depending on the Operating Mode you specified on Step 7, different
appears. In the
only, in
Then click
Select Channel
Next
Specify ESSID
.
box, enter the Service Set ID name. For Ad hoc mode
box, select a channel number as your operation radio channel.
Infrastructure Mode
Ad Hoc M od e
ESS ID Dia log
box
10
Chapter 2 - Installing the Wireless LAN Card
9. If the settings listed are correct, click
to begin copying files. Otherwise, click
Next
Back
to mod i fy your se tt i n gs .
10. After Windows OS copies the Setup files from the Wireless LAN Card Software Utility
CD, click
Finish
.
11
11Mbps Wireless LAN Card User's Manual
Installing t he Hardware and Driver
Windows 98(SE)/Me/2000
The red LED on the Wireless
LAN Card will light when
the Wireless LAN Card is
connected to your computer.
For Windows 2000, you will
not see
Not Found
setting below:
Control Panel
>
Signing
the software anyway…
12
Digital Signature
Hardware
>
Ignore- Install
message with the
>
System
>
Driver
.
After installing the Wireless LAN Card Software, plug the Wireless LAN Card into your
computer’s
power is required.
Upon hardware detection, Windows OS will install the driver for the card automatically.
Note:
1. For Windows 2000: If you are prompted with the
2. For Windows 98(SE): If prompted, you need to insert your Windows 98(SE) installation
PCMCIA
message, just click
CD to complete the driver installation.
slot/
port. The Wireless LAN Card is powered on; no external
USB
Digital Signature not Found
to ignore it and continue with the auto-installation.
Yes
alarm
Chapter 2 - Installing the Wireless LAN Card
If you need to set up the TCP/IP address or the subnet mask, refer to “Appendix C
Note:
Setting Up TCP/IP” on page 63 for details.
Now you are done with the installation procedure. Select
>
Card
Configuration & Monitor Utility
Car ds Monito r U t i li t y
icon appearing on the right side of the taskbar. Proceed to next chapter
. You should be able to see the
to configure or fine-tune your Wireless LAN Card settings.
Start
>
Programs > Wireless LAN
Wireless LAN
13
11Mbps Wireless LAN Card User's Manual
Windows NT4.0 (For Wireless LAN PCMCIA Card Only)
After installing the Wireless LAN Card Software, you should manually install the driver for
the Wireless LAN PCMCIA Card first before you insert the PCMCIA card. Windows NT will
not install the drivers for the card automatically. Follow the steps below to install the driver
and the n the hardware:
14
You must install
Note:
LAN PCMCIA Card driver.
1. On your desktop, right-click the
to open the network setting window.
Windows NT Service Pack 5 or above
Ne t work Ne ig hbo rh ood
before installing the Wireless
icon and then click
Properties
Chapter 2 - Installing the Wireless LAN Card
2. Select the
3. Click
Have Disk
Adapter
to continue.
tab, and click
to install the Wireless LAN PCMCIA Card.
Add
15
11Mbps Wireless LAN Card User's Manual
4. Type the directory in which the Wireless LAN PCMCIA Card driver is located.
5. When the Wireless LAN PCMCIA Card driver is found, it will show the type of the
Wireless LAN Card. Click OK to cont inue.
16
Chapter 2 - Installing the Wireless LAN Card
6. Then be sure to prevent the
IRQ Level
and
I/O Port Address
from colliding with other
hardware.
7. Fina lly, you must clic k t he
PCMCIA Card . Click
Close
Bindings

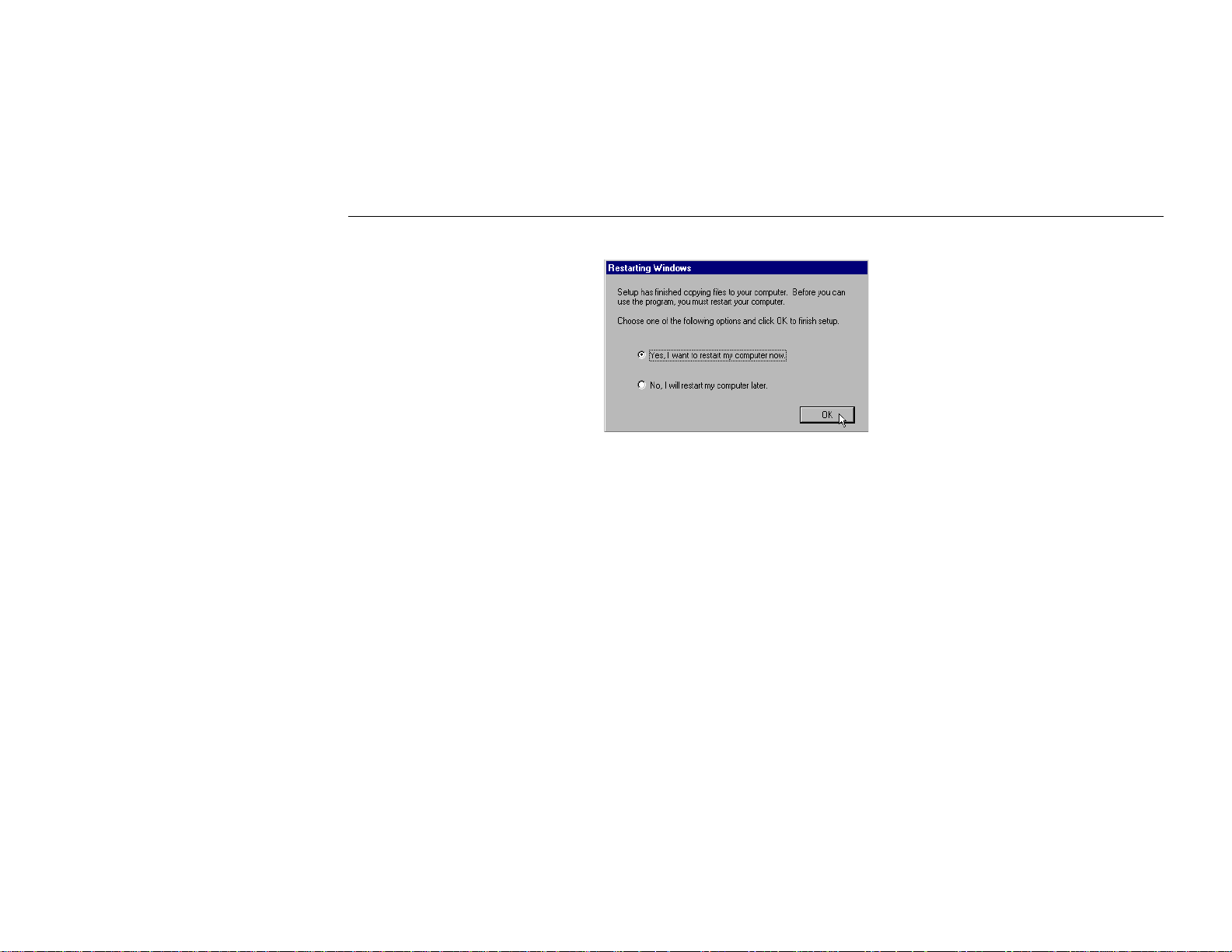

and Windows NT will ask you to restart the computer .
tab to bind network protocols to the Wireless LAN
Insert the Wireless LAN PCMCIA Card into PCMCIA slot and then restart the computer.
17
11Mbps Wireless LAN Card User's Manual
Windows XP
The red LED on the Wireless
LAN Card will light when
the Wireless LAN Card is
connected to your computer.
After installing the Wireless LAN Card Software, plug the Wireless LAN Card into your
computer’s
PCMCIA
slot/
port. The Wireless LAN Card is powered; no external power
USB
is required.
Windows XP will not install the drivers for the card automatically, so users must follow
Note:
the steps to install the driver as below:
1. When you insert the Wireless LAN Card into
display an unknown hardware message. Select
location[Advanced]
and click
Next
to continue.
PCMCIA
Install from a list or specific
slot/
port, the system will
USB
18
Chapter 2 - Installing the Wireless LAN Card
2. Point the directory to the Software Utility CD, for example
D:\Utility\drivers\PCMCIA(USB)\winXP.
Click
Next
,
to continue.
3. The Windows now will copy the drivers form the Software Utility CD.
19
11Mbps Wireless LAN Card User's Manual
4. After Windows XP copied the drivers from the Software Utility CD, click
Finish
.
20
Chapter 3 Wireless LAN Cards Monitor Utility
PART I. W ireless LAN Card Monitor Utility for Win98\98SE\Me\2000\NT
Wire les s LAN Car d s M o nitor
If the utility is not launched,
manually start the monitor by
selecting
> Wireless LAN Card
Configuration & Monitor
.
Utility
Start
>
Programs
, >
The Wireless LAN Card uses the
Mo n it o r U t il i t y
utility is launched automatically with its
right side of the taskbar. Right-clicking the icon displays the
context menu as shown opposite:
for both configuration and monitoring.
Wireless LAN cards
The
icon located on the
21
11Mbps Wireless LAN Card User's Manual
By the color of the monitor icon, you can determine the connection status as below:
Red Not Linked
Blue Linked
Wire les s LAN Car d s M o nitor Utility
To start the utility program, double-click the icon or select
The
Wireless LAN Cards Monitor Utility
Site Survey, Encryption, Advance
describes each tab item.
Status
Status function allows you to re-configure the Wireless LAN Card setting. Even though you
have configured the settings during driver and utility installation, it is possible that you want
to change your operating mode between Infrastructure or Ad-Hoc mode and fine-tune other
settings.
Computer is not connected to Access Point
Computer joined to an Access Point.
In Ad-Hoc mode, t he
Note:
Wireless LAN Cards Monitor
icon
is always in blue color no matter the wireless lan card(Ad-Hoc
mode) connects to other wireless lan card(Ad-Hoc mode) or not.
from its context menu.
Status, Statistics
,
and
About…
screen pops up with six tabs:
Version
. Please see the appropriate section which
22
Chapter 3 Wireless LAN Cards Monitor Utility
You can connect your computer to a network in one of the following two ways. Refer to
sequential sections for configuration:
Ad Hoc
Connecting to other Wireless LAN Card equipped computers, forming a
wireless network.
Infrastructure
Connecting to a wired/wireless network through an Access Point.
Connecting to Other Wireless L AN Cards (Ad-Hoc Mode)
1. In the taskbar, double-click the
Wireless LAN Cards Monitor Utility
2. Click the
3. In the
4. In the
5. In the
Operating Mode
Channel
SSID
tab.
Status
list, select the Channel Number which you want to use.
list, type the Service Set ID (SSID) of the Wireless LAN group. All wireless
clients must use the same SSID in order to communicate with each other.
6. Click
7. Click
Note:
Submit
Exit
The MAC Address indicates the MAC address of your computer.
.
if you wish to exit the utility.
Wireless LAN Cards Monitor
dialog box.
list, select
Ad-Hoc
.
icon to display the
23
11Mbps Wireless LAN Card User's Manual
24
Figure 3-1 Ad-Hoc Configuration
1. Open
2. Click the
3. Select
4. Select the
5. Type the
Wireless LAN Cards
Monitor Utility
Status
Ad-Hoc
Channel
SSID
.
tab.
mode.
name of
the Wireless LAN group
6. Click
7. Click
the ut ilit y.
.
Submit
if you wish o exit
Exit
number.
Connecting to Access Points (Infrastructure Mode)
Chapter 3 Wireless LAN Cards Monitor Utility
1. In the taskbar, double-click the
Wireless LAN Cards Monitor Utility
2. Click the
3. In the
4. In the
Operating Mode
SSID
tab.
Status
list, click
list, type SSID name of the Access Point. The wireless client must use the
Wireless LAN Cards Monitor
dialog box.
Infrastructure
.
icon to display the
same SSID as the Access Point in order to communicate with other computers via the
Access Point.
5. Click
Submit
. If the connection is successful, you should be able to find your computer
on the Network Neighborhood in Windows Explorer.
6. Click
if you wish to exit the utility.
Exit
25
11Mbps Wireless LAN Card User's Manual
26
Figure 3-2 Infrastructure Mode Configuration
1. Open
2. Click the
3. Select
4. Type the
Wireless LAN Cards
Monitor Utility
Status
Infrastucture
SSID
.
tab.
name of
the Wireless LAN group
5. Click
6. Click
the ut ilit y.
.
Submit
if you wish o exit
Exit
mode.
Checking Link Q uality (Inf r ast r uct ure Mode Only)
Chapter 3 Wireless LAN Cards Monitor Utility
If yo u are in Ad-Hoc mode,
the
Signal Strength
Link Quality
and
fields are
grayed-out.
To check the link quality of the connection when in Infrastructure mode,, double-click the
Wireless LAN Cards Monitor
Mo n it o r U t il i t y
dialog box. Then click the
icon on the taskbar to display the
tab. The status is displayed at the lower
Status
Wireless LAN Cards
part of the panel.
Indicates the Access Point your Wireless LAN Card associated with. If no Access
Status:
Point is connected, current status, such as scanning, authenticating, is displayed.
Signal Strength:
Displayed as percentages using active progress indicators that change as the
network radio signal fluctuates.
Link Quality:
Link Quality categories are defined as follows:
Link Quality Range (%)
Poor 0-29
Fair 30-59
Good 60-89
Excellent 90-100
Figure 3-3 Indrastructure Mode Link Status
27
11Mbps Wireless LAN Card User's Manual
Statistics
28
Statistics feature allows you to view the available statistic information (Data packets).
Tx
indicates data is being transmitted whereas Rx indicates data is being received. To renew or
update the statistics, click the
Reset
button.
Figure 3-4 Wireless LAN Cards Monitor Utility – Statistics
Site Sur ve y
Chapter 3 Wireless LAN Cards Monitor Utility
Site Survey function scans the wireless network searching for available Access Points and
wireless stations (Ad-hoc mode) within the range of the card. Available stations are listed
with the following information:
BSSID:
Basic Service Set ID. It is actually the MAC address of the Access Point/wireless
station (Ad-hoc mode). It can be used to identify the stations when they have the same SSID.
Service Set ID. Displays the current SSID of the Access Point/wireless station (Ad-hoc
SSID:
mode).
Shows the signal strength ratio. The higher the ration is, the more powerful the signal
Signal:
received by your Wireless LAN Card. It helps you identify the quality network operation.
Channel:
Encryption:
The operating radio channel number.
Displays if encryption is enabled or disabled on the Access Point/wireless station
(Ad-hoc mode ).
Basic Service Set. Indicates whether the operating mode is Infrastructure ( Access Point)
BSS:
or Ad-Hoc (wireless station).
Re-Scan:
This button allows you to update the list.
29
11Mbps Wireless LAN Card User's Manual
Connecting to Des ired Site By Site Survey Utility
If you want to connect to any of the Access Point(s) and Ad-Hoc Station(s) listed, doubleclick on your choice (on the
showing the parameters of the connection newly established.
field). The utility will take you back to the
BSSID
Status
screen
30
Figure 3-5 Wireless LAN Cards Monitor Utility – Site Survey
Encryption
Chapter 3 Wireless LAN Cards Monitor Utility
Encryption technology is used to enhance wireless media security. Your encryption settings
must match the those used by the Access Points or wireless stations (Ad-hoc mode) in your
network, or your computer will be unable to communicate with others of your network.
To enable encryption, do the following:
1. Select the
Encryption
2. Select your encryption type from
3. In the
Key #1-4
tab from the
64 Bit
Wireless LAN Cards Monitor Utility
or
128 Bit
.
.
fields, enter the encryption keys. Note that the key must be in the for m
of Hex format; only digits 0-9 and letters A-F are valid. The four keys, including the one
selected as
4. In the
Default Key
Default Ke y
, are used to decrypt the data you receive.
box, select one of the four keys to encrypt the data you are going to
transmit.
5. Select encryption
Mandatory
: WEP encryption is required to establish connection with other wireless
Mode
from
Mandatory
and
Optional
.
stations. Both your computer and other stations need to use WEP encryption to establish
a communication. This requirement is in line with the IEEE 802.11b standard.
Optional
: Your station can communicate with every other station regardless if WEP is
enabled or disabled in the other station.
31
11Mbps Wireless LAN Card User's Manual
6. Select the
Authentication Type
from
Open System
and
Shared Key
.
Your authentication type must be the same as those on the Access Point/wireless client
(Ad-Hoc mode) with which you want to associate.
7. To have the new settings take effect, click the
Submit
. Then click
to exit the utility.
Exit
Figure 3-6 Wireless LAN Cards Monitor Utility – Encryption
32
Advanced
Chapter 3 Wireless LAN Cards Monitor Utility
Advanced
Threshold
Fragmentation Thre shold:
features allows you to change advanced configuration setti ngs:
and
RTS Threshold
.
The fragmentation threshold, which is specified in bytes,
Fragmentation
determines whether packets will be fragmented and at what size. On an 802.11 wireless LAN,
packets exceed the fragmentation threshold are fragmented, i.e., split into, smaller units
suitable for the circuit size. Packets smaller than the specified fragmentation threshold value
are not fragmented.
RTS Threshold:
. When set (in bytes), it specifies the packet size beyond which the Wireless
LAN Card invokes its RTS/CTS mechanism. Packets that exceed the specified RTS threshold
trigger the RTS/CTS mechanism. The NIC transmits smaller packets without using RTS/CTS.
Changing the Fragmentation/RTS Threshold
By default, the Fragmentation and RTS Threshold are disabled. To change the
Fragmentation/RTS Threshold
use the right and left arrow keys of your keyboard to select an exact number in bytes.
parameters, move the slide bar with your mouse and then
33
11Mbps Wireless LAN Card User's Manual
Figure 3-7 Wireless LAN Cards Monitor Utility – Advanced
34
Version
Chapter 3 Wireless LAN Cards Monitor Utility
Version tab displays the basic information about the device, including the Driver, Firmware
and Application Version. Use the
button if you wish to exit the application.
Exit
Figure 3-8 Wireless LAN Cards Monitor Utility – Version
35
11Mbps Wireless LAN Card User's Manual
PART 2. Configuration Utility for Windows XP
36
Under Windows XP, the Wireless LAN Card uses the
for both configuration and monitoring.
connection icon on the system tray. If your computer is not connected to any Access P oint/Wireless
LAN Card yet, the icon should appear as below:
The utility can be quickly accessed via the network
Connecting t o an Access Po int or Wireless LAN Card
To connect to an existing Access Point/Wireless LAN Card (Ad-Hoc mode), do the following:
1. Double-click the network connection icon on the system tray.
2. When the
Connect to Wireless Network
window pops up, you will see all the Access
Points or Wireless LAN Cards (Ad-Hoc mode) that are available in the air. Select the
wireless network you want to connect to .
Wireless Network Connection
utility
Chapter 3 Wireless LAN Cards Monitor Utility
Figure 3-9 Windows XP Configuration Utility-Connect to Wireless Network
3. If the target Access Point/Wireless LAN Card (Ad-Hoc mode) has been set with WEP
key, you must enter the same WEP key in the
Network key
field. Otherwise, leave it
blank.
4. Click
Connect
, then you will join the target network and this dialog window will
disappear. When your wireless connection is established, the connection icon appears as
below:
37
11Mbps Wireless LAN Card User's Manual
Note:
then click
authentication type for the Wireless LAN Card. For more information, refer to
“Authentication” on page 44.
Viewing Wireless C onnection Stat us
After you successfully connect to the Access Point or Wireless LAN Card (Ad-Hoc mode),
double-click the icon in the system tray again. This will open the
Connection Status
such as Status, Duration, Speed, Signal Strength, etc.
If the wireless connection can’t be established, double-click the connection icon and
Properties
. Go to
Authe ntication
tab first to make sure that you use the correct
Wireless Network
window where you can see the general data of the Wireless LAN Card,
38
Figure 3-10 Windows XP- Connection Status
Configuring Your Wireless Proper t ies
Chapter 3 Wireless LAN Cards Monitor Utility
To configure your wireless properties, open the
window as described above, and then click the
Network Connection Properties
window which allows you to configure more detailed items
Wireless Network Connection Status
Properties
button. This will open the
of the Wireless LAN Card. The following describes each tab of the properties window to help
you do more settings of the Wireless LAN Card.
General
This tab allows you to specify the network methods to be used with your Wireless LAN
PCMCIA/USB
protocol, you should configure its properties as instructed by your network administrator. For
more information on TCP/IP setting, please refer to “Appendix C Setting Up TCP/IP” on
page 63.
Card. The network policy depends on your wireless network. For TCP/IP
Wireless
39
11Mbps Wireless LAN Card User's Manual
Figure 3-11 Windows XP Connection Properties -General
40
Wireless Networks
Chapter 3 Wireless LAN Cards Monitor Utility
This tab contains two sections:
Available networks
and
P referred netw o r k s
below.
Under
Available networks
Cards (Ad-Hoc mode) available in the air. Clicking
section, you can also see all the Access Points and Wireless LAN
Refresh
will update the list of Access
Points and Wireless LAN Cards (Ad-Hoc mode).
Figure 3-12 Windows XP Connection Properties-Wireless Networks
described as
41
11Mbps Wireless LAN Card User's Manual
Under
P referred netw o r k s
connect to. To do this, just click
section, you can add any wireless networks that you wish to
to add more Access Points or Wireless LAN Cards (Ad-
Add
Hoc mode) to the list.
After you click the
button, the
Add
Wireless Network Properties
window pops up. Type
your network name (SSID) and, if needed, the wireless network WEP settings. Once the
Access Point or Wireless LAN Card (Ad-Hoc mode) that you want to connect to has been set
with WEP key, you must type the same WEP key as the Access Point’s or Wireless LAN
Card’s.

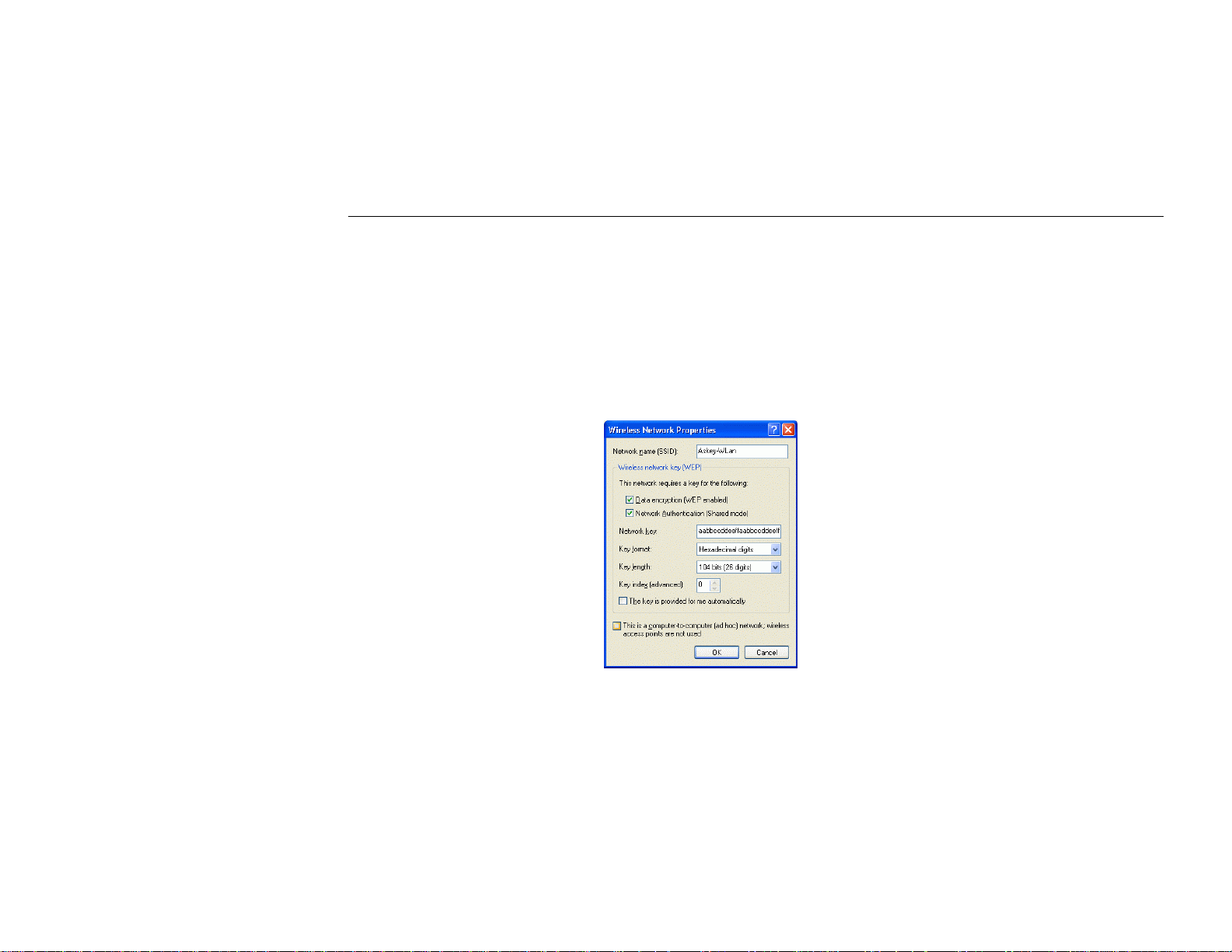

Figure 3-13 Windows XP-Add Preferred Networks
42
Chapter 3 Wireless LAN Cards Monitor Utility
After you add several profiles into
connection attempts to preferred networks are made. Just select the target wireless network
and click
Move up
or
Move down
P referred netw o r k s ,
to move it to a desired position.
you can change the order in which

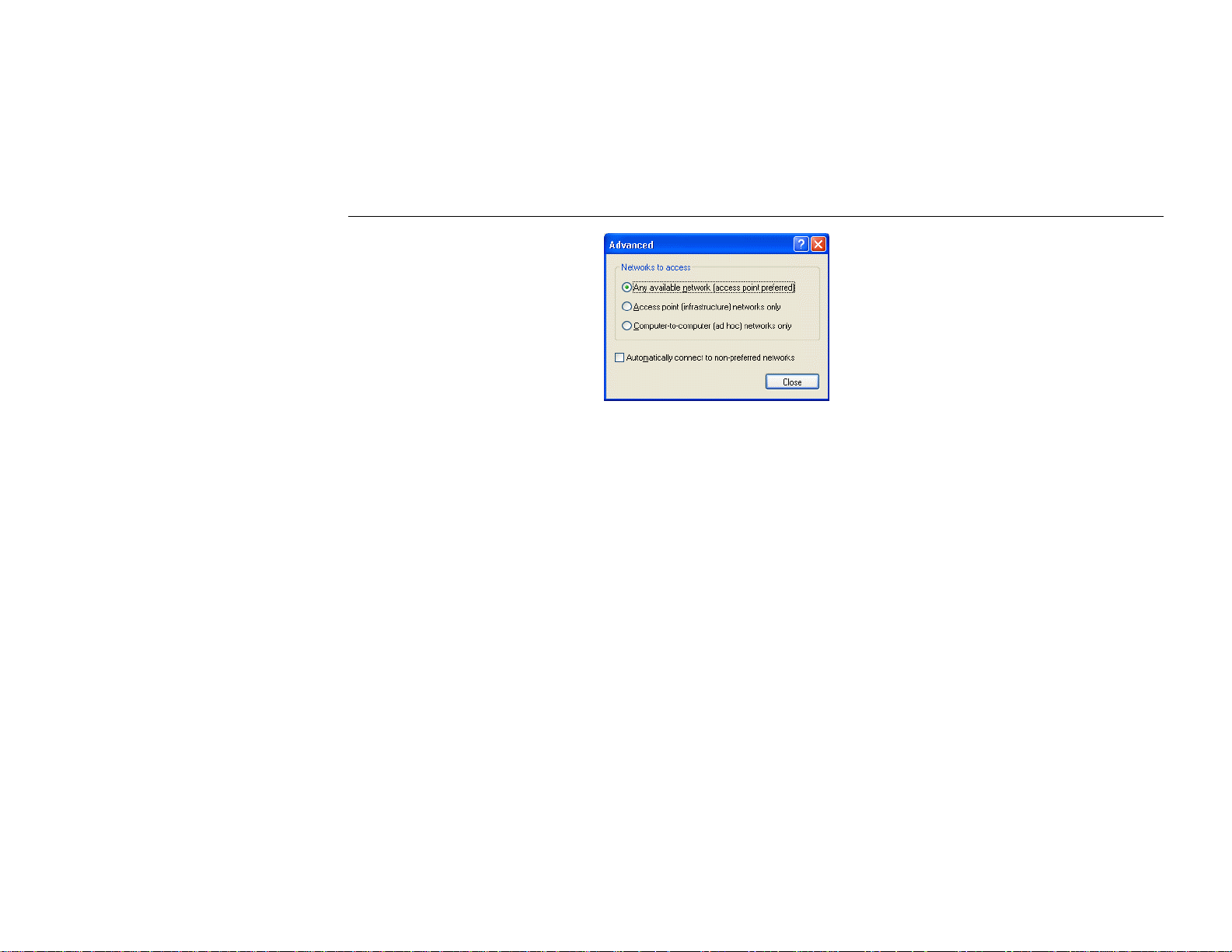

To Access Certain Wireless Network Only
If you just want to access certain wireless network type, click the
Wireless Networks tab (Figure 3-12) to open the
co n ne ct to the f o l l o wi ng ne two rks :
•
Any available network ( access point preferred)
•
Access point (infrastructure)
•
Computer-to-computer (ad hoc)
The defa ult network type is
network type, your device will connect to any Access Points or Wireless LAN Cards (Ad-Hoc
mode) available in the air but Access Point always demands higher connection attempt
priority.
Once you finish the advanced setting, your wireless station will then connect to your desired
network and the connected network will be listed under
Any available network ( access point preferred)
Advanced
Available networks
Advanced
window. You can choose to
button on the
.
. In this
43
11Mbps Wireless LAN Card User's Manual
Authentication
This tab allows you to configure the authentication settings of your Wireless LAN Card. The
most important setting for the Wireless LAN Card is to disable
control usi ng IEEE802.1X
and Access Points or other Wireless LAN Card (Ad-Hoc mode). You must disable this
function for any reason. Otherwise, there may be some problems happening during
connection. For other settings, we recommend you keep the default settings to minimize the
problems during connection.
Figure 3-14 Windows XP Configuration Utility-Set up Network to Aceess
Enable network access
to ensure successful connection between the Wireless LAN Cards
44
Chapter 3 Wireless LAN Cards Monitor Utility
Make sure to clear the
network access control using
IEEE802.1X
successful connection.
check box to ensure
Enable
Figure 3-15 Windows XP Connection Properties -Authentication
45
Chapter 4 Uninstalling the Wireless LAN Card
Should you need to uninstall the Wireless LAN Card and application software for any reason,,
you should remove the hardware from your computer and then uninstall the associated
software. Please proceed as follows.
Removing the Wireless LAN Card
The Wireless LAN Card complies with the
inserted into and removed from the computer’s
power on. For
PCMCIA
disconnecting a PCMCIA device from your computer.
1. On the system tray, click the PCMCIA icon, and then click
2. Select the Wireless LAN Card which you want to remove, click
3. When the message appears that tells you it is safe to remove device, click
device, it is recommended that you follow the standard Windows procedure for
remove the Wireless LAN Card from the computer.
Wireless LAN Card, just remove the card from your PC’s USB port. For
USB
PCMCIA/USB
PCMCIA
standard that allows devices to be
slot/
port when the computer is
USB
Adjust PC Card Properties
and the n click OK.
Stop
OK
.
and
47
11Mbps Wireless LAN Card User's Manual
Uninstalling the Wirel ess LAN Card Software
Make sure that you have removed the hardware before you proceed.
1. Close all programs that are currently running.
2. Click the Windows
button, point to
Start
click
Uninstall Configuration & Monitor Utility
Programs, Wireless LAN Card
.
and then
48
Chapter 4 Uninstalling the Wi reless LAN Card
3. Click
4. Click
to proceed with the software removal procedure.
OK
to exit the wizard.
Finish
49
11Mbps Wireless LAN Card User's Manual
5. When prompted, click OK to restart your computer to complete the uninstallation.
50
Chapter 5 Updating the Device Driver
Periodically, you may need to upgrade the Wireless LAN Card’s driver when a newer version
is available. Check our website for information about the latest driver upgrades. When you
have finished the download procedure, please follow as below to update the device driver.
1. Uninstall the Wireless LAN Card as described in Chapter 4. Follow the steps to remove
the Wireless LAN Card and then uninstall the software.
2. Install the new driver you have downloaded. Refer to Chapter 2 for detailed instructions.
Once you finish installing the new driver, the updating is complete.
51
Chapter 6 Troubleshooting
Radio Interf er ence
You may be able to eliminate any interference by trying the following:
•
Reseat the Wireless LAN Card.
•
Increase the distance between the wireless computers and the device causing the radio
interference.
•
Plug the computer equipped with the Wireless LAN Card into an outlet on a different
branch circuit from that used by the affecting device.
•
Consult the dealer or an experienced radio technician for help.
•
Keep the computer with the Wireless LAN Card away from the microwave oven and
large metal objects.
53
11Mbps Wireless LAN Card User's Manual
Card No t De tected
If the Wireless LAN Card is not detected by Windows, try the following:
•
•
•
Cannot Connect t o Another Wireless LAN Card
If you cannot make a connection to another Wireless LAN Card from your computer, it could
be due to one of the following reasons:
•
•
•
•
Make sure the Wireless LAN Card is properly inserted in the
Make sure the
Contact your dealer for additional testing if there is a hardware problem with the
Wireless LAN Card.
Incorrect SSID. Make sure the SSID is the same for all computers that have a Wireless
LAN Card.
Changes are not being recognized by your computer. Restart your computer.
If in Ad Hoc mode, make sure the
selected in the
Configuration
Incorrect IP Address or Subnet Mask. Check these settings in the
dialog box in the
PCMCIA
Client for Microsoft Networks Properties
tab.
slot/
Net work Configuration
port in your computer is working.
USB
Log on to Windows NT domain
tab.
PCMCIA
dialog box in the
slot/
check box is not
TCP/IP Properties
port.
USB
Network
54
Poor Link Quality
If the Link Quality display stays in the Poor range, it could be due to one of the following
reasons:
•
Radio interference.
•
Distance between Wireless LAN Card and Access Point is too far. Decrease the
distance between the Wireless LAN Card and Access Point (or another card).
Cannot Connect t o Access Point
If you cannot make a connection to the Access Point, it could be due to one of the following
reasons:
•
Make sure the Wireless LAN Card and Access Point have no physical connection
problems.
•
Make sure the SSID for the Wireless LAN Card is set to “null” or is the same as the
Access Point.
•
Make sure the privacy type is the same as that of Access Point. Also, make sure the
Default Key is the same for both computers.
Chapter 6 Troubleshooting
55
Appendix A Limited Warranty
Wireless LAN Hardware
The seller warrants to the end user (“Customer”) that this hardware product will be free from
defects in workmanship and materials, under normal use and service, for 1 year from the date
of purchase from the seller or its authorized reseller. The seller’s sole obligation under this
express warranty shall be, at the seller’s option and expense, to repair the defective product or
part, deliver to Customer an equivalent product or part to replace the defective item, or if
neither of the two foregoing options is reasonably available, The seller may, in its sole
discretion, refund to the Customer the purchase price paid for the defective product. All
products that are replaced will become the property of the seller. Replacement products may
be new or reconditioned.
57
11Mbps Wireless LAN Card User's Manual
Wire les s LAN Softwa r e
The seller warrants to Customer that each software program licensed from it , except as noted
below, will perform in substantial conformance to its program specifications, for a period of 1
year from the date of purchase from the seller or its authorized reseller. The seller warrants the
media containing software against failure during the warranty period. No updates are
provided. The seller’s sole obligation under this express warranty shall be, at the seller’s
option and expense, to refund the purchase price paid by Customer for any defective software
product, or to replace any defective media with software which substantially conforms to
applicable seller published specifications. Customer assumes responsibility for the selection of
the appropriate application programs and associated reference materials. The seller makes no
warranty or representation that its software products will meet Customer’s requirements or
work in combination with any hardware or software applications products provided by third
parties, that the operation of the software products will be uninterrupted or error free, or that
all defects in the software products will be corrected. For any third party products listed in the
seller software product documentation or specifications as being compatible, the seller will
make reasonable efforts to provide compatibility, except where the non-compatibility is
caused by a defect in the third party’s product or from use of the software product not in
accordance with the seller’s published specifications or user manual.
58
Appendix B Regulatory Compliance
FCC Part 15 Declaration of Conf or m ity ( DoC)
The fo llo wi ng equipme nt :
Product Name: Wireless LAN Card
is herewith confirmed to comply with the requirements of FCC Part 15 rules. The operation is
subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
59
11Mbps Wireless LAN Card User's Manual
FCC Rules and Regulat ions - Part 15
60
Warning:
pursuant to Part 15 of the Federal Communications Commissions Rules and Regulation. These lim its are
designed to provide reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try and correct the interference by one or
more of the following measures:
•
•
•
•
This device has been tested and found to comply with the limits for a Class B digital device
Relocate your WLAN equipped laptop computer.
Increase the separation between the WLAN equipped laptop computer and other electronics.
Connect the WLAN equipped laptop computer into an outlet on a circuit different from that of
other electronics.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Stat ement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance of
20cm between the radiator & your body.
Appendix B Regulatory Compliance
61
Appendix C Setting Up TCP/IP
This section contains instructions for configuring the TCP/IP protocol of the Wireless LAN
PCMCIA/USB Card. The IP address policy depends on your wireless network. You should
configure your TCP/IP protocol as instructed by your network administrator.
1. On the taskbar, select
2. Click the
3. In the network components list, select the TCP/IP protocol of your Wireless LAN Card,
e.g.,
Configuration
TCP/IP ->IEEE 802.11b Wireless LAN PC Card
Start > Settings > Control P anel
tab of the
Network
dialog box.
, double-click the
, and then click
Network
Properties
icon.
.
63
11Mbps Wireless LAN Card User's Manual
For correct IP address
i nfo rma tion fo r your
wireless LAN installation,
co nt a ct your ne t w o rk
administrator.
For more information on IP
addresses, see the Network
Working Group
Specification RFC 1918 on
the Internet.
4. On the
Option A:
In the
private one as required. If private IP address is used, the following three blocks of IP
addresses are available for private networks:
10. 0 . 0. 0 — 10.255.255.255
172. 16. 0. 0 — 172. 31.255.255
192.168. 0. 0 — 192.168.255.255
In the
IP Address
Click
Specify an IP address
IP Address
Subnet Mask
tab, choose one of the methods as required:
.
box, enter a valid four-component IP address, either a public or
box, enter a valid four-component IP address.
64
Appendix C Setting Up TCP/IP
Option B:
Select
Obtain an IP address automatically
.
An IP address will be automatically assigned to your computer.
5. Click
to return to
OK
Network
dialog box and click OK again to finish configuration. If
your TCP/IP properties have been modified, you will be prompted to restart your
computer. Click
to have new settings take effect.
Yes
65
Appendix D Specification
* Specifications are subject to change with notice.
Software
Standards Compliance
O pera t i on M odes
Sec urity Feat ures
•
IEEE 802.11 / 802.11b Standard
•
PCMCIA v2.1 Standard (WLAN PCMCIA Card)
•
USB 1.1 Compliant (WLAN USB Card)
•
Ad-hoc mode
•
Infrastr ucture mode
•
Support SSID network identification for security
•
Support 64-bit and 128-bit WEP Data Encryption and
Decryption
•
Support Authentication: Open System, Shared Key
67
11Mbps Wireless LAN Card User's Manual
Monitor and Configuration
Device Driver and
Co nfigu rat io n Ut il it y
•
Reliable and robust monitor and configuration utilities
•
Dynamic configuration
•
Network traffic statistics gathering
•
Clear LED Indicators for real time monitor current network
status
•
A PCMCIA NDIS 5.0 mini-port driver running on Windows
98(SE)/ME/2000/XP/NT4.0 platforms(WLAN PCMCIA
Card)
•
A USB NDIS 5.0 mini-port driver running on Windows
98(SE)/ME/2000/XP platforms(WLAN USB Card)
•
A monitor and configuration utility running on Windows
98(SE)/ME/2000/NT4.0 platforms
PS: Under Windows XP, use XP built-in monitor and
configuration utility.
68
Hardware
Interface
Radio Characte ristics
Appendix D Specification
•
One 2.4GHz RF interface for Wireless LAN connection
•
Interface:
WLAN PCMCIA Card: One PCMCIA interface
WLAN USB Card: One USB connector
•
Frequency Band: 2.400 ~ 2.4835 GHz ISM Band (subject to
local regulations)
•
Spreading: Direct Sequence Spread Spectrum
•
Modulation
"
CCK: 11Mbps and 5.5Mbps
"
DQPSK: 2Mbps
"
DBPSK: 1Mbps
•
Number of Channels
"
11 Channels (US, Canada)
"
13 Channels (Europe)
"
14 Channels (Japan)
•
Channel Spacing: 5MHz
•
Data Rate: 11Mbps / 5.5Mbps / 2Mbps / 1Mbps
69
11Mbps Wireless LAN Card User's Manual
Radio Characte ristics
•
Antenna:
Two Internal Antennas (WLAN PCMCIA Card)
One external antenna (WLAN USB Card)
•
Transmit Power:
17dBm (typical) (WLAN PCMCIA Card)
17dBm (typical) (WLAN USB Card (R))
12dBm (typical) (WLAN USB Card (I))
•
Receiver Sensitivity:
-82dBm @ FER < 8% (WLAN PCMCIA Card)
-80dBm @ FER < 8% (WLAN USB Card (R))
-80dBm @ FER < 8% (WLAN USB Card (I))
70
Power Requirement and
Operation Environment
Requirement
Appendix D Specification
•
Temperature
WLAN PCMCIA Card
"
Operating Temperature: 0°C to 55°C (32°F to 131°F)
"
Storage Temperature: -10°C to 65°C
WLAN USB Card (R)
"
Operating Temperature: 0°C to 55°C (32°F to 131°F)
"
Storage Temperature: -10°C to 80°C
WLAN USB Card (I)
"
Operating Temperature: 0°C to 55°C (32°F to 131°F)
"
Storage Temperature: -20°C to 80°C
•
Humidity:
5% to 80% (non-condensing) (WLAN PCMCIA Card)
5% to 80% (non-condensing) (WLAN USB Card (R))
5% to 95% (non-condensing) (WLAN USB Card (I))
•
Power Consumption
WLAN PCMCIA Card
"
Receive mode: 220mA
"
Transmit mode:440 mA
"
Doze mode: TBD
71
11Mbps Wireless LAN Card User's Manual
LED Indicators (from left to
right in front panel)
PCMCIA Specification
-WLAN PCMCIA Card
WLAN USB Card (R)
"
Receive mode: 250mA
"
Transmit mode:420 mA
"
Doze mode: TBD
WLAN USB Card (I)
"
Receive mode: 322mA
"
Transmit mode:382 mA
"
Standby mode: TBD
"
Sleep mode: TBD
•
Activity (Green)
•
Power (Red)
•
PCMCIA v2.1 Standard
•
Plug and Play
•
Hot Swapping
72
USB Specification
-WLAN USB Card
•
USB 1.1 Compliant
•
USB Slave
•
Plug and Play
•
Hot Swapping
Appendix D Specification
Physical
-WLAN PCMCIA Card
Physical
-WLAN USB Card (R)
-WLAN USB Card (I)
Safety and Regulatory
Approvals
•
Form Factor: PCMCIA (16-bit) Type II PC Card
•
PCB Dimensions: 118.20mm (L)×54.00mm (W)×0.76mm (H)
•
PCB Weight: 46g
•
Dimensions: 79.52mm (L)×48.00mm (W)×0.80mm (H)
•
FCC
•
VCCI
•
CE
•
TELEC & JATE
73
Glossary
10BaseT
Access Point
Ad Hoc
BSS
Channel
Encapsulated
An IEEE standard (802.3) for operating 10 Mbps Ethernet networks (LANs) with twisted pair
cabling and a wiring hub.
An internetworking device that seamlessly connects wired and wireless networks. Access Points
combined with a distributed system support the creation of multiple radio cells that enable
roaming throughout a facility.
A network composed solely of stations within mutual communication range of each other (no
Access Point connected).
Basic Service Set. A set of stations controlled by a single coordination function.
A medium used to pass protocol data units that can be used simultaneously in the same volume
of space by other channels of the same physical layer, with an acceptably low frame error ratio
due to mutual interference.
An Ethernet address mode that treats the entire Ethernet packet as a whole and places it inside
an 802.11 frame along with a new header.
75
11Mbps Wireless LAN Card User's Manual
Extended Service Set. A set of one or more interconnected Basic Service Sets (BSSs) and
ESS
integrated Local Area Networks (LANs) can be configured as an Extended Service Set.
76
Ethernet
Gateway
IEEE 802.11
Infrastructure
IP
IP Address
The most widely used medium access method, which is defined by the IEEE 802.3 standard.
Ethernet is normally a shared media LAN; i.e., all the devices on the network segment share
total bandwidth. Ethernet networks operate at 10Mbps using CSMA/CD to run over 10BaseT
cables.
A network component that acts as an entrance to another network.
The IEEE 802.xx is a set of specifications for LANs from the Institute of Electrical and
Electronic Engineers (IEEE). Most wired networks conform to 802.3, the specification for
CSMA/CD-based Ethernet networks or 802.5, the specification for token ring networks. 802.11
defines the standard for wireless LANs encompassing three incompatible (non-interoperable)
technologies: Frequency Hopping Spread Spectrum (FHSS), Direct Sequence Spread Spectrum
(DSSS), and Infrared. IEEE standards ensure interoperability between systems of the same type.
A wireless network centered about an Access Point. In this environment, the Access Point not
only provides communication with the wired network but also mediates wireless network traffic
in the immediate neighborhood.
Internet Protocol. The standard protocol within TCP/IP that defines the basic unit of
information passed across an Internet connection by breaking down data messages into packets,
routing and transporting the packets over network connections, then reassembling the packets at
their destination. IP corresponds to the network layer in the ISO/OSI model.
An IP address is a 32-bit number that identifies each sender or receiver of information sent
across the Internet. An IP address has two parts: the identifier of a particular network on the
Internet and an identifier of the particular device (which can be a server or a workstation) within
geograp
t ha t ne t w o rk.
Internet Service Provider. An organization that provides access to the Internet. Small ISPs
ISP
provide service via modem and ISDN while the larger ones also offer private line hookups (T1,
fractional T1, etc.).
Glossary
LAN
NAT
Local Area Network. A communications network that serves users within a defined
hical area. The benefits include the sharing of Internet access, files, and equipment, such
as printers and storage devices. Special network cabling (10BaseT) is often used to connect the
PCs together.
Network Address Translation. The translation of an Internet Protocol address (IP address) used
within one network to a different IP address known within another network. One network is
designated the internal network and the other is the external. The internal network then appears
as one entity to the outside world.
77
11Mbps Wireless LAN Card User's Manual
y
Radio
Frequency
SSID
Subnet Mask
TCP
WEP
RF, Terms: GHz, MHz, Hz —The international unit for measuring frequency is Hertz (Hz),
equivalent to the older unit of cycles per second. One megahertz (MHz) is one Million-Hertz.
One giga hertz (GHz) is one Billion-Hertz. The standard U.S. electrical power frequency is 60
Hz, the AM broadcast radio frequency band is 0.55–1.6 MHz, the FM broadcast radio frequenc
band is 88–108 MHz, and wireless 802.11 LANs operate at 2.4GHz.
Service Set ID. A group name shared by every member of a wireless network. Only client PCs
with the same SSID are allowed to establish a connection.
A value that defines whether your computer communicates only within your LAN or
communicates outside of your LAN, where it is routed out to the rest of the Internet. A Subnet
Mask that has the same first three components (for example, 255.255.255.0) is the routing
pattern for a Class C address.
Transmission Control Protocol. The standard transport level protocol that provides the full
duplex, stream service on which many applications’ protocols depend. TCP allows a process on
one machine to send a stream of data to a process on another. Software implementing TCP
usually resides in the operating system and uses the IP to transmit information across the
network.
Wired Equivalent Privacy. The optional cryptographic confidentiality algorithm specified by
802.11. The algorithm is being used to provide data confidentiality that is subjectively
equivalent to the confidentiality of a wired LAN medium that does not employ cryptographic
techniques to enhance privacy..
78
Index
FEDERAL COMMUNICATIONS COM MISSI ON
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with t he limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are desig ned to provide r easonable protection agai nst harmful i nterf er ence in a
residential installat io n. T his equipment generates, uses a nd can radiate radio f r equency energy and, if not instal led
and used in accordance with the instructio ns, may cause har mful i nterf er ence to radio communicat io ns. However,
there is no guarante e that interf erence will not o c cur in a pa rt icular insta llation. I f this equipment do e s c ause harmf u l
interfer ence to r adio or television reception, which can be determined by turni ng the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocat e t he receiving antenna.
-- Increase the separatio n betw een the equipme nt and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/ TV t echnici an for help.
CAUTION:
Any changes or modificatio ns not express ly approve d by t he grantee of t his device could void the user's aut hority t o
operate t he equipment.
FCC RF Radiation Expo sur e St at ement
This equipment complies with F CC RF radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and oper ated wit h a minimum distance of 2.5c m betw een the radiator and your body.
This device must not be co-locat ed w it h any other antenna or tr ansmitter.
79
Loading...
