No part of this publication may be reproduced in any form by any means without the prior written
permission. Other trademarks or brand names mentioned herein are trademarks or registered
trademarks of their respective companies.
February 2002, Rev01
Safety Instructions
Installing
- Use only the type of power source indicated on the marking labels.
- Use only the power adapter supplied with the product.
- Do not overload wall outlet or extension cords as this may increase the risk of electric
shock or file, If the power cord is frayed, replace it with a new one.
- Proper ventilation is necessary to prevent the product overheating. Do not block or
cover the slots and openings on the device, which are intended for ventilation and
proper operation. It is recommended to mount the product with a stack.
- Do not place the product near any source of heat or expose it to direct sunshine.
- Do not expose the product to moisture. Never spill any liquid on the product.
- Do not attempt to connect with any computer accessory or electronic product without
instructions from qualified service personnel. This may result in risk of electronic shock
or file.
- Do not place this product on an unstable stand or table.
Using
- Power off and unplug this product from the wall outlet when it is not in use or before
cleaning. Pay attention to the temperature of the power adapter. The temperature might
be high.
- After powering off the product, power on the product at least 15 seconds later.
- Do not block the ventilating openings of this product.
- When the product is expected to be not in use for a period of time, unplug the power
cord of the product to prevent it from the damage of storm or sudden increases in rating.
Servicing
Do not attempt to disassemble or open covers of this unit yourself. Nor should you attempt to
service the product yourself, which may void the user’s authority to operate it. Contact
qualified service personnel under the following conditions:
- If the power cord or plug is damaged or frayed.
- If liquid has been spilled into the product.
- If the product has been exposed to rain or water.
- If the product does not operate normally when the operating instructions are followed.
- If the product has been dropped or the cabinet has been damaged.
- If the product exhibits a distinct change in performance.
2
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this
device could void
the user's authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
a minimum distance of 20cm between the radiator and your body.
Using ................................................................................................................................................2
SYSTEM ............................................................................................................................................... 46
access point that extend your existing broadband Cable/DSL connection. The 802.11b access point allows PC’s
with wireless cards connect together, while the high performance 4-port switch that expand your local network
for small office. Also the feature-rich routing functions are seamlessly integrated to broadband service for
existing home or office users. Now users can enjoy various bandwidth-consuming applications via ASKEY’s
Broadband Home Router
.
Remote
ASKEY
’s
Broadband Home Router
with 4-port switch and
WAN
xDSL /
Cable modem
Internet
Connection figure
Router feature
Acts as Universal Plug and Play (UPnP) Internet Gateway Device (IGD) that is an
implementation of the version 1 UPnP IGD standard for NAT traversal.
NAT let multiple users on LAN to access the Internet for the cost of only one IP address and
enjoy various multimedia applications.
ALGs (Application Level Gateways): such as NetMeeting, Ftp, RealPlayer, ICQ, CuSeeMe,
mIRC, Quake, Internet Games, etc.
DMZ hosting, Multiple Virtual Servers (e.g., Web, FTP, Mail servers) can be setup in local
network.
Static Route, RIP v1, v2, IGMP Proxy
Multiple kind of broadband WAN connection: PPPoE, DHCP Client, Fixed IP, Bridge
DHCP Server, DNS Relay
7
Bridging Features
Supports self-learning bridge specified in IEEE 802.1D Transparent Bridging
Transparent Bridging between 4-port 10/100 Mb Ethernet switch and 802.11b Wireless LAN
interface
QoS Supports IEEE 802.1p tag for
Port based priority that can prioritize specific port for multimedia streaming applications
Security Features
PAP (RFC1334), CHAP (RFC1994) for PPPoE session
Wireless support WEP (Wired Equivalent Privacy) uses RC4 with 40/64 and 128 bit key length
Support IP packets filtering based on IP address, Port number, Protocol type and TCP code
prioritize layer 2 traffic on 4-port Ethernet Switch
Wireless LAN Features
Fully compatible to 802.11b standard, allowing up to 11Mbps wireless rate with distance up to
300 feet / 90 meters
The 2.4 GHz Direct Sequence Spread Spectrum (DSSS) technology is exploited.
Seamless roaming within wireless LAN infrastructure
Low power consumption via efficient power management
Configuration and Management
Configurable through Web Browser
HTTP firmware upgrades via Web browser directly
Support DHCP Server function for IP distribution to local network users
QoS setting allows prioritizing one of 4 switch ports. The prioritized port could also be changed

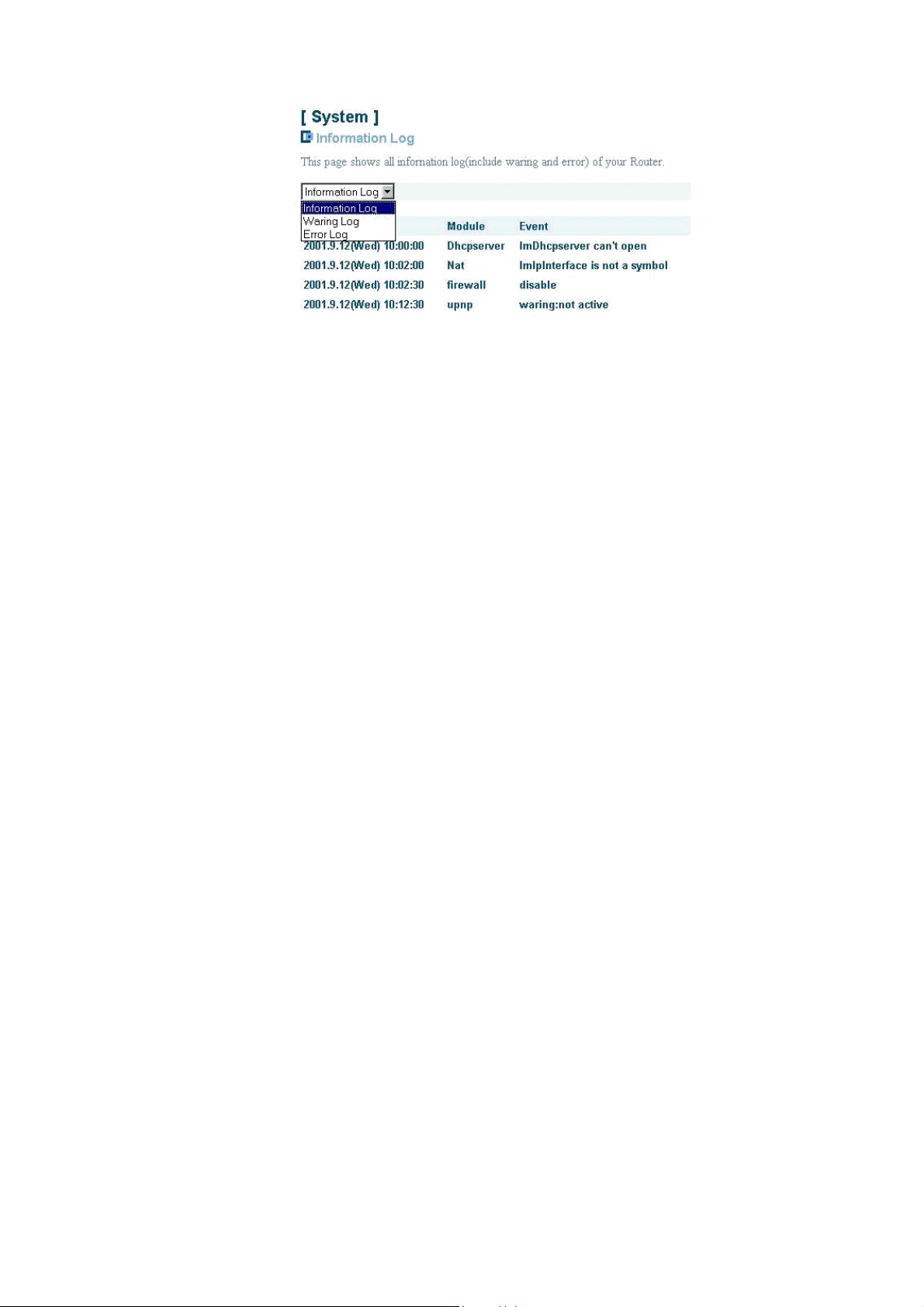

Event Logging, also provide different level of event display
System Requirements
For Wireless Clients
- System OS (Windows 98/2000/NT/ME/XP)
- Wireless card
- Wireless card driver
For Ethernet (wired) Clients
- System OS (Windows 98/2000/NT/ME/XP)
- 10/100Base-T NIC
- 10/100Base-T (UTP) network cable.
- Hub
Note
xDSL/Cable Modem service registered from your Internet service provider (ISP) is
required for Internet access.
8
Unpacking Your Broadband Home Router
Check the contents of the package against the pack contents checklist below. If any of the
items is missing, then contact the dealer from whom the equipment was purchased.
Broadband Home Router
•
Power Adapter
•
Power Cord
•
RJ-45 Ethernet Cable
•
Easy Started Guide
•
User Manual
•
Driver & Utility Software CD
•
Individual Box
•
Getting started
9
Indicators and Connecting
Front panel
The following figure illustrates the front panel of the Broadband Home Router:
- LED: WAN, LAN*4, Wireless LAN.
1. When link is established, the LED is On.
2. When the device is transferring data, the LED is Blinking.
Rear Panel
The following figure illustrates the rear panel of your Broadband Home Router.
- PWR: Power Switch.
- WAN: This RJ-45 10 Base-T port connects to an Ethernet port of xDSL/cable modem
broadband device.
- LAN port /L2/L3/L4: 10/100 Base-TX, 4 port auto-sensing & crossover Ethernet
switching hub (LAN interface).
-
12VDC
- RST: Factory default reset switch.
Push this button and hold for 3 seconds will clear all stored configuration back to the Broadband
Home Router factory defaults. It will also reboot the Broadband Home Router.
: Power connector.
Connecting the AT Home Router
1 Connecting to the WAN port.
Connect the Ethernet cable with your xDSL/cable modem to the 10Base-T Ethernet
WAN port on your Broadband Home Router.
10
Getting started
Note
1. The attached xDSL/cable modem must provide a standard 10Base-T Ethernet
connection. Please use the Ethernet cable comes with your broadband device or any
other standard 10Base-T Ethernet cable.
2. The Ethernet cable supplied by your ISP for connecting to your xDSL/cable modem
may be an Ethernet crossover cable rather than a straight-through cable. It is
important to use the cable provided by your ISP to connect the modem to your
Broadband Home Router.
2 Connecting to the LAN port L2/L3/L4.
Attach one end of the Ethernet cable with RJ-45 connector to the LAN port of your
Broadband Home Router.
The Broadband Home Router incorporates a four-port switch for connection to your
local Ethernet network. The Ethernet ports are capable of operation at either 10Mbps
(10Base-T) or 100Mbps (100Base-Tx), depending on the Ethernet interface of the
attached PC, hub or switch. For any connection which will operate at 100 Mbps, you
must use a category 5 rated cable, such as the Ethernet cable included with the
Broadband Home Router.
3 Preparing your wireless station.
You need to check the setting of wireless client stations to match the default settings of
the Broadband Home Router.
Note
1. The IP address of your wireless client station must be in the range of 192.168.0.2 to
192.168.0.254 with a subnet mask of 255.255.255.0.
2. The SSID default value is IEEE802.11 LAN
3. WEP encryption is disabled.
4 Connecting the power adapter.
Connect the supplied power adapter to the 12VDC port of your Broadband Home Router,
and the other end to a power outlet.
11
LAN Connection Example
To configure the device via web browser, at least one properly-configured PC must be
connected to the LAN port (connected directly or through an external hub/switch to the LAN
port of the device). The configuration can also be performed on a wireless client station (as
Network 2 on Connection Figure 2).
On Ethernet Client
To access the Broadband Home Router via the Ethernet interface, the host computer must
install TCP/IP protocol:

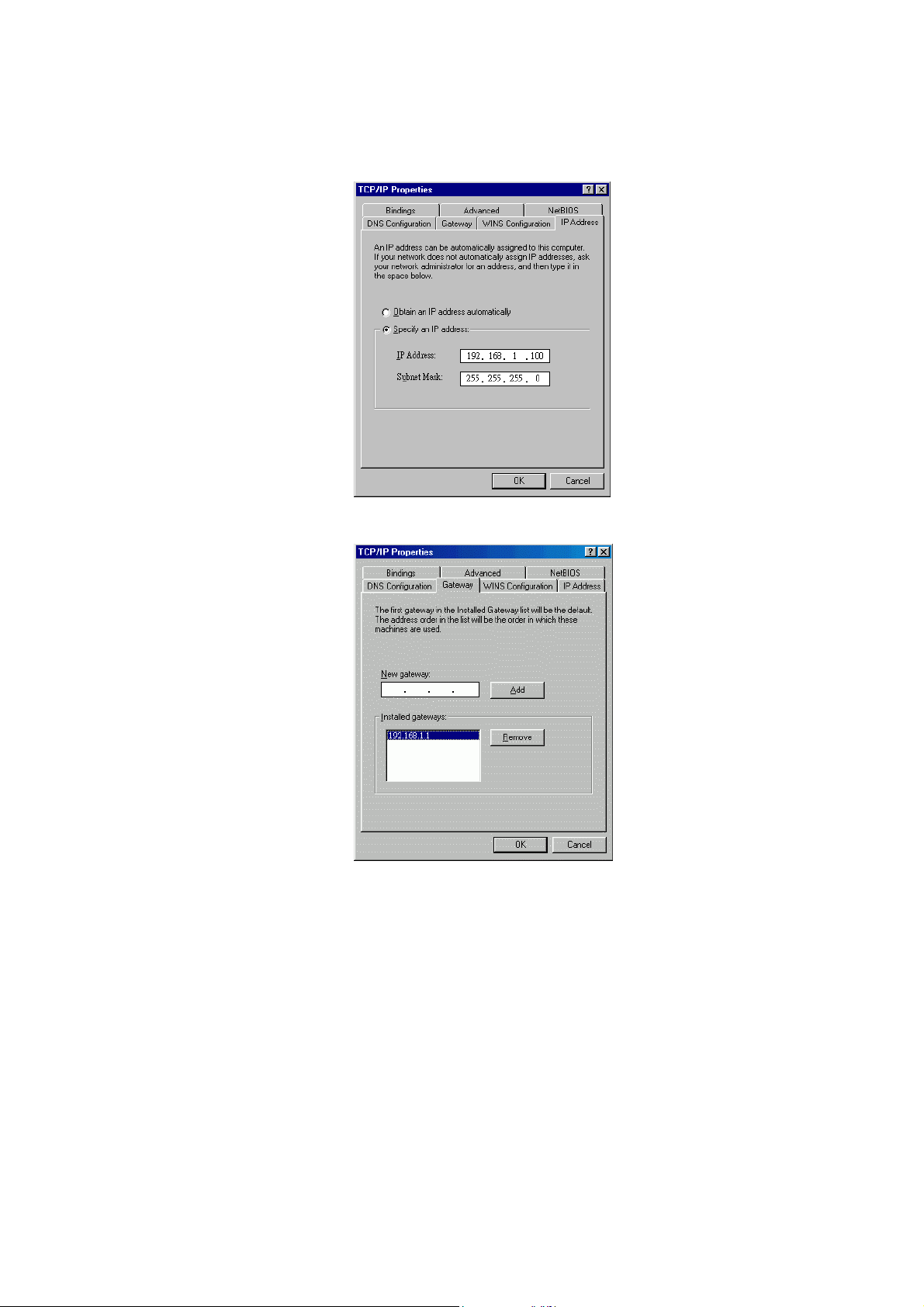

Step 1 Choose a client PC and set the IP as 192.168.0.x (x is between 2 and 254) and the
gateway as 192.168.0.1 to be on the same subnet with the Broadband Home Router,
whose default IP address is 192.168.0.1.

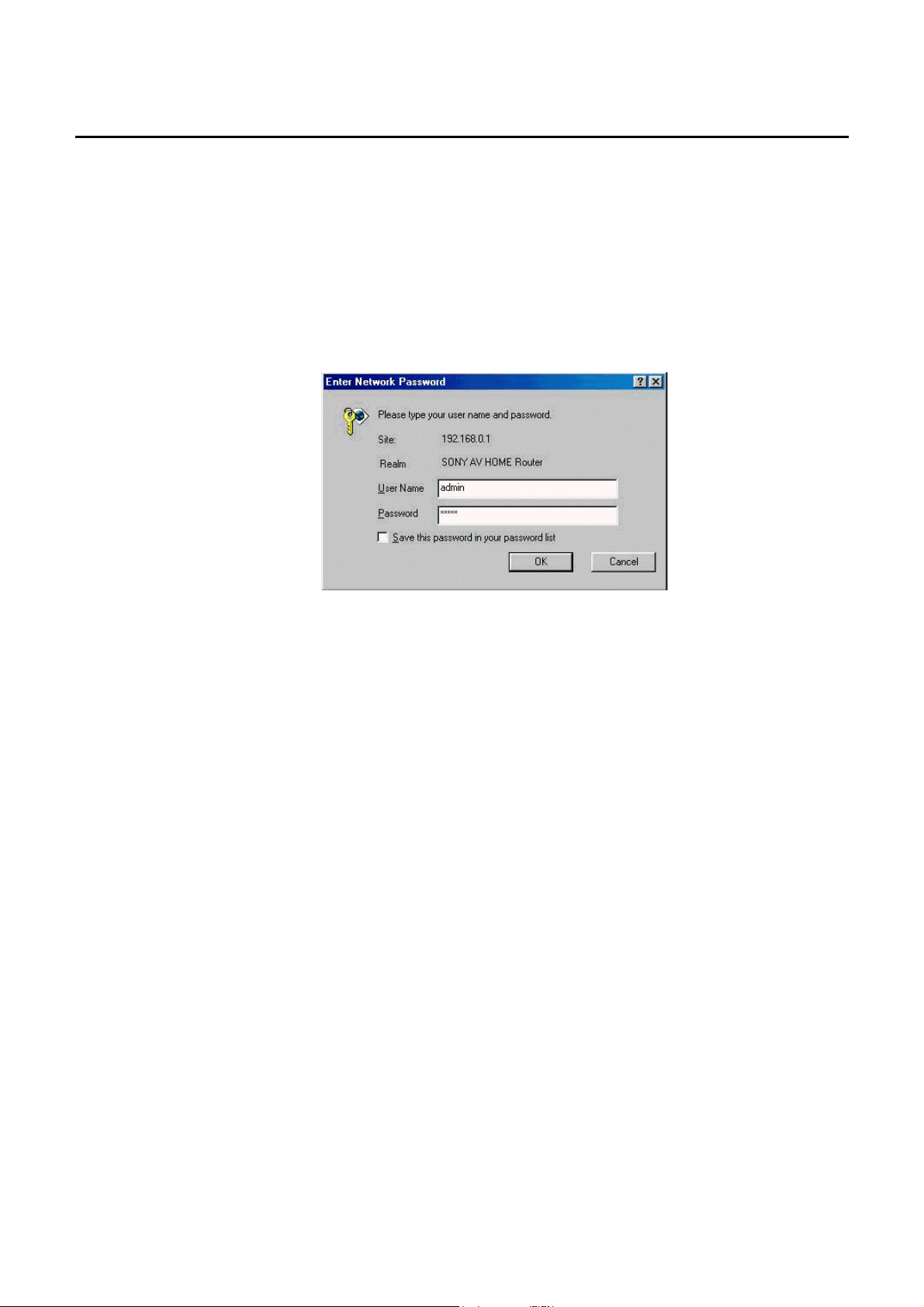

Step 2 Start up your browser and type 192.168.0.1 as the address to enter the web-based
manager.
LAN Connection Example

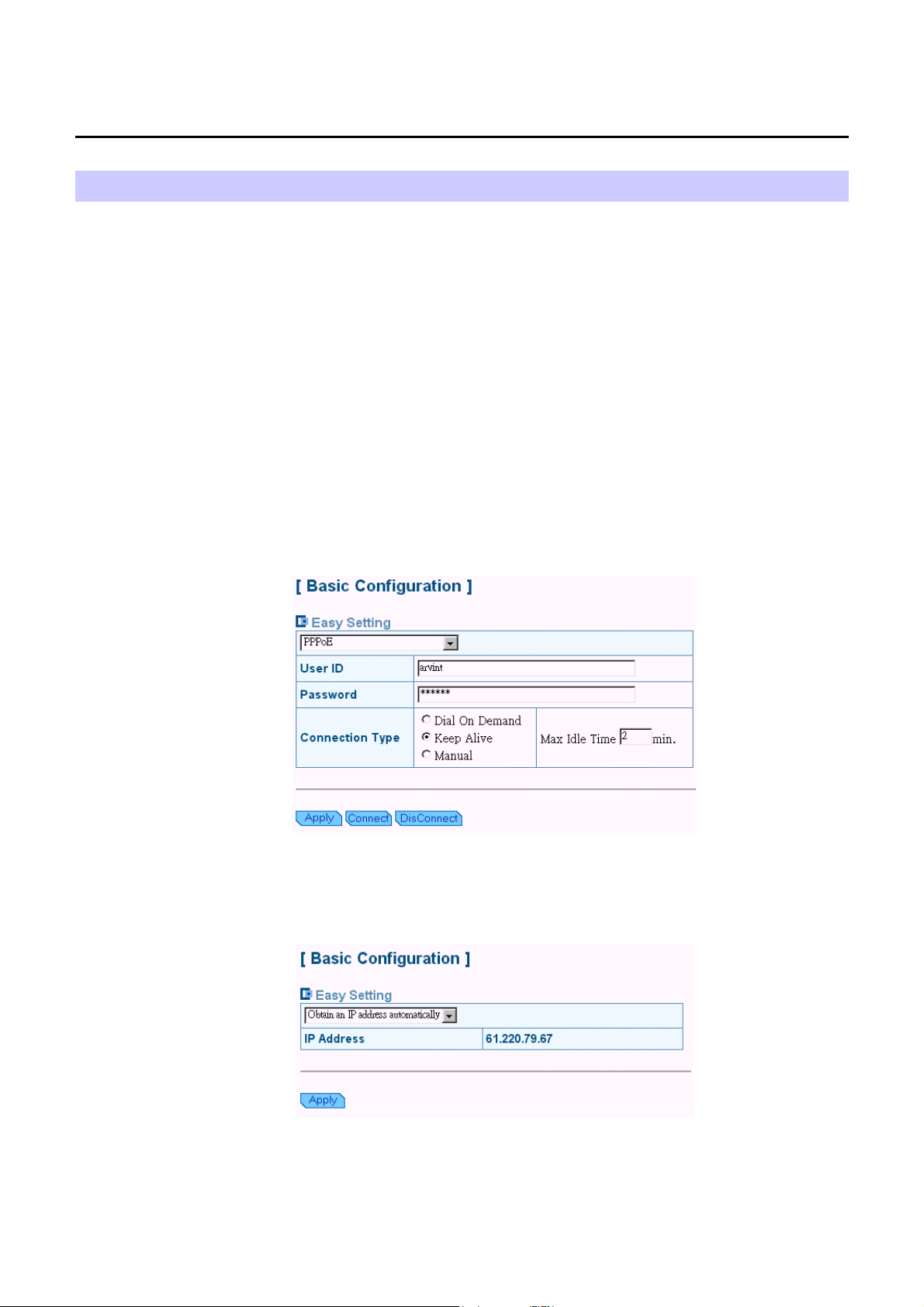

Step 3 Select the connection type (Bridge, Obtain an IP address automatically, PPPoE or
Specify an IP address) which gets the WAN IP address and dials up to the ISP. You
should choose the type according to the device that the WAN port connects to.
When the connection is established the client PCs can access the Internet or the LAN.
Note
1. The Broadband Home Router is configured with the default IP address of 192.168.0.1
and subnet mask of 255.255.255.0. As the DHCP server is Enabled by default, the
Broadband Home Router can assign an IP address to the host PC for initial
configuration. That means, if the host PC sets its TCP/IP to obtain an IP address
automatically, this DHCP client should be able to get an IP address and access the
Broadband Home Router.

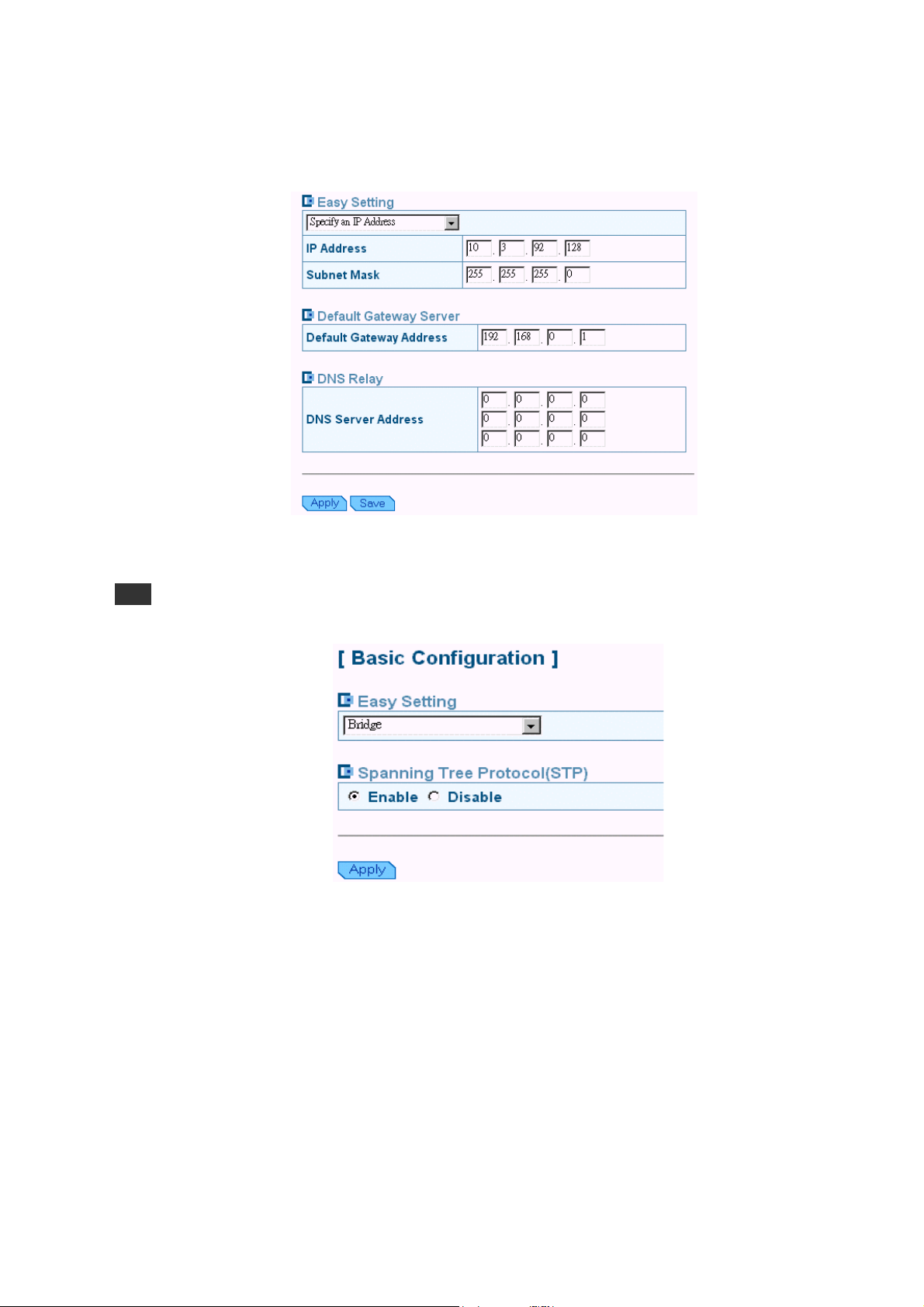

2. If you select ‘Bridge’ as the WAN connection type, the Broadband Home Router will
act as a two-port Ethernet bridge device .
On Wireless Client
Step 1 Install the wireless card driver and configure the SSID setting on the client
computer to the default SSID: IEEE802.11 LAN.

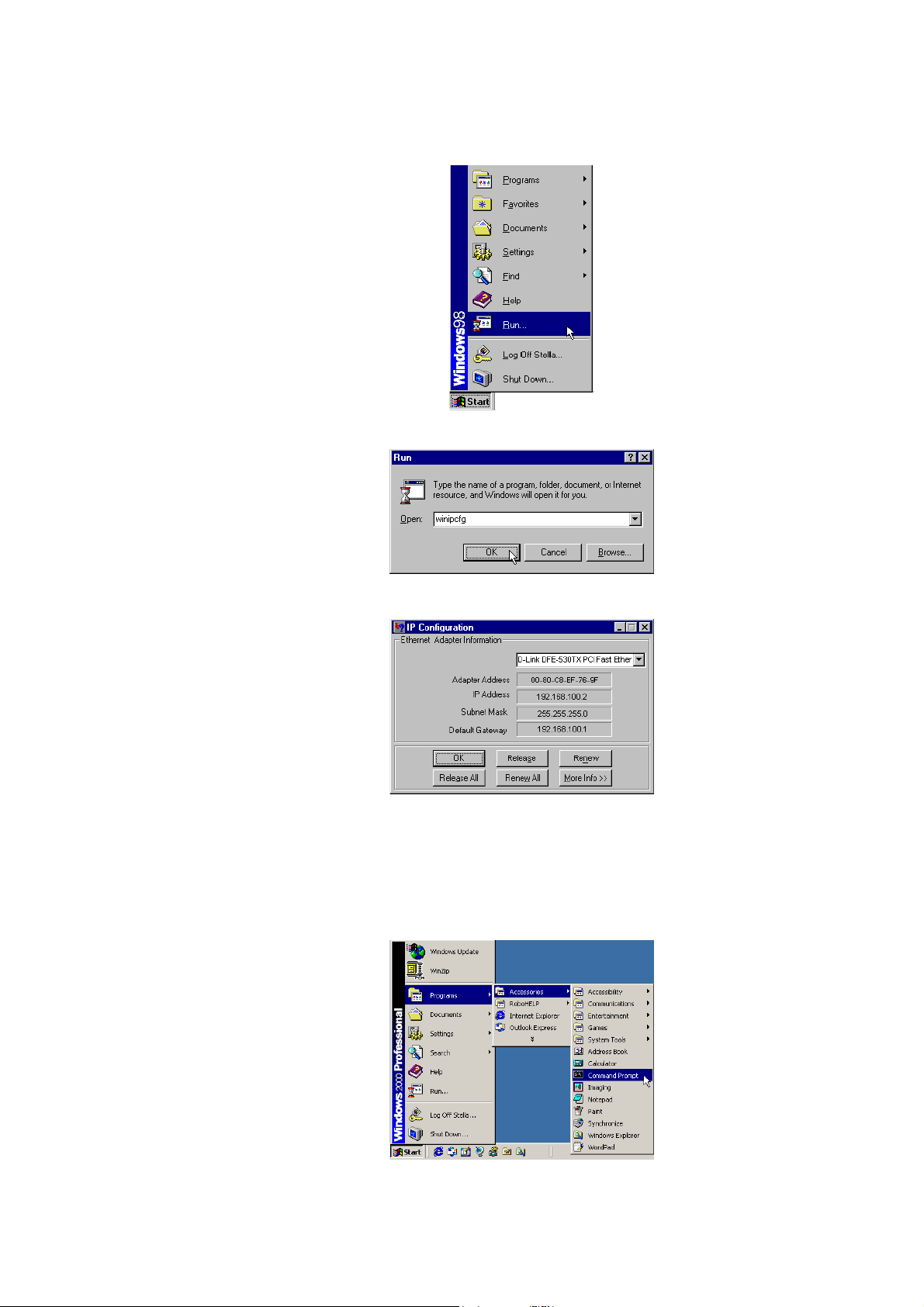

Step 2 Check that the TCP/IP protocol is installed on your wireless client PC. (Refer to
12
“TCP/IP Configuration” section.)
Step 3 Set the IP as 192.168.0.x (x is between 2 and 254) and the gateway as 192.168.0.1
to be on the same subnet with the Broadband Home Router, whose default IP
address is 192.168.0.1.
Step 4 Start up your browser and type 192.168.0.1 as the address to enter the web-based
manager.

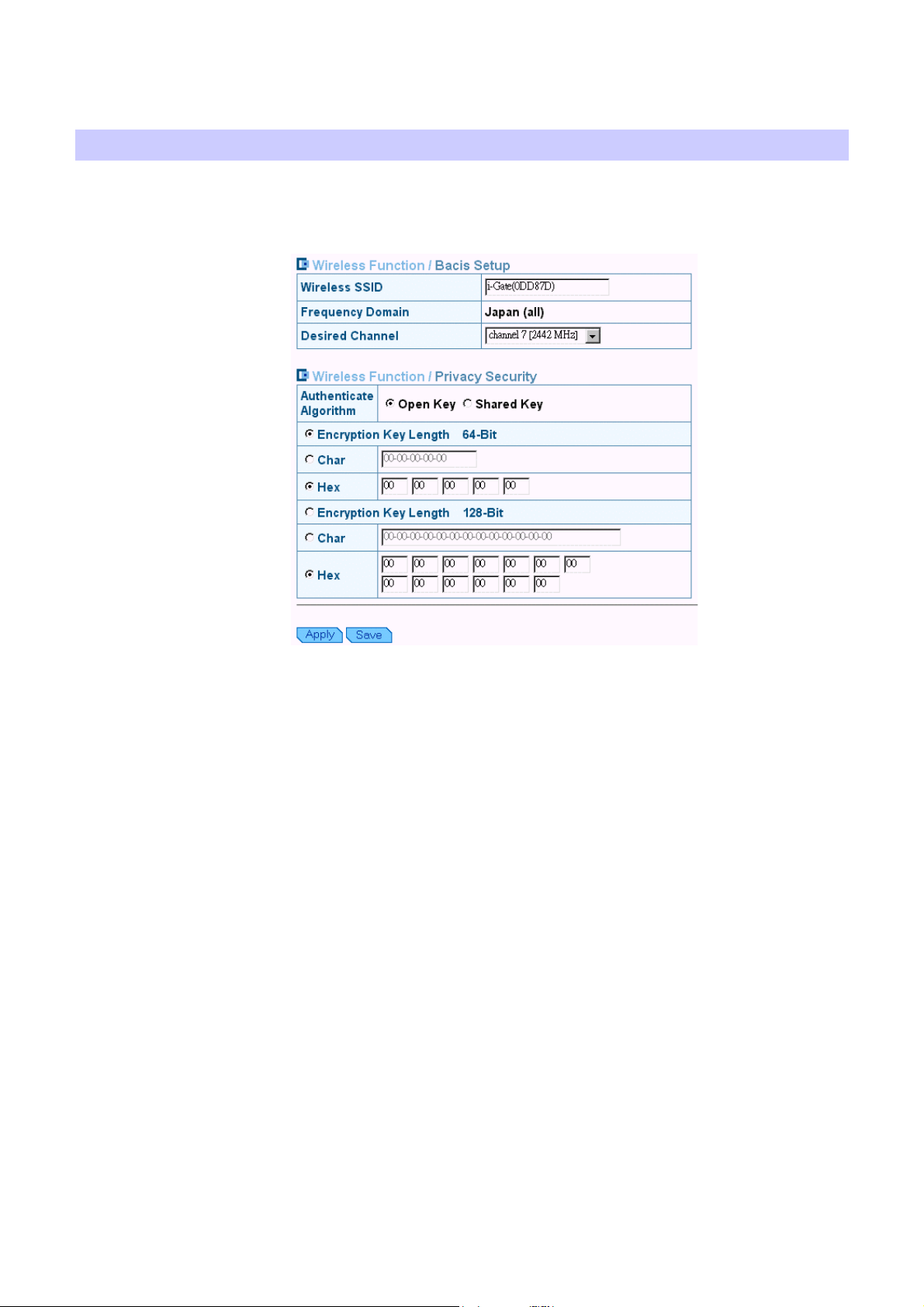

Step 5 If necessary, you could change the SSID from the web page: Advanced>wireless
(refer to Wireless Setting section).
Note
Getting started
Step 6 If you change SSID in step 5, all wireless client stations must use the same SSID as
the Broadband Home Router.
Step 7 Then click Apply.
Step 8 Execute Save and Restart.

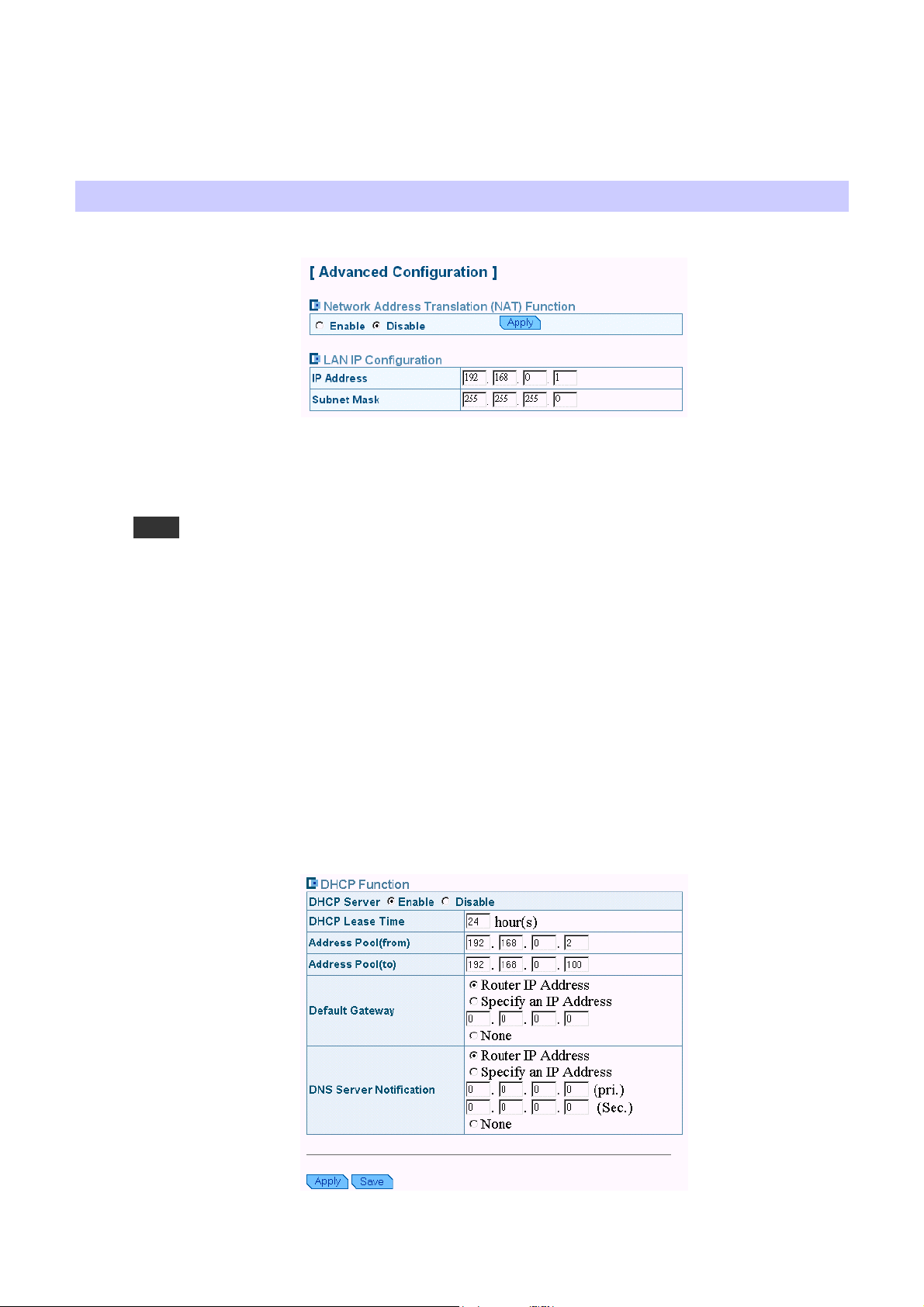

If you have multiple PCs on the LAN, you may enable DHCP server function. The Broadband
Home Router implements a built-in DHCP server, which assigns IP addresses to the clients
PCs on the LAN .For detailed settings please refer to the DHCP setting under LAN Setting
section.
For the wireless-interfaced station, you need to set its SSID to the Broadband Home Router’s
default SSID value and disable the WEP encryption.
Remote client
xDSL /
Network 1 Network 2
Internet
Connection Figure 2
Cable modem
13
xDSL/Cable Modem Connection
The Broadband Home Router provides continuous and high-speed access between your
wireless and Ethernet devices. In addition, it can connect your entire network to the Internet
through an external broadband access device (such as DSL modem or cable modem shown as
Network 1 in the figure below).
Note
1. The attached xDSL/cable modem must provide a standard 10Base-T Ethernet
connection. Please use the Ethernet cable comes with your broadband device or any
other standard 10Base-T Ethernet cable.
2. The Ethernet cable supplied by your ISP for connecting to your xDSL/cable modem
may be an Ethernet crossover cable rather than a straight-through cable. It is
important to use the cable provided by your ISP to connect the modem to your
Broadband Home Router.
Connecting to Your xDSL Modem
If you are going to connect the WAN port to a DSL modem, follow the steps below:
HOW to setup:
1. Use the Ethernet cable comes with your DSL modem. Plug one end to the 10Base-T
Ethernet port of the modem, and the other end to the WAN port on your Broadband
Home Router (shown as Network 1 in the figure below).
2. Attach one end of the Ethernet cable with RJ-45 connector to the LAN port of your
Broadband Home Router, and the other end to a hub or a client PC (shown as Network 2
in the figure below).
3. At the LAN side, you also can use wireless client at the same time (please refer to “LAN
Connection ” section).
4. Set the DSL Modem’s connection mode as bridge mode.
5. Enter the web-based Configuration Manager to configure the WAN setting. Choose the
connection type that you registered from your ISP (refer to “Easy Setting” section).
Note
LAN configuration-purpose shown as Network 2 in the figure below, please refer to
“LAN Connection Example”.
Ethernet LAN
Wireless LAN
Network 2
Broadband Home Router
Network 1
xDSL Modem
Internet
14
Getting started
Connecting to Your Cable Modem
If you are going to connect the WAN port to a DSL modem, follow the steps below:
HOW to setup:
1. Use the Ethernet cable comes with your DSL modem. Plug one end to the 10Base-T
Ethernet port of the modem, and the other end to the WAN port on your Broadband
Home Router (shown as Network 1 in the figure below).
2. Attach one end of the Ethernet cable with RJ-45 connector to the LAN port of your
Broadband Home Router, and the other end to a hub or a client PC (shown as Network 2
in the figure below).
3. At the LAN side, you also can use wireless client at the same time (please refer to “LAN
Connection” section).
4. Set the Cable Modem’s connection mode as bridge mode.
5. Enter the web-based Configuration Manager to configure the WAN setting. Choose the
connection type that you registered from your ISP (refer to “Easy Setting” section).
Note
To connect a configuration-purpose PC shown as Network 2 in the figure below,
please refer to “LAN Connection”.
Wireless LAN
Broadband Home Router
Network 1
Cable Modem
Network 2
Ethernet LAN
Internet
15
TCP/IP Configuration
In order to access the Internet through the router, each host on your network must install
TCP/IP. Select your network adapter, follow the steps below for its installation.
For Windows 98
Step 1 Click on the Start menu, point to Settings and click on Control Panel.
Step 2 Double-click the Network icon.
Step 3 The Network window appears. On the Configuration tab, check out the list of
installed network components.
Option 1: If you have no TCP/IP protocol, click Add.
Option 2: If you have TCP/IP protocol, go to Step 6.
16
Step 4 Highlight Protocol and click Add.
Software setup
Your network
interface card.
Check out if TCP/IP
for your NIC is
installed or not.
Step 5 On the left side of the windows, highlight Microsoft and then select TCP/IP on the
right side. Then click OK.

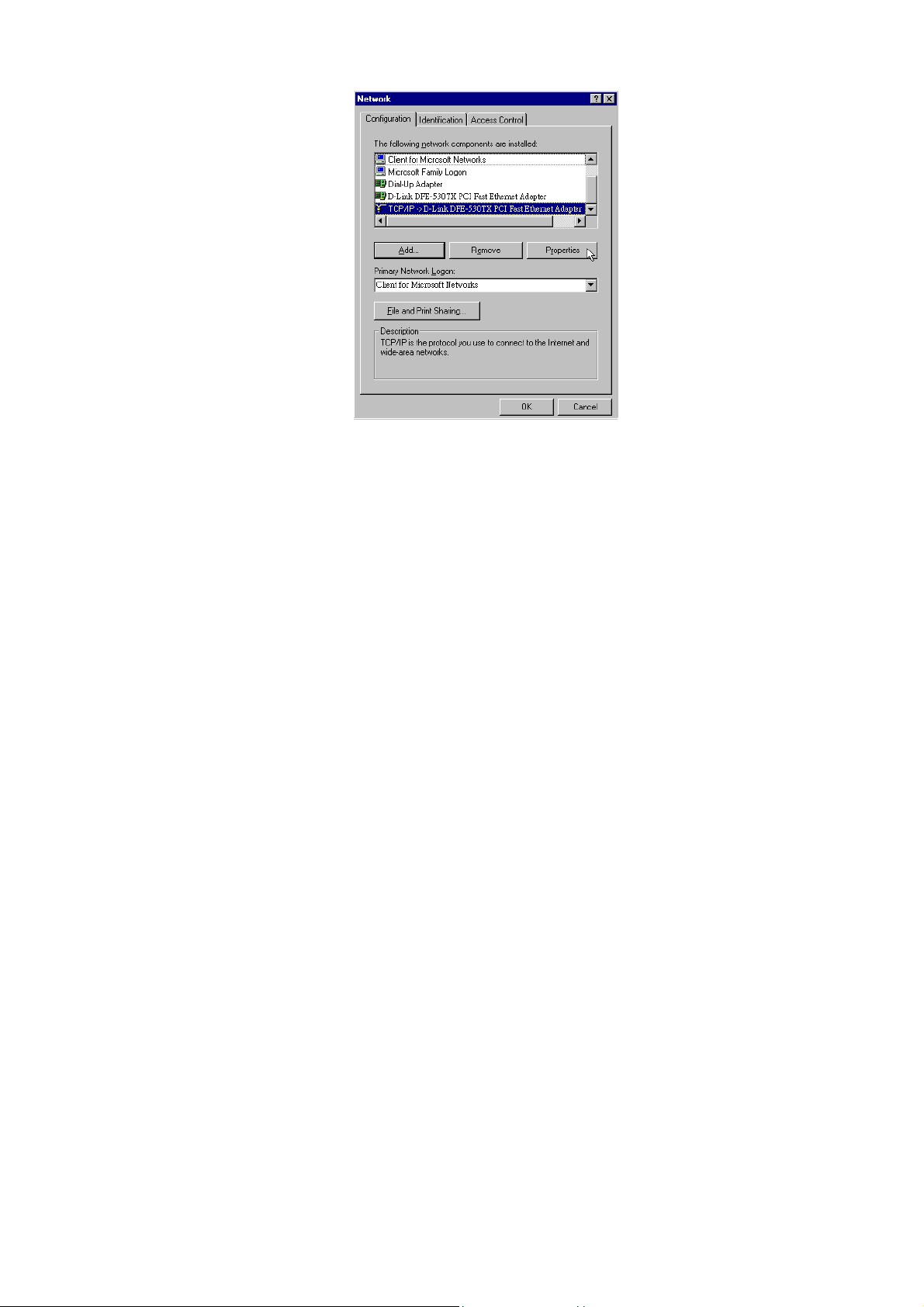

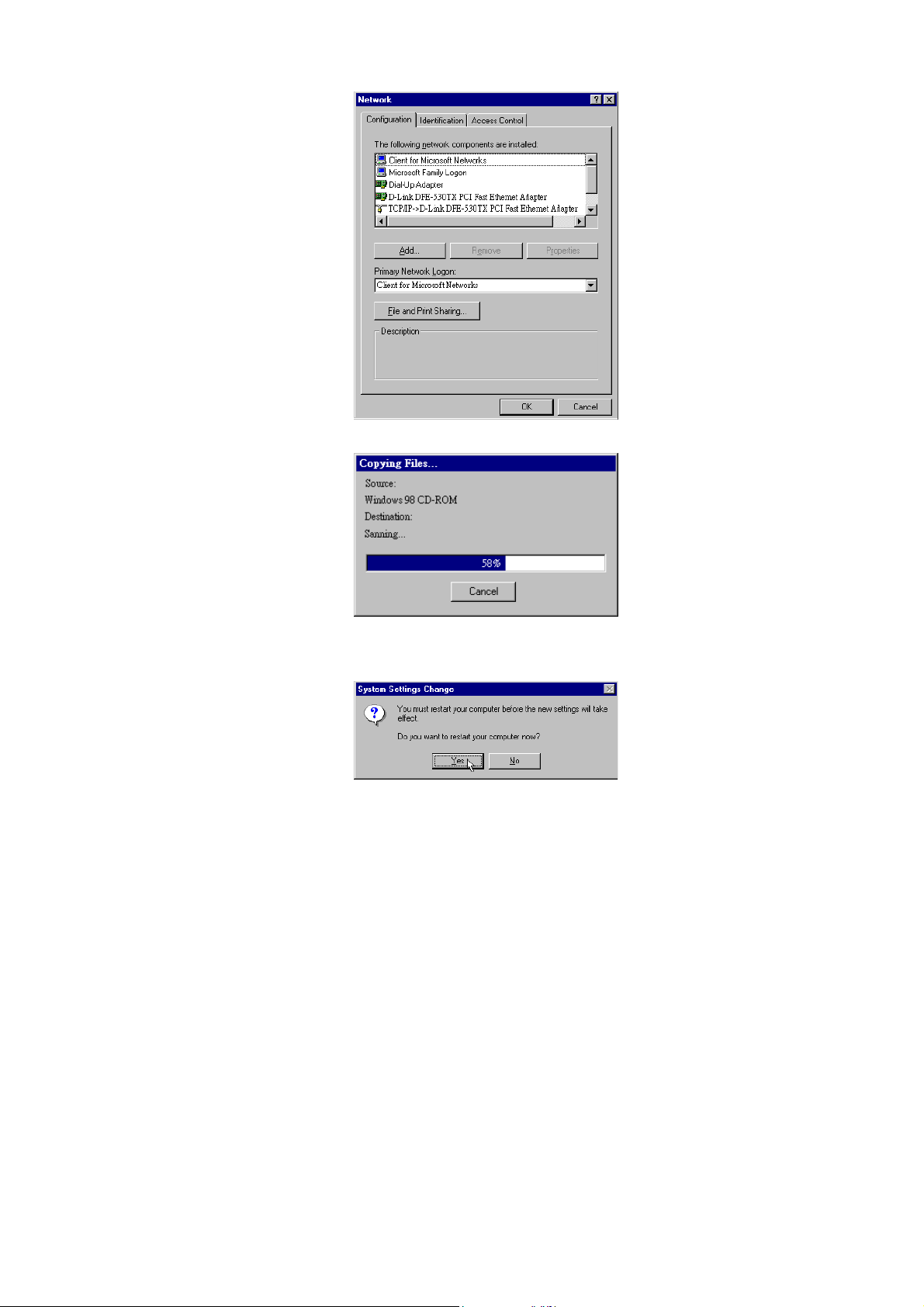

Step 6 When returning to Network window, highlight TCP/IP protocol for your NIC and
click Properties.
17
Loading...
+ 39 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
