Askey Computer RTV7805VW User Manual
RTV7805VW
VDSL
Quick Guide
Version released : 1.0
VDSL User Manual
ii
TABLE OF CONTENTS
____________________________________________________________________
Before You Use ........................................................................................................... 3
Unpacking ................................................................................................................... 3
Chapter 1: Overview ................................................................................................... 4
Physical Outlook ......................................................................................... 4
Chapter 2 : System Requirement and Installation ................................................... 7
Connecting the Wireless IAD ........................................................................ 7
Wall Mounting ............................................................................................. 9

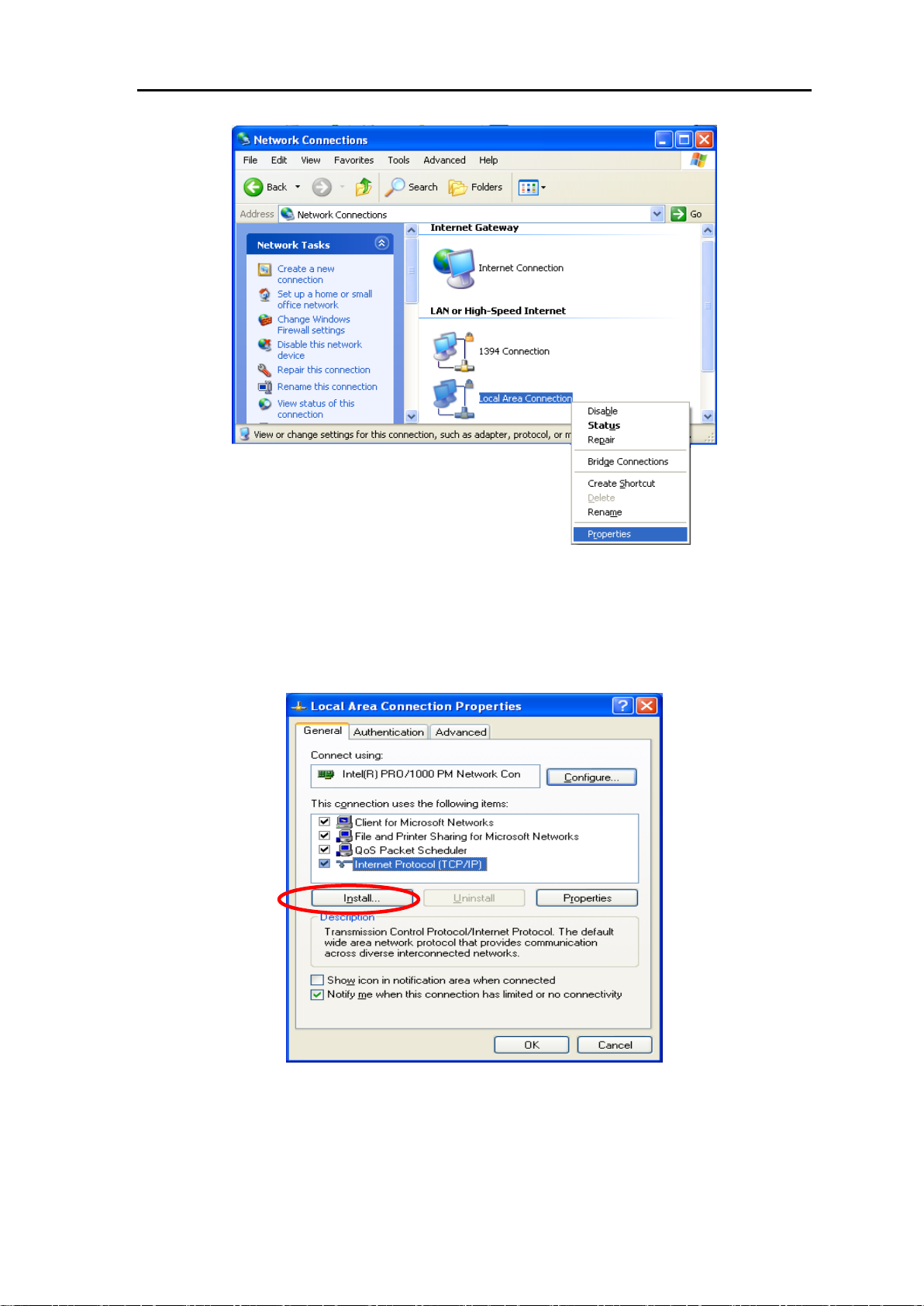

Setting up TCP / IP ...................................................................................... 9
For Windows XP .................................................................................. 9

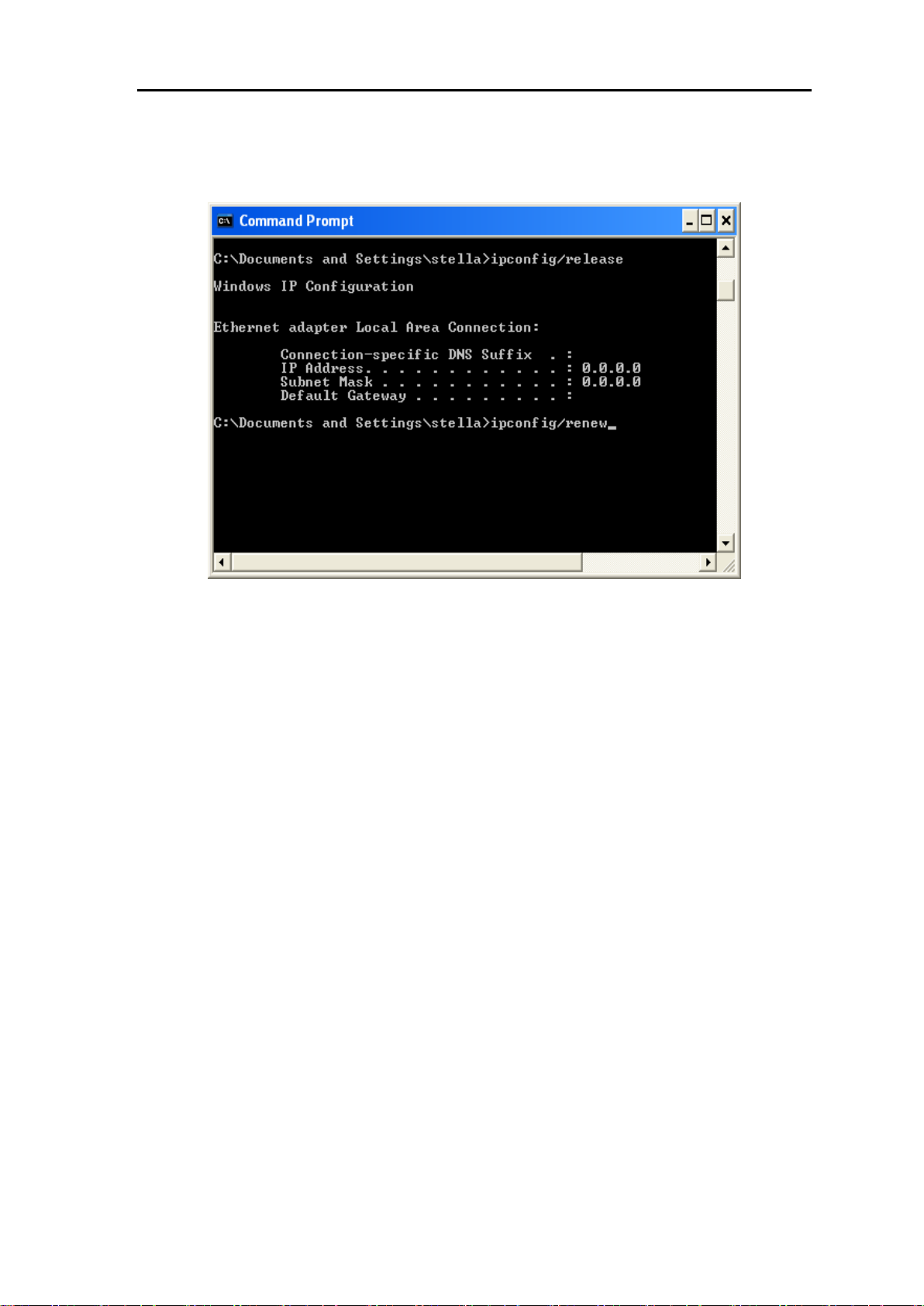

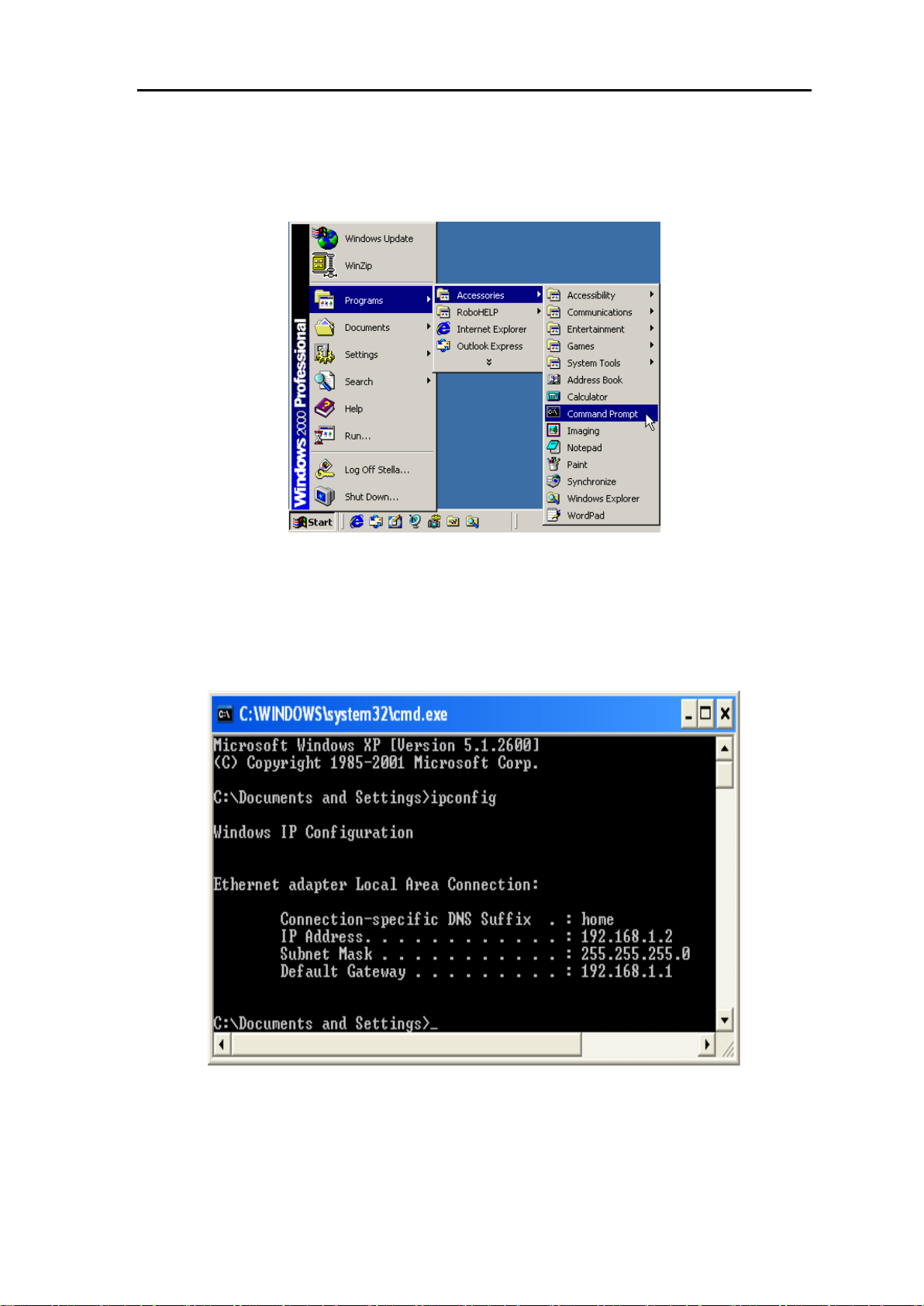

Renewing IP Address on Client PC .............................................................. 14
For Windows NT/2000/XP ................................................................... 14
Before You Use
RTV7805VW(RoHS) is a VDSL (Very High Speed Digital Subscriber Line) residential
gateway which allows ethernet connectivity for indoor residential or office
installation. It provides Wi-Fi 2.4GHz 802.11 b/g/n and voice over IP function for
home or office users. To benefit users’ access to the Internet, VDSL port and 4 fast
Ethernet LAN port are equipped with this gateway.
The router provides a cost-effective ADSL / ADSL2 / ADSL2+/ VDSL2 router. It
allows bidirectional communication with the ADSL / ADSL2 / ADSL2+/ VDSL2
DSLAM over a single conventional Unshielded Twisted Pair (UTP). The subscriber
line interface will carry the normal POTS telephone service, frequency multiplexed
with the upstream and downstream ADSL/ VDSL signals. For VDSL configuration,
the VDSL-POTS NT can receive up to 100Mb/s@VDSL2 in the downstream
direction and can send up to 50Mb/s@VDSL in the upstream direction; but largely
depending on circumstances. In the downstream direction (with data services
provided by a Remote Access Node) the ADSL/ VDSL NT will extract ATM cells
from the ATM cell stream and, based on their VPI/VCI, forward these cells towards
the Ethernet, or wireless interface. In the upstream direction, the ADSL/ VDSL NT
will insert ATM cells into an ATM cell stream and using a DMT (Discrete Multi Tone)
approach, convert these cells to a signal that can be sent over the subscriber line.
On the outgoing subscriber line, the DMT signal is frequency multiplexed with the
telephone service. Merging is done in an external splitter or built in filter
Now users can enjoy various bandwidth-consuming applications via
RTV7805VW(RoHS) residential gateway.
Unpacking
Check the contents of the package against the pack contents checklist below. If
any of the items is missing, then contact the dealer from whom the equipment was
purchased.
VDSL User Manual
4
Chapter 1: Overview
This chapter provides you the description for the LEDs and connectors on the
front and rear surface of the router. Before you use/install this wireless IAD,
please take a look at the information first.
Physical Outlook
VDSL User Manual
5
FUNCTION
COLOR
DEFINITION
Power
Off
Router powered off
Solid green
Router powered on
correctly
Internet
Off
No PPPoE connection
Blinking green
PPPoE negotiation
Solid green
PPPoE up
DSL
Off
xDSLoff-Line
Solid green
xDSLon-Line
LAN1
Off
Ethernet connection is not
available
Solid green
Ethernet connection is
available
Blinking green
TX/RX traffic on line
LAN2
Off
Ethernet connection is not
available
Solid green
Ethernet connection is
available
Blinking green
TX/RX traffic on line
LAN3
Off
Ethernet connection is not
available
Solid green
Ethernet connection is
available
Blinking green
TX/RX traffic on line
LAN4
Off
Ethernet connection is not
available
Solid green
Ethernet connection is
available
Blinking green
TX/RX traffic on line
WLAN
Solid green
Wi-Fi connection is
available
Off
WiFi connection is not
available
WPS
Solid green
WPS function is available
Off
WPS function is not
available
VDSL User Manual
6
