RTA1030W ADSL Router

User’s Manual

Rev: 1.0

2005/5/16

No part of this publication may be reproduced in any form by any means without the prior written permission. Other

trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective companies.

This manual currently suits for RTA1030W.

Safety Notes

For Installation

For Using

 Use only the type of power source indicated on the marking labels.  Use only power adapter supplied with the product.  Do not overload wall outlet or extension cords as this may increase the risk of

electric shock or fire. If the power cord is frayed, replace it with a new one.

 Proper ventilation is necessary to prevent the product overheating. Do not block or

cover the slots and openings on the device, which are intended for ventilation and proper operation. It is recommended to mount the product with a stack.

 Do not place the product near any source of heat or expose it to direct sunlight.  Do not expose the product to moisture. Never spill any liquid on the product.  Do not attempt to connect with any computer accessory or electronic product

without instructions from qualified service personnel. This may result in risk of electronic shock or fire.

 Do not place this product on unstable stand or table.

 Power off and unplug this product from the wall outlet when it is not in use or

before cleaning. Pay attention to the temperature of the power adapter. The temperature might be high.

 After powering off the product, power on the product at least 15 seconds later.  Do not block the ventilating openings of this product.  When the product is expected to be not in use for a period of time, unplug the

power cord of the product to prevent it from the damage of storm or sudden increases in rating.

For Service

Warning

Caution

Do not attempt to disassemble or open covers of this unit by yourself. Nor should you attempt to service the product yourself, which may void the user’s authority to operate it. Contact qualified service personnel under the following conditions:

 If the power cord or plug is damaged or frayed.  If liquid has been spilled into the product.  If the product has been exposed to rain or water.  If the product does not operate normally when the operating instructions are

followed.

 If the product has been dropped or the cabinet has been damaged.  If the product exhibits a distinct change in performance.  This equipment must be installed and operated in accordance with provided

instructions and a minimum 20 cm spacing must be provided between computer mounted antenna and person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation.

 This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

 Any changes or modifications not expressly approved by the party responsible for

compliance could void the authority to operate equipment.

ADSL Router User Manual

FCC

This equipment must be installed and operated in accordance with provided instructions and a minimum 20 cm spacing must be provided between computer mounted antenna and person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation.

FCC Class B Notice

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired

operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equip ment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television rece pt i on , whi ch can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

z Consult the dealer or an experienced radio/television technician for help.

iii

Contents

Preface ..................................................................................................ix

Features........................................................................................................... ix

Unpacking ........................................................................................................ xi

Subscription for ADSL Service.............................................................................. xi

Chapter 1: Overview.............................................................................. 1

Physical Outlook .................................................................................................1

Chapter 2: System Requirement and Installation ....................................... 3

System Requirement...........................................................................................3

Choosing a place for the ADSL Router....................................................................3

Connecting the ADSL Router.................................................................................4

USB Driver Installation ........................................................................................5

Uninstall the USB Driver ......................................................................................6

Setting TCP/IP....................................................................................................7

Configure PC to get IP address from DHCP ........................................................... 18

Renew IP Address on Client PC ........................................................................... 20

Contents

Front Panel ..............................................................................................1

Rear Panel...............................................................................................2

For Windows ME .......................................................................................5

For Windows 2000 ....................................................................................5

For Windows XP........................................................................................6

For Windows ME .......................................................................................6

For Windows 2000 ....................................................................................7

For Windows XP........................................................................................7

For Windows 98........................................................................................8

For Windows ME ..................................................................................... 11

For Windows NT ..................................................................................... 12

For Windows 2000 .................................................................................. 15

For Windows XP...................................................................................... 17

For Windows 98...................................................................................... 18

For Windows ME ..................................................................................... 18

For Windows NT ..................................................................................... 19

For Windows 2000 .................................................................................. 19

For Windows XP...................................................................................... 20

For Windows 98ME.................................................................................. 20

For Windows NT ..................................................................................... 21

For Windows 2000 .................................................................................. 22

For Windows XP...................................................................................... 22

Chapter 3: Connecting and Accessing Internet.......................................... 23

PPP over ATM (PPPoA) Mode............................................................................... 24

PPP over ATM (PPPoA) IP Extension Mode............................................................. 25

PPP over Ethernet (PPPoE) Mode......................................................................... 26

PPP over Ethernet (PPPoE) IP Extension Mode....................................................... 27

Numbered IP over ATM (IPoA)............................................................................ 28

Numbered IP over ATM (IPoA)+NAT .................................................................... 30

Unnumbered IP over ATM (IPoA)......................................................................... 32

Unnumbered IP over ATM (IPoA)+NAT................................................................. 34

Bridge Mode..................................................................................................... 36

ADSL Router User Manual

Chapter 4: Web Configuration ............................................................. 37

Using Web-Based Manager................................................................................. 37

Outline of Web Manager........................................................................... 38

To Have the New Settings Take Effect........................................................ 38

Language .............................................................................................. 38

Quick Start ...................................................................................................... 39

Connect to Internet................................................................................. 39

Quick Setup........................................................................................... 39

Connection Type..................................................................................... 39

PPP over ATM/ PPP over Ethernet.............................................................. 41

IP over ATM........................................................................................... 44

Bridging ................................................................................................ 47

Status............................................................................................................. 49

Overview............................................................................................... 49

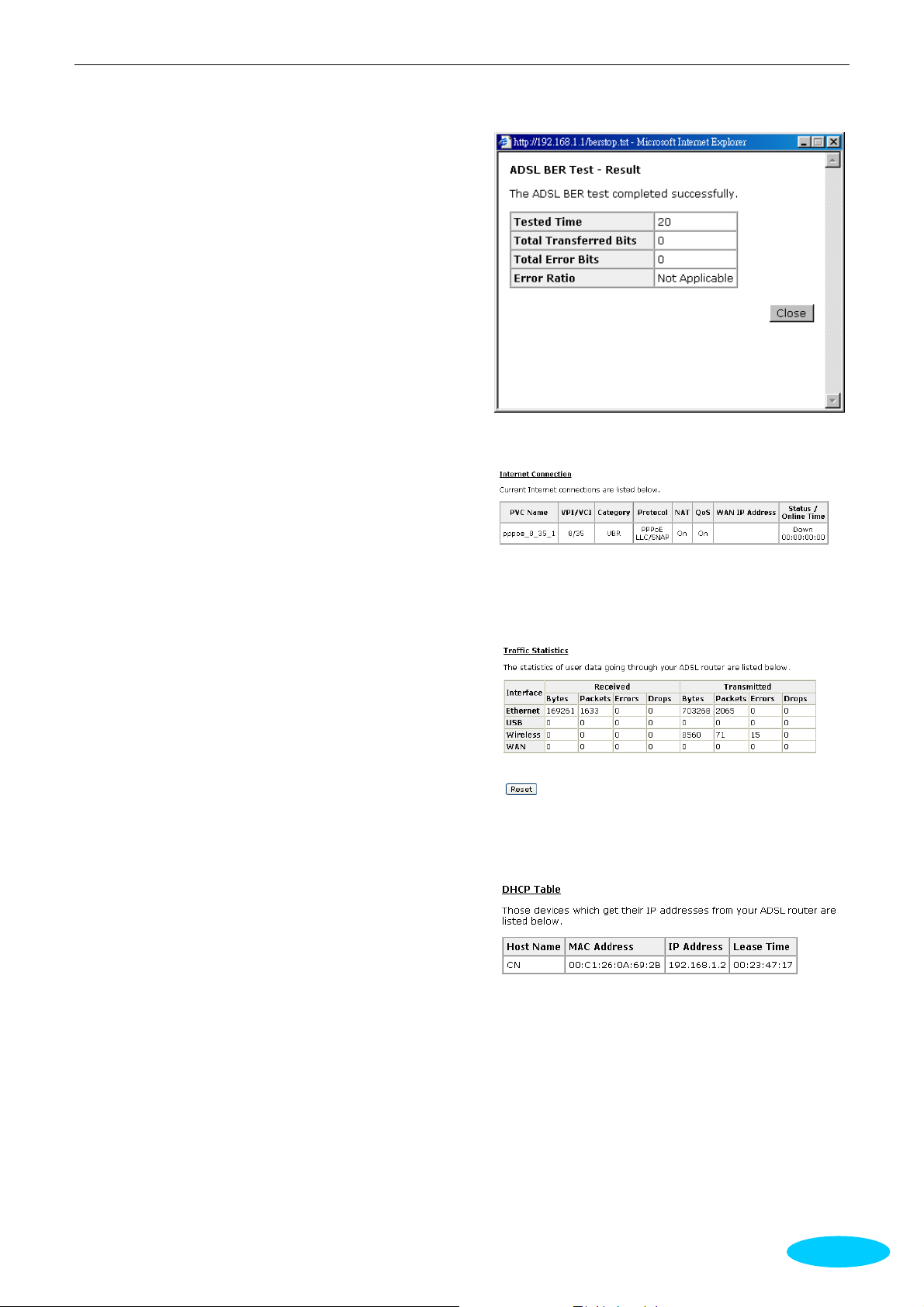

ADSL Line.............................................................................................. 50

Internet Connection ................................................................................ 51

Traffic Statistics...................................................................................... 51

DHCP Table............................................................................................ 51

Wireless Client ....................................................................................... 52

Routing Table......................................................................................... 52

ARP Table.............................................................................................. 52

Advanced Setup................................................................................................ 53

Local Network- IP Address ....................................................................... 53

Local Network - DHCP Server ................................................................... 53

Local Network – UPnP.............................................................................. 56

Internet-Connections Setting.................................................................... 56

Internet - DNS Server ............................................................................. 58

Internet - IGMP Proxy ............................................................................. 58

Internet - ADSL Settings.......................................................................... 59

IP Routing - Static Route ......................................................................... 59

IP Routing – Dynamic Routing .................................................................. 61

Virtual Servers-Port Forwarding ................................................................ 62

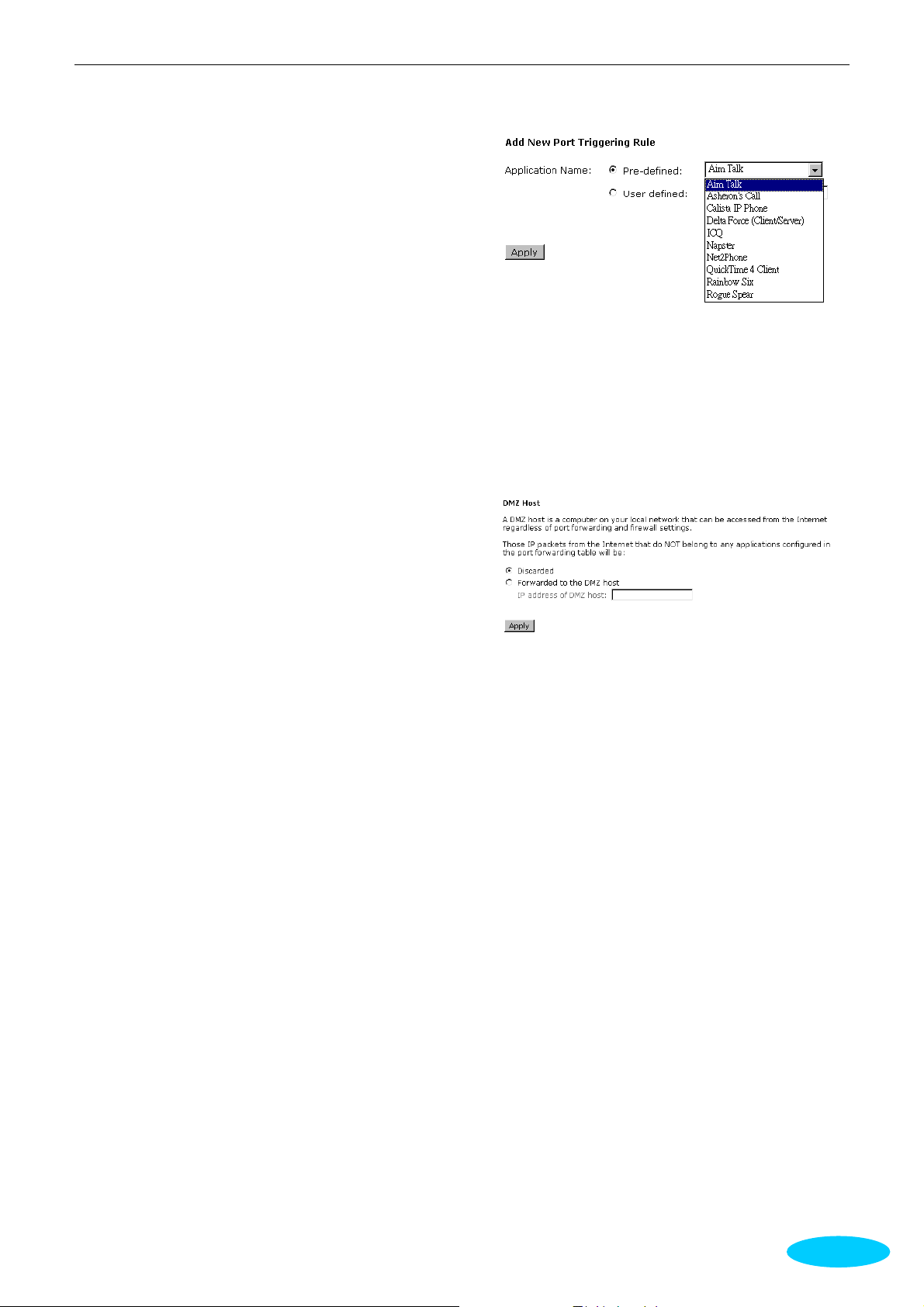

Virtual Servers-Port Triggering.................................................................. 64

Virtual Servers - DMZ Host....................................................................... 65

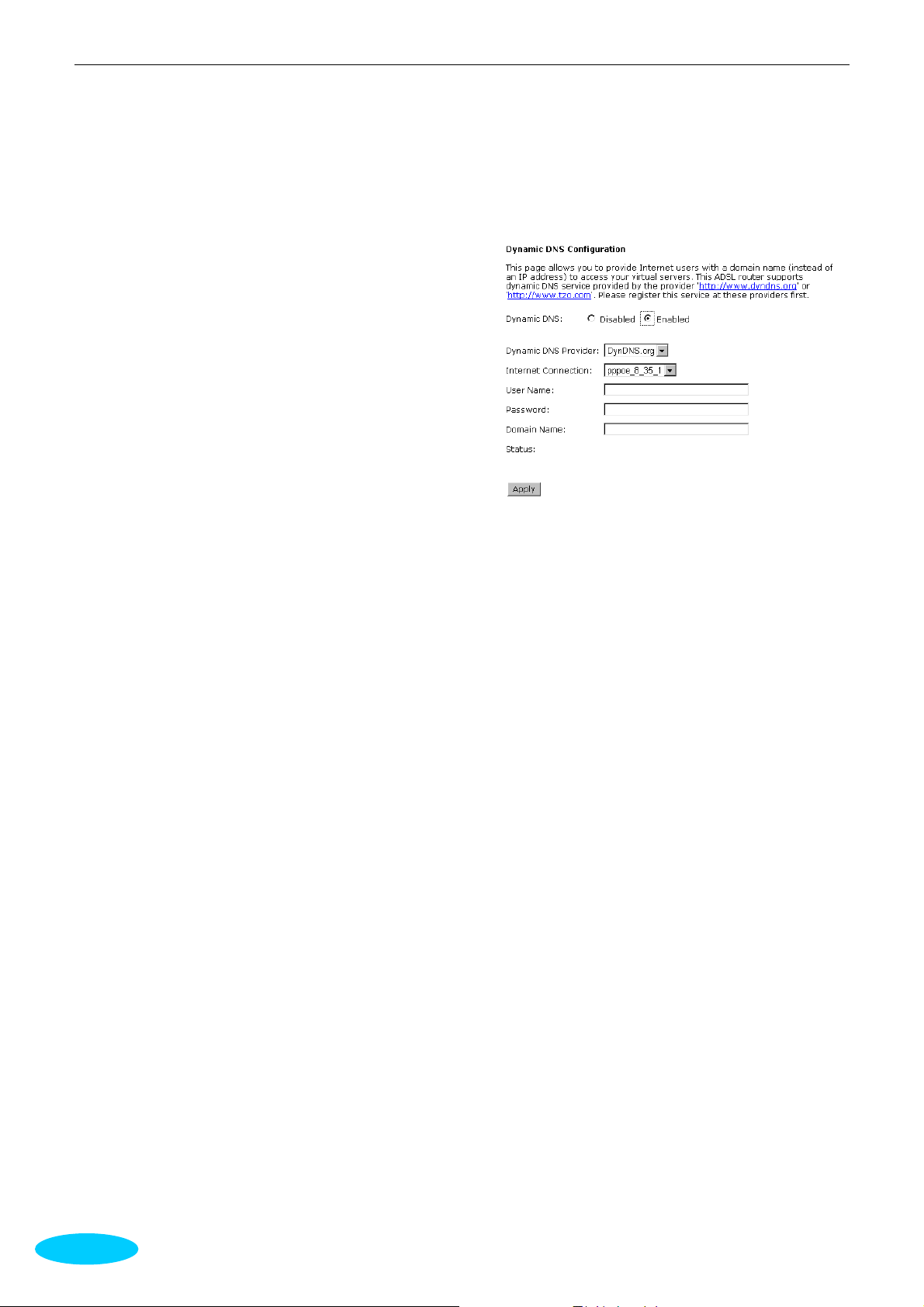

Virtual Servers - Dynamic DNS ................................................................. 66

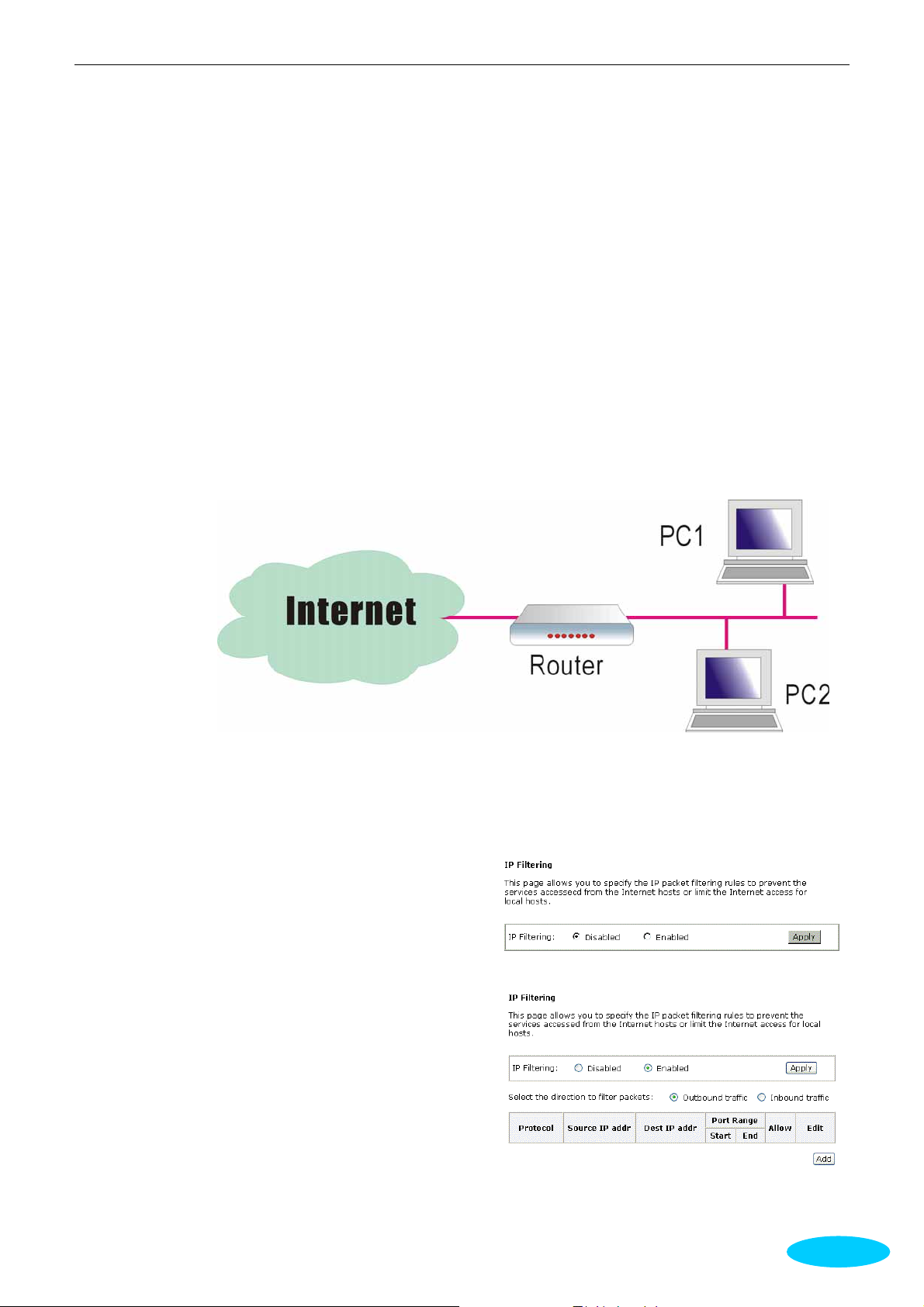

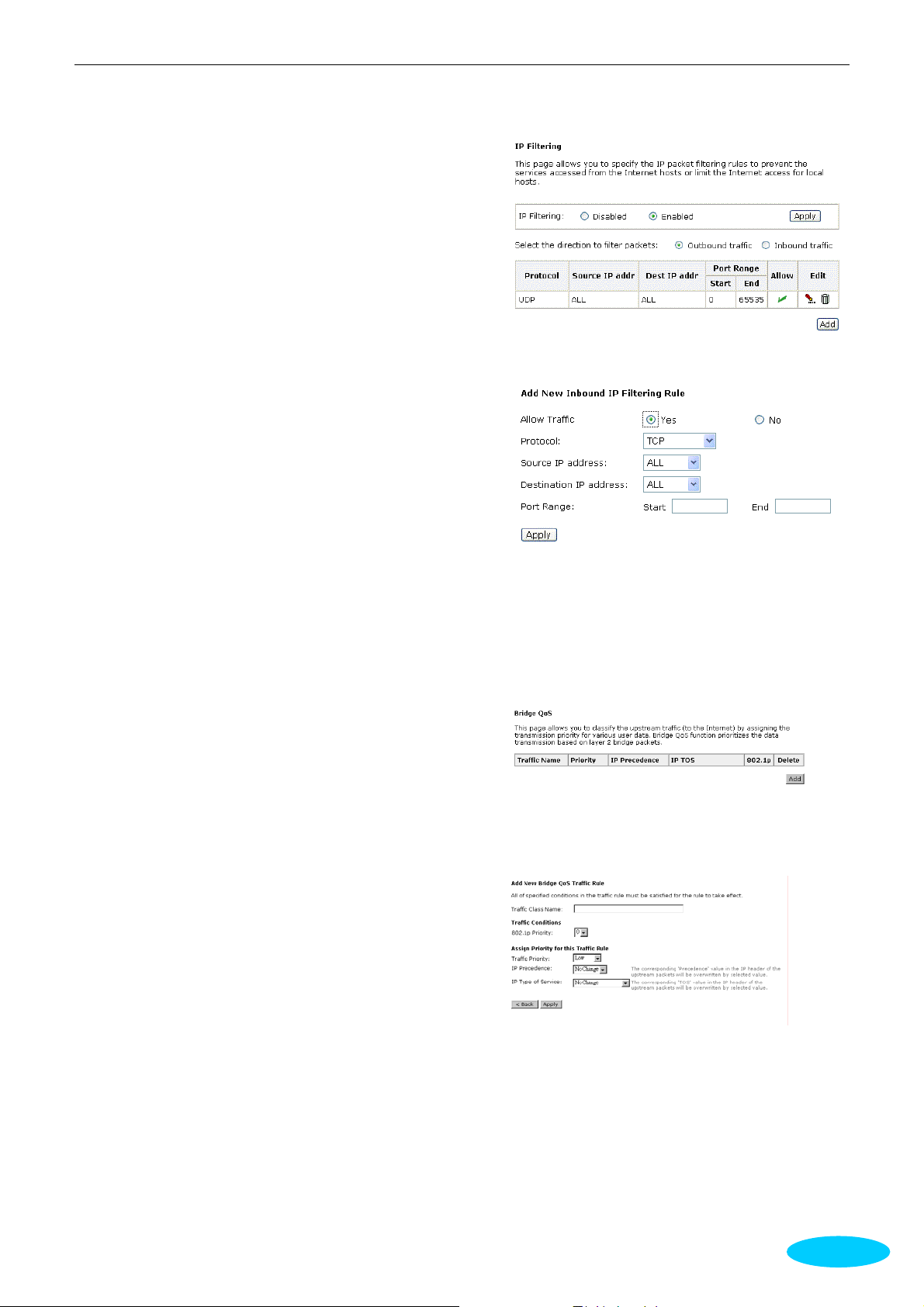

Firewall ................................................................................................. 67

Quality of Service ................................................................................... 69

Wireless .......................................................................................................... 73

Basic..................................................................................................... 73

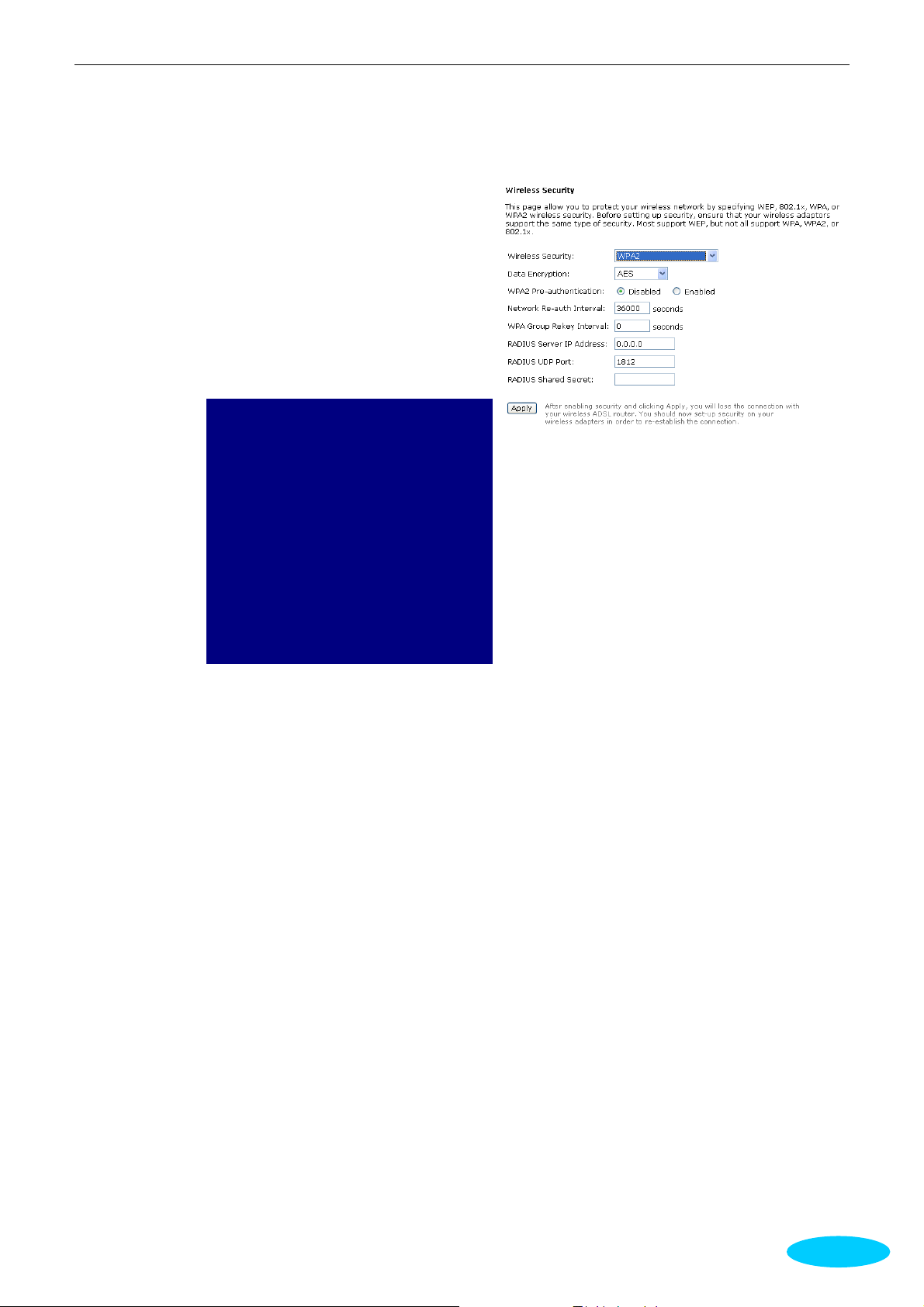

Security ................................................................................................ 75

Access Controls ...................................................................................... 83

Repeater ............................................................................................... 84

Management.................................................................................................... 85

Diagnostics............................................................................................ 85

Admin Account ....................................................................................... 86

Remote Access....................................................................................... 86

Interntet Time........................................................................................ 87

System Log............................................................................................ 87

SNMP Setting......................................................................................... 89

Backup Config........................................................................................ 90

Update Firmware .................................................................................... 90

Reset Router.......................................................................................... 90

UPnP for XP ........................................................................................... 91

Chapter 5: Troubleshooting ................................................................. 93

Problems with LAN............................................................................................ 93

Contents

Problems with WAN........................................................................................... 93

Problems with Upgrading ................................................................................... 94

Chapter 6: Glossary ............................................................................. 95

Appendix A: Specifications .................................................................. 99

Appendix B: Server Setup for 802.1x Client....................................... 101

Getting Client Certificate........................................................................ 101

Enable 802.1x authentication and Encryption for wireless card .................... 103

vii

ADSL Router User Manual

viii

Preface

Thank you for choosing the Asymmetric Digital Subscriber Line (ADSL) Router. With the asymmetric technology, this device runs over standard copper phone lines. In addition, ADSL allows you to have both voice and data services in use simultaneously all over one phone line.

RTA1030W Wireless ADSL2+ Router is a DSL broadband access device which allows ADSL connectivity while providing 802.11g wireless LAN capabilities for home or office users. It supports ADSL2/ADSL2+ and is backward compatible to ADSL, even offers auto -negotiation capability for different flavors (G.dmt, G.lite, or T1.413 Issue 2) according to central office DSLAM’s settings (Digital Subscriber Line Access Multiplexer). Also the feature-rich routing functions are seamlessly integrated to ADSL service for existing corporate or home users. Now users can enjoy various bandwidth-consuming applications via RTA1030W Wireless ADSL2+ Router.

Features

ADSL Compliance

³ ANSI T1.413 Issue 2 ³ ITU G.992.1 Annex A (G.dmt) ³ ITU G.992.2 Annex A (G.lite) ³ ITU G.994.1 (G.hs) ³ Support dying gasp ³ Maximum Rate: 8 Mbps for downstream and 1 Mbps for upstream

ADSL2 Compliance

³ ITU G.992.3 Annex A (G.dmt) ³ ITU G.992.4 Annex A (G.lite) ³ Maximum Rate: 12 Mbps for downstream and 1.5 Mbps for upstream

ADSL2+ Compliance

³ ITU G.992.5 Annex A (G.dmt) ³ Maximum Rate: 24 Mbps for downstream and 3 Mbps for upstream

Wireless LAN Compliance Features

³ IEEE 802.11g and IEEE 802.11b ³ Data Rate: 54, 48, 36, 24, 18, 12, 9, 6 Mbps for 80 2. 11g/11, 5.5, 2, 1 Mbps for 802.11b ³ Modulation Technique: OFDM for 802.11g; CC K (11 Mbps, 5.5 Mbps) for 802.11b; DQPSK

(2Mbps) for 802.11b; DBPSK (1 Mbps) for 802.11b

³ Network Architecture: infrastructure

ADSL Router User Manual

³ Operating Frequency: 2.4 ~ 2.5 GHz ³ Operating Channels: depending on local regulations. For example, 11Channels (Northern

America), 13 Channels (Europe), and 14 Channels (Japan)

³ RF Output Power: 18.35 dBm (68mW) for 802.11g

22.07 dBm (161mW) for 802.11b

³ Antenna Connectors: Hardware diversity support. One external and one internal antenna are

provided.

³ Coverage Area: 300m ³ Support WEP (Wired Equivalent Privacy) mechanism which uses RC4 with 64-bit or 128-bit

key length

³ Support WP A ³ Support the Access Control function: only registered WLAN clients are allowed to associate to

this device

³ SSID can be hidden for the security issue (Don’t broadcast SSID) ³ Support the Repeater function to extend the coverage area ³ Support wireless user isolation for the hotspot

ATM Features

³ Compliant to ATM Forum UNI 3.1 / 4.0 Permanent Virtual Circuits (PVCs) ³ Support up to 16 PVCs for UBR, CBR, VBR-nrt, VBR-rt with traffic shaping ³ RFC2684 LLC Encapsulation and VC Multiplexing over AAL5 ³ RFC2364 Point-to-Point Protocol (P PP) over AAL5 ³ RFC2225 Classical IP and ARP over ATM ³ RFC2516 PPP over Ethernet: support Relay (Transparent Forwarding and Client functions) ³ Support PPPoA or PPPoE Bridged mode (the IP address got from ISP can be passed to the

user’s PC and behave as the IP address of the user’s PC.)

³ OAM F4/F5 End-to-End/Segment Loopback Cells

Bridging Features

³ Supports self-learning bridge specified in IEEE 802.1D Transparent Bridging ³ Supports up to 4096 learning MAC addresses ³ Transparent Bridging among 10/100 Mb Ethernet and 802.11g wireless LAN

Routing Features

³ NAT (Network Address Translation) / PAT (Port Address Translation) let multiple users (up to

128) on the LAN to access the Internet for the cost of only one IP address.

³ ALGs (Application Level Gateways): such as NetMeeting, MSN Messenger, FTP, Quick Time,

mIRC, Real Player, CuSeeMe, VPN pass-through with multiple sessions, etc.

³ Port Mapping: the users can setup multiple virtual servers (e.g., Web, FTP, Mail servers) on

user’s local network.

³ Support DMZ

UPnP IGD (Internet Gateway Device) with NAT traversal capability

³ Static routes, RFC1058 RIPv1, and RFC1723 RIPv2 ³ DNS Relay, Dynamic DNS ³ DHCP Client/Relay/Server

ADSL Router User Manual

³ Time protocol can be used to get current time from network time server ³ Support IP/Bridge QoS for prioritize the transmission of different traffic classes

Security Features

³ PAP (RFC1334), CHAP (RFC1994), and MS-CHAP for PPP session ³ Firewall support IP packets filtering based on IP address/Port number/Protocol type ³ Bridge packet filtering (optional) ³ URL filtering (optional) ³

Support DoS (Deny of Services) which detect & protect a number of attacks (such as SYN/FIN/RST Flood, Smurf, WinNuke, Echo Scan, Xmas Tree Scan, etc)

Configuration and Management

³ User-friendly embedded web configuration interface with password protection ³ Remote management access control ³ Telnet session for local or remote management ³ Firmware upgrades through HTTP, TFTP ³ The boot loader contains very simple web page to allow the users to update the run-time

firmware image.

³ Configuration file backup and restore ³ SNMPv1/v2 agent with MIB-II, ADSL Line MIB

Unpacking

Check the contents of the package against the pack contents checklist below. If any of the items is missing, then contact the dealer from whom the equipment was purchased.

³ ADSL Router ³ Power Adapter and Cord ³ RJ-11 ADSL Line Cable ³ RJ-45 Ethernet Cable ³ USB Cable ³ Quick Start Guide ³ Driver & Utility Software CD

Subscription for ADSL Service

To use the ADSL Router, you have to subscribe for ADSL service from your broadband service provider. According to the service type you subscribe, you will get various IP addresses:

Dynamic IP: If you apply for dial-up connection, you will be given an Internet account with username and password. You will get a dynamic IP by dialing up to your ISP.

Static IP address: If you apply for full-time connectivity, you may get either one static IP address or a range of IP addresses from your ISP. The number of IP addresses varies according to different ADSL service provider.

ADSL Router User Manual

xii

Chapter 1: Overview

This chapter provides you the description for the LED and connector for front and rear view of the router . Bef ore you use/install this router, please take a look at this information first.

Physical Outlook

Front Panel

The following illustrations show the front panel of the ADSL Router:

LED Indicators

The ADSL Router is equipped with several LEDs on the front panel as described in the table below (from left to right):

Function Color Definition

Off No radio signal is detected.

WLAN

USB

Flash Green User data going through WLAN port Solid Green WLAN interface is ready to work. Off No USB signal is detected. Flash Green User data going through USB port Solid Green USB interface is ready to work. Off No Ethernet signal is detected.

Ethernet

PPP

DSL

Flash Green User data going through Ethernet port Solid Green Ethernet interface is ready to work. Off No PPPoA or PPPoE connection Flash Green At least one PPPoA or PPPoE connection is

up.

The users can access the Internet now. Off No DSL signal is detected. Slow Flash Green DSL line handshaking in progress Fast Flash Green DSL line training in progress

ADSL Router User Manual

Function Color Definition

Solid Green DSL line connection is up. Off Power is off. Solid Green Power is on and the device operates normally. Solid Red

Power

Power on self-test in progress

The device enters the console mode of the boot

loader.

Power on self-test failure if the led always stays

solid red. Flash Red Firmware upgrades in progress

Rear Panel

The following figures illustrate the rear panel of your ADSL Router.

Connector Description

12VAC

Ethernet USB DSL

12VAC Power connector Power switch Ethernet RJ-45 connector USB interface connector RJ-11 connector

Chapter 2:System Requirement and Installation

Chapter 2: System Requirement and

Installation

System Requirement

To access the ADSL Router via Ethernet, the host computer must meet the following requirements:

 With Ethernet network interface.  Must have TCP/IP installed.  Set client PC with obtain an IP address automatically or set fix IP address.  With a web browser installed: Internet Explorer 5.x or later.

The ADSL Router is configured with the default IP address of 192.168.1.1 and subnet mask of 255.255.255.0. As the DHCP server is Enable by default, The DHCP clients should be able to access the ADSL Router. Or you could assign an IP address to the host PC first for initial configuration.

You also can manage the ADSL Router through a web browser-based manager: ADSL ROUTER CONTROL PANEL. The ADSL Router manager uses the HTTP protocol via a web browser to allow you to set up and manage the device.

To configure the device via web browser, at least one properly-configured PC must be connected to the network (either connected directly or through an external hub/switch to the LAN port of the device).

Choosing a place for the ADSL Router

n Place the ADSL Router close to ADSL wall outlet and power outlet for the cable to reach it

easily.

o Avoid placing the device in places where people may walk on the cables. Also keep it away

from direct sunlight or heat sources.

p Place the device on a flat and stable stand.

ADSL Router User Manual

Connecting the ADSL Router

Follow the steps below to connect the related devices.

n Connecting the ADSL line. Connect the

DSL port of the device to your ADSL wall outlet with RJ-11 cable.

o Please attach one end of the Ethernet

cable with RJ-45 connector to the LAN port of your ADSL Router.

p Connect the other end of the cable to the

Ethernet port of the client PC.

q Connect the supplied power adapter to

the PWR port of your ADSL Router, and plug the other end to a power outlet.

r Turn on the power switch.

Chapter 3: Configuration

For connecting through a hub, please refer to the following diagram for an example.

USB Driver Installation

If the ADSL Router is connected to a PC through USB interface, you will be prompted for the USB drivers when plugging the USB cable to the PC. Refer to the relevant operating system to install the USB drivers. Otherwise, you may skip this chapter.

Note: This section is for the model with USB interface only. If your router does not support USB interface, please skip this section.

For Windows ME

n Run the USB installation program from the CD provided by your router package.

o An InstallShield Wizard will appear. Please wait for a moment.

p When the InstallShield Wizard Complete appears, click Finish.

q Plug the USB cable between your router and PC.

Note: If the USB device is not detected, check the USB cable between the PC and the device. Also verify that the device is power on.

r The USB driver installation finished. You can use the router now.

For Windows 2000

n Run the USB installation program from the CD provided by your router package.

o An InstallShield Wizard will appear. Please wait for a moment.

ADSL Router User Manual

p When the welcome screen appears, click Next for next step.

q When the InstallShield Wizard Complete appears, click Finish.

r Plug the USB cable between your router and PC.

s The system will detect the USB driver au tomaticall y. When the system detects it, a dialog

of Digital Signature Not Found will appear. Click Yes for next step.

t Now, the system will copy the proper files for this router. u When the file copying finished, the dialog above will close. Now the USB driver is

installed properly. You can use the router.

For Windows XP

Note: If the USB device is not detected, check the USB cable

between the PC and the device. Also verify that the device is power on.

n Run the USB installation program from the CD provided by your router package.

o An InstallShield Wizard will appear. Please wait for a moment.

p When the welcome screen appears, click Next for next step.

q When the InstallShield Wizard Complete appears, click Finish.

r Plug the USB cable between your router and PC.

Note: If the USB device is not detected, check the USB cable between the PC and the device. Also verify that the device is power on.

s The system will detect the USB driver au tomaticall y. When the system detects it, a dialog

of Welcome to the Found New Hardware Wizard will appear. Click Next for next step.

t The system is trying to find proper driver for your router and copying the files

automatically.

u After the file cop ying is finished, a completing dialog will appear. Click Finish.

v You can use the router now.

Uninstall the USB Driver

For Windows ME

For uninstall the USB driver, please do the following.

n Run the USB installation program from the CD provided by your router package. The

InstallShield Wizard screen will appear.

o The system will search all the USB drivers on your co mputer. Please wait for a minute.

Then, a dialog appears to ask you confirm if you want to remove the USB driver or not. Please click Ok.

p When the Maintenance Complete screen appears, the USB driver is removed successfully.

Please click Finish.

Chapter 3: Configuration

q Unplug the USB cable between your router and your PC.

For Windows 2000

For uninstall the USB driver, please do the following.

n Run the USB installation program from the CD provided by your router package. The

InstallShield Wizard screen will appear. Please wait for a moment.

o A dialog appears to ask you confirm if you want to remove the USB driver or not. Please

click Ok.

p When the Maintenance Complete screen appears, the USB driver is removed successfully.

Click Finish.

q Unplug the USB cable between your router and your PC.

For Windows XP

For uninstall the USB driver, please do the following.

n Run the USB installation program from the CD provided by your router package. The

InstallShield Wizard screen will appear. Please wait for a moment.

o A dialog appears to ask you confirm if you want to remove the USB driver or not. Please

click Ok.

p When the Maintenance Complete screen appears, the USB driver is removed successfully.

Click Finish.

q Unplug the USB cable between your router and your PC.

Setting TCP/IP

In order to access the Internet through the router, each host on your network must install/setup TCP/IP. Please follow the steps below for select a network adapter.

ADSL Router User Manual

For Windows 98

1. Click on the Start menu, point

to Settings and click on Control Panel.

2. Double-click the Network icon

3. The Network window appears. On the

Configuration tab, check out the list of installed network components.

Option 1: If you have no TCP/IP protocol, click Add.

Option 2: If you have TCP/IP protocol, go to Step 6

Your network interface card.

Check out if TCP/IP for your NIC is installed or not.

4. Highlight Protocol and click Add.

5. On the left side of the windows,

highlight Microsoft and then select TCP/IP on the right side. Then click OK

6. When returning to Network window,

highlight TCP/IP protocol for your NIC and click Properties.

Chapter 3: Configuration

7. On IP Address tab:

Enable Specify an IP address option. Enter the IP Address: 192.168.1.x (x is between 2 and 254) and Subnet Mask:

255.255.255.0 as in figure below. On Gateway tab: Add a gateway IP address:

192.168.1.1 and click OK

ADSL Router User Manual

8. When returning to Network window,

click OK

9. Wait for Windows copying files.

10. When prompted with System Settings

Change dialog box, click Yes to restart your computer.

For Windows ME

Chapter 3: Configuration

1. Click on the Start menu, point to

Settings and click on Control Panel.

2. Double-click the Network icon.

3. The Network window appears. On the

Configuration tab, check out the list of installed network components. Option 1: If you have no TCP/IP protocol, click Add. Option 2: If you have TCP/IP protocol, go to Step 6.

4. Highlight Protocol and click Add.

5. On the left side of the windows,

highlight Microsoft and then select

TCP/IP on the right side. Then click OK.

6. While returning to Network window,

highlight TCP/IP protocol for your NIC and click Properties.

7. On the IP Address tab, select Specify

an IP address. Enter the IP address:

192.168.1.x (x is between 2 and 254), Subnet Mask: 255.255.255.0 and Default gateway: 192.168.1.1. Then

click OK.

8. While returning to the Network

window, click OK.

ADSL Router User Manual

9. Wait for Windows copying files.

10. When prompted with the System

Settings Change dialog box, click Yes to restart your computer.

For Windows NT

1. Click Start, point to Settings, and then

click Control Panel.

2. Double-click the Network icon.

3. The Network window appears. On the

Protocols tab, check out the list of installed network components. Option 1: If you have no TCP/IP Protocol, click Add. Option 2: If you have TCP/IP Protocol installed, go to Step 7.

4. Highlight TCP/IP Protocol and click

OK.

5. Click Yes to use DHCP.

6. Insert the Windows NT CD into your

CD-ROM drive and type the location of the CD. Then click Continue.

7. Returning to the Network window, you

will find the TCP/IP Protocol among the list. Select TCP/IP Protocol and click Properties.

Chapter 3: Configuration

8. Enable Specify an IP address option.

Enter the IP Address: 192.168.1.x (x is between 2 and 254) and Subnet

Mask: 255.255.255.0 and Default Gateway: 192.168.1.1 as in figure

below.

ADSL Router User Manual

9. When returning to Network window,

click Close.

10. When prom pt ed wi t h Network

Settings Change dialog box, click Yes to restart your computer.

For Windows 2000

1. From the Start menu, point to Settings

and then click Network and Dial-up Connections.

2. Right-click the Local Area

Connection icon and then click Properties.

Chapter 3: Configuration

3. On the General tab, check out the list

of installed network components. Option 1: If you have no TCP/IP Protocol, click Install. Option 2: If you have TCP/IP Protocol, go to Step 6.

ADSL Router User Manual

4. Highlight Protocol and then click

Add.

5. Click Internet Protocol (TCP/IP) and

then click OK.

6. When returning to Local Area

Connection Properties window, highlight Internet Protocol (TC P / IP) and then click Properties.

7. Under the General tab, enable Use the

following IP Address. Enter the IP address: 192.168.1.x (x is between 2 and 254), Subnet Mask:

255.255.255.0 and Default gateway:

192.168.1.1. Then click OK.

For Windows XP

Chapter 3: Configuration

From the Start menu, point to Control

Panel and then click Network and Internet Connections.

Click Network Connection and then

click Properties.

Click Network Connection and then

click Properties.3. On the General tab, check out the list of installed network components. Option 1: If you have no TCP/IP Protocol, click Install. Option 2: If you have TCP/IP Protocol, go to Step 6.

Highlight Protocol and then click Add. Click Internet Protocol(TCP/IP) and

then click OK.

On the Local Area Connection

Properties window, highlight Internet Protocol (TCP/IP) and then click Properties.

Under the General tab, enable Use the

following IP address. Enter the IP address: 192.168.1.x (x is between 2

and 254), Subnet Mask: 255.255.255.0 and Default gateway: 192.168.1.1. Then click Ok.

ADSL Router User Manual

Configure PC to get IP address from DHCP

If your ADSL Router operates as a DHCP server for the client PCs on the LAN, you should configure the client PCs to obtain a dynamic IP address. Please follow the previous section to install TCP/IP component. Only that you do not need to specify an IP address when configuring TCP/IP properties.

The following section describe the procedures for CPEs to get IP address:

For Windows 98

On the IP Address tab, select Obtain an IP address automatically. Then click OK.

For Windows ME

On the IP Address tab, select Obtain an IP address automatically. Then click OK.

For Windows NT

On the IP Address tab, click on the drop-down arrow of Adapter to select required adapter. Enable Obtain an IP

address from a DHCP server and then click OK..

Chapter 3: Configuration

When prompted with the message below, click Yes to continue.

For Windows 2000

Enable Obtain an IP address automatically and then click OK.

ADSL Router User Manual

For Windows XP

On the IP Address tab, select Obtain an IP address automatically. Then click OK.

Renew IP Address on Client PC

There is a chance that your PC does not renew its IP address after the ADSL Router is on line and the PC cannot access the Internet. Please follow the procedures below to renew PC’s IP address.

For Windows 98ME

1. Select Run from the Start menu.

2. Type winipcfg in the dialog box and

the click OK.

3. When the figure below appears, click

Release and then Renew to get an IP address.

For Windows NT

1. Select Run from the Start menu.

Chapter 3: Configuration

2. Select Run from the Start menu.

3. Type cmd in the dialog box and the click

OK.

4. Type ipconfig at prompt. Then you

will see the IP information from DHCP server.

5. If you want to get a new IP address, type

ipconfig /release to release the previous IP address and then type ipconfig /renew to get a new one.

ADSL Router User Manual

For Windows 2000

1. From the Start menu, point to

Programs, Accessories and then click Command Prompt.

2. Type ipconfig at prompt. Then you

will see the IP information from DHCP server.

3. If you want to get a new IP address, type

ipconfig /release to release the previous IP address and then type ipconfig /renew to get a new one.

For Windows XP

1. Type ipconfig at prompt. Then you

will see the IP information from DHCP server.

2. From the Start menu, point to

Programs, Accessories and then click Command Prompt.

3. Type ipconfig at prompt. Then you

will see the IP information from DHCP server.

4. If you want to get a new IP address, type

ipconfig /release to release the previous IP address and then type ipconfig /renew to get a new one.

Chapter 3:Connecting and Accessing Internet

Ch ap ter 3: Connecting and Accessing

Internet

This chapter is to help you accessing into Internet with a quick and convenient way. If you need more detailed information for web configuration, please get into the next chapter for the advanced configuration.

Prior to configuring the ADSL Router, you must decide whether to configure the ADSL Router as a bridge or as a router. This chapter presents some deployment examples for your reference. Each mode includes its general configure procedures. For more detailed information about web configuration, refer to "Web Configuration".

 PPP over ATM (PPPoA)  PPPoA IP Extenstion  PPP over Ethernet (PPPoE)  PPPoE IP Exte nsi o n  Numbered IP over A TM (IPoA)  Numbered IP over A TM (IPoA)+ NAT  Unnumbered IP over ATM (IPoA)  Unnumbered IP over ATM (IPoA)+NAT  Bridging

For making sure that you can connect the ADSL to your computer well and get into Internet successfully, please make sure the following first.

 Make sure you have installed a network interface card into your computer.  Make sure the connection between the ADSL and your computer is OK.  Check to see the TCP/IP protocol and set the IP address as “Auto Get IP Address”.

When you are sure all above is Ok, you can open the Browser and type in “192.168.1.1” and start to do the web configuration with different connection modes.

This chapter is going to introduce the function of each connection mode and tell you the basic configuring steps that you have to do. If you did not follow the configuring steps for us ing these connection modes, you might get some connection problems and cannot connect to Internet well.

ADSL Router User Manual

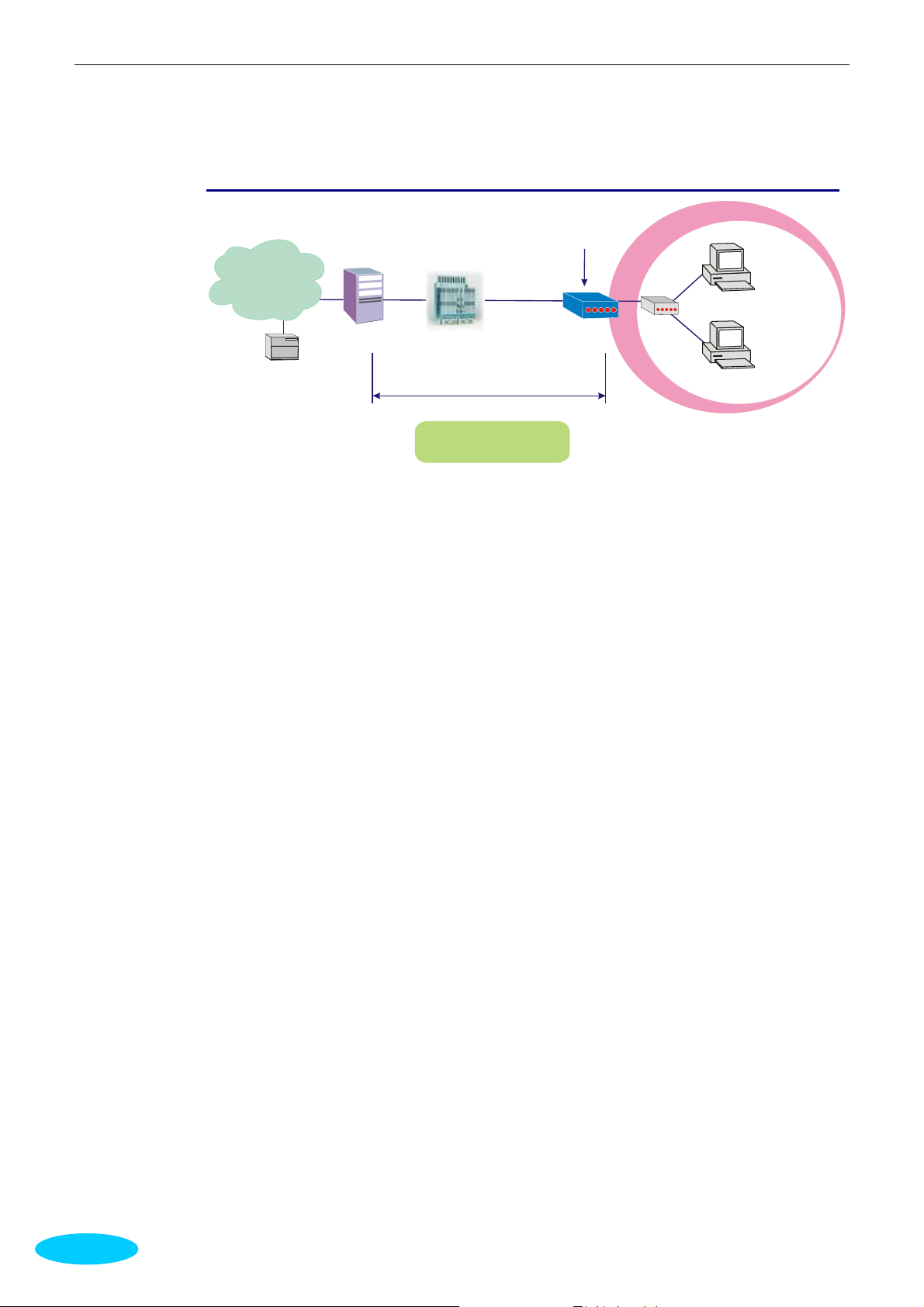

PPP over ATM (PPPoA) Mode

Default Private IP

192.168.1.1

192.168.1.3

Ethernet

Hub

192.168.1.2

PC(S)

ISP

(Internet Service Provider)

AAA

RDAIUS Server

*BRAS: Broadband Remote Access Server

BRAS

Dynamic Public IP assigned by BRAS

STM-1

DSLAM

PPP over ATM

PPPoA+NAT+DHCP on Private LAN

Loop

ADSL Router

Description:

In this deployment environment, the PPPoA session is between the ADSL WAN interface and BRAS. The ADSL Router gets a public IP address from BRAS when connecting to DSLAM. The multiple client PCs will get private IP address from the DHCP server enabled on private LAN. The enabled NAT mechanism will translate the IP information for clients to access the Internet.

Configuration:

1. Start up your browser and type 192.168.1.1 as the address to enter this ADSL web-based

manager.

2. Go to Quick Start -Quick Setup. Uncheck Auto Scan Internet Connection (PVC). T ype in

the VCI and VPI value. Then click the Next button. eg:

VPI – 0 VCI – 38

3. On the Configure Internet Connection -Connection Type page, select the PPP over ATM

(PPPoA) then click the Next button.

4. In the WAN IP Settings page, select Obtain an IP address automatically and check Enable

NAT bo x. Click Next.

5. In the PPP Username and Password page, enter the PPP username and password that you got

from your ISP. Select Dial on Demand and type in the number for inactivity timeout. The default is 20. Or select Always on. Then click Next.

6. In the Configure LAN side Settings page, type in the IP address and subnet mask for your

LAN. Check DHCP Server on box. And type in the start and end points. Then type in the leased time that you want. And click Next. eg:

Primary IP address:192.168.1.1 Subnet Mask:255.255.255.0 Start IP Address:192. 1 68 .1 . 2 End IP Address: 192.168.1.254

7. Check the network information. Make sure the settings match the settings provided by ISP.

Click Finish.

Chapter 3:Accessing Internet

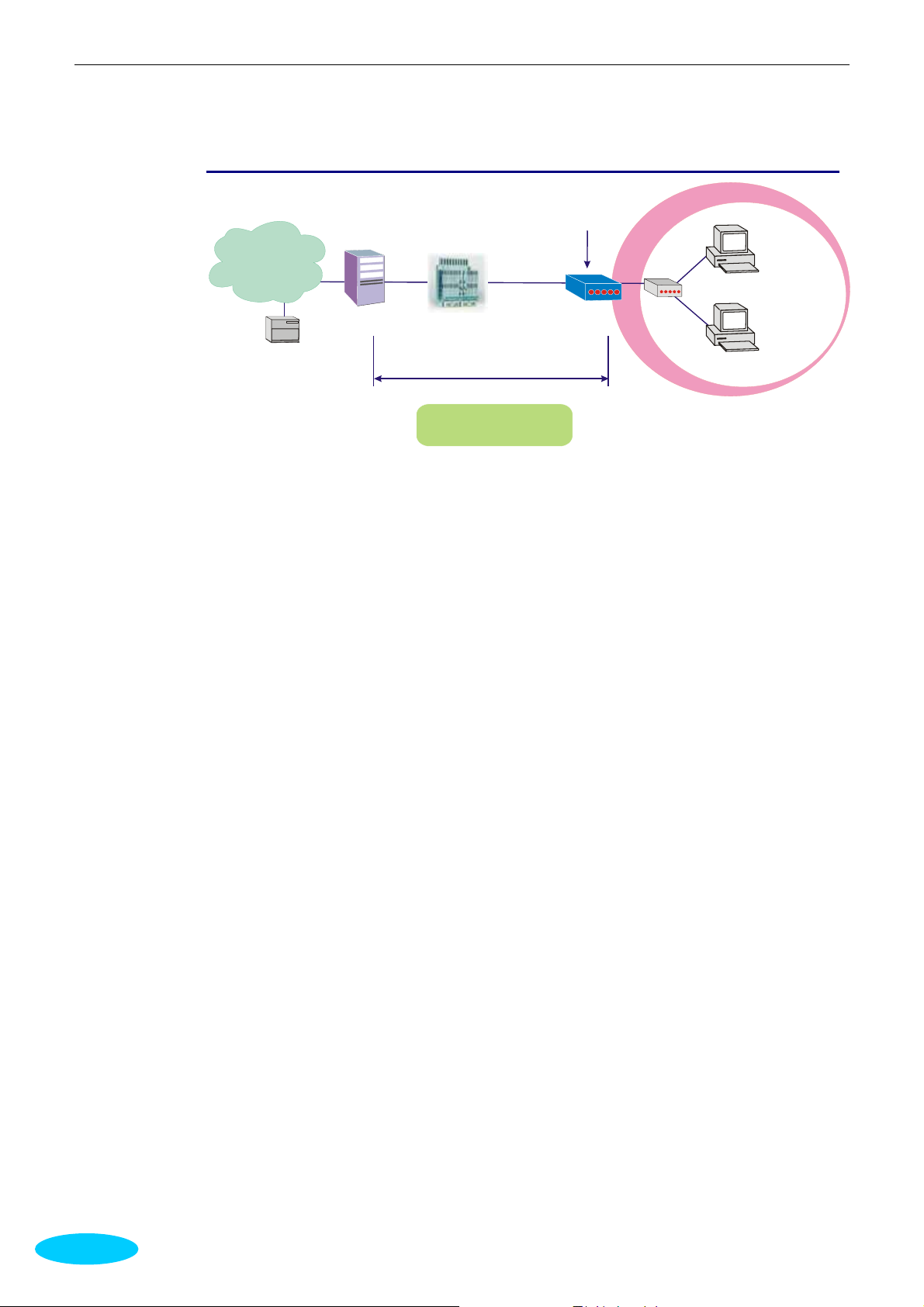

PPP over ATM (PPPoA) IP Extension Mode

ISP

(Internet Service Provider)

AAA

RDAIUS Server

BRAS

STM-1

DSLAM

Loop

ADSL Router

Default Private IP

192.168.1.1

Dynamic Public IP assigned by BRAS

Ethernet

Hub

*BRAS: Broadband Remote Access Server

PPP over ATM

PPPoA+NAT+DHCP on Private LAN

Description:

In this deployment environment, the PPPoA session is between the ADSL WAN interface and BRAS. The ADSL Router acts as a bridge and gets a public IP address from BRAS for your computer. And only the one that got the public IP address is allowed to access to Internet. Moreover, no NAT translation will be done at this case.

Configuration:

1. Start up your browser and type 192.168.1.1 as the address to enter this ADSL web-based

manager.

2. Go to Advanced - Internet - Connections. And click Add.

3. Type in the VCI and VPI value. Then click the Next button. eg:

VPI – 0 VCI – 38

4. On the Configure Internet Connection -Connection Type page, select the PPP over ATM

(PPPoA) then click the Next button.

5. In the WAN IP Settings page, select Obtain an IP address automatically, uncheck Enable

NAT bo x a n d check PPP IP extension then click Next.

6. In the PPP Username and Password page, enter the PPP username and password that you got

from your ISP. Select Dial on Demand and type in the number for inactivity timeout. The default is 20. Or select Always on. Then click Next.

7. In the Configure LAN side Settings page, type in the IP address and subnet mask for your

LAN. And click Next. eg:

Primary IP address:192.168.1.1 Subnet Mask:255.255.255.0

8. Check the network information. Make sure the settings match the settings provided by ISP.

Click Finish.

ADSL Router User Manual

PPP over Ethernet (PPPoE) Mode

Default Private IP

192.168.1.1

192.168.1.3

Ethernet

Hub

192.168.1.2

PC(S)

ISP

(Internet Service Provider)

AAA

RDAIUS Server

*BRAS: Broadband Remote Access Server

BRAS

Dynamic Public IP assigned by BRAS

STM-1

DSLAM

Loop

PPP over Ethernet

PPPoE+NAT+DHCP on Private LA N

ADSL Router

Description:

In this deployment environment, the PPPoE session is between the ADSL WAN interface and BRAS. The ADSL Router gets a public IP address from BRAS when connecting to DSLAM. The multiple client PCs will get private IP address from the DHCP server enabled on private LAN. The enabled NAT mechanism will translate the IP information for clients to access the Internet.

Configuration:

1. Start up your browser and type 192.168.1.1 as the address to enter this ADSL web-based

manager.

2. Go to Quick Start -Quick Setup. Uncheck Auto Scan Internet Connection (PVC). T ype in

the VCI and VPI value. Then click the Next button. eg:

VPI – 0 VCI – 39

3. On the Configure Internet Connection -Connection Type page, select the PPP over

Ethernet (PPPoE) then click the Next button.

4. In the WAN IP Settings page, select Obtain an IP address automatically and check Enable

NAT bo x. Click Next.

5. In the PPP Username and Password page, enter the PPP username and password that you got

from your ISP. Select Dial on Demand and type in the number for inactivity timeout. The default is 20. Or select Always on. Then click Next.

6. In the Configure LAN side Settings page, type in the IP address and subnet mask for your

LAN. Check DHCP Server on box. And type in the start and end points. Then type in the leased time that you want. And click Next. eg:

Primary IP address:192.168.1.1 Subnet Mask:255.255.255.0 Start IP Address:192. 1 68 .1 . 2 End IP Address: 192.168.1.254

7. Check the network information. Make sure the settings match the settings provided by ISP.

Click Finish.

Chapter 3:Accessing Internet

PPP over Ethernet (PPPoE) IP Extension Mode

Default Pr ivate IP

192.168.1.1

ISP

(Internet Service Provider)

STM-1

Loop

Ethernet

Dynamic Public IP assigned by BRAS

Hub

PC(S)

AAA

RDAIUS Server

*BRAS: Broa dband Remote Access Server

BRAS

DSLAM

ADSL Router

PPP over Ethernet

PPPoE IP Extension Mode

Description:

In this deployment environment, the PPPoE session is between the ADSL WAN interface and BRAS. The ADSL Router acts as a bridge and gets a public IP address from BRAS for your computer. And only the one that got the public IP address is allowed to access to Internet. The real IP that you got is acquired from ISP. Moreover, no NAT translation will be done at this case.

Configuration:

1. Start up your browser and type 192.168.1.1 as the address to enter this ADSL web-based

manager.

2. Go to Advanced - Internet - Connections. And click Add.

3. Type in the VCI and VPI value. Then click the Next button. eg:

VPI – 0 VCI – 39

4. On the Configure Internet Connection -Connection Type page, select the PPP over

Ethernet (PPPoE) then click the Next button.

5. In the WAN IP Settings page, select Obtain an IP address automatically, uncheck Enable

NAT bo x a n d check PPP IP extension then click Next.

6. In the PPP Username and Password page, enter the PPP username and password that you got

from your ISP. Select Dial on Demand and type in the number for inactivity timeout. The default is 20. Or select Always on. Then click Next.

7. In the Configure LAN side Settings page, type in the IP address and subnet mask for your

LAN. And click Next. eg:

Primary IP address:192.168.1.1 Subnet Mask:255.255.255.0

8. Check the network information. Make sure the settings match the settings provided by ISP.

Click Finish.

ADSL Router User Manual

Numbered IP over ATM (IPoA)

Default Private IP

192.168.1.1

ISP

(Internet Service Provider)

AAA

RDAIUS Server

*BRAS: Broadband Remote Access Server

BRAS

STM-1

DSLAM

IP over ATM

Public IP Pre-assigned by ISP

Loop

10.3.70.1

ADSL Router

10.3.75.49

S/W

Hub

10.3.75.51

10.3.75.50

PC(S)

Description:

If you apply for multiple IP addresses from your ISP, you can assign these public IP addresses to the ADSL Router and public server, e.g., Web or FTP server. Typically the first IP is network address, the second is used as router IP address and the last one is subnet broadcasting. Other remaining IP addresses can be assigned to PCs on the LAN.

The following example uses the LAN IP address ranging from 10.3.75.49 to 10.3.75.54 and the subnet mask for LAN is 255.255.255.248. The WAN address is 10.3 .70.1, and the subnet mask for WAN is 255.255.255.252.

Configuration:

1. Start up your browser and type 192.168.1.1 as the address to enter this ADSL web-based

manager.

2. Go to Quick Start -Quick Setup. Uncheck Auto Scan Internet Connection (PVC). T ype in

the VCI and VPI value. Then click the Next button.

VPI – 0 VCI – 32

3. On the Configure Internet Connection -Connection Type page, select the IP over ATM

(IPoA) then click the Next button.

4. In the WAN IP Settings page, select Use the following IP address and type in the IP address,

subnet mask and gateway that you got from ISP. Then, select Use the following DNS Server Address. Type in the Primary DNS server and Secondary DNS server. Uncheck Enable NAT. Click Next for next page.

WAN IP Address: 10.3.70.1 WAN Subnet Mask: 255.255.255.252 Primary DNS server: 168.95.1.1 Secondary DNS server: 168.95.192.1

5. In the Configure LAN side Settings page, type in the IP address and subnet mask for your

LAN.

Primary IP Addr ess: 192.168.1.1 Subnet mask: 255.255.255.0 Start IP Address: 192.168.1.2 End IP Address: 192.168.1.254

6. Check Configure the second IP Address and Subnet Mask for LAN Interface and type in

the second IP address and subnet mask. Then click Next.

Secondary IP Address: 10.3.75.49 Subnet mask: 255.255.255.248

Chapter 3:Accessing Internet

7. Check the network information. Make sure the settings match the settings provided by ISP.

Click Finish.

8. Set TCP/IP for your computer. Specify an IP Address, subnet mask and set defau lt gateway. eg:

IP Address: 10.3.75.51 Subnet Mask: 255.255.255.248 Gateway: 10.3.75.49

9. Now the router is well configured. You can access to Internet.

ADSL Router User Manual

Numbered IP over ATM (IPoA)+NAT

Description:

In this deployment environment, we make up a private IP network of 192.168.1.1. NAT function is enabled (on ADSL Router or use another NAT box connected to hub) to support multiple clients to access the Router and some public servers (WWW, FTP).

Configuration:

1. Start up your browser and type 192.168.1.1 as the address to enter this ADSL web-based

manager.

2. Go to Quick Start -Quick Setup. Uncheck Auto Scan Internet Connection (PVC). T ype in

the VCI and VPI value. Then click the Next button.

VPI – 0 VCI – 32

3. On the Configure Internet Connection -Connection Type page, select the IP over ATM

(IPoA) then click the Next button.

4. In the WAN IP Settings page, select Use the following IP address and type in the IP address,

subnet mask and gateway that you got from ISP. Then, select Use the following DNS Server

Address. Type in the Primary DNS server and Secondary DNS server. WAN IP Address: 10.3.70.1 WAN Subnet Mask: 255.255.255.252 Primary DNS server: 168.95.1.1 Secondary DNS server: 168.95.192.1

5. Check the Enable NAT box. And click Next.

6. In the Configure LAN side Settings page, type in the IP address and subnet mask for your

Chapter 3:Accessing Internet

LAN.

Primary IP Addr ess: 192.168.1.1 Subnet mask: 255.255.255.0 Start IP Address: 192.168.1.2 End IP Address: 192.168.1.254

7. Check Configure the second IP Address and Subnet Mask for LAN Interface and type in

the second IP address and subnet mask. Then click Next.

Secondary IP Address: 10.3.75.49 Subnet mask: 255.255.255.248

8. Check the network information. Make sure the settings match the settings provided by ISP.

Click Finish.

9. Now the router is well configured. You can access to Internet.

ADSL Router User Manual

Unnumbered IP over ATM (IPoA)

Default Private IP

192.168.1.1

ISP

(Internet Service Provider)

AAA

RDAIUS Server

*BRAS: Broadband Remote Access Server

BRAS

STM-1

DSLAM

IP over ATM

Public IP Pre-assigned by ISP

Loop

ADSL Router

10.3.75.49

S/W

Hub

10.3.75.51

10.3.75.50

PC(S)

Description:

In such circumstance, we do not assign any WAN IP.

Configuration:

1. Start up your browser and type 192.168.1.1 as the address to enter this ADSL web-based

manager.

2. Go to Quick Start -Quick Setup. Uncheck Auto Scan Internet Connection (PVC).Type in

the VCI and VPI value. Then click the Next button.

VPI – 0 VCI – 32

3. On the Configure Internet Connection -Connection Type page, select the IP over ATM

(IPoA) then click the Next button.

4. In the WAN IP Settings page, select None for WAN IP address settings. Then, select Use the

following DNS Server Address. Type in the Primary DNS server and Secondary DNS server. Uncheck Enable NAT. Then Click Next for next page. Primary DNS server: 168.95.1.1 Secondary DNS server: 168.95.192.1

5. In the Configure LAN side Settings page, type in the IP address and subnet mask for your

LAN.

Primary IP Addr ess: 192.168.1.1 Subnet mask: 255.255.255.0 Start IP Address: 192.168.1.2 End IP Address: 192.168.1.254

6. Check Configure the second IP Address and Subnet Mask for LAN Interface and type in

the second IP address and subnet mask. Then click Next.

Secondary IP Address: 10.3.75.49 Subnet mask: 255.255.255.248

Check the network information. Make sure the settings match the settings provided by ISP.

Click Finish.

Chapter 3:Accessing Internet

8. Set TCP/IP for your computer. Specify an IP Address, subnet mask and set defau lt gateway. eg:

IP Address: 10.3.75.51 Subnet Mask: 255.255.255.248 Gateway: 10.3.75.49

9. Now the router is well configured. You can access to Internet.

ADSL Router User Manual

Unnumbered IP over ATM (IPoA)+NAT

Description:

In such circumstance, we enable NAT function but not assign any WAN IP.

Configuration:

1. Start up your browser and type 192.168.1.1 as the address to enter this ADSL web-based

manager.

2. Go to Quick Start -Quick Setup. Uncheck Auto Scan Internet Connection (PVC). T ype in

the VCI and VPI value. Then click the Next button.

VPI – 0 VCI – 32

3. On the Configure Internet Connection -Connection Type page, select the IP over ATM

(IPoA) then click the Next button.

4. In the WAN IP Settings page, select None for WAN IP address settings. Then, select Use the

following DNS Server Address. Type in the Primary DNS server and Secondary DNS server. Click Next for next page. Primary DNS server: 168.95.1.1 Secondary DNS server: 168.95.192.1

5. Check the Enable NAT box. And click Next.

6. In the Configure LAN side Settings page, type in the IP address and subnet mask for your

LAN.

Primary IP Addr ess: 192.168.1.1 Subnet mask: 255.255.255.0

Chapter 3:Accessing Internet

Start IP Address: 192.168.1.2 End IP Address: 192.168.1.254

7. Check Configure the second IP Address and Subnet Mask for LAN Interface and type in

the second IP address and subnet mask. Then click Next.

Secondary IP Address: 10.3.75.49 Subnet mask: 255.255.255.248

8. Check the network information. Make sure the settings match the settings provided by ISP.

Click Finish.

9. Now the router is well configured. You can access to Internet.

ADSL Router User Manual

Bridge Mode

Default Private IP

192.168.1.1

ISP

(Internet Service Provider)

AAA

RDAIUS Server

*BRAS: Broadband Remote Access Server

BRAS

STM-1

DSLAM

PPP over Ethernet

Bridge Mode

Loop

ADSL Router

Hub

PPPoE Client S/W

PC(S)

Description:

In this example, the ADSL Router acts as a bridge which bridging PC IP address from LAN to WAN. PC IP address can be a static public address that is pre-assigned by ISP or a dynamic public address that is assigned by ISP DHCP server, or can be got from PPPoE software.

Therefore, it does not require a public IP address. It only has a default private IP address (192.168.1.1) for management purpose.

Configuration:

1. Choose a client PC and set the IP as 192.168.1.x (x is between 2 and 254) and the gateway as

192.168.1.1.

2. Start up your browser and type 192.168.1.1 as the address to enter the web-based manager.

3. Go to Quick Start -Quick Setup. Uncheck Auto Scan Internet Connection (PVC). T ype in

the VCI and VPI value. Then click the Next button. eg:

VPI – 0 VCI – 32

4. On the Configure Internet Connection -Connection Type page, select the Bridging then

click the Next button.

5. In the Configure LAN side Settings page, type in the IP address and subnet mask for your

LAN. Finally click Next. eg:

Primary IP address:192.168.1.1 Subnet Mask:255.255.255.0

6. Check the network information. Make sure the settings match the settings provided by ISP.

Click Finish.

7. Set TCP/IP for your computer. Specify an IP Address, subnet mask and set defau lt gateway. eg:

IP Address: 10.3.86.81 Subnet Mask: 255.255.255.248 Gateway: 10.3.86.1

8. Click OK. Now the router is well configured. You can access to Internet.

Chapter 5:Connection Mode

Chapter 4: Web Configuration

Some users might want to set specific configuration for the router such as firewall, data transmission rate… and so on. This chapter will provide you advanced information of the web pages for the router for your reference.

Using Web-Based Manager

Once your host PC is properly configured, please proceed as follows:

1. Start your web browser and type the private IP address

of the ADSL Router in the URL field: 192.168.1.1.

2. After connecting to the device, you will be prompted

to enter username and password. By default, the username is admin and the password is admin. See the example for running under Windows XP.

If you login successfully, the main page will appear. From now on the ADSL Router acts as a web server sending HTML pages/forms on your request. You can fill in these pages/forms and apply them to the ADSL Router.

ADSL Router User Manual

Outline of Web Manager

For configure the web page, please use admin as the username and the password. The main screen will be shown as below.

Title: It indicates the title of this management interface. Main Menu: Includes Quick Start, Status, Advanced, Wireless and Management. Main

Window:

It is the current workspace of the web management, containing configuration or status information.

To Have the New Settings Take Effect

After select or adjust the settings to your desire, your customizations will be saved to the flash memory before you restart the router. And only after restarting the router, your customizations take effect.

Language

On the top to the right of this web page, it provides a language drop down menu for you to choose proper language to help you to set.

Chapter 5:Connection Mode

Quick Start

The pages for the Quick Start provide user a quick way to set for the router. If you do not know more about the router, you can use the Quick Start pages to adjust basic settings to make your router activating.

Connect to Internet

This is a quick way to connect to Internet by using PPPoE interface, click Connect to Internet to open the web page.

Enter the user name and password for your ADSL router and click Connect.

The system will connect automatically, then you can access Internet.

Quick Setup

The quick setup wizard will guide you to configure the DSL router through some steps.

Auto Scan Internet Connection (PVC):

The default setting is checked. If there is no any PVC configured in your ADSL router, you can check this item. Otherwise, please uncheck this box.

VPI (Virtual Path Identifier): Identifies the virtual path between endpoints in an ATM network. The valid range is from 0 to 255. To enter the setting, please refer to the setting that the ISP gave you.

VCI (Virtual Channel Identifier): Identifies the virtual channel endpoints in an ATM network. The valid range is from 32 to 65535 (1 to 31 is reserved for well-known protocols). To enter the setting, please refer to the setting that the ISP gave you.

After finished entering the VPI/VCI value, please click Next for next step.

Connection Type

The system provides several protocols for you to choose. Your ISP will offer you the most suitable settings of the protocol. Before you set this page, please refer to the protocol that your ISP gave you.

ADSL Router User Manual

After clicking on the Next button from the VPI/VCI web page, the following screen will appear. Please choose the connection type and encapsulation mode that you want to use and click Next for next page.

For example, PPP over Ethernet (PPPoE) in this screen is selected. Next, we are going to tell you different webpage for different protocol that you choose in this page.

Chapter 5:Connection Mode

PPP over ATM/ PPP over Ethernet

If the type you choose is PPP over ATM or PPP over Ethernet, please refer to the following information.

According to the ISP’s configuration on the server, you can choose PPPoE and PPPoA modes. If the ISP provides PPPoE service, the connection type selection will be decided as whether the LAN side device is running a PPPoE client or the router is to run the PPPoE client. This router suppo rt s both situations simultaneously.

Choose PPPoA or PPPoE and click Next.

In this screen, you have to choose the settings for WAN IP. To get the IP address automatically, click the Obtain an IP address automatically radio button. Or click Use the following IP address button and enter the IP address for WAN interface.

Click Enable NAT if you want. As for the detailed NAT settings, it will be described in later sections.

Click Enable QoS for your necessity. It can improve the performance for selected classes of applications. Before you check this item, please assign the priorities for various applications from the Quality of Service menu of Advanced web page. Be aware that IP QoS also consumes system resources, the number of created PVCs will be reduced consequently.

The MTU means the maximum size of the packet that transmitted in the network. The packet of the data greater than the number set here will be divided into several packets for transmitting. Type in the number into the field of MTU. The default setting is 1492.

Click Next for next screen.

ADSL Router User Manual

PPP Username:

Type in the username that you got from your ISP.

PPP Password:

Type in the password that you got from your ISP.

Always On:

Check this button to make the connection is always active.

Dial on Demand:

Click this button to make a connection while in demand. Enter the timeout to cut off the network connection if there is no activity for this router.

Manually Connect:

Click this button to make a connection by pressing the Connect button on the Advanced Setup- Internet-Connections web page.

In the Configure LAN side Settings web page, you have to fill in the data requested here.

Please type the username and password that you got from your ISP. Then click Next.

Primary IP Address:

Type in the first IP address that you got from your ISP for your LAN connection.

Subnet Mask:

Type in the subnet mask that you got from your ISP for your LAN connection.

Configure the second IP Address and Subnet Mask for LAN interface:

Check this box to make another set of IP Address and Subnet Mask to connect to your router if they are not included in the range that DHCP server accepts.

Secondary IP Address:

Type in the second IP address that you got from your ISP for your LAN connection.

Subnet Mask:

Type in the subnet mask that you got from your ISP for your LAN connection.

MTU: It means the maximum size of the packet that transmitted in the network. The packet of the data greater than the number set here will be divided into several packets for transmitting. Type in the number into th e field of MTU. The default setting is 1500.

On the Configure LAN side Settings web page, the IP address and subnet mask will be shown on it. You can modify them if needed.

Type in all the necessary settings and click Next for next page.

DHCP Server On:

Check this item if DHCP service is needed on the LAN. The router will assign IP address, gateway address for each of your

PCs.

Start IP Address: Type in the start point IP address.

End IP Address: Type in the end point IP address.

Leased Time:

Type in the duration for the time. The default is 1day.

DHCP Server Off:

Check this item if DHCP service isn’t needed on the LAN.

You can check it at this time. If you find something is incorrect, click Back to chan ge the settings.

If everything is OK, click Finish to accept these settings.

Chapter 5:Connection Mode

Now, the system will reboot to activate the new settings that you have done in this section.

Please wait for 2 minutes for restarting the router.

ADSL Router User Manual

IP over ATM

If the type you have to choose is IP over ATM, please refer to the following information. IPoA is an alternative of LAN emulation. It

allows TCP/IP network to access ATM network and uses ATM quality of service’s features.

Choose IPoA and click Next.

None:

If it is not necessary to set the WAN IP address, please click this button.

Obtain an IP address automatically:

Click this button to make the system get an IP address automatically.

WAN IP Address:

Type in the IP address that you got from ISP for the WAN interface.

WAN Subnet Mask:

Type in the subnet mask address that you got from ISP for the WAN interface.

Obtain DNS server address automatically:

Click this button to make the system get DNS server automatically.

Use the following DNS server address:

If you want to set DNS server by yourself, you have to click on this button to invoke the following entries.

Primary DNS server:

Type in your preferred DNS server that you got from ISP.

Secondary DNS server:

Type in the alternate DNS server that you got from ISP.

Click Enable NAT if you want. As for the detailed NAT settings, it will be described in later sections.

Please type in the WAN IP address, Subnet Mask and DNS server addresses. Then Click Next to get the following page.

Chapter 5:Connection Mode

In the Configure LAN side Settings web page, you have to fill in the data requested here.

Primary IP Address:

Type in the first IP address that you got from your ISP for your LAN connection.

Subnet Mask:

Type in the subnet mask that you got from your ISP for your LAN connection.

Configure the second IP Address and Subnet Mask for LAN interface:

Check this box to make another set of IP Address and Subnet Mask to connect to your router if they are not included in the range that DHCP server accepts.

Secondary IP Address:

Type in the second IP address that you got from your ISP for your LAN connection.

Subnet Mask:

Type in the subnet mask that you got from your ISP for your LAN connection.

On the Configure LAN side Settings web page, the IP address and subnet mask will be shown on it. You can modify them if needed. Click Next for next page.

DHCP Server On:

Check this item if DHCP service is needed on the LAN. The router will assign IP address, gateway address for each of your PCs.

Start IP Address: Type in the start point IP address.

End IP Address: Type in the end point IP address.

Leased Time:

Type in the duration for the time. The default is 1day.

DHCP Server Off:

Check this item if DHCP service isn’t needed on the LAN.

ADSL Router User Manual

You can check it at this time. If you find something is incorrect, click Back to chan ge the settings. If everything is OK, click Finish to accept these settings. And the following page will appear.

Now, the system will reboot to activate the new settings that you have done in this section.

Please wait for 2 minutes for restarting the router.

Chapter 5:Connection Mode

Bridging

If the type you choose is Bridging, please refer to the following information. The bridging mode can configure your router

to send packets received on any port such as ATM PVC or Ethernet with a broadcast MAC address to all other ports.

Choose Bridging and click Next.

None:

If it is not necessary to set the WAN IP address, please click this button.

Obtain an IP address automatically: Click this button to make the system get an IP address automatically.

WAN IP Address:

Type in the IP address that you got from ISP for the WAN interface.

WAN Subnet Mask:

Type in the subnet mask address that you got from ISP for the WAN interface.

Obtain DNS server address automatically:

Click this button to make the system get DNS server automatically.

Use the following DNS server address:

If you want to set DNS server by yourself, you have to click on this button to invoke the following entries.

Primary DNS server:

Type in your preferred DNS server that you got from ISP.

Secondary DNS server:

Type in the alternate DNS server that you got from ISP.

Click Enable NAT if you want. As for the detailed NAT settings, it will be described in later sections.

In the Configure LAN side Settings web page, you have to fill in the data requested here.

ADSL Router User Manual

Primary IP Address:

Type in the IP address that you got from your ISP for LAN interface.

Subnet Mask:

Type in the subnet mask that you got from your ISP for LAN interface.

DHCP Server On:

Check this item if DHCP service is needed on the LAN. The router will assign IP address, gateway address for each of your PCs.

Start IP Address: Type in the start point IP address.

End IP Address: Type in the end point IP address.

Leased Time:

Type in the duration for the time. The default is 1day.

DHCP Server Off:

Check this item if DHCP service isn’t needed on the LAN.

Click Next to get into next web page. You can check it at this time. If you find

something is incorrect, click Back to chan ge the settings. If everything is OK, click Finish to accept these settings. And the following page will appear.

Now, the system will reboot to activate the new settings that you have done in this section.

Please wait for 2 minutes for restarting the router.

Chapter 5:Connection Mode

Status

Overview

This page is displaying the current status for the DSL connection. It includes if the wireless network is enabled or not, lists the LAN IP address, default gateway, DNS servers IP address, firmware version, the period of activating the router, and so on. The system status will be changed according to the settings that you configured in the web pages.

ADSL Router User Manual

ADSL Line

This page shows all information for ADSL. For knowing the quality of the ADSL connection, please click ADSL BER Test button to have advanced informat i on.

Click More Information to show more detailed information about ADSL Line Status.

ADSL BER Test

This test determines the quality of the ADSL connection. It is done by transferring idle cells containing a known pattern and comparing the received data with this known pattern to check for errors.

After select the test duration time and click Start, the following dialog appears to tell you the test is running. You can stop the test by click Stop or close this dialog by click

Close.

When the test is over, the result will be shown on the following dialog for your reference. Click Close to close this dialog.

Internet Connection

This page displays the connection information for your router, such as PVC name, category, protocol, invoking NAT or not, IP address, link status and so on.

Chapter 5:Connection Mode

Traffic Statistics

This table shows the records of data going through the LAN and WAN interface. For each interface, cumulative totals are displayed for Received and Transmitted.

DHCP Table

This table shows all DHCP clients who get their IP addresses from your ADSL Router. For each DHCP client, it shows the Host

Name, MAC Address, IP Address and the Lease Time.

ADSL Router User Manual

Wireless Client

This table shows the MAC address for all of wireless LAN clients currently associated to your DSL Router.

Routing Table

This table shows the routing method that your router uses.

ARP Table

This table shows the IP address record for IP-to-Physical translation in your router.

Chapter 5:Connection Mode

Advanced Setup

Local Network- IP Address

This page is the same as you can see in the Configure LAN side Settings page while running the Quick Setup. It allows you to set IP Address and Subnet Mask values for LAN interface.

Primary IP Address:

Type in the first IP address that you got from your ISP for your LAN connection.

Subnet Mask:

Type in the subnet mask that you got from your ISP for your LAN connection.

Host Name:

List the host name of this device.

Domain Name:

List the name of domain.

Configure the second IP Address and Subnet Mask for LAN interface:

Check this box to make another set of IP Address and Subnet Mask to connect to your router if they are not included in the range that DHCP server accepts.

Secondary IP Address:

Type in the second IP address that you got from your ISP for your LAN connection.

Subnet Mask:

Type in the subnet mask that you got from your ISP for your LAN connection.

Apply: Click this button to activate the settings listed above.

Local Network - DHCP Server

This allows you to set DHCP server on LAN interface.

ADSL Router User Manual

DHCP Server On:

Check this item if DHCP service is needed on the LAN. The router will assign IP address, gateway address for each of your PCs.

Start IP Address: Type in the start point IP address.

End IP Address: Type in the end point IP address.

Leased Time:

Type in the duration for the time. The default is 1day.

Relay On: Click this button to have a relay setting. And type in the Server IP in this field.

Server and Relay Off:

Check this item if DHCP service isn’t needed on the LAN.

Apply: Click this button to activate the settings listed above.

You can reserve one specific IP address for a certain PC for certain purpose. Simply add a mapping entry of MAC address & IP address for that PC by pressing the View Reserved IP Addr ess List button. The following picture will appear.

Click the Add button to open another dialog as follows. On PCs MAC Address and Assigned IP Address boxes, please type in the correct information for the one that you want to add and click Apply.

The new one will be shown on the dialog right away. That is, the specified address will be reserved and not be assigned by DHCP for other computer.

Chapter 5:Connection Mode

ADSL Router User Manual

Local Network – UPnP

The UPnP is available only for Windows XP. If you are not user of Windows XP, this page does not have any meaning to you.

This page allows you to enable the UPnP function through the web page for your router.

Internet-Connections Setting

To set WAN settings for each service, please open Advanced– Internet Setting. This page allows you to add new WAN settings, to edit or remove created WAN settings.

If you click the Connect line under the PVC Name item, the system will connect to WAN automatically. If the WAN connection is OK, you can check the detailed information directly.

Adding a New One

You have to type in the VPI and VCI values in the entry boxes. Then click Next. The screen will get into the Connection Type page of Quick Setup and ask you to fill in the data according to the request of the screen. Refer to Quick Setup for more information if you don’t know how to set the configuration.

To add a new WAN connection, please click the Add button. The following screen appears. VPI (Virtual Path Identifier):

Identifies the virtual path between endpoints in an ATM network. The valid range is fr om 0 to 255. You cannot type in the number randomly if you desire. Please refer to the value that your ISP gave.

VCI (Virtual Channel Identifier): Identifies the virtual channel endpoints in an ATM network. The valid range is from 32 to 65535 (1 to 31 is reserved for well-known protocols). You cannot type in the number randomly if you desire. Please refer to the value that your ISP gave.

Service Category:

It decides the size and rate for the packets of the data in different service type. There are five categories provided here for your selection. Please choose any one of it as you desired.

If you choose Non Realtime VBR, you have to type in the following data.

The range for Peak Cell Rate is from 1 to

1690. The range for Sustainable Cell Rate is from 1 to 1689 and must be smaller than Peak Cell Rate. The range for Maximum Burst Size is from 1 to 100.

After click Next, you will see the web page listed as the right. Choose the protocol that you want. And click Next again.

The WAN IP settings will differ slightly according to the protocol that you choose. This graphic is the one that you will get if you choose to add a new interface of PPPoA/PPPoE mode. You can check Enable NAT or Enable Qos for your necessity. And you can set the MTU value in this page.

Chapter 5:Connection Mode

If you want to add a new interface of PPPoE mode and choose PPPoE from the previous web page, you will get a web page as the graphic listed in right side.

Please refer to Quick Setup for more information if you don’t know how to set the configuration.

If you want to add a new interface of Bridging mode and choose Bridging from the previous web page, you will get a web page as the graphic listed in right side.

Please refer to Quick Setup for more information if you don’t know how to set the configuration.

ADSL Router User Manual

Internet - DNS Server

If Enable Automatic Assigned DNS checkbox is selected, this router will accept the first received DNS assignment from one of the PPPoA, PPPoE or MER/DHCP enabled PVC(s) during the connection establishment. If the checkbox is not selected, it is necessary for you to enter the primary and optional secondary DNS server IP addresses. After type in the address, click Apply button to save it and invoke it.

Enable Automatic Assigned DNS:

Check this box to enable this function, or uncheck this box to disable it.

Primary DNS server: Type in your primary DNS server.

Secondary DNS server:

Type in the second ary DNS server. If you are satisfied the settings, click Apply.

Internet - IGMP Proxy

The Internet Group Management Protocol (IGMP) is an Internet protocol that provides a way for an Internet computer to report its multicast group membership to adjacent routers.

The hosts interact with the system through the exchange of IGMP messages. When you want to configure IGMP proxy, the system will interact with other rou ter through the exchange of IGMP messages. However, when acting as the proxy, the system performs the host portion of the IGMP task as follows:

¾ When it is queried, the system will send group membership reports to the group. ¾ When one of the hosts joins a multicast address group to which none of other hosts belong, the

system will send unsolicited group membership reports to that group.

¾ When the last of hosts in a particular multicast group leaves the group, the system will send a

leave group membership report to the routers group.

Internet Connection: This field displays the internet connection that you currently use.

IGMP Proxy Enabled: Check this box to enable this function or uncheck this box to disable this function.

After finish the settings, click Apply.

Internet - ADSL Settings

Enable ADSL Port: Check this box to enable this function. It simply invokes the line mode that you choose here for the router.

Select the support of line modes: There are several selections for your choosing. Select the one that you need. For Example, if you want to change one or more physical layer parameters while the ATU-x is in data transfer state, and the transmission errors will not be present, please choose ADSL2.

Capability Enabled:

Two items are provided here for you to choose.

Bitswap:

It is a mandatory receiver initiated feature to maintain the operating conditions of the modem during changing environment conditions. It reallocates the data bits and power among the allowed carriers without modification of the higher layer control parameters in the ATU. After a bit swapping reconfiguration, the total data rate and the data rate on each latency path is unchanged. Check this box to enable the function. If not, uncheck this box to close the function.

Chapter 5:Connection Mode

Seamless Rate Adaptation: It enables the ADSL2 system to change the data rate of the connection while in operation without any service interruption or bit errors. Check this box to enable the function. If not, uncheck this box to close the function.

IP Routing - Static Route

Routing Table shows all static route status and allows you to add new static IP route or delete IP route. A Static IP Routing is a manually defined path, which determines the data transmitting route. If your local network is composed of multiple subnets, you may want to specify a routing path to the routing table.

Destination Network Address:

Display the IP address that the data packets are to be sent.

Netmask:

Display the subnet mask that the data transmitting is passing through.

Gateway:

Display the gateway that the data transmitting is passing through.

WAN Interface:

Display the interface that the data transmitting is passing through.

Delete: Allow you to remove the selected static route

ADSL Router User Manual

settings.

Adding a New One

To add a static route, please choose Static Route - Add. Type the destination network address, subnet mask and gateway that you get from ISP and click Apply.

Destination Network Address:

The destination IP addres s of the netw or k where data packets are to be sent.

Subnet Mask:

Type in the subnet mask that you got from ISP.

Gateway IP Address:

Click this button to invoke this function. Type in the gateway that you got from ISP.

WAN Interface:

Click this button to invoke this function and choose the one from the drop down menu.

Click Apply to view the routing result. This page shows all the routing table of data packets going through your ADSL Router.

Remove Static Route

If you don’t want the static route that you created, please click the icon under Delete from Routing Table.

A dialog appears to ask you to confirm the action. Click Yes to remove the static route, or click No to keep the setting.

Configuring Other Routers on Your LAN

It is essential that all IP packets for devices that are not on the local LAN can be passed to the Router, so that they can be forwarded to the external LAN, WAN, or Internet. To achieve this, the local LAN must be configured to use the Router as the default route or default gateway.

Local Router

The local router is the Router installed on the same LAN segment as the Router. This router requires that the default route is the Router itself. Typically, routers have a special entry for the default route. It should be configured as follows.

Destination: Subnet Mask: Gateway:

Normally 0.0.0.0 but check your router documentation. Normally 0.0.0.0 but check your router documentation. The IP Address of the Router.

Other Routers on the Local LAN

Other routers on the local LAN must use the Router’s Local Router as the Default Route. The entries will be the same as the Router’s local router, with the exception of the Gateway IP Address.

 For a router with a direct connection to the Router’s local Router, the Gateway IP Address is

the address of the Router’s local router.

Chapter 5:Connection Mode

 For routers which must forward packets to another router before reaching the Router’s local

router, the Gateway IP Address is the address of the intermediate router.

Example – Static Route

Here provides you an example of Static Route.

For the Router’s Routing Table

For the LAN shown above, with 2 routers and 3 LAN segments, the Router requires to add 2 static routes as follows:

DSL Router

Destination 192.168.10.0 Subnet Mask 255.255.255.0 (Standard Class C) Gateway 192.168.1.254 (Router B)

IP Routing – Dynamic Routing

Routing Information Protocol (RIP) is utilized as a means of exchanging routing information between routers. It helps the routers to determine optimal routes. This page allows you to enable/disable this function.

RIP Version: It incorporates the RIP information when receiving and broadcasting the RIP packets. From the drop down list, select a RIP version to be accepted, 1, 2 or both.

Operation Mode:

There are two modes for you to choose, Active and Passive. Select Active for transmitting and receiving data, or select Passive for receiving data only.

Enabled: Click Enabled to enable the RIP function on different interface. Otherwise, disable this function.

Click Apply to invoke the settings set here.

ADSL Router User Manual

Virtual Servers-Port Forwarding

The Router implements NAT to let your entire local network appear as a single machine to the Internet. The typical situation is that you have local servers for different services and you want to make them publicly accessible. With NAT applied, it will translate the internal IP addresses of these servers to a single IP address that is unique on the Internet. NAT function not only eliminates the need for multiple public IP addresses but also provides a measure of security for your LAN.

When the router receives an incoming IP packet requesting for access to your local server, the router will recognize the service type according to the port number in this packet (e.g., port 80 indicates HTTP service and port 21 indicates FTP service). By specifying the port number, you tell the router which service should be forwarded to the local IP address you specify.

After you setting the virtual server you should modify the filter rule whichever port and service you set on virtual server. Because the firewall has protect the route by filter rule so that you should update the filter rule after you set up virtual server.

Virtual Server allows you to make servers on your LAN accessible to Internet users. Normally, Internet users would not be able to access a server on your LAN because:

 Your server does not have a valid external IP Address.  Attempts to connect to devices on your LAN are blocked by the firewall in this device.

The Virtual Server feature solves these problems and allows Internet users to connect to your servers, as illustrated below:

Chapter 5:Connection Mode

IP Address seen by Internet Users

Please note that, in the above picture, both Internet users are connecting to the same IP address, but using different protocols.

To Internet users, all virtual servers on your LAN have the same IP Address. This IP Address is allocated by your ISP. This address should be static, rather than dynamic, to make it easier for Internet users to connect to your Servers. However, you can use Dynamic DNS feature to allow users to connect to your virtual servers by using a URL, instead of an IP address.

To set a virtual server, please open the

Virtual Servers item from the Advanced Setup - NAT menu.

Add New Port Forwarding

To add a new Port Forwarding, please click Add from the Port Forwarding web page. Pre-defined

Choose one of the services type from the first drop down list, such as Audio/Video, Games and so on. In the second drop down list, choose the name of the application that you want to use with the type that you select in the first list.

User defined:

Type a new service name for building a customized service for specific reason.

ADSL Router User Manual

From Internet Host IP Address:

Select the initial place for port forwarding. If you choose SINGLE, a box will appear for you to fill in the IP address for the specific host. And, if you choose SUBNET, the boxes of IP and Subnet will appear for you to fill in the IP address and subnet mask for the specific host as the start point.

Forwarded to Internet Host IP Address:

Type in the address for the host used as the place that information will be forwarded.

IP addresses can be automatically redirected to local servers configured with private IP addresses. In other words, depending on the requested service (TCP/UDP port number), the router redirects the external service request to the appropriate server (located at another internal IP address).

After adding a new virtual server, click Apply.

The following screen will be shown to display the status for new ones.

If you do not want the new server that you added, please check the Delete box of that one and click the Delete button to discard it.

Or if you want to add another one again, click Add to add a new one.

Connecting to the Virtual Servers

Once configured, anyone on the Internet can connect to your Virtual Servers. They must use the Internet IP Address (th e IP Address allocated to you by your ISP.) For example,

Http://203.70.212.52 Ftp://203.70.212.52 It is more convenient if you are using a Fixed IP Address from your ISP, rather than Dynamic.

However, you can use the Dynamic DNS feature to allow users to connect to your Virtual Server through a URL, rather than an IP Address.

Virtual Servers-Port Triggering

When the router detects outbound traffic on a specific port, it will set up the port forwarding rules temporarily on the port ranges that you specify to allow inbound traffic. It is supposed to increase the support for Internet gaming, video conferencing, and Internet telephony due to the applications require multiple connection.

To add a new port triggering, click Add to open this web page. Than choose an application name from the Pre-defined list box. The system provides 9 items for your choice.

Chapter 5:Connection Mode

Or define by yourself by typing the words into the field of User defined.

Click Apply to complete the setting.

Virtual Servers - DMZ Host

Direct Mapping Zone (DMZ) uses a technology that makes Router forwarding all incoming packet to internal specific server.

To close the function of DMZ Host, please click Discarded.

To activate a DMZ host, please click Forwarded to the DMZ host radio button and type the IP Address into the field of IP address of DMZ host, then click Apply.

This feature allows one computer on your LAN to be exposed to all users on the Internet, allowing unrestricted 2-way communication between the specified IP address and other Internet users or Servers.

 This allows almost any application to be used on the specified IP address.  The specified IP address will receive all “Unknown” connections and data.  If the DMZ feature is enabled, you must type in numbers to specify an IP address.  The DMZ feature can be Enabled and Disabled on the NAT setting screen.

ADSL Router User Manual

Virtual Servers - Dynamic DNS

The Dynamic DNS (Dynamic Domain Name System) combines both functions of DNS and DHCP to map a dynamic IP into a fixed domain name. This page allows you to access into virtual servers with a domain name and password.

Dynamic DNS： Selects Enable to enable DDNS; select Disabled to disable this function.

Internet Connection： Selects the interface that you want to use for connecting Internet.

User Name： Type in the user name that you registered in www.dyndns.org.

Password： Type in the password that you registered in www.dyndns.org.

Domain Name： Type in the domain name that you registered in www.dyndns.org. You can use letters and dash for naming, yet other characters are not allowed to use for preventing from making troubles.

Status： It displays current status.

Chapter 5:Connection Mode

Firewall

The firewall is a software that interrupts the data between the Internet and your computer. It is the TCP/IP equivalent of a security gate at the entrance to your company. All data must pass through it, and the firewall (functions as a security guard) will allow only authorized data to be passed into the LAN.

What the firewall can do? It can:

 deny or permit any packet from passing through explicitly  distinguish between various interfaces and match on the following fields:

 source and destination IP address  port

To keep track of the performance of IP Filter, a logging device is used which supports logging of the TCP/UDP and IP packet headers and the first 129 bytes of the packet (including headers) when a packet is successfully passed through, a packet is blocked from passing through and it matches a rule setup to look for suspicious packets

Filtering by IP address

An example for firewall setup:

This picture is the most common and easiest way to employ the firewall. Basically, you can install a packet-filtering router at the Internet gateway and then configures the filter rule in the router to block or filter protocols and addresses. The systems behind the router usually have a direct access to the Internet, however some dangerous services such as NIS and NFS are usually blocked.

For the security of your router, set the firewall is an important issue. Choose Disabled to disable the firewall

function. Click Enabled to invoke the settings that you set in this web page.

To open the IP Filtering, please click the Enabled radio button. The web page will be shown as the right picture.

Select the direction to filter packets:

The way of the data transmission. In Bound means the data is transferred from outside onto your computer. Out Bound means the data is transferred from your computer onto outside through Internet. Please choose Outbound traffic or Inbound traffic as the direction for filtering packets.

ADSL Router User Manual

Then, to add a new IP Filtering, click Add.

This page provides some settings for you to adjust for adding a new outbound IP Filtering.

Allow T raffic: No stops the data transmission, Yes lets the

data pass through.

Protocol:

Here provide several default policies for security levels for you to choose. If you don’t want to use the predefined setting, you can use User Defined to set a customized protocol for your necessity. When you choose User Defined setting, you have to type in a port number in the “as” field.

Source/Destination IP address:

To specify IP address to allow or deny data transmission, please pull down the drop-down menu to choose a proper one. All: This setting means that all the IP addressed in the network are allowed or denied to pass through in Internet. If you choose Single, an IP address field will appear to the right side. You have to type in the specific IP address as the start/end point to let the router identify for granting or denying pass through. If you choose Subnet, the IP address and Netmask will appear to the right side. Please type in the specific IP address and Netmask as the start/end point to let the router identify for granting or denying pass through.

Port Range:

The port range is from 0 to 65535. Please type in the start point and end point for the IP Filtering.

After finish the settings, click Apply. A new one will be added and shown on the web page.

A new IP filtering setting for Outbound traffic is created in the web page. To edit the setting, please click the pencil mark to get into the editing page. To delete the setting, click the trash mark to erase it. To set another IP filtering, click Add again.

For adding a new Inbound IP Filtering, click

Inbound traffic in the item of Select the direction to filter packets. Use the same way to add a new one as stated above.

Chapter 5:Connection Mode

Quality of Service

QoS (Quality of Service) is an industry-wide initiative to provide preferential treatment to certain subsets of data, enabling that data to traverse the Internet or intranet with higher quality transmission service.

Bridge QoS

To classify the upstream traffic by assigning the transmission priority for data of different users, please use Bridge QoS to prioritize the data transmission.

The Bridge QoS allows you to set the settings based on layer two IP packets.

Traffic Class Name:

Type in a name as the traffic class for identification.

802.1p Priority: Each incoming packet will be mapped to a specific priority level, so that these levels may be acted on individually to deliver traffic differentiation. Please choose the number (from 0 to 7) for the 802.1p Priority.

Traffic Priority:

There are three options – Low, Medium, and High that you can choose.

IP Precedence:

The number you choose here decides the type of the IP address processed. No change

ADSL Router User Manual

is the default setting. IP type of Service:

The system provides some types of service for you to choose. The meaning of each type is the same as the denotation. The default one is No change.

IPQoS

To classify the upstream traffic by assigning the transmission priority of the data for different users, please use IP QoS to prioritize the data transmission.

The IP QoS allows you to set the settings based on layer three IP packets.

To add a new QoS setting, please Add in the page of Quality of Service, a page same as the right side will appear.

Traffic Class Name:

Type in a name as the traffic class for identification.

Protocol:

Choose the proper interface for this function. If you don’t know how to select, simply use the default one, TCP/UDP.

Source IP Address/ Subnet Mask:

You have to type in the source IP address (ex: 192.168.1.50) and subnet mask (ex:255.255.255.0) for the application (ex: FTP, HTTP and so on) that you want to invoke the QoS traffic rule.

Source Port:

Except the IP address, you also have to enter the source port. Type in the source port for the traffic rule. The range is from 0 to 65535.

Destination IP Address/Subnet Mask:

You have to type in the destination IP address (ex: 192.168.1.254) and subnet mask (ex:255.255.255.0) for the application that

you want to invoke the QoS traffic rule. Destination Port:

Type in the destination port for the traffic rule. The range is from 0 to 65535.

Traffic Priority:

There are three options – Low, Medium, and High that you can choose. It decides the order of each data transmitted through this device.

IP Precedence:

The number you choose here decides the type of the IP address processed. No change is the default setting.

IP type of Service: The system provides some types of service for you to choose. The meaning of each type is the same as the denotation. The default one is No change.

Chapter 5:Connection Mode

After you click Apply, the new QoS setting will be shown on the graphic as the right side. To delete the one you set, simply click the check button below Delete ite m and click Delete button.

Voice Quality

This page allows you to reserve bandwidth to guarantee the voice quality for a VOIP phone call.

Port Mapping

This page allows you to configure various port mapping groups which contains specific Internet connections and LAN ports. All the user data can be only transmitted and received among the interfaces in the groups that you specified in this page.

ADSL Router User Manual

Group Name: Type in a name here as a group name. It must be unique. The word length must not be over the length of the field.

Available Interfaces: The available interfaces (such as Ethernet, USB, wireless, etc.) will be displayed in the left side box. When you choose it and click Add, it will be transferred into the right side box of Grouped Interfaces. Yet, if you want to remove the interface from the current group, it will be returned back to the Default group (left side box) after you click Remove.

After finish the settings, click Apply.

Chapter 5:Connection Mode

Wireless

The Wireless setting must match the other Wireless stations.

Basic

To set the basic configuration for the wireless features, please open Basic item from the Wireless menu.

Enable Wireless Network:

Click this check box to enable the wireless network function.

Hide Wireless Network:

Checking this box can hide the SSID of this access point. Then other people in the network cannot find the SSID of this device.

Wireless Network Name (SSID):

The system will detect the SSID of your router and displayed in this field for your reference.

The SSID is the identification characters of a router. The default words will be shown on this page. If you do not check the Hide Access Point item, the router will periodically broadcasts its SSID to allow the wireless clients within the range to recognize its presence. This can create a security hole since any wireless clients which got the broadcast might associate to your system.

Please be noted that if you want to communicate, all wireless clients should use the same SSID with the router or access point.

Channel: The frequency in which the radio links are about to be established. Select one channel that you want from the drop down list.

As an administrator of network, he/she must search which channels are available and then assign one available channel as the communication channel. All the other clients that want to transmission through this device should choose the same channel that you set in this field.

Transmission Mode: It decides the mode of data transmission. Choose the one that you want to use from the drop-down menu. There are 802.11b only,

802.11g only and Mixed Mode provided here.

ADSL Router User Manual

Transmission Rate: It decides the speed of data transmission. Choose any one of it by using the drop-down menu. This setting will change by the transmission mode that you set above. If you choose 802.11b only as the transmission mode, the transmission rate settings include 1, 2, 5.5, 11Mbit/s and auto. If you choose

802.11g, the transmission rate settings include 1, 2, 5.5,6,9, 11,12,18,24,36,48, 54Mbit/s and auto. If you choose mixed

mode, only Auto is available.

Multicast Rate:

When the traffics of the file are large, the condition of delay will be happened in some way, especially for transmitting multicast movie or service. You can use the default setting. If you want to speed up the rate, choose the one from the drop-down list. In addition, the selections for this item will be different according to the transmission mode that you choose on this page.

Turbo Mode: When it is enabled, the data transmission will be faster for this router. Check Enabled to invoke this function for speeding up the transmission, or check Disabled to close this function.

Wireless User Isolation: To make the communication between the clients, please choose Off. To cut the communication between the clients, please choose On.

Click Apply to invoke the settings.

Chapter 5:Connection Mode

Security

To configure security features for the Wireless interface, please open Security item from Wireless menu. This web page offers four authentication protocols for yo u to secur e your dat a wh i l e connecting to networks. There are four selections including None WPA, 802.1X,WPA, and WPA-PSK. Different item leads different web page settings. Please read the following information carefully.

For WPA Disabled

For Wiresless Security Disabled

Wireless Security: The Disabled item offers you the less protection for wireless communication. If you choose Disabled, the Encryption Keys will not be shown on this page.

For 64-Bit WEP

Wireless Security: Select the WEP mode for the WEP key function. You can choose 64-bit or 128-bit for your necessity. If selected, data is encrypted using the key before being transmitted. For example, if you set 64-bit in this field, then the receiving station must be set to use 64 Bit Encryption, and have the same Key value too. Otherwise, it will not be able to decrypt the data. Please choose 64-Bit WEP for this page.

Authentication Type: The ADSL Router supports two authentication types: Open System and Shared key. This should be considered with the WEP (Wired Equivalent Privacy) mechanism.

Open System means that it allows any client to authenticate and attempt to communicate with a bridge. The client can only communicate if its WEP keys match the router’s WEP keys.

ADSL Router User Manual

Shared Key means that a bridge or router will send an unencrypted text string to any client attempting to communicate with the router. The client requesting authentication encrypts the text and sends back to the router. Both unencrypted and encrypted can be monitored, yet it leaves the bridge open to attack from any intruder if he calculates the WEP key by comparing the text strings That is why shared key authentication can be less secure than open authentication.

Format: Choose the typing method of encryption key. You have to click either Hexadecimal digits or ASCII characters and type the keys on the fields of Key 1 to Key 4.

Key 1 to 4:

Type the encryption key length and fill out WEP keys. For 64-bit WEP mode, the number you can type is that 5 characters or 10 hexadecimal digits.

Default Transmission Key:

Select one of network key that you set on the Key boxes as the default one.

After finished settings, click Apply for activation.

For 128-Bit WEP

Wireless Security: Select the WEP mode for the WEP key f unct io n. You can choose 64-bit or 128-bit for your necessity. If selected, data is encrypted using the key before being transmitted. For example, if you set 128-bit in this field, then the receiving station must be set to use 128 Bit Encryption, and have the same Key value too. Otherwise, it will not be able to decrypt the data. Please choose 128-Bit WEP for this page.

Authentication Type: The ADSL Router supports two authentication types: Open System and Shared key. This should be considered with the WEP (Wired Equivalent Privacy) mechanism.

Open System means that it allows any client to authenticate and attempt to communicate with a bridge. The client can only communicate if its WEP keys match the router’s WEP keys.

Shared Key means that a bridge or router will send an unencrypted text string to any client attempting to communicate with the router. The client requesting authentication encrypts the

text and sends back to the router. Both unencrypted and encrypted can be monitored, yet it leaves the bridge open to attack from any intruder if he calculates the WEP key by comparing the text strings That is why shared key authentication can be less secure than open authentication.

Format: Choose the typing method of encryption key. You have to click either Hexadecimal digits or ASCII characters and type the keys on the fields of Key 1 to Key 4.

Key 1 to 4:

Type the encryption key length and fill out WEP keys. As for 128-bit WEP mode, the number you can type is that 13 characters or 26 hexadecimal digits.

Default Transmission Key:

Select one of network key that you set on the Key boxes as the default one.

Chapter 5:Connection Mode

After finished settings, click Apply for activation.

ADSL Router User Manual

For 802.1X Wireless Network

When a wireless client requests access to a network, it is required to be authenticated by a central authentication server (RADIUS Server). Only an authenticated user can be granted by the network access and thereby unauthorized is blocked.

Wireless Security: Choose 802.1x as the authentication protocol, your data transmission between the router and the clients will be protected with the settings that you set in this web page.

RADIUS Server IP Address:

RADIUS Server is a protocol for carrying authentication, authorization, and configuration information between a Network Access Server which desires to authenticate its links and a shared Authentication Server. Please type in the IP Address for the RADIUS Server.

RADIUS UDP Port:

Except for the IP address of the RADIUS Server, you have to enter the port number for the server. Port 1812 is the reserved RADIUS-authentication port descri bed in RFC 2138. Earlier AP (RADIUS clients) use port 1945. The default value will be shown on this box. You can keep and use it.

RADIUS Share Secret:

A share secret is like a password, which is used between RADIUS Server and the specific AP (RADIUS client) to verify identity. Both RADIUS Server and the AP (RADIUS client) must be use the same shared secret for successful communication to occur. Type in the words for the share secret.

After finished settings, click Apply for activation.

Example for Configuration 802.1x environment

You will need the following components for establishing an 802.1x environment in your network.

 Windows 2000 Server: RADIUS server installed using “Internet Authentication Service”.

Certificate Services is installed

 AP (Router): It should be connected to Windows 2000 Advanced Server through the LAN port.

The DHCP server for the router is used and 802.1x must be enabled.

 802.1x client: A WLAN card supporting WEP is used.

 Authentication Mechanism

For WPA (Wi-Fi Protected Access)

WiFi-Protected Access: The WPA is suitable for enterprises. It must be used in conjunction with an authentication server such as RADIUS to provide centralized access control and management. It can provides stronger encryption and authentication solution than others WPA mode.

Data Encryption (WPA):

Select the data encryption for the WPA mode. There are three types that you can choose, TKIP , AES, TKIP+AES.

TKIP takes the original master key only as a starting point and derives its encryption keys mathematically from this master key. Then it regularly changes and rotates the encryption keys so that the same encryption key will be never used twice.

AES provides security between client workstations operating in ad hoc mode. It uses a mathematical ciphering algorithm that employs variable key sizes of 128, 192 or 256 bits.

TKIP+AES combines the features and functions of TKIP and AES.

WPA Group Rekey Interval:

Type in the time for the WPA group rekey interval. The unit is second.

RADIUS Server IP Address:

RADIUS UDP Port:

Except for the IP address of the RADIUS Server, you have to enter the port number for the server. Port 1812 is the reserved RADIUS-authentication port descri bed in RFC

2138. Earlier RADIUS clients use port 1945. The default value will be shown on this box. You can keep and use it.

RADIUS Share Secret:

A share secret is like a password, which is used between IAS and the specific RADIUS client to verify identity. Both IAS and the RADIUS client must be use the same shared secret for successful communication to occur. Type in the words for the share secret.

After finished settings, click Apply for activation.

Chapter 5:Connection Mode

ADSL Router User Manual

For WPA-PSK/WPA2-PSK/Mixed WPA-PSK

WiFi-Protected Access: WPA-PSK is useful for small places such as home environment without having authentication servers. It allows the use of manually-entered keys or passwords and is designed to be easy to set up for home users.

Format: Choose the typing method of encryption key. You have to click either Hexadecimal digits or ASCII characters and type the keys on the field of Pre-Share Key.

Pre-Share Key:

Please type with the key between 8 and 63 characters, or 64 hexadecimal digits. Only the devices with a matching key that you set here can join this network.

WPA Group Rekey Interval: Type in the time for the WAP group rekey interval. The unit is second.

Data Encryption (WPA):

Select the data encryption for the WPA mode. There are three types that you can choose, TKIP, AES, TKIP+AES.

AES provides security between client workstations operating in ad hoc mode. It uses a mathematical ciphering algorithm that employs variable key sizes of 128, 192 or 256 bits.

TKIP+AES combines the features and functions of TKIP and AES.

After finished settings, click Apply for activation.

Chapter 5:Connection Mode

For WPA-2 (Wi-Fi Protected Access)/For Mixed WPA2/WPA

WiFi-Protected Access: The WPA2 is suitable for enterprises. It must be used in conjunction with an authentication server such as RADIUS to provide centralized access control and management. It can provides stronger encryption and authentication solution than others WPA mode.

Data Encryption (WPA):

Select the data encryption for the WPA mode. There are three types that you can choose, TKIP, AES, TKIP+AES.

AES provides security between client workstations operating in ad hoc mode. It uses a mathematical ciphering algorithm that employs variable key sizes of 128, 192 or 256 bits.

TKIP+AES combines the features and functions of TKIP and AES.

WPA2 Pre-authentication:

The wireless client that has associated with an AP (A) can do the authentication with another AP (B) in advance. If the client roams to AP(B), it can associate with AP(B) quickly. Please click Enabled to inactivate this function.

Network Re-auth Interval:

When a wireless client has associated with the number greater than the setting here, it would be disconnected and the authentication will be executed again. The default value is 36000.

WPA Group Rekey Interval: Type in the time for the WPA group rekey interval. The unit is second.

RADIUS Server IP Address:

RADIUS UDP Port:

Except for the IP address of the RADIUS Server, you have to enter the port number for the server. Port 1812 is the reserved

ADSL Router User Manual

RADIUS-authentication port descri bed in RFC 2138. Earlier RADIUS clients use port

1945. The default value will be shown on this box. You can keep and use it.

RADIUS Share Secret:

After finished settings, click Apply for activation.

Chapter 5:Connection Mode

Access Controls

The web page allows you to enable the wireless MAC control configuration.

Access Control: Click Off to disable this function. Click On in Allow mode to make any wireless MAC address can be linked to. And click On in Deny mode to disturb any wireless MAC

address to be linked to.

View Access Control List: Click this button to view the wireless access control list and to add a new access control.

The Wireless Access Control List dialog allows you to add a new MAC address and view current MAC address that you had added.

To add a new MAC address to your wireless MAC address filters, click on the Add

utton from the Wireless Access Control List

dialog to show next page. MAC Address of Wireless:

You have to type in the MAC Address that you want it to be linked to your router. And click Apply.

The result of adding a new MAC address will be shown the example as the right picture.

If you want to delete the added MAC address, simple click the delete button (like a trash can), a dialog box will be shown to ask you. Click Yes, then the new one will be erased.

ADSL Router User Manual

Repeater

The web page allows you to configure the wireless distribution system for the wireless network.

AP Mode :

Choose either one of the selection as the AP mode.

Search Other Repeaters: Click the Scan Now button to scan search

other repeater in the wireless network. The result will be shown under below.

Click Apply to invoke the wireless repeater options.

If you click Manual as the Search Other Repeaters, you will need to type the MAC address for wireless repeaters in the boxes of MAC Address of Remote Wireless Repeaters.

The right picture shows an example of executing the function of wireless repeater.

When you finish settings, please click Apply to invoke them actually.

Chapter 5:Connection Mode

Management

Diagnostics

To check the link status for the network and your computer, a diagnostic test can guide you to detect the network problem. The testing items are listed and accomplished one by one. If the previous one is failed, than the items below that failed one will be failed too. Use this diagnostic test to detect the connectivity mistakes whenever you happen to the linked problem.

For the item which passes through the diagnostics, a PASS word will be shown on the right side of that item.

If not, a Fail word will be there. N/A means that item is not necessary for the

system to test.

The Help link lets you know what the result (Pass, Down, Fail) represents for. In this

age you still can rerun diagnostic test at any

time.

ADSL Router User Manual

Admin Account

This page allows you to type in the password for accessing into your DSL Router. For the Admin Account, the default setting

for user password is admin. If you want to change the username and the password, please retype the new password in the Confirm field for confirmation. Then click Apply.

Remote Access

There are four interfaces for the remote access. Please choose one of them if you want to enable the remote access control.

Select the Internet Connection:

Select one connection item from the drop down list to enable the function.

Web Browser: Choose this box if you want to have remote control through HTTP. The default port number will be shown in the box. Modify this number whenever you want.

Telnet: Choose this box if you want to have remote control through telnet.

FTP: Choose this box if you want to have remote control through FTP.

SNMP: Choose this box if you want to have remote control through SNMP agent.

TFTP: Choose this box if you want to have remote control through TFTP.

Secure Shell (SSH): Choose this box if you want to have remote control through SSH.

Ping:

Choose this box if you want to have remote control through ping command und er DOS prompt.

Chapter 5:Connection Mode

Interntet Time

The router’s clock must synchronize with global Internet’s time. The time you set in the screen will be adapted to system log.

Update:

Click this button to refresh the current time. Set Time by:

The default setting is Manual. If you select Time Server, you don’t need to type in the time setting manually. The system will set automatically.

Time: Set the start time by typing the year, the month, the day, the hour, and the date to help the router perform tasks.

Timezone:

Choose the time zone of your country where you are going to use the router.

Apply:

Save the data on the screen and apply the data after restarting the router.

System Log

As shown in the web page, you can view the system log and configure system log whenever you want.

Configure System Log

After you click Configure System Log, the following screen will appear. You can enable or disable the log function, choose log level, display level and proper mode as you like. Then click Apply.

ADSL Router User Manual

There are 8 types for log level and display level for your choose. The default is Debugging.

The mode selection includes Local, Remote and Both. The default one is Local. If you choose Remote or Both, all the events will be sent to the specified UDP port of the specified log server.

Viewing System Log

For viewing the system log, please click the View System Log button.

The screen will be shown immediately for your reference.
