Askey Computer DCW775 User Manual

ЭЯЮФЫ

DCW775 - Wireless Gateway

Ë-»® ³¿²«¿´

НЯМЫФФЧМЫ

МЫФЫЭСУ

МЫООЫНМОЧЯФ

Chapter 1: Connections and Setup

This symbol means that your inoperative electronic appliance must be collected separately and

nted a specific collection

This appliance has been designed and manufactured with high quality materials and components

le to contain parts

that are necessary in order for the system to work properly but which can become a health and

environmental hazard if they are not handled or disposed of in the proper way. Consequently,

If you are the owner of the appliance, you must deposit it at the appropriate local collection point

CAUTION

Disconnect power before

servicing.

CAUTION

To ensure reliable operation and to prevent

overheating, provide adequate ventilation for this

modem and keep it away from heat sources. Do

not locate near heat registers or other

heat-producing equipment. Provide for free air

flow around the Wireless Gatewayand its power

supply.

not mixed with the household waste. The European Union has impleme

and recycling system for which producers are responsible.

that can be recycled and reused. Electrical and electronic appliances are liab

please do not throw out your inoperative appliance with the household waste.

or leave it with the vendor when buying a new appliance.

-If you are a professional user, please follow your supplier's instructions.

-If the appliance is rented to you or left in your care, please contact your service provider.

Help us protect the environment in which we live !

NORTH AMERICAN CABLE INSTALLER:

This reminder is provided to call your attention to Article 820-40of the National Electrical Code (Section 54

of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding and, in particular,

specifies that the cable ground shall be connected to the grounding system of the building as close to the

point of cable entry as practical.

Illustrations contained in this document are for representation only.

Important Information

DOCSIS compliant

This product was designed according to Data over Cable Service Interface Specifications.

Operating Information

Operating Temperature: C to F ~

Storage Temperature: -2 Cto70 (-4 F ~158

If you purchased this product at a retail outlet, please read the following:

Product Information

Keep your sales receipt to obtain warranty parts and service and forproof of purchase. Attach it here and

record the serial and model numbers in case you need them. The numbers are located on the back of the

product.

Model No. ____________________________Serial No ________________________________

Purchase Date: ________________________Dealer/Address/Phone: _________________________

Illustrations contained in this document are for representation only.

List of Figures

iii

Chapter 1: Connections and Setup......................................................................................................................2

Introduction.........................................................................................................................................................2

Wireless Gateway Features..........................................................................................................................2

-ROM..............................................................................................................................2

DOCSIS is trademarks of Cable Television Laboratories, Inc...................................................................3

Computer Requirements..............................................................................................................................3

Wall Mounting.............................................................................................................................................4

Wireless Gateway DCW775 Overview................................................................................................................5

Front Panel...................................................................................................................................................5

Rear Panel....................................................................................................................................................7

Side Panel.....................................................................................................................................................7

Relationship among the Devices..........................................................................................................................8

What the Modem Does.................................................................................................................................8

What the Modem Needs to Do Its Job.........................................................................................................8

Contact Your Local Cable Company..........................................................................................................8

Connecting the Wireless Gateway to a Single Computer.................................................................................10

Attaching the Cable TV Wire to the Wireless Gateway...........................................................................10

Important Connection Information...........................................................................................................11

Ethernet Connection to a Computer.........................................................................................................11

Connecting More Than One Computer to the Wireless Gateway............................................................12

Turning on theWireless Gateway.....................................................................................................................13

Chapter 2: WEB Configuration........................................................................................................................14

Accessing the Web Configuration.....................................................................................................................14

Outline of Web Manager...........................................................................................................................15

Status..................................................................................................................................................................16

1. Software..................................................................................................................................................16

Illustrations contained in this document are for representation only.

List of Figures

2. Connection..............................................................................................................................................17

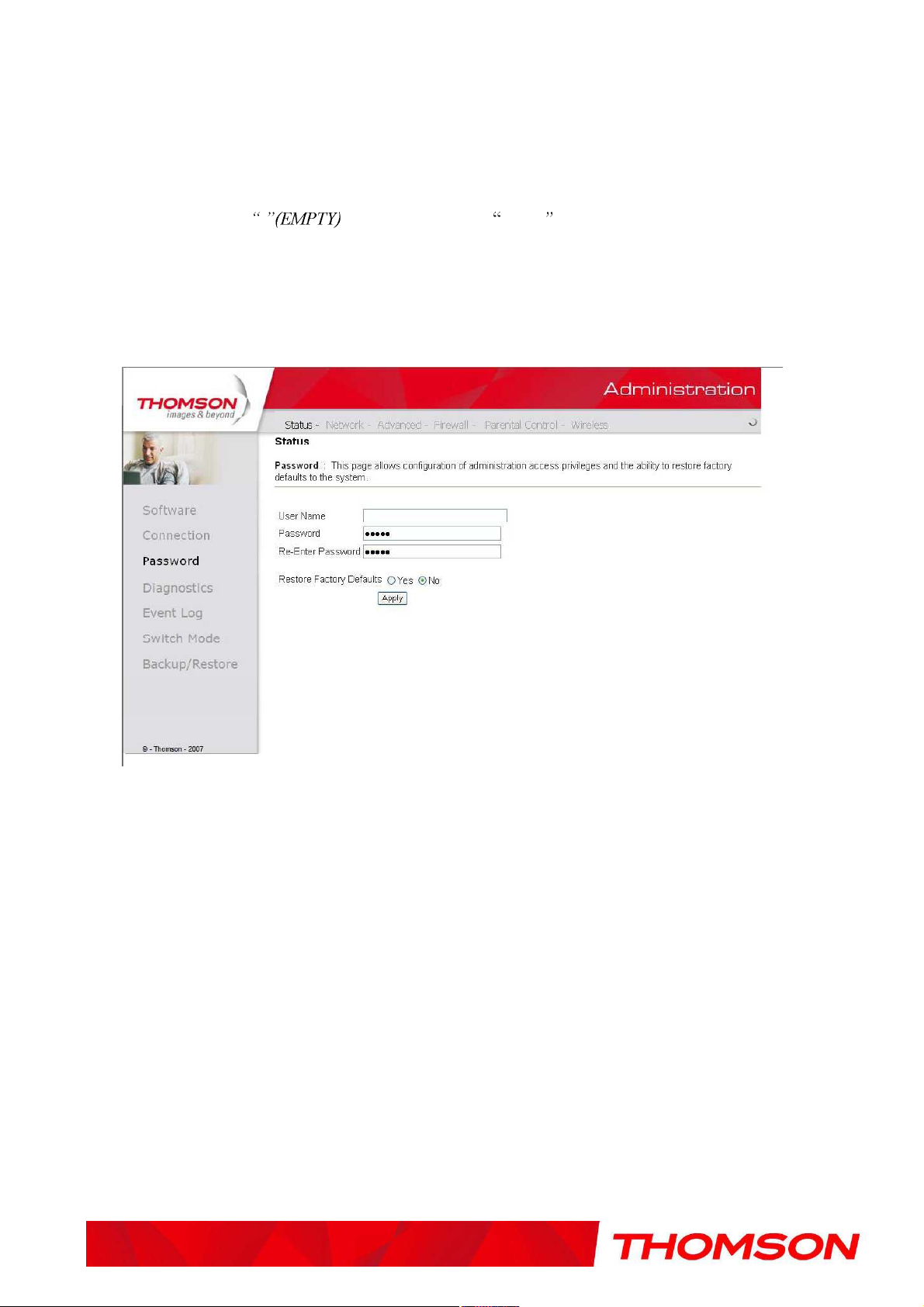

3. Password.................................................................................................................................................18

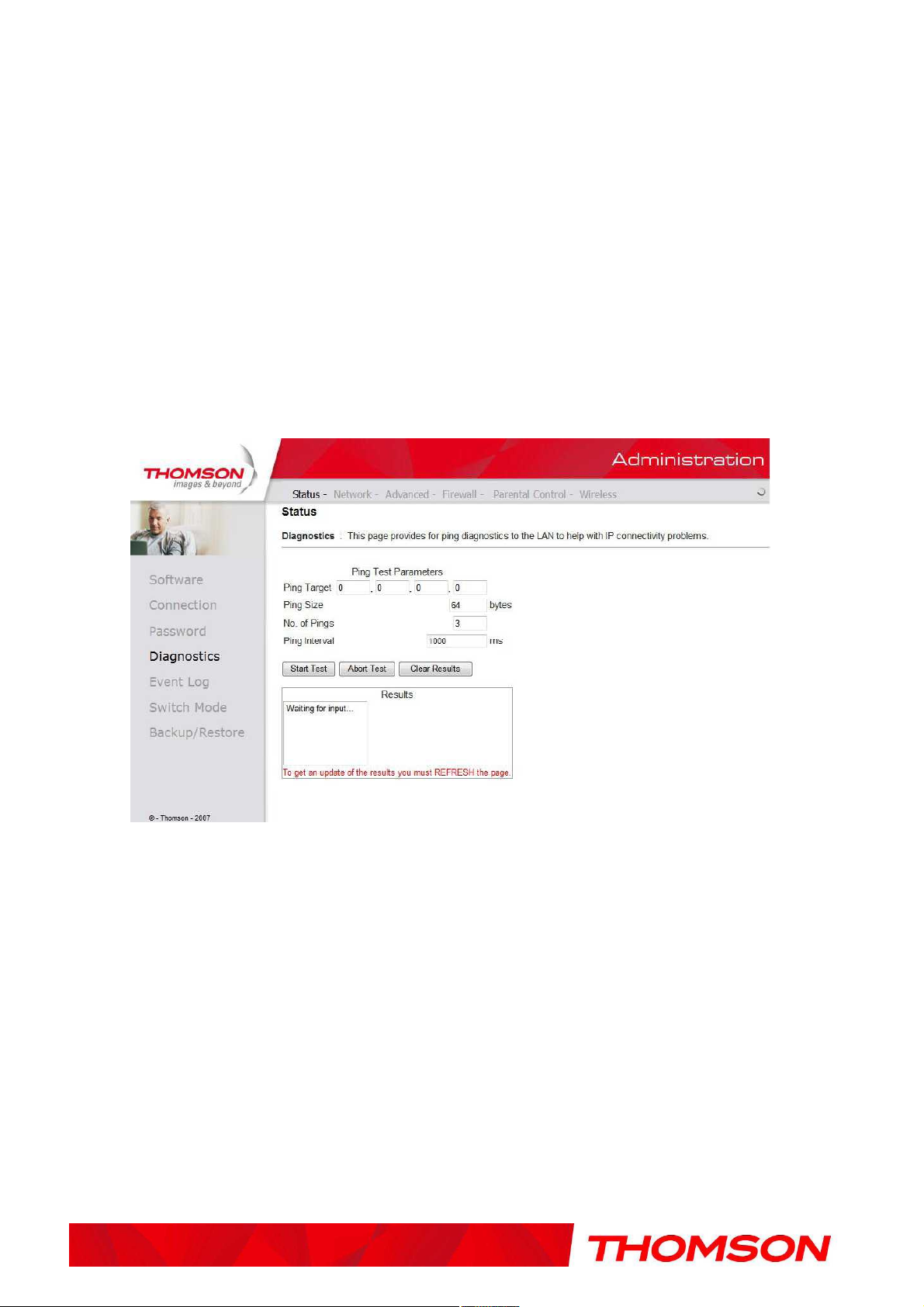

4. Diagnostics..............................................................................................................................................19

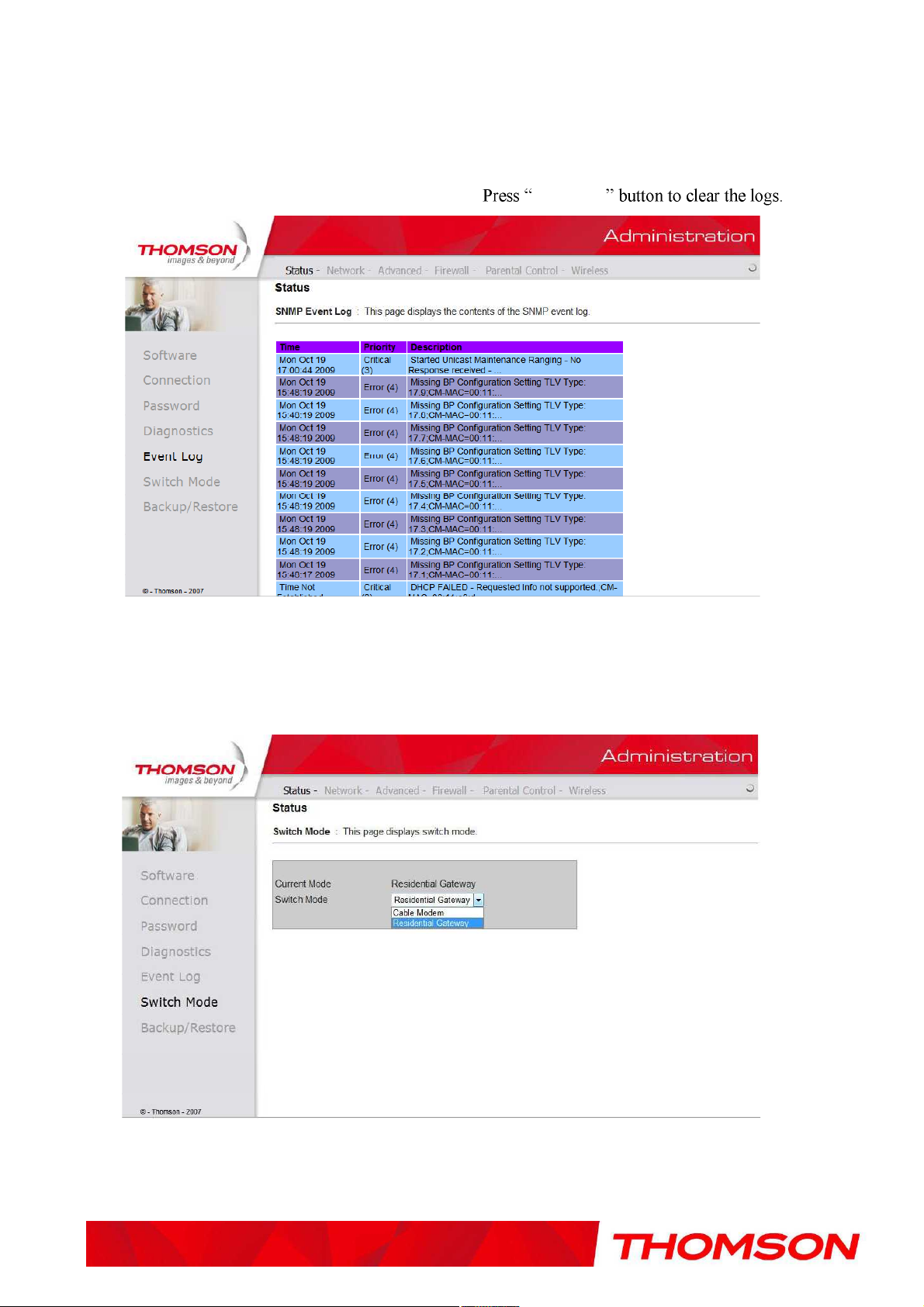

5. Event Log...............................................................................................................................................20

6. Switch Mode...........................................................................................................................................20

7. Backup/Restore ................................................................................................................................21

Network..............................................................................................................................................................22

1. LAN........................................................................................................................................................22

2. WAN.......................................................................................................................................................23

3. Computers..............................................................................................................................................24

4. DDNS ....................................................................................................................................................25

5. Time......................................................................................................................................................26

Advanced...........................................................................................................................................................27

1. Options...................................................................................................................................................27

2. IP Filtering.............................................................................................................................................28

3. MAC Filtering........................................................................................................................................29

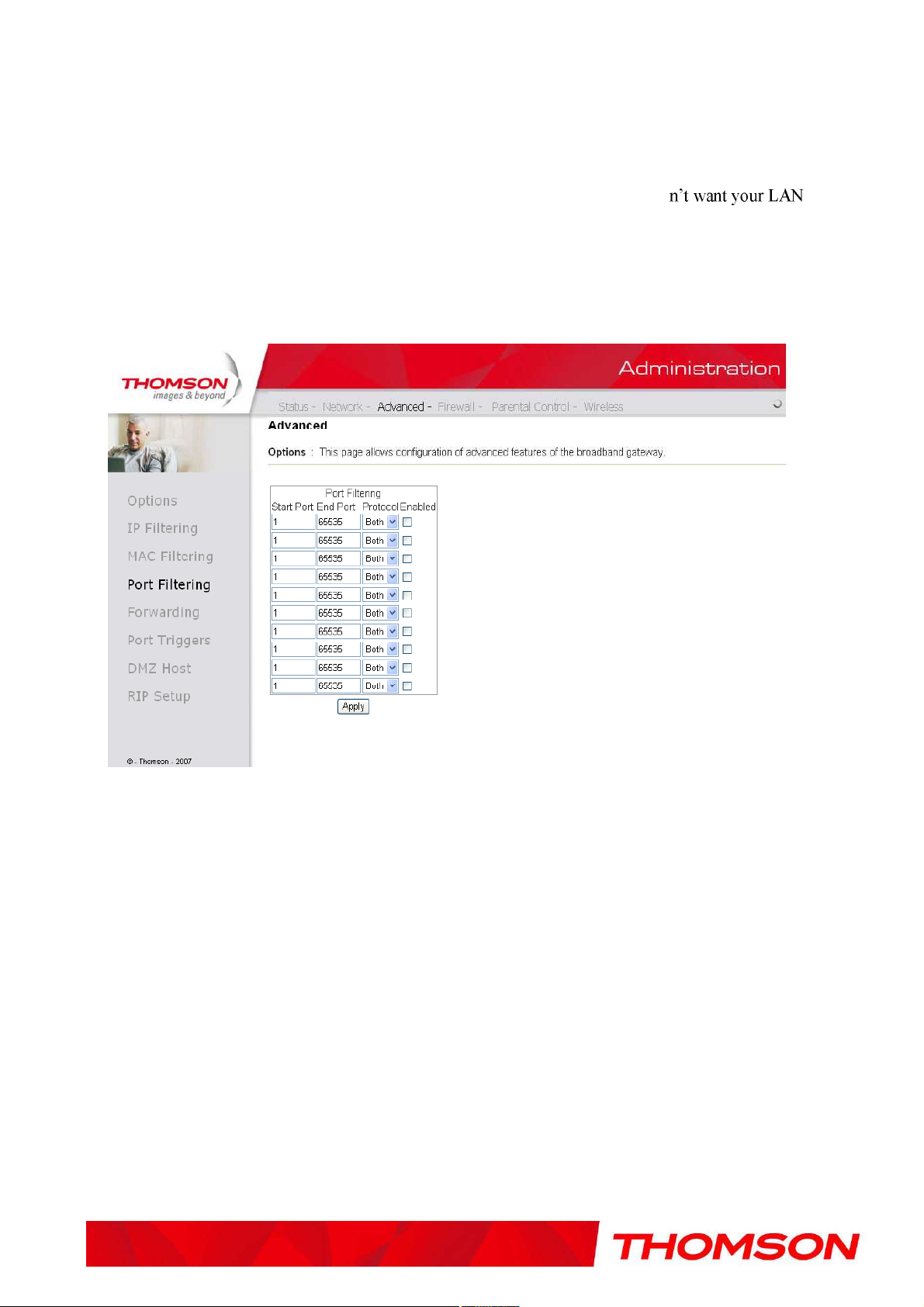

4. Port Filtering..........................................................................................................................................30

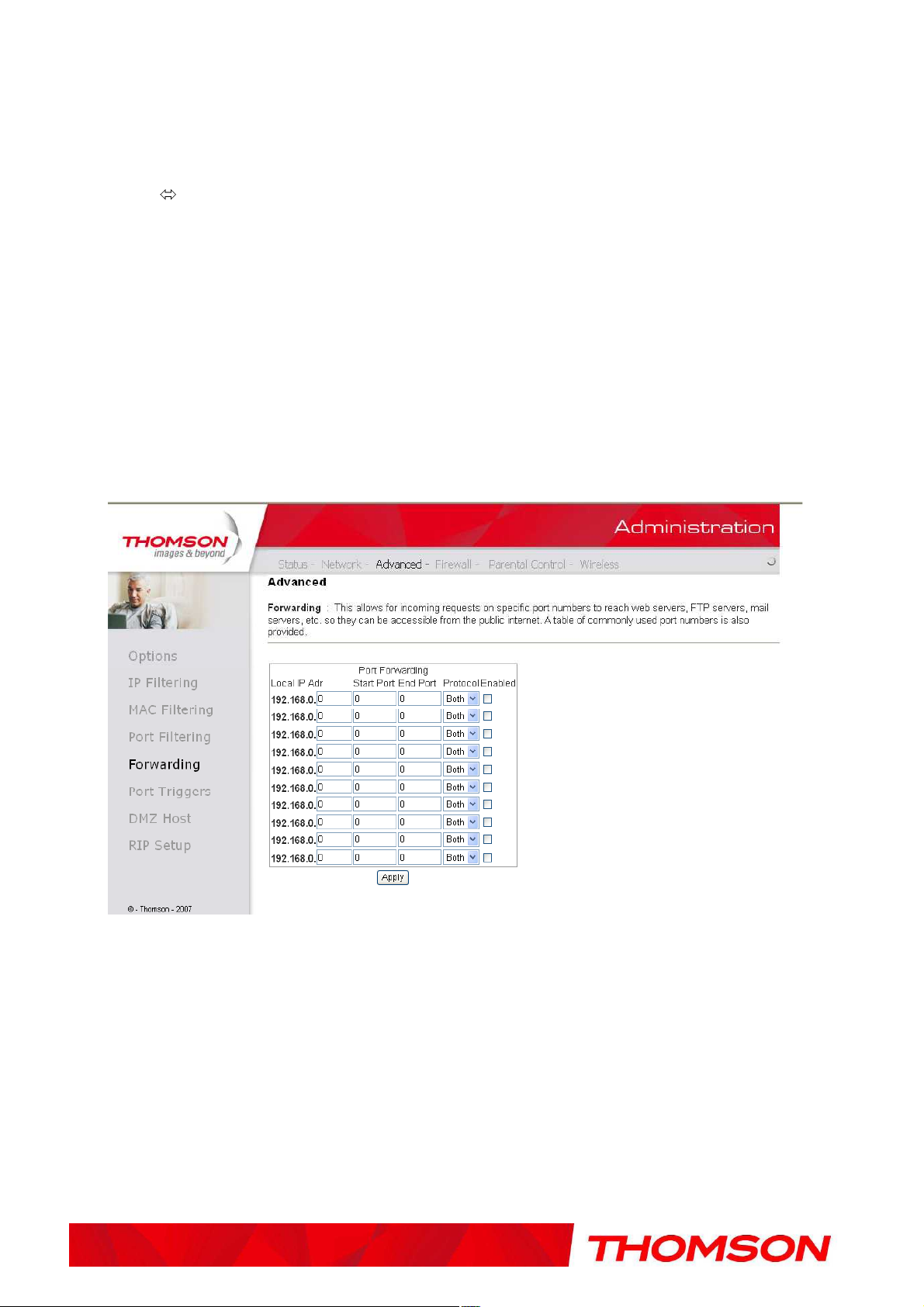

5. Forwarding.............................................................................................................................................31

6. Port Triggers..........................................................................................................................................32

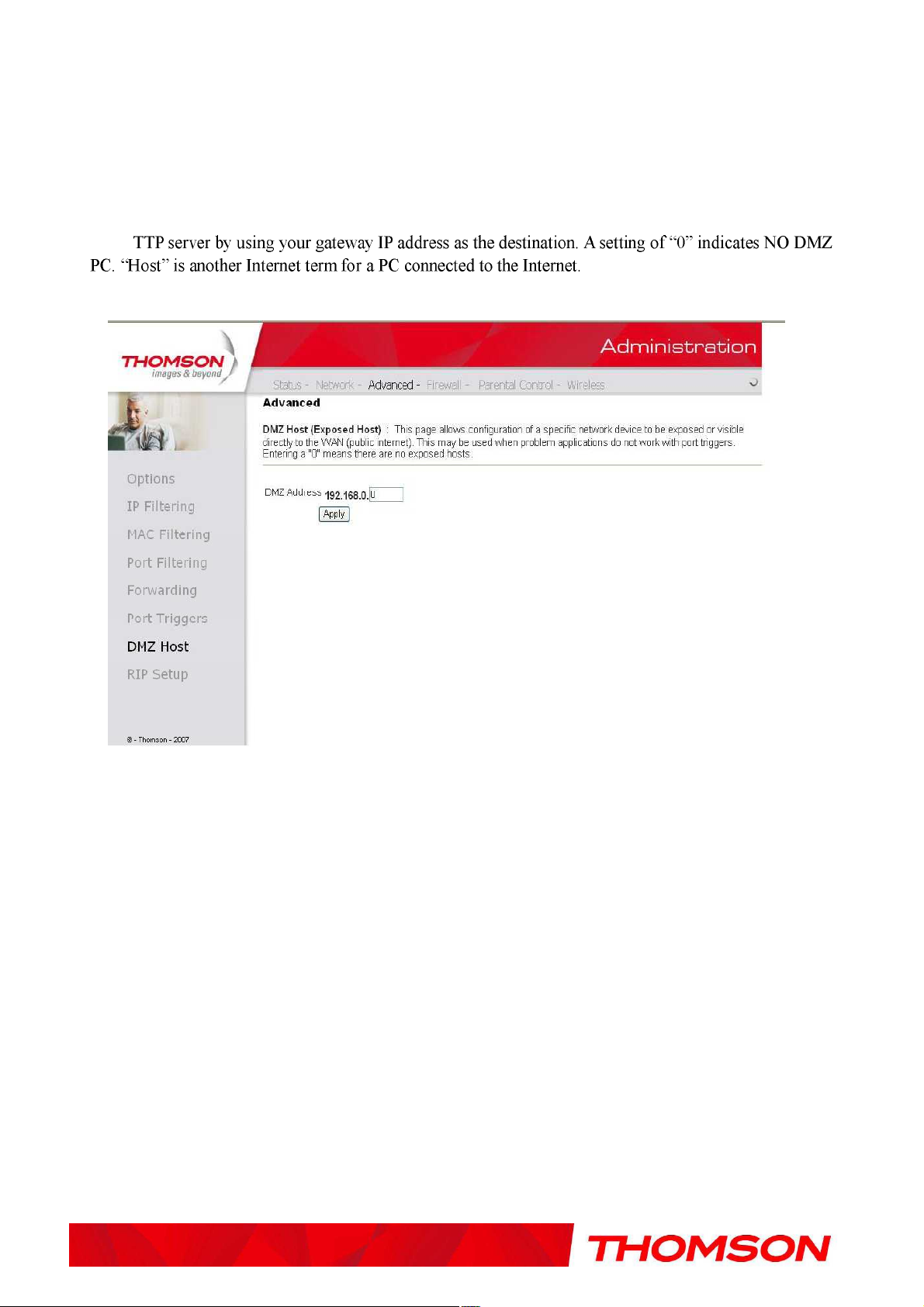

7. DMZ Host ............................................................................................................................................33

8. RIP (Routing Information Protocol) Setup...........................................................................................34

Firewall..............................................................................................................................................................35

1. Web Filtering..........................................................................................................................................35

2. TOD Filtering.........................................................................................................................................36

3. Local Log and Remote Log....................................................................................................................37

Parental Control................................................................................................................................................38

Illustrations contained in this document are for representation only.

List of Figures

1. Basic........................................................................................................................................................38

Wireless..............................................................................................................................................................39

1.802.11/ Radio..........................................................................................................................................40

2. 802.11/ Primary Network.......................................................................................................................42

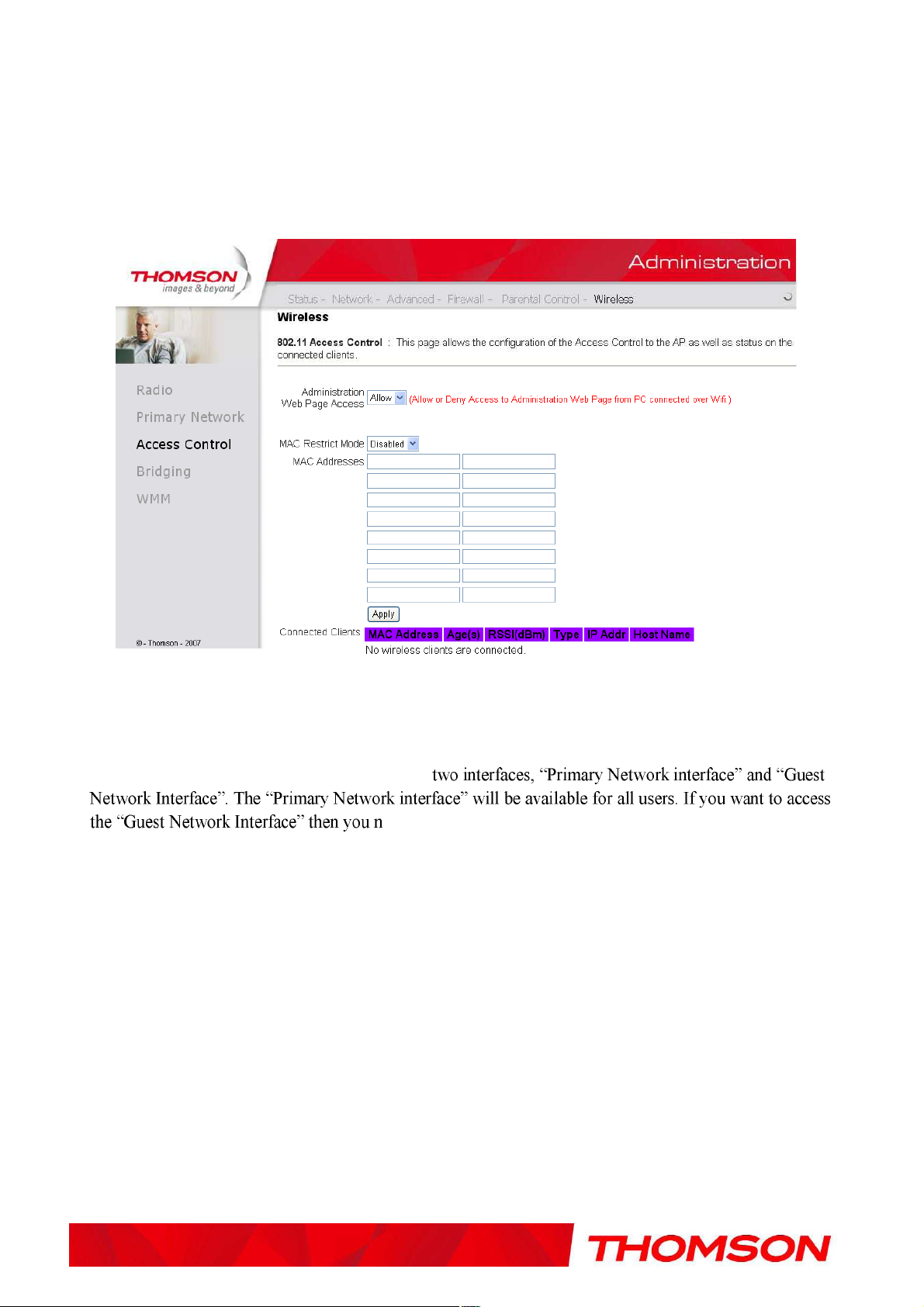

3. Access Control........................................................................................................................................49

4. Bridging..................................................................................................................................................50

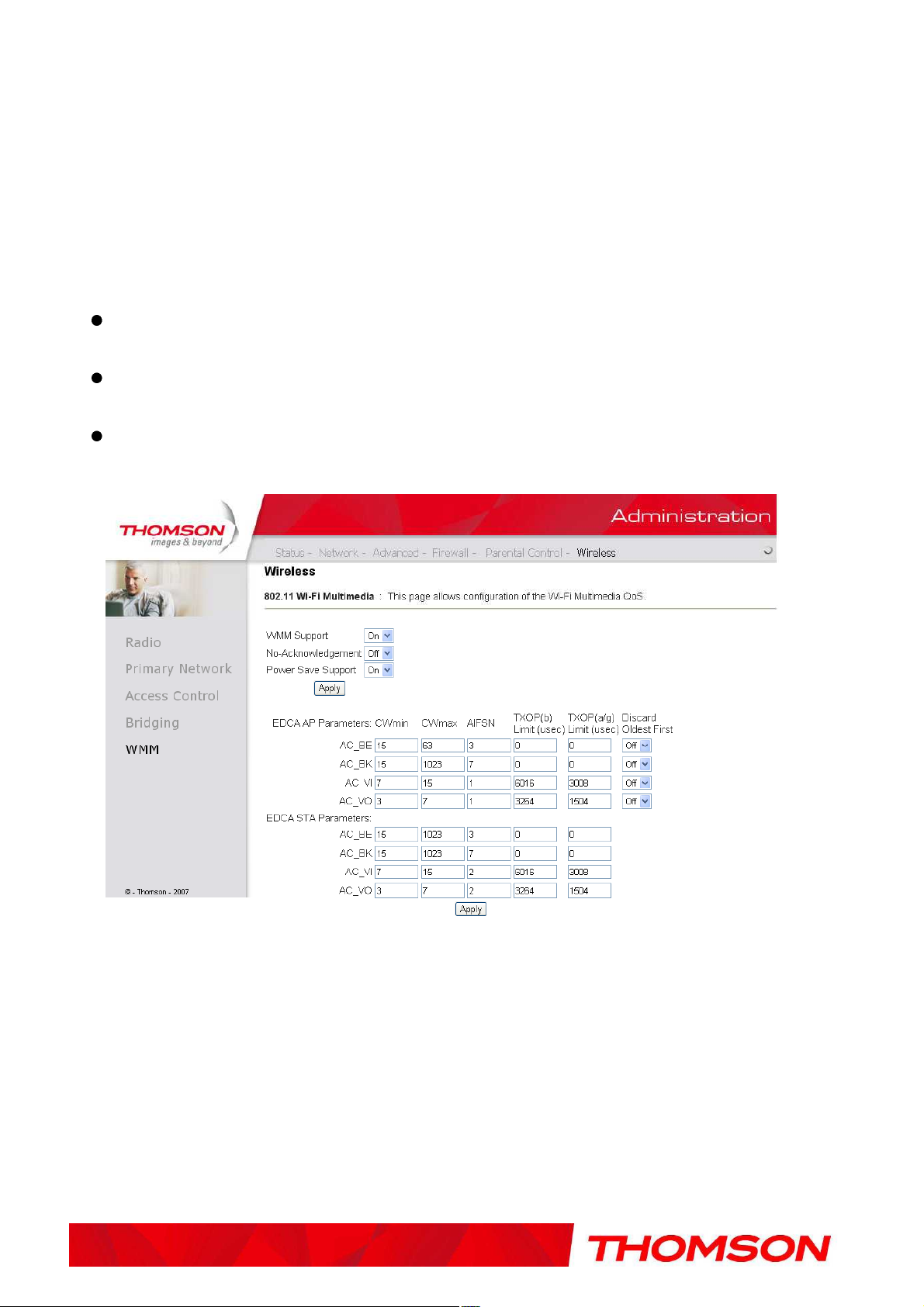

5. 802.11 QoS (WMM) Settings.................................................................................................................51

Chapter 3: Networking......................................................................................................................................53

Communications........................................................................................................................................53

Type of Communication............................................................................................................................53

Cable Modem (CM) Section......................................................................................................................54

Networking Section....................................................................................................................................54

Three Networking Modes..........................................................................................................................55

Cable Modem (CM) Mode.........................................................................................................................55

Residential Gateway (RG) Mode...............................................................................................................57

CableHome (CH) Mode.............................................................................................................................58

MAC and IP Addresses Summary.............................................................................................................60

Chapter 4: Additional Information...................................................................................................................61

Frequently Asked Questions......................................................................................................................61

General Troubleshooting...........................................................................................................................63

FCC Declaration of Conformityand Industry Canada Information.......................................................64

Service Information...........................................................................................................................................65

Glossary.............................................................................................................................................................66

Illustrations contained in this document are for representation only.

Chapter 1: Connections and Setup

Introduction

Wireless GatewayFeatures

CableLabsDOCSIS 1.0/1.1/2.0/3.0 Standard Compliant

4 x Standard RJ-45 connector for 10/100/1000 BaseT Ethernet with auto-negotiation and MDIX

functions; Support maximum Ethernet cable length up to 100m (Category 5)

1 x Master USB connector socket comply to USB2.0

WIFI interface 802.11n; 2,4GHz or 5 GHz with at least 2x2 antennas.

Transparent bridging for IP traffic

Transparent bridging between CPE and RF interface

Transparent bridging between Ethernet and USB interface when USB is populated on the board

RSA and 56bit DES data encryption security

SNMP network management support

Remote operating firmware downloading

Support Web pages and private DHCP server for status monitoring

MPEG over IP encapsulation

Power management

Network Protocol: IP/TCP/UDP/ARP/ICMP/DHCP/FTP/TFTP/SNMP/HTTP

Syslog (remote)

Event Log (local)

Clear LED display

Reset switch in order to restore factory parameters

Two detachable SMA antennas connectors(optional)

-ROM

Insert the Wireless GatewayCD-ROM into your CD-ROM drive to view troubleshooting tips, the

internal diagnostics, and other valuable information.

CD-ROM Contents:

Adobe Acrobat Reader have it

loaded already

Links to Thomsonweb site

Illustrations contained in this document are for representation only.

Chapter 1: Connections and Setup

DOCSIS istrademarks of Cable Television Laboratories, Inc.Computer Requirements

For the best possible performance from your Wireless Gateway, your personal computer must meet the

following minimum system requirements (note that the minimum requirements may vary by cable

companies):

IBM PC COMPATIBLE MACINTOSH**

CPU Pentium preferred PowerPC or higher

System RAM 16MB (32MB preferred) 24MB (32MB preferred)

Operating System

Video VGA or better (SVGA preferred)

Ethernet 10/100/1000 Base-T 10/100/1000 Base-T

Software

*Windows is a trademark of Microsoft Corporation.

**Macintosh and the Mac OS are trademarks of Apple Computer, Inc.

Windows*

NT/2000/Me/XP/Vista, Linux

An Ethernet card makes it possible for your computer to pass data to and

from the internet. Youmust have an Ethernet card and software drivers

installed in your computer. You will also need a standard Ethernet cable to

connect the Ethernet card to your Wireless Gateway.

A TCP/IP network protocol for each machine

Microsoft Internet Explorer 4.0 or later or Netscape Navigator 4.0 or

later. (5.0 and 4.7 or later, respectively, are strongly recommended.)

Mac OS** 7.6.1 or higher

VGA or better (SVGA built-in

preferred)

Illustrations contained in this document are for representation only.

Chapter 1: Connections and Setup

Wall Mounting

Number of screws: 2 pieces.

Direction for wall mounting: Tuner downward or leftward or rightward

Dimension for the screw: 3.5 mm; length: 10 mm.

There are 2slots on the underside of the WIRELESS GATEWAY that can be used for wall mounting.

Note:When wall mounting the unit, ensure that it is within reach of the power outlet.

To do this:

1.For THE WIRELESS GATEWAY, ensure that the wall you use is smooth, flat, dry and sturdy and

use the 2screws holes

2.The unit can be to use solid concrete wall and/or hard wood wall

Illustrations contained in this document are for representation only.

Chapter 1: Connections and Setup

Wireless GatewayDCW775Overview

Front Panel

The following illustration shows the front panel of the DCW775:

Reset Button behavior

a)Push and hold the button between 0 and 5 seconds Reboot the device

b)Between 6 and 10 seconds Display the channel bonding status for DS and US

Note: This is the same as the above Channel Bonding display after the registration

c)After 11 seconds Perform the factory reset.

WPS LED is a backlight in WPS button

d)When WiFi is on, the LED is blinking

e)When WPS association is on, the LED is turned on

Illustrations contained in this document are for representation only.

Chapter 1: Connections and Setup

Power

USB

Wireless

Online

FLASH

OFF

FLASH

From SYNC completed, receiving UCD to ranging

FLASH

Channel Bonding

FLASH

Lights

Minimum duration 3 seconds

OFF

FLASH

Lights

OFF

FLASH

OFF

No USB Link

FLASH

SW Download

FLASH

A software download and while updating the

The LEDs on the front panel are described in the table below (from left to right):

Internet Ethernet

DCW775

DS US

1 2 3 4

Description

Boot-up

Operation

DOCSIS Start-

Operation

ON ON ON ON ON ON ON ON X X

ON ON

ON ON ON

ON ON ON ON X X X X X X

X X X X X X X X X X

X X OFF X X X X X X

OFF X X X X X X

X X X X X X

X X X X X X During DHCP, configuration file download,

X X X X X X

Power on 0.25 sec

From power ON to system initialization

complete

During DS scanning and acquiring SYNC

completed

Operational (NACO=ON)

Operational (NACO=OFF)

Wait registration with all DS and all US

Flash sequentially from the right to left

From 1 to 4 DS, from 1 to 4 LEDs are ON.

From 5 to 8 DS, From 1 to 4 LEDs are flashing

Duration 3 seconds

From 1 to 2US, from 1 to 2LEDs areON.

From 3to 4US, From 1 to 2LEDs are flashing

Duration 3 seconds.

Wait registration with all DS and all US

Flash sequentially from the left to right

Minimum duration 3 seconds

CPE Operation

USBOperation

Operation

No Ethernet Link

ON X X X

ON X X X X X X X X

X X X X X X X

ON ON ON ON

ON X X X X X X

X X

Ethernet Link

TX/RX Ethernet Traffic

Wireless is disable

OFF

Wireless initiate success or enable

TX/RX Wireless Traffic

USB Link

TX/RX USB Traffic

FLASH memory

Illustrations contained in this document are for representation only.

Rear Panel

4 x GIGA ETHERNET: Ethernet 10/100/1000BaseT RJ-45 connector

USB : USB 2.0 host connector

RESET: ResetCM

CABLE: F-Connector

12VDC:DC power socket

Chapter 1: Connections and Setup

SidePanel

1x WPS button with LED

Illustrations contained in this document are for representation only.

Chapter 1: Connections and Setup

Relationship among the Devices

What the Modem Does

The Wireless Gatewayprovides high-speed Internet access as well as cost-effective fax/modem services

over residential, commercial, andeducation subscribers on public and private networks via an existing

CATV infrastructure.The IP traffic can transfer between the Wireless Gatewayand DOCSIS compliant

headend equipment. The data security secures upstream and downstream communications.

What the Modem Needs to Do Its Job

The Right Cable Company: Make sure your local cable company provides data services that use

cable TV industry-standardDOCSIScompliant technology.

Contact Your Local Cable Company

You will need to contact your cable company to establish an Internet account before you can use your

gateway. You should have the following information ready (which you will find on the sticker on the

gateway):

The serial number

The model number

The Cable Modem (CM) Media Access Control (MAC) address

SSID, WEP/WPA-PSK information

Illustrations contained in this document are for representation only.

Chapter 1: Connections and Setup

Please verify the following with the cable company

The cable service to your home supports DOCSIS compliant two-way modem access.

You have a cable outlet near your PC and it is ready for Cable Modem service.

Note: It is important to supply power to the modem at all times. Keeping your modem plugged in will

keep it connected to the Internet. This means that it will always be ready whenever you need.

Important Information

Your cable company should always be consulted before installing a new cable outlet. Do not attempt any

rewiring without contacting your cable company first.

Illustrations contained in this document are for representation only.

Chapter 1: Connections and Setup

Connecting the Wireless Gatewayto a Single Computer

This section of the manual explains how to connect your Wireless Gatewayto the Ethernet port on your

computer and install the necessary software. Please refer to Figure 1 to help you connect your Digital

Cable Modem for the best possible connection.

Attaching the Cable TV Wire to the Wireless Gateway

1. Locate the Cable TV wire. You may find it one of three ways:

a. Connected directly to a TV, a Cable TV converter box, or VCR. The line will be connected to

the jack which should be labeled either IN, CABLE IN, CATV, CATV IN, etc.

b. Connected to a wall-mounted cable outlet.

c. Coming out from under a baseboard heater or other location. See Figure 1 for the wiring

example.

Notes: For optimum performance, be sure to connect yourWireless Gatewayto the first point the cable enters your home. The splitter must be rated for at least 1GHz.

Fig. 1: Basic Home Wiring

Illustrations contained in this document are for representation only.

Chapter 1: Connections and Setup

Important Connection Information

The Wireless Gatewaysupports 4Ethernet connections simultaneously.

Below are important points to remember before you connect the Wireless Gateway.

Ethernet Connection to aComputer

Make the connection to the modem in the following sequence:

1.Connect one end of the coaxial cable to the cable connection on the wall, and the other end to the

CABLE jack on the Wireless Gateway.

2.Connect the plug from the DC power supply into the POWER DC ADAPTER jack on the Cable

Wireless Gateway, and plug the power supply into a DC outlet.

Note: Use only the power supply that accompanied this unit. Using other adapters may damage the unit.

3.Connect one end of the Ethernet cable (straight-wired, see below) to the Ethernet port on the back of

your computer, and the other end to the ETHERNET port on the Wireless Gateway.

Make sure that the Ethernet cable is straight- -wired). However, you

will need a crossover-type cable if you are connecting the modem to a hub, or a hub within a port

switch that provides the same function.

Fig.2: Ethernet Connection

Illustrations contained in this document are for representation only.

Chapter 1: Connections and Setup

Connecting More Than OneComputer to the Wireless Gateway

If you need to connect more than onecomputer to DCW775, simply connect the computers to the

Ethernet ports on the rear panel.You may also use a hub with an crossover Ethernetcable to connect

more than 4 computer to the Wireless Gateway.

Fig.3:Multiple-PC Connection

Note: You may need to check with your service provider in order to connect multiple computers.

Illustrations contained in this document are for representation only.

Chapter 1: Connections and Setup

Turning on theWireless Gateway

After installingtheWireless Gatewayand turn it on for the first time (and each time the modem is

reconnected to the power), it goes through several steps before it can be used. Each ofthese steps is

represented by a different pattern of flashing lights on the front of the modem.

Note: All indicators flash once before the initialization sequence.

If all of the lights are flashing sequentially, it means the Wireless Gatewayis automatically updating its

system software. Please wait for the lights to stop flashing. You cannot use your modem during this time.

Do not remove the power supply or reset the Wireless Gatewayduring this process.

Illustrations contained in this document are for representation only.

Chapter 2:WEB Configuration

To make sure that you can access the Internet successfully, please check the following first.

1. Make sure the Ethernet connection between the Wireless Gatewayand your computer is OK.

2. Make sure the TCP/IP protocol is set properly.

3. Subscribe to a Cable Company.

Accessing the Web Configuration

The Wireless Gateway offers local management capability through a built in HTTP server and a number of diagnostic and configuration web pages. You can configure the settings on the webpage and apply them to the device.

Onceyour host PC is properly configured; please proceed as follows:

1. Start your web browser and type the private IP address of the Wireless Gatewayon the URL field: 192.168.0.1.

2. After connecting to the device, you will be prompted to enter username and password. By default, the username is and the password is admin .

Fig. 4

If you login successfully, the main page will appear.

Illustrations contained in this document are for representation only.

Outline of Web Manager

The main screen will be shown as below.

Chapter 2:WEB Configuration

Fig. 5

Main Menu: the hyperlinks on the top of the page.

Title: the sidebar on the left side of the page indicates the title of this management interface, e.g.,

Software in this example

Main Window: the current workspace of the web management, containing configuration or status information

For easy navigation,the pages are organized in groups, with group names main menu, individual page names within each group are provided in the sidebar.To navigate to a page, click the group hyperlink at the top, then the page title on the sidebar.

Your cablecompany may n internal web pages. In such cases, the information field appears blank. This is normal.

Illustrations contained in this document are for representation only.

Chapter 2:WEB Configuration

Status

1. Software

The information sectionshows the hardware and software informationabout your gateway.

The status section of this page shows how long your gateway has operated since last time being powered up, and some key information the Cable Modem receivedduring the initialization process with your cable company.If Network Access have Internet connectivity. If not, you may not have Internet access, and should contact your cable company to resolve this.

Fig. 6

Illustrations contained in this document are for representation only.

Chapter 2:WEB Configuration

2. Connection

This page reportscurrentconnection status containing startup procedures, downstream andupstream status, CM online information, and so on.

Fig. 7

Illustrations contained in this document are for representation only.

+ 51 hidden pages
