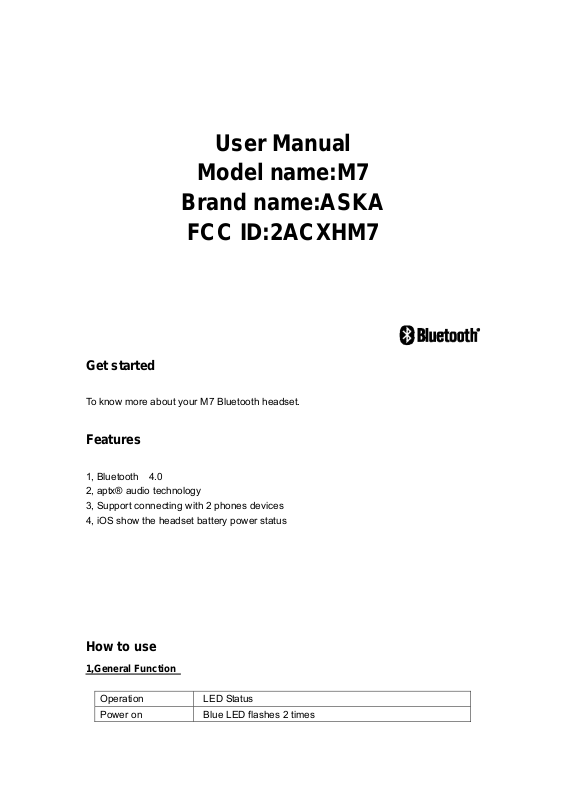

User Manual
Model name:M7
Brand name:ASKA
FCC ID:2ACXHM7
Get started
To know more about your M7 Bluetooth headset.
Features
1, Bluetooth 4.0
2, aptx® audio technology
3, Support connecting with 2 phones devices
4, iOS show the headset battery power status
How to use
1,General Function
Operation LED Status
Power on Blue LED flashes 2 times
Power off Red LED flashes 2 times
Pairing Red LED & Blue LED flashes alternately
Standby Blue LED flashes 3 times in 5 seconds
Incoming call Blue LED flashes continuous
Low battery Red LED flashes 2 times every 2 seconds
Charging Red LED keep lighting during charging
Blue LED flashes once charging finished
2, Basic Buttons Operation
Power on: Press multifunction button for 2 seconds. Blue LED flashes 2 times. Headset
turn on.
Power off: Press multifunction button for 3 seconds. Red LED turn off after flashes 2
times. Headset turn off.
Volume adjust: Each press on 'Volume up' or ' Volume down' buttons, one level voice
volume changes. When volume reaches to Max or Minimum,"Tick" reminding voice
occurs.
Play/Pause: Short press multifunction button, music pause. Press it again, music
continues.
Previous: in standby status, Long press 2 seconds 'volume down' button, music turns to
previous one.
Next:: in standby status ,Long press 2 seconds 'Volume up’, music turns to next one.
Answer Call: Short press multifunction button to answer the phone call.
End call: Short press multifunction button, phone call ended.
Reject call: Press 'Volume up' button for 2 seconds to reject a call.
Transfer call: During the phone call conversation, press' Volume up 'button for 2
seconds, call switches to mobile phone. Press 'Volume up' button for 2 seconds again, call
switches to headset.
Last number redial: in standby status, continuously press headset multifunction button
twice to redial the last number.
Call Mute function: Press 'Volume down' button for 2 seconds, call mute. Press
'Volume down' button for 2 seconds again, call mute cancel.
Battery Capacity status: When headset connects to iOS devices, iOS devices show the
headset battery power status on the upper right corner.
Charging: new headset has enough power for pairing and dialing out for several times.
When in low battery, please charging via USB cable for 2 hours. Red LED keep lighting
during charging, blue LED keep lighting charging finished.
Reset Mode: Connect the headset to computer via Micro USB cable. When red LED
light flashes, headset reset finished.
3, Pairing (One headset support connecting 2 phone devices )
Pairing with one phone or other device
Make sure the headset is power off.
Press and hold the multifunctional button for 5 seconds to enter into the pairing mode.
Red LED & Blue LED flashes alternately, Activate your phone or device Bluetooth function
2
and search for headset. From the list of found devices on your mobile phone , select the
headset “F5” to connect it. Follow the instruction to enter “0000” as PIN if the mobile
phone
reminder to need. Headset or device can be used to play your phone music or dial
phone call etc.
Pairing with two phones or other devices at the same time
This headset can support 2 devices multi-connection. It can pair with two mobile phones
simultaneously, taking the call from any of them. After completing pairing with the first
phone, turns off the headset, then re-do the paring procedure with another phone. Once
finished the pairing, restart the headset, it will automatically connect to the Phone or
device of Last connected , and short press the two key of “volume +” and “volume -”
simultaneously ,can enable the multipoint Connect function, from the list of found devices
on another mobile phone, select the headset “M7” to connect it.
4, Sound quality with Aptx code
Featuring the apt-X codec, the headsets can connect wirelessly to any apt-X enabled
devices, vastly improves the quality of Bluetooth streaming, delivering CD-quality sound.
Kit Contents
1, 1 X Bluetooth headset M7
2, 1 X Charging Micro USB Cable
3, 1 X User Manual
Warning
1, You must choose a qualified charger from a regular manufacturer to charge the
headset.
2, you must charge the headset if it has not been used for more than 12 months.
Specification
Bluetooth version: 4.0
Talk time: 3.5h
Stand-by time: 160h
Music play time: 3.5h
Wireless range: 10m
Bluetooth profiles: A2DP/ AVRCP/ HSP /HFP
Impedance: 16Ω
Sound pressure level:
Frequency Response: 20Hz---20 KHz
Signal-To-Noise:
Weight:
3
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
