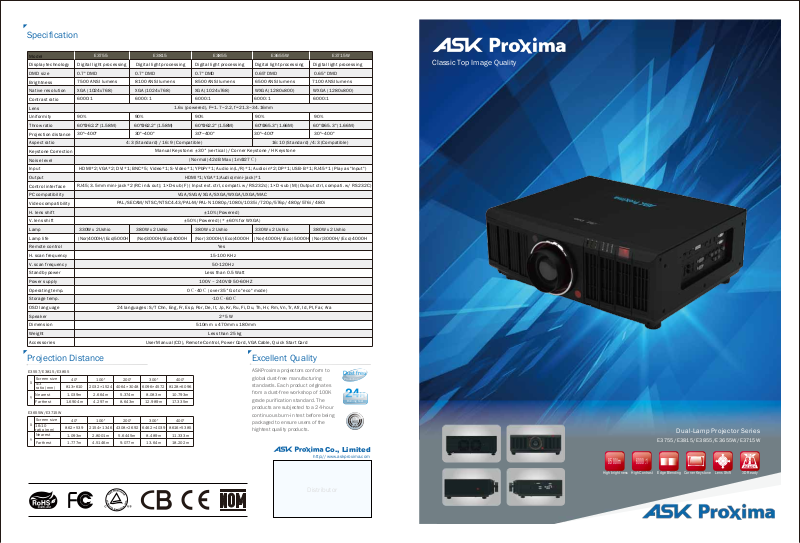

ASK E3815-A Product Sheet
Specification
Model
Display technology
DMD size
Brightness
Native resolution
Contrast ratio
Lens
Uniformity
Throw ratio
Projection distance
Aspect ratio
Keystone Correction
Noise level
Input
Output
Control interface
PC compatibility
Video compatibility
H. lens shift
V. lens shift
Lamp
Lamp life
Remote control
H. scan frequency
V. scan frequency
Standby power
Power supply
Operating temp.
Storage temp.
OSD language
Speaker
Dimension
Weight
Accessories
E3755 E3815 E3855 E3655W E3715W
Digital light processing
Digital light processing
Digital light processing Digital light processing Digital light processing
0.7" DMD 0.7" DMD 0.7" DMD 0.65" DMD 0.65" DMD
7500 ANSI lumens 8100 ANSI lumens 8500 ANSI lumens 6500 ANSI lumens 7100 ANSI lumens
XGA (1024x768) XGA (1024x768) XGA (1024x768) WXGA (1280x800) WXGA (1280x800)
6000:1 6000:1 6000:1 6000:1 6000:1
1.6x (powered), F=1.7~2.2, f=21.3~34.16mm
90% 90% 90% 9 0% 9 0%
60"@62.2" (1.58M) 60"@62.2" (1.58M) 60"@62.2" (1.58M) 60"@65.3" (1.66M) 60"@65. 3" ( 1. 66 M)
30"~400" 30"~400" 30"~400" 30"~400" 30"~ 400"
4:3 (Standard) / 16: 9 (Compatible) 16:10 (Standard) /4:3 (Compatible)
Manual Keystone: ±30°(vertical )/ Corner Keystone / H Keystone
(Normal) 42dB Max (1m@27℃)
HDMI*2; VGA*2; DVI*1; BNC*5; Video*1; S-Video*1; YPbPr*1; Audio in(L/R)*1; Audio in*2;DP*1; USB-B*1; RJ45*1 (Play as "Input")
HDMI*1;VGA*1;Audio(mini-jack)*1
RJ45; 3.5mm mini-jack*2 (RC in & out); 1×D-sub (F) ( Input ext. ctrl, compati. w/ RS232c); 1×D-sub (M) (Output ctrl, compati. w/ RS232C)
VGA/SVGA/XGA/SXGA/WXGA/UXGA/MAC
PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N 1080p/1080i/1035i/720p/576p/480p/576i /480i
±10% (Powered)
±50% (Powered) (* ±60% for WXGA)
330W x 2 Ushio 380W x 2 Ushio 3 80 W x 2 Us hi o 33 0W x 2 U sh io 380W x 2 Ushio
(Nor)4000H/(Eco)5000H (Nor)3000H/(Eco)4000H (Nor)3000H/(Eco)4000H (Nor)4000H/(Eco)5000H (Nor)3000H/(Eco)4000H
Yes
15-100 KHz
50-120Hz
Less than 0.5 Watt
100V – 240V @ 50-60HZ
0℃-40℃ (over 35°Go to "eco" mode)
-10℃-60℃
24 languages: S/T Chn, Eng, Fr, Esp, Por, De, It, Jp, Kr, Ru, Fi, Du, Th, Hr, Rm, Vn, Tr, Afr, Id, Pl, Far, Ara
2*5 W
510mm x 470mm x 180mm
Less than 25 kg
User Manual (CD), Remote Control, Power Cord, VGA Cable, Quick Start Card
Classic Top Image Quality
Projection Distance
E3557/E3815/E3855
Screen size
X
4:3
ratio (mm)
Nearest
Y
Farthest
E3655W/E3715W
Screen size
X
16:10
ratio (mm)
Nearest
Y
Farthest
40"
813×610
1.039m
1.6904m
40"
862×539
1.093m
1.777m
100"
2032×1524
2.664m
4.297m
100"
2154×1346
2.8001m
4.5146m
200"
4064×3048
5.374m
8.643m
200"
4308×2692
5.6445m
9.077m
300"
6096×4572
8.083m
12.989m
300"
6462×4039
8.489m
13.64m
400"
8128×6096
10.793m
17.335m
400"
8616×5385
11.333m
18.202m
Excellent Quality
ASKProxima projectors conform to
global dust-free manufacturing
standards. Each product originates
from a dust-free workshop of 100K
grade purification standard. The
products are subjected to a 24-hour
continuous burn-in test before being
packaged to ensure users of the
hightest quality products.
Co., Limited
http://www.askproxima.com
Distributor
Dust free
Production
Burning Test
8500lm
High brightness
6000: 1
High Contrast
Dual-Lamp Projector Series
E3755/E3815/E3855/E3655W/E3715W
Edge Blending Corner Keystone Lens Shift 3D Ready
Dual-lamp Large Venue Projector Series
E3755/E3815/E3855/E3655W/E3715W
Applications
The E3000 series is a full featured projector, an excellent choice for
medium and large venue applications.
Boardrooms & Large Classrooms
Rental & Staging Events
Auditoriums & Churches
Exhibit Halls & Museums
Dual –Lamp Optical Engine
The E3000 series is a dual lamp source optical engine system with
brightness of up to 8,500 lumen. An automatic failsafe feature
allows the presentation to continue un-interrupted at reduced
brightness in the event of a single lamp failure.
Edge Blending
The edge blending feature provide for a seamless wide screen
presentation with multiple side by side projectors. Images can be
perfectly matched for brightness and color correction.
Color matching
Edge blending
Multiple projectors project side by side
6,000:1 Contrast Ratio
The superior DLP chip technology with super-high contrast ratio of
6000:1 offers precise picture details and excellent contrast.
360 Degree Projection
The E3000 series projector will project in any orientation. This is often
a limitation for most projectors. This feature that is very useful for
many specialty design applications.
360
°
Lens Shift
Motorized horizontal and vertical lens shift without loss of image
quality. XGA models offer 50% vertical and 10% horizontal shift. WXGA
models offer 60% vertical and 10% horizontal shift.
1.6x Zoom Ratio
The 1.6x standard zoom lens offers flexibility for quick set up or
permanent installation.
Optional Replacement Lenses
The standard lens supplied with the projector is a 1.6x zoom. A variety
of optional lenses is available including wide-angle, telephoto, short
throw and fisheye.
24 x 7 Continuous Operations
In the single lamp mode, the projector is suitable for 24 x7
operations with automatic lamp switching, saving energy while
extending the lamp life.
6000:1 Contrast
Common contrast
Corner Keystone Correction
Corner keystone correction allows for the adjustment of all four image
angles. The horizontal digital keystone correction resolves the image
distortion created when the projectors lens is not perpendicular to the
screen. A useful feature when the projection environment is less that
optimum.
Horizontal keystone correction
Four-corner keystone correction
Wide-angle lens Short lens
Automatic Focus
When the projector is positioned at a distance from the screen it will
focus automatically. Should the distance be changed or the zoom lens
adjusted, the projector will again adjust to the proper focus.
Telephoto lens Fisheye lens
Before After
