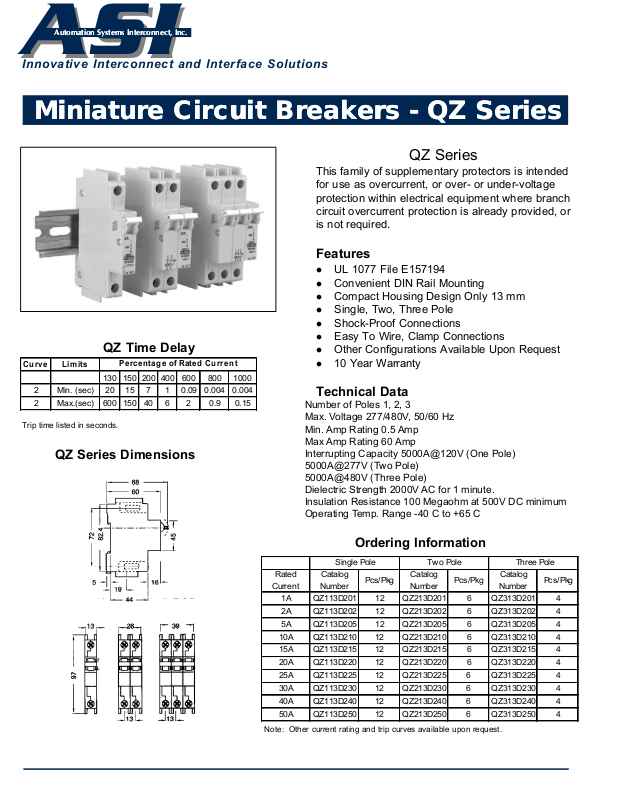

ASI-Automation Systems Interconnect QZ Series Data Sheet

Miniature Circuit Breakers - QZ SeriesMiniature Circuit Breakers - QZ Series

ASI

ASI

Automation Systems Interconnect, Inc.Automation Systems Interconnect, Inc.

Inn ova tive I nter con nect a nd In terf ace S olut ions

QZ Series

This family of supplementary protectors is intended
for use as overcurrent, or over- or under-voltage
protection within electrical equipment where branch
circuit overcurrent protection is already provided, or
is not required.

Features

 UL 1077 File E157194
 Convenient DIN Rail Mounting
 Compact Housing Design Only 13 mm
 Single, Two, Three Pole
 Shock-Proof Connections
 Easy To Wire, Clamp Connections

QZ Time Delay

Curve Lim its

2 Min. (sec) 20 15 7 1 0.09 0.004 0.004

2 Max.(sec) 600 150 40 6 2 0.9 0.15

Trip time listed in seconds.

Pe rcent age of Rated C urr ent

130 150 200 400 600 800 1000

QZ Series Dimensions

 Other Configurations Available Upon Request
 10 Year Warranty

Technical Data

Number of Poles 1, 2, 3

Number of Poles 1, 2, 3

Max. Voltage 277/480V, 50/60 Hz

Max. Voltage 277/480V, 50/60 Hz

Min. Amp Rating 0.5 Amp

Min. Amp Rating 1 Amp

Max Amp Rating 60 Amp

Max Amp Rating 50 Amp

Interrupting Capacity 5000A@120V (One Pole)

Interrupting Capacity 5000A@120V

5000A@277V (Two Pole)
5000A@480V (Three Pole)
Dielectric Strength 2000V AC for 1 minute.

Dielectric Strength 1960V 50/60 Hz

Insulation Resistance 100 Megaohm at 500V DC minimum

Insulation Resistance 100 Megaohm

Operating Temp. Range -40 C to +65 C

Operating Temp. Range -40 C to +60 C

1000A@277V
1000A@480V

Ordering Information

Three PoleSingle Pole Two Pole

Rated

Current

1A QZ113D201 12 QZ213D201 6 QZ313D201 4

2A QZ113D202 12 QZ213D202 6 QZ313D202 4

5A QZ113D205 12 QZ213D205 6 QZ313D205 4

10A QZ113D210 12 QZ213D210 6 QZ313D210 4

15A QZ113D215 12 QZ213D215 6 QZ313D215 4

20A QZ113D220 12 QZ213D220 6 QZ313D220 4

25A QZ113D225 12 QZ213D225 6 QZ313D225 4

30A QZ113D230 12 QZ213D230 6 QZ313D230 4

40A QZ113D240 12 QZ213D240 6 QZ313D240 4

50A QZ113D250 12 QZ213D250 6 QZ313D250 4

Note: Other current rating and trip curves available upon request.

Catalog

Number

Pcs/Pkg

Catalog

Number

Pcs/Pkg

Catalog

Number

Pcs/Pkg
