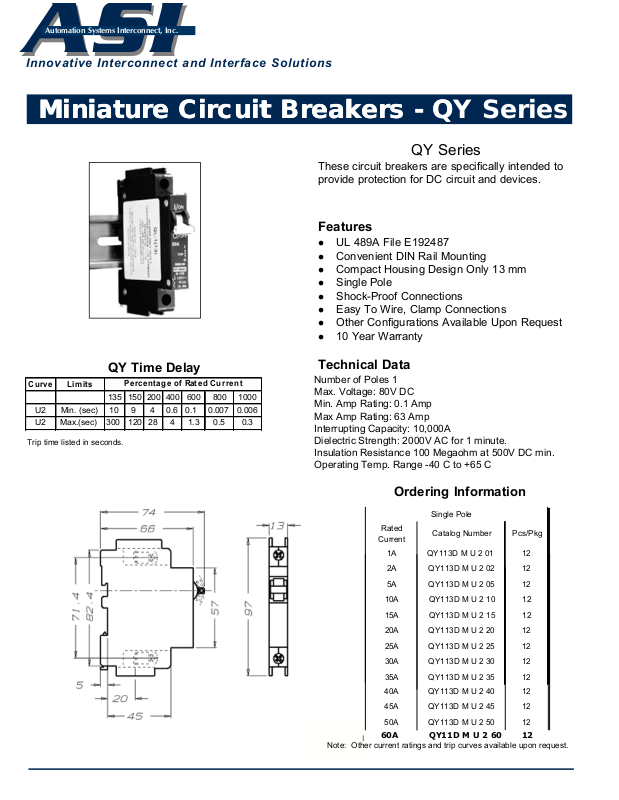

ASI-Automation Systems Interconnect QY Series Data Sheet

Miniature Circuit Breakers - QMiniature Circuit Breakers - QY Series

ASI

Automation Systems Interconnect, Inc.

QY Series

Ordering Information

Rated

Current

Catalog Number Pcs/Pkg

1A QY113D M U 2 01 12

2A QY113D M U 2 02 12

5A QY113D M U 2 05 12

10A QY113D M U 2 10 12

15A QY113D M U 2 15 12

20A QY113D M U 2 20 12

25A QY113D M U 2 25 12

30A QY113D M U 2 30 12

35A QY113D M U 2 35 12

Single Pole

40A QY113D M U 2 40 12

45A QY113D M U 2 45 12

50A QY113D M U 2 50 12

Inn o v a tive Interconne c t and Inte r f a ce S o l utions

QY Series

These circuit breakers are specifically intended to provide protection for DC circuit and devices.

Features

 UL 489A File E192487  Convenient DIN Rail Mounting  Compact Housing Design Only 13 mm  Single Pole  Shock-Proof Connections  Easy To Wire, Clamp Connections  Other Configurations Available Upon Request  10 Year Warranty

QY Time Delay

Curv e Lim its

U2 Min. (sec) 10 9 4 0.6 0.1 0.007 0.006

U2 Max.(sec) 300 120 28 4 1.3 0.5 0.3

Trip time listed in seconds.

Pe rcen tage o f Rate d C u rrent

135 150 200 400 600 800 1000

Technical Data

Number of Poles 1

Max. Voltage: V DC

Max. Voltage 80V DC

Min. Amp Rating: 0.1 Amp

Min. Amp Rating 1 Amp

Max Amp Rating: 63 Amp

Max Amp Rating 50 Amp

Interrupting Capacity: 10,000A

Interrupting Capacity 10,000A

Dielectric Strength: 2000V AC for 1 minute.

Dielectric Strength 1500V, 50/60 Hz

Insulation Resistance 100 Megaohm at 500V DC min.

Insulation Resistance 100 Megaohm

Operating Temp. Range -40 C to +65 C

Operating Temp. Range -40 C to +60 C
