ASI-Automation Systems Interconnect QL Series Data Sheet

ASI

ASI

Automation Systems Interconnect, Inc.

QL Series

These circuit breakers are specifically intended
to provide service entrance, feeder, and branch
circuit protection.

Features

z UL 489 File E192487
z Convenient DIN Rail Mounting
z Compact Housing Design Only 13 mm
z One or Two Pole
z Shock-Proof Connections
z Easy To Wire, Clamp Connections
z Other Configurations Available Upon

Request

z 10 Year Warranty

Technical Data

Number of Poles 1, 2
Max. Voltage 120/240V, 50/60 Hz
Min. Amp Rating .5 Amp
Max Amp Rating 25 Amp
Interrupting Capacity 10,000A
Dielectric Strength 1500V, 50/60 Hz
Insulation Resistance 100 Megaohm
Operating Temp. Range -40 C to +60 C

Miniature Circuit Breakers - QL Series

ASI

ASI

Automation Systems Interconnect, Inc.

Inn ovati ve Inter conne c t and Int erface S oluti o ns

QL Series Dimensions

Ordering Information

Curve Li m it s

125 150 200 400 600 800 1000

KM Min. (sec) 15 8 4 0.7 0.09 0.007 0.005

KM Max.(sec) 300 90 28 4 1.5 0.5 0.4

Per cent ag e of Rate d Cur re nt

Single Pole Tw o Pole

Rated

Current

Catalog Number Pcs/Pkg Catalog Number Pcs/Pkg

1A QL113D M K M 01 12 - -

2A QL113D M K M 02 12 - -

3A QL113D M K M 03 12 - -

4A QL113D M K M 04 12 - -

5A QL113D M K M 05 12 QL213D M K M 05 6

10A QL113D M K M 10 12 QL213D M K M 10 6

15A QL113D M K M 15 12 QL213D M K M 15 6

20A QL113D M K M 20 12 QL213D M K M 20 6

25A QL113D M K M 25 12 QL213D M K M 25 6

QL Time Delay

Trip time listed in seconds.

Note: Other current ratings and trip curves available upon request.

Inn ovati ve Inter conne c t and Int erface S oluti o ns

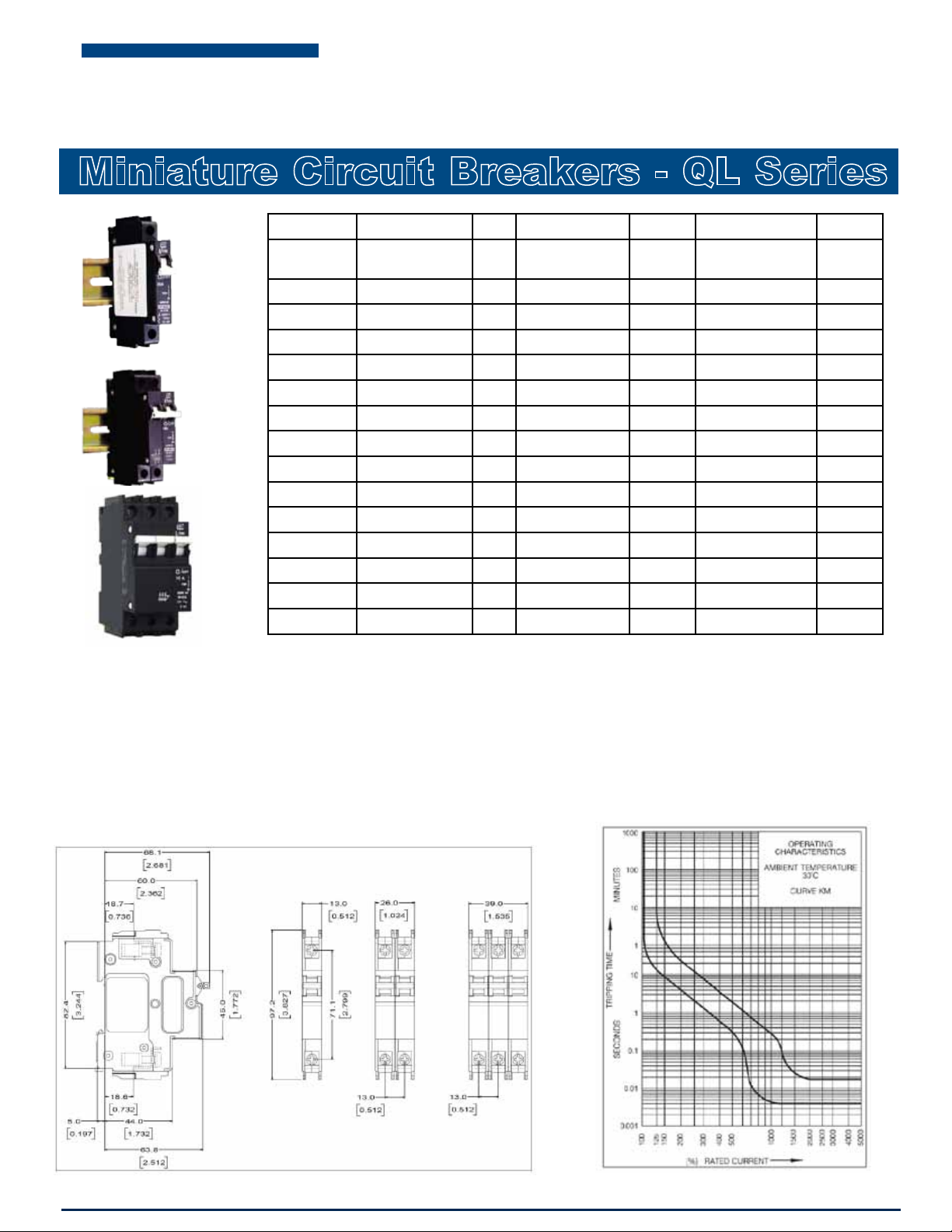

Miniature Circuit Breakers - QL Series

Single Pole Double Pole Three Pole

Rate Current Part# Pkg

.5A QL113DMKM.5 12

1A QL113DMKM01 12 QL213DMKM01

2A QL113DMKM02 12 QL213DMKM02

3A QL113DMKM03 12 QL213DMKM03

4A QL113DMKM04 12 QL213DMKM04

5A QL113DMKM05 12 QL213DMKM05

6A QL113DMKM06 12 QL213DMKM06

7A QL113DMKM07 12 QL213DMKM07

8A QL113DMKM08 12 QL213DMKM08

9A QL113DMKM09 12 QL213DMKM09

10A QL113DMKM10 12 QL213DMKM10

Technical Data:

Number of Poles: 1,2,3
Max Voltage: 240V, 50/60 Hz
Min. Amp Rating: .1 Amp
Max Amp Rating: 25 Amp
Interrupting Capacity: 10kA (1pole) 5kA(2,3pole)
Dielectric Strength: 100 Megaohm at 500V DC minimum
Operating Temp Range: -40°C to +65°C

15A QL113DMKM15 12 QL213DMKM15

20A QL113DMKM20 12 QL213DMKM20

25A QL113DMKM25 12 QL213DMKM25

Part# Pkg Size Part# Pkg Size

Size

6
6
6
6
6
6
6
6
6
6
6
6
6

Features:

• UL489 Listed

• Rated from 1 to 25 amps

• Compact 13mm width

• Shock Proof Connections

• Standard 35mm

DIN Rail Mounting

QL313DMKM01

QL313DMKM02

QL313DMKM03

QL313DMKM04

QL313DMKM05

QL313DMKM06

QL313DMKM07

QL313DMKM08

QL313DMKM09

QL313DMKM10

QL313DMKM15

QL313DMKM20

QL313DMKM25

4
4
4
4
4
4
4
4
4
4
4
4
4
