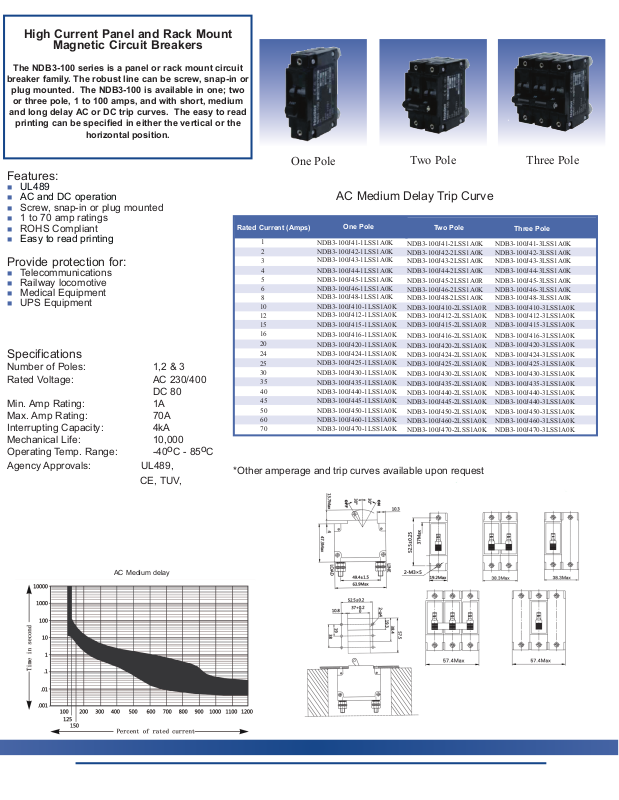

ASI-Automation Systems Interconnect NDB3-100J Data Sheet

High Current Panel and Rack Mount

Features:

Magnetic Circuit Breakers

The NDB3-100 series is a panel or rack mount circuit

breaker family. The robust line can be screw, snap-in or

plug mounted. The NDB3-100 is available in one; two

or three pole, 1 to 100 amps, and with short, medium

and long delay AC or DC trip curves. The easy to read

printing can be specified in either the vertical or the

horizontal position.

 UL489
 AC and DC operation

 Screw, snap-in or plug mounted
 1 to 70 amp ratings
 ROHS Compliant
 Easy to read printing

Provide protection for:

 Telecommunications
 Railway locomotive
 Medical Equipment
 UPS Equipment

Specifications

Number of Poles: 1,2 & 3
Rated Voltage: AC 230/400

DC 80
Min. Amp Rating: 1A
Max. Amp Rating: 70A
Interrupting Capacity: 4kA
Mechanical Life: 10,000
Operating Temp. Range: -40

Agency Approvals: UL489,

o

C - 85oC

CE, TUV,

One Pole

Two Pole Three Pole

AC Medium Delay Trip Curve

Rated Current (Amps)

1
2
3

4
5
6

8
10
12
15
16

20
24
25
30
35
40
45

50
60
70

*Other amperage and trip curves available upon request

One Pole

NDB3-100J41-1LSS1A0K
NDB3-100J42-1LSS1A0K
NDB3-100J43-1LSS1A0K

NDB3-100J44-1LSS1A0K
NDB3-100J45-1LSS1A0K
NDB3-100J46-1LSS1A0K
NDB3-100J48-1LSS1A0K
NDB3-100J410-1LSS1A0K
NDB3-100J412-1LSS1A0K
NDB3-100J415-1LSS1A0K
NDB3-100J416-1LSS1A0K
NDB3-100J420-1LSS1A0K
NDB3-100J424-1LSS1A0K
NDB3-100J425-1LSS1A0K

NDB3-100J430-1LSS1A0K
NDB3-100J435-1LSS1A0K
NDB3-100J440-1LSS1A0K
NDB3-100J445-1LSS1A0K

NDB3-100J450-1LSS1A0K
NDB3-100J460-1LSS1A0K
NDB3-100J470-1LSS1A0K

Two Pole

NDB3-100J41-2LSS1A0K
NDB3-100J42-2LSS1A0K
NDB3-100J43-2LSS1A0K

NDB3-100J44-2LSS1A0K
NDB3-100J45-2LSS1A0R
NDB3-100J46-2LSS1A0K
NDB3-100J48-2LSS1A0K
NDB3-100J410-2LSS1A0R
NDB3-100J412-2LSS1A0K
NDB3-100J415-2LSS1A0R

NDB3-100J416-2LSS1A0K
NDB3-100J420-2LSS1A0K
NDB3-100J424-2LSS1A0K
NDB3-100J425-2LSS1A0K
NDB3-100J430-2LSS1A0K

NDB3-100J435-2LSS1A0K
NDB3-100J440-2LSS1A0K
NDB3-100J445-2LSS1A0K

NDB3-100J450-2LSS1A0K
NDB3-100J460-2LSS1A0K
NDB3-100J470-2LSS1A0K

Three Pole

NDB3-100J41-3LSS1A0K
NDB3-100J42-3LSS1A0K
NDB3-100J43-3LSS1A0K

NDB3-100J44-3LSS1A0K
NDB3-100J45-3LSS1A0K
NDB3-100J46-3LSS1A0K
NDB3-100J48-3LSS1A0K
NDB3-100J410-3LSS1A0K
NDB3-100J412-3LSS1A0K
NDB3-100J415-3LSS1A0K

NDB3-100J416-3LSS1A0K
NDB3-100J420-3LSS1A0K
NDB3-100J424-3LSS1A0K
NDB3-100J425-3LSS1A0K
NDB3-100J430-3LSS1A0K

NDB3-100J435-3LSS1A0K
NDB3-100J440-3LSS1A0K
NDB3-100J440-3LSS1A0K

NDB3-100J450-3LSS1A0K
NDB3-100J460-3LSS1A0K
NDB3-100J470-3LSS1A0K

AC Medium delay

AC/DC Medium delay (Z4/J4)
