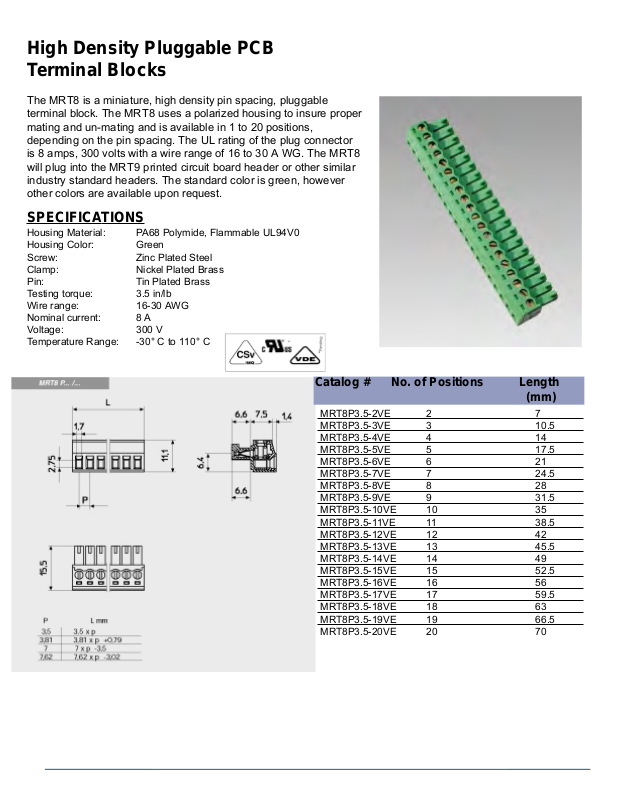

ASI-Automation Systems Interconnect MRT8P3.5 Data Sheet

SPECIFICATIONS

Housing Material: PA68 Polymide, Flammable UL94V0
Housing Color: Green
Screw: Zinc Plated Steel
Clamp: Nickel Plated Brass
Pin: Tin Plated Brass
Testing torque: 3.5 in/lb
Wire range: 16-30 AWG
Nominal current: 8 A
Voltage: 300 V
Temperature Range: -30° C to 110° C

High Density Pluggable PCB
Terminal Blocks

The MRT8 is a miniature, high density pin spacing, pluggable
terminal block. The MRT8 uses a polarized housing to insure proper
mating and un-mating and is available in 1 to 20 positions,
depending on the pin spacing. The UL rating of the plug connector
is 8 amps, 300 volts with a wire range of 16 to 30 A WG. The MRT8
will plug into the MRT9 printed circuit board header or other similar
industry standard headers. The standard color is green, however
other colors are available upon request.

Catalog # No. of Positions Length

(mm)

MRT8P3.5-2VE 2 7
MRT8P3.5-3VE 3 10.5
MRT8P3.5-4VE 4 14
MRT8P3.5-5VE 5 17.5
MRT8P3.5-6VE 6 21
MRT8P3.5-7VE 7 24.5
MRT8P3.5-8VE 8 28
MRT8P3.5-9VE 9 31.5
MRT8P3.5-10VE 10 35
MRT8P3.5-11VE 11 38.5
MRT8P3.5-12VE 12 42
MRT8P3.5-13VE 13 45.5
MRT8P3.5-14VE 14 49
MRT8P3.5-15VE 15 52.5
MRT8P3.5-16VE 16 56
MRT8P3.5-17VE 17 59.5
MRT8P3.5-18VE 18 63
MRT8P3.5-19VE 19 66.5
MRT8P3.5-20VE 20 70
