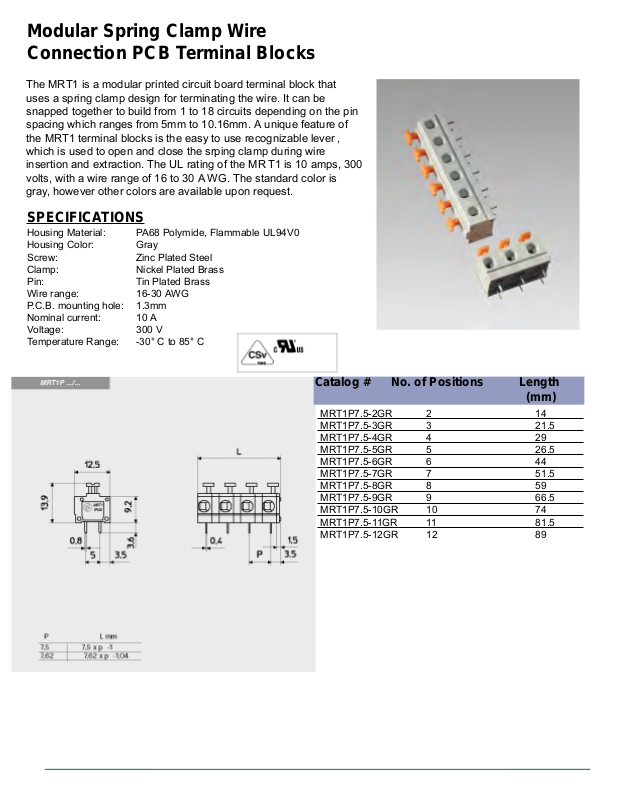

ASI-Automation Systems Interconnect MRT1P7.5 Data Sheet

SPECIFICATIONS

Housing Material: PA68 Polymide, Flammable UL94V0
Housing Color: Gray
Screw: Zinc Plated Steel
Clamp: Nickel Plated Brass
Pin: Tin Plated Brass
Wire range: 16-30 AWG
P.C.B. mounting hole: 1.3mm
Nominal current: 10 A
Voltage: 300 V
Temperature Range: -30° C to 85° C

Modular Spring Clamp Wire
Connection PCB Terminal Blocks

The MRT1 is a modular printed circuit board terminal block that
uses a spring clamp design for terminating the wire. It can be
snapped together to build from 1 to 18 circuits depending on the pin
spacing which ranges from 5mm to 10.16mm. A unique feature of
the MRT1 terminal blocks is the easy to use recognizable lever ,
which is used to open and close the srping clamp during wire
insertion and extraction. The UL rating of the MR T1 is 10 amps, 300
volts, with a wire range of 16 to 30 A WG. The standard color is
gray, however other colors are available upon request.

Catalog # No. of Positions Length

(mm)

MRT1P7.5-2GR 2 14
MRT1P7.5-3GR 3 21.5
MRT1P7.5-4GR 4 29
MRT1P7.5-5GR 5 26.5
MRT1P7.5-6GR 6 44
MRT1P7.5-7GR 7 51.5
MRT1P7.5-8GR 8 59
MRT1P7.5-9GR 9 66.5
MRT1P7.5-10GR 10 74
MRT1P7.5-11GR 11 81.5
MRT1P7.5-12GR 12 89
