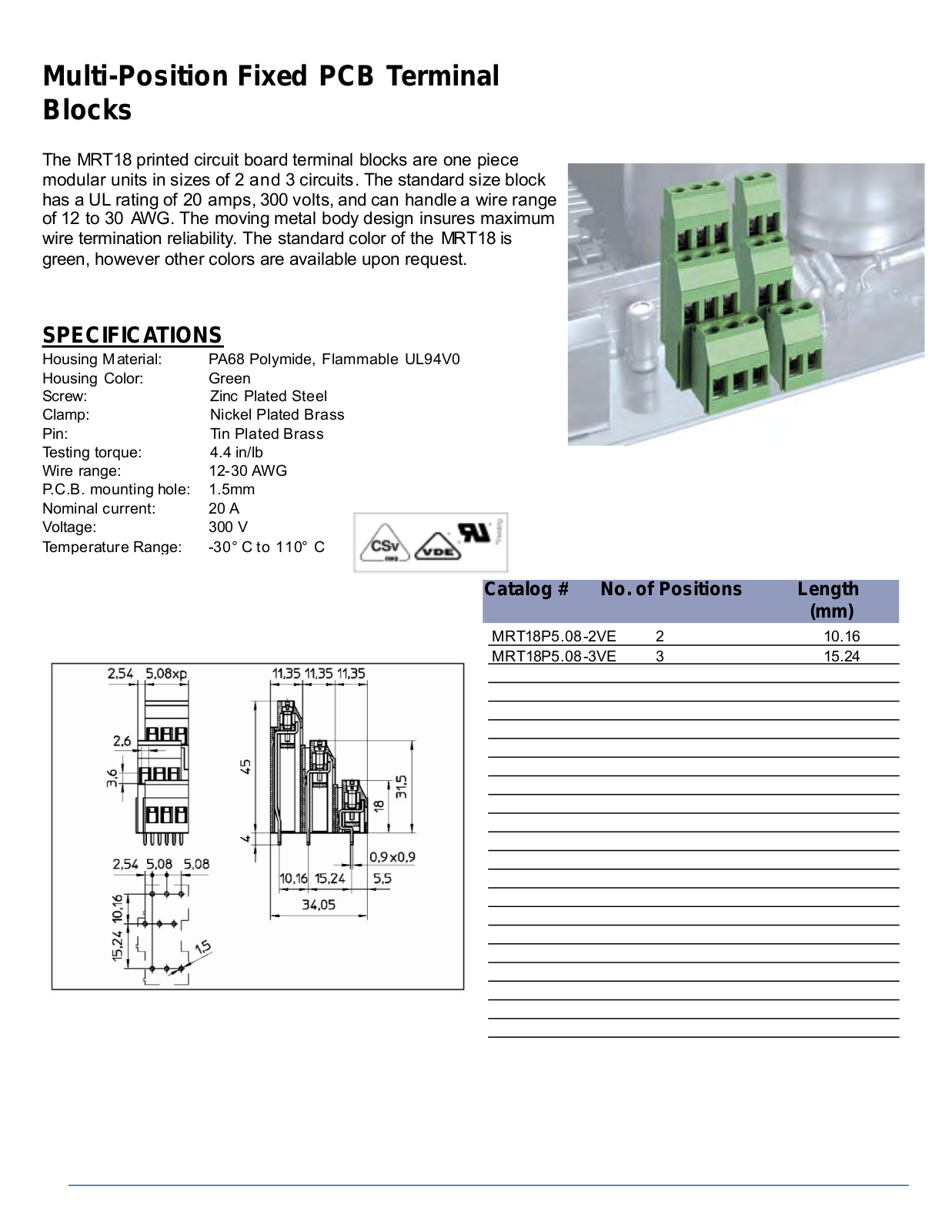

Multi
-
Position
Fixed
PCB
Terminal
Blocks
The MRT18
printed
circuit
board
terminal
blocks
are one piece
modular units in sizes of 2 and 3 circuits. The standard size block
SPECIFIC
A
TIONS
V
T
empera
ture Range:
-30° C to 110°
C
Catalog
#
No.
of
Positions
Length
has a UL rating of 20 amps, 300 volts, and can handle a wire range
of 12 to 30 AWG. The moving metal body design insures maximum
wire termination reliability. The standard color of the MRT18 is
green, however other colors are available upon request.
Housing Material: PA68 Polymide, Flammable UL94V0
Housing Color: Green
Screw: Zinc Plated Steel
Clamp: Nickel Plated Brass
Pin: Tin Plated Brass
Testing torque: 4.4 in/lb
Wire range: 12-30 AWG
P.C.B. mounting hole: 1.5mm
Nominal current: 20 A
oltage: 300 V
MRT18P5.08-2VE 2 10.16
MRT18P5.08-3VE 3 15.24
(mm)
