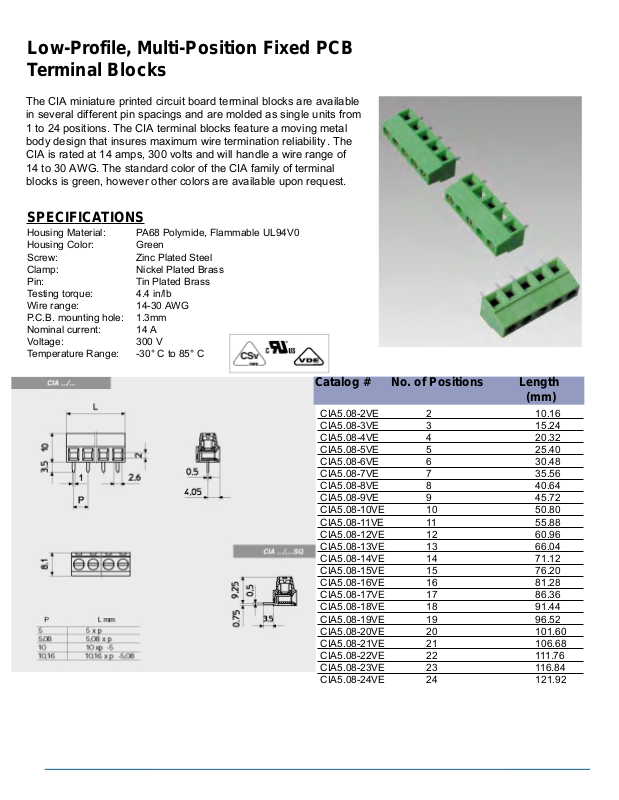

ASI-Automation Systems Interconnect CIA5.08 Data Sheet

SPECIFICATIONS

Housing Material: PA68 Polymide, Flammable UL94V0
Housing Color: Green
Screw: Zinc Plated Steel
Clamp: Nickel Plated Brass
Pin: Tin Plated Brass
Testing torque: 4.4 in/lb
Wire range: 14-30 AWG
P.C.B. mounting hole: 1.3mm
Nominal current: 14 A
Voltage: 300 V
Temperature Range: -30° C to 85° C

Low-Profile, Multi-Position Fixed PCB
Terminal Blocks

The CIA miniature printed circuit board terminal blocks are available
in several different pin spacings and are molded as single units from
1 to 24 positions. The CIA terminal blocks feature a moving metal
body design that insures maximum wire termination reliability . The
CIA is rated at 14 amps, 300 volts and will handle a wire range of
14 to 30 AWG. The standard color of the CIA family of terminal
blocks is green, however other colors are available upon request.

Catalog # No. of Positions Length

(mm)

CIA5.08-2VE 2 10.16
CIA5.08-3VE 3 15.24
CIA5.08-4VE 4 20.32
CIA5.08-5VE 5 25.40
CIA5.08-6VE 6 30.48
CIA5.08-7VE 7 35.56
CIA5.08-8VE 8 40.64
CIA5.08-9VE 9 45.72
CIA5.08-10VE 10 50.80
CIA5.08-11VE 11 55.88
CIA5.08-12VE 12 60.96
CIA5.08-13VE 13 66.04
CIA5.08-14VE 14 71.12
CIA5.08-15VE 15 76.20
CIA5.08-16VE 16 81.28
CIA5.08-17VE 17 86.36
CIA5.08-18VE 18 91.44
CIA5.08-19VE 19 96.52
CIA5.08-20VE 20 101.60
CIA5.08-21VE 21 106.68
CIA5.08-22VE 22 111.76
CIA5.08-23VE 23 116.84
CIA5.08-24VE 24 121.92
