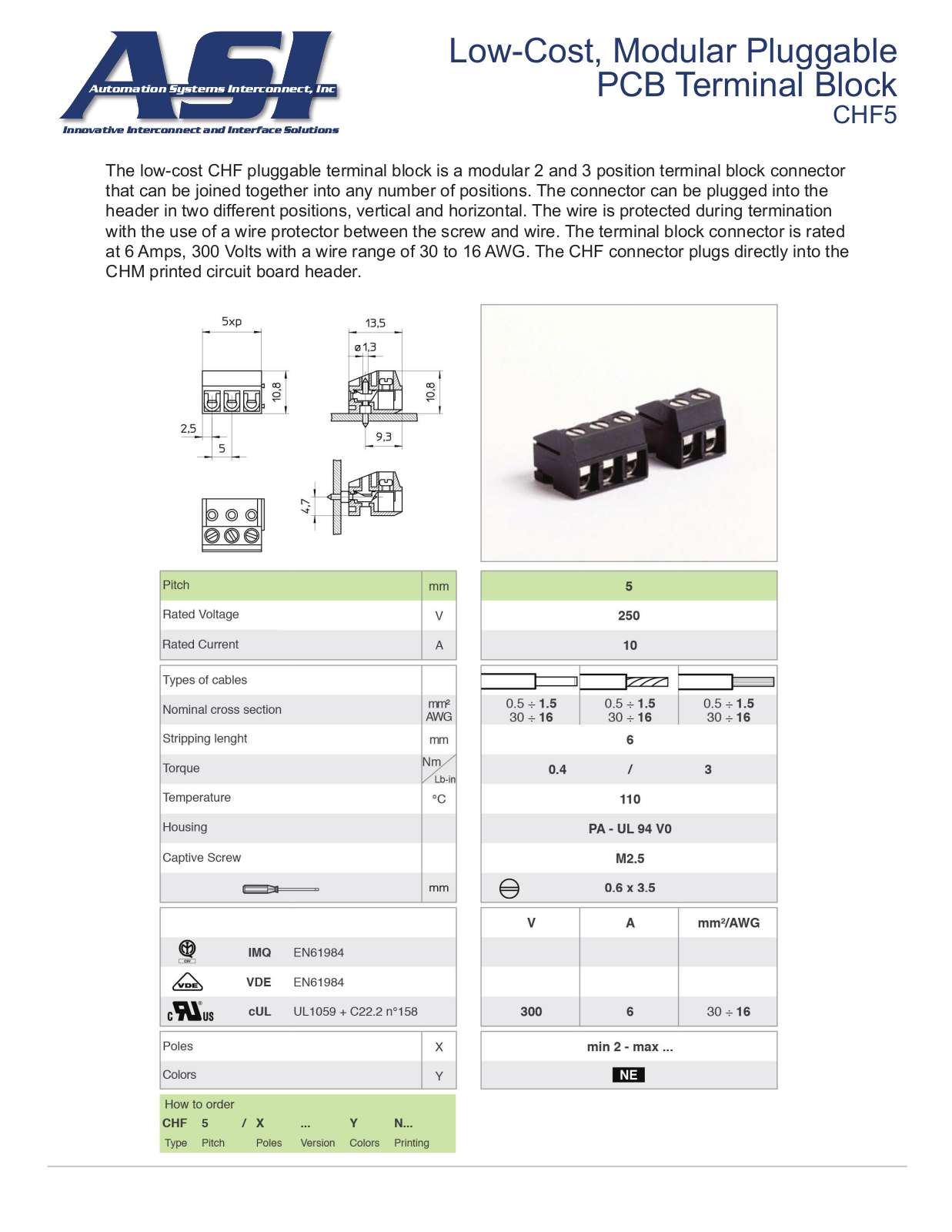

The low-cost CHF pluggable terminal block is a modular 2 and 3 position terminal block connector
that can be joined together into any number of positions. The connector can be plugged into the
header in two different positions, vertical and horizontal. The wire is protected during termination
with the use of a wire protector between the screw and wire. The terminal block connector is rated
at 6 Amps, 300 Volts with a wire range of 30 to 16 AWG. The CHF connector plugs directly into the
CHM printed circuit board header.
