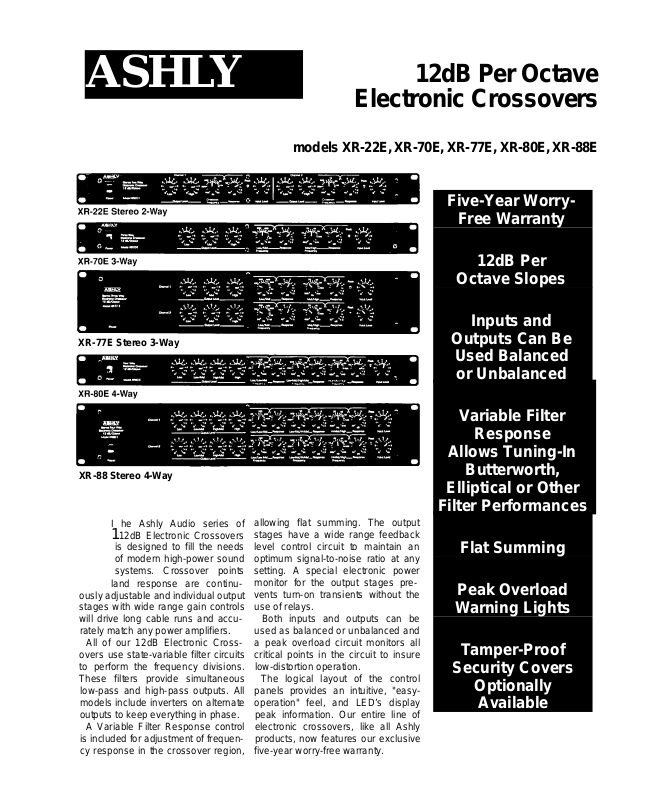

ASHLY
12dB Per Octave
Electronic Crossovers
models XR-22E, XR-70E, XR-77E, XR-80E, XR-88E
Five-Year Worry-
Free Warranty
12dB Per
Octave Slopes
Inputs and
XR-77E Stereo 3-Way
XR-88 Stereo 4-Way
I he Ashly Audio series of
112dB Electronic Crossovers
is designed to fill the needs
of modern high-power sound
T
ously adjustable and individual output
stages with wide range gain controls
will drive long cable runs and accu
rately match any power amplifiers.
overs use state-variable filter circuits
to perform the frequency divisions.
These filters provide simultaneous
low-pass and high-pass outputs. All
models include inverters on alternate
outputs to keep everything in phase.
is included for adjustment of frequen
cy response in the crossover region,
systems. Crossover points
land response are continu
All of our 12dB Electronic Cross
A Variable Filter Response control
allowing flat summing. The output
stages have a wide range feedback
level control circuit to maintain an
optimum signal-to-noise ratio at any
setting. A special electronic power
monitor for the output stages pre
vents turn-on transients without the
use of relays.
Both inputs and outputs can be
used as balanced or unbalanced and
a peak overload circuit monitors all
critical points in the circuit to insure
low-distortion operation.
The logical layout of the control
panels provides an intuitive, "easyoperation" feel, and LED’s display
peak information. Our entire line of
electronic crossovers, like all Ashly
products, now features our exclusive
five-year worry-free warranty.
Outputs Can Be
Used Balanced
or Unbalanced
Variable Filter
Response
Allows Tuning-In
Butterworth,
Elliptical or Other
Filter Performances
Flat Summing
Peak Overload
Warning Lights
Tamper-Proof
Security Covers
Optionally
Available
Specifications
Damping (crossover point depth):
CONTROLS
Input Level:
Output Levei:
«- +10dB
1.5dB-12dB
CO - +20dB
Block Diagram XR-88E
1
BALANCED ^
INPUT ^
=ROM FROM OUTPUT
INPUT FILTERS STAGES
Input Impedance:
Output Impedance:
Maximum Input Level:
Maximum Output Level:
Frequency Response:
Distortion:
Hum and Noise:
Power Requirements:
Size:
Shipping Weight:
INPUT
GAIN
v/v y
FROM
10ki2 balanced bridging
50Q unbalanced - terminated w/ 600L2 or more.
Turn on transient protected.
+26dBm
+20dBm
±.5dB 20Hz - 20kHz (within passband)
< .05% THD, +10dBV 20Hz - 20kHz
-90dBV - Inputs and all outputs unity gain, frequen
cy and rolloff at center rotation, (all outputs)
120 VAC 50-eOHz, 5W
XR-22E, XR-70E, XR-80E: 19"L x 1.75"H X 6"D
XR-77E, XR-88E: 19"L x 3.5"H x 6"D
XR-22E, XR-70E, XR-80E: 8 IbS
XR-77E, XR-88E: 10 lbs
FILTERS
“1
f.
—1
Typical Hookup Of
3-Way Electronic Crossover
Such As The Ashly XR-70E
MIXER
Tow MIO HIGH
cr *. . I.
"rn.
LF MID HF
AMP AMP AMP
ASHLY3-WAY1
CROSSOVER
Ashly Audio Inc.
PEAK INDICATOR
OUTPUT STAGES
Ashly also manufactures a complete and comprehensive
line of 24dB per Octave Electronic Crossovers, as well as
Power Amplifiers, Compressor-Limiters, Noise Gates,
Graphic and Parametric Equalizers, and Preamps. Please
call or write for information on any of these Ashly Products.
ASHLY
Since 1972
© 1990 Ashly Audio
