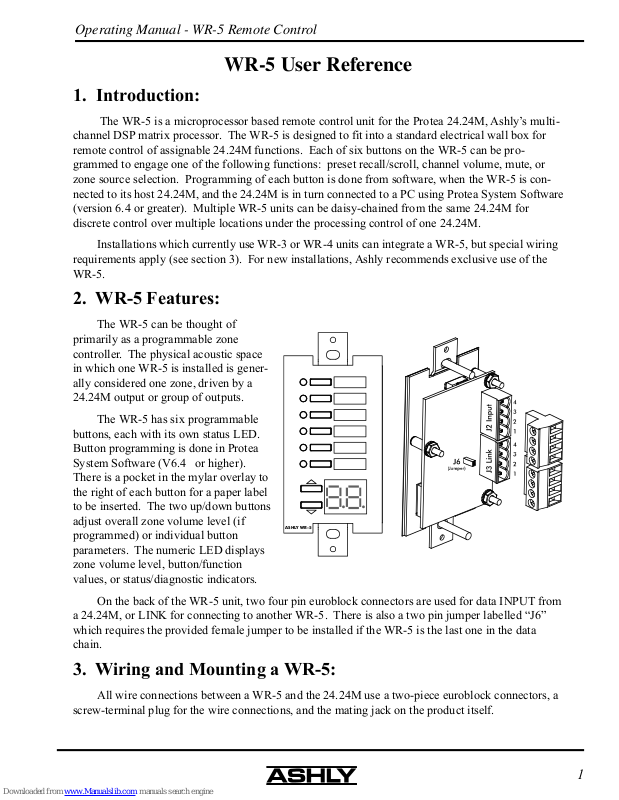

1. Introduction:

The WR-5 is a microprocessor based remote control unit for the Protea 24.24M, Ashly’s multi­channel DSP matrix processor. The WR-5 is designed to fit into a standard electrical wall box for
remote control of assignable 24.24M functions. Each of six buttons on the WR-5 can be pro­grammed to engage one of the following functions: preset recall/scroll, channel volume, mute, or
zone source selection. Programming of each button is done from software, when the WR-5 is con­nected to its host 24.24M, and the 24.24M is in turn connected to a PC using Protea System Software
(version 6.4 or greater). Multiple WR-5 units can be daisy-chained from the same 24.24M for
discrete control over multiple locations under the processing control of one 24.24M.

Installations which currently use WR-3 or WR-4 units can integrate a WR-5, but special wiring
requirements apply (see section 3). For new installations, Ashly recommends exclusive use of the
WR-5.

2. WR-5 Features:

The WR-5 can be thought of
primarily as a programmable zone
controller. The physical acoustic space
in which one WR-5 is installed is gener­ally considered one zone, driven by a

24.24M output or group of outputs.

The WR-5 has six programmable
buttons, each with its own status LED.
Button programming is done in Protea
System Software (V6.4 or higher).
There is a pocket in the mylar overlay to
the right of each button for a paper label
to be inserted. The two up/down buttons
adjust overall zone volume level (if
programmed) or individual button
parameters. The numeric LED displays
zone volume level, button/function
values, or status/diagnostic indicators.

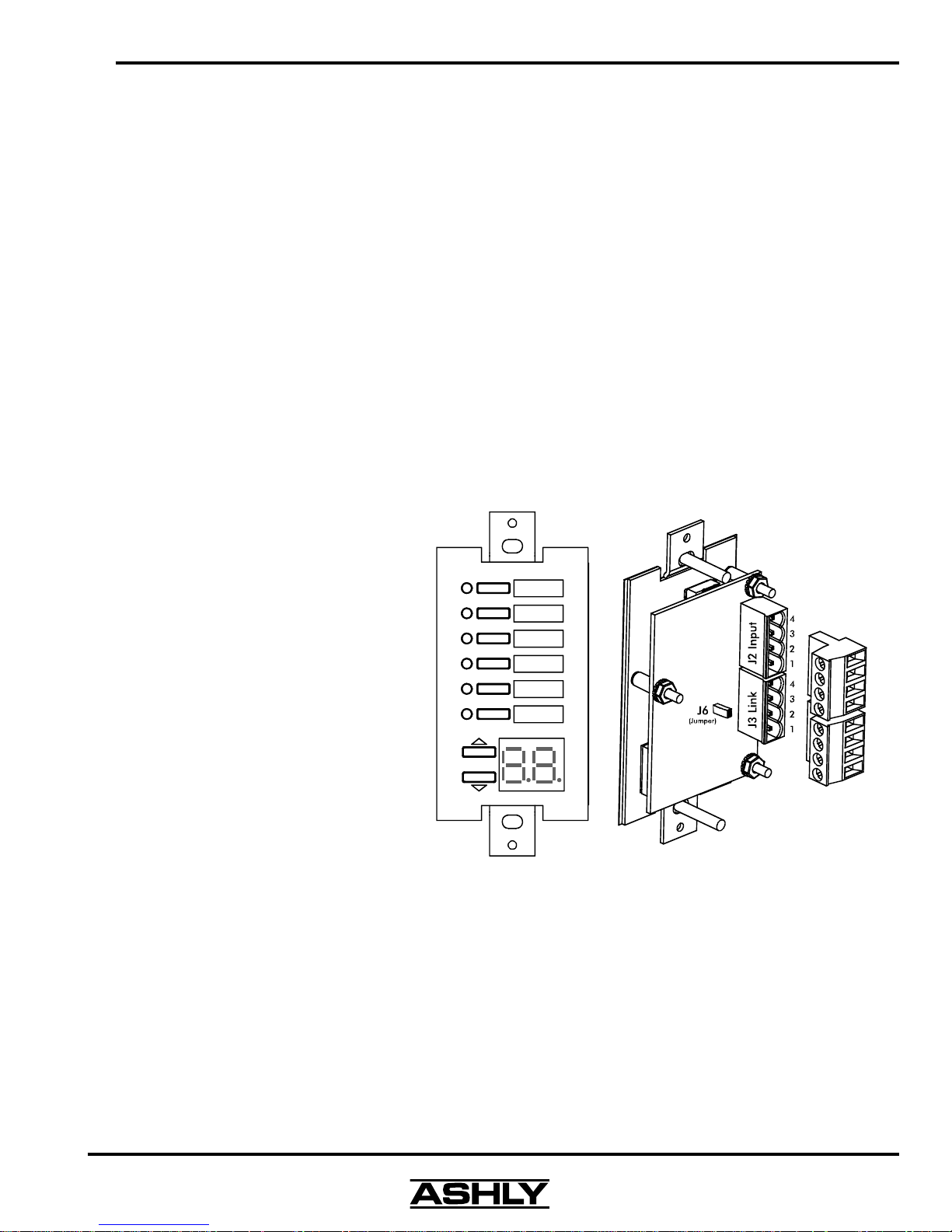

On the back of the WR-5 unit, two four pin euroblock connectors are used for data INPUT from
a 24.24M, or LINK for connecting to another WR-5. There is also a two pin jumper labelled “J6”
which requires the provided female jumper to be installed if the WR-5 is the last one in the data
chain.

ASHLY WR-5

3. Wiring and Mounting a WR-5:

All wire connections between a WR-5 and the 24.24M use a two-piece euroblock connectors, a
screw-terminal plug for the wire connections, and the mating jack on the product itself.

1

Operating Manual - WR-5 Remote Control

The WR-5 uses a four conductor

Wiring a WR-5 to a 24.24M

serial bus to connect to the 24.24M and
to subsequent WR-5 units, with a serial
bus termination (WR-5 jumper J6)
required on the last WR-5. Four
conductor telephone wire is suitable, as
well as CAT5, but if shielded wiring is
used be sure to ground the source end.

Under no circumstances should shield­ing be left unconnected to ground, as

Install Jumper
On Last WR-5

J6

WR-5 J3

Data Link

4321

The Next
WR-5 Data Input

4321

4321

WR-5 J2
Data Input

the added line capacitance will de­grade the data signal.

Wire Pin 2 to Pin 5

Maximum distance to the first

24.24M Data
Connector

WR-5 is <400ft (120m). Maximum
distance from first WR-5 to the next
WR-5 is <1000ft (300m).

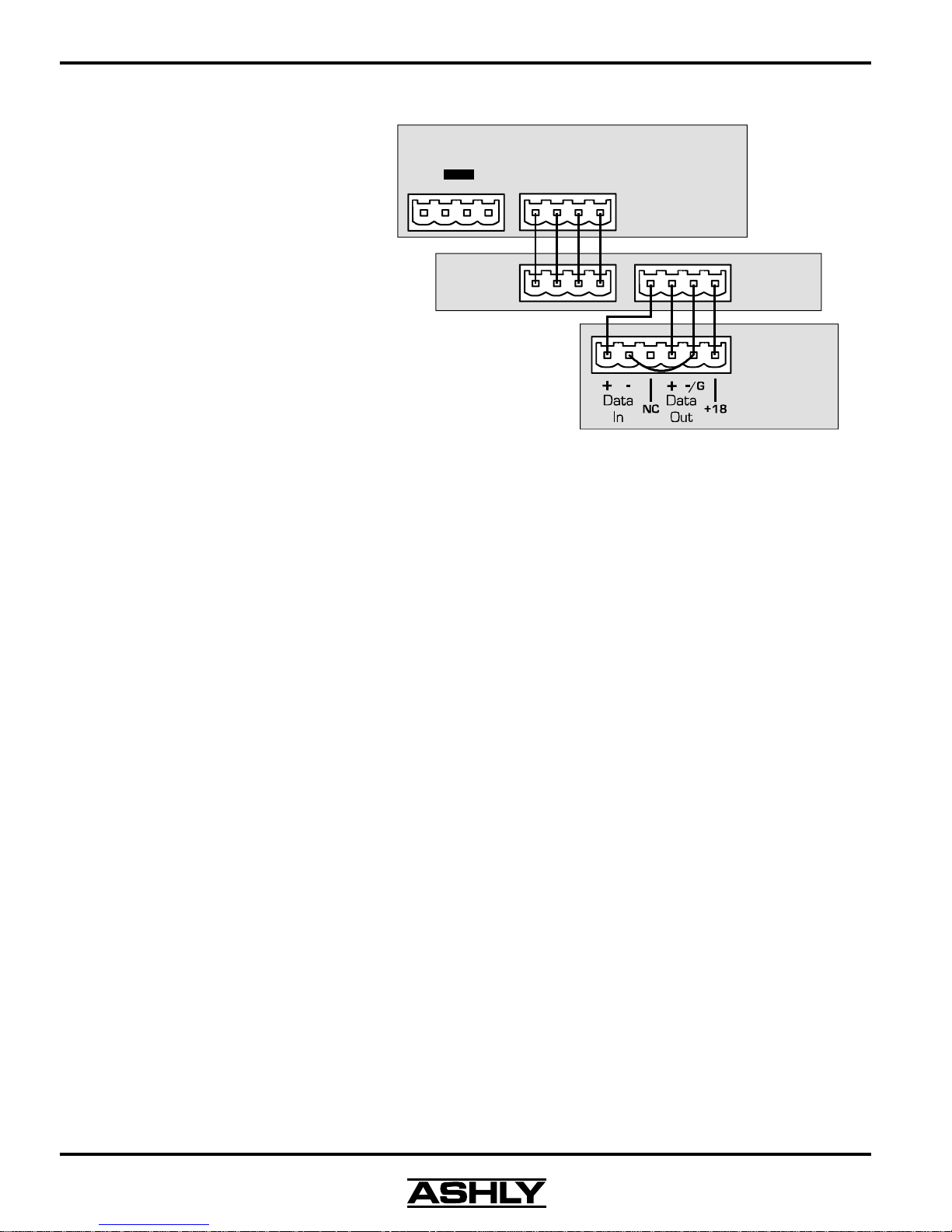

Each WR-5 has two four-pin euroblock connectors on the back of the unit, one labeled

“INPUT” and the other labeled “LINK”. Connect the four conductor serial bus wire from the

24.24M to the WR-5 INPUT as follows:

If more than one WR-5 is being used, connect the next length of four conductor bus wire from
the first WR-5’s “LINK” euroblock connector to the following WR-5 “INPUT” connector, and so on,
until the last WR-5 is wired. On the last WR-5 in the chain, even if there is only one WR-5, install
the female jumper on J6 on the back of the pcb to terminate the serial data bus, and make sure all
prior WR-5 units have that jumper removed.

Note: If more than four WR-5 units are required, an external power supply must be used in­stead of the 24.24M +18V supply. See section 6 for details.

Replacing a WR-3 or WR-4 with a WR-5

Ashly recommends using WR-5 units exclusively in new installations. However, where there is
an existing installation of a WR-3 or WR-4 which use the three wire bus format, the following
wiring instructions allow use of a WR-5 with existing wire runs.

1) Wire the “+18V” wire from the 24.24M to the WR-5 input pin 4.

2) Wire the “Data Out -/Gnd” from the 24.24M to the WR-5 input pin 3.

3) Wire the “Data Out +” from the 24.24M to the WR-5 input pin 2

4) Leave WR-5 pin 1 empty, unless the WR-5 is the last in the chain.

5) Subsequent WR-5 units connect with pins 2, 3, and 4 only

6) On the last WR-5 in the chain, connect input pin 1 back to the 24.24M “Data In +” using the
wiring formerly used as the terminating line from the WR-3 or WR-4. Be sure to install the jumper
J6 on the last WR-5 in series.

7) On the 24.24M, connect “Data In -” to “Data Out -/Gnd” as shown at top of page.

2

Operating Manual - WR-5 Remote Control

4. Getting Started

The WR-5 comes with no configuration, therefore it must be programmed using Protea System
Software (version 6.4 or greater from the included CD or the Ashly web site). Follow these steps
before beginning:

1) Connect the PC to the 24.24M RS-232 Dataport on either front or back panel using a non-

video Dsub9 cable.

2) Connect the first WR-5 to the 24.24M euroblock data connector on the back panel.

3) Press IN the RS-232 data switch on the 24.24M back panel. This switch should be IN
whenever a WR-5 and a PC are connected, and should be OUT whenever either one is connected
alone.

At this point, assuming the PC, software, and 24.24M are turned on and properly wired, the
WR-5 should have a “heartbeat”, meaning an internal small green LED on the PCB will be flashing.
If so, proceed with the following steps:

4) In Protea System Software, select the 24.24M Matrix Processor in the Device Menu if it

isn’t already the current device.

5) Select the Software ID channel number (1-16) across the top of the screen that matches the
Device ID currently shown in the 24.24M window, or change the 24.24M Device ID to match the
desired 24.24M software data channel.

6) Enable Communications in the Communications menu. If an error message states “slave not
responding on Channel _” then verify that the Device ID and software channel are the same. If an
error message states “Data response not received”, verify the CommPort Assignment under the
communications menu. Also under the Communications menu, set baud rate to 9600bps.

7) Under the Options menu, select <Program WR-5 Remotes>, and the WR-5 Configuration
window will appear.

8) In the WR-5 Configuration window, click on <Scan for WR5 Remotes>. The complete list
of available remotes can be seen in the upper left corner pull down menu. This is the best time to
verify from the list of available remotes that the Device ID for each remote matches the 24.24M.

9) Individual remotes can be visually identified by first selecting an available remote from the
pull down menu, then clicking <Identify Remote>. The selected WR-5 will flash “Id” in its LED
display for 30 seconds.

10) In addition to the permanent, factory programmed remote ID number, the user can enter a
remote name for each WR-5 to help identify its function, for example “Under Balcony Fill”. Each
WR-5 permanently stores its own configuration data when <Save Changes to Remote> is clicked.

5. Programming the WR-5:

The following functions are available for each of six buttons on the WR-5:

1) Off - No function assigned and the button’s LED remains unlit

2) Preset Recall - A single 24.24M preset number (1-35) is assigned. When the button is
pressed, the recalled preset number and the letters “PC” are alternately flashed on the WR-5 for

3

Operating Manual - WR-5 Remote Control

seven seconds, also locking out any other WR-5 action for that time.

3) Preset Scroll Mode - A range of 24.24M presets can be assigned to a button and selected by
pressing and holding the up/down buttons. Upon release of the up/down button, the displayed preset
will load. The button’s LED will flash for the duration of the preset scroll operation.

4) Gain Control - Protea System Software auto-detects the input/output configuration of the

24.24M. Using <Show Channels> , it is possible to assign any combination of inputs or outputs to a
gain control. Furthermore, an upper and lower gain limit can be set in the function range section for
each button.

When a gain control button is pressed, its LED flashes and the up/down buttons determine gain.
If the up/down buttons sit idle for five seconds, the gain button becomes inactive until being pressed
again. Note: If a <Select 24.24M Outputs> zone checkbox has been selected within the <Zone

Setup> area, the WR-5 up/down buttons and numeric display default to the output gain setting for
that zone. If no zone is selected, the display shows “--” as the default.

5) Channel Engage/Mute - As with the gain control, the available 24.24M input/output con­figuration is shown. Select any combination of available inputs or outputs and the button will mute
or unmute the entire selection.

6) Zone Source Selection - Available input channels must first be assigned to the desired
output(s) within the 24.24M mixer section, then can be selected in the WR-5 zone source selection
<Show Input Channels> pull down menu. Once the desired inputs are assigned to a button, they will
toggle on or off with the button and its LED.

When multiple zone source select buttons are assigned uniquely different or overlapping inputs,
each button will simply add to or subtract from the other’s input selections, unless <Exclusive
Source Selection> is checked in the zone setup, in which case only the current buttons selected
inputs will be used.

Zone Setup - One WR-5 can only control one zone. A zone is a specific 24.24M output or set
of outputs as defined in the WR-5 software. In the zone setup frame, the <Select 24.24M Outputs>
button provides the available list of 24.24M outputs which can be selected for this WR-5 zone.

Exclusive source selection, as previously mentioned in #6, is a global command for this WR-5
to only allow one button’s source selection at a time.

The Disable Zone Level Control button is also a global command for this WR-5 to allow input
source selections to be changed from the WR-5, but not the output gain. The output gain can still be
adjusted from software, but the WR-5 user is locked out from making zone output gain changes.

6. Using More Than Four WR-5 Units

The 24.24M can power up to four WR-5 units. Connecting more than four WR-5 units requires
an external power supply, one which provides anywhere from +15VDC to +20VDC and at least
28mA current for each WR-5 connected. Connect the V+ output from the external supply to the first
WR-5 input connector (J2) pin 4. Do not connect the +18V terminal from the 24.24M to the WR-5
or to the external supply, simply leave it unconnected. Connect the external power supply ground to
the 24.24M terminal labelled “Data Out -”. Subsequent WR-5’s can be daisy chained in the standard
method as shown on page two.
