System II
Digital Audio Products
SYSTEM II
Operating Manual
4.24G - Four Channel Graphic Equalizer/System Processor
4.24GS - Four Channel Graphic Equalizer/System Processor Slave
2.24GS - Two Channel Graphic Equalizer/System Processor Slave
4.24PS - Four Channel Parametric Equalizer/System Processor Slave
2.24PS - Two Channel Parametric Equalizer/System Processor Slave
4.24RD - Full Function Graphic Equalizer Remote Control
Protea System Software
ASHLY AUDIO INC.
847 Holt Road Webster, NY 14580-9103 Phone: (716) 872-0010
Toll-Free: (800) 828-6308 Fax: (716) 872-0739
www.ashly.com
Operating Manual - PROTEA SYSTEM II Digital Audio Products
Table Of Contents
1 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 Protea Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Audio Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3 User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4 Protea System Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 AC POWER REQUIREMENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 UNPACKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4 TYPICAL PROTEA APPLICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4.1 Stand-Alone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4.2 With 4.24RD Remote Control Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4.3 Multi-Channel Protea System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4.4 Computer Control with Protea System Software . . . . . . . . . . . . . . . . . . . . . . . 7
4.5 With Third-Party MIDI System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5 KEYBOARD CONTROL FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5.1 Bank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5.2 Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5.3 Menu Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5.4 On-Line Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.5 Esc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.6 Recall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.7 Save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.8 Flat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.9 Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.10 In/Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.11 Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.12 Scene . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.13 CapsLock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.14 Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.15 Factory Reset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6 INTERCONNECT FEATURES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6.1 Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6.2 MIDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6.3 RS-232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6.4 Contact Closures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2
Operating Manual - PROTEA SYSTEM II Digital Audio Products
7 MIDI IMPLEMENTATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7.1 MIDI and the Four Banks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7.2 Selecting the MIDI Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7.3 Continuous Controller Reference Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
8 PROTEA 4.24RD REMOTE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
9 PROTEA SLAVE UNITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
10 PROTEA SYSTEM SOFTWARE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
10.1 How to Get Protea System Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
10.2 Installing Protea System Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
10.3 Connecting To A Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
11 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
11.1 4.24G Main Troubleshooting Tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
11.2 Slave Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
11.3 Battery Replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
12 WARRANTY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
13 DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
14 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the presence
of uninsulated "dangerous voltage" within
the product's enclosure that may be of
sufficient magnitude to constitute a risk
of electric shock to persons.
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK,
DO NOT EXPOSE THIS APPKIANCE TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE, REPLACE ONLY WITH
SAME TYPE FUSE. REFER REPLACEMENT TO
QUALIFIED SERVICE PERSONNEL.
The exclamation point within an eqilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance instructions in the literature
accompanying the device.
WARNING:
THIS APPARATUS MUST BE EARTHED
3
Operating Manual - PROTEA SYSTEM II Digital Audio Products
1. INTRODUCTION
Thank you for your purchase of this Ashly Protea SYSTEM II digital audio product. The
Protea SYSTEM II series builds on the tradition of quality and value which has earned Ashly its place
as a market leader in equalization and signal processing. Please read the entire manual in order to
realize all of the powerful features the Protea SYSTEM II series of products has to offer.
1.1 PROTEA PRODUCTS

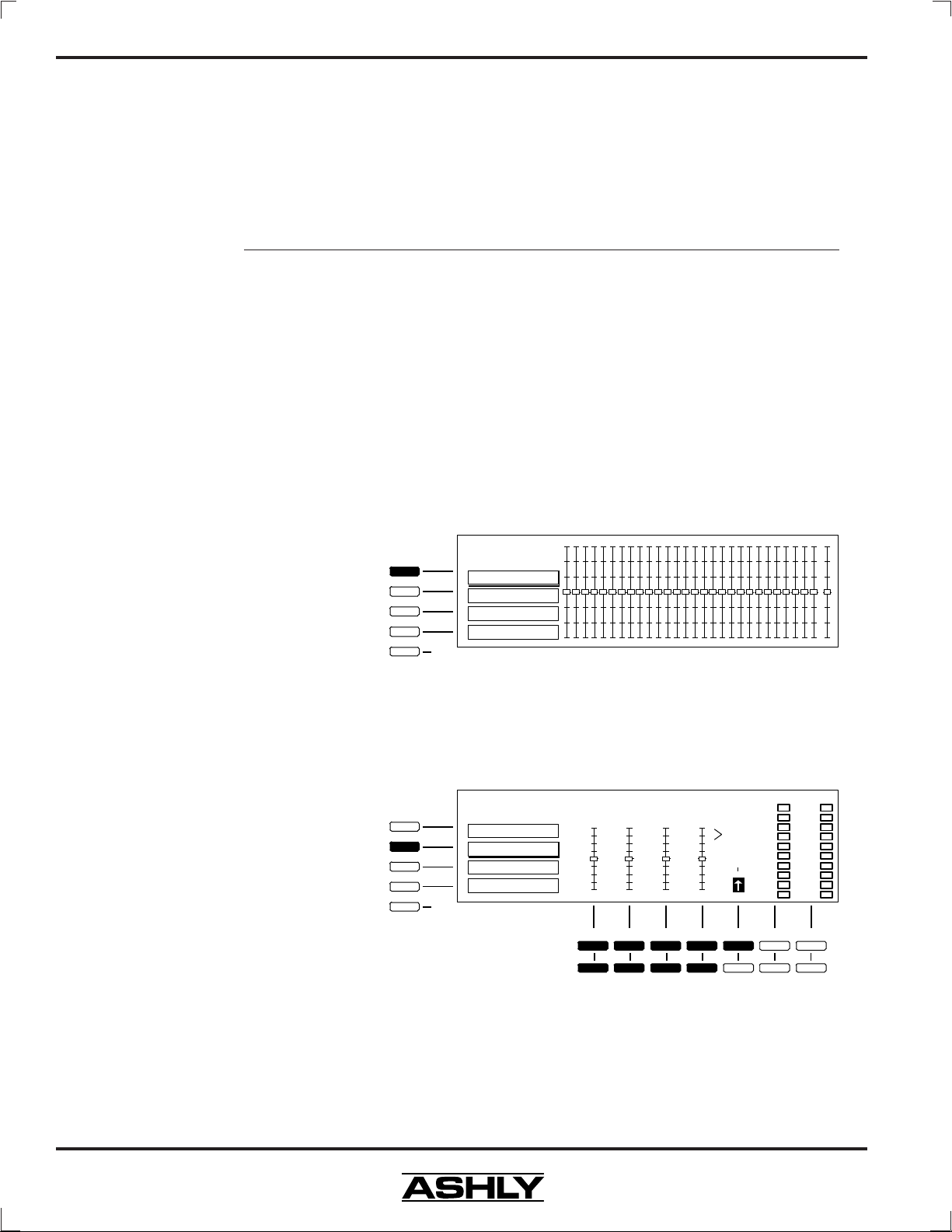

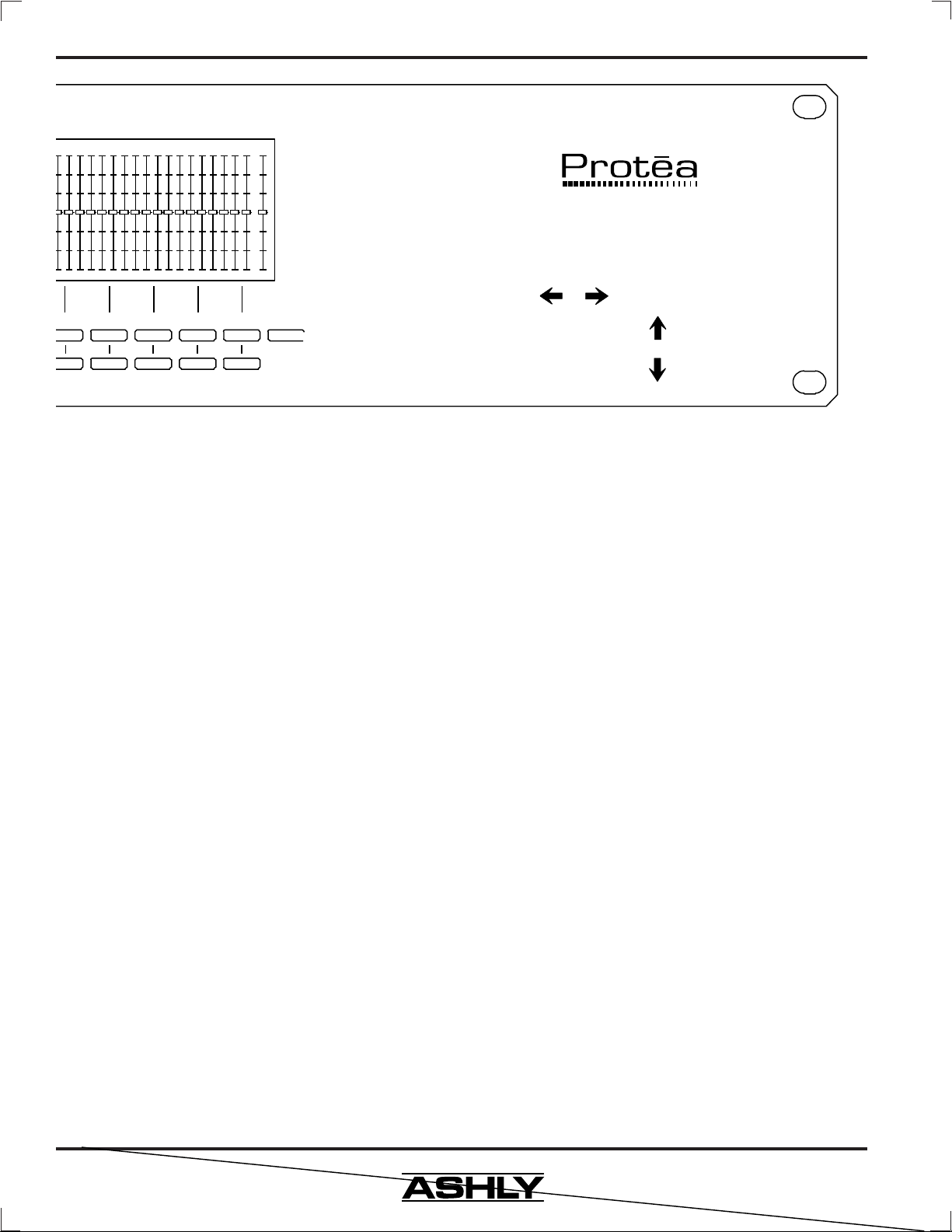

The Protea SYSTEM II series consists of the following seven products:
4.24G
2u, Four channel
processor with keyboard
interface and LCD display
Inputs Outputs
PUSH PUSH
231
(-)(+)
Inputs are 18KΩ active balanced. Out puts may be wired balanced or unb alanced.
12
4 3
2
1
34
Maximum in/ out level is +20 dBu.
Digital Au dio Products
RS-232
Data In Data Out
Through
Ashly 4.24RD Remote or Other Mi di Device
115V or 230V
50-60Hz 30W
Data
Ashly Audio Inc.
Config
Made In USA
Model 4 .24G
MIDI or RS -232 Slave
RS-232 Master Onl y
On
AVIS:
RISQUE DE CHOC ELECTRIQUE -
NE PAS OUVRIR.
Off
Power
4
Operating Manual - PROTEA SYSTEM II Digital Audio Products

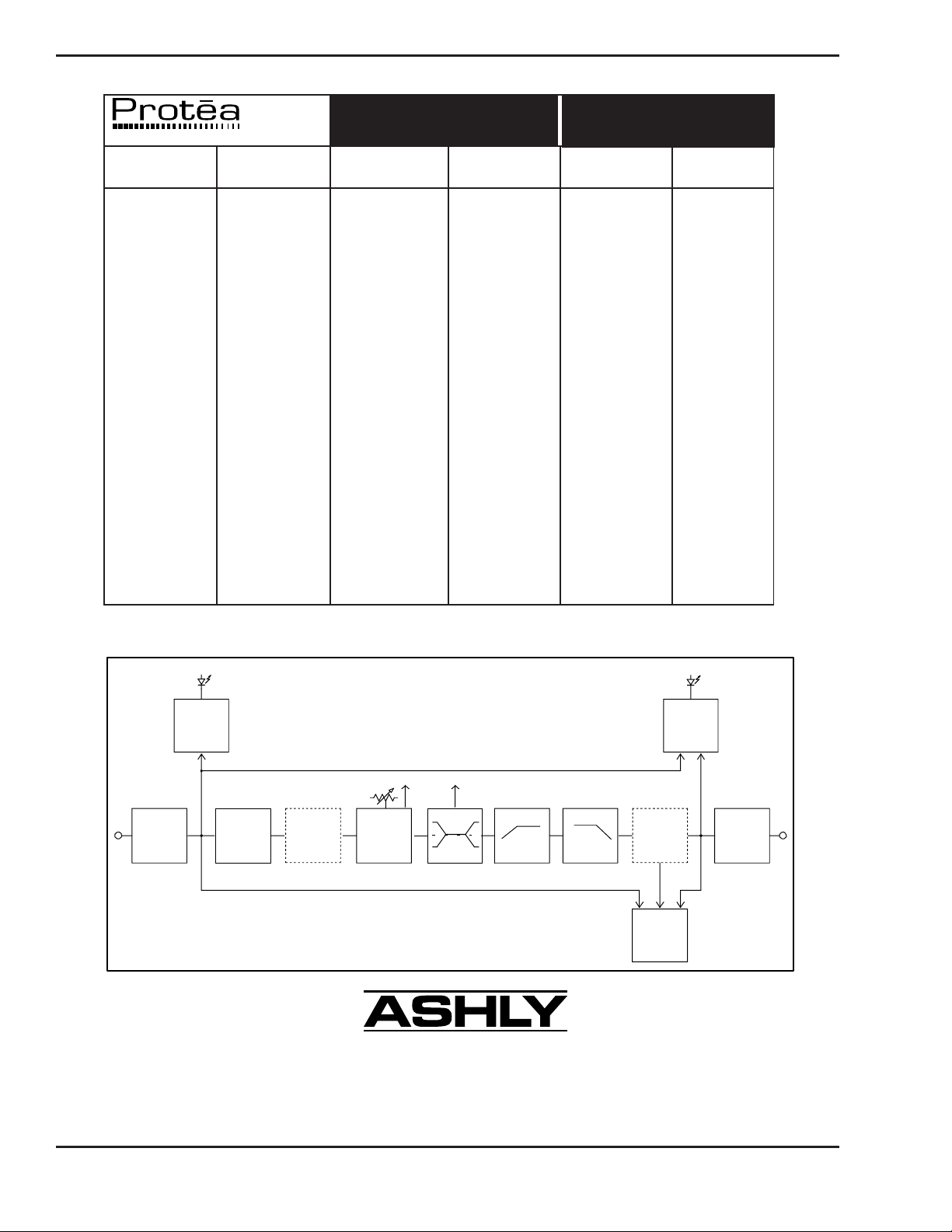

1.2 AUDIO FEATURES
The Protea audio components consist of state of the art technologies, beginning with a 24 bit, 48kHz deltasigma A/D converter with 128x oversampling. Digital processing includes EQ, Compression, Limiting, Shelving,
Highpass and Lowpass Filters, and Time Delay, taking place in a 100MHz Motorola DSP56303 high performance DSP
processor. D/A conversion uses a 24 bit delta-sigma converter with 128x oversampling. Inputs are precision balanced
and RF protected, while outputs may be wired balanced or unbalanced. All audio connections use XLR and 1/4" phone
5
Operating Manual - PROTEA SYSTEM II Digital Audio Products
2. AC POWER REQUIREMENTS
Note: The A C power switch for model 4.24G is on the back panel. All Protea devices will perform nor-
mally from 90 to 125VAC. A standard IEC-320 AC inlet is provided on the rear panel to accept the detachable power
cord shipped with the unit. Units distributed within the United States are preselected for 115VAC, 50-60Hz and should
be plugged into a standard NEMA 5-15 3-wire grounded AC receptacle. Most units distributed outside the US are
preselected and labeled for 230VAC, 50-60Hz and are shipped with the appropriate power cord. In the event of fuse
failure, replace only with same type and rating fuse. If the fuse is internal, refer the product to a qualified service
technician for fuse replacement.
The 4.24RD remote control is phantom powered from its host through two standard three-conductor XLR cables.
3. UNPACKING
As a part of our system of quality control, every Ashly product is carefully inspected before leaving the factory
to ensure flawless appearance. After unpacking, please inspect for any physical damage. Save the shipping carton and
all packing materials, as they were carefully designed to reduce to minimum the possibility of transportation damage
should the unit again require packing and shipping. In the event that damage has occurred, immediately notify your
dealer so that a written claim to cover the damages can be initiated. The right to any claim against a public carrier can
be forfeited if the carrier is not notified promptly and if the shipping carton and packing materials are not available for
inspection by the carrier. Save all packing materials until the claim has been settled.
4. TYPICAL PROTEA APPLICATIONS
The Protea SYSTEM II product family includes five audio processors, a remote control, and Protea System
Software. Various Protea units can be combined to expand the capabilities of a system, adding channels, utilizing
remote control, or connecting to a PC. The following illustrations indicate some typical Protea systems.
See SYSTEM CONFIGURATION chart on p. 20 for specific switch and preference settings.
4.1 STAND-ALONE
Only the 4.24G can be used as a fully self-
contained processor, while any slave unit can function independently once it has been properly set up
through external hardware or software.
4.2 SINGLE UNIT WITH REMOTE CONTROL
The remote control unit (model 4.24RD) con-
nects to the main 4.24G or any other slave unit, and can
run up to 1000 ft. from the host audio unit.
4.24RD Remote
XLR Data Ou t XLR Data In
XLR Data In
Main Or Slave
*4.24G Main
Slaves
XLR Data Out
- Data C onfig Switch Out
- Switch A Out, Switch B Out
4.3 MULTI-CHANNEL PROTEA SYSTEM
Up to 16 different logical (MIDI) channels can
be simultaneously controlled from one Master in an expanded Protea system.
4.24RD Remote
XLR Data Ou t XLR Data In
XLR Data In
4.24G Main
(
Data Config Switch Out)
Select MASTER in UserPrefs
XLR Data Out
XLR Data In
XLR Data In
Main Or Slave
*4.24G M ain
Slaves
XLR Data Out
XLR Data In
*4.24G M ain
Slaves
XLR Data Out
XLR Data In
*4.24G M ain
Slaves
XLR Data Out
- Data C onfig Switc h Out
- Switch A Out, Switch B Out
Main Or Slave
- Data C onfig Switc h Out
- Switch A Out, Switch B Out
Main Or Slave
- Data C onfig Switc h Out
- Switch A Out, Switch B Out
Main Or Slave
*4.24G M ain
Slaves
- Switch A Out, Sw itch B Out
XLR Data Out
XLR Data In
Main Or Slave
*4.24G M ain
Slaves
- Switch A Out, Sw itch B Out
XLR Data Out
XLR Data In
Main Or Slave
*4.24G M ain
- Switch A Out, Sw itch B Out
Slaves
XLR Data Out
XLR Data In
Main Or Slave
*4.24G M ain
Slaves
- Switch A Out, Sw itch B Out
XLR Data Out
- Data C onfig Sw itc h Out
- Data C onfig Sw itc h Out
- Data C onfig Sw itc h Out
- Data C onfig Sw itc h Out
*4.24G M ain
- UserPrefs LCD Menu Must Select MIDI
6
Loading...
