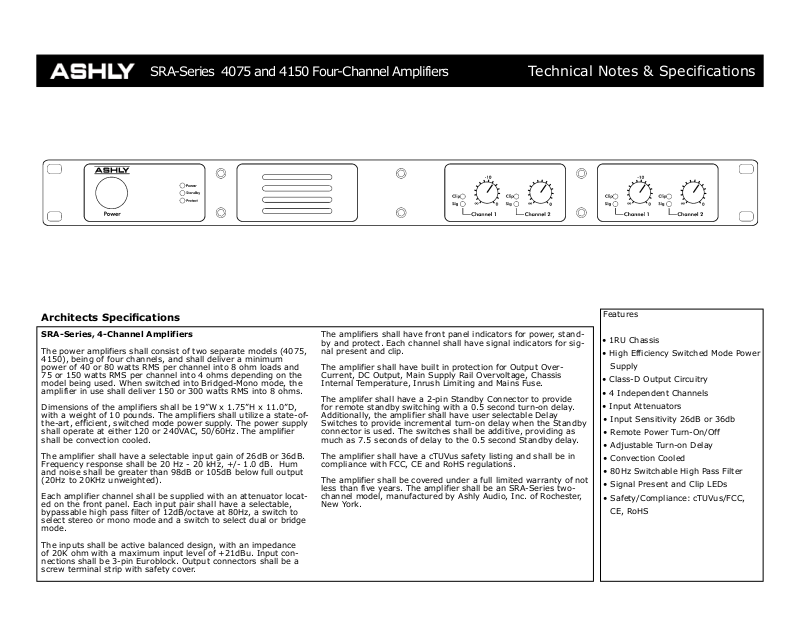

Ashly SRA-4075, SRA-4150 User Manual

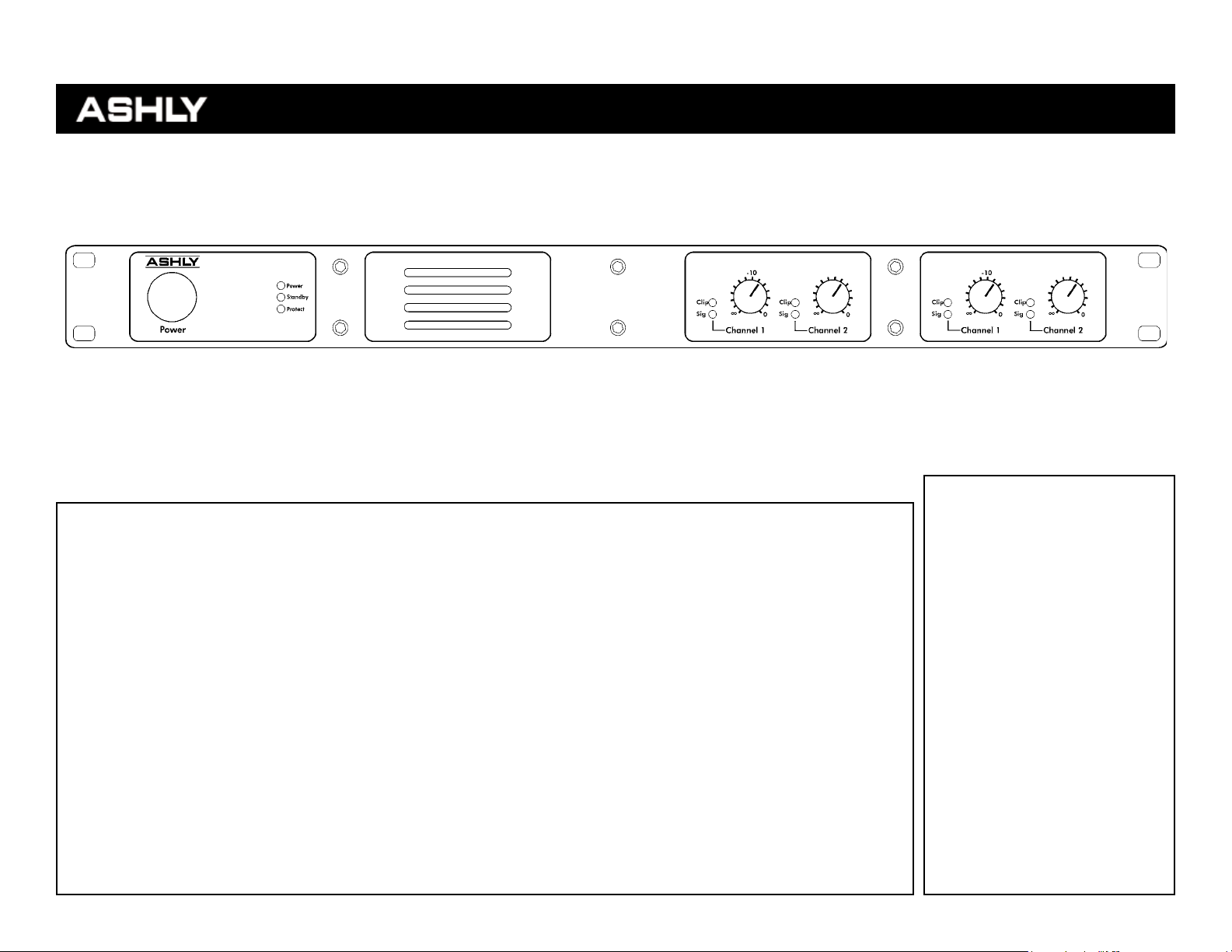

SRA-Series 4075 and 4150 Four-Channel Amplifiers

Technical Notes & Specifications

Architects Specications

SRA-Series, 4-Channel Amplifiers

The power amplifiers shall consist of two separate models (4075,

4150), being of four channels, and shall deliver a minimum
power of 40 or 80 watts RMS per channel into 8 ohm loads and
75 or 150 watts RMS per channel into 4 ohms depending on the
model being used. When switched into Bridged-Mono mode, the
amplifier in use shall deliver 150 or 300 watts RMS into 8 ohms.

Dimensions of the amplifiers shall be 19”W x 1.75”H x 11.0”D,
with a weight of 10 pounds. The amplifiers shall utilize a state-of­the-art, efficient, switched mode power supply. The power supply
shall operate at either 120 or 240VAC, 50/60Hz. The amplifier
shall be convection cooled.

The amplifier shall have a selectable input gain of 26dB or 36dB.
Frequency response shall be 20 Hz - 20 kHz, +/- 1.0 dB. Hum
and noise shall be greater than 98dB or 105dB below full output
(20Hz to 20KHz unweighted).

Each amplifier channel shall be supplied with an attenuator locat­ed on the front panel. Each input pair shall have a selectable,
bypassable high pass filter of 12dB/octave at 80Hz, a switch to
select stereo or mono mode and a switch to select dual or bridge
mode.

The inputs shall be active balanced design, with an impedance
of 20K ohm with a maximum input level of +21dBu. Input con­nections shall be 3-pin Euroblock. Output connectors shall be a
screw terminal strip with safety cover.

The amplifiers shall have front panel indicators for power, stand­by and protect. Each channel shall have signal indicators for sig­nal present and clip.

The amplifier shall have built in protection for Output Over­Current, DC Output, Main Supply Rail Overvoltage, Chassis
Internal Temperature, Inrush Limiting and Mains Fuse.

The amplifer shall have a 2-pin Standby Connector to provide
for remote standby switching with a 0.5 second turn-on delay.
Additionally, the amplifier shall have user selectable Delay
Switches to provide incremental turn-on delay when the Standby
connector is used. The switches shall be additive, providing as
much as 7.5 seconds of delay to the 0.5 second Standby delay.

The amplifier shall have a cTUVus safety listing and shall be in
compliance with FCC, CE and RoHS regulations.

The amplifier shall be covered under a full limited warranty of not
less than five years. The amplifier shall be an SRA-Series two­channel model, manufactured by Ashly Audio, Inc. of Rochester,
New York.

Features

• 1RU Chassis

• High Efficiency Switched Mode Power

Supply

• Class-D Output Circuitry

• 4 Independent Channels

• Input Attenuators

• Input Sensitivity 26dB or 36db

• Remote Power Turn-On/Off

• Adjustable Turn-on Delay

• Convection Cooled

• 80Hz Switchable High Pass Filter

• Signal Present and Clip LEDs

• Safety/Compliance: cTUVus/FCC,

CE, RoHS

SRA-Series Specications 4075 4150

Power Output

Stereo Mode, both channels driven

8 ohms, 20 Hz - 20 kHz, 1% THD 4 x 40W 4 x 80W

4 ohms, 20 Hz - 20 kHz, 1% THD 4 x 75W 4 x 150W

Bridged Mono Mode

8 ohms, 20 Hz - 20 kHz, 1% THD 2 x 150W 2 x 300W

Power Consumption (Pink Noise @ 4 Ohm)

1/8th Output

1/8th Draw

1/8th Current

Idle Power

Idle Current

Signal to Noise 20 Hz-20 kHz, unweighted

Output Circuitry Class D D

Power Cable Connector 3-Prong IEC 3-Prong IEC

Weight lbs./ kg. 10/4.54 10/4.54

37.5W 75.0W

74.0W 125W

1.24A 1.98A

30.0W 36.0W

0.52A 0.62A

>98 dB >105 dB

SRA-Series Specications (All)

Frequency Response 20 Hz - 20 kHz, +/- 1.0 dB

Damping Factor - 8 ohm load, < 1 kHz > 200

Input Impedance 20 kΩ, balanced

Maximum Input Level: +21 dBu

Cooling convection

Front Panel Indicators (Per channel) Clip & Signal

Overall

Attenuators Per channel: front panel

Input Connectors, each channel 3- Pin Euroblock

Output connectors, each channel Screw terminals

Amplier Protection

Dimensions

power, standby, protect

Output Overcurent, DC Output, Mail Supply Rail Overvoltage
Chassis Temperature, Inrush Limiting, Mains Fuse

19”W x 1.75”H x 11.0”D (483mmW x 44.5mmH x 279.4mmD)

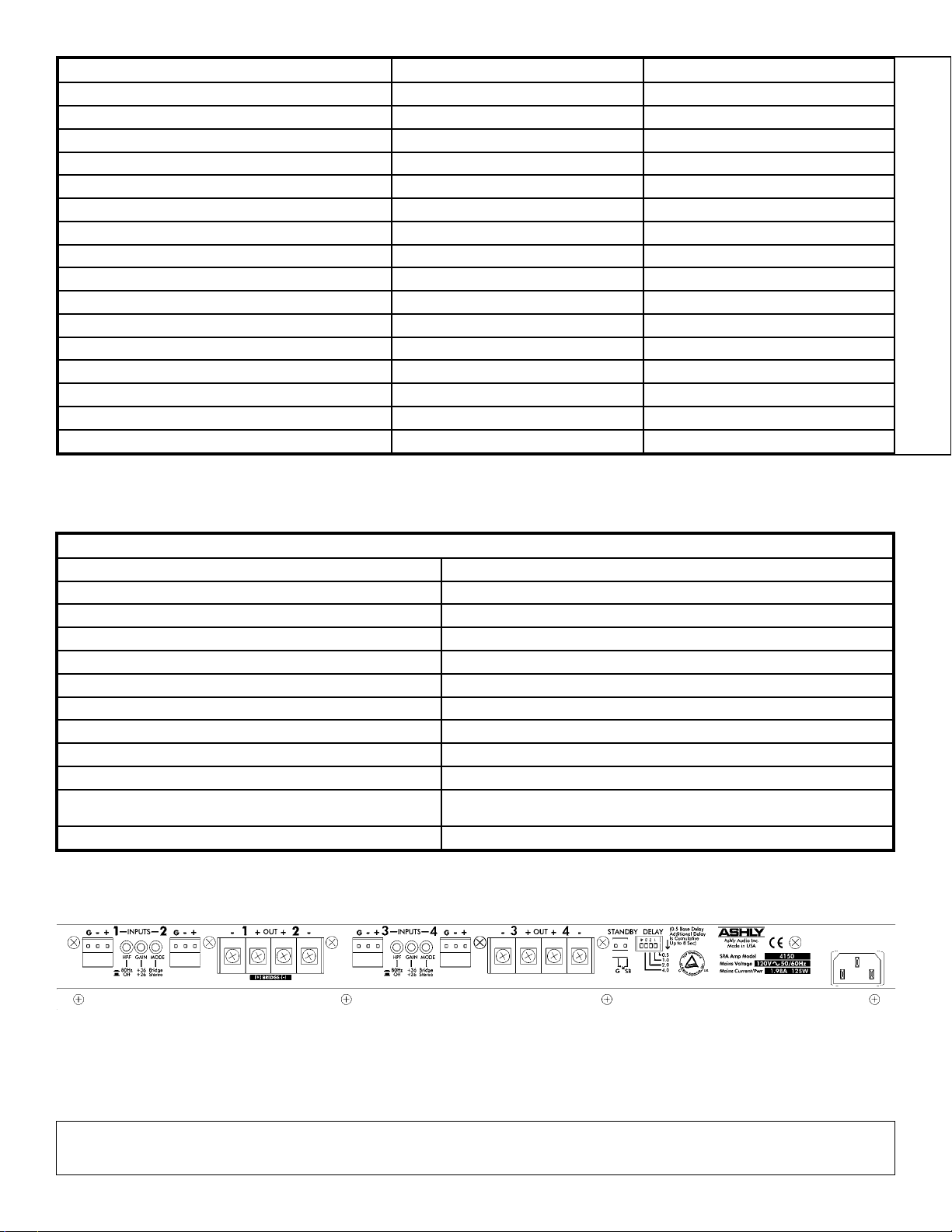

Rear Panel

Ashly manufactures a complete and comprehensive line of Analog and Digital Signal Processors, Power

Amplifiers, Mixers, and Amplifier Input Options. Please call, write or visit our web site for information on

any of these Ashly Products.
