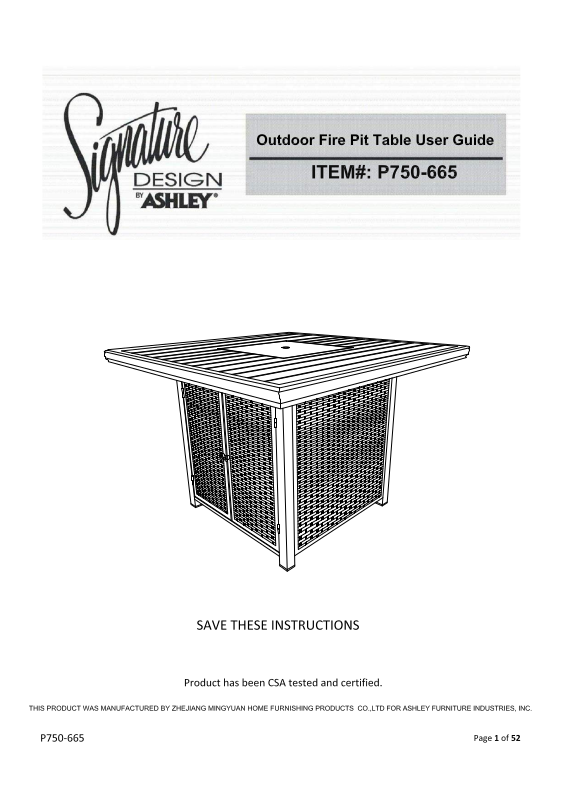

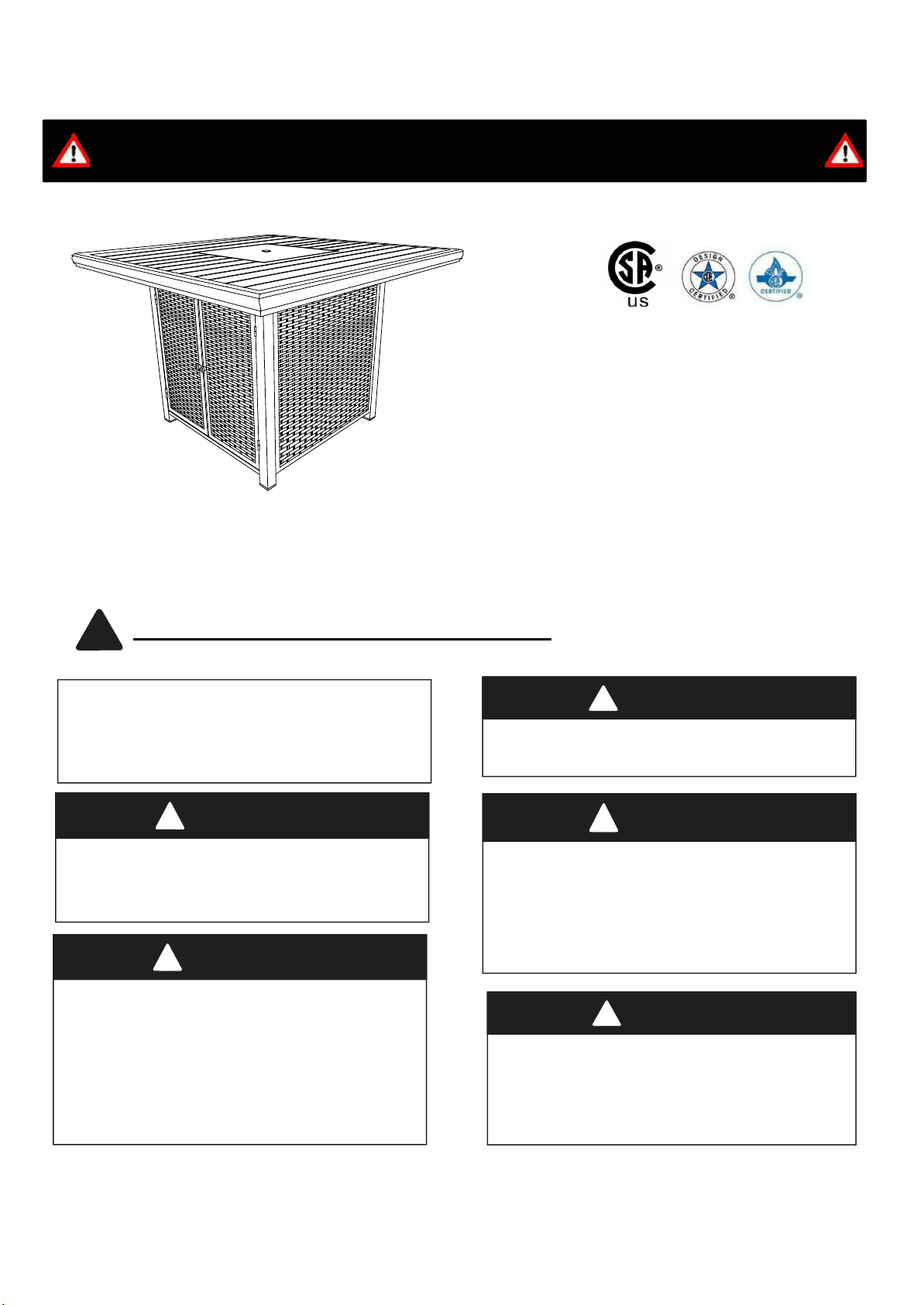

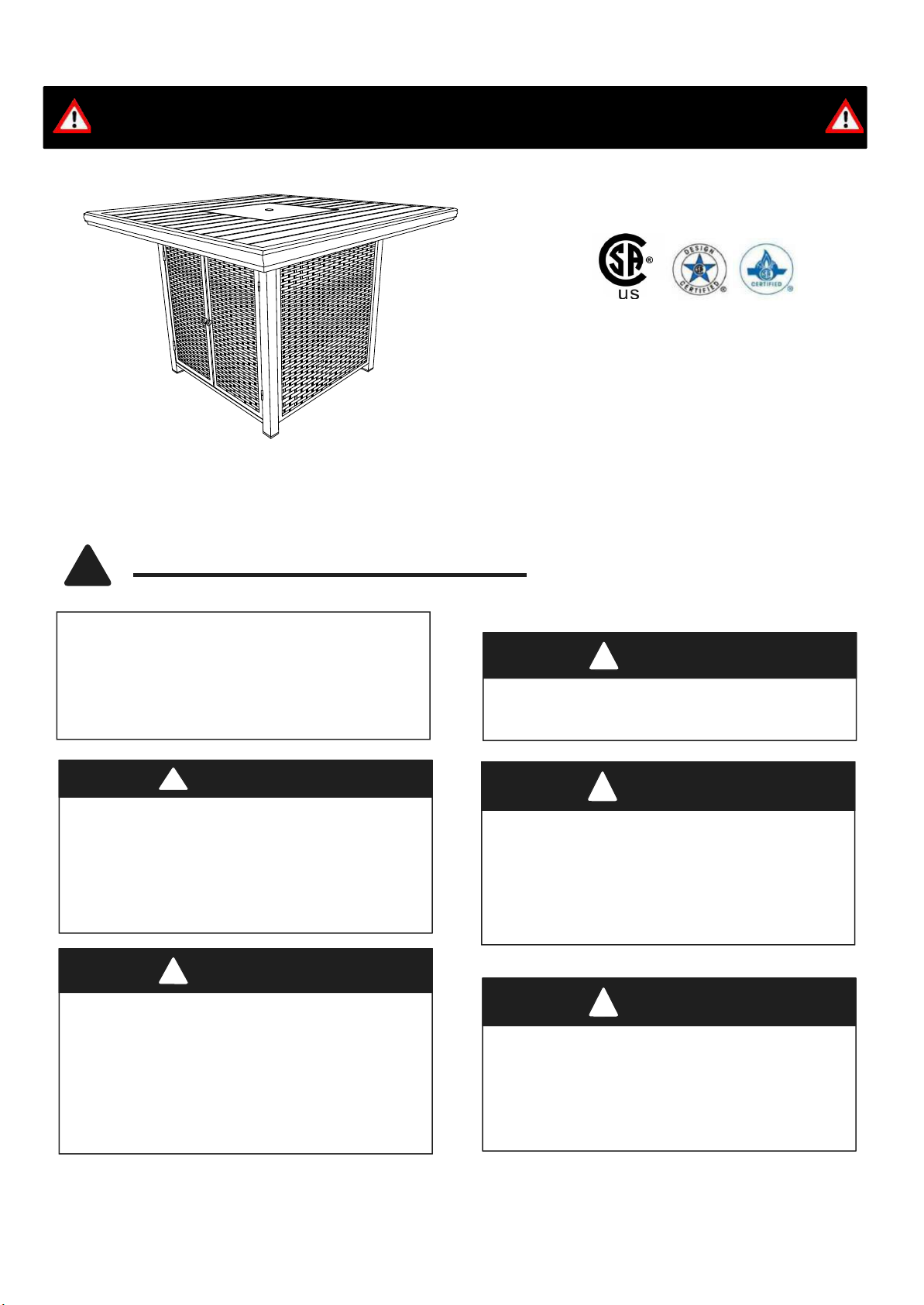

Ashley P750665 Assembly Guide
IMPORTANT, FAILURETO CAREFULLY READ, UNDERSTAND AND FOLLOW EVERY PART
OR DEATH
ASSEMBLYINSTRUCTIONS
!
DANGER
DANGER indicates an imminently hazardous situatio n
which. If not avoided. Will result in death or serious injury.
FOR YOUR SAFETY - if you s mell gas;
1. Shut off gas to the
appliance.
2. Extinguish any open flame.
department.
!
OF THIS DOCUMENT MAY RESULT IN PROPERTY DAMAGE, SERIOUS BODILY INJURY
Installer:Leave theseinstructionswith consumer.
C S A Model P750-665
Consumer:Keep theseinstructionsfor futurereference
SAFETY INFORM ATION
FOR USE WITH 20LB (9KG) PROPANE CYLINDER
WITH TYPE 1 CONNECTION OR FOR USE WITH
NATURAL GAS AFTER CONVERSION KIT IS
INSTALLED (MUST BE PROFESSIONALLY
INSTALLED) ALSO THE LP REGULATOR MUST BE
SUPPLIED BY THE MANUFACTURER.
WARNING
!
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be stored
in the vicinity of this or any other appliance.
WARNING
!
USE FACTORY APPROVED REPLACEMENT PARTS
AND ACCESSORIES ONLY. USE OF UNAPPROVED
PART OR ACCESSORIES CAN VOID THE WARRANTY
ON THIS PRODUCT AND RESULT IN AHAZARDOUS\
CONDITION. PLEASE CONTACT US FOR
INFORMATION REGARDING REPLACEMNT HOSES,
THERMOCOUPLES, ELECTRODES, IGNITION
MODULES, LAVA ROCKS, LOG S, FIRE ICE, ETC.
.
DANGER
!
Failure to comply with the precautions and instru ctions
provided with this fire pit can result in death, serious
bodily injury and property loss or damage from
hazards of fire, explosion, burn, asphyxiation, and/or
carbon monoxide poisoning. Only persons who can
understand and follow the instr uctions should use or
service this fire pit.
! DANGER
3. If odor continues. Keep away from the appliance
and immediately call you gas supplier or fire
P750-665
Page 2 of 52
SAFETY INFOR MATION
We cannot foresee every use which may be made of
our fire pit.
Check with your local fire safety authority if you have
questions about fire pit use.
Keep solid combustibles, such as building materials,
paper of cardboard, a safe distance away from the
fire pit as recommended by the instruction s.
!
DANGER
CARBON MONOXIDE HAZARD
For outdoor use only.
your life.
EXPLOSION - FIRE HAZARD
WARNING indicates an imminently hazardous situation
which, if not avoided, will result in death or serious i njury.
!
DANGER
!
EXPLOSION-FIRE HAZARD
Provide adequate c learances around air openings
into the combustion chamber.
Never use the fire pit in spaces which do or may
contain volatile or airborne combustibles, or pro ducts
such as gasoline, solvents, paint thinner, dust particles
or unknown chemicals.
During operation, this product can be a source of
ignition. Keep fire pit area clear and free from
combustible materials, gasoline, paint thinner, cleaning
solvents and other flam mable vapors and liquids. DO
no
t use fire pit in areas with high dust content.
Minimum fire pit cl earances from combustible
materials: two (2) feet from the sides &two (2)
feet from the rear, 6 feet from ceiling.
DANGER
!
Never store propane near high heat, open flames,
pilot lights, direct sunlight, other ignition sources or
where temperatures exceed 120 degrees F (49°C).
Propane vapors are heavier than air and can
accumulate in low places. If you smell gas, leave the
area immediately.
Never install or remove propane cylinder while fire pit is
lighted, near flame, pilot lights, other ignition sources
o r while fire pit is hot to touch.
The fire pit is red hot during use and can ignite
flammabl
at least 2 feet from sides & 2 feet from rear, 6 feet
from ceiling. Keep gasoline and other flammable liquids
and vapors well away from fire pit.
Store the propane cylinder outdoors in a well- ventilated
space out of reach of children. Never store the propane
cylinder in an enclosed area (house, garage, etc.). If fire
pit is to be stored indoors, disconnect the propane
cylinder for outdoor storage and allow the fire pit to fully
cool down
es too close to the burner. Keep flammables
prior to move indoors.
WARNING
!
This fire pit is a combustion appliance. All combustion
appliances produce carbon monoxide (CO) during the
combustion process. This product is designed to produce
extremely minute, non-hazardous amounts of CO if used
and maintained in accordance with all warnings and
instructions. DO not block air flow into or out of the fire pit.
Carbon monoxide (CO) poisoning produces flu-like
symptoms, watery eyes, headaches, dizziness, fatigue
and possibly death. You can't see it
smell it. It’s an invisible killer. If these symptoms are
present during operation of this product get fresh air
immediately!
Never use inside house, or other unventilated or
enclosed areas.
This fire pit consumes air (oxygen). Do not use in
unventilated or enclosed areas to avoid endangering
WARNING
!
WARNING
!
Do not store or use gasoline or other flammable vapors
and liquids in the vici nity of this or any other appliance.
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
WARNING:
!
DANGER
!
CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has
no odor. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent, car or home.
and you can't
For Outdoor Use Onl y
Other standards govern the use of fuel gases and heat
producing products for specific uses. Your local
authorities can advise you about these.
If no local codes exist, follow National Fuel Gas Code,
ANSI Z223. 1. In Canada, installation must conform to
local codes. If no local codes exist, f ollow the current
National standards of CANADA CAN/CGA-B 149.2.
P750-665
WARNING
!
Improper installation, adj ustment alteration, service or
maintenance can cause property damage, injury or
death. Read the installation, operating and
maintenance instructions thoroughly before installing
or servicing this equipment.
Page 3 of 52
TABLE OF CONTENTS
1. Important Safety Information
............................................................
5
2. Information about Propane
...............................................................
7
3. Specifications
.........................................................................................
7

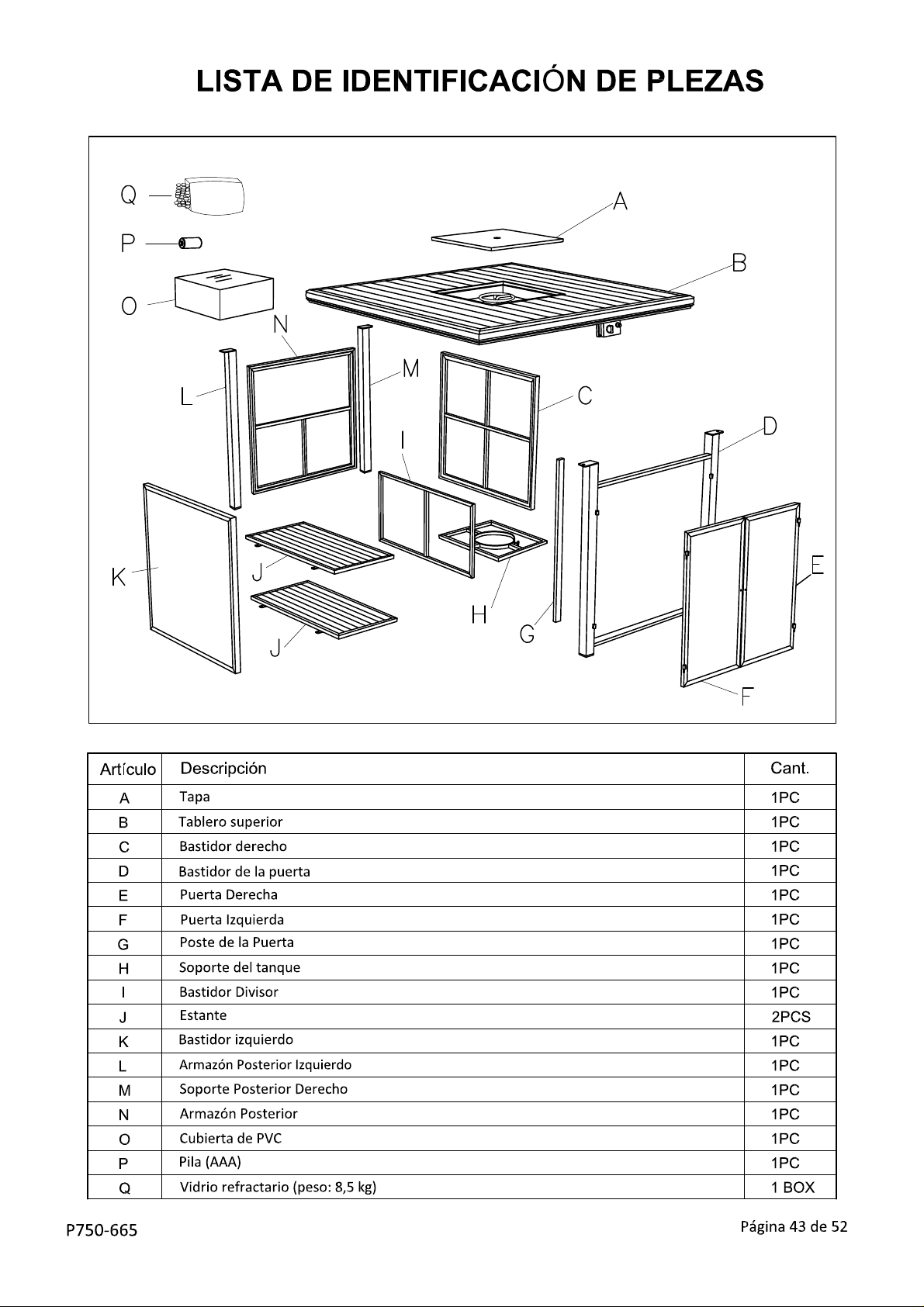

4. Parts List
.................................................................................................
8

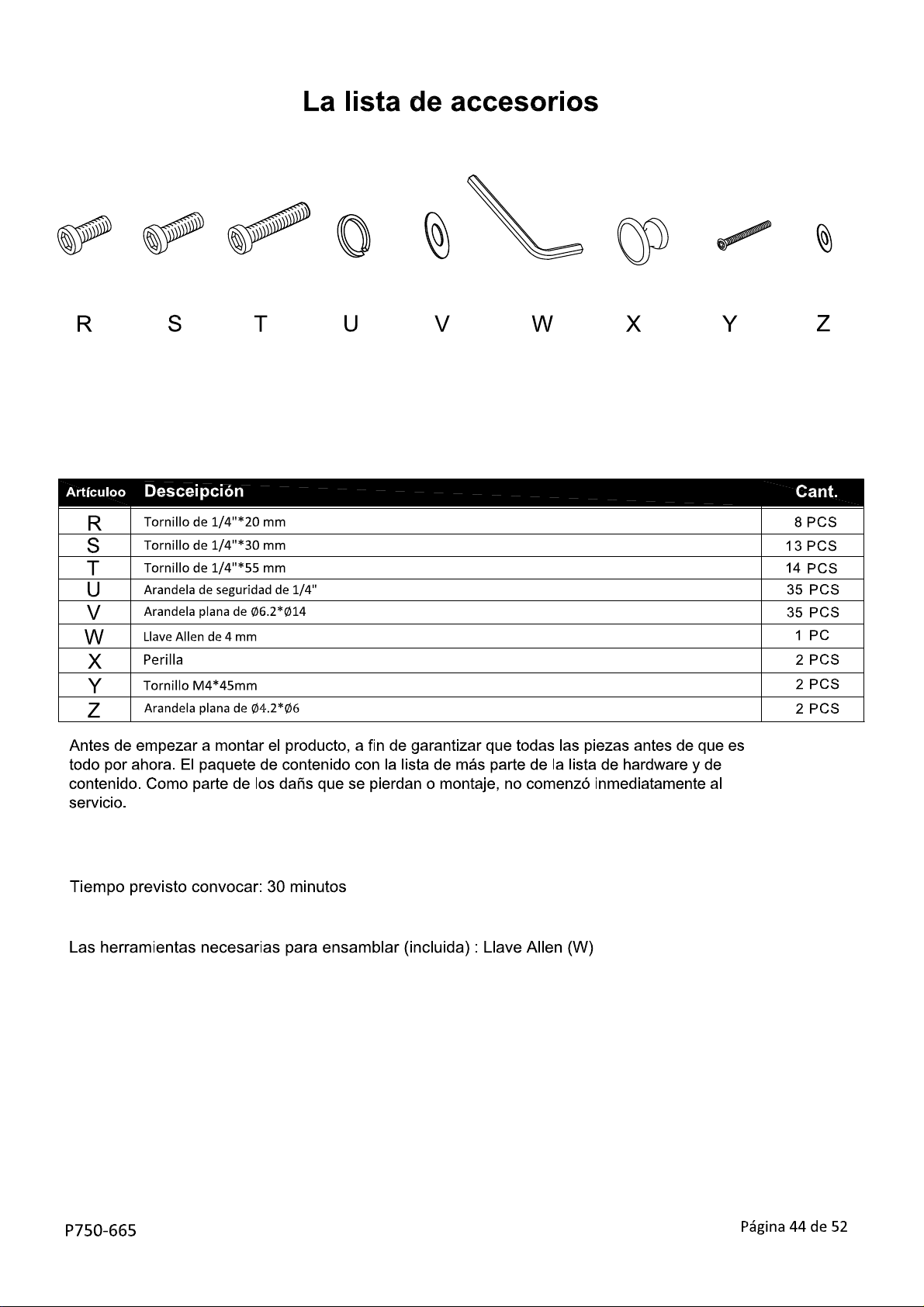

5. Hardware List
..........................................................................................
9

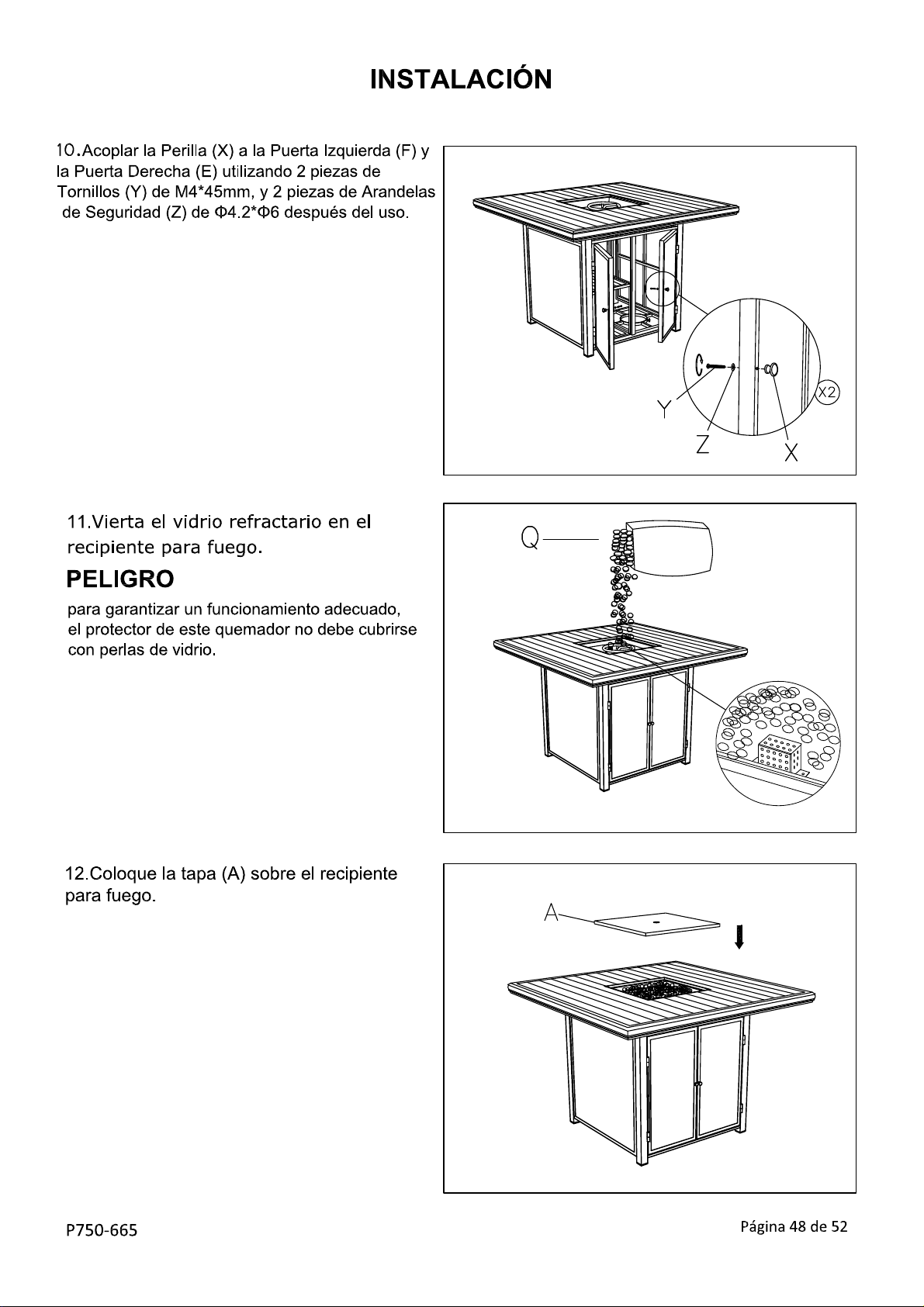

6. Installation
..............................................................................................
10
7.
8. Lighting Instructions
.............................................................................
16
9. Maintenance
........................................................................................
17
10. Troubleshooting Guide
.....................................................................
17
Natural Gas Conversion ..........................................................................15
P750-665
Page 4 of 52
2
IMPORTANT SAFETY INFORMATION
The appliance and its appliance main gas valve must be disconnected from the gas supply piping system
during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa).
The appliance must be isolated from the gas supply piping system by closing its equipment shutoff valve
during any pressure testing of the gas supply system at test pressure equal to or less than 1/2 psi (3.5kPa).
The appliance area must be kept clear and free from combustible materials, gasoline and other flammable
vapors and liquids.
use and can cause seriousburns.
The installation must conform with local codes or, in the absence of all applicable local codes, including,
without limitation, with the National Fuel Gas Code, ANSI Z223.1/NFP A 54; International Fuel Gas Code;
Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code, B149.2, as
applicable.
Do not use this appliance if any part has been damaged or under water. Immediately call a qualified service
technician to inspect. Immediately call a qualified service technician to inspect the appliance and to replace
any part of the control system and any gas control which has been damaged or under water.
Do not sit or stand on appliance even when not in use and do not touch appliance
while in use or for at least 45 minutes after use as the appliance is very hot during
The appliance will remain hot for up to 45 minutes after use. Do not touch or move
appliance for at least 45 minutes after it has been completely shut off.
Children and adults should be alerted to the hazards of high surface temperatures
and kept at a safe distance to avoid burns or clothing ignition.
All children should be kept away from the appliance and should not be allowed near the
product unlesscarefully supervisedby an adult.
Clothing, any other object or flammable material should not be hung from the
appliance, placed on, near or underneath the appliance
Any screen or guard removed for servicing an appliance must be replaced prior
to operating the appliance.
Keep children away from this appliance. This appliance contains small parts that
can be swallowed by children resulting in serious bodily injury or death.
.
Installation and repair should be done by a qualified service person. The appliance
should be inspected before use and at least annually by a professional service person. More frequent
cleaning may be required as necessary. It is imperative that the control compartments, burners and
circulating air passageways of the appliance be kept clean.
Do NOT burn solid fuels in this gas fireplace.
Do NOT ignite the burner before pouring all of the burner media (lava rock or fire glass) into the burner pan.
The media must be evenly distributed over the burner.
If during initial firing
fire glass) may pop and hit someone on the face or eyes
Do NOT ignite or use the fire pit if the burner media (lava rock or fire glass) are wet. Ensure the burner media are
completely dry before igniting as intense heat could cause the media to crack and pop.
on the appliance when not in use in order to avoid water contacting the media.
P750-665
of fire pit, please stay away from the fire pit for 20 minutes as fire media (lava rock or
Always place the cover
Page 5 of 5
2
IMPORTANT SAFETY INFORMATION
CAUTION: The propane gas pressure regulator provided with this appliance must be used. This
regulator is set for an outlet pressure of 11 inches water column.
1 (800) 477-2222 Customer Service.
It is UNSAFE to use this product for any purpose except as described in this document including, without
limitation, cooking.
This outdoor gas appliance is not intended to be installed in or on recreationalvehicles and/or boats.
Before each use of this gas appliance, open the LP (Liquid Propane) Tank Drawer and inspect the LP
Hose. If there is evidence of excessive abrasion or wear, or the hose is cut, it must be replaced prior to
the gas appliance being put into operation. Use only the replacement hose assembly specified in this
manual. Inspect the burner before each use of the appliance. The burner m
appliance being put into operation if it is evident that the burner is damaged. Use only the burner listed in
these instructions.
Keep the fuel supply hose away from any heated surfaces.
If you have any questions regarding the use of this unit, or find that your fire pit unit needs service, please
contact Ashley Furniture Industries at the below number.
ust be replaced prior to the
P750-665
Page 6 of 5
2
IMPORTANT SAFETY INFORMATION ABOUT
The LP-gas supply cylinder to be used must be constructed and marked in accordance with
the specification for LP- gas cylinders of the U.S. Department of Transportation (DOT)
or the National Standard of Canada, CAN/CSA-B339, Cylinder, Sphere and Tubes for
the Transportation of Dangerous Goods.
The cylinder supply system must be arranged for vapor withdrawal.
The cylinder used must include a collar to protect the cylinder valve.
This appliance shall be used only outdoors in a well-ventilated space and
shall not be used in a building, garage or any other enclosed space.
When this appliance is not is use, the gas must be turned off at the
INPUT
55,000 Btu/hr
PROPANE (LP) GAS

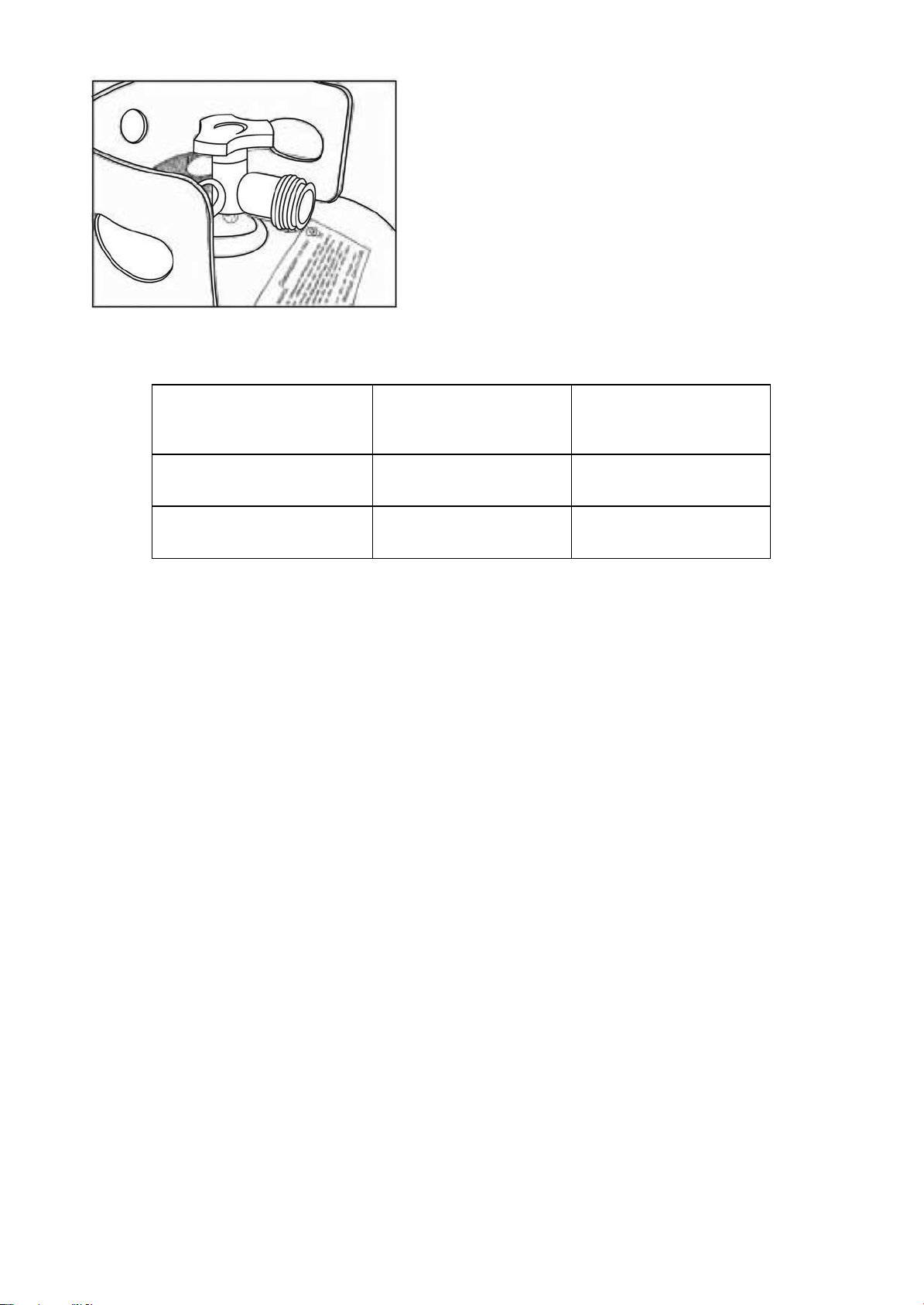

A self-contained LP-gas cylinder for use with this appliance must have a capacity of 20 lbs.
and must be equipped with a Type 1 connector and an OPD (overfill protection device).

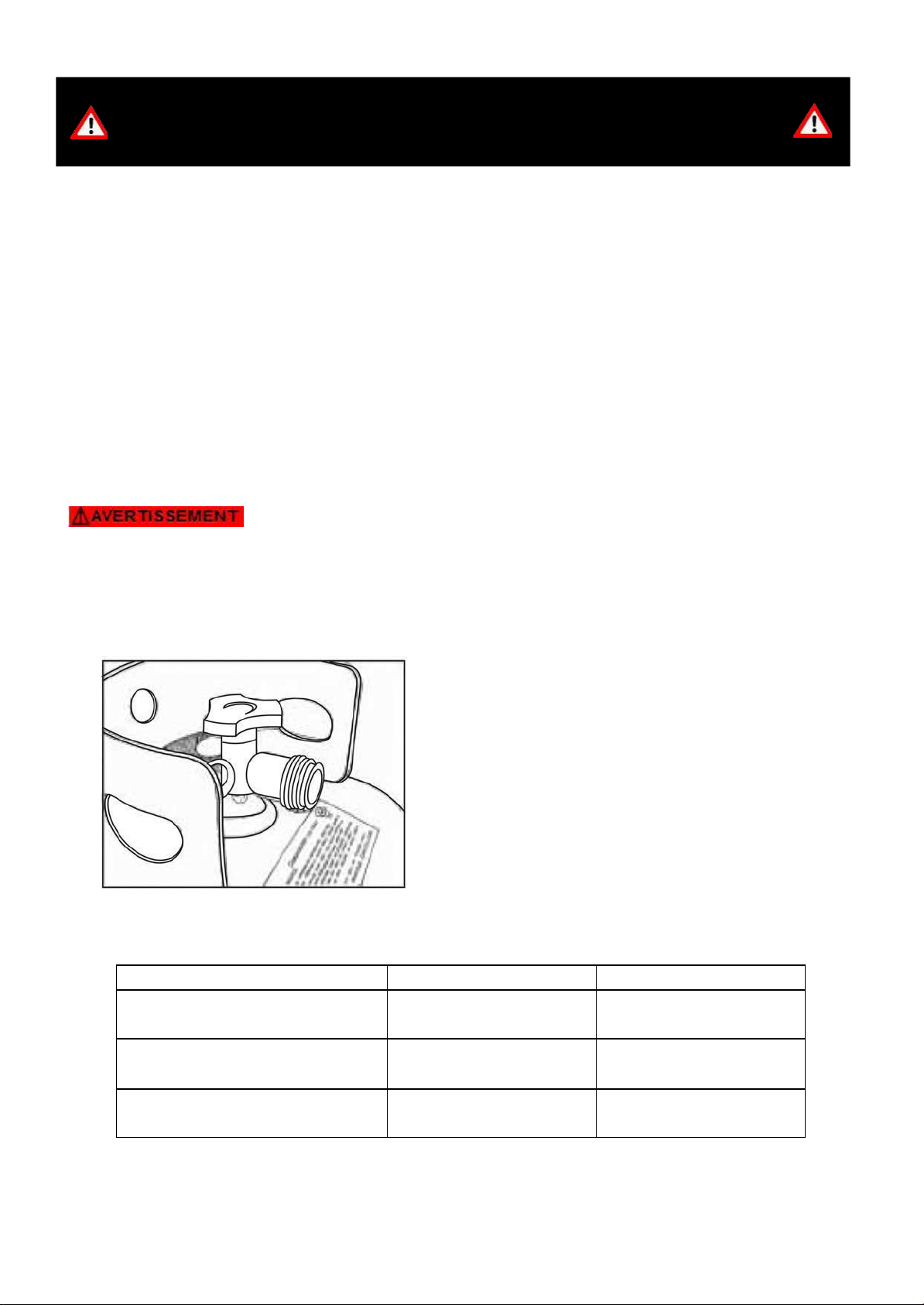

See Figure 1.
supply cylinder.
Storage of this appliance indoors is permissible only if the
cylinder is disconnected and removed from the appliance.
Cylinders must be stored outdoors in a well-ventilated area out of
the reach of children. Disconnected cylinders must have threaded valve plugs tightly
installed and must not be stored in a building, garage or any other enclosed areas, storing
cylinders indoors or in poorly ventilated space outdoors can result in serious bodily
injury and/or death.
CSA (Canadian Standards Association) certified to ANSI Z21.97•CSA 2.41-2016
“Outdoor Decorative Gas Appliances”.
Figure 1
SPECIFICATIONS
Propane Regulator
Pressure
Natural Gas Minimum
Inlet Pressure
Clearances to
combustible surfaces
P750-665
11 inches water column
7 inches water column
Sides: 24in. / 61cm Top: 72 in. / 183 cm
Page7of 5
Prior to turning gas on and attempting to light the appliance, make sure the appliance is
outside, in a well ventilated area and free of any debris and is not in contact with or near any
people, animals, materials or structures. Failure to adhere to the above instruction may result
in property damage, serious bodily injury or death.
LIGHTING INSTRUCTIONS
To Light
1. Read instructions before lighting.
2. Control knob must be in the “OFF” position.
3. Connect propane cylinder (See Manual), open cylindervalve.
4. Push and turn control knob counter clockwise to “LOW”.
5. Press the igniter button repeatedly to lightburner.
6. Release control knob after 45 seconds.
7. If ignition does not occur in 45 seconds, push and turn burner control knob to “OFF”, wait 5
minutes, fan with newspaper or magazine, and repeat lightingprocedure.
8. If igniter does not light burner, use a long match or long butanelighter.
9. After burner ignites, adjust flame to desired flame with the c
ontrol knob.
To E nguish
1. Turn and push the control knob clockwise to the OFFposition.
2. Close cylinder valve, disconnect propane cylinder.
P750-665
Page 16 of 52
Loading...
