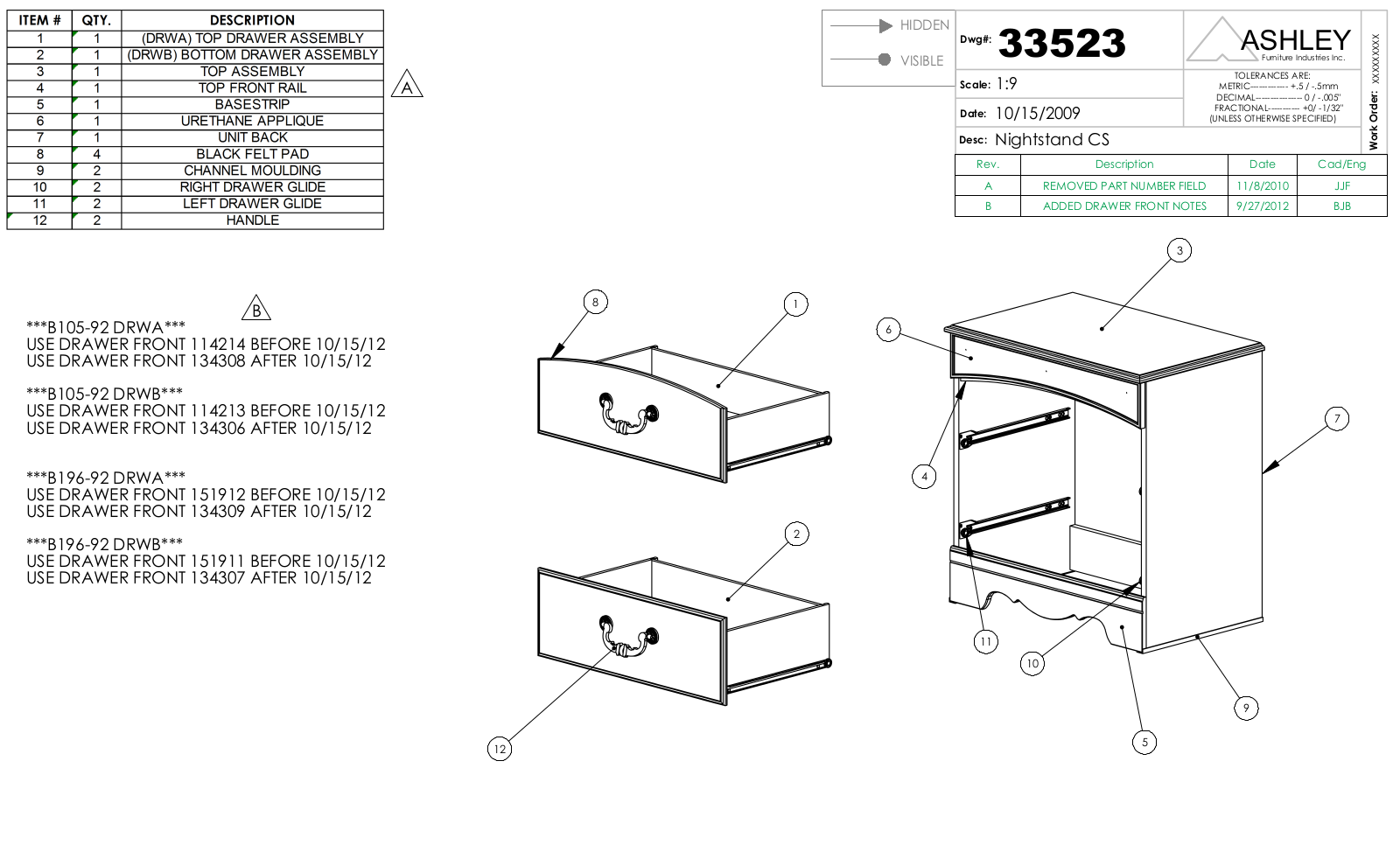

Ashley B19692 Part List

A

HIDDEN

VISIBLE

Dwg#:

33523

Scale:

1:9

Date:

10/15/2009

Desc:

Nightstand CS

Rev.

A

B

Description

REMOVED PART NUMBER FIELD

ADDED DRAWER FRONT NOTES

3

ASHLEY

Furniture Industries Inc.

TOLERANCES ARE:

METRIC------------- +.5 / -.5mm

DECIMAL---------------- 0 / -.005"

FRACTIONAL----------- +0/ -1/32"

(UNLESS OTHERWISE SPECIFIED)

Date

11/8/2010

9/27/2012

Cad/Eng

JJF

BJB

XXXXXXXXX

Work Order:

B
***B105-92 DRWA***
USE DRAWER FRONT 114214 BEFORE 10/15/12
USE DRAWER FRONT 134308 AFTER 10/15/12

***B105-92 DRWB***
USE DRAWER FRONT 114213 BEFORE 10/15/12
USE DRAWER FRONT 134306 AFTER 10/15/12

***B196-92 DRWA***
USE DRAWER FRONT 151912 BEFORE 10/15/12
USE DRAWER FRONT 134309 AFTER 10/15/12

***B196-92 DRWB***
USE DRAWER FRONT 151911 BEFORE 10/15/12
USE DRAWER FRONT 134307 AFTER 10/15/12

8

1

6

7

4

2

11

10

12

9

5
